EN
Heki2 Explanation of symbols
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1Explanationofsymbols...........................................3
2Safetyandinstallationinstructions........ . . . . . . . . . . . . . . . . . . . . . . . . . .4
3Scopeofdelivery...............................................5
4Optionalextras.................................................5
5Intendeduse...................................................5
6Instructionsbeforeinstallation.....................................6
7InstallingtheHeki2..............................................7
8UsingtheHeki2................................................9
9Troubleshooting...............................................11
10 Maintaining and cleaning the Heki2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
11 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
1 Explanation of symbols
A
I
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
Heki2-IO-16s.book Seite 3 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Safety and installation instructions Heki2
4
2 Safety and installation instructions
Pleaseobserve theprescribed safety instructionsand stipulationsfromthe
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
I
Please note the following:
•If faults or disturbances occur, consult a specialist workshop immediately.
•Risk of breakage! Do not tread on the glass dome.
•Before starting your journey, check that the roof window is locked properly.
•Before starting your journey, check the roof window for damage (such as tension
cracks in the acrylic glass).
•Do not open the roof window while driving.
•Do not open the window in strong wind or rain.
•Close the roof window if it rains or snows.
•Do not leave the vehicle with the roof window open.
•Keep the roof window free of snow and ice.
NOTE
If you do not have sufficient technical knowledge for installing the
components in vehicles, you should have a specialist install the roof
window in your vehicle.
Heki2-IO-16s.book Seite 4 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Heki2 Scope of delivery
5
3Scopeofdelivery
4Optionalextras
5 Intended use
The Heki2 roof light (item no. 9104100235) is suitable for installing in caravans.
The maximum permissible speed is 100 km/h, as noise or damage could occur
depending on the vehicle design or installation position. The spoilers available as an
optional extra enable a speed of 130 km/h.
No. in
fig. 1Quantity Designation
1 1 Outer frame with glass dome
2 1 Inner frame
316
16
Fastening screw ∅4 x 25 mm
Fastening screw ∅2.5 x 12 mm
4 16 Mounting bracket
(for roof thickness 25 – 32 mm)
5 9 Ventilation grille
Designation Item no.
Spoiler, 800 mm 9104100236
Spoiler, 1100 mm 9104100237
SunShade roof hood cover 9103500010
Inner frame with lamps 9104100241
Heki2-IO-16s.book Seite 5 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Instructions before installation Heki2
6
6 Instructions before installation
➤Before installation, check the roof thickness of your vehicle. Consult the vehicle
manufacturer if you have any questions.
➤When choosing the installation location, observe the following:
– Adjoining components (roof rack or attachment and reinforcing parts), cables
and cabinets in the vehicle interior must not get damaged when sawing the
hole.
– Sufficient space needs to be available for installing the inner and outer frames.
– Only fit the roof light on flat and parallel interior and exterior roof areas with a
maximum inclination of 15° to the horizontal.
–Youmayuseanexistingroofholeprovidedtherooflightfitsintoit.
– You can fit the roof light sideways (hinge-side at front in direction of travel) or
lengthways (hinge-side on left or right in direction of travel).
6.1 Pressing out the hole
See fig. 2
6.2 Using the reinforcing rails
Supplementary to fig. 3
➤Before installation, check whether the roof hole needs reinforcing.
➤Remove the foam according to the width of your reinforcing rail (not in scope of
delivery) (A).
➤Fit the reinforcing rails (B).
Heki2-IO-16s.book Seite 6 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Heki2 Installing the Heki2
7
7 Installing the Heki2
Supplementary to fig. 4
The scope of delivery includes a mounting frame, which is suitable for roof thick-
nesses of 25 – 32 mm. For roof thicknesses of 33 – 60 mm, you need to have a
suitable mounting set (see table).
➤Measure your roof thickness W.
➤Choose a suitable mounting set:
See fig. 5
➤Check that the roof light has sufficient space around it (approx. 1 to 2 mm) in the
roof opening.
See fig. 6
➤Clean the roof opening in the mounting area.
See fig. 7
A
➤Seal the mounting frame with a flexible non-hardening sealing compound (e.g.
SikaLastomer-710).
Roof thickness Mounting bracket
colour Screws Item no.
25 – 32 mm Grey ∅4 x 25 mm Included in the
scope of delivery
33 – 39 mm Black ∅4x32mm 9104100245
39 – 46 mm Yellow ∅4x40mm 9104100246
46 – 53 mm Blue ∅4x46mm 9104100247
53 – 60 mm Red ∅4x52mm 9104100248
NOTICE!
Observe the instructions of the sealant manufacturer.
Heki2-IO-16s.book Seite 7 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Installing the Heki2 Heki2
8
See fig. 8
➤Check the direction of travel when installing.
You can fit the roof light sideways (hinge-side at front in direction of travel) or
lengthways (hinge-side on left or right in direction of travel).
➤Place the outer frame in the middle of the roof opening.
➤Press the outer frame in the roof slightly so that the packing compound spreads
out.
See fig. 9
➤Place the 16 mounting supports on the inside of the vehicle all the way into the
recess of the outer frame.
➤Attach the 16 mounting supports using the fastening screws ∅4.
To do this use the large holes in the mounting supports.
➤Tighten the screws 10 minutes after installation.
See fig. 0
➤Place the inner frame on the outer frame and fasten it with the fastening screws
∅2.5 x 12 mm into the 16 mounting supports.
To do this use the small holes in the mounting supports.
Only fasten the screws slightly by hand.
➤Check that the roller blinds can move freely.
If they do not, then loosen the screws slightly.
See fig. a
➤Clip on the ventilation grille (1).
It needs to click in.
➤Remove the protective film from both sides of the acrylic glass.
I
➤After installing, check the roof light works properly.
➤If necessary, enter the new vehicle height and weight in the vehicle documents.
NOTE
If the protective film is exposed to sunlight for too long, it cannot be
taken off without leaving a residue.
Heki2-IO-16s.book Seite 8 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Heki2 Using the Heki2
9
8 Using the Heki2

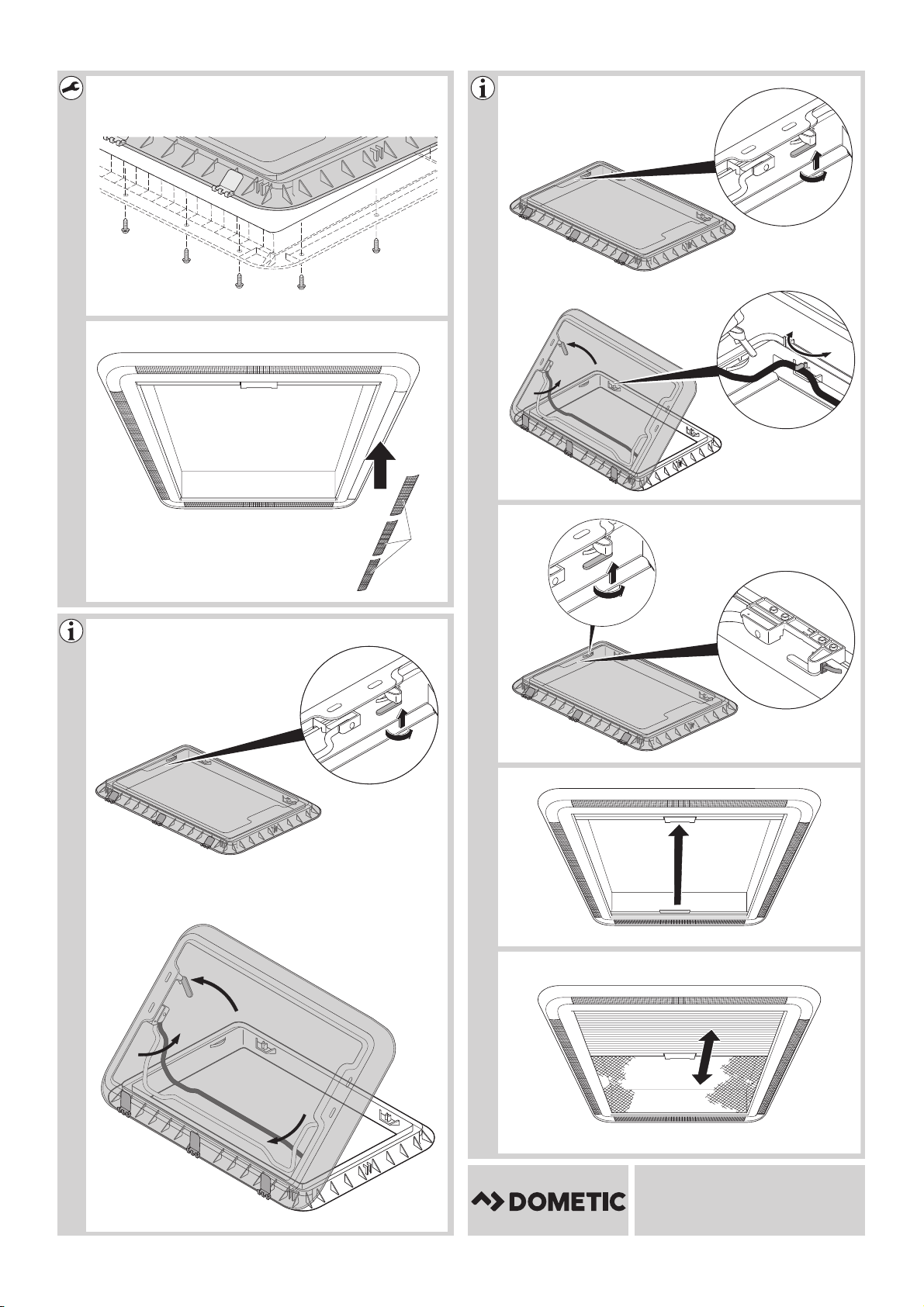

8.1 Opening in the tilting position (fig. b)
➤Press the latches on both rotary bolts and turn them 90° (A).
➤Hold the bracket in the middle and move it out of the original position (B).
➤Tilt it downwards.
➤Push the glass dome upwards (C).
Opening the glass dome is supported by the two gas springs after approx.
150 mm.
➤Swivel the bracket to the glass dome and press it back into the original
position (D).
To close it, follow the instructions in the reverse order.
8.2 Opening in the half-way position (fig. c)
➤Press the latches on both rotary bolts and turn them 90° (A).
➤Hold the bracket in the middle and move it out of the original position (B).
➤Tilt it downwards.
➤Push the glass dome upwards (C).
Opening the glass dome is supported by the two gas springs after approx.
150 mm.
➤Open both the latches (D).
➤Tilt the bracket to the half-way position.
➤Pull the glass dome down until the bracket is lying in the holders.
➤Secure the bracket with both latches.
To close it, follow the instructions in the reverse order.
Heki2-IO-16s.book Seite 9 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Using the Heki2 Heki2
10
8.3 Opening in the continuous ventilation position
(fig. d)
➤Press the latches on both rotary bolts and turn them 90° (A).
➤Push the glass dome upwards with both hands approx. 2 cm on both rotary
bolts.
➤Turn the rotary bolt into the position provided for this (B).
To close it, follow the instructions in the reverse order.
8.4 Closing the roller blind (fig. e)
A
➤Take hold of the recessed grip on the rod and pull it towards the rod on the other
side with the pivot until they both click into one another.
➤Select the required position by moving the two latched-roller blinds at the same
time
8.5 Opening the roller blind (fig. f)
➤Pull the roller blind so that the blind with the recessed grip is completely
extended.
➤Separate the roller blinds by pressing the pivot.
➤Guide the roller blind back using the recessed grip.
Do not let the roller blind spring back.
NOTICE! Risk of damage due to a build-up of heat between the
roller blind and the window.
In strong sunlight, only close the blackout roller blind two thirds of the
way. Open the glass dome into the “continuous ventilation” position.
Heki2-IO-16s.book Seite 10 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Heki2 Troubleshooting
11
9 Troubleshooting
If you are unable to rectify the fault, get in touch with a specialist workshop.
10 Maintaining and cleaning the Heki2
A
➤Clean the roller blind with mild soap and plenty of water.
Fault Possible cause Suggested remedy
The roof light does not
close completely.
Dirt between the glass and
frame
Clean the window.
Remove any leaves and twigs
between the glass and frame.
The flyscreen or black-
out roller blind cannot
be moved.
Dirt on the side guides Clean the side guides.
NOTICE!
Do not use any sharp or hard objects for cleaning since they may
damage the acrylic glass.
Only use cleaning agents that are approved by the manufacturer. Acrylic
glass polish (item no. 9104100242), special polishing cloth (item no.
9104100243) and acrylic glass cleaning agent (item no. 9104100244).
Heki2-IO-16s.book Seite 11 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"

EN
Guarantee Heki2
12
11 Guarantee
The statutory warranty period applies. If the product is defective, please contact the
service partner in your country (addresses on the back on the instruction manual).
Our experts will be happy to help you and will discuss the warranty process with you
in more detail.
12 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
Heki2-IO-16s.book Seite 12 Montag, 28. November 2016 8:56 20
“More information https://www.caravansplus.com.au"
