Dometic PerfectView M70IP User manual

M70IP
LCD Monitor
Installation and Operating Manual . . . . . . 8
LCD-Monitor
Montage- und Bedienungsanleitung . . . 26
Ecran LCD
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . 43
Pantalla LCD
Instrucciones de montaje y de uso . . . . . 61
Monitor LCD
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . 79
Monitor LCD
Istruzioni di montaggio e d’uso . . . . . . . . 96
LCD-monitor
Montagehandleiding en
gebruiksaanwijzing. . . . . . . . . . . . . . . . . 113
LCD-monitor
Monterings- og betjeningsvejledning. . 130
LCD-monitor
Monterings- och bruksanvisning . . . . . . 147
LCD-monitor
Monterings- og bruksanvisning . . . . . . . 164
LCD-monitori
Asennus- ja käyttöohje. . . . . . . . . . . . . . .181
ЖК-монитор
Инструкция по монтажу
и эксплуатации. . . . . . . . . . . . . . . . . . . . 198
Monitor LCD
Instrukcja montażu i obsługi . . . . . . . . . 215
LCD monitor
Návod na montáž a uvedenie
do prevádzky . . . . . . . . . . . . . . . . . . . . . 232
Monitor LCD
Návod k montáži a obsluze . . . . . . . . . . 249
LCD-monitor
Szerelési és használati útmutató . . . . . . 266
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
DRIVING SUPPORT
PERFECTVIEW
M70IP-B-16s.book Seite 1 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP
2
1
4
8
12 13 14
911
56 7
23
10
1
M70IP-B-16s.book Seite 2 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP
3
2 3
4 5
6 7
M70IP-B-16s.book Seite 3 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP
4
8
2
1
3 4
CHCH
CHCH
MODEMODE CALLCALL TIMERTIMER
LANGLANG SYSSYS SELSEL
MENUMENU
MUTEMUTE POWERPOWER
9
M70IP-B-16s.book Seite 4 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP
5
2
1
4
3
5
6
7
9
8
0
M70IP-B-16s.book Seite 5 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP
6
CH
CH
MODEMODE CALLCALL TIMERTIMER
LANGLANG SYSSYS SELSEL
MENUMENU
MUTEMUTE POWERPOWER
123
12 5
11 7
6
10 8
9
4
a
2
1
b
AB
c
M70IP-B-16s.book Seite 6 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP
7
132
9
6
10
5
4
8
7
11
d
M70IP-B-16s.book Seite 7 Dienstag, 12. Juli 2016 6:01 18

Explanation of symbols PerfectView M70IP
EN
8
Please read this instruction manual carefully before installation and first use, and store
it in a safe place. If you pass on the product to another person, hand over this instruc-
tion manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Installing the LCD monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 Using the LCD monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
9 Cleaning and caring for the LCD monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
12 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction cancause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function
of the product.
NOTE
Supplementary information for operating the product.
M70IP-B-16s.book Seite 8 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP Safety and installation instructions
EN
9
2 Safety and installation instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Please observe the prescribed safety instructions and stipulations from the vehicle
manufacturer and service workshops.
!WARNING!
Inadequate supply cable connections could result in short circuits, which could have as
a consequence that:
•Cable fires occur
•The airbag is triggered
•Electronic control devices are damaged
•Electric functions fail (indicators, brake light, horn, ignition, lights)
ANOTICE!
To prevent the risk of short circuits, always disconnect the negative terminal of the vehi-
cle's electrical system before working on it.
If the vehicle has an additional battery, its negative terminal should also be discon-
nected.
Please observe the following instructions:
•When working on the following cables, only use insulated cable lugs, plugs and flat push-on
receptacles:
– 30 (direct supply from positive battery terminal)
– 15 (connected positive terminal, behind the battery)
– 31 (return line from the battery, earth)
– L (indicator lights left)
– R (indicator lights right)
Do not use terminal strips.
•Use a crimping tool to connect the cables.
•When connecting to cable 31 (earth), screw the cable
– to the vehicle's earth bolt with a cable lug and a gear disc or
– to the sheet-metal bodywork with a cable lug and a self-tapping screw.
Ensure that there is a good earth connection.
M70IP-B-16s.book Seite 9 Dienstag, 12. Juli 2016 6:01 18

Safety and installation instructions PerfectView M70IP
EN
10
If you disconnect the negative terminal of the battery, all data stored in the volatile memories will
be lost.
•The following data must be set again, depending on the vehicle equipment options:
–Radiocode
– Vehicle clock
–Timer
– On-board computer
– Seat position
You can find instructions for making these settings in the appropriate operating instructions.
Observe the following installation instructions:
!CAUTION!
•Secure the parts installed in the vehicle in such a way that they cannot become loose
under any circumstances (sudden braking, accidents) and cause injuries to the
occupants of the vehicle.
•Secure any parts of the system covered by the bodywork in such a manner that they
cannot be come loose or damage other parts and cables or impair vehicle functions
(steering, pedals, etc).
•Always follow the safety instructions of the vehicle manufacturer.
Some work (e.g. on retention systems such as the AIRBAG etc.) may only be per-
formed by qualified specialists.
ANOTICE!
•To prevent damage when drilling, make sure there is sufficient space on the other
side for the drill head to come out.
•Deburr all drill holes and treat them with a rust-protection agent.
Observe the following instructions when working with electrical parts:
ANOTICE!
•When testing the voltage in electrical cables, only use a diode test lamp or a voltme-
ter.
Test lamps with an illuminant take up voltages which are too high and which can dam-
age the vehicle's electronic system.
•When making electrical connections, ensure that:
– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp edged ducts without protection.
•Insulate all connections.
•Secure the cables against mechanical wear with cable binders or insulating tape,
for example to existing cables.
M70IP-B-16s.book Seite 10 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP Safety and installation instructions
EN
11
Observe the following instructions when handling the LCD monitor:
!CAUTION!
•People (including children) whose physical, sensory or mental capacities or whose
lack of experience or knowledge prevent them from using this product safely should
not use it without the supervision or instruction of a responsible person.
•Do not open the monitor (fig. 4, page 3).
•Do not submerge the monitor in water (fig. 5, page 3); the monitor is not designed
for underwater use.
•Do not operate the monitor if the housing has been damaged.
ANOTICE!
•Connect it to the correct voltage.
•Do not use the monitor in areas which
– are subjected to direct sunlight,
– are subject to strong temperature fluctuations,
– have high levels of humidity,
– are poorly ventilated,
–aredustyoroily.
•Do not press against the LCD display.
•Do not drop the monitor.
•If you use the monitor in vehicles, the vehicle should be running during operation to
prevent the vehicle battery from discharging.
•The picture quality can be impaired in the vicinity of electromagnetic fields.
For this reason do not mount the monitor near loudspeakers.
Observe the following instructions when handling the remote control:
ANOTICE!
•Do not open the remote control.
•Never submerge the remote control in water; the remote control is not watertight.
•Do not operate the remote control with wet hands.
•Do not drop the remote control.
M70IP-B-16s.book Seite 11 Dienstag, 12. Juli 2016 6:01 18

Scope of delivery PerfectView M70IP
EN
12
3Scopeofdelivery
4 Accessories
Available as accessories (not included in the scope of delivery):
5Intendeduse
The PerfectView M70IP LCD monitor (ref. no. 9600000065) is a monitor primarily intended for use
in vehicles. It can be used to connect up to three cameras (e.g. a reversing video system) or other
video sources.
The LCD monitor is designed for use in all vehicles.

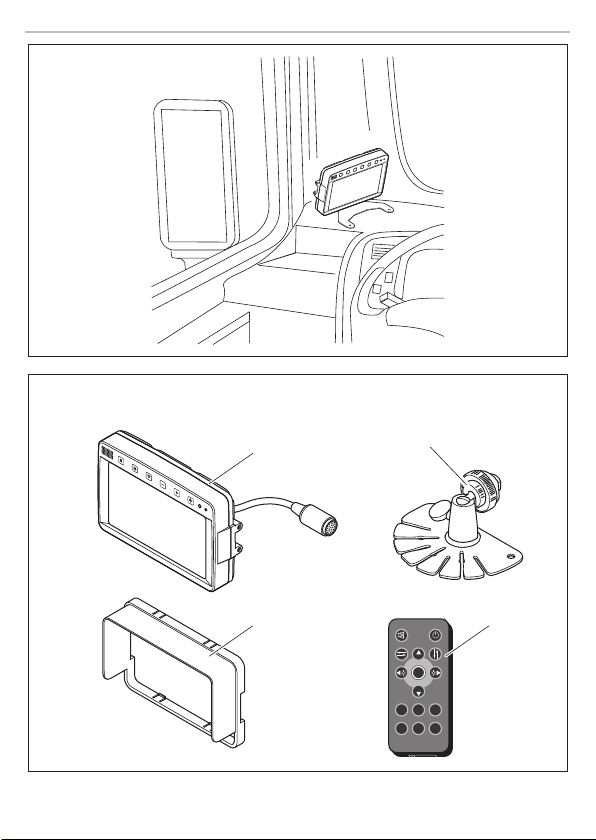

No. in
fig. 9,
page 4
Quantity Description Ref. no.
1 1 Monitor 9600000065
2 1 Monitor bracket 9102200054
3 1 Sun screen 9102200168
4 1 Infrared remote control 9102200169
– 1 Connection cable 9102200170
––Fasteningmaterial –
Description Ref. no.
CAM50 9102000019
CAM60ADR 9600000057
CAM604 9600000041
M70IP-B-16s.book Seite 12 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP Technical description
EN
13
6 Technical description
6.1 Function description
The LCD monitor is a monitor for the connection of cameras (e.g. reversing video systems) or other
video sources (e.g. DVD players). It is possible to switch back and forth between video sources.
The monitor features control cables which allow the cameras to be activated automatically.
The M70IP monitor can operate up to three cameras. Alongside manual controls and control using
control cables, the three cameras can be switched consecutively in automatic mode. The monitor
features a distance indicator in the display which is activated automatically when the reverse gear
is engaged.
The brightness of the monitor adapts automatically to the ambient light.
The M70IP monitor is equipped with a housing protected from water and also withstands water
jets in accordance with IP67.
The monitor can be operated using the control elements on the monitor and the infrared remote
control.

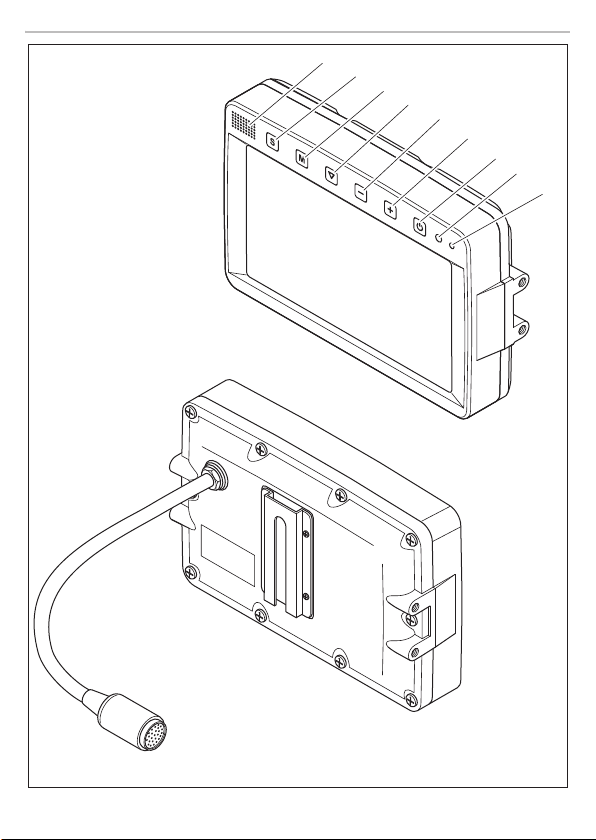

6.2 Control elements
Monitor
The following control elements are located on the monitor:
No. in
fig. 0,
page 5
Label Description
1 – Loudspeaker
2 S Switches between the video sources 1 to 3 (CAM1, CAM2 and
CAM3).
Closes the menu.
M70IP-B-16s.book Seite 13 Dienstag, 12. Juli 2016 6:01 18

Technical description PerfectView M70IP
EN
14
3 M Calls up the menu.
Calls up the parameters to be set.
The parameters are distributed over four screen pages in the fol-
lowing order:
•Brightness
•Contrast
•Colour
•Volume
•Automatic brightness adjustment (“Auto Dim”)
•Set the distance markers (“Scale adjust”)
Options (“Option”)
•Language (“Lang”)
•Distance markers (“Scale”)
•Camera1/Camera2/Camera3 (“CAM1/CAM2/CAM3”)
System
•Video standard (“Color-Sys”): Auto/PAL/NTSC
•Screen background without the camera signal blue/black
(“Blue Back”)
•Horizontal
•Vertical
•Aspect ratio (“Zoom”)
Automatic search (“Auto Scan”)
•Automatic search (“Auto Scan”)
•Scan time (“Scan time”)
•Camera1/Camera2/Camera3 (“CAM1/CAM2/CAM3”)
Closes the menu after the fourth screen page.
4VSelects the parameter to be set.
Switches the distance markers on or off.
5 – Decreases the value of the selected parameter.
6 + Increases the value of the selected parameter.
7PSwitches the monitor on and off.
8 – Infrared connection for remote control
9 – Sensor window for the dimmer function.
The brightness of the display is automatically adapted to the ambi-
ent light with a delay of approx. 5 seconds.
No. in
fig. 0,
page 5
Label Description
M70IP-B-16s.book Seite 14 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP Technical description
EN
15
Remote control
The remote control features the following control elements:
No. in
fig. a,
page 6
Label Description
1 Mute Turns the monitor mute.
2 Flips the display horizontally.
Flips the display vertically.
3PSwitches the monitor on and off.
4 Menu Calls up the menu.
Calls up the menus with the parameters to be set.
5 Reduces the brightness.
Decreases the value of the selected parameter.
Increases the brightness.
Increases the value of the selected parameter.
6 Call Displays the source of the video signal on the display.
7 Timer Sets the time after which the monitor will automatically shut off
(10, 20, 30, 40 and max. 90 minutes)
8 Sel Switches between the cameras displayed.
9 Sys Switches between video standards (Auto/PAL/NTSC).
10 Lang Selects the display language.
11 Mode Changes the screen mode (Personal/Standard/Soft/Vivid/Light)
12 Selects the previous menu item.
Selects the next menu item.
CH
CHCH
M70IP-B-16s.book Seite 15 Dienstag, 12. Juli 2016 6:01 18

Installing the LCD monitor PerfectView M70IP
EN
16
7 Installing the LCD monitor

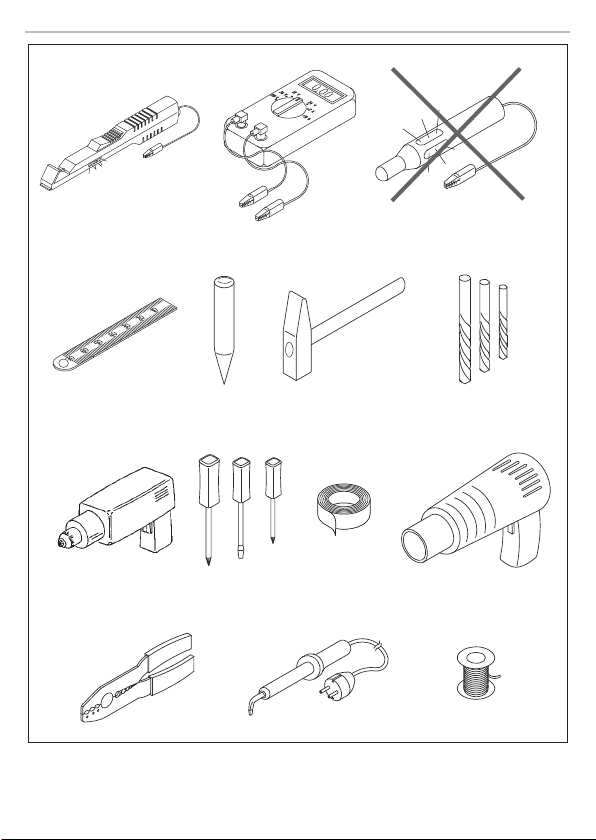

7.1 Tools required (fig. 1, page 2)
For installation and assembly, you will need the following tools:
•Measuring ruler (4)
•Centre punch (5)
•Hammer (6)
•Drill head set (7)
•Drill (8)
•Screwdriver (9)
To establish and test the electrical connection, the following tools are required:
•Diode test lamp (1) or voltmeter (2)
•Insulating tape (10)
•Heat shrinking sleeve
•Hot air blower (11)
•Crimping tool (12)
•Soldering iron (optional) (13)
•Solder (optional) (14)
•Cable bushing sleeves (optional)
To fasten the cables, you may require additional cable binders.
M70IP-B-16s.book Seite 16 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP Installing the LCD monitor
EN
17
7.2 Installing the monitor
!
Observe the following installation instructions:
•Select an installation location that provides an unobstructed view of the monitor (fig. 6and
fig. 7, page 3).
•Never install the monitor in areas where your head could hit it or in the airbag deployment path.
This could cause injury if the airbag opens.
•The monitor must not impair your vision when driving (fig. 8, page 4).
•The installation location should be flat.
•Check that there is sufficient space underneath the installation location to attach the washers
and nuts.
•Check beforehand that there is sufficient space on the other side for the drill head to come out
(fig. 2, page 3).
•Bear in mind the weight of the monitor. Provide reinforcement if necessary (larger washers or
plates).
•Make sure you can lay the connection cable to the monitor.
Choosing the installation location (fig. b, page 6)
➤Slide the monitor (1) onto the monitor bracket (2) and secure it with the knurled screw (3).
➤Position the monitor with the attached monitor bracket provisionally.
➤Mark the outlines of the corners of the monitor bracket (2) on the dashboard.
➤Unscrew the monitor from the monitor holder.
I
Sticking the monitor bracket onto the dashboard (fig. cA, page 6)
➤Remove the film from under the monitor bracket.
➤Stick the monitor bracket to the position of your choice.
Screwing the monitor bracket onto the dashboard (fig. cB, page 6)
➤Hold the monitor bracket within the outlines marked beforehand.
➤Mark four drilling points.
➤Drill the holes, with ∅of 2 mm, at each of the markings.
➤Screw the monitor holder on using 4 x 20 mm self-tapping screws.
CAUTION! Beware of injury
Select the location of the monitor so that it cannot injure the passengers in the vehicle
under any circumstances (e.g. sudden braking, road traffic accidents).
NOTE
You can fasten the monitor bracket using adhesive or screws.
M70IP-B-16s.book Seite 17 Dienstag, 12. Juli 2016 6:01 18

Installing the LCD monitor PerfectView M70IP
EN
18
Fastening the monitor
➤Set the monitor on the monitor bracket and secure it with the knurled nut (fig. b, page 6).
7.3 Connecting the monitor electrically
The circuit diagram for the LCD monitor can be found in fig. d, page 7:
A
Observe the following instructions when laying the connection cable:
•If possible, use original ducts for laying the cables, or other suitable options, such as ventilation
grilles. If there are no existing ducts, you must drill a hole of ∅20 mm. Check beforehand that
there is sufficient space on the other side for the drill head to emerge (fig. 2, page 3).
•To prevent damage to the cables, when laying them ensure that there is always sufficient
distance to vehicle components which can become hot (lights, heaters, ventilators etc.).
•Wrap insulating tape around every connection on the cable (even inside the vehicle).
No. in
fig. d, page 7 Description
1Monitor
2 13-pin plug
3Connectioncable
413-pinsocket
5 12 – 24 V positive cable (red): connected to the positive pole of the ignition
(connected positive, terminal 5) or the positive pole of the battery
(terminal 30).
6 Earth cable (black): connected to the negative pole of the voltage source.
7 Cable (green): control input for video input CAM1,
such as for connecting the reversing light
8 Cable (white): control input for video input CAM2,
such as for the side camera
9 6-pin CAM1 socket (connection to video source 1)
10 6-pin CAM2 socket (connection to video source 2)
11 6-pin CAM3 socket (connection to video source 3),
with video signal detection
NOTICE!
Cables and connections that are not properly installed will cause malfunctions or
damage to components.
Correct installation of cables and connections ensures lasting and trouble-free
operation of the retrofitted components.
M70IP-B-16s.book Seite 18 Dienstag, 12. Juli 2016 6:01 18

PerfectView M70IP Installing the LCD monitor
EN
19
•When laying the cables (fig. 3, page 3), make sure:
– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp-edged ducts without protection.
Connecting the monitor as a reversing video system (fig. d, page 7)
➤Lay the connection cable on the dashboard.
➤Insert the plug of the monitor cable (2) into the socket (4) of the connection cable (3).
A
➤Connect the red and black cables of the connection cable to a suitable voltage supply:
– Connect the red cable (5) to terminal 15 (ignition).
– Connect the black cable (6) to terminal 31 (earth).
➤If the monitor is to be activated when reverse gear is selected, connect the green cable (7) to
the positive cable of the reversing light.
I
➤If the monitor is to be activated by actuating the indicator, for example, connect the white
control cable (8) to a positive cable of the indicator.
I
This control cable is used as a signal cable for the activation of a side camera when an indicator is
flashing, for example.
➤If necessary, connect the CAM1 socket (9) of the connection cable to the plug of video
source 1 (e.g. camera).
➤If necessary, connect the CAM2 socket (10) of the connection cable to the plug of the video
source 2 (e.g. side camera).
➤If necessary, connect the CAM3 socket (11) of the connection cable to the plug of video
source 3 (e.g. reversing camera).
I
NOTICE! Beware of damage!
Make sure the polarity is correct when connecting to a voltage source.
NOTE
If voltage is present in the green cable (7), the reversing camera will be activated
automatically. The reversing camera has priority.
NOTE
If voltage is present in this control cable, the video input CAM2 will be activated.
NOTE
Observe the power consumption of the video system. The cameras are equipped with
heaters. A maximum current of 1.5 A can flow (three cameras in heating mode). Use a
disconnector switch for direct connection to the battery. This allows you to disconnect
the video system from the battery easily if you are no longer using the vehicle.
M70IP-B-16s.book Seite 19 Dienstag, 12. Juli 2016 6:01 18

Using the LCD monitor PerfectView M70IP
EN
20
8 Using the LCD monitor
8.1 Switching on the monitor
➤With the monitor switched off, press the “P” button on the monitor (fig. 07, page 5) or the
“P” button on the remote control (fig. a3, page 6) to switch on the monitor.
✓The picture appears.
8.2 Switching off the monitor
➤Press the “P” button on the monitor (fig. 07, page 5) or the “P” button on the remote
control (fig. a3, page 6) to switch off the monitor.
✓The picture disappears.
8.3 Setting the language (fig. 0, page 5)
The default language is English.
To set the language, proceed as follows:
➤Press the “M” button (3) twice to open the “Options” menu.
✓The “Lang” parameter is displayed at the top in the menu.
➤Use the “–” (5) and “+” (6) buttons to select the desired language:
English/Deutsch/Français/Español/Português/Italiano/Nederlands/Русский
✓The display indicates the desired language.
M70IP-B-16s.book Seite 20 Dienstag, 12. Juli 2016 6:01 18
