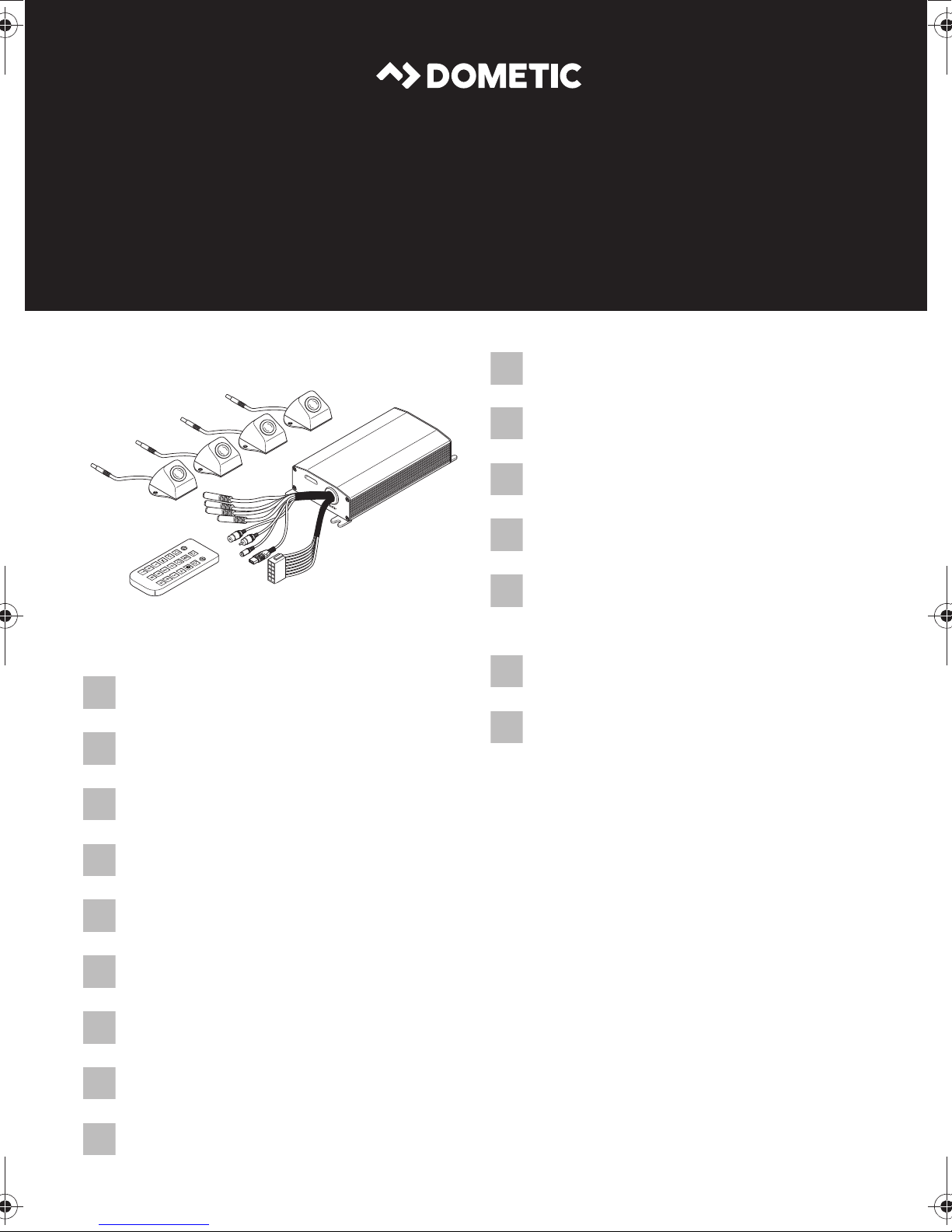

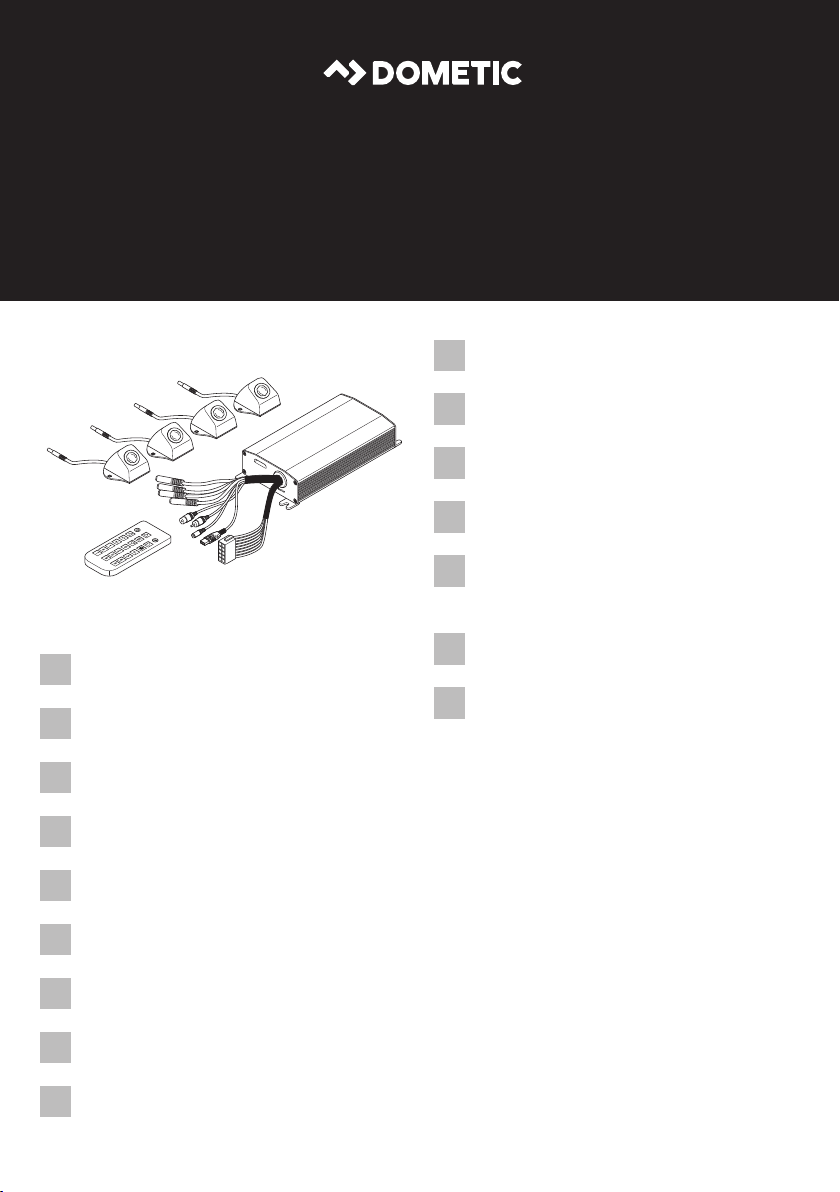

Dometic PerfectView CAM360 User manual

CAM360
360° camera system
Installation Manual. . . . . . . . . . . . . . . . . . . . 13
360° Kamerasystem
Montageanleitung. . . . . . . . . . . . . . . . . . . .40
Système de caméra 360°
Instructions de montage . . . . . . . . . . . . . . .67
Sistema de cámara de 360°
Instrucciones de montaje . . . . . . . . . . . . . .95
Sistema de câmaras de 360°
Instruções de montagem . . . . . . . . . . . . .122
Sistema con telecamere a 360°
Indicazioni di montaggio . . . . . . . . . . . . .150
360° camerasysteem
Montagehandleiding . . . . . . . . . . . . . . . .179
360° kamerasystem
Monteringsvejledning. . . . . . . . . . . . . . . 207
360° kamerasystem
Monteringsanvisning. . . . . . . . . . . . . . . . 234
360° Kamerasystem
Monteringsanvisning . . . . . . . . . . . . . . . . 261
360° kamerajärjestelmä
Asennusohje . . . . . . . . . . . . . . . . . . . . . . . 287
Видеосистема с обзором 360°
Инструкция по монтажу. . . . . . . . . . . . . . 313
System kamer 360°
Instrukcja montażu . . . . . . . . . . . . . . . . . . 342
Kamerový systém so
záberom 360°
Návod na montáž . . . . . . . . . . . . . . . . . . . 370
Kamerový systém 360°
Návod k montáži . . . . . . . . . . . . . . . . . . . . 397
360° kamerarendszer
Szerelési útmutató . . . . . . . . . . . . . . . . . . 424
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
DRIVING SUPPORT
PERFECTVIEW
CAM360-I-DE.book Seite 1 Freitag, 9. Juni 2017 6:50 18

CAM360-I-DE.book Seite 2 Freitag, 9. Juni 2017 6:50 18

CAM360
3
1 2
3
8
5
7
4
6
910 11
1
CAM360-I-DE.book Seite 3 Freitag, 9. Juni 2017 6:50 18

CAM360
4
2 3
4 5
6 7
CAM360-I-DE.book Seite 4 Freitag, 9. Juni 2017 6:50 18

CAM360
5
2
3
4
5
6
7
8
1
8
CAM360-I-DE.book Seite 5 Freitag, 9. Juni 2017 6:50 18

CAM360
6
9
0,6 m – 3,5 m 0,6 m – 3,5 m
2 m – 3,5 m
0
a b
CAM360-I-DE.book Seite 6 Freitag, 9. Juni 2017 6:50 18

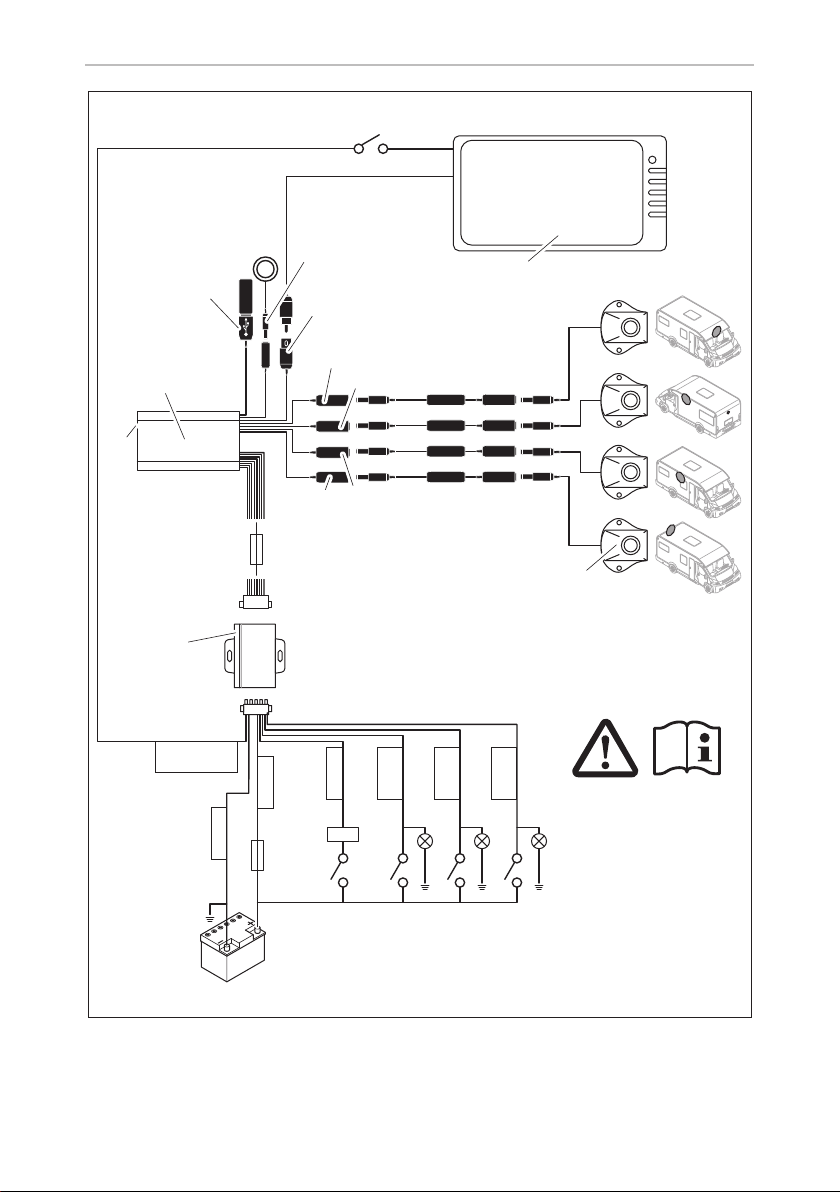

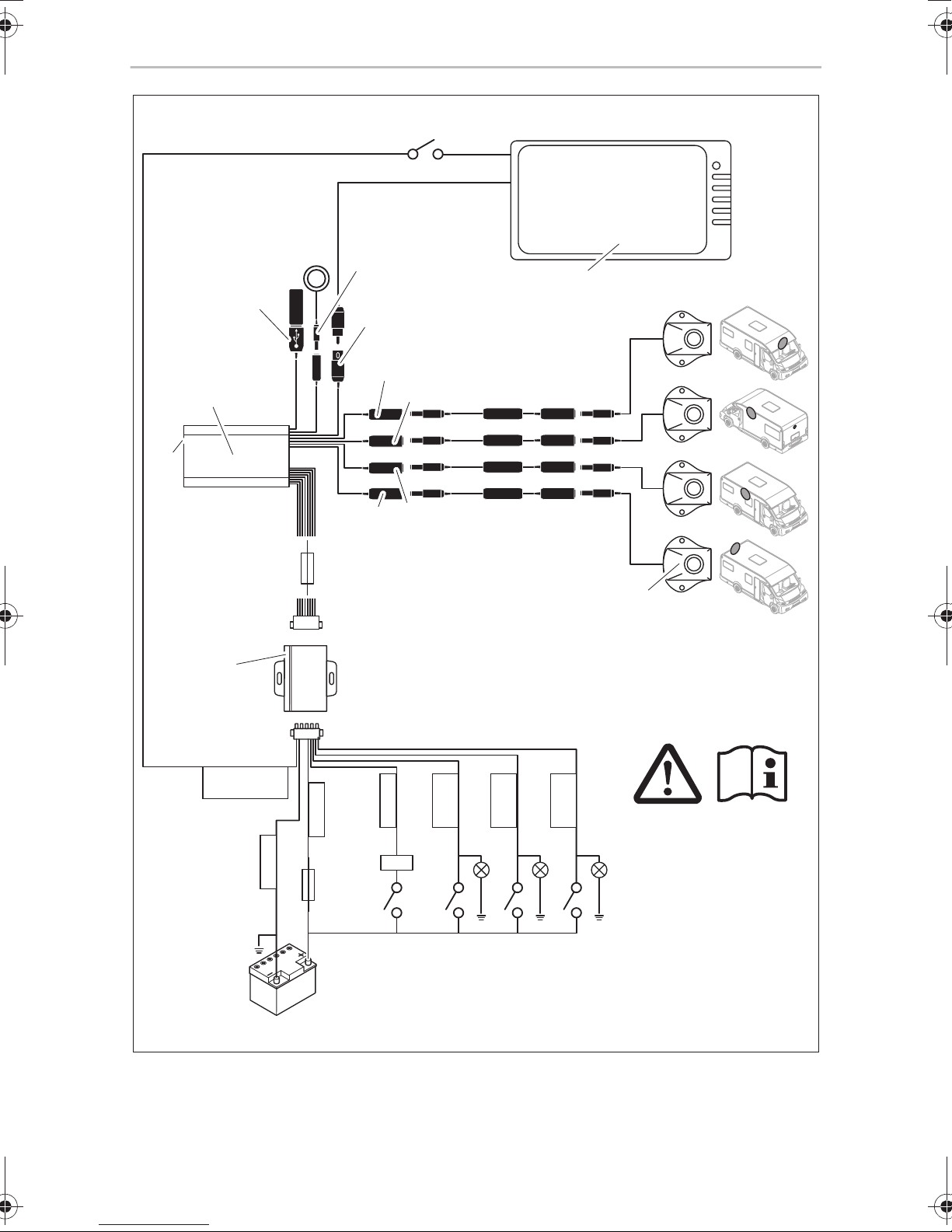

CAM360
7
gn
pk
og
rd
ye
bk
ACC
12 Vg
bu Monitor Ctrl out
(optional)
Clamp 30
Clamp 15
Turn
Right
Turn
Le
Reverse
Gear
Clamp 31
1 A
≤ 150 mA
4
3
7
6
4x
1
5
89
11 10
12
2
1 A
c
CAM360-I-DE.book Seite 7 Freitag, 9. Juni 2017 6:50 18

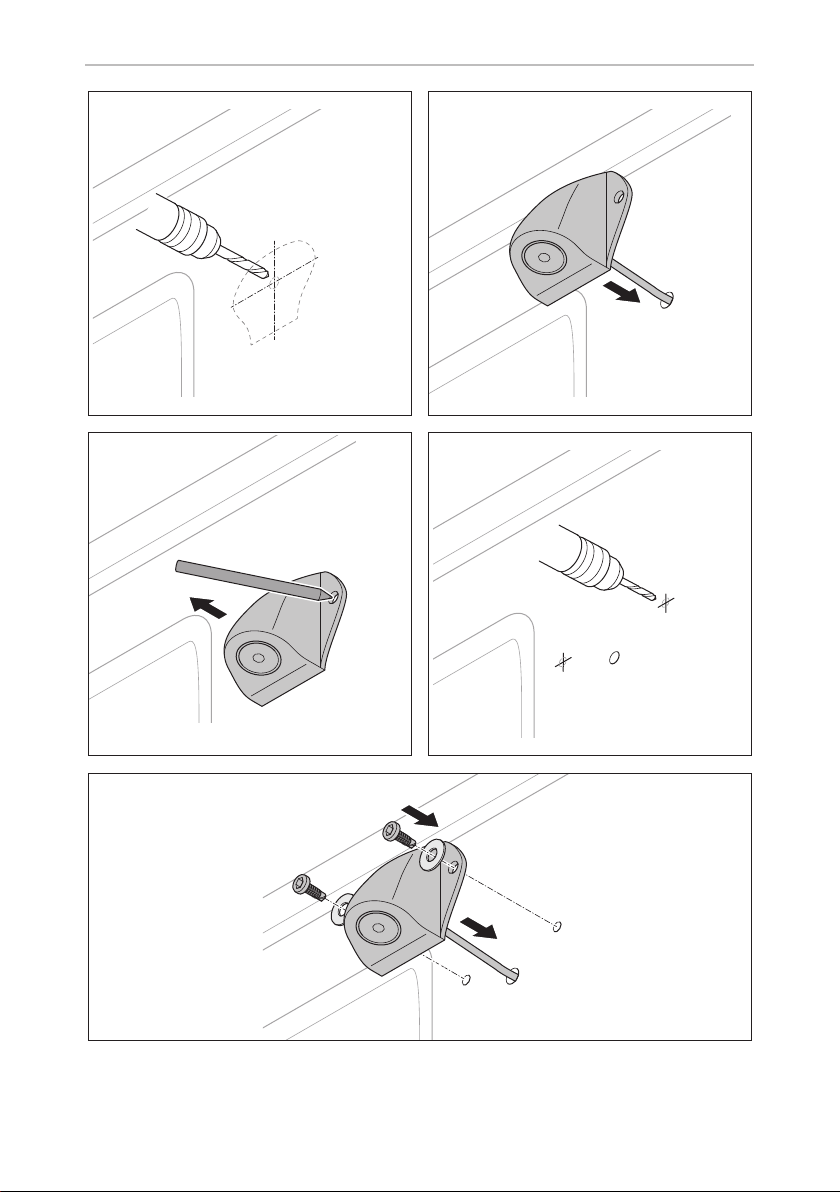

CAM360
8
e
1x
Ø 6
d
2x
Ø 2,4

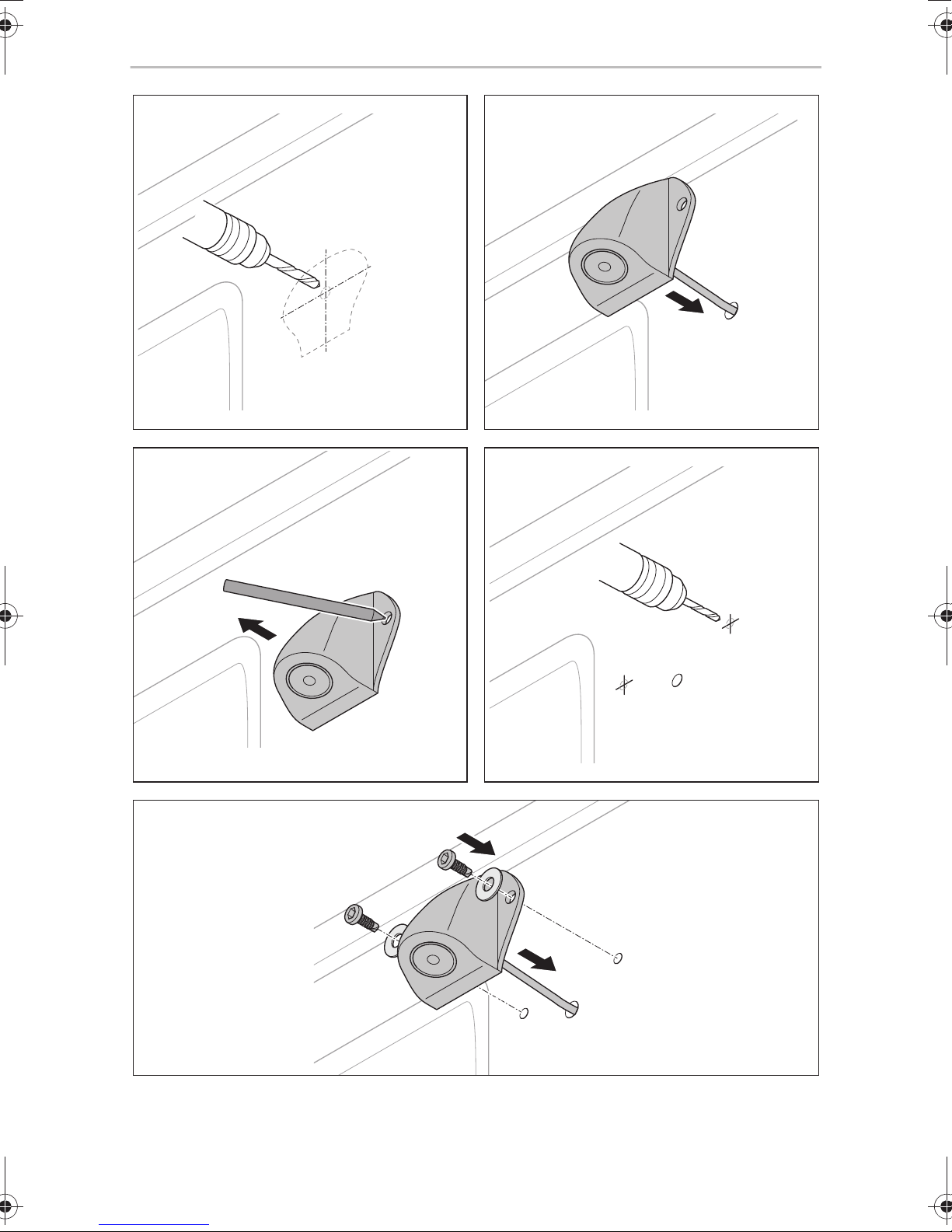

g
2x
1.
2.
f
h
1.
2.
CAM360-I-DE.book Seite 8 Freitag, 9. Juni 2017 6:50 18

CAM360
9
1. 1.
2.

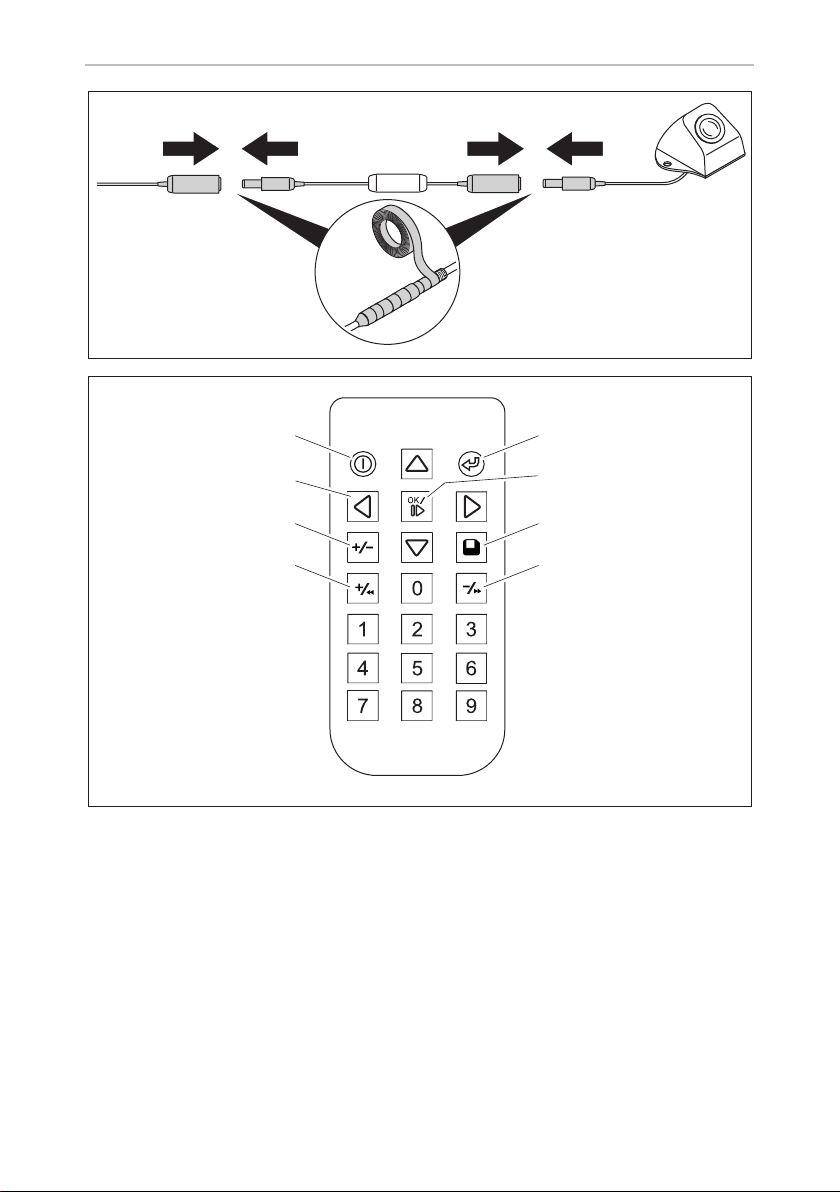

i
1
2
3
4
8
7
6
5
j
CAM360-I-DE.book Seite 9 Freitag, 9. Juni 2017 6:50 18

CAM360
10
O
a
W
b
c
O
L
d
k
l
CAM360-I-DE.book Seite 10 Freitag, 9. Juni 2017 6:50 18

CAM360
11

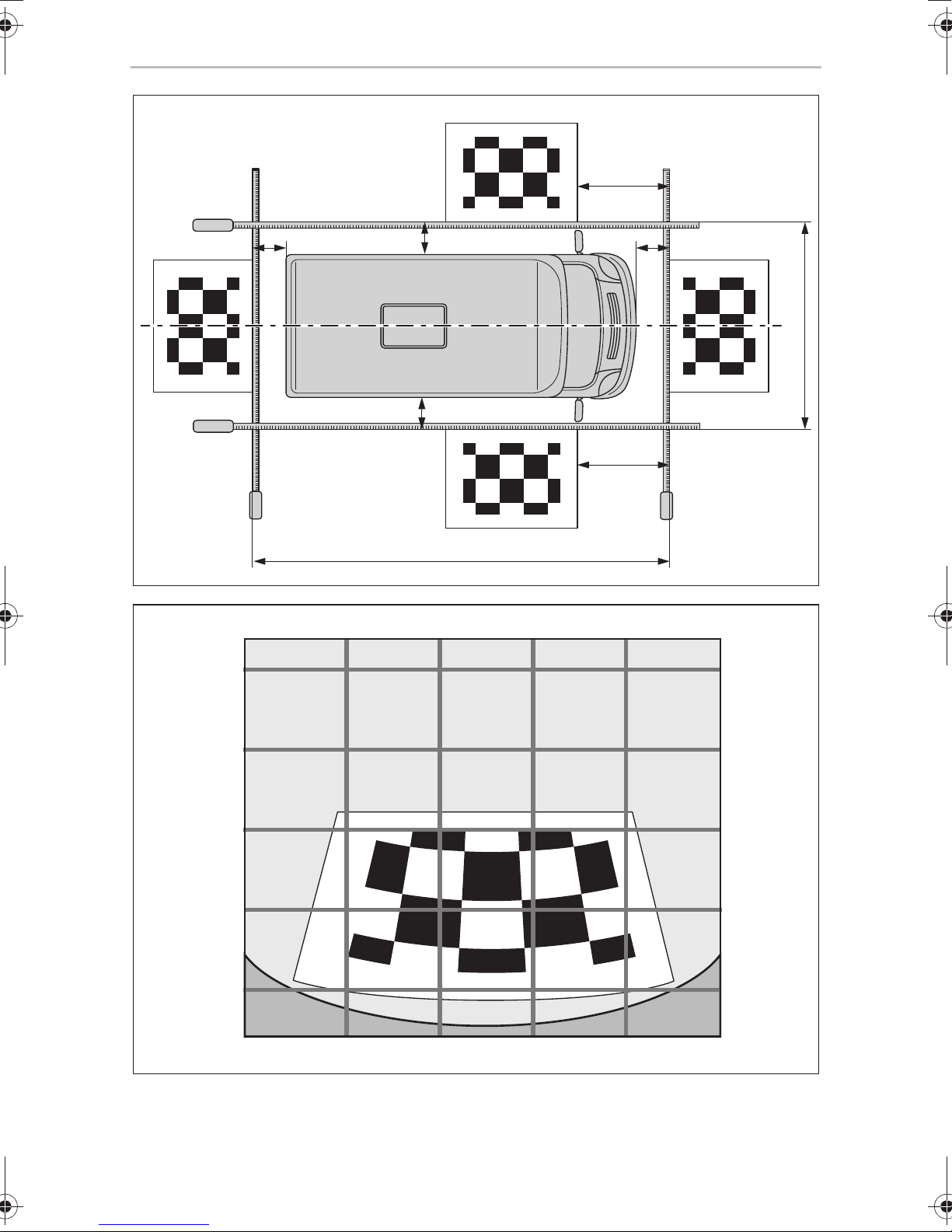

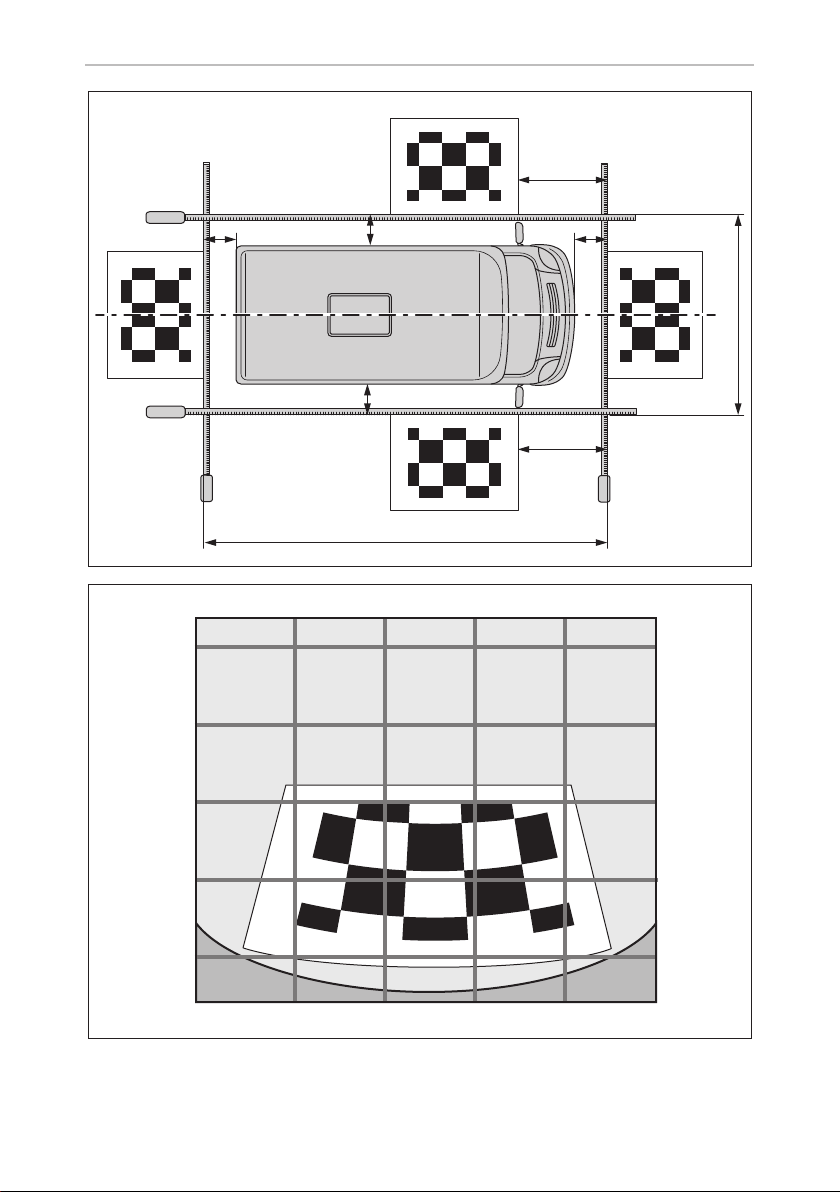

m
n
CAM360-I-DE.book Seite 11 Freitag, 9. Juni 2017 6:50 18

CAM360
12
o
50 27
33
p
CAM360-I-DE.book Seite 12 Freitag, 9. Juni 2017 6:50 18

EN
CAM360
13
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7 Information on electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Installing the video system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
9 Connecting the video system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10 Video system settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CAM360-I-DE.book Seite 13 Freitag, 9. Juni 2017 6:50 18

EN
Explanation of symbols CAM360
14
1 Explanation of symbols
!
!
A
I
2 Safety and installation instructions
Please observe the safety instructions and stipulations issued by the
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
!WARNING!
•Inadequate supply cable connections could result in short circuits,
causing:
–Cablefires
– The airbag being triggered
– Damage to electronic control equipment
– Electrical malfunctions (indicators, brake light, horn, ignition,
lights)
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CAM360-I-DE.book Seite 14 Freitag, 9. Juni 2017 6:50 18

EN
CAM360 Safety and installation instructions
15
ANOTICE!
•To prevent the risk of short circuits, always disconnect the negative
terminal of the vehicle's electrical system before working on it.
If the vehicle has an additional battery, its negative terminal should
also be disconnected.
Please note the following:
•When working on the following cables, only use insulated cable terminals, plugs
and flat sockets:
– 30 (direct supply from positive battery terminal)
– 15 (connected positive terminal, behind the battery)
– 31 (return cable from the battery, earth)
– Reversing light
– Right/right indicators
Do not use porcelain wire connectors.

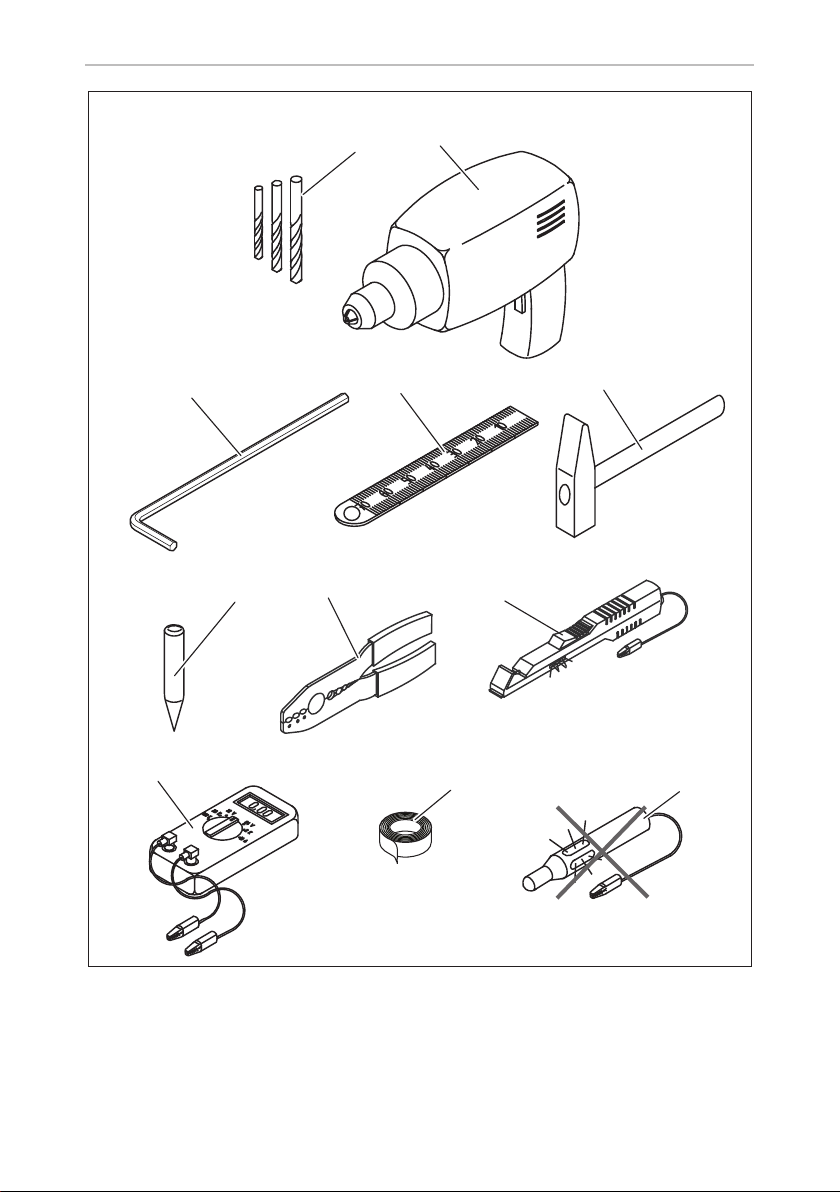

•Use a crimping tool (fig. 19, page 3) to connect the cables.
•Screw the cable when connecting cable 31 (earth)
– using a cable terminal and serrated washer to one of the vehicle's earth bolts
or
– screw the cable to the bodywork using a cable terminal and a self-tapping
screw
Make sure there is a good earth connection.
If you disconnect the negative terminal of the battery, all data stored in the volatile
memories will be lost.
•The following data must be reset, depending on the vehicle equipment options:
–Radiocode
– Vehicle clock
–Timer
– On-board computer
– Seat position
You can find instructions for making these settings in the operating manual.
Observe the following mounting instructions:
!CAUTION!
•Secure the parts of the video system installed in the vehicle to ensure
they cannot become loose under any circumstances (sudden braking,
accidents) and cause injuries to vehicle occupants.
CAM360-I-DE.book Seite 15 Freitag, 9. Juni 2017 6:50 18

EN
Safety and installation instructions CAM360
16
•Secure any parts of the system concealed by the bodywork in such a
manner that they cannot be come loose or damage other parts or
cables, or impair vehicle functions (steering, pedals, etc).
•Always follow the safety instructions issued by the vehicle manufac-
turer.
Some work (e.g. on retention systems such as the AIRBAG etc.) may
only be performed by qualified specialists.
ANOTICE!
•To prevent damage when drilling, make sure there is sufficient space
on the other side for the drill head to come out (fig. 2, page 4).
•Deburr all drill holes and treat them with a rust-protection agent.
Observe the following instructions when working with electrical parts:
ANOTICE!
•When testing the voltage in electrical cables, only use a diode test
lamp (fig. 17, page 3) or a voltmeter (fig. 18, page 3).
Test lamps with a bulb (fig. 111, page 3) consume voltages which
are too high and can damage the vehicle's electronic system.
•When making electrical connections (fig. 3, page 4), ensure that:
– They are not kinked or twisted
– They do not rub on edges
– They are not laid in sharp-edged ducts without protection
•Insulate all connections.
•Secure the cables against mechanical wear by using cable binders or
insulating tape, for example on existing cables.
The cameras are waterproof. However, the seals on the cameras cannot withstand a
high-pressurecleaner (fig. 4,page 4). Therefore,you shouldobserve the following
instructions when handling the cameras:
ANOTICE!
•Do not open the cameras, as this impairs the leak tightness and the
function of the cameras (fig. 5, page 4).
•Do not pull at the cables, as this impairs the tightness and the function
of the cameras (fig. 6, page 4).
•The cameras are not suitable for use under water (fig. 7, page 4)!
CAM360-I-DE.book Seite 16 Freitag, 9. Juni 2017 6:50 18

EN
CAM360 Scope of delivery
17
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
If you have questions regarding the accessories, please contact your local service
partner.
No. in
fig. 8, page 5 Quantity Label
14Cameras
2 1 Controller
3 1 Remote control
4 1 IR receiver
5 1 DC-DC converter
6 1 Vehicle connection cable
7 4 Extension cable for cameras:
1x 6m (front)
2x 10m (left/right)
1x 17m (rear)
8 4 Camera adapter cable
– 14 Bolts with washers
– 1 Vulcanising adhesive tape
– 1 Double-sided adhesive tape (for infrared receiver)
– 1 USB stick
– 1 Operating instructions
Label Ref. no.
Calibration set 9600000513
Monitor M75L 9600000062
CAM360-I-DE.book Seite 17 Freitag, 9. Juni 2017 6:50 18

EN
Intended use CAM360
18
5 Intended use
!
I
The CAM360 video system (ref. no. 9600000509) is designed for use in vehicles.
The cameras transmit images in a 360° panoramic view, providing you with a birds-
eye view of the vehicle’s environment to the sides, in front and behind.
In addition, one of the four cameras can be shown selectively (split screen). The
selection of an single camera image depends on the input signals from the turn
signals and reverse gear. In addition, the selection can also be made via the remote
control provided.
It is used to monitor the direct vehicle environment, e.g. when driving, changing
lanes, manoeuvring or parking.
WARNING!
Danger of personal injury by vehicle.
Video systems are designed merely as an additional aid for reversing,
however this does not relieve you of the duty to take proper care
when reversing, turning or driving forwards.
NOTE
The CAM360 video system is not suitable for installation in construction
machines.
CAM360-I-DE.book Seite 18 Freitag, 9. Juni 2017 6:50 18

EN
CAM360 Technical description
19
6 Technical description
Four 180° wide wangle cameras are located on the front, the rear, and the left and
right sides of the vehicle. A video processor merges the recorded images into a sin-
gle image in real time that shows a birds-eye view of the vehicle and its surroundings
at the front, rear and sides.
The camera system is switched on as soon as the vehicle is started.
The camera system provides a 360° panoramic view and transmits the images in a
birds-eye view of the vehicle’s environment to the sides, in front and behind.
Depending on the settings, single cameras can be activated by input signals, e.g. by
using a turn signal or reverse gear.
The control unit features four camera inputs and connects the cameras to the screens
via a plug connector.
The control unit allows the following options:
•A permanent split screen, or a split screen triggered by a control signal
•Automatic full screen mode for the reversing camera as a rear mirror function
•Permanent full screen mode for the 360° panorama view while the screen is
upright
Videos from the cameras can be saved (SD card or USB stick) according to the circu-
lar buffer principle and played back within the camera system. A recording sequence
lasts 10 minutes, then the next recording sequence begins automatically. Once the
memory is full, the oldest file is overwritten automatically.
To play the videos on a computer, the video format H.264 must be supported.
CAM360-I-DE.book Seite 19 Freitag, 9. Juni 2017 6:50 18

EN
Information on electrical connection CAM360
20
7 Information on electrical connection
A
Therefore, please observe the following instructions:
•As far as possible, use original ducts for laying the cables, or other suitable
options such as panelling edges, ventilation grilles or dummy plugs. If no open-
ings are available, you must drill holes for the cables. Check beforehand that
there is sufficient space on the other side for the drill head to emerge.
•Wherever possible, lay cables inside the vehicle, as they are better protected
there than outside.
If you do need to lay a cable outside the vehicle, ensure that it is well fastened (use
additional cable ties, insulating tape etc.).
•To prevent damage to the cables when laying them, ensure that they are far
enough away from hot or moving vehicle components (exhaust pipes, drive
shafts, light systems, fans, heaters, etc.). Use corrugated piping or other protec-
tive materials to protect against mechanical wear.
•Use the vulcanising adhesive tape to protect the plug connections of the video
connection cables against the ingress of water (fig. h, page 8).
•When laying the cables (fig. 3, page 4), make sure:
– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp-edged ducts without protection.
NOTICE! Risk of damage!
•When drilling holes, check beforehand that there is sufficient space
on the other side for the drill head to come out.
•Cables and connections that are not properly installed will cause
malfunctions or damage to components. Correct installation of
cablesand connections ensureslasting and trouble-free operation of
the retrofitted components.
•The cables may not be exposed for long periods to solvents such as
benzene, since solvents can damage the cable.
CAM360-I-DE.book Seite 20 Freitag, 9. Juni 2017 6:50 18
