Dometic MagicComfort MSH301 User manual

MSH300,MSH301
Retrofit insert seat heater
Installation and Operating Manual. . . . . . . .9
Nachrüstbare Einbau-Sitzheizung
Montage- und Bedienungsanleitung. . . . .20
Calefacción del asiento como
aditamento adicional
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chauffage de siège, montage
ultérieur
Instrucciones de montaje y de uso . . . . . . .43
Aquecimento de banco para
retromontagem
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Riscaldamento sedili addizionale
Istruzioni di montaggio e d’uso . . . . . . . . .67
In te bouwen stoelverwarming
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .79
Sædevarme til eftermontering
Monterings- og betjeningsvejledning. . . . 90
Stolvärmeanordning för montering
i efterhand
Monterings- och bruksanvisning . . . . . . . 101
Ettermonterbar setevarmer
Monterings- og bruksanvisning. . . . . . . . 112
Jälkikäteen asennettava
istuinlämmitys
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 123
Встраиваемый комплект обогрева
сидений
Инструкция по монтажу и эксплуатации 134
System podgrzewania foteli do
montażu
Instrukcja montażu i obsługi. . . . . . . . . . . 145
Vyhrievanie sedadla určené pre
dodatočnú montáž
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 157
Vestavné vyhřívání sedadla
Návod k montáži a obsluze . . . . . . . . . . . 168
Utólag beszerelhető ülésfűtés
Szerelési és használati útmutató . . . . . . . 179
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
DRIVING SUPPORT
MAGICCOMFORT
MSH300--IO-16s.book Seite 1 Donnerstag, 13. Juli 2017 10:28 10

MSH300--IO-16s.book Seite 2 Donnerstag, 13. Juli 2017 10:28 10

MSH300, MSH301
3
1 2 3
4
9
6
8
5
7
10 11 12
13 14 15
1
MSH300--IO-16s.book Seite 3 Donnerstag, 13. Juli 2017 10:28 10

MSH300, MSH301
4
2
3
1
12
2
4
5
3
4
30 –
35 cm
6
5
MSH300--IO-16s.book Seite 4 Donnerstag, 13. Juli 2017 10:28 10

MSH300, MSH301
5
9
8
7
b
a
0
de
d
c
g
f
MSH300--IO-16s.book Seite 5 Donnerstag, 13. Juli 2017 10:28 10

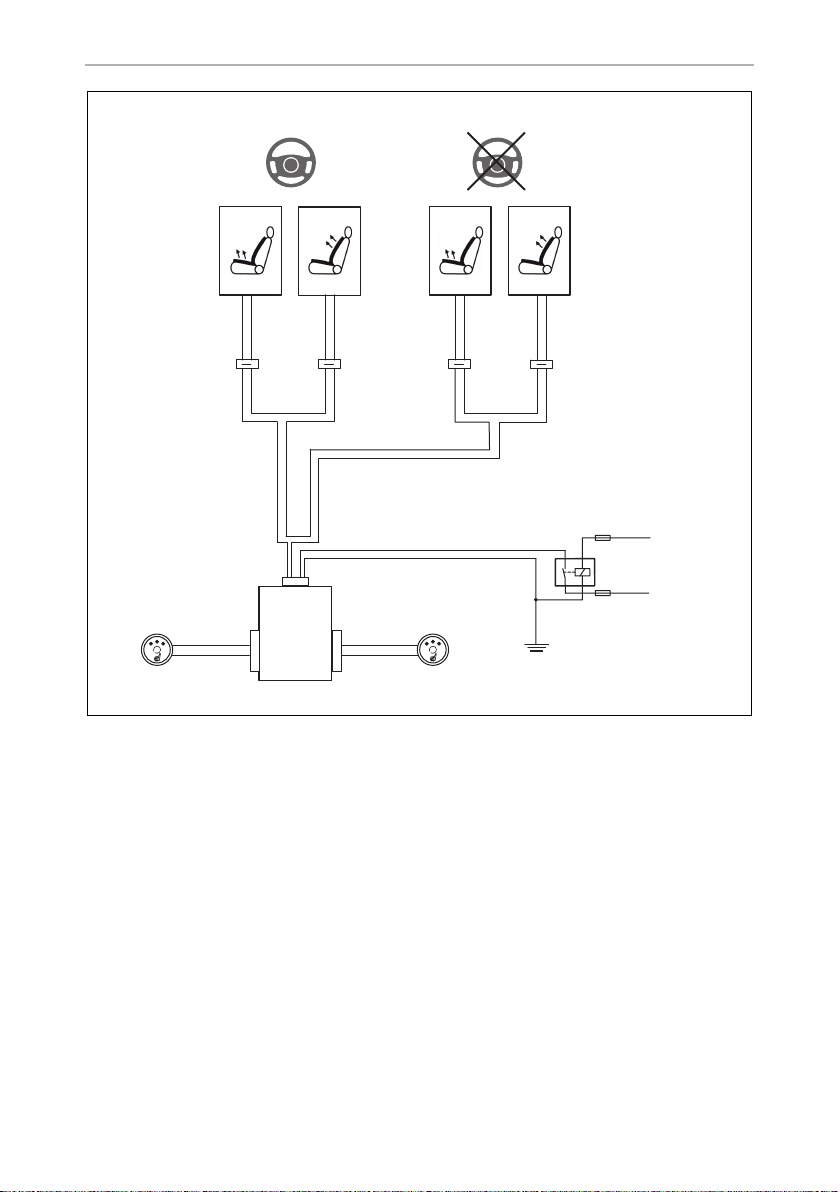

MSH300, MSH301
6
bk
bk
bk
bu
bu
5 A
(31)
RL
og
rd
15 A
+12 V (15)
+12 V (30)
MSH300
h
MSH300--IO-16s.book Seite 6 Donnerstag, 13. Juli 2017 10:28 10

MSH300, MSH301
7
EN DE FR ES PT IT NL DA SV
bu Blue Blau Bleu Azul Azul Blu Blauw Blå Blå
og Orange Orange Orange Naranja Cor de laranja Arancione Oranje Orange Orange
rd Red Rot Rouge Rojo Vermelho Rosso Rood Rød Röd
bk Black Schwarz Noir Negro Preto Nero Zwart Sort Svart
NO FI RU PL SK CS HU
bu Blå Sininen Синий Niebieski Modrá Modrá Kék
og Oransje Oranssi Оранжевый Pomarańczowy Oranžová Oranžová Narancs
rd Rød Punainen Красный Czerwony Červená Červená Piros
bk Svart Musta Черный Czarny Čierna Černá Fekete
bk
5 A
(31)
og
rd
15 A
+12 V (15)
+12 V (30)
bu
bu
RL
MSH301
i
MSH300--IO-16s.book Seite 7 Donnerstag, 13. Juli 2017 10:28 10

MSH300, MSH301
8
j
20 mm
k
1
2
l
MSH300--IO-16s.book Seite 8 Donnerstag, 13. Juli 2017 10:28 10

EN
MSH300, MSH301
9
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Installing the seat heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7 Using the seat heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
MSH300--IO-16s.book Seite 9 Donnerstag, 13. Juli 2017 10:28 10

EN
Explanation of symbols MSH300, MSH301
10
1 Explanation of symbols
!
A
I
2 Safety and installation instructions
Pleaseobserve the prescribedsafety instructionsand stipulationsfrom the
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
ANOTICE!
To prevent the risk of short circuits, always disconnect the negative
terminal of the vehicle's electrical system before working on it.
If the vehicle has an additional battery, its negative terminal should also be
disconnected.
!WARNING!
Inadequate supply cable connections could result in short circuits, which
could have as a consequence that:
•Cable fires occur
•The airbag is triggered
•Electronic control devices are damaged
•Electric functions fail (indicators, brake light, horn, ignition, lights)
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
MSH300--IO-16s.book Seite 10 Donnerstag, 13. Juli 2017 10:28 10

EN
MSH300, MSH301 Safety and installation instructions
11
Please observe the following instructions:
•When working on the following cables, only use insulated cable lugs, plugs and
flat push-on receptacles:
– 30 (direct supply from positive battery terminal)
– 15 (connected positive terminal, behind the battery)
– 31 (return cable from the battery, earth)
Do not use terminal strips.
•The safest type of connection is to solder the ends of the cables together and
then insulate them.
Only use insulated cable terminals, plugs and flat sockets for releasable
connections. Do not use crimp terminals (cable connectors) or terminal strips.
•Use a crimping tool (fig. 110, page 3) to connect the cables.
•When connecting to cable 31 (earth), screw the cable
– To the vehicle's earth bolt with a cable lug and a gear disc or
– To the sheet-metal bodywork with a cable lug and a self-tapping screw.
Ensure that there is a good earth connection.
If you disconnect the negative terminal of the battery, all data stored in the volatile
memories will be lost.
•The following data must be set again, depending on the vehicle equipment
options:
–Radiocode
– Vehicle clock
–Timer
– On-board computer
– Seat position
You can find instructions for making these settings in the appropriate operating
instructions.
Observe the following installation instructions:
•Secure the parts installed in the vehicle in such a way that they cannot become
loose under any circumstances (sudden braking, accidents) and cause injuries
to the occupants of the vehicle.
•To prevent damage, when drilling ensure that there is sufficient space on the
other side for the drill head to come out (fig. 2, page 4).
•Deburr all drill holes and treat them with a rust-protection agent.
MSH300--IO-16s.book Seite 11 Donnerstag, 13. Juli 2017 10:28 10

EN
Safety and installation instructions MSH300, MSH301
12
Observe the following instructions when working with electrical parts:
•When testing the voltage in electrical cables, only use a diode test lamp
(fig. 18, page 3) or a voltmeter (fig. 19, page 3).
Test lamps with an illuminant (fig. 112, page 3) take up voltages which are too
high and which can damage the vehicle's electronic system.
•When making electrical connections (fig. 3, page 4), ensure that
– They are not kinked or twisted
– They do not rub on edges
– They are not laid in sharp-edged ducts without protection.
•Insulate all connections.
•Secure the cables against mechanical wear with cable binders or insulating tape,
for example to existing cables.
Observe the following instructions when using the seat heater:
•Do not place any sharp or heavy objects on the seat, as the seat heater could
otherwise be damaged.
•Persons with an impaired sensitivity to heat should only operate the seat heating
on level 1.
•Do not place any heat insulating objects, such as blankets or coats, on the seat
when the seat heater is switched on.
•The seat heater can be damaged by fluids spilt on the seat.
•Never switch the seat heater on when it is wet.
MSH300--IO-16s.book Seite 12 Donnerstag, 13. Juli 2017 10:28 10

EN
MSH300, MSH301 Scope of delivery
13
3Scopeofdelivery
4 Intended use
The MagicComfort seat heating MSH300 (ref. no. 9600000395) and
MSH301 (ref. no. 9600000396) are suitable for installation in the front vehicle seats
of passenger vehicles, transporters and caravans.
A
No. in
fig. 4, page 4 Quantity Designation Ref. no.
MSH300 MSH301
1 2 1 Seat surface heating element 9101700038
2 2 1 Backrest heating element 9101700039
3 2 1 Switch 9101700041
4 1 1 Set of connecting cables
(black: right side
blue: left side)
9101700053
5 1 1 Switchbox 9101700051
– 1 1 Drill template
– 12 6 Double-sided adhesive tape
– 12 6 Insulating material
– 1 1 Operating manual
NOTICE!
For vehicles equipped with side airbags in the seat backrests, seat
occupancy detection or child seat detection, observe the vehicle
manufacturer's specifications.
MSH300--IO-16s.book Seite 13 Donnerstag, 13. Juli 2017 10:28 10

EN
Technical description MSH300, MSH301
14
5 Technical description
The heating elements for the MagicComfort seat heating MSH300 and MSH301
can be installed in the driver’s seat and in the passenger seat.
The shape of the seat is not altered by the heating elements.
The seat heater is operated using a switch.
6 Installing the seat heater

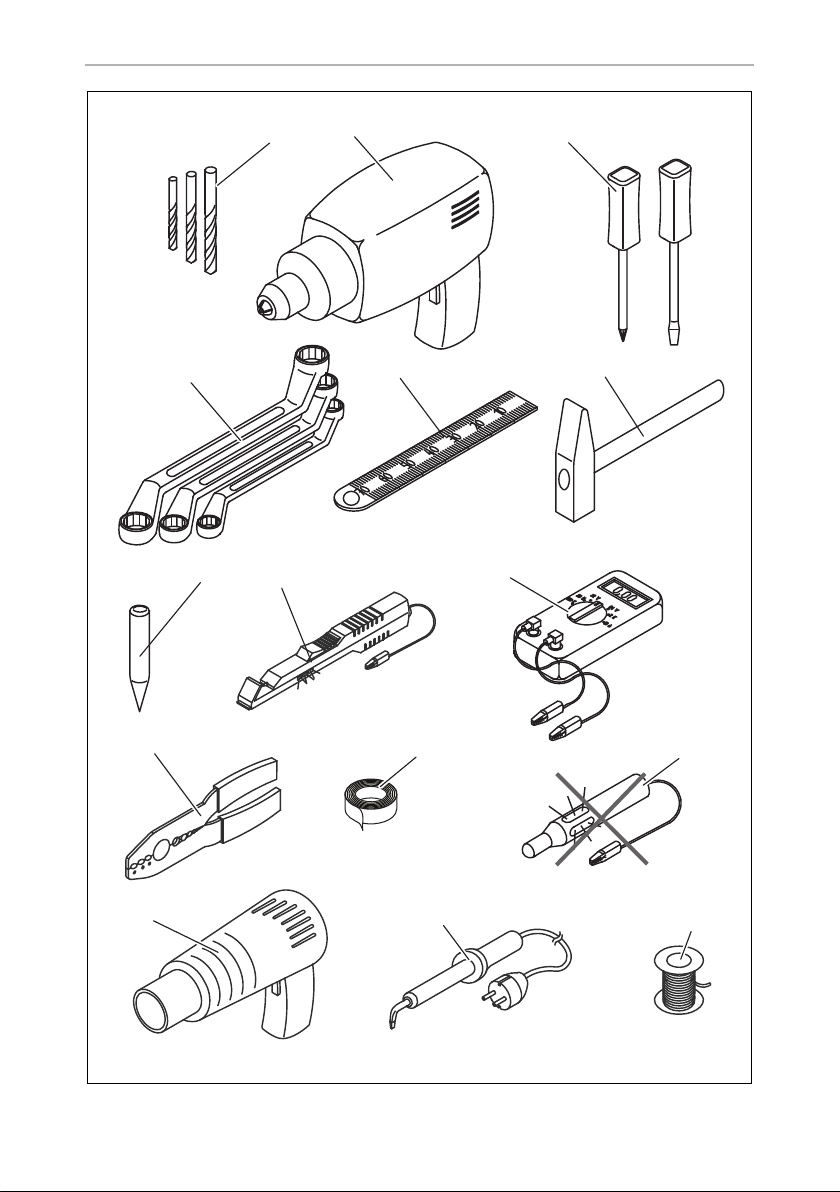

6.1 Tools required (fig. 1, page 3)
For installation and assembly you will need the following tools:
•Drill bit set (1)
•Drill (2)
•Screwdriver (3)
•Set of ring or open-ended spanners (4)
•Measuring ruler (5)
•Hammer (6)
•Centre punch (7)
To make and test the electrical connection, the following tools are required:
•Diode test lamp (8) or voltmeter (9)
•Crimping tool (10)
•Insulating tape (11)
•Hot air blower (13)
•Soldering iron (14)
•Solder (15)
•Cable bushing sleeves (if necessary)
To fasten the cables you may require additional cable binders.
MSH300--IO-16s.book Seite 14 Donnerstag, 13. Juli 2017 10:28 10

EN
MSH300, MSH301 Installing the seat heater
15
6.2 Installing the seat heater
Removing the seat
➤Secure the vehicle against rolling away.
A
➤Check the suitability for installation using these installation instructions and the
manufacturer's information.
➤Remove the fastening screws from the vehicle seat.
➤Lift the seat out of the vehicle.
Preparing the seat
➤Remove all plastic panelling from the seat to ensure the fastening of the cover
fabric can be reached.

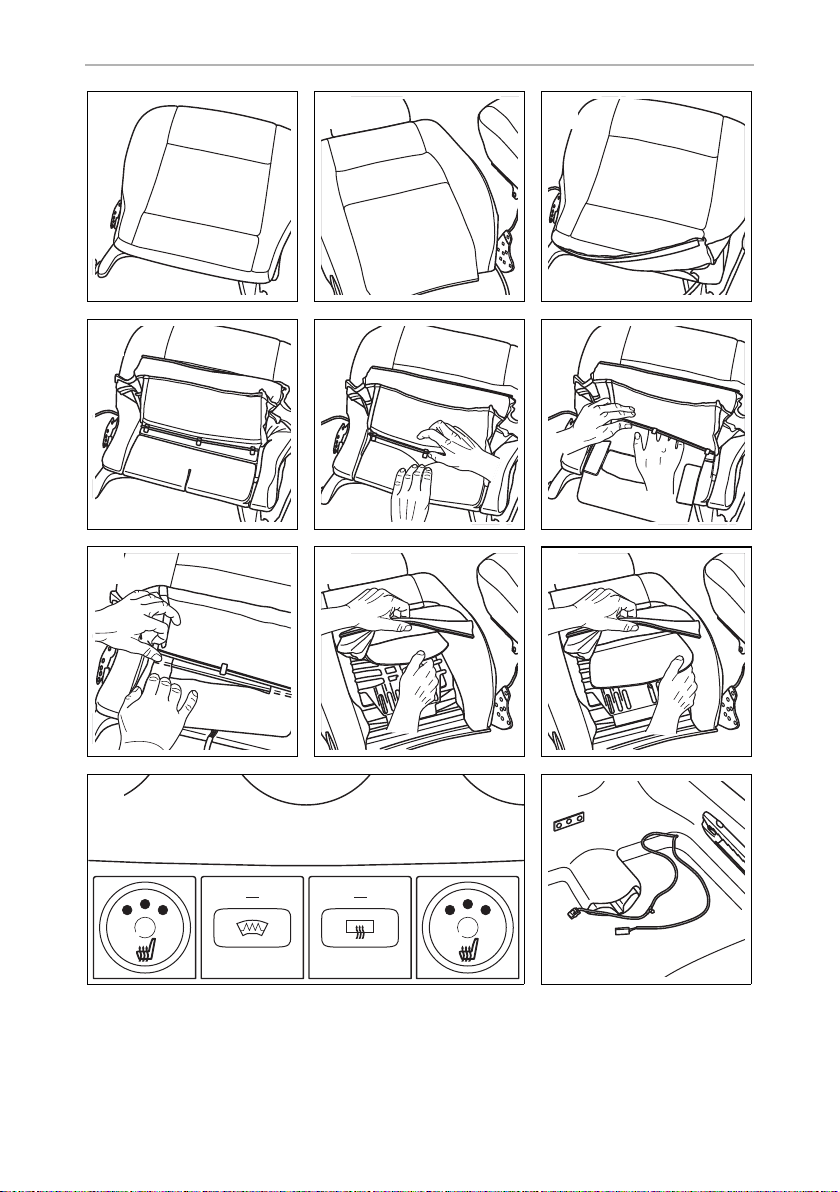

➤Separate the backrest from the seat (fig. 7, page 5 and fig. 8, page 5).
➤Open the seat cover on the seat surface.
The cover fabric is usually tucked into a seam on the frame with a wide cardboard
strip or metal wire.
➤Remove the fasteners using a screwdriver and pliers (fig. 9, page 5 and fig. 0,
page 5).
➤Remove any upholstery staples or cross braces (fig. a, page 5).
➤Open the cover of the backrest in the same way.
NOTICE!
For vehicles with side air bags in the seat backrest, observe the
manufacturer's instructions on removing the seats and the upholstery.
MSH300--IO-16s.book Seite 15 Donnerstag, 13. Juli 2017 10:28 10

EN
Installing the seat heater MSH300, MSH301
16
Preparing the heating elements
A
I
➤Place the heating elements on the seat and backrest.
➤If there are anchoring grooves in the seat or the backrest, mark these areas on the
heating elements.
➤Mark the required lengths. Take into account the depth of the anchoring
grooves, if present. The heating element is inserted in these anchoring grooves.
➤Trim the heating element to the required length.
➤Customise the cut-out sections as required.
➤Insulate all the trimmed ends with the insulating material.
NOTICE!
Insulate all the trimmed ends with the insulating material supplied to
prevent a short circuit.
NOTE
•You can cut the heating elements to the required length and shorten
the lengths of the two conductor paths.
•You can cut out a section of the heating element in the area of the
anchoring grooves on the seat or the backrest. Make sure the cut-out
sections are only made between the two black seams (fig. 5,
page 4).
•Do not cut the mat lengthways, otherwise it will not be heated in the
area of the incision (fig. 5, page 4).
•The heating surface on the backrest only needs to extend approx.
30 – 35 cm above the seat, as the driver only leans against this area
when sitting normally (fig. 6, page 4).
MSH300--IO-16s.book Seite 16 Donnerstag, 13. Juli 2017 10:28 10

EN
MSH300, MSH301 Installing the seat heater
17
Installing the heating element for the seat surface
➤Insert the heating element for the seat surface between the cover fabric and the
foam core of the seat (fig. b, page 5).
➤If anchoring grooves are present, make sure that the cut-out sections are
positioned over the anchoring grooves (fig. c, page 5) and place the heating
elements in the anchoring grooves.
➤Fasten the heating element using double-sided adhesive tape to prevent it
sliding on the foam core.
Ensure that no creases or kinks form.
Installing the heating element for the backrest
A
➤Open the lower area of the backrest cover (fig. d, page 5).
➤Push the heating element into the gap between the seat cover and the seat
cushion (fig. e, page 5).
➤Fasten the heating element using double-sided adhesive tape to prevent
creases.
Installing the seat
➤Reassemble the backrest and seat.
➤Lift the seat into the vehicle.
➤Secure the vehicle seat with the fastening screws.
NOTICE!
If the seats are equipped with side airbags, then there is a
predetermined breaking point in the cover fabric. The seat cover must
therefore not be pulled tightly or slip out of place.
MSH300--IO-16s.book Seite 17 Donnerstag, 13. Juli 2017 10:28 10

EN
Using the seat heater MSH300, MSH301
18
Electrical connection
MSH300
The complete circuit diagram can be found in fig. h, page 6.
MSH301
The complete circuit diagram can be found in fig. i, page 7.
A
➤Attach the switchbox to a suitable location in the vicinity of the dashboard
(fig. j, page 8).
➤Find a suitable place for installing the seat heater switch.
If possible, use the blanking plugs provided for this purpose.
Ensure that there is enough room behind the panel for the installation of the
switch.
➤Mark the switch cut-out using the template provided (fig. k, page 8).
➤Cut out the marked area with an appropriate tool.
➤Install the switch into the cut-out (fig. f, page 5).
➤Install the ready-made wiring harness so that the cables cannot bend or fray
(fig. g, page 5).
7 Using the seat heater
I
➤Press the seat heater switch to turn on the seat heater:
– Press once: Level 3 (high heat output)
– Press twice: Level 2 (medium heat output)
– Press three times: Level 1 (low heat output)
✓One, two or three LEDs (fig. l2, page 8) on the switch light up in red.
➤To switch the seat heating off: Press the switch until the LEDs (fig. l2, page 8)
on the switch go out.
NOTICE!
Ensure it has been securely fitted, particularly in the area of the seat rails.
NOTE
The seat heating logo (fig. l1, page 8) also lights up when the seat
heating is switched on.
MSH300--IO-16s.book Seite 18 Donnerstag, 13. Juli 2017 10:28 10

EN
MSH300, MSH301 Guarantee
19
8Guarantee
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
9Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
10 Technical data
MagicComfort MSH300 MagicComfort MSH301
Ref. no.: 9600000395 9600000396
Operating voltage: 12 Vg
Power: adjustable to three levels, with 10 – 70 W per seat
Max. power consumption: 10 A 5 A
Dimensions: Seat element: 580 x 270 mm
Backrest element: 580 x 270 mm
MSH300--IO-16s.book Seite 19 Donnerstag, 13. Juli 2017 10:28 10

DE
MSH300, MSH301
20
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2 Sicherheits- und Einbauhinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Sitzheizung montieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Sitzheizung benutzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
10 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MSH300--IO-16s.book Seite 20 Donnerstag, 13. Juli 2017 10:28 10
