Dometic VT50WiFi User manual

VT50WiFi
WiFi rear view system with
smartphone app
Installation and Operating Manual . . . . . . 8
WiFi-Rückfahrvideosystem mit
Smartphone-App
Montage- und Bedienungsanleitung . . . 19
Système vidéo de recul WiFi avec
application smartphone
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . 30
Sistema de vídeo para marcha
atrás con app para smartphone
Instrucciones de montaje y de uso . . . . . 41
Sistema de vídeo de marcha-atrás
WiFi com aplicação para
smartphone
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . 52
Sistema video per retromarcia
WiFi con app per smartphone
Istruzioni di montaggio e d’uso . . . . . . . . 63
WiFi-achteruitrijvideosysteem met
smartphone-app
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . 74
WiFi-bakkamerasystem med
smartphone-app
Monterings- og betjeningsvejledning . . 85
WiFi-backvideosystem med
mobiltelefon-app
Monterings- och bruksanvisning. . . . . . . 95
WiFi-ryggevideosystem med
smarttelefon-app
Monterings- og bruksanvisning . . . . . . 105
WiFi-peruutusvideojärjestelmä
älypuhelinsovelluksella
Asennus- ja käyttöohje. . . . . . . . . . . . . . .116
Видеосистема заднего обзора с
поддержкой WiFi и мобильным
приложением
Инструкция по монтажу
и эксплуатации. . . . . . . . . . . . . . . . . . . . 127
System wideo cofania WiFi
z aplikacją na smartfona
Instrukcja montażu i obsługi . . . . . . . . . 138
WiFi cúvací videosystém
s aplikáciou pre smartfóny
Návod na montáž a uvedenie
do prevádzky . . . . . . . . . . . . . . . . . . . . . 149
WiFi kamerový systém pro couvání
s aplikací pro smartphony
Návod k montáži a obsluze . . . . . . . . . . 160
WiFi tolató-videorendszer
okostelefon applikációval
Szerelési és használati útmutató . . . . . . .171
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
DRIVING SUPPORT
PERFECTVIEW
VT50WiFi-IO-16s.book Seite 1 Freitag, 30. Juni 2017 11:04 11

VT50WiFi-IO-16s.book Seite 2 Freitag, 30. Juni 2017 11:04 11

VT50WiFi
3
1
1
2
543
2
VT50WiFi-IO-16s.book Seite 3 Freitag, 30. Juni 2017 11:04 11

VT50WiFi
4
123
4
9
6 8
5
7
10
11
3
VT50WiFi-IO-16s.book Seite 4 Freitag, 30. Juni 2017 11:04 11

VT50WiFi
5
180°
1
2
4
180°
1
2
5
VT50WiFi-IO-16s.book Seite 5 Freitag, 30. Juni 2017 11:04 11

VT50WiFi
6
6
1. 2.
7
8
VT50WiFi-IO-16s.book Seite 6 Freitag, 30. Juni 2017 11:04 11

VT50WiFi
7
2.
1.
1
3
2
9
VT50WiFi-IO-16s.book Seite 7 Freitag, 30. Juni 2017 11:04 11

Explanation of symbols VT50WiFi
EN
8
Please read this instruction manual carefully before installation and first use, and store
it in a safe place. If you pass on the product to another person, hand over this instruc-
tion manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 Mounting the camera and transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7 Connecting the transmitter electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8 Using VT50WiFi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function
of the product.
NOTE
Supplementary information for operating the product.
VT50WiFi-IO-16s.book Seite 8 Freitag, 30. Juni 2017 11:04 11

VT50WiFi Safety and installation instructions
EN
9
2 Safety and installation instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Please observe the prescribed safety instructions and stipulations from the vehicle
manufacturer and service workshops.
!WARNING!
Inadequate supply cable connections could result in short circuits, which could have as
a consequence that:
•Cable fires occur
•The airbag is triggered
•Electronic control devices are damaged
•Electric functions fail (indicators, brake light, horn, ignition, lights)
ANOTICE!
To prevent the risk of short circuits, always disconnect the negative terminal of the
vehicle's electrical system before working on it.
If the vehicle has an additional battery, its negative terminal should also be discon-
nected.
Please observe the following instructions:
•When working on the following cables, only use insulated cable lugs, plugs and flat push-on
receptacles:
– 30 (direct supply from positive battery terminal)
–15(connectedpositiveterminal, behind the battery)
– 31 (return line from the battery, earth)
– L (indicator lights left)
– R (indicator lights right)
Do not use terminal strips.
•Use a crimping tool to connect the cables.
•When connecting to cable 31 (earth), screw the cable
– to the vehicle's earth bolt with a cable lug and a gear disc or
– to the sheet-metal bodywork with a cable lug and a self-tapping screw.
Ensure that there is a good earth connection.
VT50WiFi-IO-16s.book Seite 9 Freitag, 30. Juni 2017 11:04 11

Safety and installation instructions VT50WiFi
EN
10
If you disconnect the negative terminal of the battery, all data stored in the volatile memories will
be lost.
•The following data must be set again, depending on the vehicle equipment options:
–Radiocode
– Vehicle clock
–Timer
– On-board computer
– Seat position
You can find instructions for making these settings in the appropriate operating instructions.
Observe the following installation instructions:
!CAUTION!
•Secure the parts installed in the vehicle in such a way that they cannot become loose
under any circumstances (sudden braking, accidents) and cause injuries to the
occupants of the vehicle.
•Secure any parts of the system covered by the bodywork in such a manner that they
cannot be come loose or damage other parts and cables or impair vehicle functions
(steering, pedals, etc).
•Always follow the safety instructions of the vehicle manufacturer.
Some work (e.g. on retention systems such as the AIRBAG etc.) may only be
performed by qualified specialists.
ANOTICE!
•To prevent damage when drilling, make sure there is sufficient space on the other
side for the drill head to come out.
•Deburr all drill holes and treat them with a rust-protection agent.

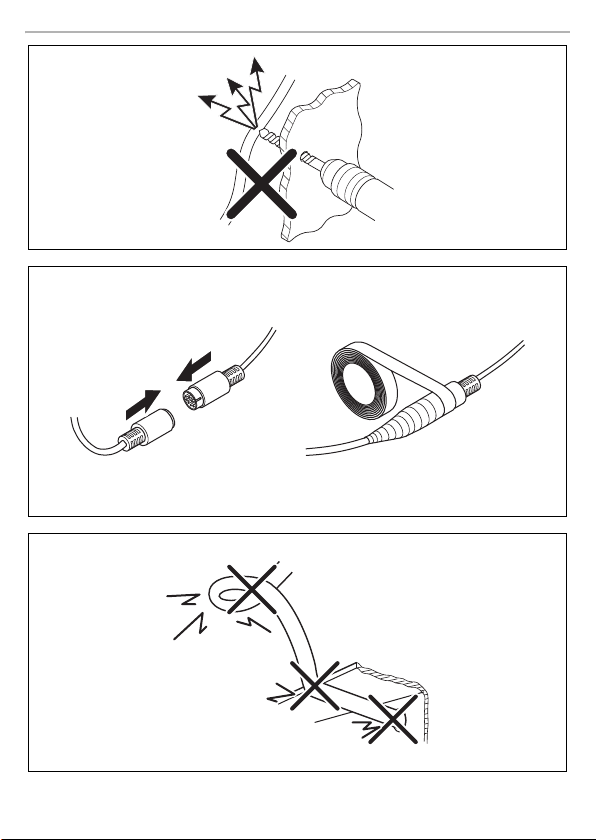

Observe the following instructions when working with electrical parts:
ANOTICE!
•When testing the voltage in electrical cables, only use a diode test lamp or a
voltmeter.
Test lamps with an illuminant take up voltages which are too high and which can
damage the vehicle's electronic system.
•When making electrical connections, ensure that:
– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp edged ducts without protection.
•Insulate all connections.
•Secure the cables against mechanical wear with cable binders or insulating tape,
for example to existing cables.
VT50WiFi-IO-16s.book Seite 10 Freitag, 30. Juni 2017 11:04 11

VT50WiFi Scope of delivery
EN
11
3Scopeofdelivery
4Intendeduse

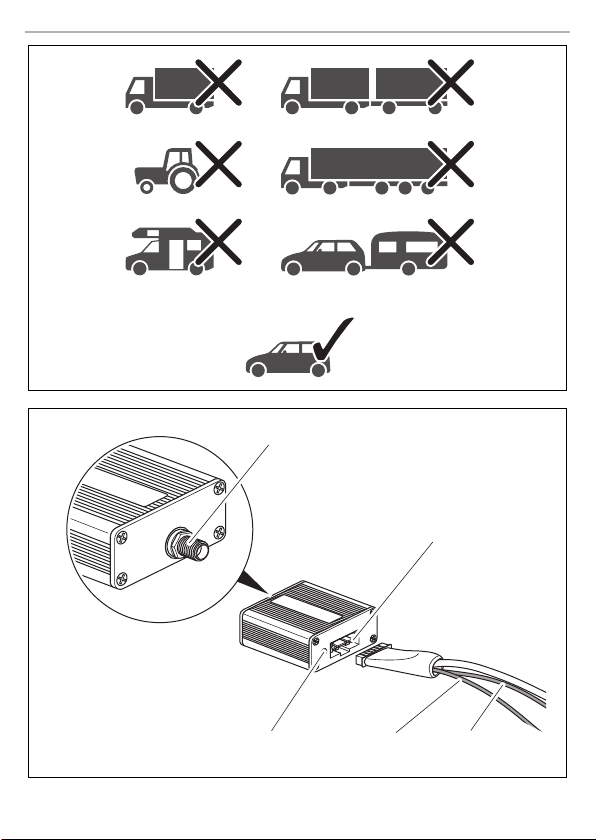

PerfectView VT50WiFi (ref. no. 9600003262) is a rear view video camera with a WiFi transmitter.
The transmitter wirelessly transmits the signals between the rear view video camera and a smart-
phone or tablet with an iOS™ or Android™ operating system. PerfectView VT50WiFi is only
suitable for use on cars (fig. 1, page 3).
5 Technical description
5.1 Function description
PerfectView VT50WiFi comprises a rear view video camera with a number plate fastening, a WiFi
transmitter and an app for mobile end devices such as smartphones or tablets.
The transmitter is mounted in the vehicle. It establishes a wireless radio network and transmits the
image over it to a smartphone or tablet.
The transmitter is connected to the reversing light and is also used to supply the camera with
power. The transmitter must re-establish the wireless connection every time the car is shifted into
reverse gear. This requires about six seconds.
The wireless signals are transmitted in the 2.4 GHz range.
As the system is only designed as an additional aid for reversing, it does not relieve you of the duty
to exercise due care especially when driving with a trailer.
A
Quantity Label
1 Camera with number plate fastening
1Transmitter
–Fasteningmaterial
1Instruction
NOTICE!
The transmitter sends digital data. The camera image is displayed on the monitor with
a delay of 0.2 seconds. It is therefore essential that you drive slowly.
VT50WiFi-IO-16s.book Seite 11 Freitag, 30. Juni 2017 11:04 11

Mounting the camera and transmitter VT50WiFi
EN
12
5.2 Control elements
6 Mounting the camera and transmitter

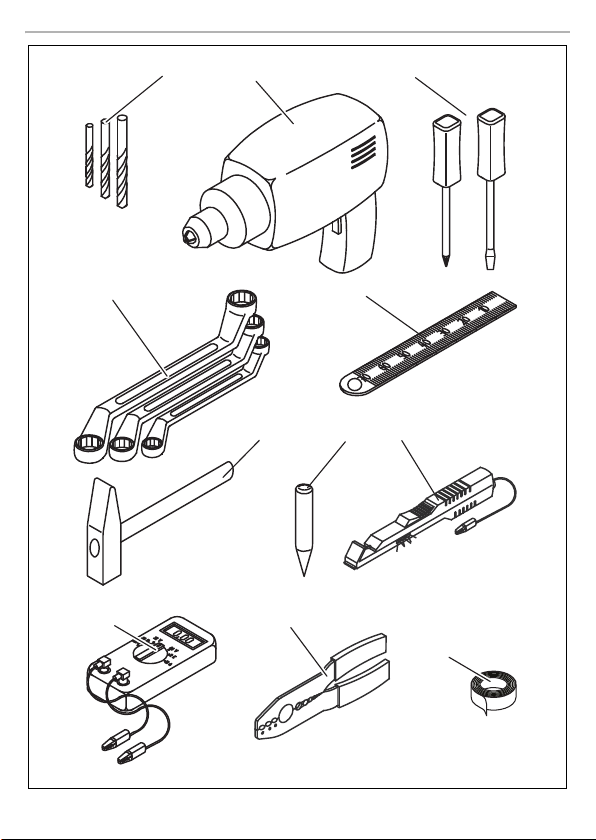

6.1 Tools required (fig. 3, page 4)
For installation and assembly you will need the following tools:
•Drill head set (1)
•Drill (2)
•Screwdriver (3)
•Set of ring or open-ended spanners (4)
•Tape measure (5)
•Hammer (6)
•Centre punch (7)
To establish and test the electrical connection, the following tools are required:
•Diode test lamp (8) or voltmeter (9)
•Crimping tool (10)
•Insulating tape (11)
•Cable bushing sleeves (optional)
To secure the camera, transmitter and the cable, you may require additional screws, cable
binders and double-sided tape.
No. in
fig. 2, page 3 Meaning
1 Antenna connection
2 Camera connection
3 Red cable (DC INPUT): Connection to the positive terminal (+) of the
power supply
4 Black cable (GND): Connection to the negative terminal (–) of the
power supply or earth terminal
5 Operating display; lights up as soon as voltage is applied
VT50WiFi-IO-16s.book Seite 12 Freitag, 30. Juni 2017 11:04 11

VT50WiFi Mounting the camera and transmitter
EN
13
6.2 Preparing the camera for installation
Observe the following mounting instructions:
•Place the camera in the centre over or under the number plate. The camera requires a free space
of 30 mm above or below the number plate.
•Fasten the camera in a way that does not cover the number plate.
Mounting the camera under the number plate (fig. 4, page 5)
➤Unscrew the camera (1) from the assembly plate (2).
➤Turn the camera by 180°.
➤Reattach the camera to the assembly plate.
Adjusting the installation position on the rear of the vehicle (fig. 5, page 5)
The camera is attached to the upper part of the assembly plate. The upper part of the assembly
plate is bent at an angle of approximately 5°. You can fit the camera to the rear of the assembly
plate to adjust the assembly position to the shape of the vehicle rear.
➤Unscrew the camera (1) from the assembly plate (2).
➤Turn the assembly plate by 180°.
➤Reattach the camera to the assembly plate.
6.3 Fastening the camera
➤Remove the rear number plate holder from the vehicle.
➤Attach the camera assembly plate to the rear of the number plate holder with double-sided
tape.
➤Reattach the number plate holder to the vehicle. In doing so, press the double-sided tape onto
the bodywork.
✓The camera is now attached to the vehicle.
6.4 Preparing the transmitter for installation
!
Observe the following mounting instructions:
•Install the transmitter so that as few objects as possible are situated between the transmitter and
receiving device. Moving the transmitter can help if there is a poor connection.
•The installation location should be flat.
•Before drilling each hole, ensure there is sufficient space on the other side for the drill head to
emerge (fig. 6, page 6).
•Make sure you can lay the connection cable from the transmitter to the camera.
CAUTION!
Select the location of the transmitter so that it cannot injure the passengers in the
vehicle under any circumstances (e.g. sudden braking, road traffic accidents).
VT50WiFi-IO-16s.book Seite 13 Freitag, 30. Juni 2017 11:04 11

Connecting the transmitter electrically VT50WiFi
EN
14
I
6.5 Attaching the transmitter
➤Attach the transmitter temporarily to the planned installation location.
➤Put the transmitter into operation.
➤Activate the app on your receiving device (see chapter “Using VT50WiFi” on page 16).
If a fault occurs, e.g. there are flickering images:
➤Adjust the location of the transmitter slightly.
➤Retest the transmission.
If the camera image transmission is stable (no flickering images):
➤Secure the transmitter with double-sided tape.
7 Connecting the transmitter electrically
7.1 General notes on laying cables
I
Therefore, please observe the following instructions:
•Wherever possible, lay cables inside the vehicle, as they are better protected there than
outside.
If you do need to lay a cable outside the vehicle, ensure that it is well fastened (use additional
cable ties, insulating tape etc.).
•To prevent damage to the cables when laying them, ensure that they are far enough away from
hot or moving vehicle components (exhaust pipes, drive shafts, light systems, fans, heaters,
etc.).
•Use adhesive insulating tape to prevent water from penetrating the plug connection (fig. 7,
page 6).
NOTE
The image is sent from the transmitter to the receiving device. To ensure flawless
functioning, you need to check whether the wireless transmission is stable before final
installation.
NOTE
•As far as possible, use original ducts for laying the cables, or other suitable options
such as panelling edges, ventilation grilles or dummy plugs.
If no openings are available, you must drill holes for the cables. Check beforehand
that there is sufficient space on the other side for the drill head to emerge.
•Cables and connections that are not properly installed will cause malfunctions or
damage to components. Correct installation of cables and connections ensures
lasting and trouble-free operation of the retrofitted components.
VT50WiFi-IO-16s.book Seite 14 Freitag, 30. Juni 2017 11:04 11

VT50WiFi Connecting the transmitter electrically
EN
15
•When laying the cables (fig. 8, page 6), make sure:
– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp-edged ducts without protection.
•Protect every through-hole made in the bodywork against water penetration, e.g. by using a
cable with a sealant and by spraying the cable and the cable sleeve with sealant.
I
7.2 Connecting the transmitter electrically
A
I
Connecting the transmitter to the reversing light
I
Proceed as follows (fig. 2, page 3):
➤Connect the red cable of the transmitter (3) to the positive cable of the reversing light.
➤Connect the black cable of the transmitter (4) to the earth wire (–) on the reversing light or to
the earth terminal on the bodywork.
➤Connect the transmitter to the camera (fig. 9, page 7):
– Plug the connection cable (1) together.
– Insert the plug (2) into the transmitter’s camera connection (3).
✓After a few seconds, the VT50WiFi establishes the digital wireless connection.
NOTE
Only start sealing through-holes when you have completed all installation work on the
camera and have laid the required cable lengths.
NOTICE!
Make sure the polarity is correct.
NOTE
The transmitter creates a wireless network that does not permit access to the Internet.
Therefore internet services cannot be used once the transmitter is being supplied with
power.
The use of telephony and text messages is also restricted.
NOTE
On some vehicles, the reversing light only works when the ignition is switched on. In
this case, you must switch on the ignition to identify the positive and earth cables.
VT50WiFi-IO-16s.book Seite 15 Freitag, 30. Juni 2017 11:04 11

Using VT50WiFi VT50WiFi
EN
16
8UsingVT50WiFi
8.1 Installing the VT50 RearCam app
To be able to use the system, you need to install the manufacturer’s free app on your receiving
device before initial use.
You can find the app in Google Play Store™ (Android™) and in the App Store™ (iOS™) under the
name VT50 RearCam.
8.2 Putting VT50WiFi into operation
I
➤Activate the wireless reception of your receiving device.
➤Switch the vehicle ignition on.
➤Engage the reverse gear of the vehicle.
✓The transmitter is operational about six seconds after putting the vehicle into reverse gear. The
operating display (fig. 25page 3) lights up permanently in red on the transmitter.
➤Connect your receiving device to the wireless network of the transmitter.
➤Start the app on your receiving device.
✓The receiving device displays the camera image.
9 Troubleshooting
NOTE
Change the name and password of the wireless network after you have connected
your receiving device for the first time.
Fault Cause Suggested remedy
The receiving device can-
not find the transmitter’s
wireless network.
The transmitter does not
work.
Check the power supply.
The transmitter’s operat-
ing display does not light
up.
The app on the receiving
device has a black
screen.
The transmitter does not
work.
Check whether the app responds:
Open the menu.
Check the transmitter connection and
function.
The receiving device cuts
off during image play-
back.
The connection between
transmitter and receiving
device is too weak.
Adjust the location of the transmitter by
a few centimetres.
VT50WiFi-IO-16s.book Seite 16 Freitag, 30. Juni 2017 11:04 11

VT50WiFi Warranty
EN
17
10 Warranty
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the addresses) or
your retailer.
For repair and guarantee processing, please include the following documents when you send in
the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling centre or specialist
dealer for details about how to do this in accordance with the applicable disposal
regulations.
VT50WiFi-IO-16s.book Seite 17 Freitag, 30. Juni 2017 11:04 11

Technical data VT50WiFi
EN
18
12 Technical data
VT50WiFi
Ref. no.: 9600003262
Image sensor: CMOS
Pixels: 300000 pixels
Sensitivity: < 1 lux
Delay: 200 ms
Time needed to establish connection: < 10 s
Resolution: VGA
Videocodec: MPEG4
TV system: PAL
WLAN frequency: 2412 – 2483.5 MHz
WLAN standard: WIFI 802.11 g/n (QPSK, 16QAM)
Transmission distance (direct vision): 15 m
Operating voltage: 9 – 16 Vg
Amperage: 200 mA
Operating temperature: –20 °C to +70 °C
Camera dimensions (without assembly
plate):
62 x 27 x 26 mm
Transmitter dimensions (without
antenna):
45 x 47 x 20 mm
Weight (camera and transmitter): 150 g
VT50WiFi-IO-16s.book Seite 18 Freitag, 30. Juni 2017 11:04 11

VT50WiFi Erklärung der Symbole
DE
19
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig durch und
bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe des Produktes an den
Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2 Sicherheits- und Einbauhinweise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6 Kamera und Sender montieren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
7 Sender elektrisch anschließen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
8 VT50WiFi benutzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
9 Störungsbeseitigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
10 Gewährleistung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
11 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
12 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
1 Erklärung der Symbole
!
!
A
I
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des Produktes
beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
VT50WiFi-IO-16s.book Seite 19 Freitag, 30. Juni 2017 11:04 11

Sicherheits- und Einbauhinweise VT50WiFi
DE
20
2 Sicherheits- und Einbauhinweise
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
•Beschädigungen am Produkt durch mechanische Einflüsse und Überspannungen
•Veränderungen am Produkt ohne ausdrückliche Genehmigung vom Hersteller
•Verwendung für andere als die in der Anleitung beschriebenen Zwecke
Beachten Sie die vom Fahrzeughersteller und vom Kfz-Handwerk vorgeschriebenen
Sicherheitshinweise und Auflagen!
!WARNUNG!
Unzureichende Leitungsverbindungen können zur Folge haben, dass durch Kurzschluss
•Kabelbrände entstehen,
•der Airbag ausgelöst wird,
•elektronische Steuerungseinrichtungen beschädigt werden,
•elektrische Funktionen ausfallen (Blinker, Bremslicht, Hupe, Zündung, Licht).
AACHTUNG!
Klemmen Sie wegen der Kurzschlussgefahr vor Arbeiten an der Fahrzeugelektrik immer
den Minuspol ab.
Bei Fahrzeugen mit Zusatzbatterie müssen Sie an dieser ebenfalls den Minuspol
abklemmen.
Beachten Sie deshalb folgende Hinweise:
•Verwenden Sie bei Arbeiten an den folgenden Leitungen nur isolierte Kabelschuhe, Stecker
und Flachsteckhülsen:
– 30 (Eingang von Batterie Plus direkt)
– 15 (Geschaltetes Plus, hinter Batterie)
– 31 (Rückleitung ab Batterie, Masse)
– L (Blinkerleuchten links)
– R (Blinkerleuchten rechts)
Verwenden Sie keine Lüsterklemmen.
•Verwenden Sie eine Krimpzange zum Verbinden der Kabel.
•Schrauben Sie das Kabel bei Anschlüssen an Leitung 31 (Masse)
– mit Kabelschuh und Zahnscheibe an eine fahrzeugeigene Masseschraube oder
– mit Kabelschuh und Blechschraube an das Karosserieblech.
Achten Sie auf eine gute Masseübertragung!
VT50WiFi-IO-16s.book Seite 20 Freitag, 30. Juni 2017 11:04 11
