Dometic Oceanair Skysol Frame Manual User manual

Dometic Oceanair Skysol Frame Manual/Powered
Roofblind
Installation and Operating Manual. . . . . . . .3
Dachrollo
Montage- und Bedienungsanleitung. . . . .27
Store de toit
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .52
Estor de techo
Instrucciones de montaje y de uso . . . . . . .77
Persiana de teto
Instruções de montagem e manual de
instruções. . . . . . . . . . . . . . . . . . . . . . . . . .102
Oscuranti
Istruzioni di montaggio e d’uso . . . . . . . .127
Dakgordijn
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . .152
Tagrullegardin
Monterings- og betjeningsvejledning . . .178
Takmonterad rullgardin
Monterings- och bruksanvisning . . . . . . 202
Rullegardin for tak
Monterings- og bruksanvisning. . . . . . . . 226
Kattokaihdin
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 250
Ролета для люков
Инструкция по монтажу и эксплуатации 274
Roleta dachowa
Instrukcja montażu i obsługi. . . . . . . . . . . 300
Strešná roleta
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 325
Stropní roleta
Návod k montáži a obsluze . . . . . . . . . . . 350
Tetőablakroló
Szerelési és használati útmutató . . . . . . . 375
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
WINDOWS, DOORS & LIGHTS
SKYSOL

© 2022 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.

EN
Skysol Frame Explanation of symbols
3
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
documents.dometic.com.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
7 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
8 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1 Explanation of symbols
!
!
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.

EN
Safety instructions Skysol Frame
4
A
I
2 Safety instructions
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard (only for powered blinds)
• Do not operate the device if it is visibly damaged.
• If the power cable for this device is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified or compe-
tent person in order to prevent safety hazards.
• Inadequate repairs may cause serious hazards.
• Disconnect the blind from the power supply before carrying out any
maintenance.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Blinds should be stowed before maneuvering to ensure no restriction
of the driver vision.
•Only for powered blinds: Do not fit powered blinds to escape
hatches.
Suffocation hazard
• This device contains small parts. Keep it away from children under
3years.
• The packaging includes plastic bags. Keep them away from children
under 3 years.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.

EN
Skysol Frame Safety instructions
5
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Risk of injury
• The device must only be installed, removed or repaired by qualified or
competent person using suitable fastening material.
• Take reasonable precaution when installing the blind and wear appro-
priate personal protective equipment.
•Only for boats and yachts: If the blind is in front ofan open window,
then the blind should be stowed when driving at more than 10 knots
or in a sea state of more than moderate, as this can cause damage to
the blind. Parts that come loose may injure persons in the vicinity.
ANOTICE!
Damage hazard
• Blinds should be stowed completely when boat or vehicle is under
way.
• Use screws and plugs suitable for the wall construction to fix the blind.
• Ensure that you do not drill through the wall.
• Ensure that your hands are clean or wear suitablegloves to avoid mark-
ing the fabric.
•Only for powered blinds:
– Check that the voltage specification on the cable label is the same
as that of the power supply.
– Only use cables with a suitable cross-section.

EN
Scope of delivery Skysol Frame
6
3Scopeofdelivery
Depending on the order, the blind is delivered flat-packed or pre-assembled.
4Accessories
Accessories are available using the separate order form. You can find your autho-
rized customer service center at dometic.com.
Item in
fig. 1Quantity Description
1 1 Head rail
2 1 Fix rail
3 2 Frame
4 4 Corner bracket
5 4 Grub screw
6 4 Miter corner
7 2 Glider
81Blindassembly
1
2
4
8
6
7
3
5x2
1

EN
Skysol Frame Intended use
7
5 Intended use
The blind is suitable for:
• Installation in yachts and boats
• Installation in caravans and motor homes
• Installation in homes
The design and size of the blinds are custom-made. The fabric of the blinds is cut to
fit the customer‘s specifications.
The blinds are designed for interior use only and should not be installed in bath-
rooms, wet rooms or other locations with a high level of humidity.
This product is only suitable for the intended purpose and application in accordance
with these instructions.
This manual provides information that is necessary for proper installation and/or
operation of the product. Poor installation and/or improper operating or mainte-
nance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
6 Technical description
The blind is available in two operating types:
•Manual
• Powered
INOTE
After delivery, the blind type and the scope of delivery should be
checked according to the order confirmation. The number on the prod-
uct label indicating the blind type is located on the back of the head rail.

EN
Installation Skysol Frame
8
7 Installation
!
I
7.1 Assembling the flat pack version

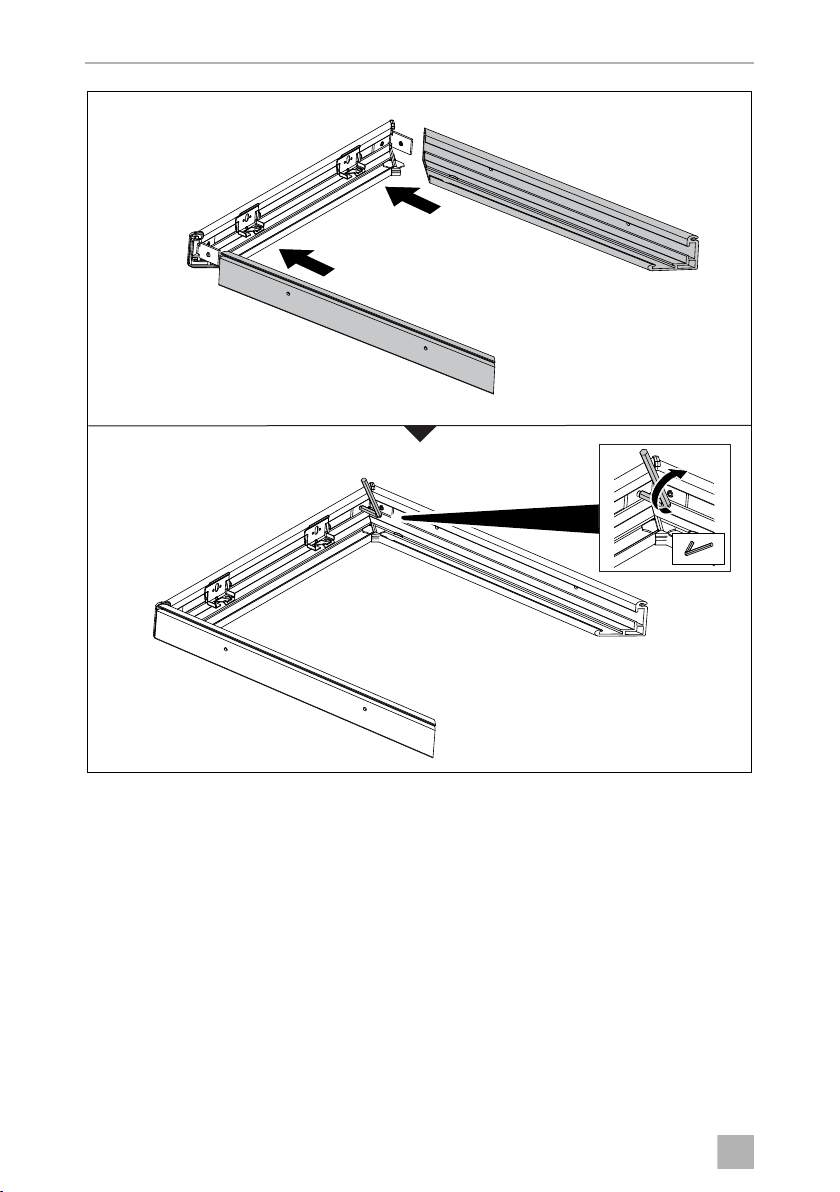

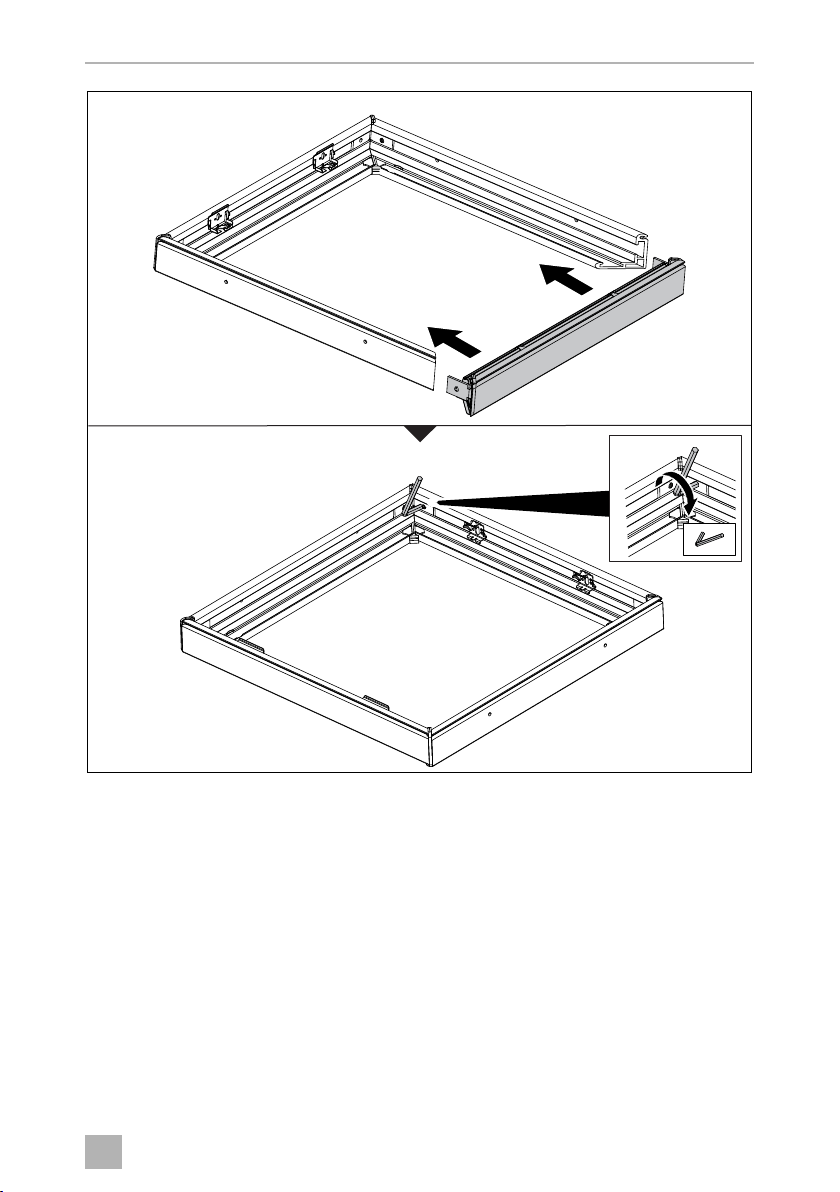

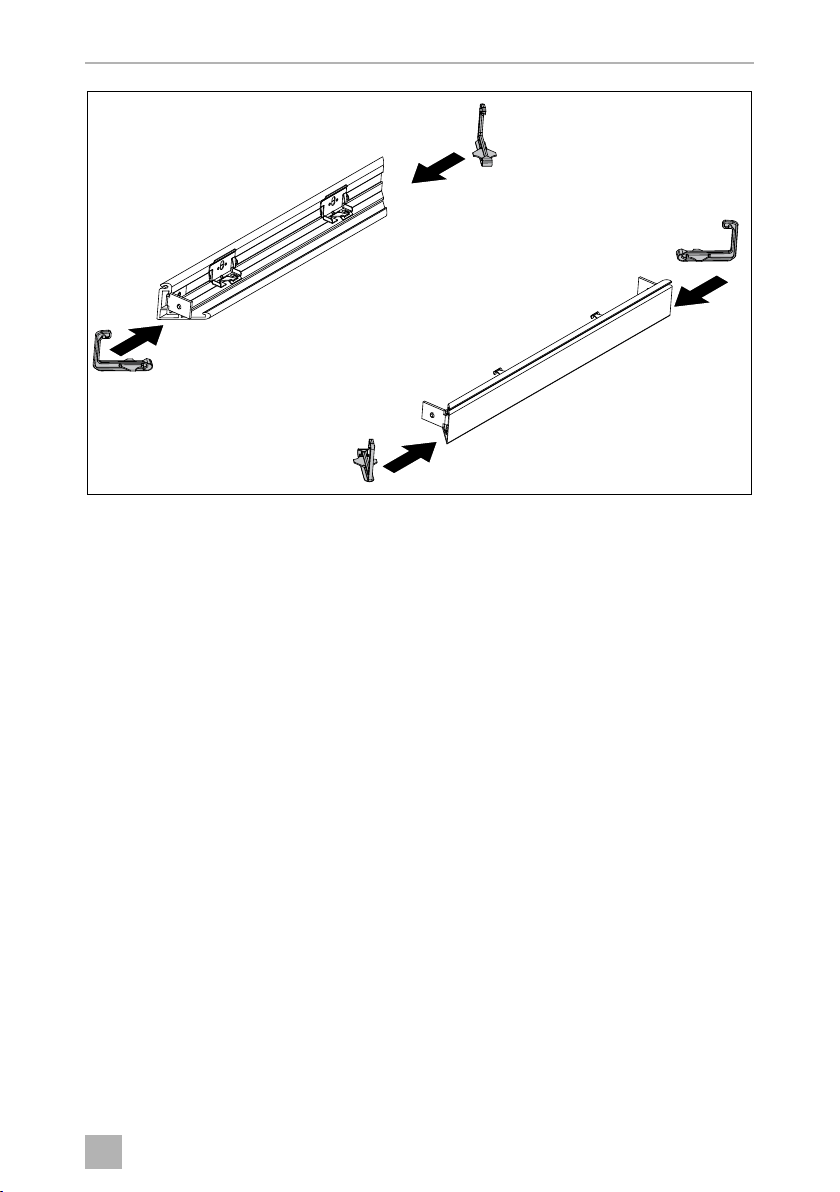

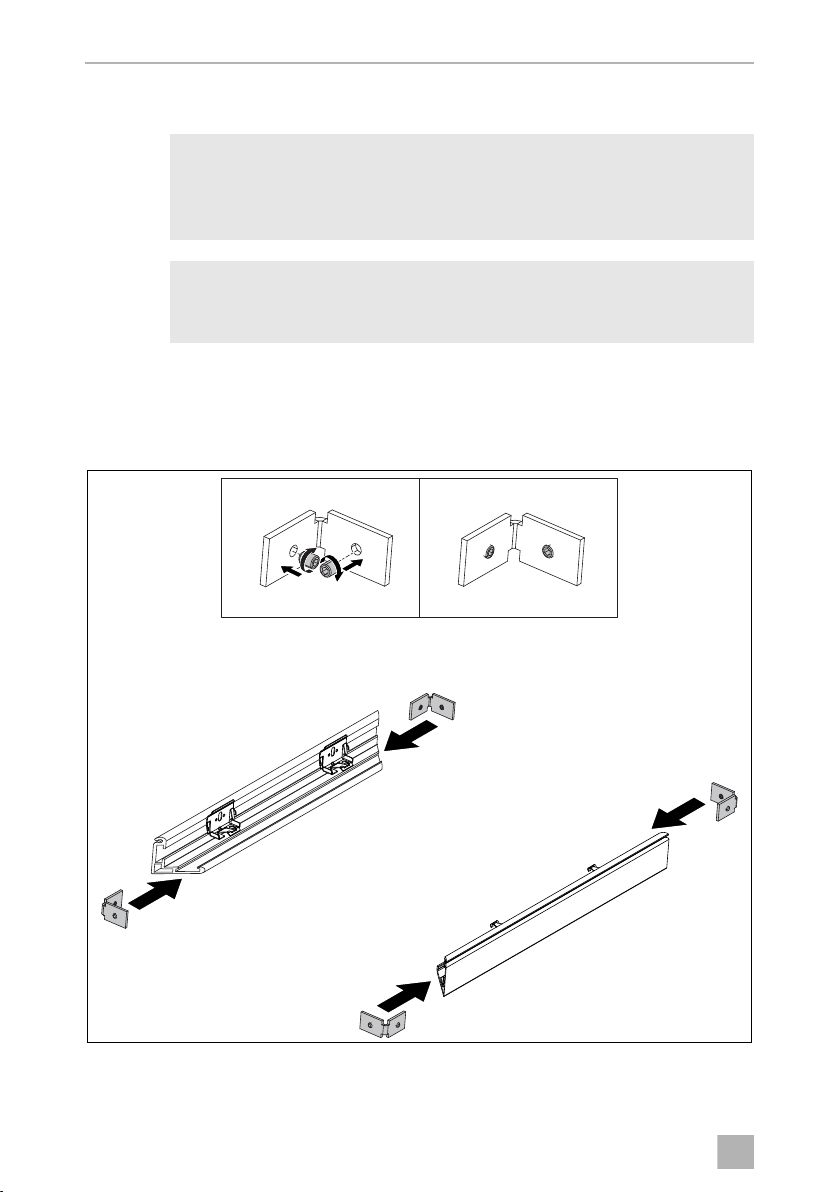

Assembling the frame
WARNING!
Powered blinds: Disconnect the power supply before you begin and
ensure that it can not be reconnected until installation has been com-
pleted.
NOTE
Ensure enough room behind the brackets to be able to access the
release clip.
1. 2.
3.
2

EN
Skysol Frame Installation
9
3

EN
Installation Skysol Frame
10
1.
2.
4

EN
Skysol Frame Installation
11
1.
2.
5

EN
Installation Skysol Frame
12

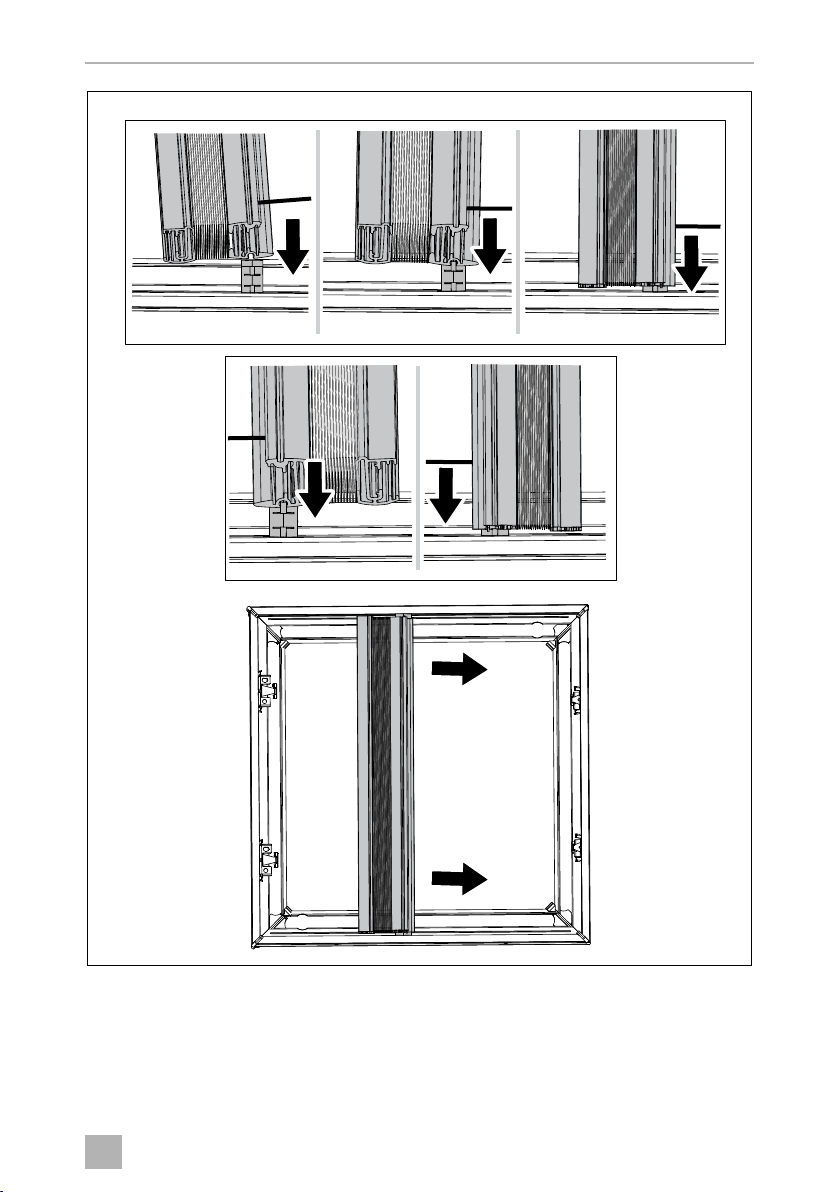

Inserting the blind into the frame
4.
1. 2. 3.
6

EN
Skysol Frame Installation
13
5.
2.
6.
1. 3.
4.
7

EN
Installation Skysol Frame
14
Clipping the fix rail to the frame
1.
4.
2.
3.
8

EN
Skysol Frame Installation
15
Fixing the head rail to the frame
2.
3.
1.
9

EN
Installation Skysol Frame
16
7.2 Installing the blind
INOTE
• Use screws and plugs suitable for the wall construction to fix the
frame to the recess. Pre-drill at the marked points.
• Ensure not to drill through the wall.
• Ensure not to damage the channel in the side tracks.
• Ensure not to leave protruding screws or otherdebris inside the side
tracks as this can jam the gliders in the tracks.
1.
2.
3.
0

EN
Skysol Frame Installation
17
2.
1.
3.
CLICK
a

EN
Installation Skysol Frame
18

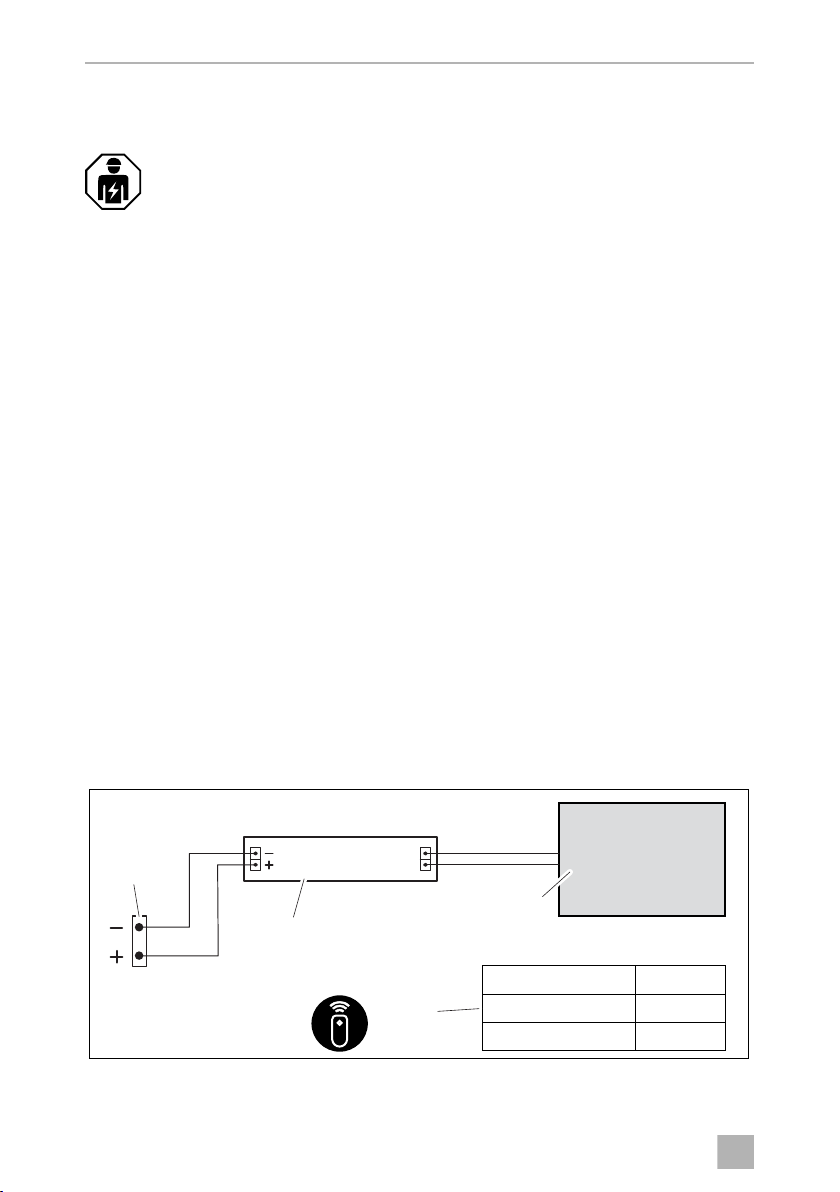

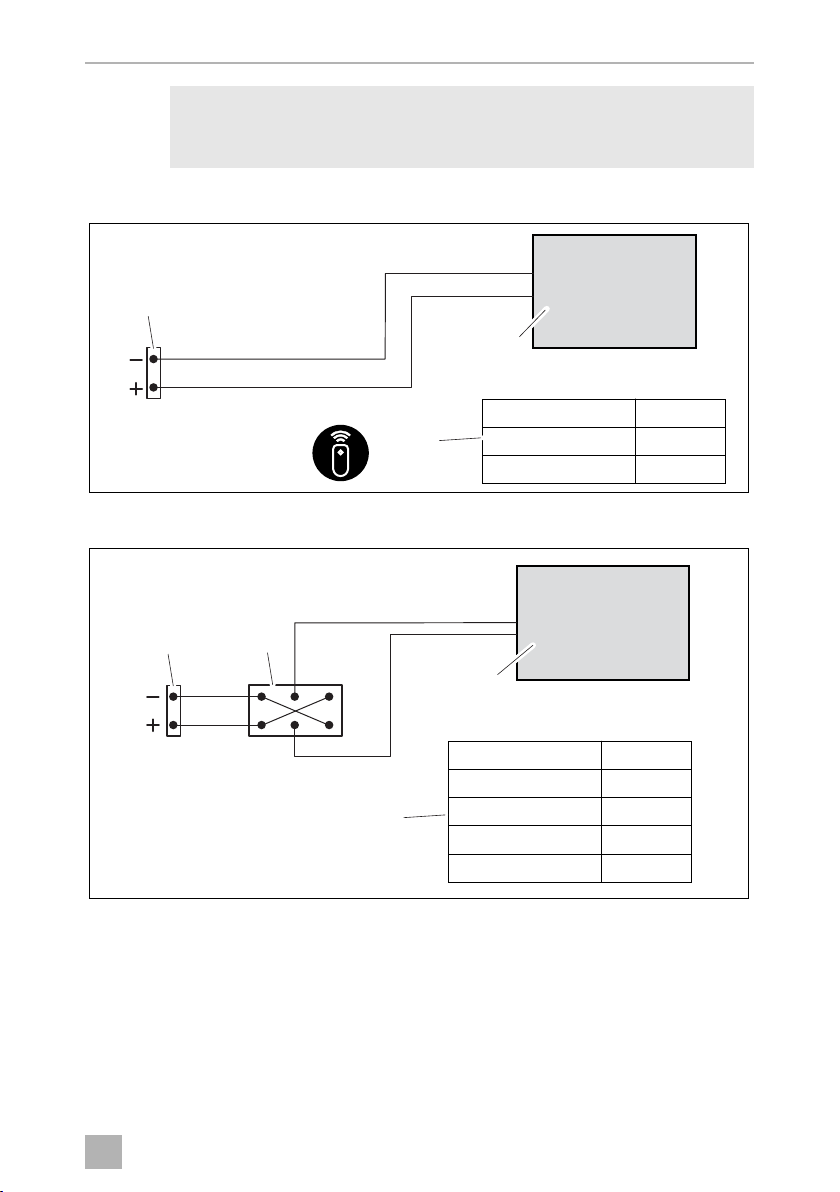

7.3 Connecting the blinds (only for powered blinds)
The powered blinds are available for a connection to a 12/24 Vgpower supply. The
data plate on the head rail provides important information on the specifications of
the motor specific to the blind.
The following notes must be observed when connecting the blinds:
• Ensure cables are not damaged during installation. Routings of cables through
walls or bulkheads must be protected and insulated by appropriate bushing,
grommets or cable conduits.
• Ensure that a 12 V or 24 V stabilized power supply line is available for the drive at
the point of installation. The power supply line is suitably arranged and pro-
tected.
• Secure all cables to prevent any contact with moving parts.
• Only use power supply units and control elements recommended by the manu-
facturer to prevent damage or faults during operation caused by incompatible
electrical components.
• Control devices (e.g. switches) must be installed in visible locations.
➤Connect the motor as shown in the wiring diagrams.
Dometic Radio Controlled Blind External Receiver
The electrical power supply must be connected by a qualifiedelectrician
who has demonstrated skill and knowledge related to the construction
and operation of electrical equipment and installations and has received
safety training to identify and avoid the hazards involved.
bk
rd
MOTOR
Dometic Radio Receiver
Dometic 9 Chn, 433 MHz Transmitter
HEADRAIL
1
4
2
wh
bk/wh
12 V/24 V DC
12 V/24 V DC
Atlantic 12S - Double End 12 V DC
HD TM24 24 V DC
Atlantic 24S - Double End 24 V DC
3

EN
Skysol Frame Installation
19
I
Dometic Radio Controlled Blind Internal Receiver
Manually Switched Blind
NOTE
The radio receiver is not programmable. The blind continues to run until
the operator presses the stop button on the transmitter.
Atlantic 12S - Double End 12 V DC
HD TM24 24 V DC
Atlantic 24S - Double End 24 V DC
bk/wh
wh
HEADRAIL
1
2
12V/24V DC
3
Dometic 9 Chn, 433 MHz Transmitter
Atlantic 12S - Double End 12 V DC
HD TM24 24 V DC
24 V DC
Atlantic 24S - Double End 24 V DC
bk
rd
HEADRAIL
1
2
wh/gy
gy
5
12 V/24 V DC
Somfy LV25 - B64
24 V DC
Somfy LW25 - B83
3

EN
Installation Skysol Frame
20
Somfy RTS Controlled Blind External Receiver
Somfy Radio Controlled Blind Internal Receiver
bk
rd
MOTOR
Somfy DC RTS
Somfy Remote Control
HEADRAIL
1
4
2
wh
bk/wh
24 V DC
Somfy LW25-B83
HD TM24
24 V DC
Somfy LV25-B64 24 V DC
24 V DC
3
bk/wh
wh
HEADRAIL
1
2
24 V DC
Somfy LW25-B83
HD TM24
24 V DC
Somfy LV25-B64 24 V DC
24 V DC
3
Somfy Remote Control
