Dometic CAL61.207 Manual

El
INSTALLATION &
OPERATING INSTRUCTIONS
CARAVAN ROOF MOUNT AIR CONDITIONER
MODEL CAL61.207 PRDOUCT NO. 991640321
MODEL CAL136.207 PRODUCT NO. 991650321
INCLUDES ELECTRIC HEAT KIT
IMPORTANT INSTRUCTIONS
MUST STAY WITH UNIT
OWNER
- READ CAREFULLY
WARNING
THIS UNIT MUST BE SERVICED BY
AN AUTHORIZED SERVICEMAN.
MODIFICATION OF THE APPLIANCE
CAN BE EXTREMELY HAZARDOUS
AND COULD LEAD TO SERIOUS
INJURY OR DEATH.
Form No. 3102267.006 4/89

1. GENERAL INFORMATION
A.
THREE SPECIFIC NEEDS:
1.
Installation opening
Cut through roof and ceiling
3.
Power must be above l05V- and frequency
must be 60 Hz at all times.
2. Additional Wiring
115V-60 Hz - 20 Amp , SPECIAL
SHORE LINE
COMPARTMENT
FUSE PANEL
1
WIRING VOLT LOSSES
ALTITUDE

B. SPECIFICATIONS (FIG. 1 .B)
WARNING
MODEL NO.‘s CAL136
CAL36 ELECTRIC
.207
.207
HEATER
Nominal Capacity (KW)
2.9
2.1
1.6
Electrical Rating 115V-60
Hs. 1 Ph.
FL Amps (Camp/Motor)
11.0/3.1 7.212.9
12.7
LR Amps (Camp/Motor) 5o.oja.5
34.416.9 NA
Power (KW)
1.7
1.1
1.53
\
Min. Wire Size Up to 8 meters, uee 2.6 mm2 Copper
Circuit Protection 20 Amp Time Delay Fuse or
20 Amp Circuit Breaker, Time Delay
9
v
A
DISCHARGE AIR
RATING PLATE
&
GASKET
**Normal Min. 1 Unit 3SKW
Generator Size 2 Unit9
S.OKW
,
l *
The Manufacturer gives only general guidelines
for Generator reauirements. These Generator
requirements come from experience consumers
have with our equipment in field applications.
When sizing Generators, the total electrical
power consumption of the Caravan must be
considered.
Keep in mind that Generators lose
power because of altitude increases above sea
level, high outside temperatures, and lack of
maintenance.
NOTE:
Some authorities require that this appliance be
installed only by an authorized electrician.
2. PRECAUTIONS FOR
SAFE INSTALLATION
A.
Read
these
installation and operating
instructions thoroughly and
carefully
before
attempting
installation of Air
Conditioner.
c
+
\
IMPROPER INSTALLATION MAY DAMAGE
EQUIPMENT, COULD ENDANGER LIFE, CAUSE
SERIOUS
INJURY AND/OR PROPERTY
DAMAGE.
B.
C.
D.
E.
3.
The Manufacturer will not be liable for
any damages or injury due to failure to
follow these installation and operating
instructions.
Installation must comply with all applicable
codes and/or regulations.
DO NOT add any devices or accessories to
this equipment.
This equipment must be serviced only by
qualified service personnel. Some areas
require installation and service personnel
to be licensed.
LOCATION
This air conditioner is designed for installation
and use on the roof of a Caravan. One or
more
units
may be used on the vehicle.
Consider the van’s size, roof structure, and
cooling
requirements
when determining your
needs.
A.
DESIGN RECOMMENDATIONS
For one unit
installation:
The
Air
Conditioner
should be mounted slightly
forward of center (front to back) and
centered from side to side on the van.
(FIG.
3.A.l)
For two unit installation$ Install one Air
Conditioner l/3 and one Air conditioner
2/3’s back from front of van and centered
from side to side. (FIG. 3.A.2)
L = Length
- s-

B.
Many air conditioners can be installed at
existing
roof vent openings.
These
openings may be larger or smaller than 355
X 355 mm and will need modification.
(FIG. 3.B)
. m ,.,TUn..n..,T”IO
ROOF VENT - REMOVE
FIG. 3.B
4.
Be sure your roof structure is capable
of supporting a weight of 65 Kg
when the
van is in
motion.
(Normally if the roof can support a
static load of approximately 100 Kg it
meets this requirement.) (FIG. 3.C.4)
FORCE WHILE
MOVING
L&
FIG. 3.c
WEIGHT OF A/C
PLUS SERVICE
I.4
C. Check location acceptability before
beginning the installation. 4. ROOF PREPARATIONS
1.
If possible, mount the air conditioner in
a section of the roof which is both flat
and level when the van is parked on a
level surface; otherwise, asideways pitch
or a frontward/backward pitch up to 10”
can be tolerated.
lo* WITH A/C
FIG. 3.C.l
FACING FORWARD
WARNING
Disconnect all power supplies to the van, insure
the generator is shut off if present and
disconnect the positive battery terminal from
the battery before performing any cutting on
the van. FAILURE TO FOLLOW THIS
INSTRUCTION MAY CREATE A
HAZARD. (FIG. 4)
2. Check on the roof to be sure no
obstructions are in the area where
the air conditioner will be installed.
3.
Check inside where the
air
conditioner air box will be located to
insure there will be no interference
with door openings, curtains, room
dividers, etc. (FIG. 3.C.3)
FIG. 4.
POOP/AIR BOX CROSS-SECTION FIG. 3.C.3
PROHIBITS INSTALLATION
kl
*CABINET - PROHIBITS USE
Turn Off
Generator Setr
SHOCK
t
Dirconnect
d Battery
-I-

A.
Roof
1.
2.
3.
FIG. 4.A
Vent Locations (FIG. 4.A.)
Remove all screws that secure the
vent to the roof and remove the vent
from the opening.
Remove all sealing compound from
around the vent opening.
Seal all screw holes and all roof
seams
with
a quality all weather
sealant.
CAUTION:
There may be electrical wiring
roof and ceiling. Disconnect
located between
all electricity.
(FIG. 4.)
4
1. Remove Scrrwr
3.
Carefully cut a matching hole through
the ceiling of the van. (FIG. 4.B.3)
Vent
AkaerrPdawur
I-=- -
k t
366 X 356mm
v---M. ---
--------$OpMing
I
I
7Smm
I
r’
c4nurLh
f I
d opens
51omrl
I
I
106mm-Z 4
L
++
‘:,lO&nm
/
It
t
L $-
I
I
76mm
I
_______&J_______~
C 283mm 42wmm+
FIG.4.B.3
B.
Other:
Cutting new or modifying existing
openings. This opening should be located
between roof structural members.
1.
Mark the 355 X 355 mm opening on
the roof with a marker. (FIG. 4.B.l)
2.
Carefully cut the opening in the roof.
(FIG. 4.B.2)
FIG.
4.B.2
CUTHOLE
DON'TCUT
ELECTRICAL
LINES
4.
Seal holes and seams. (FIG. 4.A)
NOBLOCKAGES DON'TREMOVE DEPENDSON
STRUCTURE STRUCTURE
- 6-

C.
Roof Opening Preparations
1.
If the opening exceeds
mm,
make it smaller
spacers or close off plates.
360 X 360
by installing
2.
If the opening is smaller than 350 X
350 mm, it will be necessary to
enlarge the opening; see 4.B.
3.
Route a grounded power supply line
from circuit breaker or fuse box to
the roof opening. (FIG. 4.C.3)
a.
The power supply must be a
separate circuit, fused with a 20
amp Time Delay Fuse or 20 amp
Circuit Breaker.
b. The power supply
must be
grounded 2.5 mm2 COPPER sup-
ply for distances of 7.5m or
less.
C.
The power supply wiring MUST
comply with
all
applicable
regulations and wiring codes.
d.
Depending on entrance location,
up to l/2 meter of supply wire
must extend
into the roof
opening to insure
ease of
attachment to the air
conditioner.
e.
If vent fan was removed, the
existing wire may be utilized,
provided it is of proper size and
properlv fused.
BOX
FIG. 4.C.3
5oomm
EXCESS WIRE
FOR HOOK-UP
4.
Framing is required around the roof
opening to insure adequate support,
provide a smooth surface for sealing
and prevent hot or cold air from
being drawn into the opening.
This
-6
framing should be wood strips 380 X
25 mm X thickness of roof to ceiling
distance. A hole for the power supply
must be provided, FIG. 4.C.4.
FIG. 4.C.4
OPENING SO IT
COLLAPSE WHEN
G DOWN APPLIANCE
LEAVE ACCESS FOR
POWER SUPPLY WIRING
NOTE:
Under no circumstances should the
roof be constructed to create a low
spot where water
will accumulate
when the air conditioner is installed.
This may create a water leak into
the interior of the Caravan.
5.
A.
F&W&lO3FOF AIR CONDITIONERS
Remove the carton
from
the
conditioner and discard. (FIG. 5.A.l) air

B.
LIFT AND PLACE the unit over the
C.
Center the rubber gasket as near as
prepared roof opening. The blunt end of
possible over the opening.
the air conditioner goes toward the m
of the van. (FIG. 5.B.l)
This completes the outside work. Minor
adjustments to the air conditioner position may
be done from inside the van.
CAUTION:
DO NOT slide the air condition& across the
roof. The rubber gasket attached to the bottom
of the air conditioner will not seal properly if
damaged or torn by sliding. (FIG. 5.B.2)
FIG. 5.B.2
DON’T SLIDE
OR DRAG
6. UPPER DISCHARGE AIR DUCT
INSTALLATION (FIG. 6)
The upper discharge air duct is shipped inside
the lower discharge air duct attached to the
ceiling template.
A.
B.
Remove the upper duct from the ceiling
template duct and install it over the
blower discharge opening.
NOTE: The edge without the flange goes
toward the rear of the van.
Secure the duct in place with two of the
pointed screws
provided.
There are
prepunched holes in the base pan for ease
of installation.

7.
A.
B.
C.
CEILING TEMPLATE
INSTALLATION
Reach through the roof opening and adjust
the air conditioner until the gasket is
centered on the opening. (FIG. 7.A)
Reach up into the return air opening and
pull the conduit power cable down for
later connection. (FIG. 7.B)
Measure the roof thickness:
1.
If the distance is 25 to 50 mm,
remove the perforated tabs on the
upper discharge air duct and tabs on
the lower discharge air duct.
2.
If the distance is 50 to .75 mm,
remove
the perforated tabs on the
lower discharge air duct.
3.
If the distance is 75 to 110 mm, do
not remove any of the perforated
tabs. (FIG. 7.C)
FIG. 7.A., B., C.
Gukrt,
CENTER A/C \?’
-FROM BELOW ,-
PULL CONDUIT
THROUGH
IF 26 mm < T < 60 mm
IF 60 mm < T C76 mm
D.
E.
F.
Take the ceiling template and slide the
lower discharge air duct over the outside
of the upper discharge air duct.
Holding the ceiling template in place with
one hand, install the three 150 mm long
mounting bolts up through the ceiling
template and into the air conditioner with
other hand, until mounting bolts are
finger-tight. (FIG. 7.E)
Evenly torque the three mounting bolts to
4.5 to 5 NM to secure the air conditioner
to the roof and insure a good water seal.
The rubber gasket (FIG. 7.A. B, C) should
compress to roughly l/2 of its original 25
mm thickness. (FIG. 7.E)
CAUTION:
DO NOT overtlghten the mounting bolts as this
may damage the air conditioner base.
FIG. 7.D., E.
IF 76 mm < T < 110 mm - INSTALL AS PACKAGED
-8-

8. CONNECTION OF POWER SUPPLY
TO AIR CONDITIONER (Fig. 8)
WARNING
Be sure power supply is OFF before connecting
power supply leads to the air conditioner.
A.
B.
C.
D.
E.
Route the power supply line, previously
installed to the roof opening, into the
junction box on the ceiling template.
Connect the power supply line to the air
conditioner at the terminal block provided
in the junction box. Connect red to red,
black to black and earth to earth, (P, P,
and
& respectively).
Tighten the strain relief onto the power
supply line, to hold it firmly in place.
Carefully push all excess wire back into
the junction box and install covers onto
the boxes with three blunt tipped screws
provided.
Plug the electrical conduit hanging from
the bottom of the air conditioner into the
mating
connector on
the
switch box
located on the ceiling template.
FIG. 8
CEILING TEMPLATE & HEATING ASSEMBLY
9.
A.
B.
C.
FIG. 9
HEATER INSTALLATION (FIG. 8)
Install the heat package to the ceiling
template using
the four (4) pointed,
serrated screws
provided. The heater
element will align below the discharge air
opening and the mounting holes will align
with the prepunched holes in the ceiling
template.
Push the electrical
plug onto
the
receptacle at the back of the switch box.
Push excess conduit up into return air
opening.
Insure the insulation covering the conduit
knockout in the air box is still in place as
shown.
LEAVE
INSULATION
IN PLACE REMOVE
KNOCKOUT
GRILL - THIS END ONLY
ELECTRICAL
/
P
LUG
LEGTRICAL
ONDIJIT
POWER SUPPLY
0
E
.
_
0
fi 0
D
6
.
I
BOX
BOTTOM VIEW
JUNCTION BOX
-Q-

10. AIR BOX INSTALLATION
A.
Remove the two return air grills and
filters which are shipped loose in the air
box. (FIG. 10.A)
V
F.
The power supply to the air conditioner
may now be turned ON.
G.
Your air conditioner is now installed and
ready for operation. Please read the
following instructions before attempting to
run the unit.
B.
Slide the front end of the air box over
the shafts of the thermostats and selector
switch. (FIG. 10.B)
FIG. 10.B.
C.
Install the four screws through legs in air
box into the prepunched holes in the
ceiling template.
NOTE:
There are three
optional
mounting holes for which no
screws are provided. (FIG. 10.C)
D.
Install the return air grills and filters by
simply pushing them into place.
(FIG.
10.D)
E.
Install the two knobs
of the thermostat
shafts.
FIG. lOC., D., E.
CEILING TEMPLATE
provided on the ends
and selector
switch
AIR BOX
I/
- 10 -
11. OPERATING INSTRUCTIONS
(Refer to FIG. 7)
A.
CONTROLS
1.
The Thermostat has a temperature
range of 18S”C in Cool ( @ ) position
to 32S”C in Warm ( -a) position. The
thermostat controls the unit compressor
ON and OFF cycle in the cooling
mode and the electric heater ON and
OFF cycle in the heating mode.
I
1
FIG. 11.A.l
2.
The Selector Switch controls the unit
fan speeds, and the heating, cooling
and fan modes of operation.
FIG. 11 .A.2

B. COOLING OPERATION
1.
Set the thermostat to the position
which will give your desired comfort
level.
2.
The selector switch is to be set as
follows:
a. HIGH COOL (30): Selected when
maximum cooling and dehumidifying
is required.
b. MED COOL (20): Selected when
medium cooling is required.
C. LOW COOL (lo): Selected when
minimum
cooling is
required.
Normally this position is selected
for night time operation.
The air conditioner compressor will come
on and off as cooling is required to maintain
your desired temperature level as set at
the thermostat.
NOTE: The air conditioner blower runs
continuously to circulate the air and maintain
an even temperature in the van. It does
not come on and off with the compressor.
C.
FAN OPERATION
When you wish to circulate the air inside
your van without heating or cooling, select
one of the three fan speeds (1 #, 2 $$, or
3% ).
The fan will run continuously and
circulate the air in the van.
FIG. ll.C.
.
FIG. 11.B.l
.
.
FIG. ll.B.2
.
.
.
. . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
I
.
.
.
.
.
.
.
.
.
. .
=
25°C.
= COOLING
“COOLING”
ROOM
TEMPERATURE
“CIRCULATION”
ROOM
TEMPERATURE
FIG. ll.B.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

D.
HEATING OPERATION
NOTE: This electric heater will not replace
a furnace for heating your van in cold
weather. It is intended to remove the
chill
only.
1.
2.
from the air on cool days or mornings
Set the thermostat to the position
which will give your desired comfort
level.
The selector switch can be set in any
of the three heating positions,
but
normally it will be placed in the Low
Heat (la) position for best results.
The electric heater will turn on and off as
heating is required to maintain your desire
temperature level as set at thermostat.
NOTE:
The air conditioner fan runs
continuously to circulate the air in the
van.
It does not come on and off with
the heater.
E.
OFF POSITION
To shut the air conditioner Off, place the
selector switch in the OFF position, (0).
“OFF”
m-l
FIG. ll.E
F.
When the air conditioners are turned on
and the thermostat calls for cooling, the
fan and compressor start at the same time.
After shutting the air conditioner down
manually by either the selector switch or
the thermostat, always wait at least 2 to 3
minutes before turning the air conditioner
back on. This allows the refrigerant
pressures in the air conditioner to equalize
so the compressor may restart.
6
.
.
.
FIG. 11.D.l
.
.
.
.
.
.
=
.
.
.
.
FIG. ll.D.2
.
vi ; = HEATING
.
. . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
a
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. .
FIG. ll.D
“HEATING”
ROOM
TEMPERATURE HEAT
ON
FAN
ON
. . . . . . . . . . . . . . . . . . . . . . . . . . .
FIG. ll.F COOLING ON
o-3 (%J
63
-1
1
COOLING COOLING
ON - OFF,
\
COOLING ON @ +
MINJTES
- 12 -

12. MAINTENANCE
AIR FILTERS: Periodically remove the return
air filters located above the removable panels in
the air box. Wash the filters with soap and
warm water, let dry and then reinstall.
(FIG.
1O.C)
NOTE: Never run the air conditioner without
return air filters in place. This may plug the
unit evaporator
coil with dirt and
may
substantially affect the performance of the unit.
FROST FORMATION on Cooling Unit: Under
certain conditions, frost may form on the evaporator
coil. If this should occur, inspect the filter and clean
if dirty. Make sure air louvers are not obstructed. Air
conditioners have a greater tendency to frost when the
outside temperature is relatively low. This may be
prevented by adjusting the thermostat control knob to
a warmer setting (counterclockwise). Should frosting
continue, operate on low, med., or high FAN setting
until the cooling coil is free of frost.
13. SERVICE - Unit Does Not Operate
If your unit fails to operate or operates
D.
In the air conditioner air box, check to be
improperly, check the following before calling sure the air conditioner conduit is plugged
your service center. into the selector switch box. (FIG. 8.E)
A.
B.
C.
If the van is connected to a motor
generator, check to be sure the motor
generator is running and producing power.
If the van is connected to a power supply
by a land line, check to be sure the line
is
sized properly to run your
air
conditioner load and that it is plugged
into the power supply.
Check your fuse or circuit breaker.
E.
After the above checks call your local
service center for further help. This unit
must be service by qualified service
personnel only.
When calling for service, always give the air
conditioner Model Number, Product Number, and
Serial Number. This information can be found
on the unit rating plate located on the air
conditioner base pan. To locate these, remove
the return air grill from the air box and look
up through the roof opening in the ceiling (FIG.
2 and FIG. 10.A)
- lS-

ASSEMBLY DRAWING
Discharge Air
Rating Plate and Serial Number
Neoprene Rubber Gasket
Upper Discharge Air Duct
Roof Line
Roof Reinforcement Member
Power Supply Line
Prepared Installation Opening
25 X 380 mm Thick Framing
Lower Discharge Air Duct
Ceiling Template
Junction Box
Unit Mounting Bolts
Heat Package
Mounting Legs
Air Box
(150 mm)

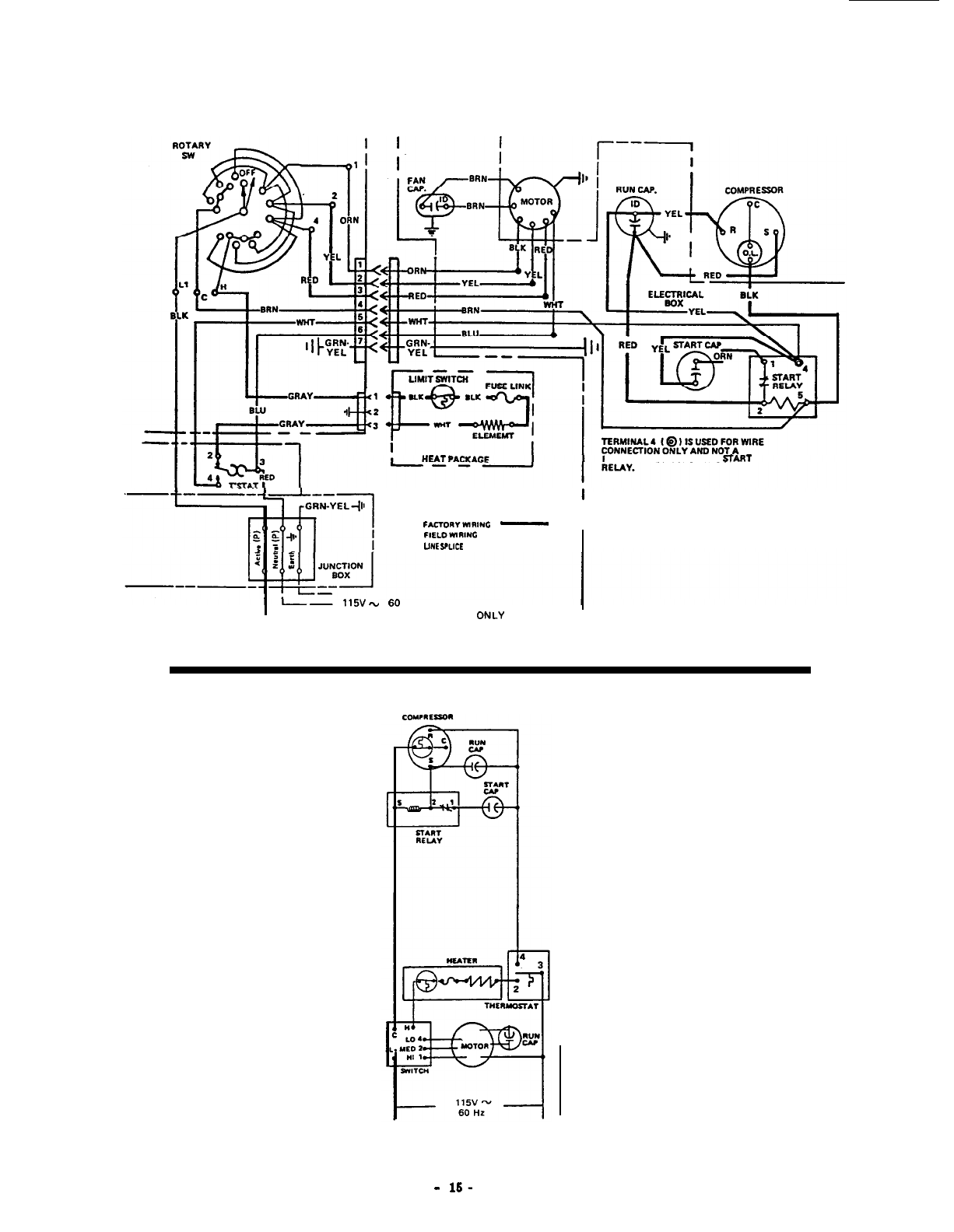

FUNCTIONAL PART OF THE START
--_
I
FAcloRIwlRING -
I
FlELDrnRlNG ----
LINE YLlcE l
115v.w , SO Hz., 10
--- USE COPPER CONDUCTORS ONLY
I
- 16-
