Dormakaba TS93 Series User manual

TS93 GSR/EMF T 1A, 1I, 2
Surface Applied Closer
Pull side track mount and coordinator system
Installation instructions
08280031 – 08-2019
| EN |

2TS93 GSR Surface Applied Closers 08-2019
08280031
dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions Table of Contents
Table of contents
1 Technical specifications 3
. Overview 
. Size selection chart 
. Tools recommended 
. Surface closer system 
. Handing the door 
2 Installation instructions 5
. Installing the back plate 
. Installing the surface closer 
. Installing the slide channel 
. Installing the main arm 
. Secure main arm 
. Installing the coordinator system 
. Installing conduit for EMF 
. Installing coordinator system (continued) 
. Wiring the EMF 
3 Adjustments 10
. Adjust closing speeds: sweep, latch, backcheck,
delayed action 
. Adjust optional hold open 
. Adjust spring force 
4 Install covers 11

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers 3
Technical specifications
1 Technical specifications
. Overview
Door Width
Closer Interior/
Exterior
'-"
min.
’-"
max.
’-”
max.
’-”
max.
’-”
max.
’-”
max.
’-”
max.
TS Interior • • NA NA
TS Interior NA NA NA NA • • •
Caution: sex nuts are required for attachment of
components to unreinforced doors and to wood or plastic
faced composite type fire doors, unless an alternative
method is identified in the individual door manufacturer’s
listings.
Maximum door opening degree is °.
Minimum door width is ”.
Hold open range is from ° to ° with optional hold
open kit.
Arrows on closer mounting plate point upward.
A carry bar should be installed to insure that the active
door is opened enough for the inactive door to close.
Recommended carry bars:
DORMA carry bar MK- (up to ’-” wide door)DORMA
carry bar MK- (’-” and wider door)
Installation instructions are included with carry bar.
Follow included template to properly prepare door and
frame for all accessories of the closer installation.
Know the swing of the door which is being installed prior to
installation.
Make sure door efficiently operates prior to installing
closer.
Verify closer spring size prior to installation.
Table 
Table 
Drill bits: Pozidriv PZ- M hex key
Metal: No.  & - tap # Phillips screwdriver M hex key
Wood: /” /” flat head screwdriver
. Size selection chart
. Tools recommended
GSR/EMF T 1I
(Active door & inactive door holds open together)
The GSR/EMF T I incorporates an electric hold open mechanism in
the inactive leaf. The coordinator mechanism tied to the inactive
leaf in turn holds the active leaf at whatever degree of opening it is
placed. Both doors will close in sequence (inactive first) from any
point upon signal from the fire alarm system or when electrical
current is interrupted.
GSR/EMF T 1A (Active door hold open)
The GSR/EMF T A incorporates an electrical hold open
mechanism in the active leaf. This eliminates the need to hold the
inactive leaf in the open position to initiate hold open of the active
leaf. This version permits the active leaf to be held open at a
preselected point when the inactive leaf is in the closed position.
The door will close from any point upon signal from the fire alarm
system or when electrical current is interrupted.
GSR/EMF T 2 (Active door hold open only or inactive &
active hold open together)
The GSR/EMF T  incorporates an electric hold open mechanism in
both door leaves. This enables both leaves to be held open when
the inactive door is placed in the preselected hold open position
and also enables the active door to be held open independently
when the inactive door is in the closed position. Both doors will
close in sequence (inactive first) from any point upon signal from
the fire alarm system or when electrical current is interrupted.

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers
4
Surface closer system
Handing the door
Fig.
Hinge Hinge
Exterior side of door
Interior side of door
Left hand door (LH) Right hand door (RH)
The surface closer is comprised of the following components.
. Closer body: “B” body
. Main arm
. Active track assembly
. Inactive track assembly
. Pinion
. Track covers and center cover
. Closer cover
. Closer end caps
. Connecting channel
. Handing the door
Fig.
. Surface closer system
1
5
78
6
3/4 3/4
6
9
2
2

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers 5
Installing back plate
Installing surface closer
. Installing the back plate
2 Installation instructions
NOTE: Orient pinion closest to hinge. .. Secure closer body to plate.
• Use four M x mm screws for each closer.
NOTE: Use ONLY hand Phillips bit driver #2 or Pozidriv
PZ-2.
. Installing the surface closer
Fig.
Fig.
.. Secure plate to door.
• Use four - x /” PH screws [# x -/”
wood screws] provided for each plate.
NOTE: Ensure arrows point
in direction of arm location.
Left hand
door
Right hand
door
Backplate
-x/"
Toward the
hinge
Toward the
hinge
Closer
Pinion
Left hand
door
Right hand
door

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers
6
Installing slide channel
Installing main arm
. Installing the main arm
Fig.
NOTE: EXAMPLE: Left hand active door shown. For
right hand active installations, install active track
assembly on right hand door and inactive track
assembly on left hand door.
.. Orient track with coordinator toward center of
doorway.
.. Secure track to door frame via holes closest to
center of door first.
• Use two -x” FH screws with a Phillips flat
head driver.
.. Insert end caps into track.
.. Secure end of track through end caps.
• Use two -x” FH screws.
.. Slide end cap covers onto end caps.
. Installing the slide channel
Fig.
.. Attach /” wrench to bottom pinion.
.. While looking up, rotate pinion (square) until it aligns to
square hole on arm.
LH = turn ° counter-clockwise
RH = turn ° clockwise
Right hand door
(Inactive)
Left hand door
(Active)
Right hand door
-x" FH
End cap
covers
End caps
-x" FH
Coordinator towards
center of doorway
Main arm
Right hand door
(Inactive)
Left hand door
(Active)
Pinion screw
Pinion
Door frame hidden for
better view of arm
attachment.
.. Arm is parallel to door.
.. Secure with Mx socket head fastener.
• Use an M hex key.

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers 7
Secure main arm
Installing coordinator system
. Secure main arm
Fig.
.. Secure arm to slide shoe.
• Use one Mx shoulder bolt and an mm hex
key.
NOTE: Depress trigger dial to allow active slide shoe to
move freely. If locking pin falls out, discard after
completing installation.
Arm
Slide shoe
Arm
Mx SH bolt
Left hand door
(Active)
Right hand door
(Inactive) Trigger dial
. Installing the coordinator system
Fig.
.. Close both door leafs.
.. Push plastic guide element up against slide
shoe.
.. Fully wind trigger dial (towards door frame).
.. Align connecting channel with trigger dial per
image above.
.. Mark and cut connecting channel.
Cut mark
reference
Plastic guide
element
Slide shoe
Trigger dial
Connecting
channel

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers
8
Wiring conduit
Coordinator system
. Installing conduit for EMF
Fig.
From VDC
power supply
Cable clamps
.. Secure conduit to mounting surface with cable
clamps included.
• Use two - x /" screws.
.. Feed wires through conduit.
NOTE: Must run inactive solenoid wire through conduit
on wall side of track.
. Installing coordinator system (continued)
Fig.
Left hand door
(Active)
Right hand door
(Inactive)
Clamping
rod
Trigger
dial
Connecting
channel
Set
screw
Locking
pin
Plastic
guide Connecting
channel Clamping plate
Trigger dial
.. Open active leaf to retract clamping rod.
.. Active door: Insert connecting channel into
trigger dial.
.. Inactive door: Insert connecting channel into
plastic guide.
.. Unwind trigger dial (away from door frame)
until active door starts to close. Clamping plate
should be perpendicular to clamping rod.
.. Tighten set screw to secure trigger dial.
NOTE: The locking pin can be discarded once system
has been installed.
Conduit

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers 9
Wiring EMF

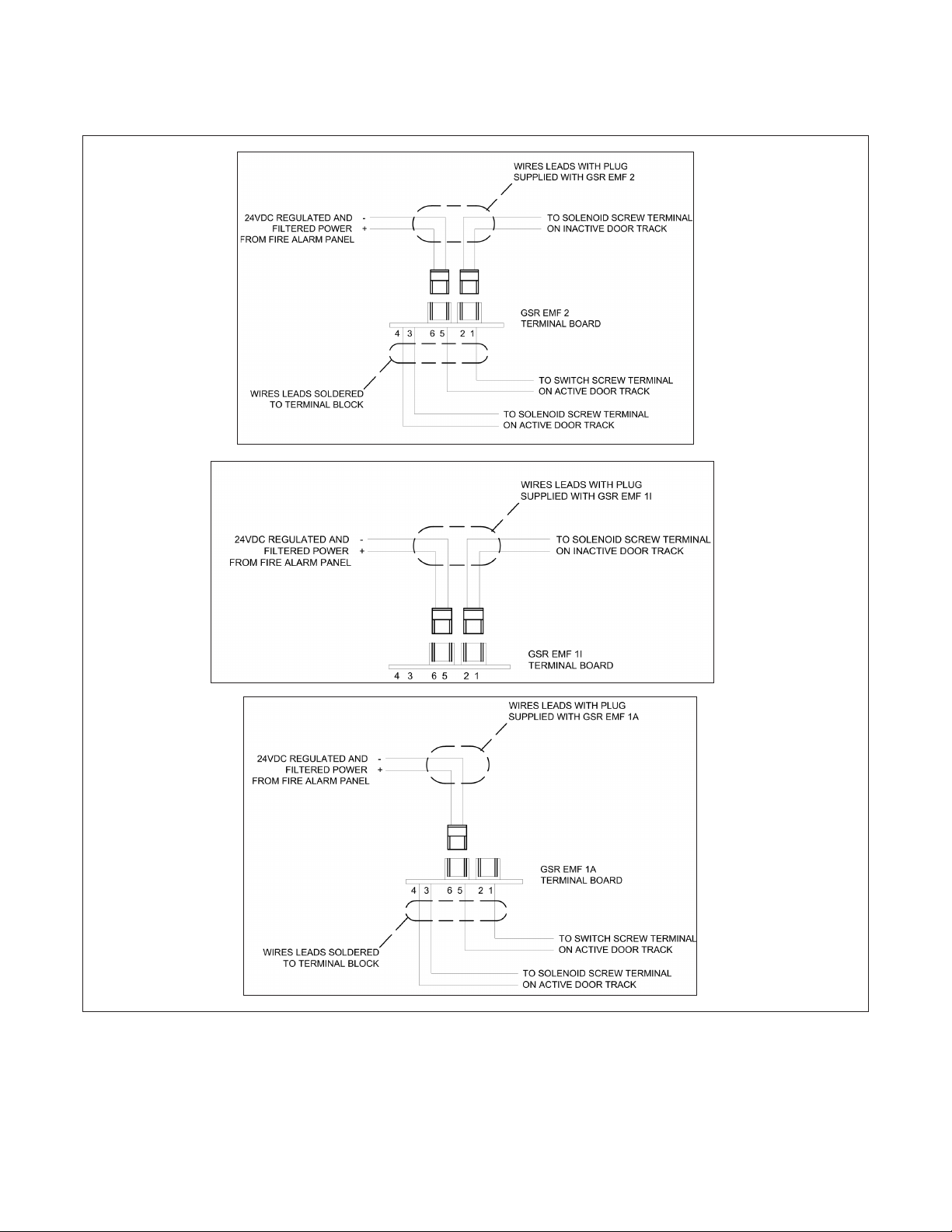

. Wiring the EMF
Fig.
EMF 2
EMF 1I
EMF 1A
.. Determine appropriate EMF unit and follow steps below:
EMF 2: Plug in wire harness into terminals  and  (active
door track) of the -pin terminal block.
EMF 1I: Plug in wire hardness to terminals  and 
(active door track) of the -pin terminal block.
EMF 1A: No plug in wire harness to -pin terminal block
of active door.
NOTE: Be sure power is off prior to making following connections:
.. Connect power wire harness to  VDC power supply.
.. Plug in power wire harness to terminals  and  (active
door track) of -pin terminal block.

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers
10
Adjust closing speeds
Adjust hold open
3 Adjustments
Confirm closer spring size prior to making any closing speed
adjustments.
Do not back valve heads out beyond closer casting.
Door should close in  to  seconds from º.
Maximum opening angle is º.
Do not close valves completely.
. Adjust closing speeds: sweep, latch, backcheck, delayed action
Fig.
.. Adjust door position:
• Adjust hold open angle: loosen adjustment screws using
an M hex key.
• Slide hold open mechanism to desired location and
re-tighten adjustment screws.
.. Hold open activation:
• Place door in hold open.
• Deactivate: When clips are released from slide shoe.
• Activate : When clips are pressed against inside of slide
shoe.
.. Adjust hold open force:
• Decrease force: spin dial away from door frame
• Increase force: spin dial towards door frame
NOTE: Do not set release force too high. Damage may
occur to door, hinges or GSR system.
. Adjust optional hold open
Increase
Decrease
Decrease
Increase Backcheck &
Delayed action
Sweep & Latch
Speed
.. Adjust the closing sweep speed for the area from ° to
start of latch.
• Increase sweep speed: Turn valve counter-clockwise
• Decrease sweep speed: Turn valve clockwise.
.. Adjust the closing latch speed for the area from ° - °.
• Increase latch speed: Turn valve counter-clockwise
.. Adjust the opening backcheck for the area from
° - °.
• Increase resistance: Turn valve clockwise
• Decrease resistance: Turn valve counter-clockwise.
.. Adjust the closing delayed action for the area from
° - °.
• Increase delayed action: Turn valve counter-clockwise
• Decrease delayed action: Turn valve clockwise
Latch
Backcheck
Sweep
Latch
Backcheck
Delayed action
°
°
°
°
Sweep
Delayed action
Adjustment
screws
Dial
Hold open
mechanism

dormakaba TS93 GSR/EMF T 1A, 1I, 2 Installation Instructions
08280031 08-2019TS93 GSR Surface Applied Closers 11
Adjust spring force
Secure covers
. Adjust spring force
Increase
Decrease
TS9315
NOTE: Supplied with a size 2 spring setting.
Barrier free openings: Take an opening force reading from the
pull on the door. If required, adjust the spring force to meet the
barrier-free requirement.
• Decrease force: turn counter-clockwise
• Increase force: turn clockwise
Depending on opening conditions, a door adjusted to meet
barrier-free forces may not have sufficient power to reliably close
and latch the door.
TS9356
NOTE: Supplied with a size 6 spring setting.
• Increase force: turn clockwise  times (max)
Regular Mount, Pull side closers
Closer size Max door
weight (lbs)
Door width Full turns
Interior Exterior
TS
  '" --- +
  ' '" +
  '" ' +
  ' '" +
TS   ' '" -
  '" ' 
4 Install covers
.. Snap both end covers onto closer body end caps.
.. Remove un-needed tab, and snap cover over closer body.
.. Secure with one - Phillips pan head screw.
.. Center cover: Measure distance between track covers,
and subtract /”. [X - 1/2” = center cover length]
.. Cut center cover to length measured, and slide over
coordinator system.
.. Snap center caps on to track.
Tab
- pan
head screw
Closer cover
End caps Center
caps
Center
cover
Track
cover
Track
cover X

www.dormakaba.com
dormakaba
DORMA USA, Inc.
1 Dorma Drive, Drawer AC
Reamstown, PA 17567
USA
T: 717-336-3881
F: 717-336-2106
