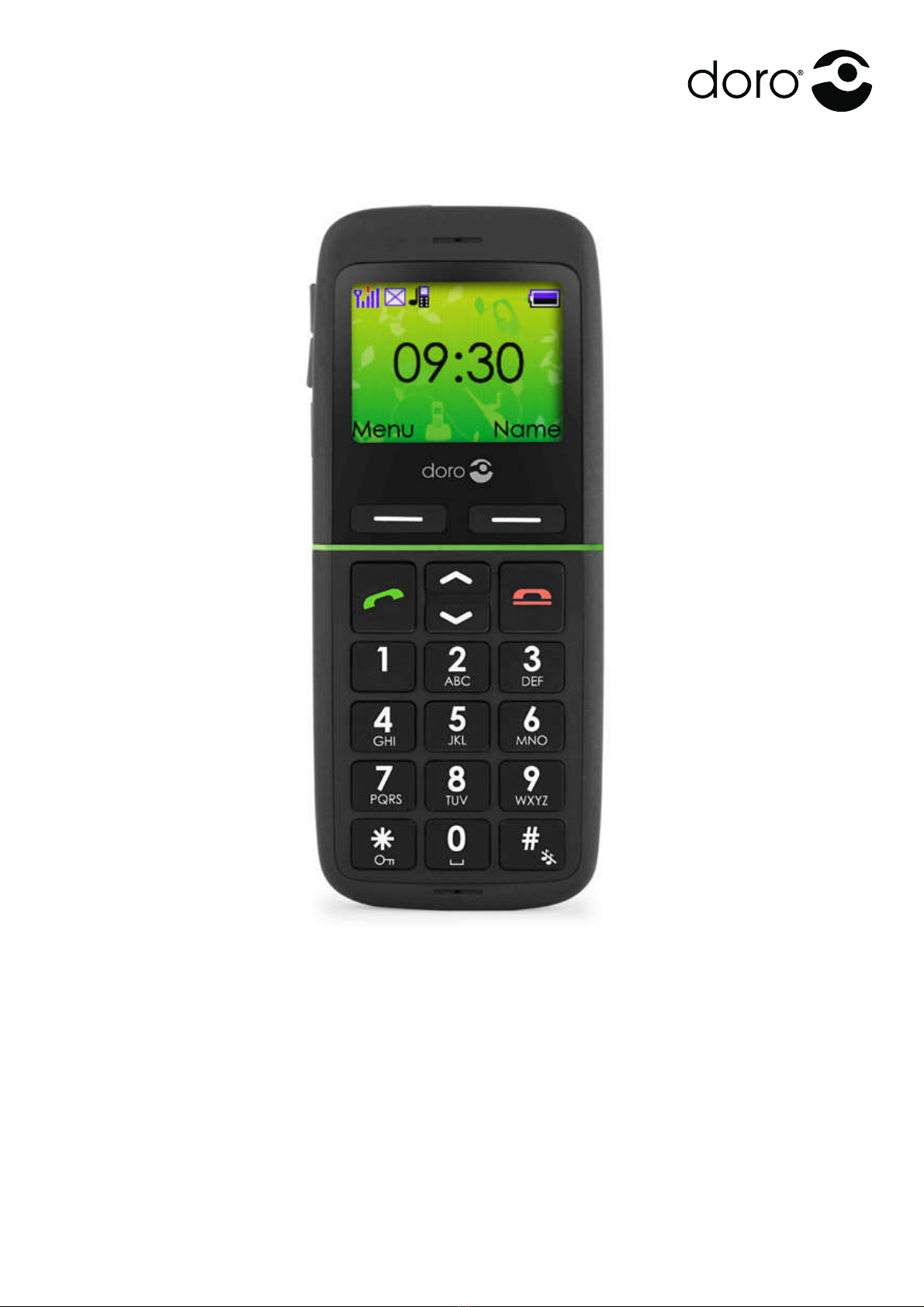

Doro PhoneEasy 345gsm User manual

PhoneEasy
345gsm
Now available from www.M2Cshop.com

Side key (volume)
Torch key
Display
Left soft key
Call key
Numeric keypad
*/ Key lock
#/ Change profile
End call
Arrow keys
Right soft key
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Charging contacts (for use
with charging stand)
Emergency call key
Battery cover
Headset socket
Charging socket
Power on/off
Torch
Loudspeaker
Microphone
12.
13.
14.
15.
16.
17.
18.
19.
20.
English

1
English
Contents
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installing the SIM card and battery . . . . . . . . . . . . . . . . . . 3
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Activating the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Making a call from the Phonebook . . . . . . . . . . . . . . . . . . 6
Receiving a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Display symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Call options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Call waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Call information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Call log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Key lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Torch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SOS calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Emergency Call key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Text input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SMS messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Creating and sending messages . . . . . . . . . . . . . . . . . . . 15
Outgoing messages (Outbox) . . . . . . . . . . . . . . . . . . . . . 15
Incoming messages (Inbox) . . . . . . . . . . . . . . . . . . . . . . 16

2
English
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Time and date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
User setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
User profile (rings & tones). . . . . . . . . . . . . . . . . . . . . . . 20
Bluetooth settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Emergency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Voice mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Speed dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Call setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SMS settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Network setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Security settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Task reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Calculator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Game. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Operating environment . . . . . . . . . . . . . . . . . . . . . . . . . 34
Medical units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Pacemakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Areas with explosion risk . . . . . . . . . . . . . . . . . . . . . . . . 35
Emergency calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Hearing aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Vehicles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Specific Absorption Rate (SAR) . . . . . . . . . . . . . . . . . . . 36
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warranty and technical data . . . . . . . . . . . . . . . . . . . . . . . 40

3
English
Installation
Warning!
Turn off the phone and disconnect the charger before
removing the battery cover.
Installing the SIM card and battery
The SIM card holder is located behind the battery.
Remove the battery cover and the battery if it is already
installed.
Insert the SIM card by carefully sliding it into the holder.
Make sure that the SIM card’s contacts are facing inwards
and that the cut-off corner is pointing upwards. Take care not
to scratch or bend the contacts on the SIM card.
Insert the battery by sliding it into the battery compartment
with the contacts facing upwards to the right.
Replace the battery cover.
1.
2.
3.
4.

4
English
Charging
Warning!
Only use batteries, charger and accessories that have been
approved for use with this particular model.
Connecting other accessories may be dangerous and may
invalidate the phone’s type approval and guarantee.
When the battery is running low,
is displayed and a warning
signal is heard. To charge the battery, connect the mains adapter
to the wall socket and to the charging socket y.
is displayed briefly when the charger is connected to the
phone, and when it is disconnected. The battery charge
indicator will be animated while charging.
It takes approximately 3 hours to fully charge the battery.
is displayed when charging is completed.
Note!
Full battery capacity will not be reached until the battery has
been charged 3–4 times.
The ambient temperature must be in the range -10 °C to
+55 °C when charging.
Batteries degrade over time, which means that call time and
standby time will normally decrease with regular use.

5
English
Operation
Activating the phone
Press and hold 1on the top of the phone to turn it on/off. The
following messages may be displayed:
SIM card missing or
incorrectly inserted.
SIM card damaged or not
valid.
If the SIM card is valid but protected with a PIN code (Personal
Identification Number), PIN: is displayed. Enter the PIN code
and press OK. Delete with Clear.
Note!
If PIN and PUK codes were not provided with your SIM card,
please contact your network operator.
Trials: # shows the number of PIN attempts left. When no
more attempts remain, SIM blocked is displayed.
The SIM card must now be unlocked with the PUK code
(Personal Unblocking Key).
1. Enter the PUK code and confirm with OK.
2. Enter a new PIN code and confirm with OK.
Changing the language, time and date
On first use, the phone language, time and date must be set. The
default language is determined by the SIM card. See Settings on
how to change language, time and date.
If the operator supports automatic time/date setting, you
might get a question upon installation if you want to update
to the suggested time. Press Yes to accept or No to reject the
suggested time.

6
English
Making a call
Enter the phone number. Delete with Clear.
Press qto dial. Press Abort to cancel dialling.
Press Lto end the call.
Note!
When making international calls, press *twice for the
international prefix "+". Always use ”+” before the country
code (instead of 00 or similar) for best operation.
Making a call from the Phonebook
Press Name to open the phonebook.
Use the arrow keys / to scroll through the
phonebook, or quick search by pressing the key corresponding
to the first letter of the entry, see Text input.
Press Call to dial the selected entry, or press Back to return
to standby mode.
Receiving a call
Press qto answer, or press Silent to switch off the ring
signal and then Reject to reject the call (busy signal).
Alternately, press Lto reject the call directly.
Press Lto end the call.
See also Call options.
Volume control
Use the side keys +/– to adjust the sound volume. The volume
level is indicated on the display.
1.
2.
3.
1.
2.
3.
1.
2.

7
English
Display symbols
Signal strength Missed call
Ring only Keylock on
Ring + vibration Bluetooth on
Vibration only Bluetooth connected
No ring/no vibration Battery level
Roaming (in other network) New message
Headset connected Alarm active
SIM card missing Charger connected
SIM card error Charger disconnected
Mute Headset connected
Unlocking keypad Headset disconnected
New SMS message Handsfree on
SOS calls only Handsfree off
OK (confirmed) Warning
Query Error
Battery level low Charging (animated)
Calling Call ended
Incoming call Missed call
Searching Call on-hold
