Draco 3550 User manual

JMS 04.09.09
Operating instructions
1. Intended use. This Power Tool is intended for
industrial applications, for cutting plastics
(maximum capacity is indicated in the
Specifications), for use with cutting jaws and
cutting blades which are indicated in these
operating instructions or recommended by
DRÄCO.
2. Do NOT cut multi layer sheets, which exceed the
maximum cutting capacity.
3. Switching ON/OFF the power tool. First check
cable and plug for damage. Slide the switch pad
(5) BACKWARD for switching ON the power
tool. Slide the switch pad (5) FORWARD for
switching OFF the power tool.
4. For inside cutting, the shortest curve possible has
a radius of 175 mm (±7”). If cutting a radius with
the right hand, cut from right to left. The outside
radius is unlimited.
5. For cutting out curved or circular inside patterns,
a 14 mm (± 1/2 “) hole, or a punched slot should
be made to insert the centre cutter.
6. If after cutting, a small strip remains this can
easily be trimmed off to the exact measurement,
without distortion of the material. Just one side of
the power tools can be used for cutting also (e.g.
along a marked line). Lift the power tools out of
the shavings while the motor is running. Cut off
longer shavings.
7. Both knife and jaws can be sharpened. After
being sharpened or replaced, the knife at it’s
lowest point should protrude the jaws by
approximately 3 mm. The knife should have
approximately 0,05 mm (0,005”) play on each
side of the jaws, centring the cutter with spacing
shims supplied.
8. Every 200 operating ours have the cutting blade
and cutting jaws sharpened at a specialist
workshop.
9. Ensure that the material to be cut is free of oil
and grease.
Care and Maintenance
Warranty
Before working on machine disconnect from power
supply by removing plug from socket.
Always keep the machine and the ventilation slots
clean.
Oil the knife pin and knife at regular intervals.
If the machine should happen to fail despite the care
taken in manufacture and testing, repair should be
carried out by an authorised customer services agent
for DRÄCO power tools
DRÄCO tools carry a guarantee of 12 months from
date of delivery.
Damage attributable to normal wear and tear,
overload or improper handling will be excluded from
the guarantee. (e.g. blades/knifes and jaws)
In case of complaint please send the machine, un-
dismantled, to your dealer or the DRÄCO Service
Center for electric power tools.
Environmental protection
CE-Declaration of conformity
Recycling raw materials instead of waste
disposal
Machine, accessories and packaging should be sorted
for environment-friendly recycling.
These instructions are printed on recycling paper
manufactured without chlorine
We declare under our sole responsibility that this product is
in conformity with the following standards.
EG 98/37 EG, EG 73/ 23 EG, EG 89/336 EG, or
standardisation documents EN 292 part I, EN 292 part II,
EN 50 144, EN 55 014, EN 60 555, HD 400,
HD 400.3 part II/H
95 Max Draenert
Operating Instructions for the Plastic Shear 3550
To avoid any disturbance please read the following instructions :
1 2 3 4 5
1 Safe operation of this machine is possible only
when the operating instructions and the safety
precautions are read completely and the
instructions contained therein are strictly observed.
2The machine must not be used in a wet environment.
3Always inspect cable and plug before using machine.
Only have damage repaired by a qualified professional.
Put the plug into the mains socket only when the
machine is switched off.
4+5 Always wears protective goggles, protective gloves
and heavy-duty shoes when working.
lDo not carry the machine by the cable.
lAlways remove the plug from the power supply
socket before carrying out any work on the machine,
when interrupting work and when not using the
machine.
lAlways place the cable to the rear away from the
machine.
lApply the machine to the plastic material only
when switched on.
lAlways provide for secure footing when working.
lFirmly clamp the work piece if it dose not remain
stationary from its own weight.
lThe knife should not rub on the jaws: Possible
danger of cutting tool breakage.
lDo not exceed the maximum allowable material
thickness.
FFor further notes on safety , we refer to the enclosed red print, safety instruction sheet.
DRÄCO Plastic Shears
3550
3550
max. cutting capacity
Art.no.
61320
spare parts
Board etc.
mm
5,0
knife
01002
PVC, ABS, PP, etc.
mm/ga.
3,5 / 9
set of jaws
BG20601
Polyester, GFK, Formica, etc.
mm/ga.
3,0 / 10
knife-pin set
BG12555
optional accessories
tightest radius
mm
175
metal-box
18000
working speed
m/min
4
adjustable guide S/02
up to 100 mm
20062
strokes
min -1
2400
adjustable guide S/02
up to 250 mm
20063
motor capacity
Watt
500
adjustable guide S/02
up to 500 mm
20064
weight
kg
2
set of blocks for corrugated plastics
BG20065
0óI

JMS 04.09.09

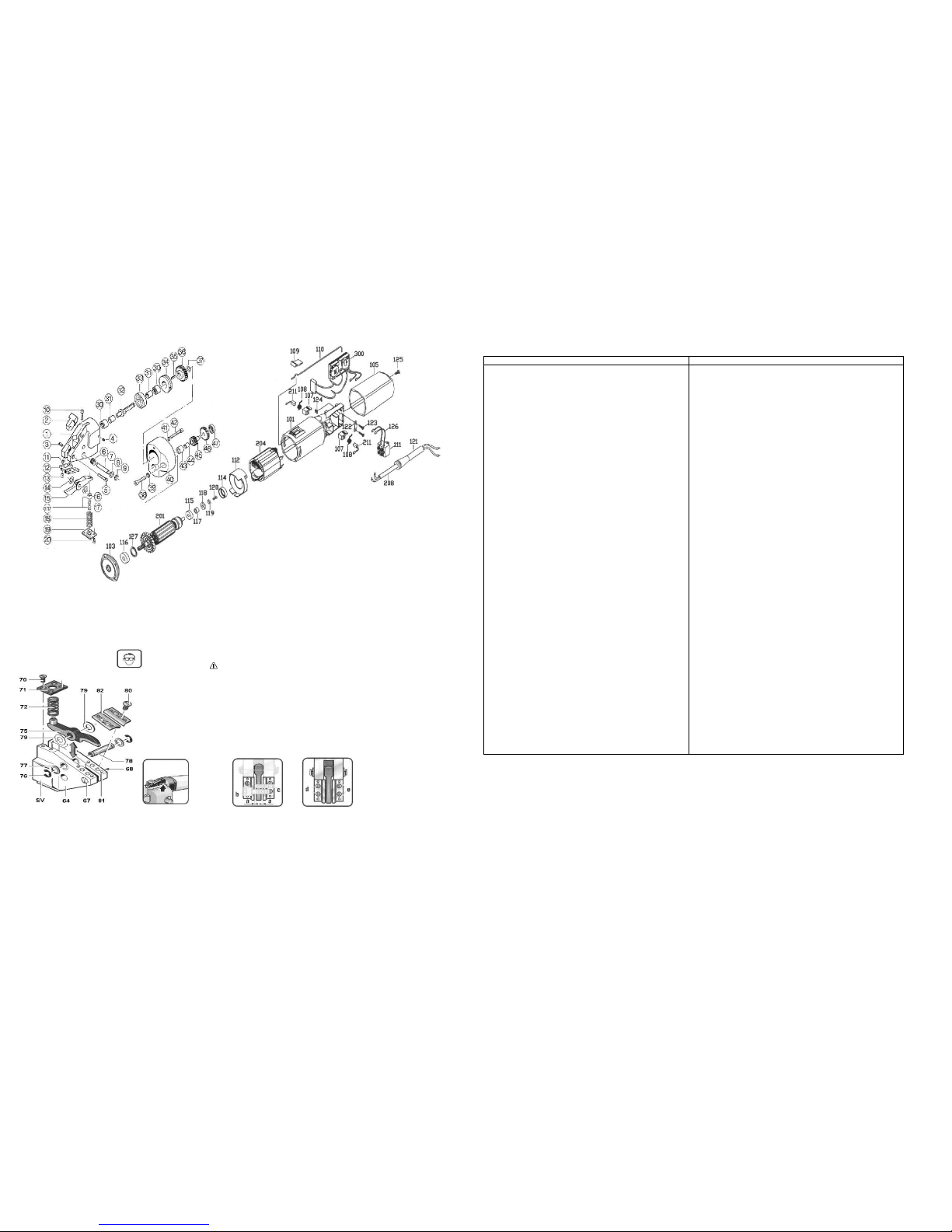

Spareparts for Plastic Shears 3550
S E R V I C E T I P S
Before working on machine disconnect from power
supply by removing plug from socket.
Wear protective glasses!
* O p t i o n a l
1 . One drop of oil between knife (11) and head-casting (1) keeps the spacing
shims (15) in place.
2 . Dismantle Spring cover (20) and take spring out (19)
3 . Take circlip (16) and washer (17) off.
4 . Push knife pin (18) out of casting.
5. Take knife out of housing.
6. Attention, do not exchange the spacing shims (15).
7. Place the knife inside the housing feed shims in on one side and push knife pin
(18) into housing up to the middle of the knife.
8. Feed the shims on the other of the knife.
9. Push knife pin in completely, and secure washer (17) and circlip (16) again.
10. Assemble spring (19) and spring cover (20).
11. Between the knife (11) and the jaws (10) should be some distance,
approximately 0,05 mm on each side. Knife (11) must be placed tight in the
head casting.
12. Adjustment for the play between the jaws. (a): 0,1 - 0,15 mm.
13. If knife has contact with the jaws on both sides, adjust with screws in the head
casting.
If a burr is on the material, adjust the space between the knife and the jaws
1 4 . Replace jaws with a new set, loosen 4 screws (8) take jaws (10) and pins (9)
off, assemble again and tighten with the screws.
Spare Parts List for DRÄCO Plastic Shears 3550
Pos.
Description
Qty.
Order-No.
Pos.
Description
Qty.
Order-No.
Shearhead 3550 cpl. without Motor
27302
48
Needle bearing
1
13043
49
Securing Washer
3
81249
54-62
Drive shaft assembled
13277
50
Flat Fillister Head Screw
3
81262
44-47
Pinion with gear cpl. Pos.39,44-47
BG31541
51
Gear Case Cover Seri F
1
BG13046
52
Spring washer
2
81243
Motor cpl. 230 V, 60 Hz
1
32229
53
Hex Socket Screw
2
81031
Motor cpl. 115 V, 60 Hz
1
32129
54
Circlip
1
10009
55
Key
1
10006
1
Motor housing
1
32040
56
Gear 36 teeth
1
13051
2
Housing Cap
1
32047
57
Cap for Needle Bearing
1
10450
3
Switch
1
32050
58
Sleeve
1
10005
4
Guide Piece
1
32054
59
Needle Bearing
1
10300
5
Switch Pad
1
32056
60
Ball bearing
1
10200
6
Pressure Spring
1
32055
61
Excentric Drive Shaft
1
10004
7
Wire
2
32044
62
Sleeve
1
10005
8
Carbon Brush Set
2
32042
63
Needle Bearing
1
10300
9
Carbon Brush Holder
2
32041
64
Head Casting
1
20500
10
Condensator
1
32045
65
Pinbush
2
17900
11
Cable with Plug Europe
1
32046
67
Flat Fillister Head Screw
1
81272
12
Connection Cable
1
32522
68
Spacing setscrew
1
21600
13
Screw
2
32048
69
Tap Screw with ISK
2
81239
14
Screw
2
32053
70
Flat Head Screw
4
81271
15
Cable Collar
1
32052
71
Spring Cover
1
12300
16
Field 230 Volt, 60 Hz
1
32039
72
Spring
1
12200
16
Field 115 Volt, 60 Hz
1
32139
73
Knife Lock ring
1
12100
17
Air Deflector Ring
1
32038
73-74
Knife adjusting screw with adjusting screw
1
35566
18
Rubber Sleeve
1
32036
74
Knife adjusting screw
1
35067
19
Ball Bearing
1
32030
75
Knife
1
01002
20
Washer
1
32037
76-79
Knife pin set
1
BG12555
21
Armature 230 Volt, 60 Hz
1
32033
76
Circlip
2
81275
21
Armature 115 Volt, 60 Hz
1
32133
77
Washer
2
81072
23
Bearing Cover
1
32032
78
Spacing Shims
1
12500
24
Ball Bearing
1
10038
79
Spacing Shims Set
1
BG12400
25
Securing Ring
1
32034
80
Spacing Shims
4
81286
27
Bearing End Plate
1
32014
81
Pin
4
81248
28
Screw
4
32010
82
Set of jaws
1
20601
29
Pin
1
81132
95
Aluminium Cover Plate
1
18610
30
Screw
2
32012
96
Washer
1
81035
31
Label
1
32057
97
Flat Head Screw
2
81039
39
Washer
3
81059
98
Top Angle Guide
1
13000
44
Ball Bearing
1
13039
99
Wing Screw
2
13200
45
Gear
1
13540
100
Side Angle Guide
1
13100
46
Pinion
1
13041
47
Sleeve
1
13042
