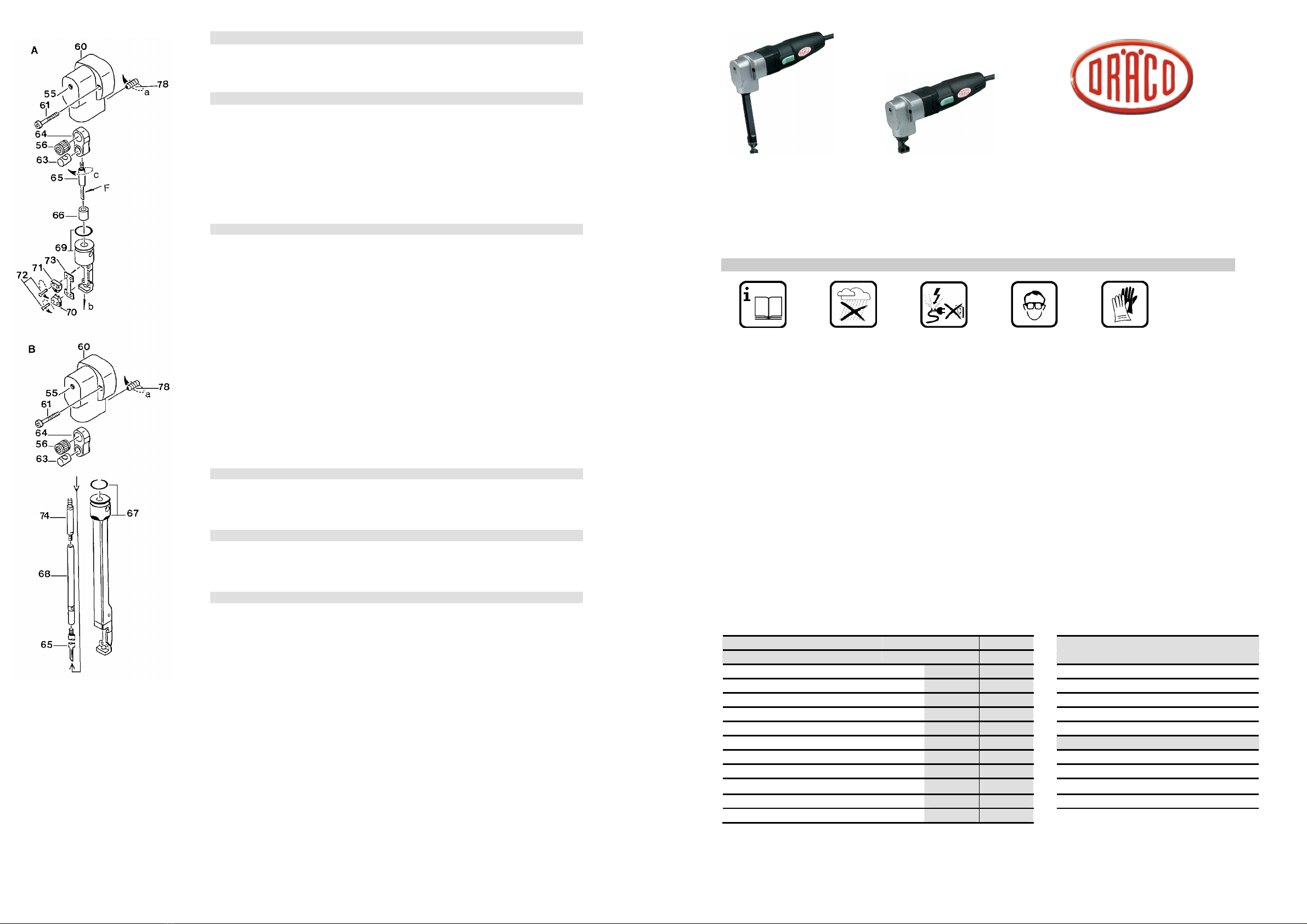

Draco PN 4361 User manual

KD, 16-3-2011
2.
Operation
2.1
What should be remembered when starting work?
a)
Turn eccentric shaft (55) with screw driver.
b)
Check if dipping depth of punch is all right (see point 3.2, i).
3.
Maintenance
3.1
What points should be noted when operating the
profile nibbler?
a)
Always lubricate line of cut with of cut with oil in case of steel sheet and with kerosene in case
of aluminium sheet. If punching and nibbling oil (ordering No. 20198) is used, the punch life
can be increased when nibbling steel sheet.
b)
Check whether punch and die are sharp. Die must also be sharp on its face where it supports
the sheet.
Never nibble with blunt tools!
c)
The nibbler works more smoothly if it is slightly lifted during operation.
3.2
What should be done when the punch is blunt? A
a)
Undo set screw (78) approximately 4 turns.
b)
Withdraw tool head from housing.
c)
PN 4360 unscrew punch (65) from connecting rod pin (63).
PN 4361 unscrew punch (65) with its lower extension (68) from upper extension (74).
d)
Regrind face of punch (65) and bevel at the rear at longitudinal groove.
e)
Be careful that punch does not become shorter than the min. length (61 mm=2.44 in). Shorter
punches are unserviceable.
f)
Dress cutting edge slightly with oil stone.
g)
PN 4360 Screw punch into connecting rod pin.
PN 4361 Screw punch with its lower extension into upper extension.
h)
Slide tool head into housing (dismantle punch guide). Centre and secure with set screw (78).
i)
Turn eccentric shaft (55) with screw driver. At the same time check dipping depth of punch.
Punch should dip approx. 1,0 mm (.02 to .04) into die.
k)
Retighten set screw after a short nibbling distance (78).
PN 4361 B
When changing the punch, take care that punch (65) is firmly screwed into punch extension
(68). The same applies to fastening of punch extension (74) in connecting rod pin (63). Screw
in firmly punch extension (74) by means of an 8 mm fork wrench. See fig. page B.
The fine-pitch thread between the two extensions (68,74) may only be screwed in loosely.
Here the depth of penetration of the punch can be adjusted (compare. 3.2,i).
3.3
What should be done when die is blunt? A+B
a)
Undo screws (72).
b)
Exchange old die for new one.
c)
Check if air gap between punch and die is equal on both sides.
d)
Tighten screws.
3.4
What must be done if air gap is not uniform? A+B
a)
Undo screws (72).
b)
Align die (70) according to punch (65) so that air gap between punch and die is equal on
both sides.
c)
Screw on die and check air gap.
3.5
How the wearing plate is to be changed? A+B
a)
Unscrew die (70) and punch guide (71).
b)
Turn punch (65) to top dead centre.
c)
Take out wearing plate sideways.
d)
Insert new wearing plate (73).
e)
Turn punch to bottom dead centre.
f)
Fasten die and punch guide with screw, check air gap (see point 3.4) and tighten screw.
Please note: Electric tools correspond to the governing safety regulations. Repair work may only be performed
by electrical engineers. Otherwise the operator may suffer injury. Use original spare parts only.
Max Draenert GmbH & Co.KG Electric - Cordless - Pneumatic Tools - Machines Germany
Factory :
Administration
D-73777 Deizisau
P.O.Box
1120
Phone
[phone]
Manufacturing Shears
D-73779 Deizisau
Gutenbergstreet
15-17
Fax
[phone]
Internet: http://www.dracotools.com
E-mail:
[email protected]
PN 4361 PN 4360
Operating Instructions for Profile Nibbler
To avoid any disturbance please read the following instructions:
For your safety:
1 2 3 4 5
1 Safe operation of this machine is possible only
when the operating instructions and the safety
precautions are read completely and the
instructions contained therein are strictly observed.
2The machine must not be used when damp and must
not be operated in a wet environment.
3Always inspect cable and plug before using machine.
Only have damage repaired by a qualified professional.
Put the plug into the mains socket only when the
machine is switched off.
4+5 Always wears protective goggles, protective gloves
and heavy-duty shoes when working.
lDo not carry the machine by the cable.
lAlways remove the plug from the power
supply socket before carrying out any work
on the machine, when interrupting work and
when not using the machine.
lAlways place the cable to the rear away
from the machine.
lApply the machine to the sheet metal only
when switched on.
lAlways provide for secure footing when
working.
lFirmly clamp the work piece if it dose not
remain stationary from its own weight.
lThe knife should not rub on the jaws:
Possible danger of cutting tool breakage.
lDo not exceed the maximum allowable
material thickness especially when cutting
over doublers, folded joints or welded seams.
FFor further notes on safety refer to enclosed sheet
Technical Data:
DRÄCO Profile Nibblers
type
PN 4361
PN 4360
PN 4361 & PN 4360
max. cutting capacity
spare parts
steel
400 N/mm²
mm/ga.
1,6 / 16
2,0 / 14
punch
41576
stainless steel
600 N/mm²
mm/ga.
1,0 / 19
1,2 / 18
die
41577
stainless steel
800 N/mm²
mm/ga.
0,7 / 21
1,0 / 19
wear plate
41579
non ferro
250 N/mm²
mm/ga.
2,5 / 12
2,5 / 12
screw (Torx)
41022
depth of profiles max.
mm/ “
162 / 6½
79 / 3
tightest radius
mm/ “
50 / 2
70 / 2¾
optional accessories
starting hole
mm/ “
24 / 1
24 / 1
transport-box for PN 4361
42861
working speed
m/min
2
2
metal-box for PN 4360
18000
strokes
min -1
0-1400
0-1400
nibbling oil (bottle 1,0L)
20198
motor capacity
Watts
500
500
nibbling oil (spray 0,5L)
20199
weight
kg
2,0
1,8

KD, 16-3-2011
Spare parts for DRÄCO Profile Nibblers PN 4361 and PN 4360
Spare Part List DRÄCO Profile Nibblers PN 4361 and PN 4360 Version 2002
Pos.
Order-
Description
Qty.
Pos.
Order-
Description
Qty.
No.
No.
1-30
32300
Motor 230V with electronic
1
44
13039
Ball Bearing
1
1-30
32400
Motor 115V with electronic
1
45
41092
Backgear
2
1
32040
Motorhousing
1
51
41001
Retaining Ring
1
2
32047
Housing Cap until 2001
1
52
41002
Retaining Ring
1
2
32058
Housing Cap since 2002
1
53
41003
Grooved ball bearing
1
3
32050
Switch
1
54
41004
Fitting key
1
4
32054
Guide Piece
1
55
41005
Eccentric Shaft
1
5
32056
Switch Pad
1
56
41006
Needle Cage
1
6
32055
Pressure Spring
1
57
41007
Spring Ring
1
7
32044
Wire
2
58
41008
Grooved Ball Bearing
1
8
32042
Carbon Brush Set (2 piece)
1
59
41009
Needle Bearing
1
9
32041
Carbon Brush Holder
2
60
41010
Housing
1
10
32045
Condensator
1
61
41011
Cheesehead Screw
2
10
32059
Electronic speed control
1
62
41012
Grease Nipple
1
11
32046
Cable with Plug Europe
1
63
41013
Connecting Rod Pin
1
12
32522
Connection Cable
1
64
41014
Connecting Rod
1
13
32048
Screw
2
65
41576
Punch
1
14
32053
Screw
2
66
41016
Liner
1
15
32052
Cable Collar
1
67
41167
Extension Holder
1
16
32039
Field 230 V
1
68
41168
Lower Extension of Punch
1
16
32139
Field 115V
1
69
41169
Holder for PN 4360
1
17
32038
Air Deflector Ring
1
70
41577
Die
1
18
32036
Rubber Sleeve
1
71
41171
Punch Guide
1
19
32030
Ball Bearing
1
72
41022
Raised Head Screw
4
20
32037
Washer
1
73
41579
Wearing Plate
1
21
32033
Armature 230V
1
74
41174
Upper Extension of Punch
1
21
32133
Armature 115V
1
75
41091
Eccentric Shaft Gear
1
23
32032
Bearing Cover
1
76
41095
Washer
1
24
10038
Ball Bearing
1
77
41107
Gasket
1
25
32034
Securing Ring
1
78
41039
Set Screw
1
27
32014
Bearing End Plate
1
79
41119
Support for PN 4361 / AK 3161
1
28
32010
Screw
4
65-79
41175
Tool Set cpl. for PN4361
1
29
32043
Pin
1
42861
Transport Box for PN 4361
30
32012
Screw
2
18000
Transport Box for PN 4360+PN4320
31
32057
Label
1
Designated use
The DRÄCO Nibbler PN 4360 and PN 4361 are
electrically operated hand machines:
For separating sheets such as trapezoidal sheet,
corrugated sheet, boxed sheet, offset profiled
strips For separating work pieces made of a punch able
material such as steel, aluminium, non-ferrous heavy metal
and plastic. For nibbling straight or curved exterior and
interior cut-outs. For nibbling from scribed lines.
The nibbling process produces cutting edges free of
deformations.
Before putting the machine into service
1. Safe operation of the appliance is only possible if you
have completely read the operator's manual
2. Check the wear plate (73)
3. Check depth of immersion of the punch
4. The mains voltage must correspond to the information
on the machine type plate.
5. Machines designated for 230 V can also be connected
to 220 V power supplies.
6. Machines designated for 115 V can also be connected
to 110 V power supplies.
Advice for operation
Check tools hourly for wear.
Never work with blunt tools!
Otherwise the machine may be overloaded.
Do not approach the work piece with the
machine until the machine has been switched
on and reached maximum speed.
Cooling and lubrication
The cutting result is improved and the service life of
the punch increased if the cutting track is coated with
oil before machining the work piece.
Recommended for steel: Punching and nibbling oil, order no.
HW103387. Recommended for aluminium: Wisura oil, order
no. HW125874
Changing the cutting direction
For right/left-hand operation or if a sectional sheet is
to be machined, the tool and cutting direction can be
turned to the right or left.
•Release the screw (78)
•Turn the tool (67 or 69) to the desired direction
•Turn on screw (78)
Interior cut-outs
Interior cut-outs require a start hole of at least 24 mm Ø.
Wear plate
The wear plate (73) protects the holder (79 or 69). Check
wear plate regularly and replace if worn.
Care and Maintenance
Before working on machine disconnect from
power supply by removing plug from socket.
Always keep the machine and the ventilation slots
clean.
Oil the knife pin and knife at regular intervals.
If the machine should happen to fail despite the care
taken in manufacture and testing, repair should be
carried out by an authorised customer services agent
for DRÄCO power tools
Environmental protection
Recycling raw materials instead of waste
disposal
Machine, accessories and packaging should be sorted
for environment-friendly recycling.
These instructions are printed on recycling paper
manufactured without chlorine.
CE-Declaration of conformity
We declare under our sole responsibility that this product is
in conformity with the following standards.
EC 98/37, EC 93/ 68 EWG, EC 04/108 EC, or
standardisation documents DIN EN ISO 12100-1,
DIN EN ISO 12100-2, EN 50 144, EN 55 014
09 Max Draenert
Guarantee
Dräco tools carry a guarantee of 12 months from date of
delivery. Damage attributable to normal wear and tear,
overload or improper handling will be excluded from the
guarantee. In case of complaint please send the machine,
undismantled, to your dealer or the Dräco Service Centre for
electric power tools.
