Drive DeVilbiss Healthcare CHAD CH4808-L-BLUE User manual

OXYGEN REGULATOR
DEVICE
Product Information and Instructions
NOTE: Healthcare Equipment Providers shall provide the end user with
instructions for use and instructions for determining gas cylinder contents.
NOTE: The gauge face may be dierent on actual unit.
Device may be different than image shown.

2
TABLE OF CONTENTS
Important Information to Record................................................2
Symbol Definitions .........................................................................3
Important Safeguards, Dangers, Warnings and Cautions ...3
Introduction......................................................................................6
Intended Use.............................................................................6
Contraindications .....................................................................6
Important Parts................................................................................ 7
Setting Up Your Device ................................................................8
Assembly and Use.........................................................................8
Setup ...........................................................................................8
Setup CGA 540 (DIN 477)......................................................9
Inspection Before Each Use ............................................... 10
Checking for Leaks................................................................ 10
Operating Instructions .......................................................... 10
Disassembly Instructions............................................................. 11
Caring for Your Device................................................................ 12
Troubleshooting............................................................................ 12
Specifications ................................................................................ 12
Information for Home and Healthcare Providers ................ 13
Disinfection Between Patients............................................ 13
Disinfection Intervals............................................................. 13
Maintenance.................................................................................. 14
Calibration ...................................................................................... 14
Limited Warranty........................................................................... 14
Disposal Instructions ................................................................... 14
Technical Description.................................................................. 15
Pneumatic Diagram ..................................................................... 15
IMPORTANT INFORMATION TO RECORD
Your Name: _____________________________________
Date You Received Your Unit: _______________________
Prescribed Oxygen Flow Setting:
At Rest: _____________________________________
During Exercise: _______________________________
Home Care Provider’s Name: _______________________
Home Care Provider’s Phone Number: ________________
Physician’s Name: ________________________________
Physician’s Phone Number: _________________________
Notes: _________________________________________
_______________________________________________
_______________________________________________

3

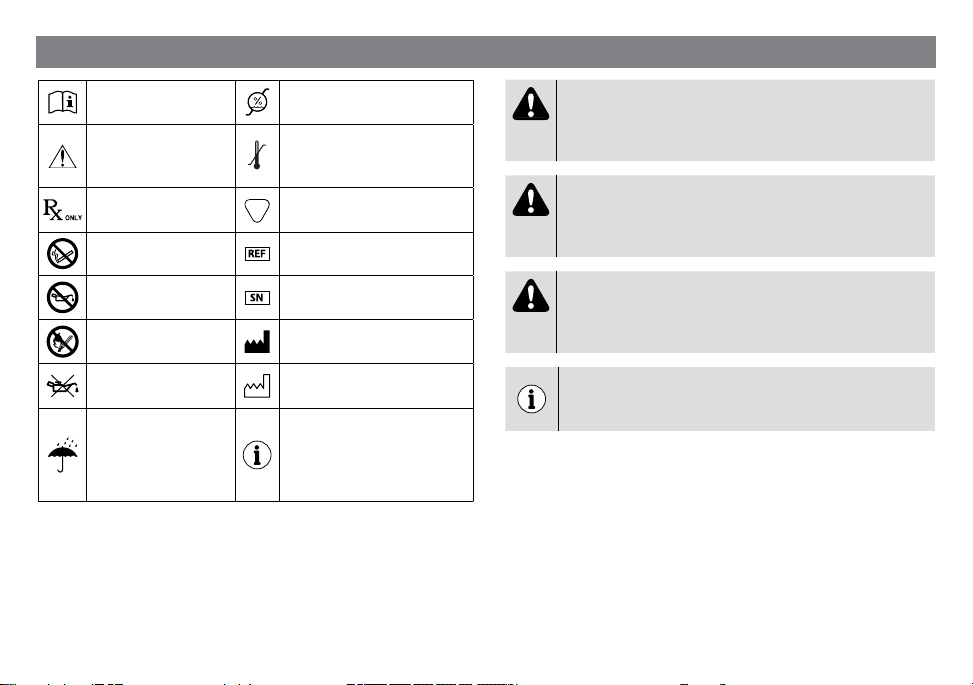

SYMBOL DEFINITIONS
Consult
instructions for use Humidity Limit
Consult
accompanying
documents
Temperature Limits
Prescription only LATEX Contains Natural Rubber
Latex
No Smoking Catalog Number
Use no oil or
grease Serial Number
Keep away from
open flame Manufacturer
Use No Oil (on
gauge face) Date of Manufacture
Keep dry, protect
the device from
moisture
These symbols may be
used in the user manual
and also on the device,
packaging and other
material.
DANGER
Danger indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING
Warning indicates a potentially hazardous situation
which, if not avoided, will result in death or serious
injury.
CAUTION
Caution indicates a potentially hazardous situation
which, if not avoided, may result in property
damage or minor injury or both.
NOTE
Gives useful tips, recommendations and
information for ecient, trouble-free use.
IMPORTANT SAFEGUARDS, DANGERS,
WARNINGS AND CAUTIONS
Read and understand this manual before operating your oxygen regulator. Important safeguards are indicated throughout this
guide. Pay special attention to all safety information. Any serious incident that has occurred in relation to the device should be
reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established.

4
DANGER
• Oxygen will not burn; however, it does vigorously
accelerate the burning of any flammable material.
• Oxygen makes it easier for a fire to start and spread.
Do not leave the nasal cannula on bed coverings or
chair cushions. If the oxygen regulator is turned on but
not in use, the oxygen will vigorously accelerate the
burning of any flammable material. Turn the oxygen
regulator o when not in use.
• Smoking during oxygen therapy is dangerous and is
likely to result in burns or death. Do not allow smoking
or open flames within the same room of the oxygen
regulator or any oxygen carrying accessories.
• If you intend to smoke, you must always turn the
oxygen regulator o, remove the cannula and
leave the room where either the cannula or oxygen
regulator is located.
• There is a risk of fire associated with oxygen
equipment and therapy. Do not use near sparks or
open flames.
• Avoid creation of any spark caused by any type of
friction, near oxygen equipment.
• Not suitable for use in the presence of flammable
anesthetic mixture with air, oxygen or nitrous oxide.
• Never use oil, grease or petroleum-based products
on or near the system to avoid the risk of fire and
burns. Wash and dry hands before operating oxygen
equipment. Use only water-based lotions or salves.
• Do not lubricate replaceable fittings, connections,
tubing or other accessories of the oxygen regulator to
avoid the risk of fire and burns.
• Never use aerosol sprays near the equipment.
WARNING
• Under certain circumstances, oxygen therapy can
be hazardous. Seek medical advice before using a
oxygen regulator.
• The use of oxygen requires a prescription from a
physician or other appropriately licensed healthcare
practitioner.
• The oxygen delivery setting has been determined for
each patient individually with the configuration of the
equipment to be used, including accessories.
• If you feel discomfort or are experiencing a medical
emergency, seek medical assistance immediately to
avoid harm.
• Geriatric or any other patient unable to communicate
discomfort may require additional monitoring to avoid
harm.
• Be sure to turn o the oxygen supply by setting the
flow control knob to “OFF” when not in use.
• Oxygen flow is only present when flow indicator is
clicked into place. No oxygen will flow if knob is set
between liter flow settings.
WARNING
• The regulator must:
- Be used only after one or more settings have been
individually determined or prescribed for you at your
specific activity levels.
- Be used with a specific combination of parts and
accessories (i.e. cannulas, tubing) that meet the
specifications of the manufacturer, and that were
used while your settings were determined.
• Your prescribed settings should be periodically
reassessed by a physician or other appropriately
licensed healthcare practitioner for eectiveness of
therapy.
• Use only parts and accessories recommended by the
manufacturer to ensure proper function and to avoid
the risk of fire and burns.

5
WARNING CON’T
• It is unsafe to use accessories, detachable parts and
materials not described in the instructions for use,
interconnect this equipment with other equipment not
described in the instructions or modify the equipment.
• Cannula tubing can pose a strangulation risk and
tripping hazard. Locate tubing away from areas of
high foot trac and keep children and pets away from
cannula tubing.
• Always maintain a backup supply of oxygen.
• Not for use with an endotracheal tube or tracheostomy.
• Close supervision is necessary when the nasal cannula
is used by impaired persons or near children.
WARNING
• Before using this unit, make certain that your hands
are free of oil, grease and other contaminants, and that
the cylinder is secure in an upright position.
• Lint and dust can contaminate the oxygen path and
create a fire hazard. Keep all oxygen connections
clean and free from lint and dust.
• Make sure the fill valve, if equipped, is clean and free
of dirt, debris, oil or other contaminants.
• To reduce the risk of rapid oxygen recompression and
fire, open the cylinder valve slowly and completely so
the pressure gauge moves slowly as it indicates the
cylinder pressure.
• Do not wet the area of the oxygen inlet connection,
the disinfectant residue may create a risk of fire.
• Do not submerge the regulator in the disinfectant,
wipe disinfect only.
• Do not attempt to open or remove enclosure. There
are no user-serviceable internal components.
• Choking Hazard - The 870 post seal washer may pose
a choking hazard. Small parts not for children under 3
years or any individuals who have a tendency to place
inedible objects in their mouths.
CAUTION
• Prevent water or any other liquid substances from
entering the unit.
• Do not expose the unit to extreme temperatures or
heat sources such as fireplaces and radiant heaters.
• Do not use if leaking or damaged.
• Refer repairs to authorized service personnel.
• Do not use the flow outlet for driving any medical
equipment.
• This product contains natural rubber latex (oxygen
pressure gauge rubber guard) which may cause
allergic reactions. Oxygen supplied by this equipment
is supplemental only and is not intended for life
support applications.
• The regulator should not be used to supply anything
other than medical oxygen.
• Tighten only by hand. The use of a tool to tighten the
knob may damage the unit.
• Checking for leaks should be performed before each
use.
• To help prevent possible damage to the unit and to
maintain its cleanliness, keep the oxygen regulator in a
carrying bag. Several bags are available for use with
dierent cylinder sizes and configurations. Contact
your Home Care provider for more information about
carry bags.
SAVE
THESE INSTRUCTIONS

6
This manual provides
information necessary to
operate the oxygen regulator.
The device can be used with a

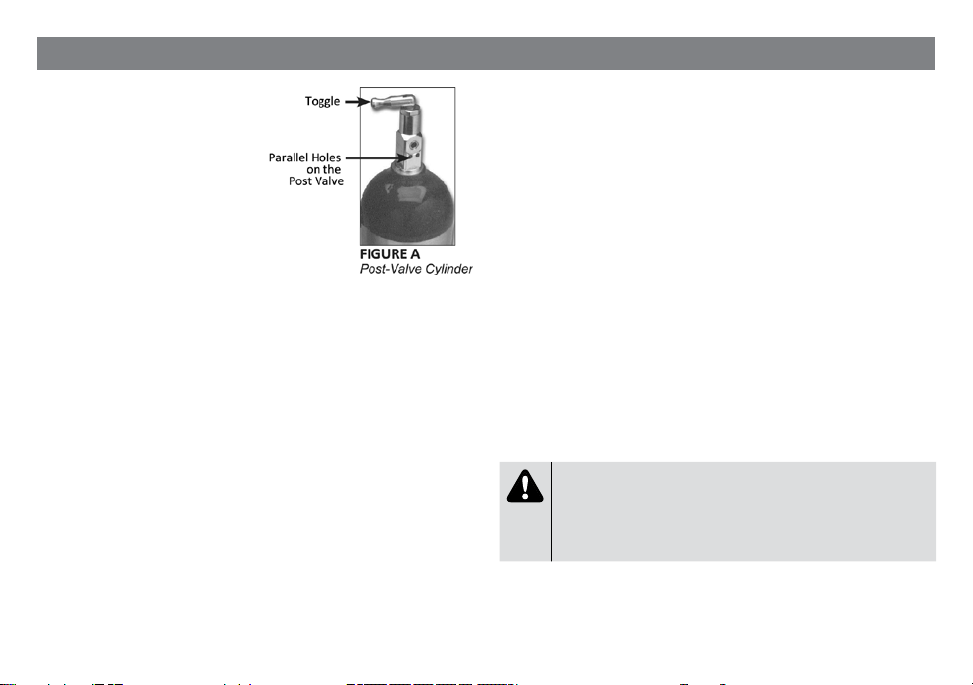

CGA 870 post-valve cylinder
[see Fig. A] at home or away
from home to provide your
specific oxygen requirements.
PURPOSE
The device is intended to be
used as part of a portable or
stationary oxygen delivery system for patients that require
supplemental oxygen in their home and for ambulatory use.
FUNCTION
The principle operation of the device is to deliver continuous
flow oxygen to a patient through means of a respiration
demand system. The device is situated at the output of the
oxygen cylinder and has the following characteristics:
• The device works with gaseous supply sources fitted
with the following valve connections (CGA 870 or DIN
477).
• The device accomplishes the delivery through a single-
lumen cannula. Flow is set in Liter per minute setting
marked on the devices control knob.
• The device is non-sterile and reusable, having a service
life of five years.
This accounts for the expected actual usage cycle, which
includes actual use and storage once removed from the
packaging.
USER QUALIFICATION
Prior to beginning therapy, patients must be given instruction
by qualified personnel in how to operate this unit.
Functions that are frequently used include:
• Installing the device by connecting to a portable oxygen
cylinder post valve.
• Selecting prescribed oxygen setting on the selector dial.
• Attaching standard oxygen cannula and tubing to gas port
and securing cannula to user.
• Monitoring the pressure gauge for remaining oxygen in
cylinder.
• Disconnecting the device from the portable oxygen
cylinder.
INTENDED USE
Oxygen Regulator is intended for prescription use only, to be
used as part of a portable oxygen delivery system for patients
that require supplemental oxygen in their home and for
ambulatory use.
The patient is the intended operator.
CAUTION
Oxygen supplied by this equipment is supplemental
only and is not intended for life support
applications. The device should not be used to
supply anything other than medical oxygen.
CONTRAINDICATIONS
• This device is not to be used for life support applications.
• The device is not for use while asleep.
INTRODUCTION

7
IMPORTANT PARTS
1. Cylinder Attachment Knob: This is used to attach the unit to any CGA 870 post-valve cylinder
2. Oxygen Pressure Gauge: Enables the user to monitor the contents of the compressed oxygen
cylinder and is protected by a rubber guard. The gauge displays maximum pressure of 4000
psi.
3. Selector Switch: Enables the user to select the desired setting, as well as “OFF” and “cf”
(continuous flow). When not in use, the switch should be turned to the“OFF” position.
4. Cylinder Alignment Pins: When assembling the unit, these parallel pins must be inserted into
the holes on the CGA 870 post valve.
5. Seal Washer (Gasket, SEAL 100): Creates the interface between the post valve and the device.
Besides oering a rugged interface, it also surrounds the oxygen path in a ring of stainless
steel or brass.
WARNING
Use only a manufacturer-specified seal washer (gasket).
1
2
3
5
4
6
Device may be different than
image shown.
8
7
6. Oxygen Supply Outlet: Use this fitting to attach a standard cannula.
7. Vent Hole: Maintains proper internal pressure. Do not obstruct with any object, such
as a label or tight-fitting carrying bag (located directly behind the gauge).
8. DISS Fitting (ISO 1240): Enables user to connect other device to regulated
pressure with no flow restriction. User should not connect unsupported devices to
this fitting.
WARNING: FIRE HAZARD
Lint and dust can contaminate the oxygen path and create a fire hazard. Keep
all oxygen connections clean and free from lint and dust.
REPLACEMENT PARTS
Order Number Description
SEAL-100 870 Post Seal Washer (Gasket)

8
SETTING UP YOUR DEVICE
WARNING: FIRE HAZARD
Before using this unit, make certain that your hands
are free of oil, grease and other contaminants, and
that the cylinder is secure in an upright position.
NONPORTABLE USE
The device should be used only while awake. The Oxygen
Regulator is not intended for use while asleep.
WARNING: FIRE HAZARD
Lint and dust can contaminate the oxygen path and
create a fire hazard. Keep all oxygen connections
clean and free from lint and dust.
ASSEMBLY AND USE
WARNING: FIRE HAZARD
Make certain that your hands are free of oil, grease
and other contaminants.
• Inspect the unit to ensure the seal washer (gasket) is in
good working condition and attached to the inlet nozzle.
• Secure the cylinder in an upright position.
WARNING: FIRE HAZARD
• Inspect the valve of the cylinder and the device
to ensure they are free of contaminants and
damage.
• If any indication of damage or contamination is
detected, DO NOT use the equipment and
contact your Home Care Provider.
WARNING
Use ONLY a manufacturer-specified seal washer
(gasket). An incorrect seal washer (gasket) may not
be oxygen compatible or may cause an oxygen
leak, creating an increased fire risk. DO NOT use
the device if the manufacturer-specified seal
washer (gasket) is missing.
SETUP
Step 1: Loosen the cylinder
attachment knob.
Step 2: Lower the Oxygen
Regulator over any post-valve
cylinder with the alignment pins
toward the holes on the cylinder
neck [see Fig. B].
Step 3: Line up the two pins and
the seal washer (gasket) with the
corresponding holes on the
cylinder post valve.
NOTE: The cylinder
attachment knob should be
aligned with the indentation on
the post valve.
Step 4: While holding the unit in
place, tighten the cylinder
attachment knob by turning
clockwise [see Fig. B].
NOTE: Tighten only by hand. The use of a tool to tighten
the knob may damage the unit.
FIGURE B
Attaching the device to the
cylinder
FIGURE C
Connection View of the
Oxygen Regulator

9
Step 5: Attach a standard cannula (7 ft. [2.13 m] or less in length) to
the oxygen supply outlet. See Figure E on page 11 for an illustration
demonstrating the proper positioning of the nasal cannula.
SETUP  CGA 540 DIN 477
Step 1: Set the regulator to the OFF position (if equipped with a flow
selector).
Step 2: Align regulator nipple with recessed hole in the cylinder
valve. (see Fig. 1). Tighten the nut by rotating clockwise until tight (see
Fig. 2).
Step 3: Slowly open the cylinder valve. Pressure should be indicated
on the regulator pressure gauge.
Operation of the device is the same as CGA 870 device (see
OPERATING INSTRUCTIONS on page 10).
DISASSEMBLY INSTRUCTIONS
Step 1: Close the oxygen supply cylinder valve by turning the valve
clockwise.
Step 2: Deplete residual pressure in the regulator by setting the flow
selector to a flow setting. Pressure gauge will read zero when
complete.
Step 3: Remove the nasal cannula from the device and turn the
selector switch to the “OFF” position (if equipped with a flow
selector).
Step 4: While holding the unit in place, slowly loosen the nut by
turning counter-clockwise.
Operation of the device is the same as CGA 870 device (see
OPERATING INSTRUCTIONS on page 10).
Device may be different than images shown.
FIGURE 1
FIGURE 2
Nut
Recessed
Hole
Nipple

10
INSPECTION BEFORE EACH USE
Step 1: Examine the outside of the cylinder and regulator
assembly for debris, oils or grease and noticeable signs of
damage, dents or dings, corrosion, excessive heat or fire
damage, pressure leak or any other sign of damage that might
cause a cylinder to be unacceptable or unsafe for use.
WARNING: FIRE HAZARD
If any of these conditions exist, DO NOT use the
cylinder and contact your healthcare provider for a
replacement cylinder.
Step 2: Check the flow selector knob to be sure it rotates and
stops at each setting.
WARNING: FIRE HAZARD
Make sure the fill valve, if equipped, is clean and
free of dirt, debris, oil or other contaminants.
CHECKING FOR LEAKS
CAUTION
This should be performed before each use.
Step 1: Close the valve on the oxygen cylinder by turning the
valve clockwise.
Step 2: Depressurize the device by turning the flow selector
to a setting. The gauge indicator should drop to zero.
Step 3: Check that all screwed unions and tube connections
are tight. If necessary, tighten them by hand.
CAUTION
Do not use a tool.
Step 4: Ensure that the unit is set to the “OFF” position.
Step 5: Slowly open the valve on the oxygen cylinder by
turning the valve counter clockwise until the needle in the
gauge indicator no longer moves.
Step 6: Close the cylinder valve again by turning the valve
clockwise.
Step 7: Observe the needle in the gauge indicator for
approximately one minute.
• If the needle remains in its position, there is no leak and the
device is ready for use.
• However, if the contents indicator shows a continuous
decrease in pressure, there is a leak in the system. In this
event, contact your Home Care Provider.
OPERATING INSTRUCTIONS
Step 1: Make sure that the device is set to the “OFF” position
before opening the cylinder valve.
WARNING: FIRE HAZARD
To reduce the risk of rapid oxygen recompression
and fire, open the cylinder valve slowly and
completely so the pressure gauge moves slowly as
it indicates the cylinder pressure.
Step 2: If a leak is present (see “Checking for Leaks”), close
the cylinder valve, check the seal washer (gasket) and
reinstall. If the leak persists, DO NOT USE THE EQUIPMENT.
Contact your Home Care Provider for repair or replacement.

11
Step 3: Check the oxygen pressure gauge
to verify that the cylinder pressure is within
the operating range.
Step 4: Select the setting on the device to
the appropriate delivery setting (see
example in Fig. D).
Step 5: Ensure cannula is properly
attached to the device.
Step 6: Properly position the cannula with
the nasal prongs facing upward and insert
the prongs into nose. Wrap the cannula
tubing over the ears and position in front
of body (see Fig. E)
The regulator will now start to deliver oxygen. The amount of
oxygen delivered is determined by the setting.
CAUTION
To help prevent possible damage to the unit and to
maintain its cleanliness, keep the device in a
carrying bag. Several bags are available for use
with dierent cylinder sizes and configurations:
contact your Home Care provider for more
information about carry bags.
Step 7: When finished using the system, close the oxygen
supply cylinder valve by turning the valve clockwise and
continue breathing through the nasal cannula until no further
oxygen is detected and the gauge reads “Refill”.
Step 8: Remove the nasal cannula and turn the selector
switch to the “OFF” position.
Step 9: When not in use, store in a clean, dry location.
DISASSEMBLY INSTRUCTIONS
NOTE: Tools are not required and not to be used to
remove the regulator from the post valve.
To remove the Regulator from the oxygen cylinder:
Step 1: Close the oxygen supply cylinder valve by turning the
valve clockwise.
Step 2: Deplete residual pressure in the regulator by setting
the flow selector to a flow setting. Pressure gauge will read
zero when complete.
Step 3: Remove the nasal cannula from the device and turn
the selector switch to the “OFF” position.
Step 4: While holding the unit in place, slowly loosen the
cylinder attachment knob by turning counter-clockwise (see
Figure B on page 8).
Step 5: Pull the unit away from the cylinder post valve until
the two alignment pins are out of the holes on the cylinder
post valve.
Step 6: Lift the unit o of the cylinder post valve. Use caution
while lifting the unit o of the post valve, as the alignment pins
can damage sealing surfaces on the post, increasing the
chance of leakage.
Step 7: Store in a clean, dry location.

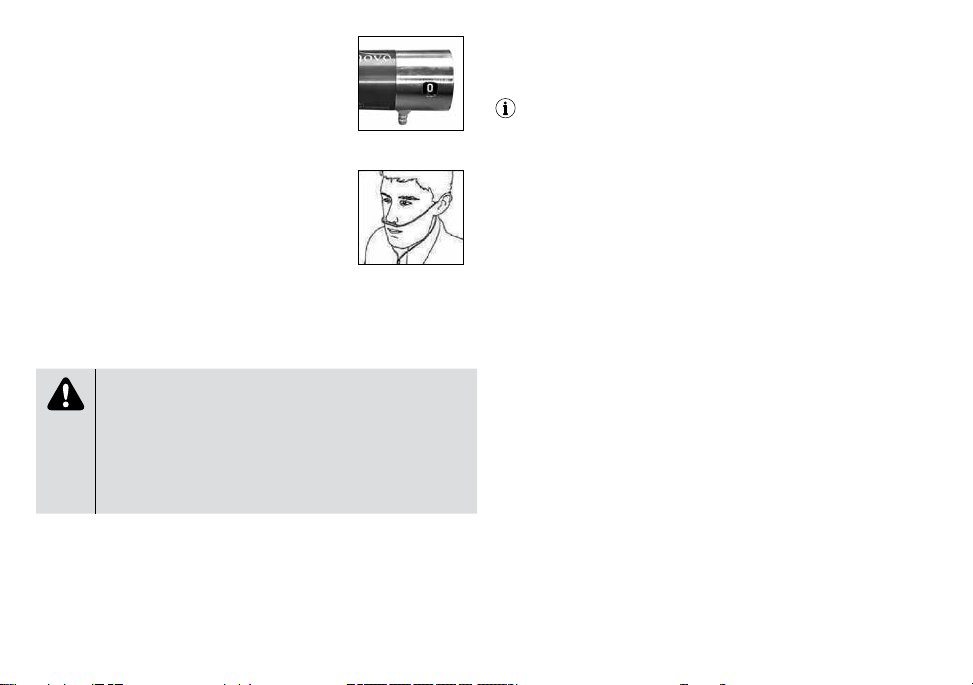

FIGURE D
FIGURE E

12
CARING FOR YOUR DEVICE
The regulator should be kept clean and free from moisture and dust, as well as extreme temperature. Clean the device
once a week by wiping the outer surface, cylinder fill valve and oxygen outlet port with a clean, dry cloth. Do not use oil
or products containing oil.
Do not expose the unit to water, such as when bathing or swimming. It is advisable to keep the system in its carrying
bag to aord a degree of protection. Clean the outside of the unit periodically with a clean, lint-free cloth. To remove
heavy soil, wipe unit using a lint-free cloth, dampened with clean water, then dry unit with clean, dry, lint-free cloth. Pay
special attention to the oxygen outlet to make sure it remains free of dust, etc.
WARNING
There are no user serviceable parts. Do not attempt to service the device while it is in use.
TROUBLESHOOTING
Problem Probable Cause Solution
Unit does not flow. Cylinder valve is closed. Turn cylinder valve counter clockwise to open.
Cylinder is empty. Check the oxygen gauge. Replace the cylinder, if empty.
Oxygen cannula is blocked or kinked. Remove kinks. Clean or replace, if necessary.
Selector switch is set to the “OFF”
position.
Make sure the selector switch is set to the appropriate
delivery setting.
Non-functioning units are subject to warranty provisions and the manufacturer repair/return policy. If necessary, call your Home
Care Provider.
NOTE: Do not attempt to open the unit. If the unit is opened or tampered with, the warranty is void.

13
DISINFECTION BETWEEN PATIENTS
Drive Medical recommends that at least the following
procedures be completed by an appropriately trained
individual (i.e. biomedical technician, equipment technician,
respiratory therapist, nurse) between uses by dierent
patients.
Step 1: Dispose of nasal cannula.
Step 2: Cleaning Instructions:
A. Clean the exterior
1. a clean, lint-free cloth to remove surface dirt and
soil.
2. a clean, lint-free cloth dampened with water to
remove heavy soil.
3. a soft-bristled brush dampened with water to remove
stubborn soil.
B. Dry the device with a clean, lint-free cloth.
NOTE: Ensure that the oxygen inlet remains free of dust,
etc.
Step 3: Disinfection Instructions:
A. Saturate a clean, lint-free cloth with a suitable disinfecting
agent (e.g., 1:5 chlorine bleach [5.25%] and water solution)
and wipe the exterior of the device.
NOTE: Ensure that the device remains visibly wet for ten
minutes, with the solution reaching all crevices and hard-to-
reach areas.
WARNING
Do not wet the area of the oxygen inlet connection,
the disinfectant residue may create a risk of fire. Do
not submerge the regulator in the disinfectant, wipe
disinfect only.
Step 4: Allow all parts to dry completely before checking for
proper operation.
Step 5: Replace all damaged or worn components (cylinder
attachment knob, seal washer).
Step 6: Check the oxygen device for proper operation.
• Ensure cylinder attachment knob is easy to adjust.
• Ensure flow selector knob rotates and clicks into each
setting.
• Attach device to cylinder.
• Ensure pressure gauge is working.
SPECIFICATIONS
Operating Temperature ......................................................................................................................................................41˚F to 104˚F (5˚C to 40˚C)
Operating Relative Humidity .......................................................................................................................................15% to 93% non-condensing
Operating Inlet Pressure ................................................................................................................................34.5 to 206.8 bar (500 to 3000 psi)
Storage/Transportation ..................................................................................................................................................-13˚F to 158˚F (-25˚C to 70˚C)
Ingress Protection ..............................................................................................................................................................................................Keep Dry
INFORMATION FOR HOME AND HEALTHCARE PROVIDERS

14
• Ensure flow is working.
• Set device to each setting, and verify that oxygen pulses.
If the device is operating properly, it is ready to be used by
another patient. If the device is not operating properly, the
provider should return the device to Drive Medical for service.
NOTE: There is no portion of the gas pathways through
the regulator that could be contaminated with body fluids or
expired gas under normal or single fault conditions.
DISINFECTION INTERVALS
WARNING
Do not attempt to open or remove enclosure.
There are no user-serviceable internal components.
NOTE: The disinfection process can only be performed
by an appropriately trained individual.
Part/Accessory
Recommended
Disinfection Interval
Compatible
Disinfection Method
Outside surface
of the conserver
and controls
Between patients 1:5 chlorine bleach
(5.25%) and water
solution
Oxygen tubing,
nasal cannula
Do not clean, replace
between patients
N/A
MAINTENANCE
The oxygen regulator does not need maintenance through the
expected service life of the product. The device has an
expected service life of 5 years, which is based on 1500
hours/year of use under normal operating and storage
conditions.
PREVENTIVE MAINTENANCE:
Before attaching the regulator to a cylinder
• Examine the seal washer and replace if it is damaged or
contaminated with dirt, debris, oil or other contaminants.
• Inspect the threads on the cylinder attachment knob, make
sure that the knob turns freely through its full range of
adjustment.
To replace the SEAL 100 Seal Washer
1. Remove the old seal washer by lifting the edge of the
brass washer and removing the seal washer from the
oxygen inlet connection, discard old seal washer.
2. Wash and dry hands before handling the new seal washer.
3. Place the new seal washer over the oxygen inlet
connection and press it against the body of the device to
seat the seal washer in place.
CALIBRATION
No calibration is necessary through the expected service life
of the product.
LIMITED WARRANTY
The device has been carefully manufactured and inspected
and is warranted to be free from defects in workmanship and
materials. Under this warranty, Drive Medical’s obligation shall
be limited to the replacement or repair of any such units or
parts that prove, by Drive Medical’s inspection, to be defective
within two years from the date of purchase. Any abuse,
operation other than the intended use of the product,
negligence, accident or repair by other than authorized
service professionals shall immediately void this warranty. This

15
warranty does not extend to spare parts or accessories.
Drive Medical will not accept damages or charges for labor,
parts or expenses incurred in making field repairs, except
upon written authorization prior to such action.
The foregoing warranty is exclusive and in lieu of all other
express warranties. Implied warranties, if any, including but not
limited to the implied warranties of merchantability and fitness
for a particular purpose, shall not extend beyond the duration
of the express warranty provided herein. In no event shall
Drive Medical be liable for loss of use or profit or other
collateral, special or consequential damages.
DISPOSAL INSTRUCTIONS
The equipment, including accessories and internal
components, does not belong in your regular household
waste. Such equipment is manufactured from high-grade
materials and can be recycled and reused. The plastic
components should be recycled as plastics.
The device should be destroyed or made unusable prior to
disposal, example: remove the cylinder contents gauge.
Dispose in accordance with local ordinances.
TECHNICAL DESCRIPTION
HOW THE DEVICE FUNCTIONS
The device includes a low-pressure regulator. It is designed
for use with a cylinder as an ambulatory oxygen system. This
system takes high pressure Oxygen and reduces the pressure
to a usable pressure. It provides continuous flow through a
fixed orifice and is determined by the numerical settings on
the flow selector (example: a setting of 2 is equal to 2 liters
per minute of oxygen flow). This oxygen is then delivered to
the patient through a nasal cannula.
NOTE: The components in the medical gas path and the
nasal cannula are considered applied parts.
PNEUMATIC DIAGRAM
Pneumatic Diagram depicts device in conserving
selection.

Manufactured by Inovo, Inc.
401 Leonard Blvd. North
Lehigh Acres, FL 33971
Toll Free: 888-446-6862
Printed in the U.S.A PM-00103/21/B
