Drive Medical 11117N-1 User manual

bariatric folding
steel commode
www.drivemedical.com
lifetime limited
warranty
Your Drive brand product is warranted to be free
of defects in materials and workmanship for the
lifetime of the original consumer purchaser.
This device was built to exacting standards
and carefully inspected prior to shipment. This
Lifetime Limited Warranty is an expression of our
confidence in the materials and workmanship of
our products and our assurance to the consumer
of years of dependable service.
In the event of a defect covered by this
warranty, we will, at our option, repair or replace
the device.
This warranty does not cover device failure
due to owner misuse or negligence, or normal
wear and tear. The warranty does not extend to
non-durable components, such as rubber
accessories, casters, and grips, which are subject
to normal wear and need periodic replacement.
If you have a question about your Drive device or
this warranty, please contact an authorized Drive
dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
www.drivemedical.com
EU Authorized Representative
Drive International, LLC
Globe Lane - Stockport
DUKINFIELD SK16 4RE, GB

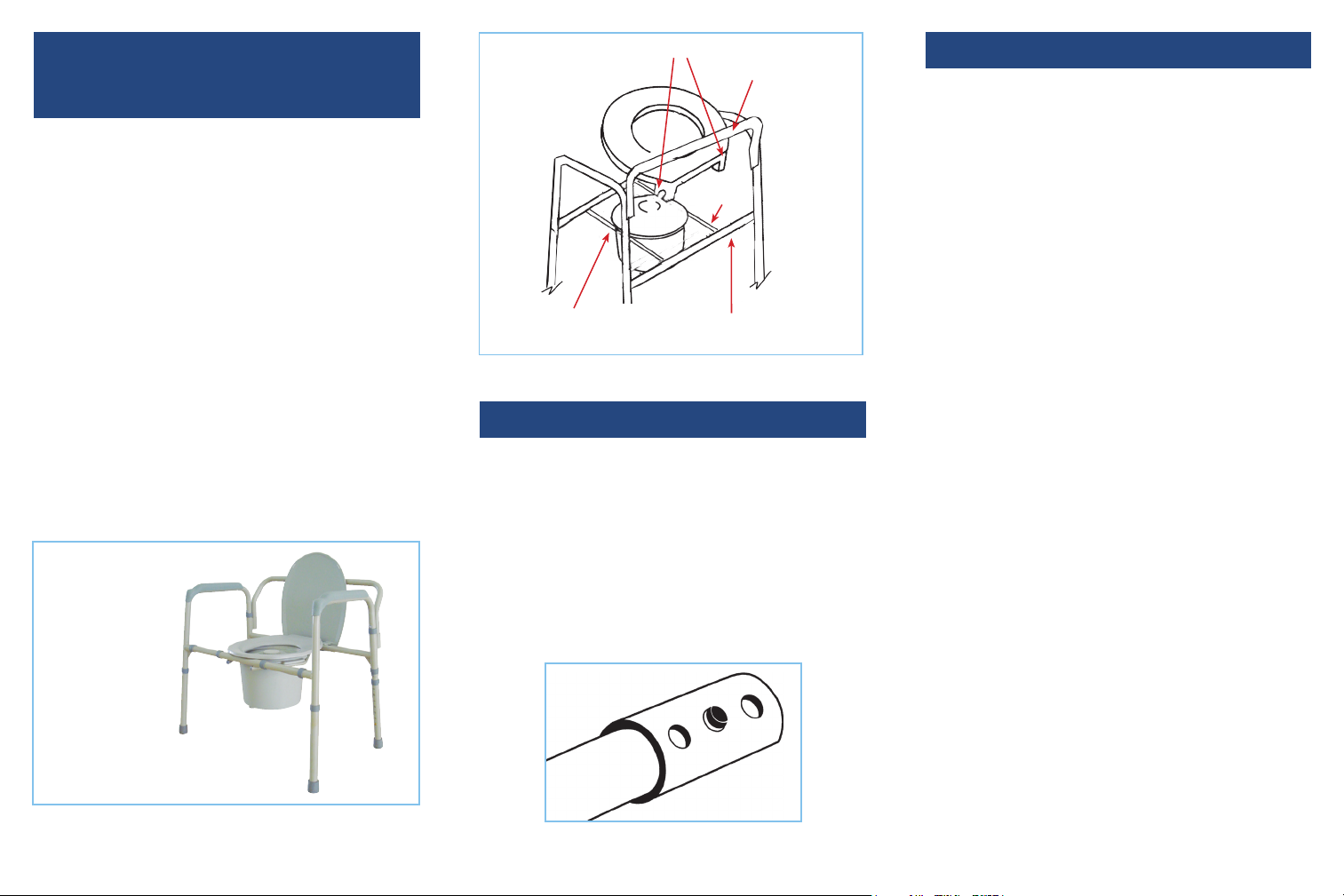

commode assembly
instructions and precautions
Seat Clamps
Bucket
Drops in Back
Frame Rail
Bucket
Frame
Back
Support
1. Before assembling seat and lid, allow
toilet seat and lid to reach room
temperature if exposed to cold. This will
help prevent the seat and lid clamps from
cracking while being assembled onto
commode back cross brace.
2. Align the toilet seat clamps onto the back
frame rail. (Both clamps should sit
outside the pail brackets). Push down on
seat until clamps snap firmly into place
3. Repeat the same process for the lid.
4. When removing the seat or lid, always
remove lid first and then the seat. To
remove, grasp the back of the lid and/or
seat and lift.
5. Install commode bucket by dropping into
bucket frame. Reverse to remove.
figure 1
Item # 11117N-2
Shown
adjusting leg height
1. Before use, adjust height of each leg to
your specific needs, making sure all legs
are at the same height. When desired
height is reached, lock legs into place by
aligning buttons into proper holes, per
figure 2.
2. To be sure legs are locked into place by
pushing down on or by pulling legs.
WEIGHTCAPACITYLBS figure 2
additional precautions
1. Toilet seat must be in down position
before use. Failure to do so may result in
breakage of commode and possible injury.
2. Do NOT install commode without first
reading and understanding this assembly
and instruction sheet. If you can not
understand these instructions, contact a
healthcare, dealer or technical
professional before attempting to install.
Otherwise, injury or damage may occur.
3. Inspect all parts for shipping damage
before assembly. If there is shipping
damage - DO NOT USE. Contact dealer/
carrier for further instructions.
4. Make certain that the height adjusting
snap buttons fully protrude through the
same respective hole of each leg extension.
This will ensure that the leg extensions are
securely locked in position and an even
height is achieved (see Figure 1).
5. Ensure ALL screws, nuts and/or bolts are
tightened.
6. Check the rubber tips on the leg extensions
for rips, wear or if they are are missing.
Immediately replace any or all if any of
these imperfections exist.
7. All four leg extensions with rubber tips
MUST touch the floor simultaneously at
all times.
8. Users with limited physical strength should
be supervised or assisted while using
commode.
