DURAVIT SensoWash Slim 611000 00 1 10 1300 User manual

SensoWash®Slim
Operating instructions
操作说明
Shower toilet unit
电子坐便器

A
I
H
B
G
C
E
D
F
135 mm
1
9
2
3
4
5
6
7
8

www.sensowash.com
148 mm

1
EN
Contents
. Brief overview................................................................... 
. Toilet unit....................................................................... 
. Remote control ............................................................. 
. Description of Symbols ...................................................... 
. For your safety .................................................................. 
. Normal Use.................................................................... 
. Safety instructions ......................................................... 
. Basics of operation ............................................................ 
. Remote control .............................................................. 
. Status LEDs.................................................................... 
. Initial operation................................................................. 
Remote control .............................................................. 
Power supply ................................................................. 
Switch SensoWash®on................................................... 
. Operating ........................................................................ 
. Switching the SensoWash®on / off ..............................
. Shower functions.........................................................
Activating / deactivating “Rearwash”...........................
Activating / deactivating “Ladywash”...........................
Activating / deactivating “Comfortwash”......................
Adjusting the water spray intensity..............................
Adjusting the spray wand position ...............................
Adjusting the water temperature.................................
. Seat heating ................................................................
Adjusting the seat temperature ...................................
. Settings .......................................................................
Adjusting the night light ..............................................
Energy saving mode.....................................................
Activating / deactivating the confirmation tone ...........
Lock / unlock the remote control .................................

2
EN
. Cleaning and Care............................................................ 
. Seat and lid..................................................................
. Spray wand and nozzle ................................................
Manual cleaning of the spray wand and nozzle............
Self-cleaning of the spray wand and nozzle.................
. Remote control ............................................................
. Disposal........................................................................... 
. Troubleshooting support ................................................. 
.Technical Data ................................................................. 

3
EN
1. Brief overview
The overviews referred to are collected together on the fold out
page.
2. Description of Symbols
WARNING Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE Is used to address practices not related to
physical injury.
Hints and tips are provided here.
> This is a prompt requesting your input.
Acoustic signal.
Timed automatic function.

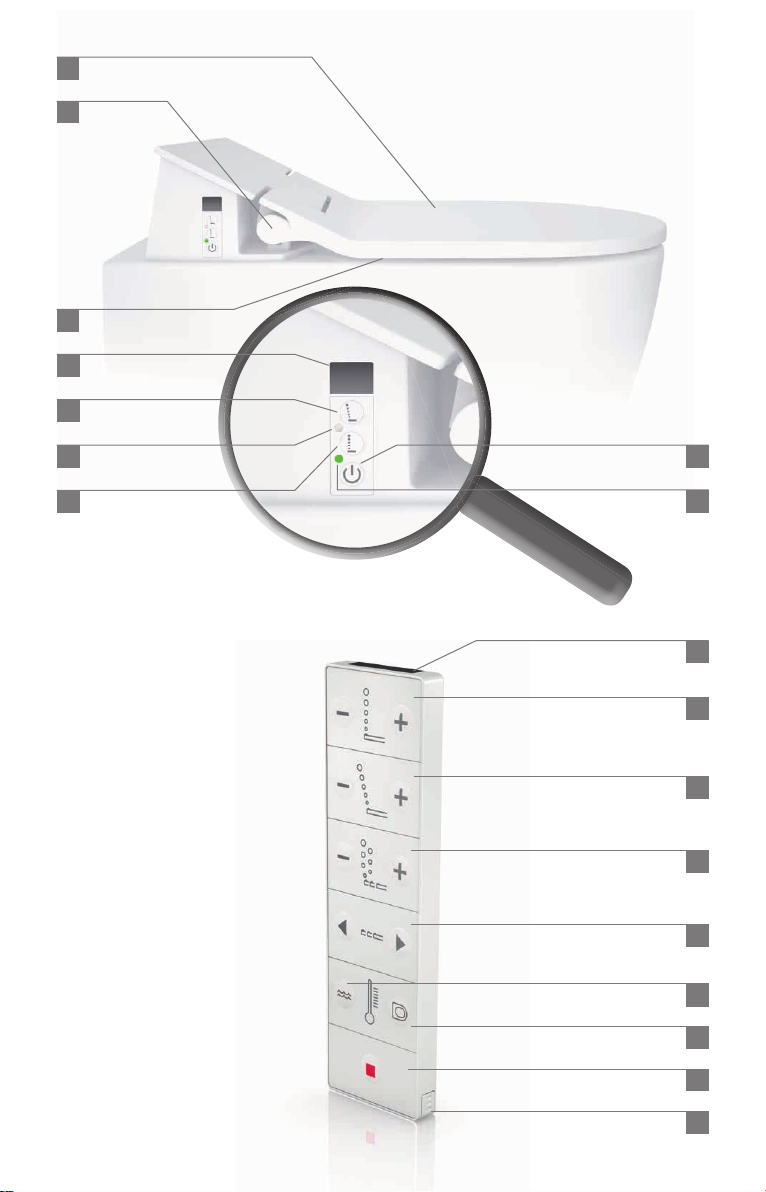

. Remote control
1Infrared transmitter
2Rearwash
3Ladywash
4Comfortwash
5Spray wand position
6Water temperature
7Seat temperature
8Stop
9Battery Compartment
. Toilet unit
APower
BStatus LED
CRearwash
DAmbient light sensor
ELadywash
FInfrared receiver
GNight light
HSoft closing mechanism
ISeat heating

4
EN
3. For your safety
To ensure that you will enjoy your SensoWash®, read these operat-
ing instructions carefully, particularly the safety instructions.
Keep the operating instructions in a safe place and in the case of a
change in ownership, ensure they are given to the new owner.
These operating instructions correspond to the device’s state of
technology at the time of printing. Duravit reserves the right to
make changes in terms of further development.
. Normal Use
SensoWash®Slim is a shower toilet seat with spray attachment for
rearwash and ladywash cleansing functions and additional comfort
features. It can be used as a normal toilet at any time. Its use is
limited exclusively to enclosed spaces.
Any other usage will be deemed as not corresponding with nor-
mal usage. Duravit undertakes no liability for abnormal usage.
. Safety instructions
Read and observe the following safety instructions carefully!
Requirements for the user
This appliance is not intended for use by persons (including child-
ren) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given super-
vision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
WARNING Health damage!
The product must be earthed.
• Compare with the mounting instructions.
Only use the device when it is fully functional
• Make sure that the power cord is not damaged.

5
EN
• The power cord must not become jammed or pinched.
• Keep the power cord away from hot surfaces and sharp edges.
• Do NOT use the product if it is not working properly.
Disconnect from the power supply immediately. Close the stop
valve to interrupt the water supply. Contact [e-mail].
Avoid malfunctions and damage to the product as a result of
improper use.
CAUTION Health damage and potential product damage!
• Supply the device with cold drinking water from the main water
system.
• The product itself does not have electrical leakage protection
function, it must be installed in circuit where there is leakage
protection device installed.
• Means for disconnection must be incorporated in the fixed wiring
in accordance with the wiring rules and having a contact separa-
tion in all poles that provide full disconnection under overvoltage
category III conditions.
• Check the rated power and choose cable cross section accord-
ingly.
• Do NOT sit, stand or lean on the lid.
• Do NOT connect any waste water, grey water, industrial water, sea
water or other untreated or semi-treated water.
• Do NOT detach seat and lid for any purpose.
• Do NOT damage the surface of the seat.
• If the surface of the seat is damaged, contact [e-mail].
• DO NOT open and close seat and lid with excessive force.
• If the SensoWash®is moved from a cold location to a warm
location, condensation may form. Leave the unit switched off for
a few hours.
• Do NOT install the SensoWash®in rooms where there is a danger
of frost. The room temperature must not be less than 4°C.
• Do NOT place open fire sources, candles, cigarettes, or similar,
on the SensoWash®.
• Do NOT expose the SensoWash®directly to water or sunlight.
• Do NOT climb on or stand on the product.

6
EN
• Do NOT place any heavy objects on the lid.
• Do NOT deliberately soil, spray or block the spray wand.
Repairs must only be carried out by a person with the neces-
sary expertise.
• Do NOT carry out modifications, tamper with, install additional
equipment or attempt to repair the SensoWash®.
• If the supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualified persons in order
to avoid a hazard.
• Repairs must be carried out by qualified electricians or techni-
cians.
• Improperly performed repairs can lead to accidents, damage and
malfunctions.
• Do NOT use attachments not recommended by Duravit.
Use of batteries
Risk of fatal injury if swallowed/Chemical
burn hazard
This product contains coin / button cell batteries. Do not ingest
battery! If the coin / button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to death.
> Do not ingest battery, Chemical Burn Hazard.
> Keep new and used batteries away from children. If the battery
compartment does not close securely, stop using the product and
keep it away from children.
> If you think batteries might have been swallowed or placed in-
side any part of the body, seek immediate medical attention.
Damage to health caused by leaking battery
acid
> Avoid contact with skin, eyes and mucous membranes if battery
acid has leaked.
> In case of contact with the acid, flush the affected areas with
large amounts of clean water and consult a doctor immediately.
> Do not expose the batteries to extreme conditions: avoid contact
WARNING
CAUTION

7
EN
with hot surfaces or direct sunlight. Otherwise there is a risk of
leakage.
> The cells shall be disposed of properly, including keeping them
away from children. Even used cells may cause injury.
NOTICE Product and/or property damage
> Batteries may not be recharged, reactivated by other means, dis-
mantled or exposed to fire.
> The supply terminals are not to be short-circuited.
> Always remove empty batteries from the remote control imme-
diately. They may leak and cause damage.
> Do not insert new and old batteries together in the remote con-
trol.
> Different types of batteries are not to be mixed.
> Clean the battery and contacts before inserting the battery.
> Batteries are to be inserted with the right polarity.
> Remove the batteries if you do not use the remote control for an
extended period.

8
EN
4. Basics of operation
. Remote control
SensoWash®is operated via the remote control. Settings are
altered via the remote control as well.
Press the respective button on the remote control to switch on a
function. The button lights up white briefly.
To switch off a shower function, press “Stop” 8on the remote con-
trol.
If the remote control is not available or the batteries are empty,
then basic functions can also be switched on or off from the side
control buttons.

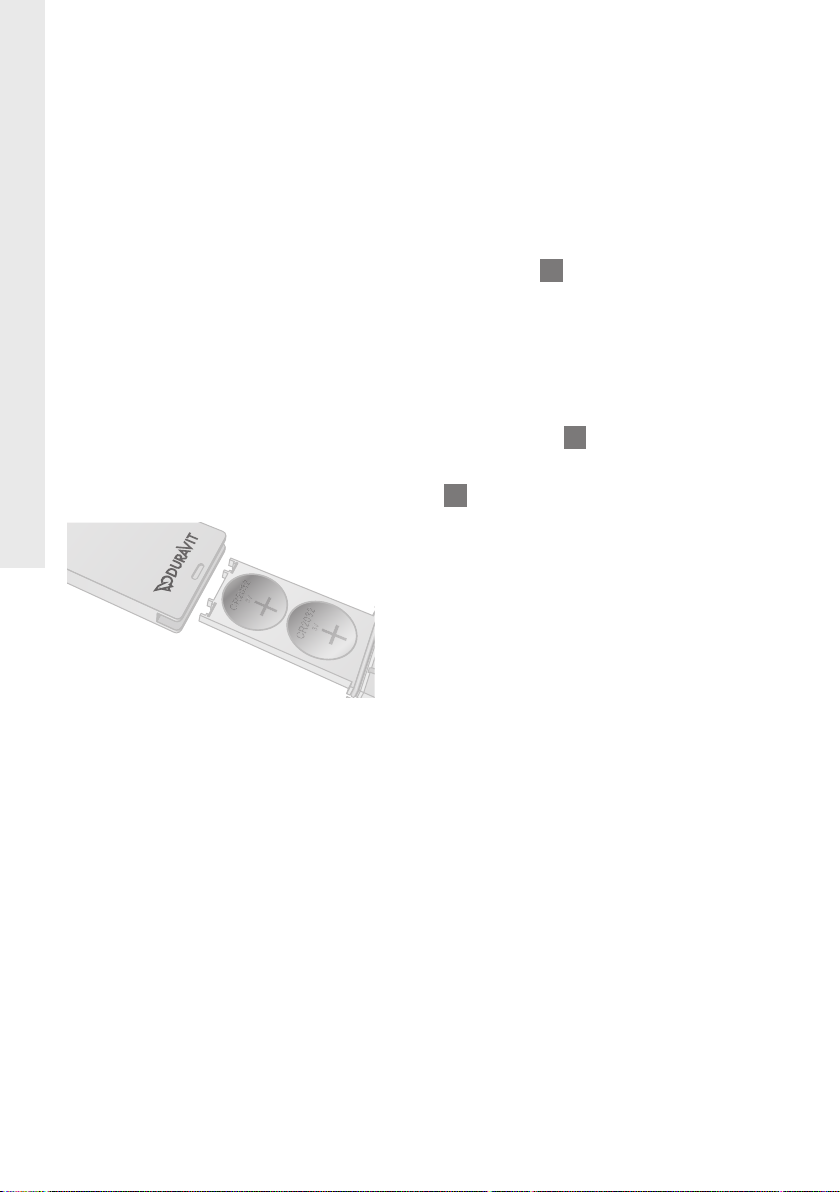

> Press the lock of the “Battery Compartment” 9to open it.
> Insert two lithium batteries (CR2032) with + facing upwards.
> Close the “Battery Compartment” 9.

9
EN
. Status LEDs
Red illuminated: SensoWash® is in the ”Standby mode“, all func-
tions cannot be used.
Orange illumina-
ted:
SensoWash® is in the ”Energy saving mode“, all
functions can be used.
Green illumina-
ted:
SensoWash® is in the ”On mode“, all functions
can be used.
Green flashing: SensoWash® is in the ”Initialization“ process,
only ”Power“ Aon the seat unit can work.
Red flashing: Malfunction. Disconnect main power supply
and proceed with chapter 9.
5. Initial operation
Remote control
> Press the lock of the “Battery Compartment” 9to open it.
> Remove the foil safety tag in the battery compartment.
> Close the “Battery Compartment” 9.
Power supply
> Connect the main power supply.
SensoWash®will start “Initialization” for about 15 seconds when
it is connected to the power supply. During this time, the “Status
LED” Bflashes green and only “Power” Aon the seat unit can
work, all other operations will not work.
Switch SensoWash®on
Requirement: SensoWash®is in the “Standby mode”, the “Status
LED” Bis red illuminated.
> Press “Power” Aon the seat unit.
SensoWash®is now switched on.
The “Status LED” Bis green illuminated.
All functions can be used.

10
EN

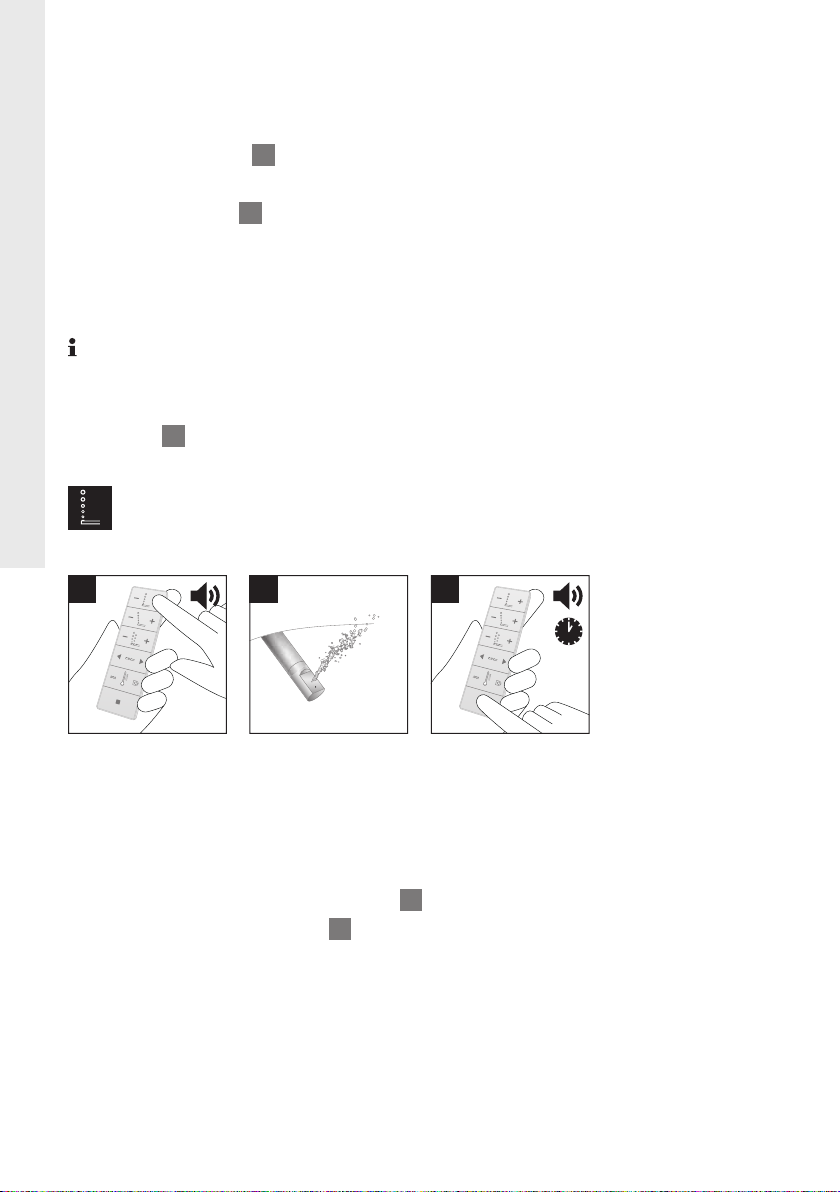

6. Operating
. Switching the SensoWash®on / off
> Press “Power” Aon the seat unit to switch on SensoWash®.
A green Status LED indicates “On mode”.
> Press “Power” Aon the seat unit again to switch off SensoWash®.
A red Status LED indicates “Standby mode”.
. Shower functions
SensoWash®automatically cleans the retracted spray wand be-
fore and after washing functions are used. The shower functions
terminate automatically after 2 minutes or immediately when
“Stop” 8is pressed.
Activating / deactivating “Rearwash”
Gentle and safe rear cleansing.
1
Rearwash is
active, the
spray wand
extracts slowly
2 3
> Press Plus
or Minus to
activate Re-
arwash.
> Press Stop to
end Rearwash
or after 2 min.
auto stop.
Alternatively press “Rearwash” Con the seat unit to activate Rear-
wash. Press “Rearwash” Con the seat unit again to stop Rearwash
or after 2 min. auto stop.

11
EN

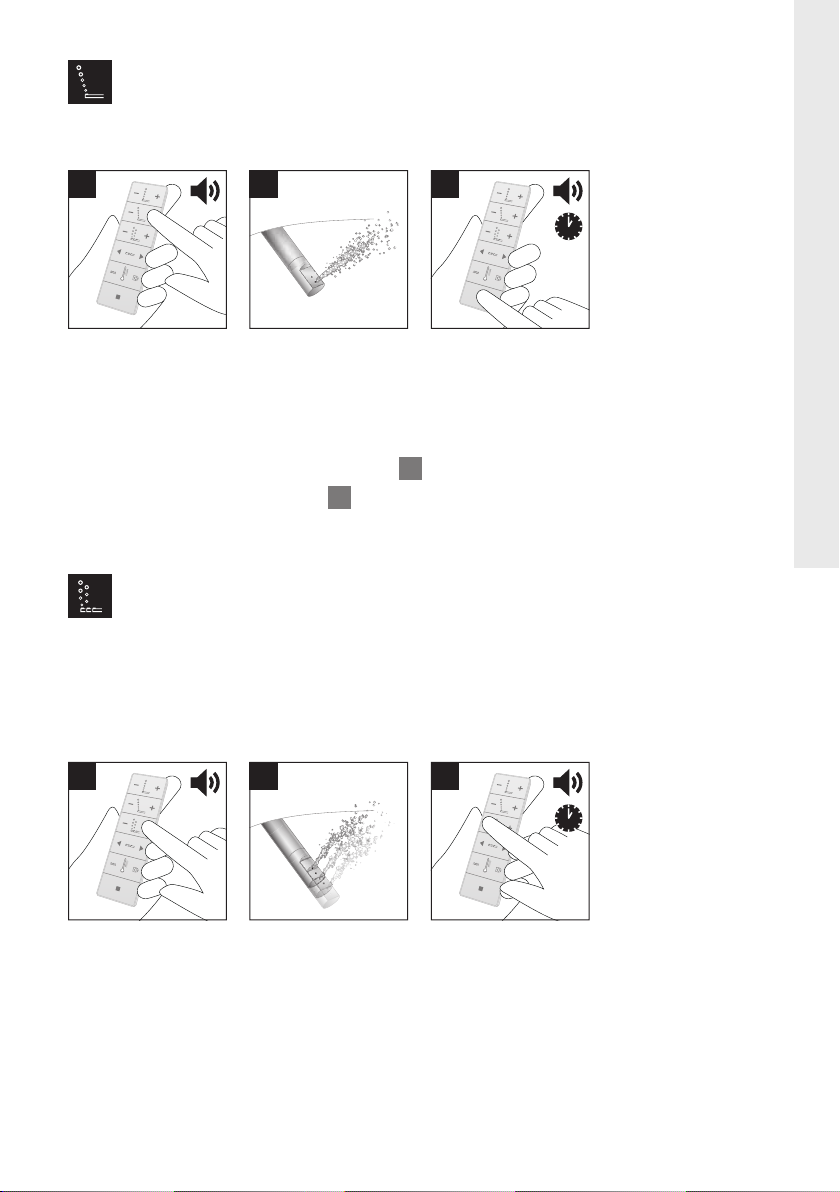

Activating / deactivating “Ladywash”
Additional nozzle outlet for female intimate care.
2
Ladywash is
active, the
spray wand
extracts slowly
31
> Press Plus
or Minus to
activate La-
dywash.
> Press Stop to
end Ladywash
or after 2 min.
auto stop.
Alternatively press “Ladywash” Eon the seat unit to activate Lady-
wash. Press “Ladywash” Eon the seat unit again to stop Ladywash
or after 2 min. auto stop.
Activating / deactivating “Comfortwash”
Forward and backward movement of spray wand during use
of shower.
Requirement: Rearwash or Ladywash function is activated.
2
Comfortwash
is active.
31
> Press Plus
to activate
Comfortwash.
> Press Minus to stop Comfortwash.
The function (Rear- or Ladywash)
that was previously set is still
active. After 2 min. auto stop.

12
EN
Adjusting the water spray intensity
The water spray intensity can be set individually in 3 steps:
Low > Medium > High
Requirement: Rearwash or Ladywash function is activated and the
icon illuminated.
1
> Press Plus to
increase the
Rearwash
intensity.
2
> Press Minus
to decrease
the Rearwash
intensity.
Same action for “Ladywash” 3.
Adjusting the spray wand position
The spray wand position can be set individually to 5 different posi-
tions:
Fr o n t < ––––––––––––––––––––––––––––––––––––––> R e a r

13
EN
1
> Press Right
arrow to
retract the
spray wand.
2
> Press Left
arrow to
extract the
spray wand.

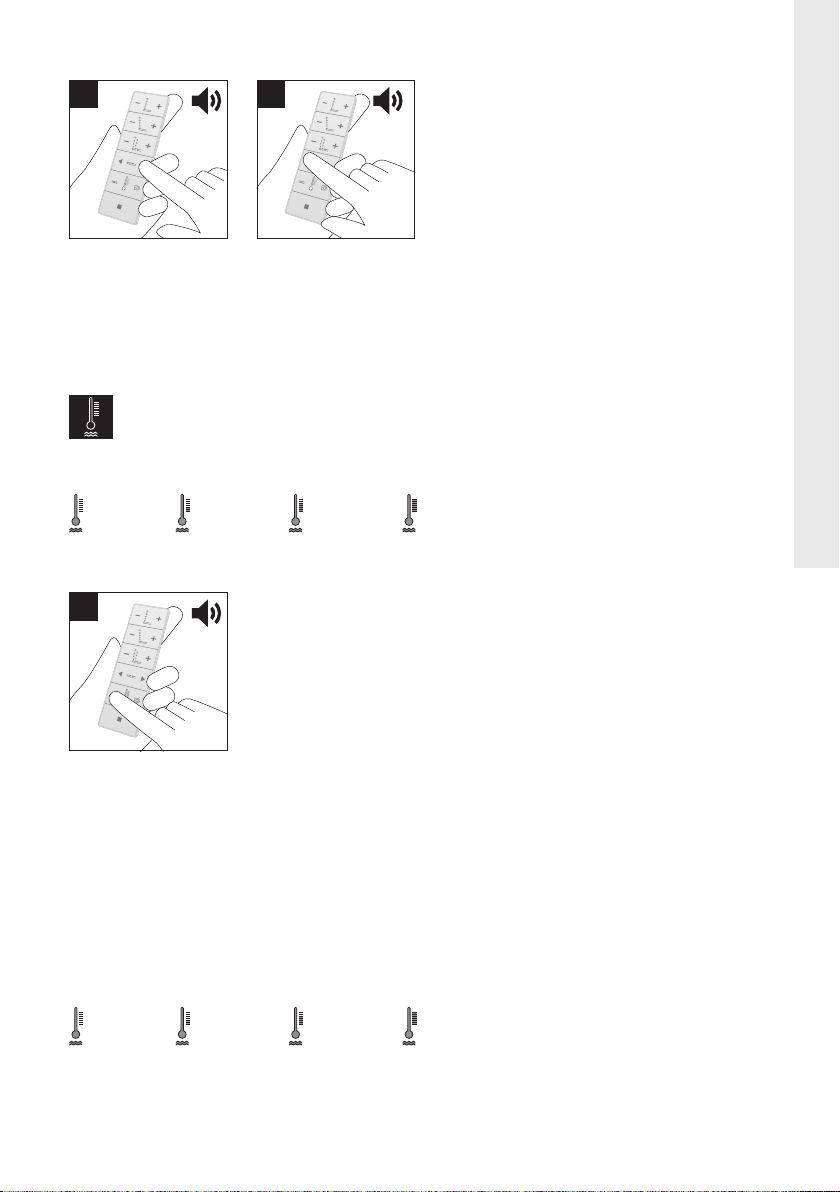

Adjusting the water temperature
The water temperature can be individually adjusted in 4 levels:
Off > Low > Medium > High
1
> Press Water
Temperature
to cycle
through.
. Seat heating
Adjusting the seat temperature
The seat temperature can be individually adjusted in 4 levels:
Off > Low > Medium > High

14
EN
1
> Press Seat
Temperature
to cycle
through.
How to save energy see chapter 6.4 “Settings”.
. Settings
Adjusting the night light
Illuminated inner bowl for night mode orientation, also visible with
closed lid.
In the Auto mode the night light will be switched on and off accord-
ing to the surrounding brightness.
The night light can be set individually in 3 modes:
On > Auto > Off
Press the following button combination to cycle through the night
light settings.
Therefore, the stop button has to be pressed constantly.

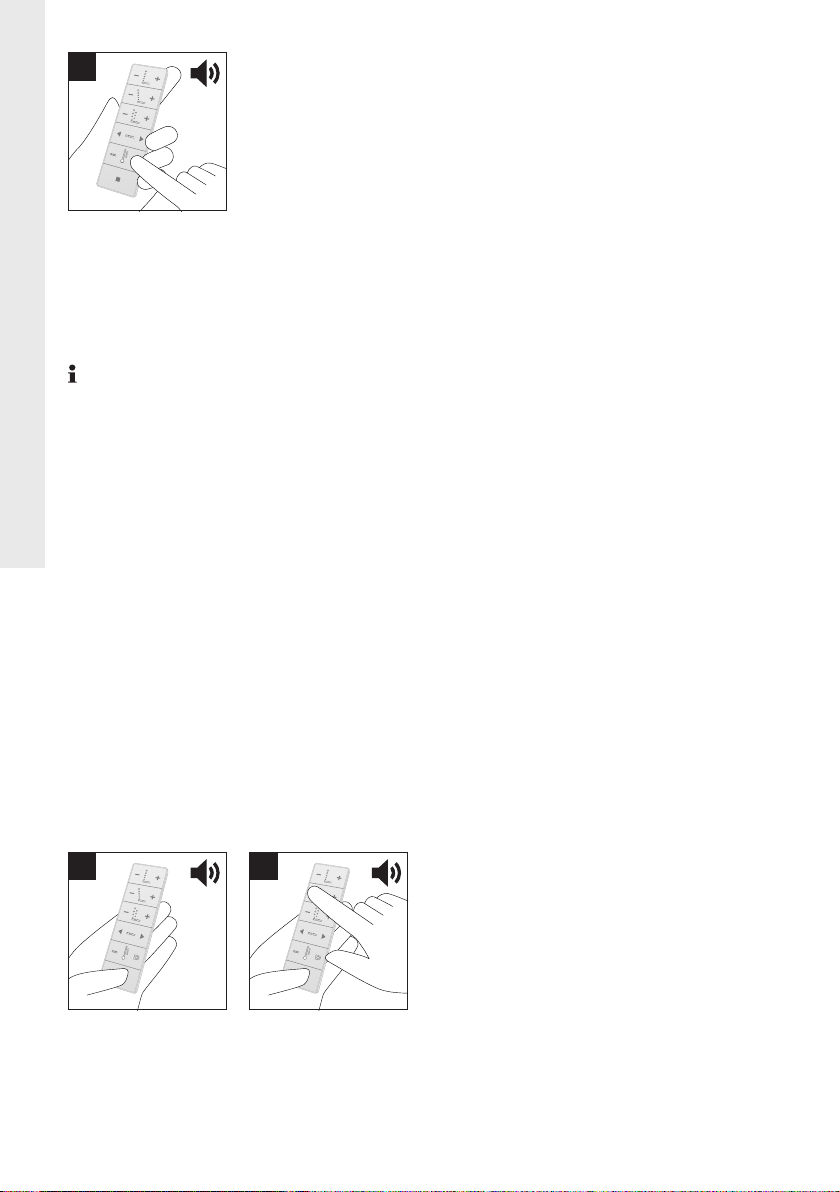

1
> Press and
hold Stop.
2
> Press Lady-
wash Minus.

15
EN

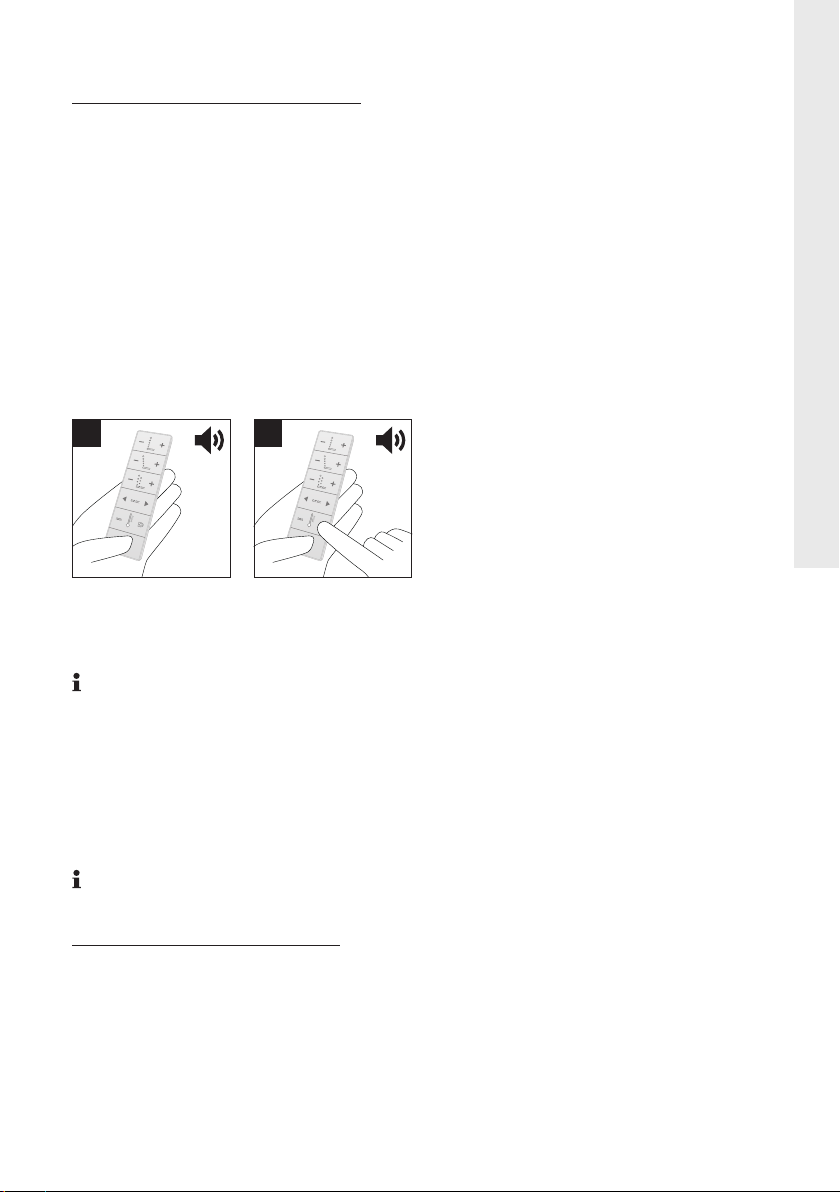

Energy saving mode
Timed energy saving mode is to save energy at a desired point of
time, e.g. at night.
When the timed energy saving mode gets activated, the seat heat-
ing is deactivated for the next 8 hours and then gets automatically
reactivated for 16 hours. This procedure is repeated at the same
time every day until the energy saving mode gets deactivated.
Press the following button combination just at the de-
sired time when the 8 hour saving period should start to
cycle through the timed energy saving mode settings.
Therefore, the stop button has to be pressed constantly.
1
> Press and
hold Stop.
2
> Press Seat
Temperature.
Status LED is illuminated green: Off
Status LED is illuminated orange: On
To change the point of time of the “Timed energy saving mode”, de-
activate the “Timed energy saving mode” and set it again at your
desired time .
To deactivate the seat heating permanently, see chapter 6.3.
Auto energy saving mode
If all SensoWash® functions have been inactive for 48 hours, the
auto energy saving mode will activate automatically. The seat heat-
ing is now inactive. When any SensoWash® function is used, the
auto saving energy mode will be deactivated again and the previ-
ous settings will be automatically reactivated.

16
EN

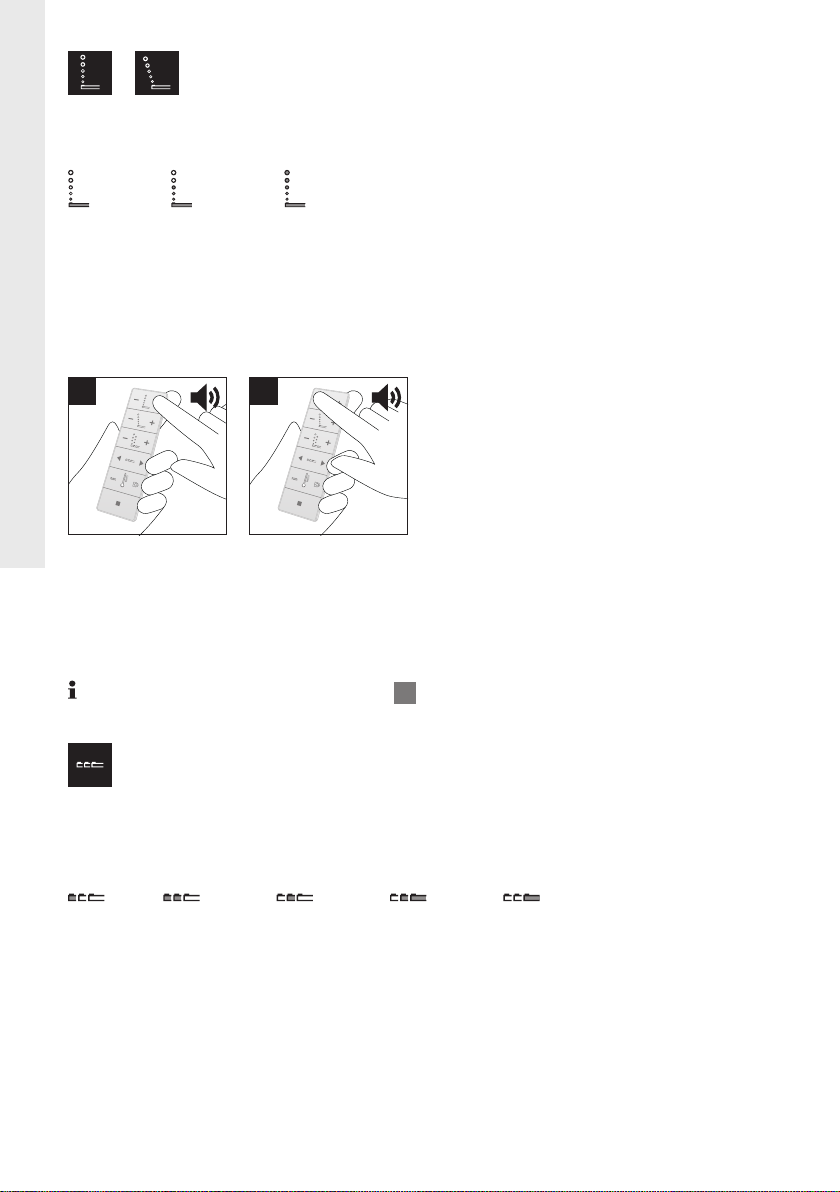

Activating / deactivating the confirmation tone
To indicate any command.
Press the following button combination to cycle through the
confirmation tone settings.
Therefore, the stop button has to be pressed constantly.
21
> Press and
hold Stop.
> Press Lady-
wash Plus.
Short confirmation tone: On
Longer confirmation tone: Off

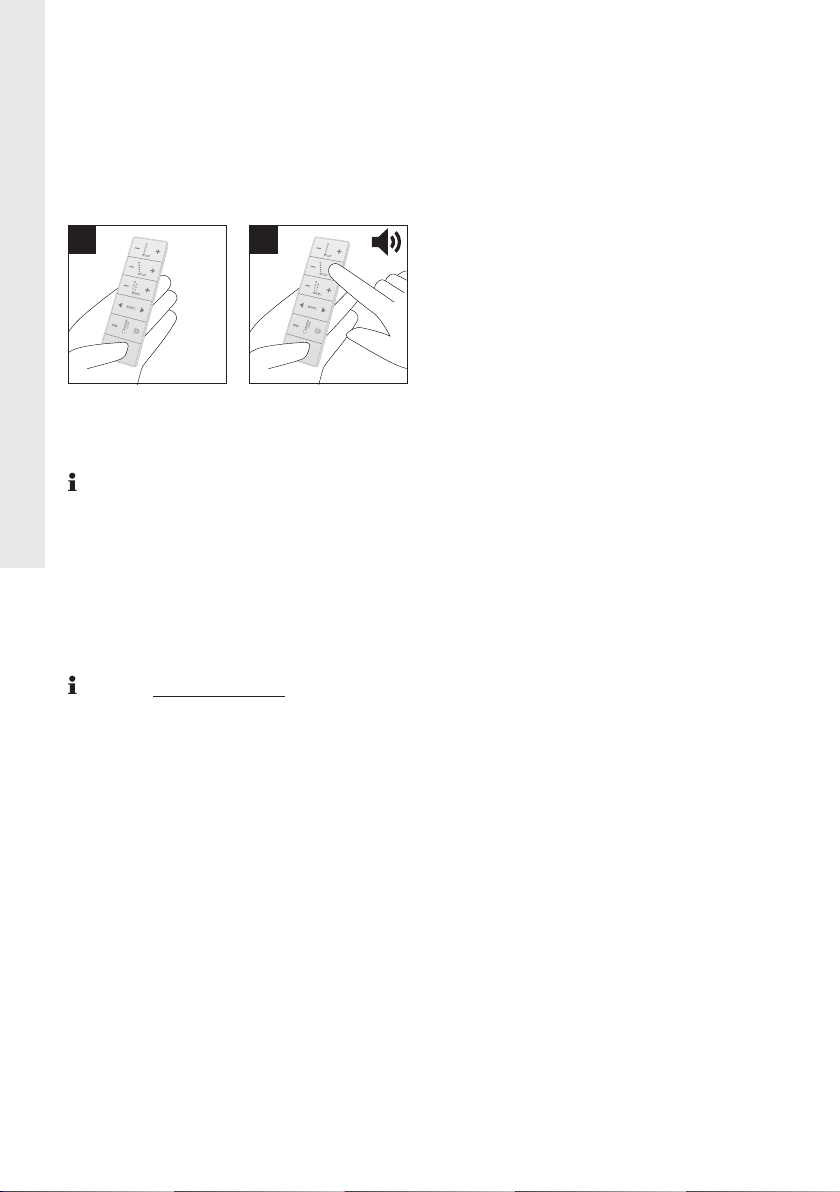

Lock / unlock the remote control
Blocking function via remote control. No function can be used while
this function is activated.
Press within 5 sec. the following button combination to lock / un-
lock the remote control.
Therefore, the stop button has to be pressed constantly.
