DURAVIT Happy D.2 700318 User manual

Installation instructions Bathtub with seamless acrylic panel
Notice de montage Baignoire avec panneau acrylique sans joints
Instrucciones de montaje y uso Bañera con embellecedor acrílico sin juntas
#  .. . .. ..
#  .. . .. ..

257300_MAL_Bathtub_seamless acrylic panel_US/19.07.1

57300_MAL_Bathtub_seamless acrylic panel_US/19.07.1 3
es fr
Información importante 16
Montaje 17
Remarques importantes 10
Montage 11
Important information 4
Installation 5
en

Prior to the installation
Please read the specifications sheets prior to the installation.
Specification sheets are available for download at
pro.duravit.us.
Products are in compliance with the following codes:
• Uniform Plumbing Code (UPC®)
• National Plumbing Code of Canada
25
26
About these instructions
The installation instructions come as part of the Duravit
product and must be read carefully prior to installation.
Target readership and qualifications
This is a professional grade product. A working knowledge
of construction techniques and code compliant plumbing
installation are required for proper installation and user
satisfaction. The product must be installed by a licensed
plumber.
Explanation of the key words and symbols
WARNING
Indicates a hazardous
situation which, if not
avoided, could result in
death or serious injury.
NOTICE Is used to address
practices not related to
physical injury.
Inspection (e.g. for scratches)
Inspect for leaks and that all connections have a
watertight seal
Indication of the length of time (e.g. 10 minutes)
>Action required
Safety instructions
Product and/or property damage
The breach of local and country-specific regulations and
standards can cause damage to the product and/or property
damage.
> Observe the local installation regulations and any
country-specific standards at all times.
Careless handling can result in damage to the surface of
lacquered bathtubs.
> Protect the bathtub from knocks and scratches during
installation and transport.
457300_MAL_Bathtub_seamless acrylic panel_US/19.07.1
en

57300_MAL_MAL_Bathtub_seamless acrylic panel_US/19.07.1 5
en
#  .. . .. ..

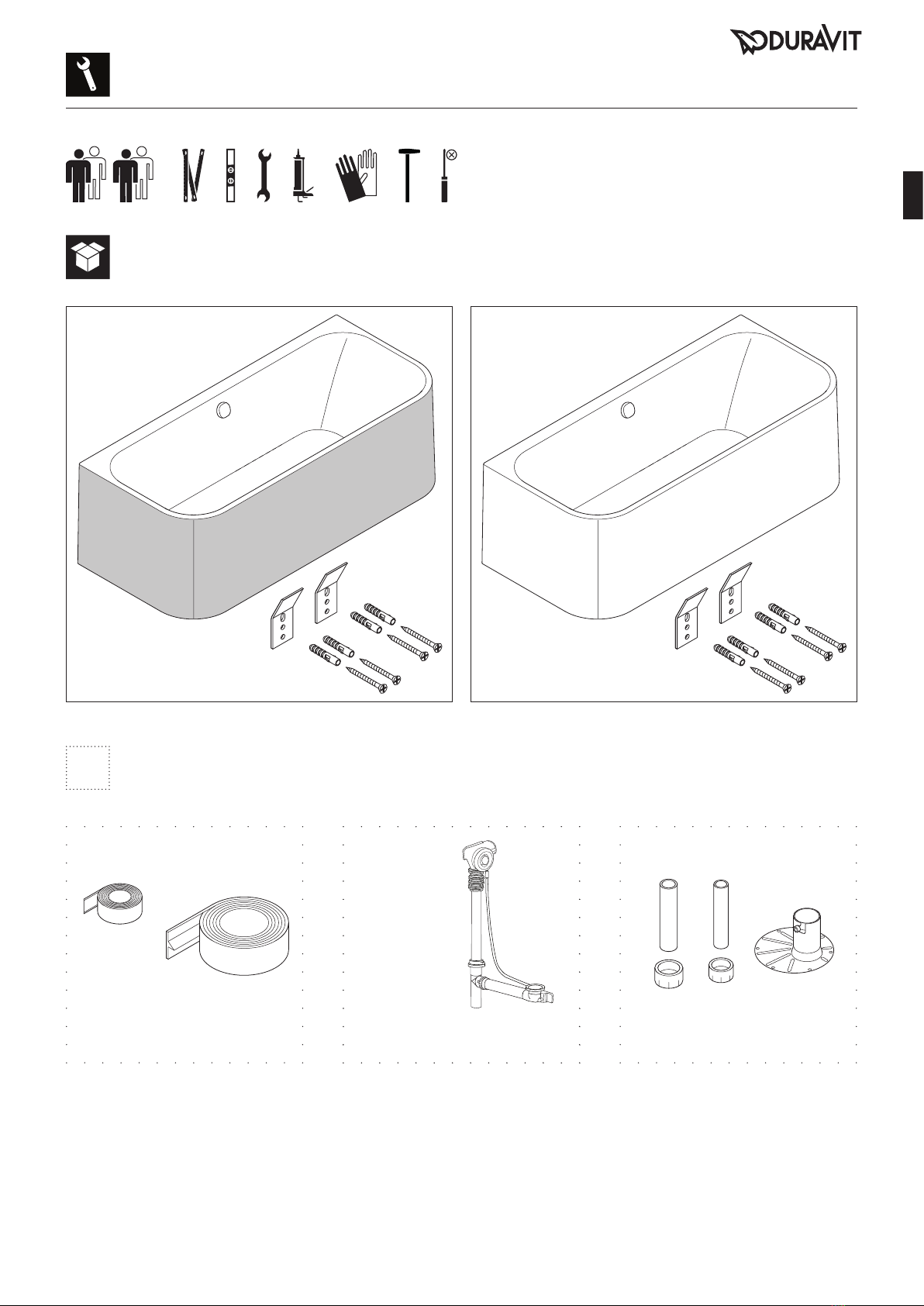

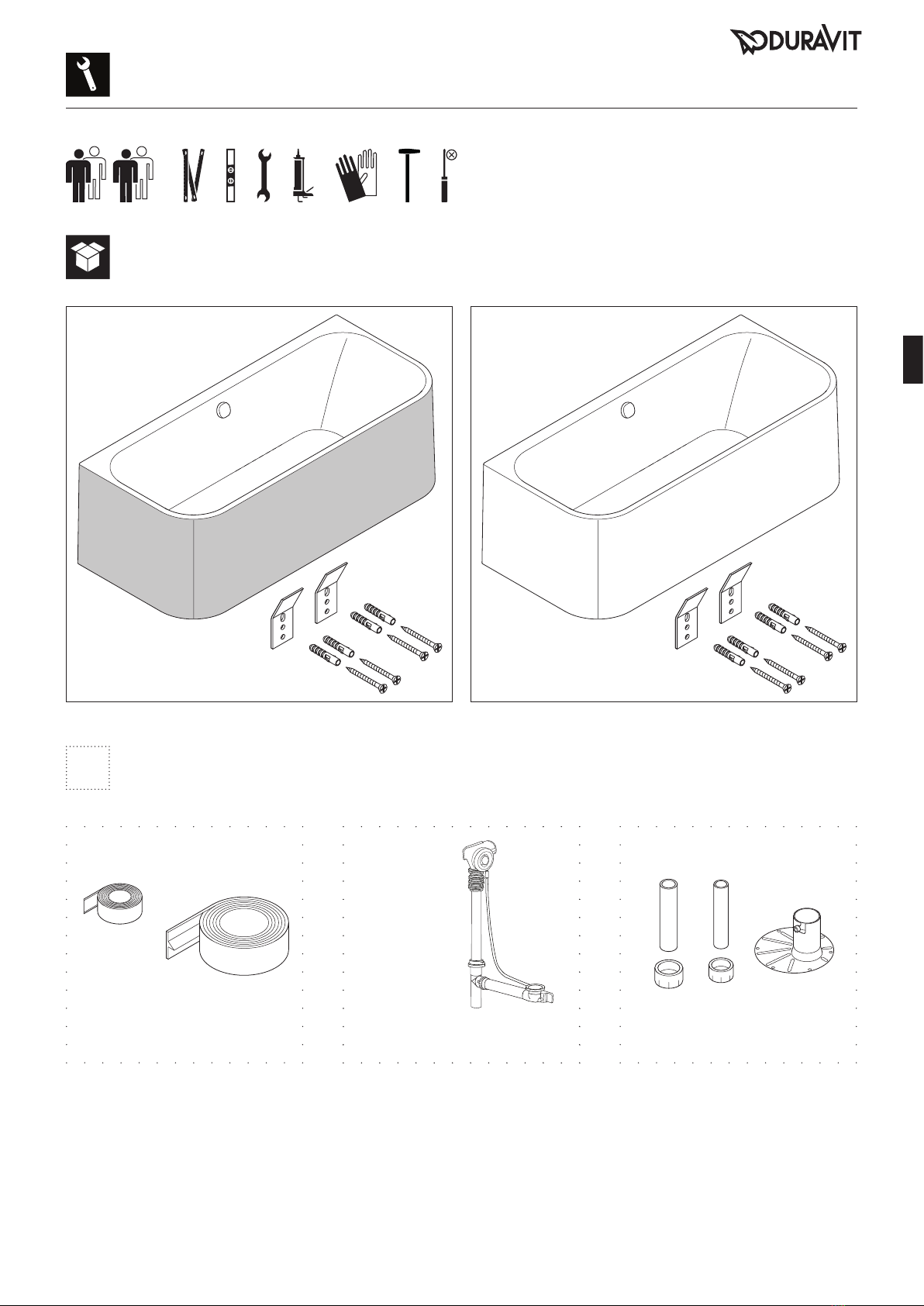

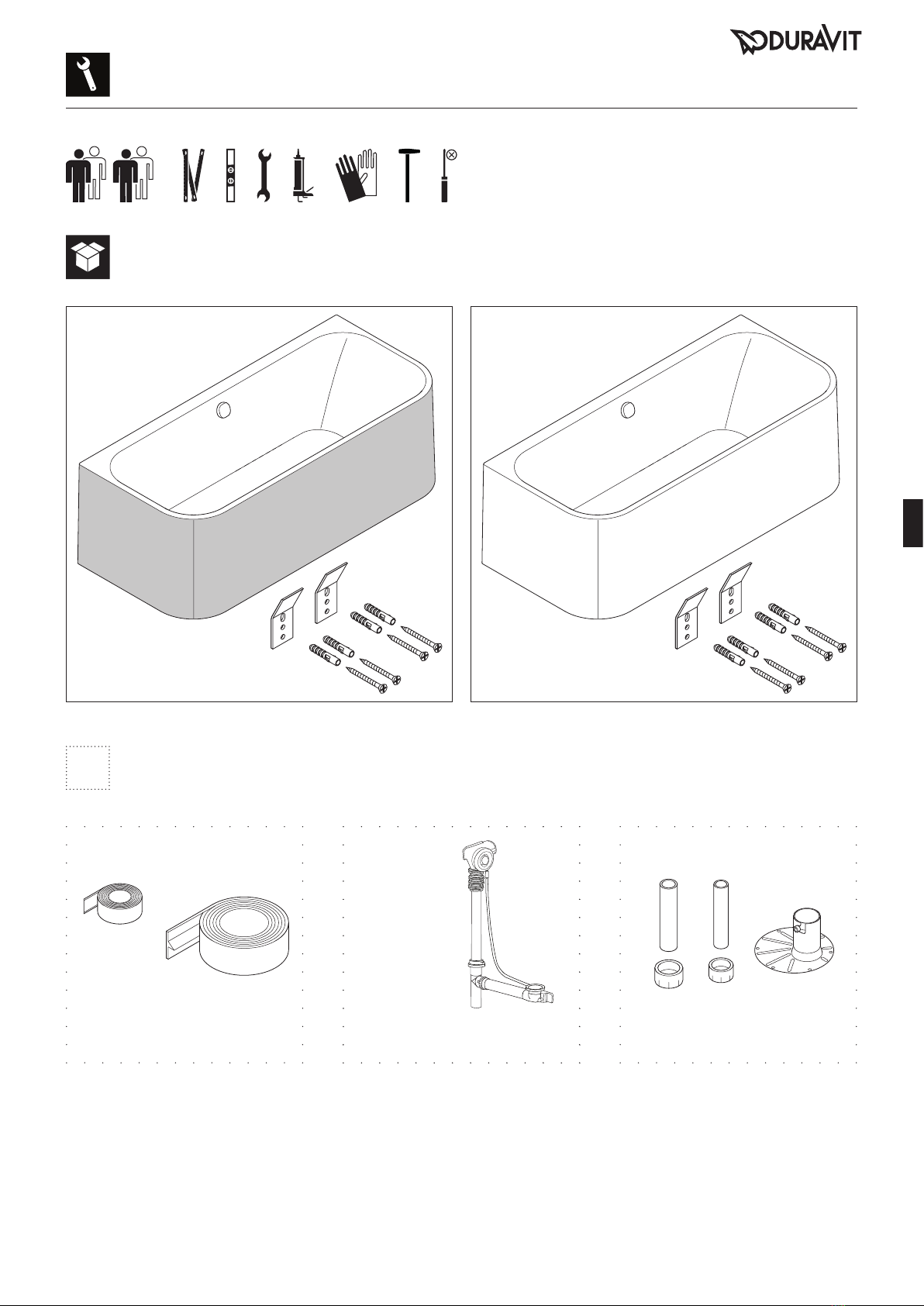

Delivery contents
+Recommended accessories (not included)
# 790112 (Tile Flange)
#  .. . .. ..
# 791281 (PVC)
# 791282 (ABS)
Drop-in bathtub drain
# 790219 (plastic)
# 790250 (brass)

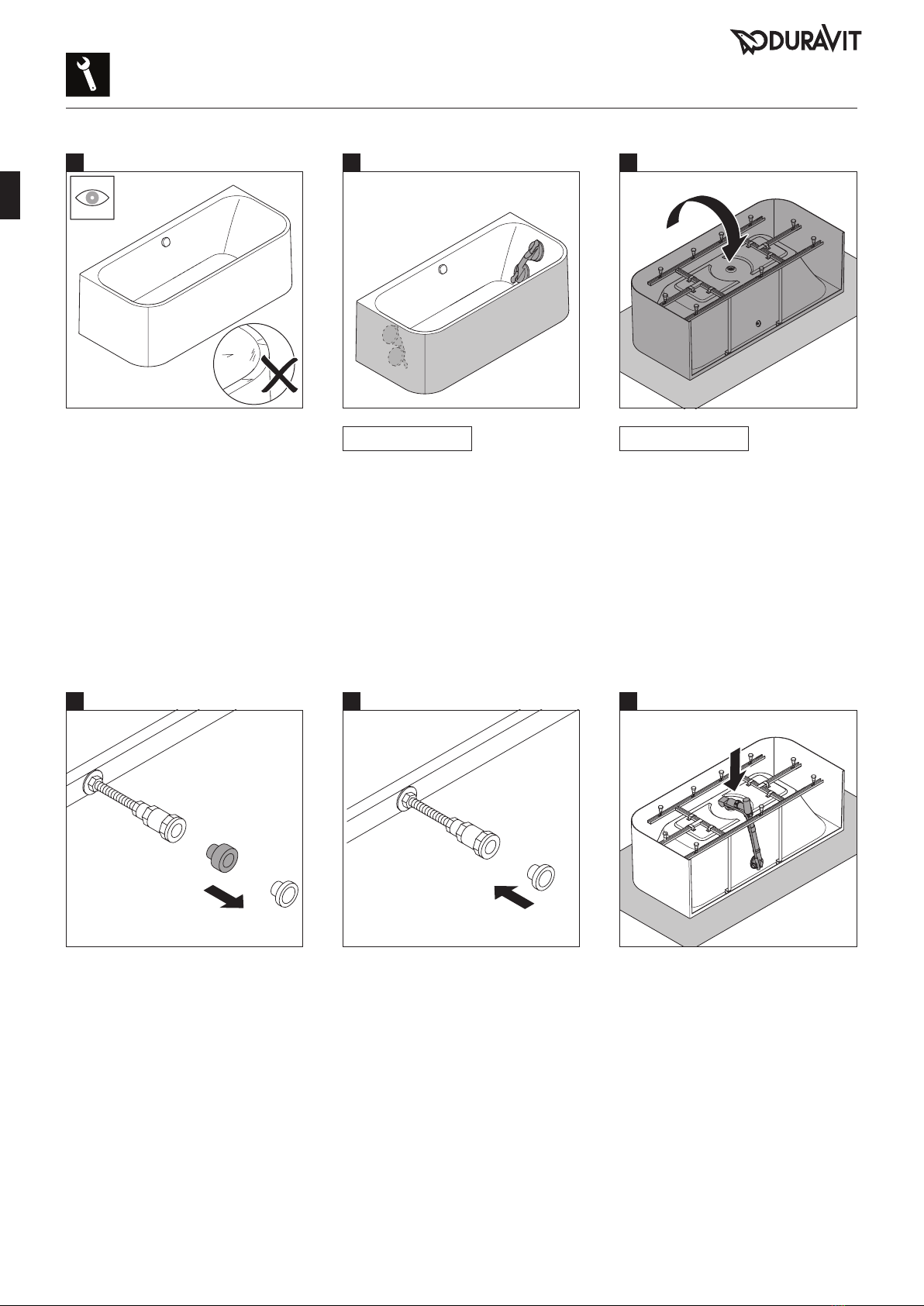

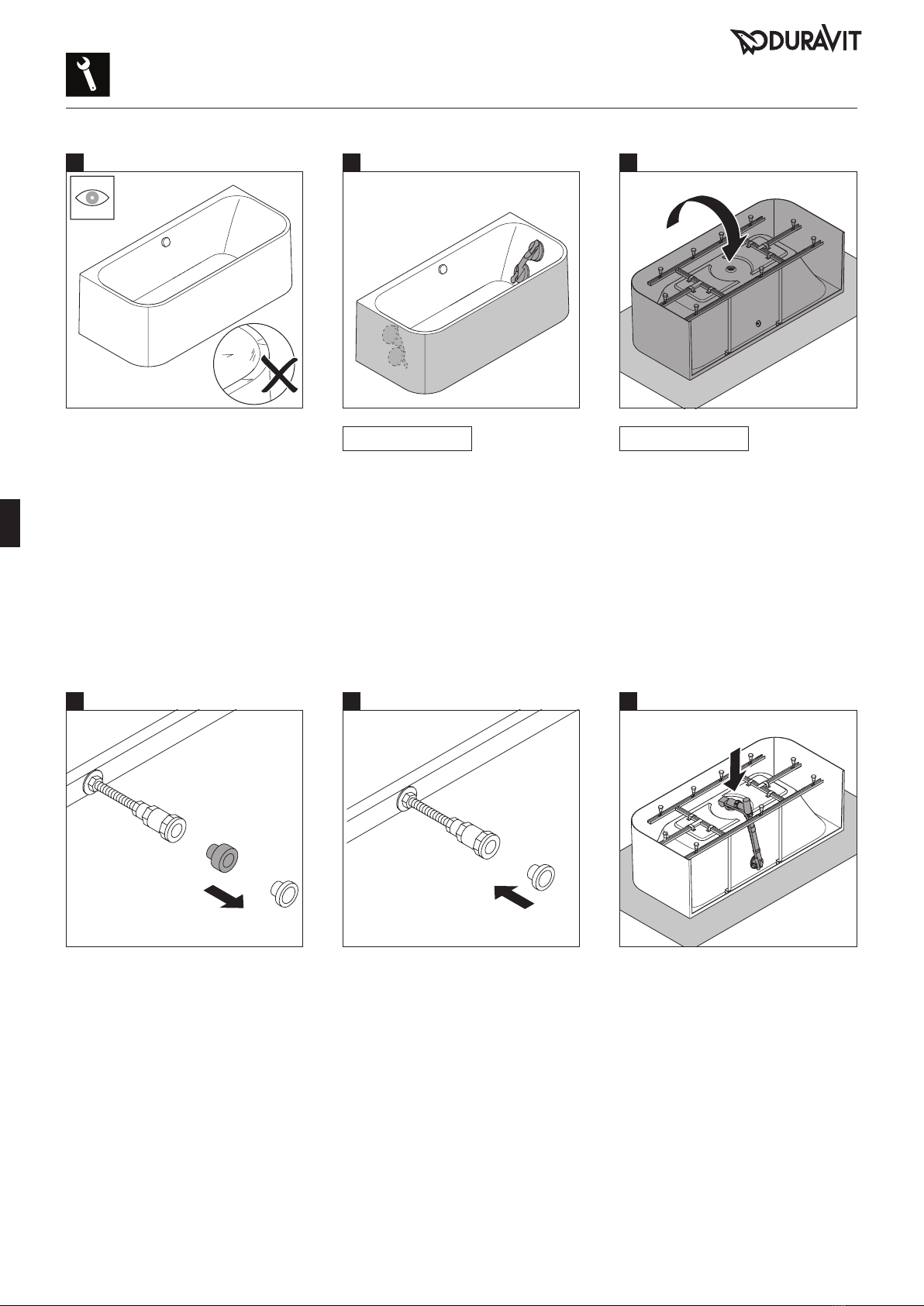

NOTICE
Tilting the bathtub on its side can
damage the bathtub.
> Place cardboard/blanket on
the floor.
> Turn bathtub over.
> Inspect bathtub for any potential
damage that may have occured
during transport.
> Do not install if any damage is
visable.
> Remove transportation safety
device.
> Reattach cap to foot. > Connect waste and overflow
(not included).
> Refer to manufacturer's installation
instructions for drain/waste fitting.
NOTICE
Suction lifters can cause damage to
the surface of lacquered bathtubs.
> Attach suction lifters to the inside of
lacquered bathtubs.
657300_MAL_Bathtub_seamless acrylic panel_US/19.07.1
en
654
321

1
2
≥ 2 mm
≥
1
/
16”
~120 mm
~3 ⅜"
~4 ¾"
~85 mm

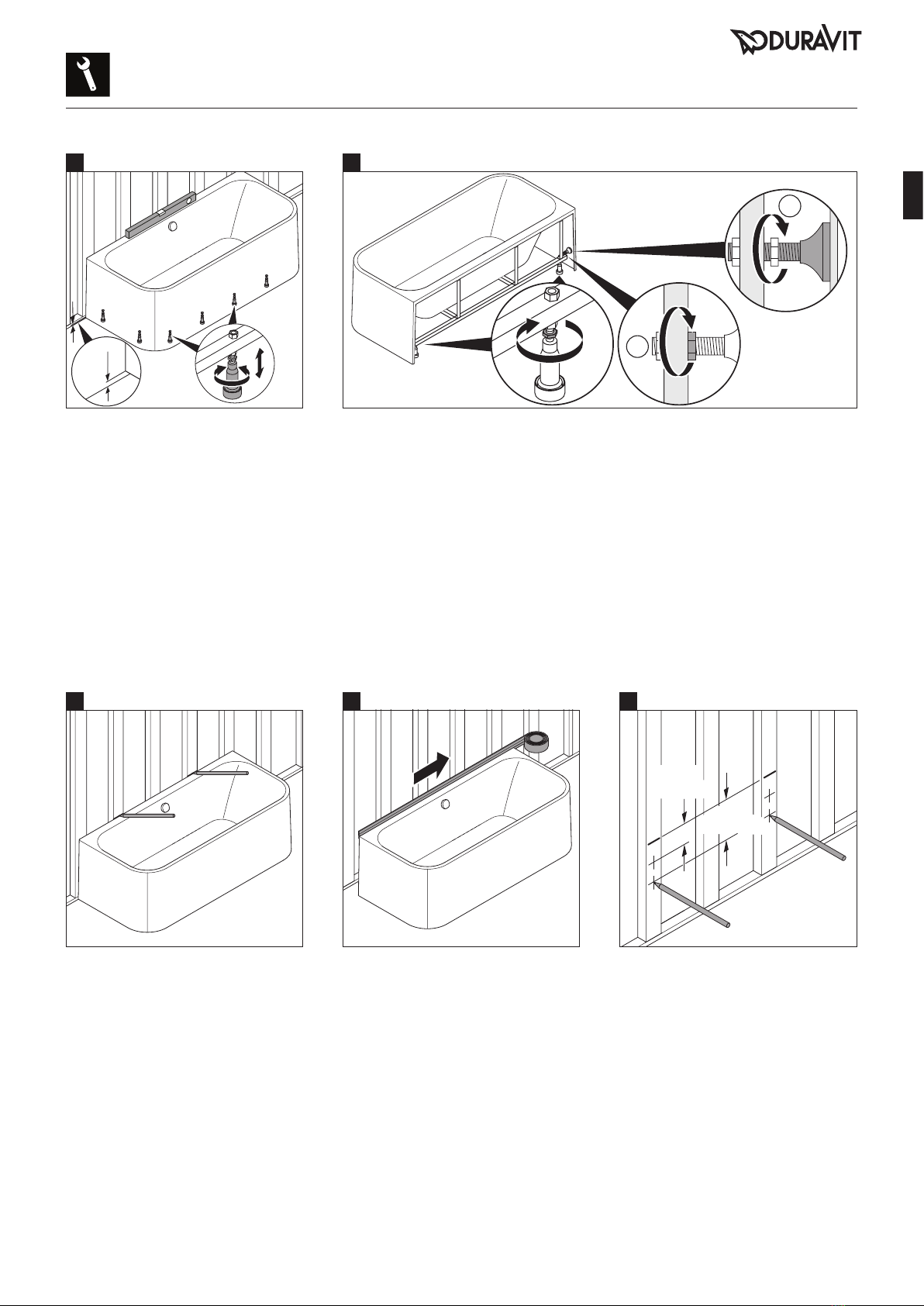

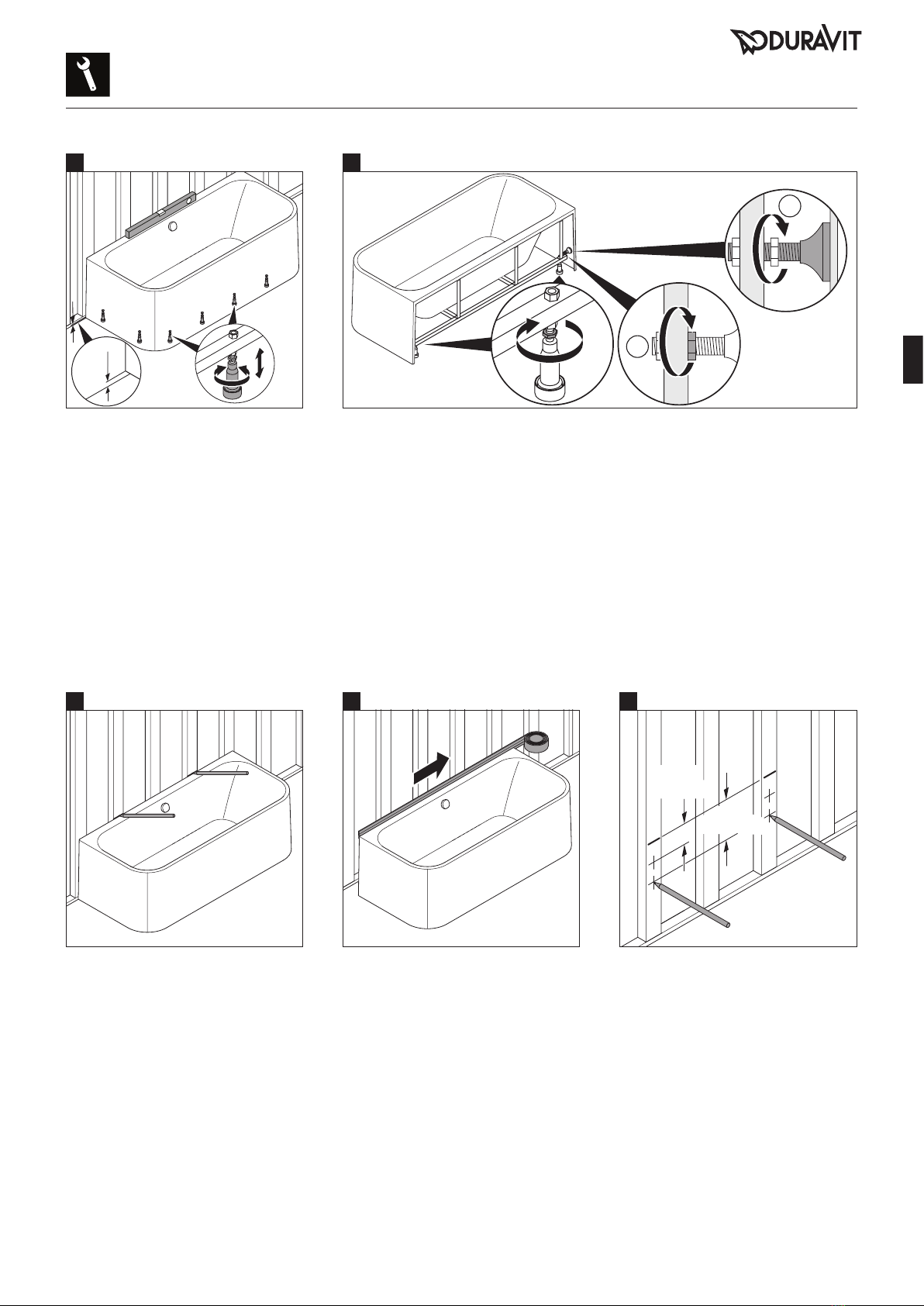

> Adjust panel if necessary.
> Secure firmly.
> Attach tile flange (not included).> Mark height of the bathtub rim.
> Place bathtub on its feet.
> Make sure the bathtub is level.
> Adjust feet if necessary.
> Mark position of clips on the wall.
57300_MAL_MAL_Bathtub_seamless acrylic panel_US/19.07.1 7
en
78
910 11

Ø 8 mm
Ø ⅜”

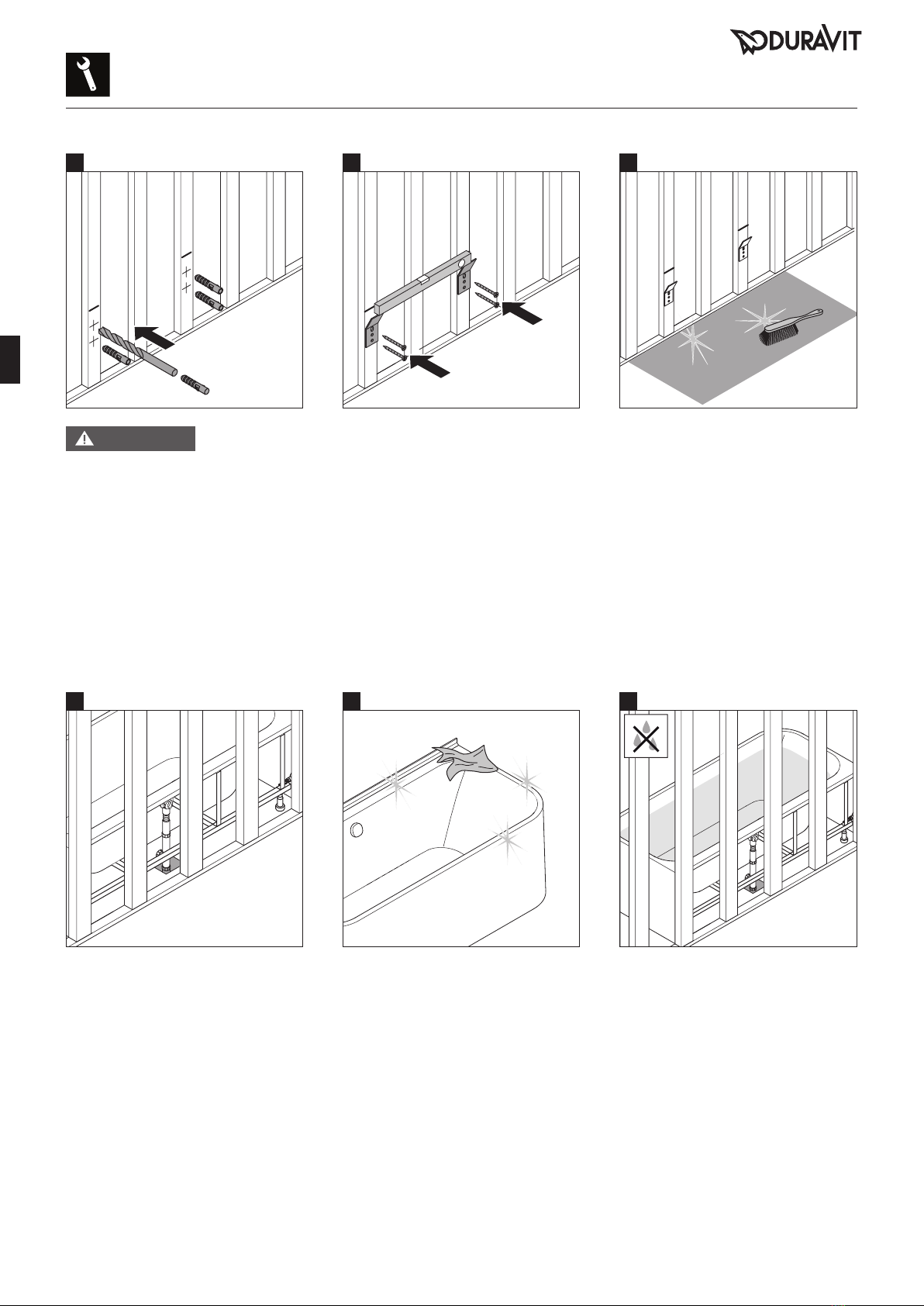

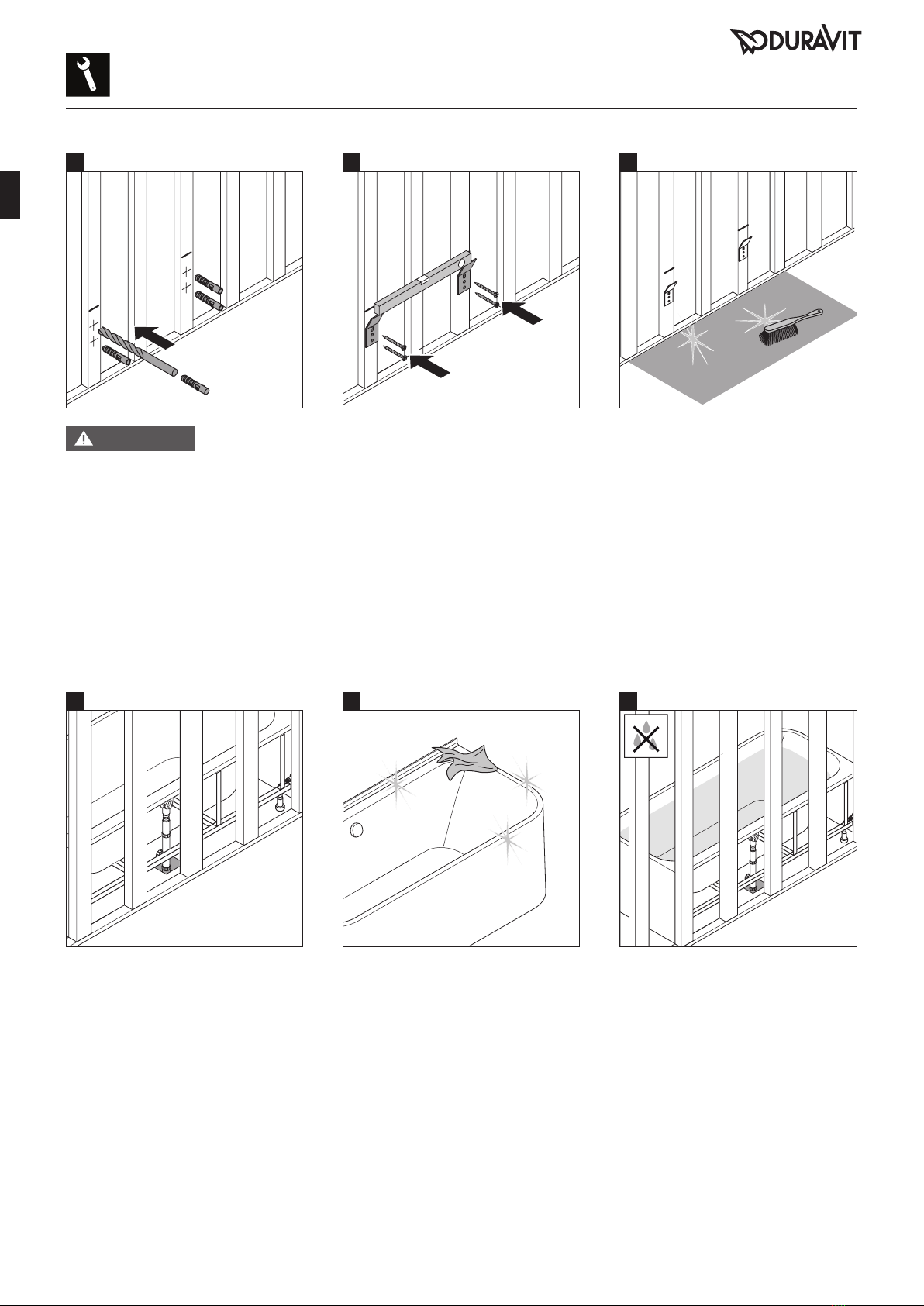

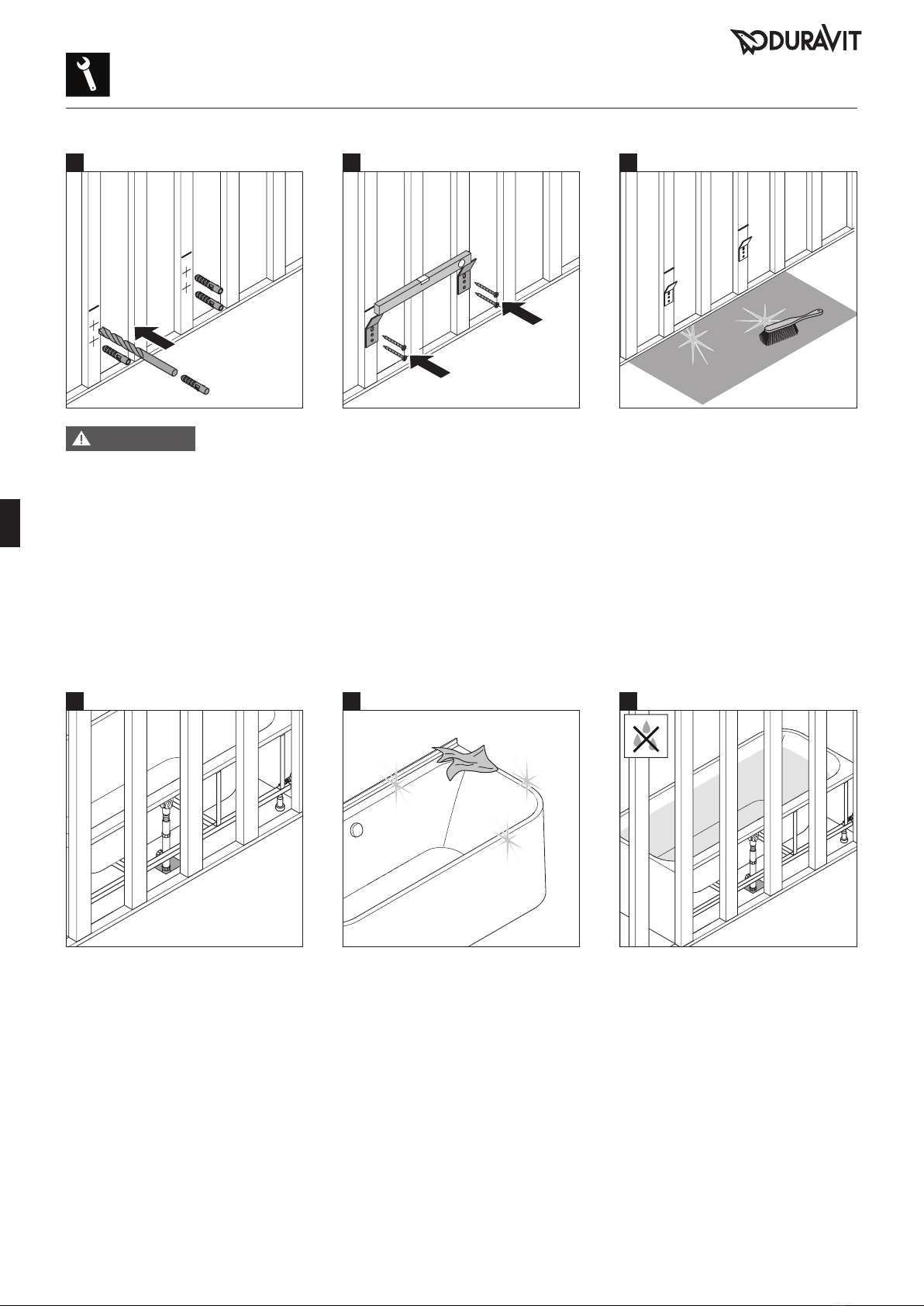

WARNING
Fatal injury by electric shock!
Contact with electrical wiring can lead
to electrical shock.
> Make sure that there are no
electrical wires or heating running
under wall or floor which could be
affected by the installation.
> Clean area under bathtub.> Affix 2 brackets to the wall frame
for side support of the bathtub.
> Clean the bathtub.> Connect waste and overflow to the
drain system.
> Fill the bathtub with water.
> Inspect for potential leaks.
> Make sure to water test fittings.
857300_MAL_Bathtub_seamless acrylic panel_US/19.07.1
en
171615
141312

24:00:00

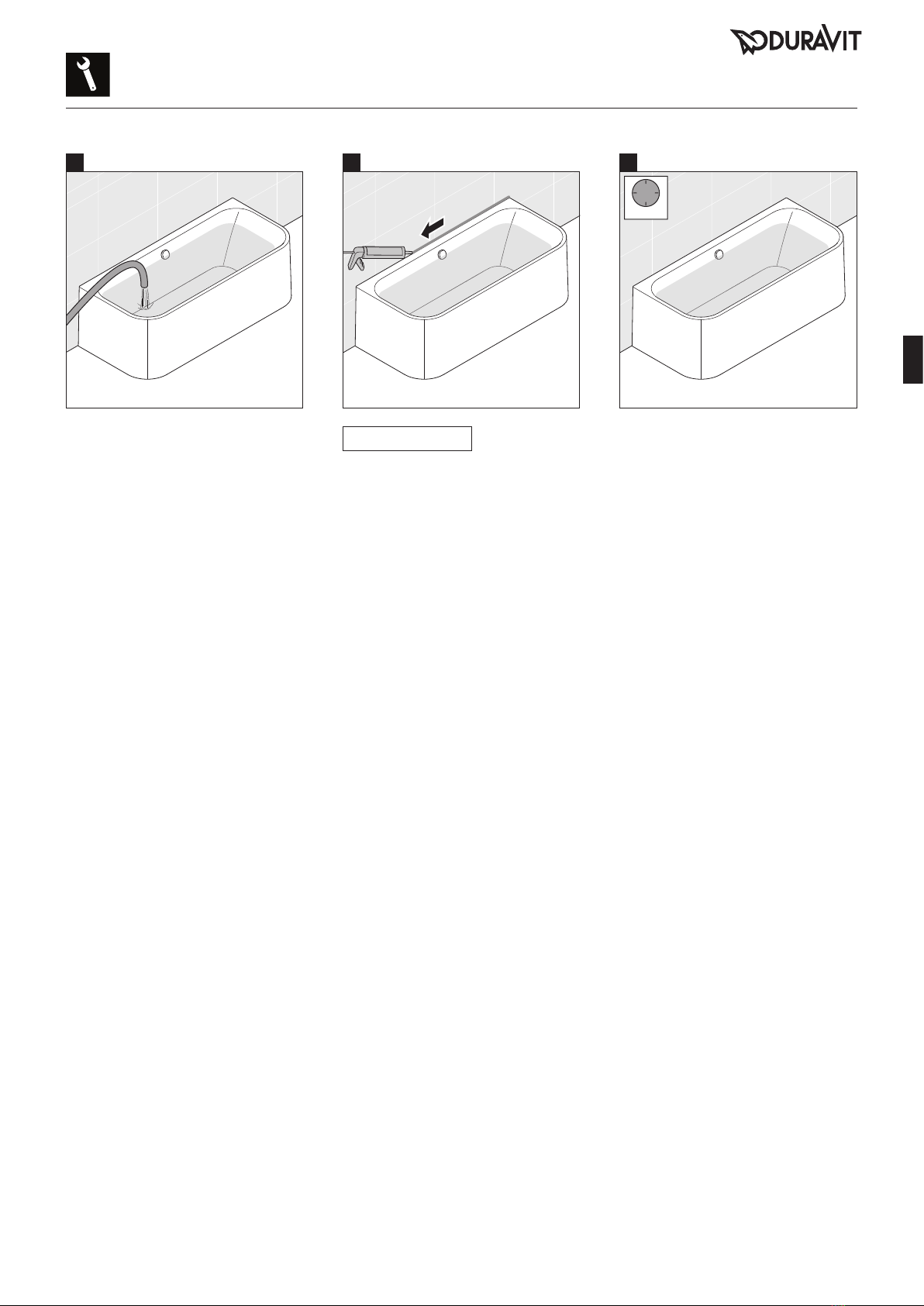

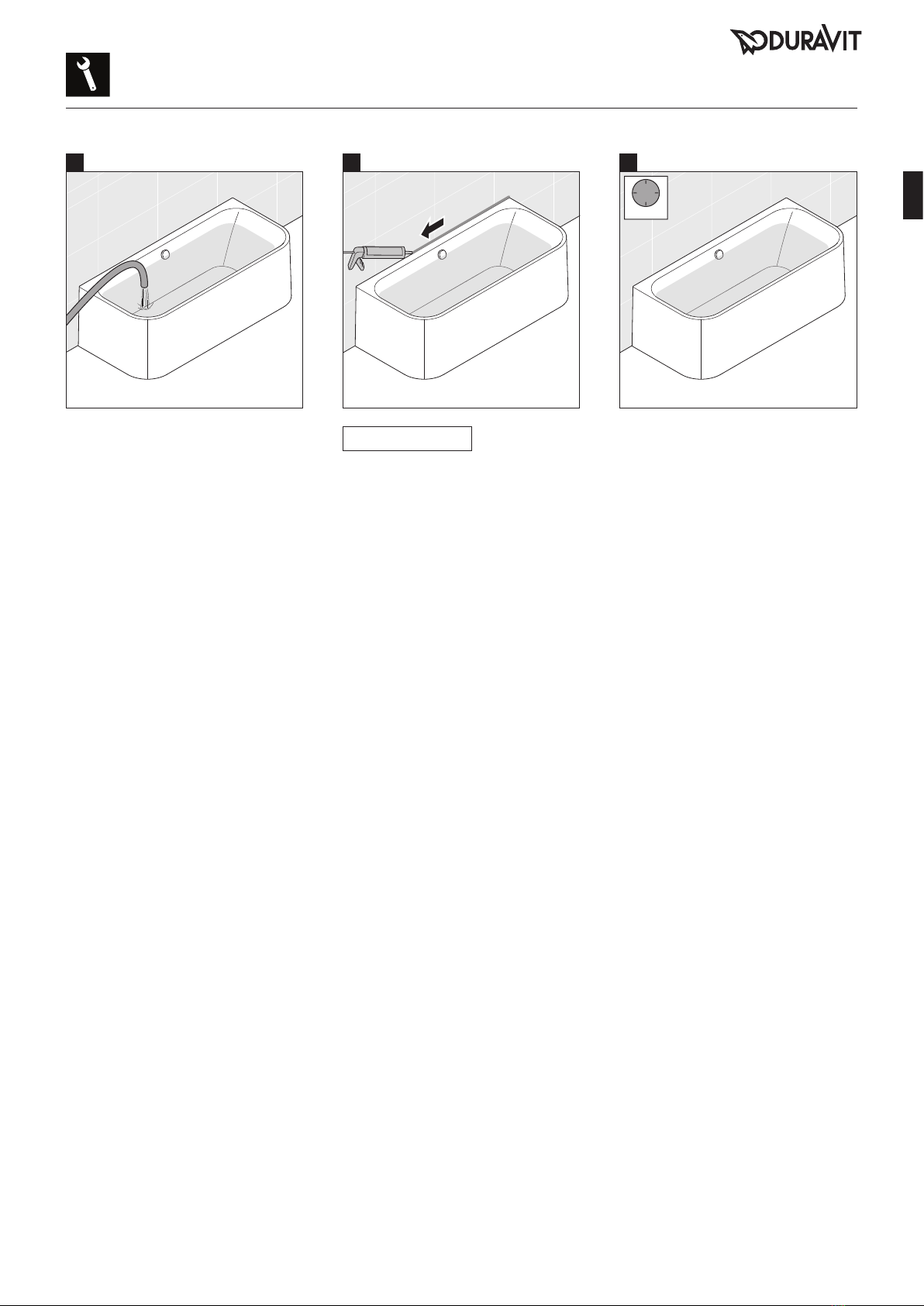

NOTICE
Apply silicone recommended for acrylic
bathtubs only.
> Fill the bathtub with water. > Let it sit for 24 hours before
draining.
57300_MAL_MAL_Bathtub_seamless acrylic panel_US/19.07.1 9
en
18 19 20

Avant l’installation
Veuillez lire les fiches de spécifications avant l’installation. Les
fiches de spécifications peuvent être téléchargées sur
pro.duravit.us.
Les produits sont conformes aux codes suivants:
• Uniform Plumbing Code (UPC®)
• Code national de la plomberie du Canada
25
26
Concernant ces consignes
Les consignes de montage font partie intégrante du produit
Duravit et doivent être lues attentivement avant le montage.
Groupe cible et qualification
Il s’agit ici d’un produit de niveau professionnel. Des
connaissances pratiques des techniques de construction et des
installations de plomberie conformes aux normes sont requises
pour assurer une installation correcte et la satisfaction du client.
Le produit doit être installé par un installateur sanitaire qualifié.
Explication des avertissements et symboles
AVERTISSEMENT Indique une situation
dangereuse qui, si elle n'est
pas évitée, peut entraîner
la mort ou des blessures
graves.
ATTENTION S’utilise pour répondre à
des pratiques sans risques
de blessures physiques.
Inspection (par ex. des rayures)
Vérifiez la présence de fuites et si tous les raccords sont
étanches à l’eau
Indication de la durée (par ex. 10 minutes)
> Action requise
Instructions de sécurité
Dégâts matériels et/ou endommagement d'une caractéristique
du produit
Le non-respect des règlementations et normes locales ou
spécifiques à un pays peut entraîner des dégâts matériels et / ou
d'une caractéristique du produit.
> Les prescriptions d'installation des sociétés de distribution
locales et les normes nationales doivent être respectées sans
réserve.
Une manipulation négligente peut causer des dommages sur les
surfaces des baignoires laquées.
> Protégez la baignoire contre les chocs et les rayures durant
l’installation et le transport.
