DUSK Windsor Ottoman Bed Frame User manual

Windsor Ottoman Bed Frame
Two person
assembly
Page 1
Up to 2 hours
assembly time
Double/King
V2.0
DUSK

Important
Assembly Tip
Before you begin, it's best to identify all of the parts and fittings to build your ottoman bed
frame. We advise laying these out on the floor to check you have everything, and to familiarise
yourself with all of the parts and fittings before building.
Top Tip
We recommend that you build your new ottoman bed frame in the room you'd like it to be
located. This will help prevent any risk of damage to the frame whilst moving it.
Safety and Care
It's important to ensure children and animals are kept away from the assembly area, as there
are small components used in this bed frame which could present a choking hazard. All
plastic and wrapping materials should also be kept away from children and animals to prevent
any risk of suffocation.
Help and Support
Please contact our customer service team on 0113 519 0311 if you have any questions or
issues with your purchase.
Recycling
Please ensure that packaging is disposed of in a safe and environmentally friendly way, and
recycle where possible. Please keep your assembly instructions safe to refer back to in the
future.
Page 2

Operating Your Ottoman Bed Frame Safely
Page 3
·Caution, this ottoman bed frame uses a pressurised mechanism.
·Please ensure children and animals are kept away from the ottoman bed frame
when operating the mechanism.
·Use caution when operating, and always use two hands at arm's length.
·You must always ensure the mattress is on the ottoman bed frame before lifting
the mechanism. Failure to do so may result in injury or damage to the mechanism.
·If removing the mattress, make sure the ottoman bed frame is secured as it could
flip open.
·Only use the storage compartment when the ottoman bed frame is fully in the
upright position.
·Do not remain on the ottoman bed frame whilst the lifting mechanism is in use.
·Beware of entrapment. Keep both hands clear of the mechanism when operating.
·When lifting the ottoman bed frame, remove all bedding except the fitted sheet.
·Always use the strap to lift or lower the ottoman metal frame. Close the ottoman
metal frame by pushing down firmly with both hands towards the centre of the bed
frame with pressure.
·No children or animals should be left unattended when the ottoman bed frame is in
the upright position.
·When fully assembled, raise and lower the ottoman metal frame 4/5 times to
ensure the gas pistons are fully lubricated.
·Ensure to re-tighten all nuts and bolts within the ottoman bed frame after the first
two weeks of use.

Page 4

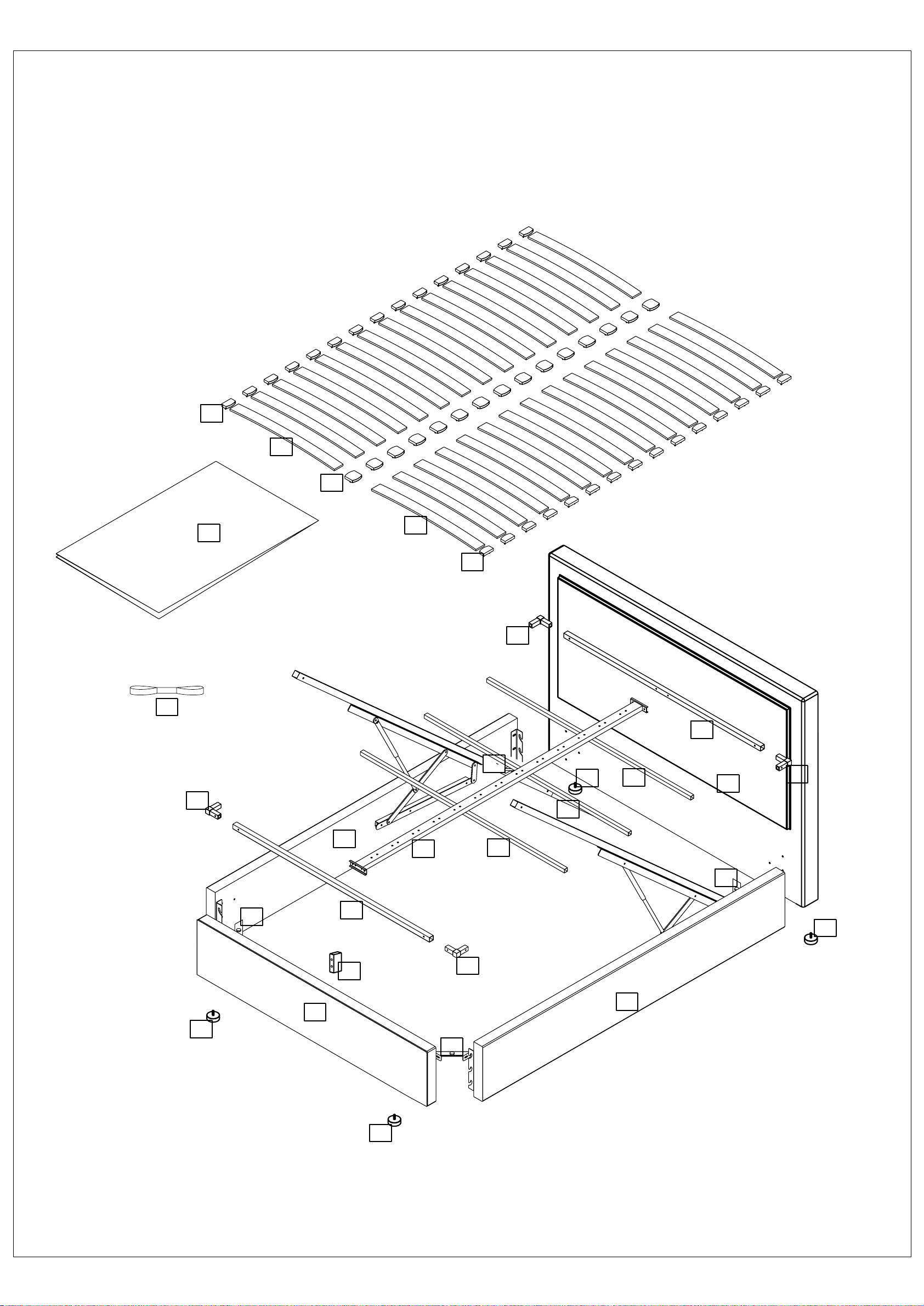

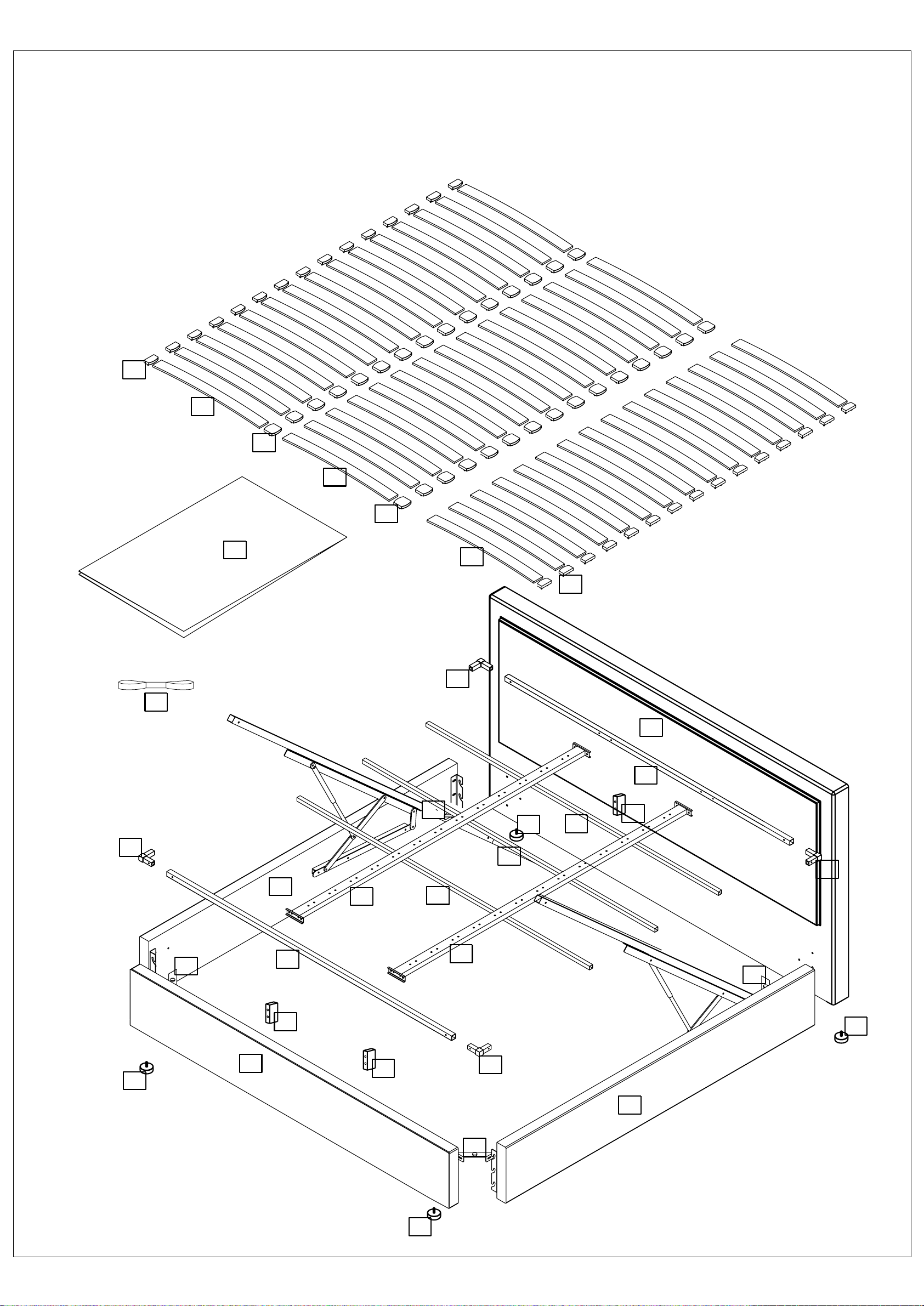

Parts
Before you begin building your ottoman bed frame, please take a moment to read through the
instructions and make sure that you have all the relevant parts listed on the parts check list.
13
13
15
14
14
6
9
10
1
24
3
6
7
7
7
8
12
16
9
9
9
10
10
10
5
5
5
5
11

NB there are additional spare Fittings included within the Fitting pack Page 5
No. Parts List Qty
1Headboard 1pc
No. Parts List Qty
2 Footboard 1pc
3
Strap
Slat
D
E
ABC
Spanner 1pc
H
F
M8 Nut 2pcs
Slde Rall with Lift Mechanism -
RH
I
Plastic Corner Bracket
Angle Corner Bracket
Fabric Base
Slde Rall with Lift Mechanism -
LH
Parts Check List
4
5
6
7
8
1pc
1pc
Adjustable leg 4pcs
Front/Rear Ottoman Metal
Frame 2pcs
Horizontal Support Rail 3pcs
1pc
Central Support Rail
9 4pcs
4pcs
Holding Block
Side Slat Cap Double/king
Centre Slat Cap Double/
king
10
11
12
13
14
15
16
1pc
1pc
1pc
26/30pcs
26/30pcs
13/15pcs
M4 Allen Key 1pc
M8 40mm Bolt 12pcs M6 80mm Bolt 2pcs
Spring Washer 12pcs M8 Flat Washer 12pcs
M6 30mm Bolt 6pcs M6 25mm Bolt 12pcs
M5 Allen Key 1pc

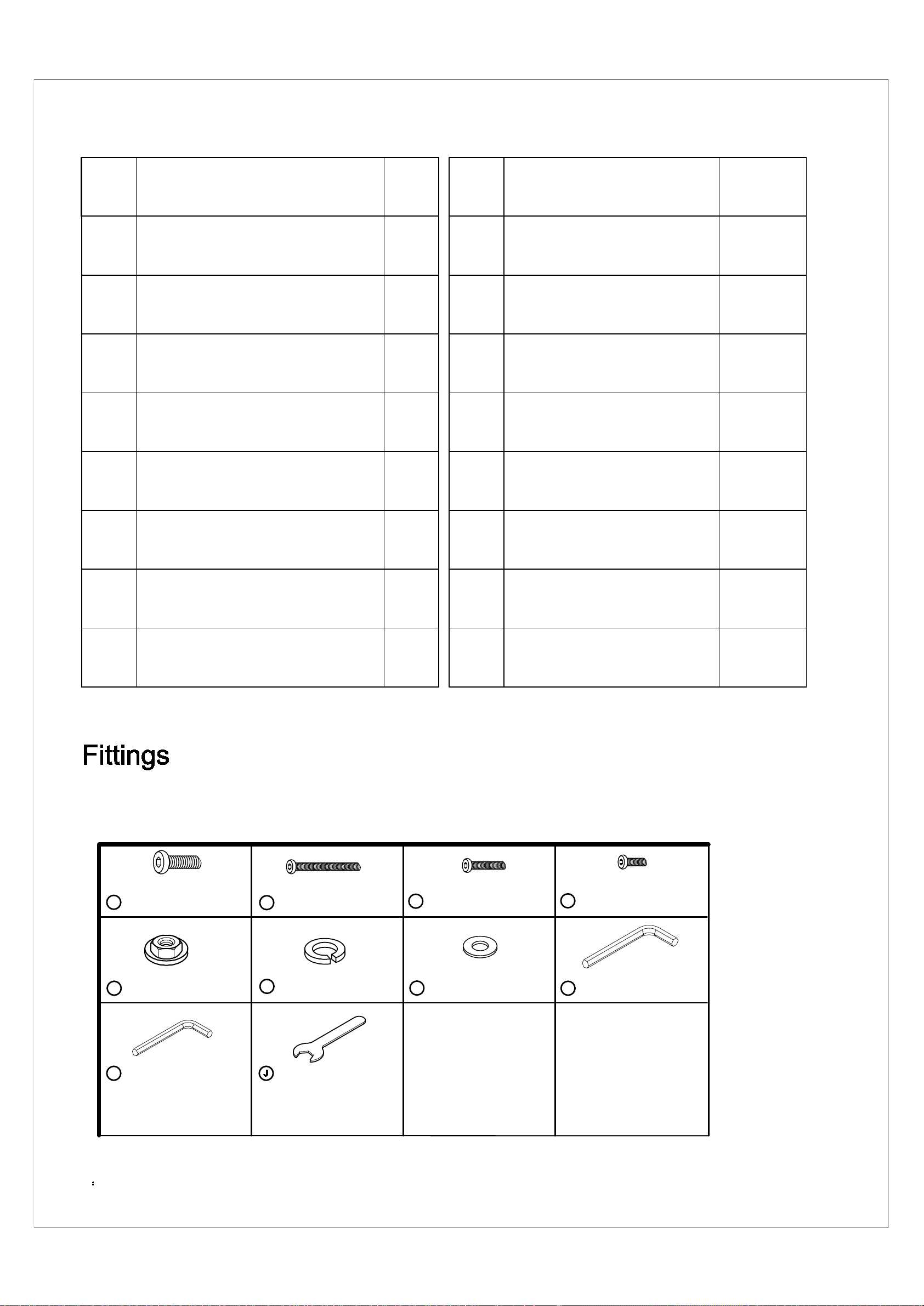

Please check you have all the fittings listed below with your product
G

Step 1:
Step 2:
Page 6
F
A12pcs
12pcs
Attaching the Bolts to the Headboard & Footboard
Attaching the Left & Right Side Rails to the Headboard & Footboard
12pcs
WRONG CORRECT
NB: Before tightening the bolts, please ensure the bed frame is square
12pcs
GG
1pc
H
NB：Before tighteing the bolts, please ensure the bed frame is square
WRONG CORRECT
10mm
1
2
A F G
AF G
AF G
1
3
4
2
NB: The Angle Iron Brackets & Lift Mechanisms are pre-attached.

Step 4:
Page 7

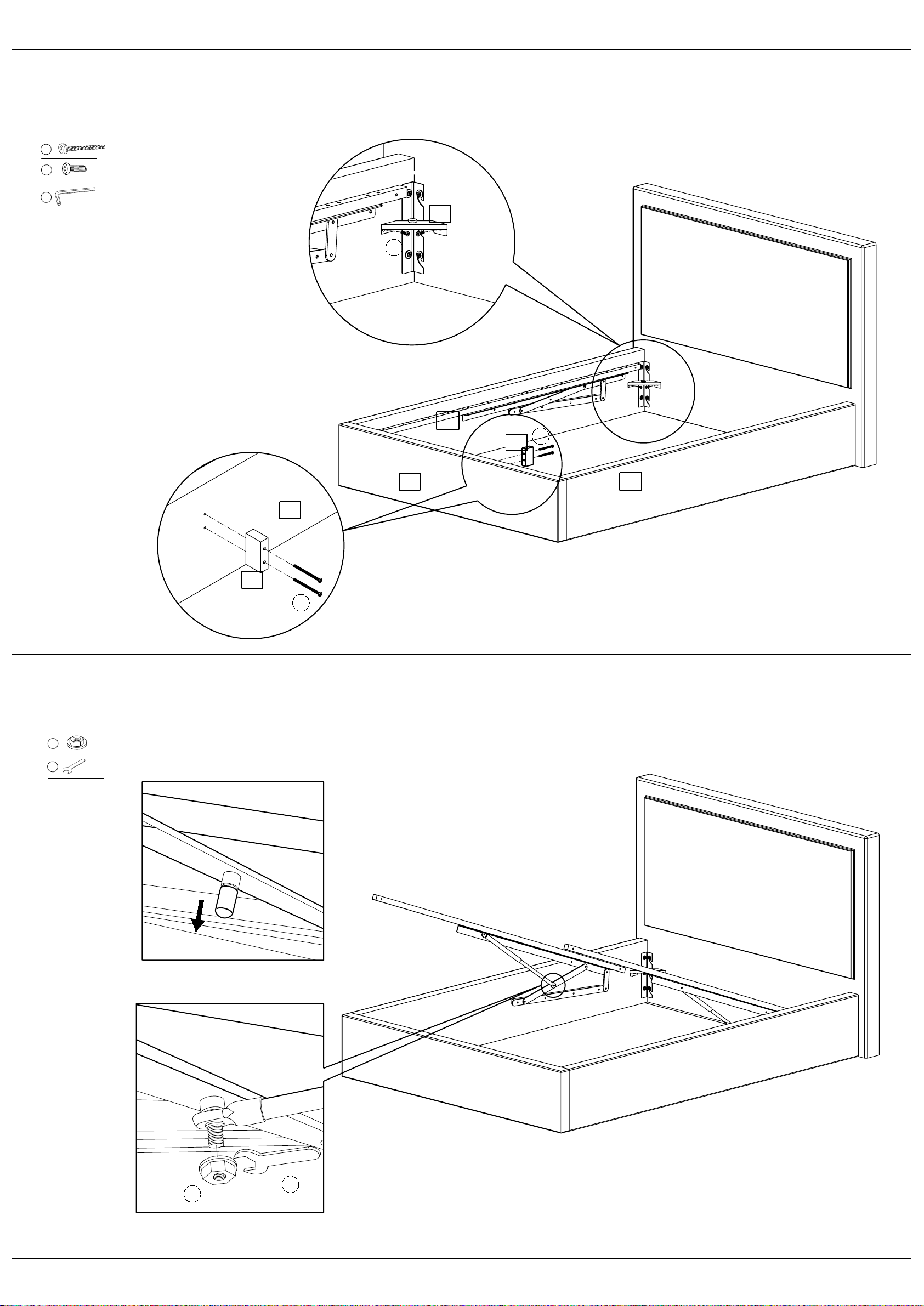

Attaching the Side Rails to the Headboard & Footboard using the Angle
Corner Brackets
Step 3:
D
B
B
2
2
10
11
11
E
J

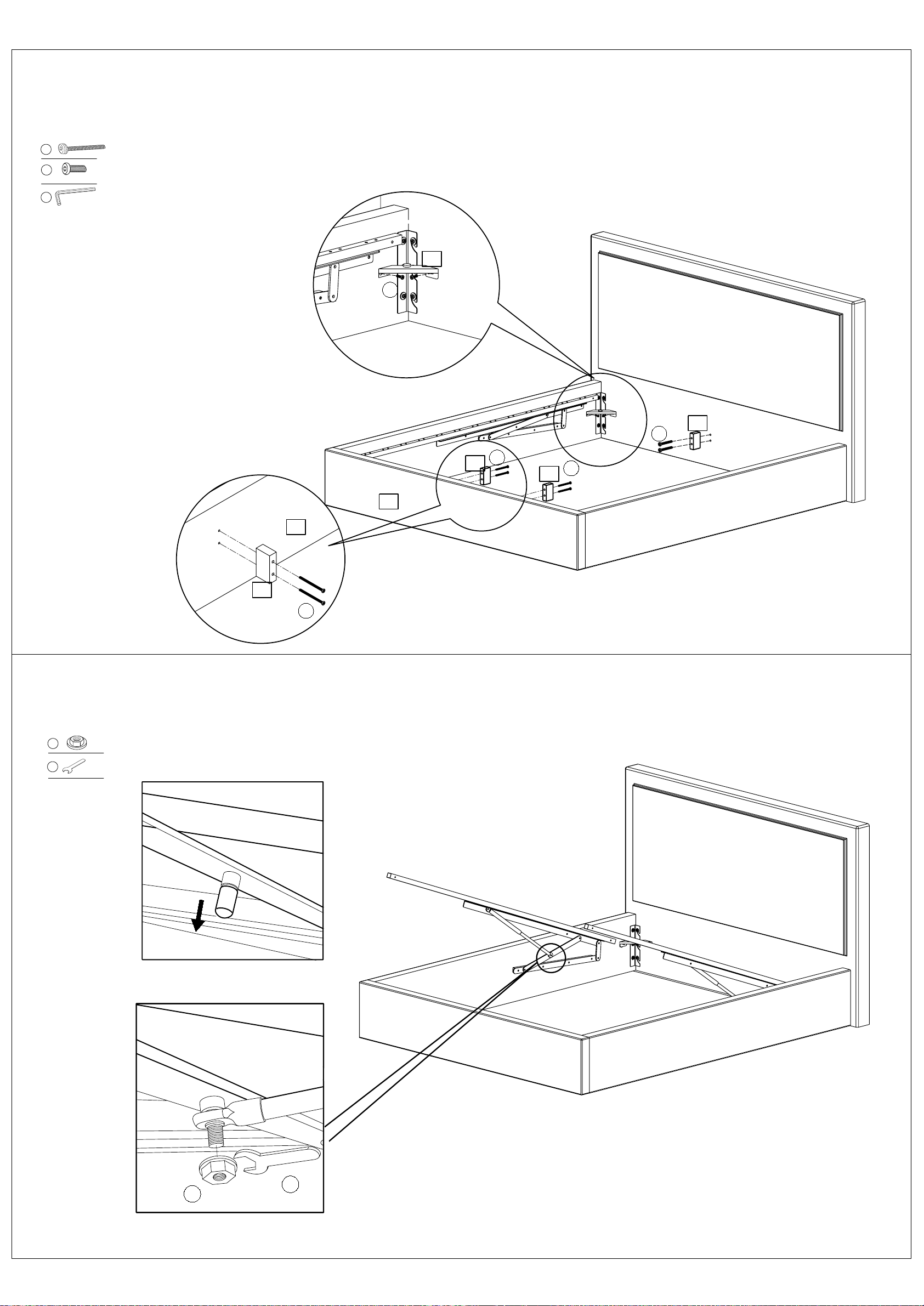

Securing the Left & Right Side Rails to the Lifting Mechanism
b:
I
2pcs
1pc
B
8pcs
D
Attaching the Holding Block to the Centre of the Footboard
J
E2pcs
1pc
Leave the ottoman bed frame in an elevated position.
4
3
a:

Page 8
Step 6:
Attaching the Fabric Base & Legs
Attaching the Rear Ottoman Metal Frame to the Side Rails
Step 5:
a:
b:
c:
6
6
6
3
4
5
16
99
9
6
16
5
5
5
5
Attach the Legs (5) to the base and tighten.
Attach the Rear Ottoman
Metal Frame (6) to the Left
and Right Hand Side Rails
with the Plastic Corner
Brackets (9).
92pcs

Page 9
77
7
7
C
CCC
C
C
6
4
3
86
4
3
D
8
6
Attaching the Horizontal Support Rails to the Left & Right Side Rails
Step 7:
6pcs
1pc
I
C
Step 8: Attaching the Central Support Rail to the Rear Ottoman Metal Frame
D2pcs
1pc
I

Page 10
6
a: b:
c:
6
86
4
3
9
9
6
9
6
3

Attaching the Central Support Rail & Side Rails to the Front Ottoman
Metal Frame
Step 9:
Attach the Front Ottoman Metal
Frame (6) to the left and right
hand Side Rails with Plastic
Corner Brackets (9).
92pcs
D2pcs
6
8
D
9

Page 11
CareandMaintenance
Here are some good tips to keep your new ottoman bed frame in tip-top condition.
Cleaning
To clean your new ottoman bed frame, we advise using a damp cloth if the fabric is dusty or
a low suction vacuum. Do not use abrasive chemicals or bleach as this may damage the
product.
CheckingandMoving
Periodically, we recommend you check that the screws and fixtures haven't become loose
over time. To move your bed frame, we recommend lifting it where possible, as dragging or
pushing it could cause damage to the legs or flooring.
Fabric
Please note, depending on the Iighting, positioning and surroundings of your room, the
shade of the fabric will appear differently. Over a period of time, the fabric may also
lighten or fade slightly due to light exposure.

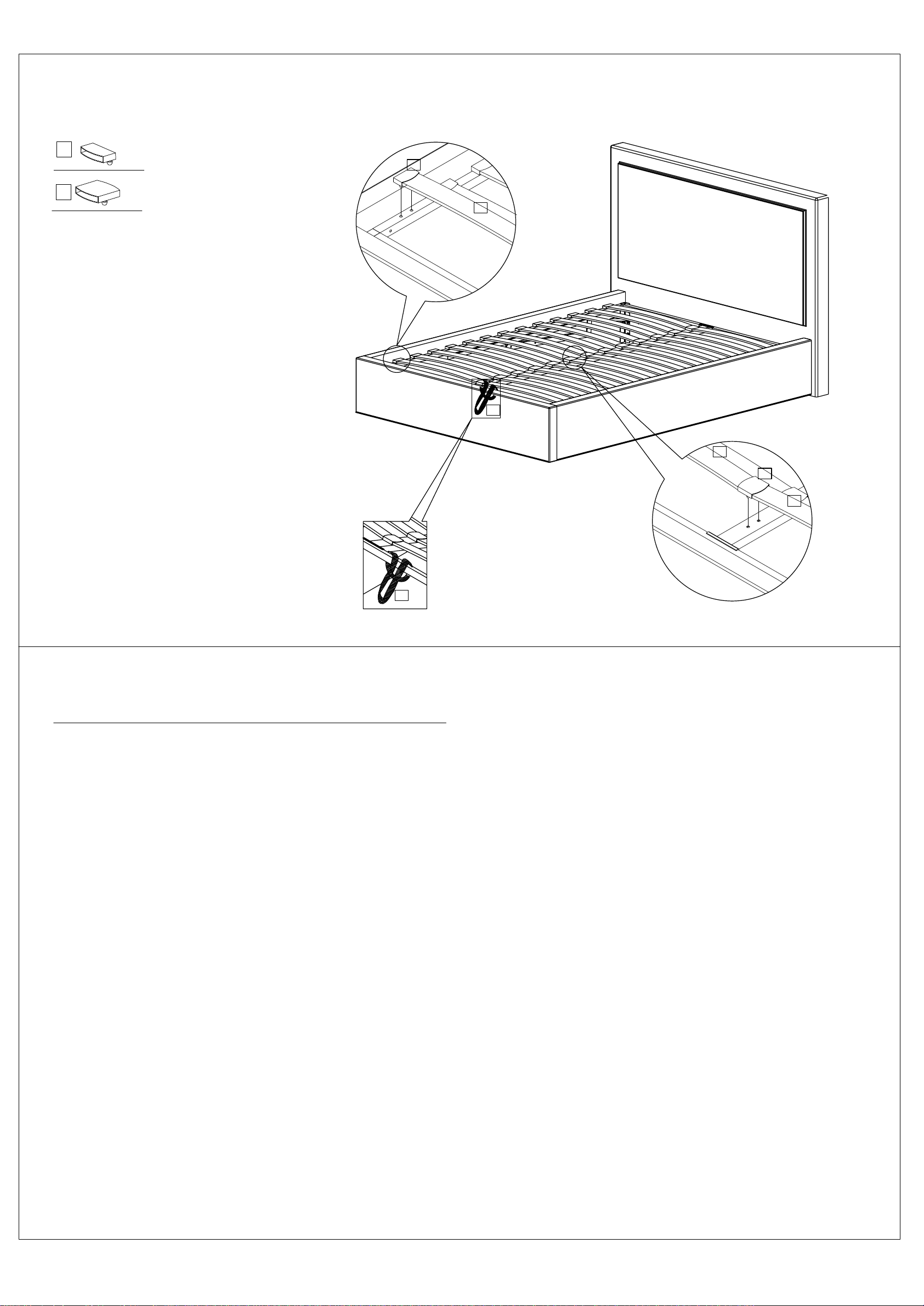

Step 10:
15
14Side Slat Caps Double/King 26/30 pcs
Centre Slat Caps Double/King 13/15 pcs
Attach the Strap (12) to the
Center Ottoman Metal
Frame, at the Footboard end
.
Attaching the Slats & Strap to the Ottoman Metal Frame
13
14
12
13
15
13
12
Push down firmly on the Slat Caps into
the pre-drilled holes on the Ottoman Metal
Frame. It is recommended to push the
Centre Slat Caps into position before
pushing down on the Side Slat Caps.
Attaching the Slats & Strap to the Ottoman
Metal Frame –this is much easier to do
with the frame closed. The frame needs
to be closed without the mattress, and
may need more force than expected –
refer to the last page for gas strut trouble
shooting.

Gas strut/piston best use:
·Use caution when operating - always use two hands.
·Only attempt to close the ottoman frame, once the mattress has been placed on the frame.
·The thicker side of the cylinder should be above the thinner side- this will increase longevity of
the part.
·Only attempt to close the frame with two hands from the footboard side, slowly increasing the
pressure until the frame starts moving downwards.
·Closing the frame for the first time may be difficult, as the cylinder needs cycling and
lubricating. After closing for the first time, open and close a further 5 timers.
·If the frame is stuck open and unable to be closed, we recommend getting assistance from a
second person, both applying equal pressure from each side of the footboard until the frame
closes, this may require more force than expected. Stop applying pressure if the metal frame
begins to warp – contact customer services at this point.
Top tips:
·Do not attempt to close the gas strut/piston by hand, it can only be compressed once added to
the frame
·Ensure the frame can move freely before adding thew gas struts/pistons
·Check the frame is fully square, being offset can cause the frame to catch on the side rail
Page １２

Windsor Ottoman Frame
rs
Super g

T p
efore you begin, it's best to identify all of the parts and fittings to build your ottoman bed
frame. We advise laying these out on the floor to check you have everything, and to familiarise
yourself with all of the parts and fittings before building.
T
We recommend that you build your new ottoman bed frame in the room you'd like it to be
located. This will help prevent any risk of damage to the frame whilst moving it.
a C
It's important to ensure children and animals are kept away from the assembly area, as there
are small components used in this bed frame which could present a choking hazard. All
plastic and wrapping materials should also be kept away from children and animals to prevent
any risk of suffocation.
S
Please contact our customer service team on 0113 519 0311 if you have any questions or
issues with your purchase.
Please ensure that packaging is disposed of in a safe and environmentally friendly way, and
recycle where possible. Please keep your assembly instructions safe to refer back to in the
future.
Page 2

Operating Your Ottoman Bed Frame Safely
Page 3
Caution, this ottoman bed frame uses a pressurised mechanism.
Please ensure children and animals are kept away from the ottoman bed frame
when operating the mechanism.
Use caution when operating, and always use two hands at arm's length.
You must always ensure the mattress is on the ottoman bed frame before lifting
the mechanism. Failure to do so may result in injury or damage to the mechanism.
If removing the mattress, make sure the ottoman bed frame is secured as it could
flip open.
Only use the storage compartment when the ottoman bed frame is fully in the
upright position.
Do not remain on the ottoman bed frame whilst the lifting mechanism is in use.
Beware of entrapment. Keep both hands clear of the mechanism when operating.
When lifting the ottoman bed frame, remove all bedding except the fitted sheet.
Always use the strap to lift or lower the ottoman metal frame. Close the ottoman
metal frame by pushing down firmly with both hands towards the centre of the bed
frame with pressure.
No children or animals should be left unattended when the ottoman bed frame is in
the upright position.
When fully assembled, raise and lower the ottoman metal frame 4/5 times to
ensure the gas pistons are fully lubricated.
Ensure to re-tighten all nuts and bolts within the ottoman bed frame after the first
two weeks of use.

ottoman frame,
have parts check list
6
9
10
1
2
4
3
6
7
7
7
8
12
9
9
9
10
10
10
5
5
5
5
11
1616 13
13
15
15
14
14
13
8
11
11

NB there are additional spare Fittings included within the Fitting pack Page 5
No. Parts List Qty
1Headboard 1pc
No. Parts List Qty
2 Footboard 1pc
3
Strap
Slat
D
E
ABC
Spanner 1pc
H
F
M8 Nut 2pcs
Slde Rall with Lift Mechanism -
RH
I
Plastic Corner Bracket
Angle Corner Bracket
Fabric Base
Slde Rall with Lift Mechanism -
LH
Parts Check List
4
5
6
7
8
1pc
1pc
Adjustable leg 4pcs
Front/Rear Ottoman Metal
Frame 2pcs
Horizontal Support Rail 3pcs
2pc
Central Support Rail
94pcs
4pcs
Holding Block
Side Slat Cap Double/king
Centre Slat Cap Double/
king
10
11
12
13
14
15
16
3pc
1pc
1pc
45pcs
30pcs
30pcs
M4 Allen Key 1pc
M8 40mm Bolt 12pcs M6 80mm Bolt 6pcs
Spring Washer 12pcs M8 Flat Washer 12pcs
M6 30mm Bolt 6pcs M6 25mm Bolt 16pcs
M5 Allen Key 1pc
Please check you have all the fittings listed below with your product
G

F
A12p
12 s
Attaching the Bolts to the Headboard & Footboard
Attaching the Left & Right Side Rails to the Headboard & Footboard
12pcs
NB: Before tightening the bolts, please ensure the bed frame is square
12pcs
GG
1pc
H
NB：Before tighteing the bolts, please ensure the bed frame is square
WRONG CORRECT
NB: The Angle Iron Brackets & Lift Mechanisms are pre-attached.
10mm
1
2
AG
A
F
1
2
3
4
A
F
F
G
G

6WHS
3DJH
$WWDFKLQJWKH6LGH5DLOVWRWKH+HDGERDUG)RRWERDUGXVLQJWKH$QJOH
&RUQHU%UDFNHWV

(
-
6HFXULQJWKH/HIW5LJKW6LGH5DLOVWRWKH/LIWLQJ0HFKDQLVP
E
,
SFV
SF
%
SFV
'
-
(SFV
SF
/HDYHWKHRWWRPDQEHGIUDPHLQDQHOHYDWHGSRVLWLRQ
D
$WWDFKLQJWKH+ROGLQJ%ORFNVWRWKH)RRWERDUGWKH
FHQWUHRIWKH+HDGERDUG
'
%
%




 %

%


3DJH
Step 6:
$WWDFKLQJWKH)DEULF%DVH/HJV
$WWDFKLQJWKH5HDU2WWRPDQ0HWDO)UDPHWRWKH6LGH5DLOV
Step 5:
D
E
F
6
6
6
5
16


16
5
5
5
5
$WWDFKWKH/HJVWRWKHEDVHDQGWLJKWHQ
$WWDFKWKH5HDU2WWRPDQ
0HWDO)UDPHWRWKH/HIW
DQG5LJKW+DQG6LGH5DLOV
ZLWKWKH3ODVWLF&RUQHU
%UDFNHWV
SFV



