Dvico TViX Slim S1 User manual

User Manual
TVX Slim S1
** Some specifications could change with new firmware versions. Please refer to the FAQ on our
homepage for further information

Ultimate Player with HD Digital Jukebox
2
Safety Notice
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Unplug the power cable when you are not using the product for a long time.

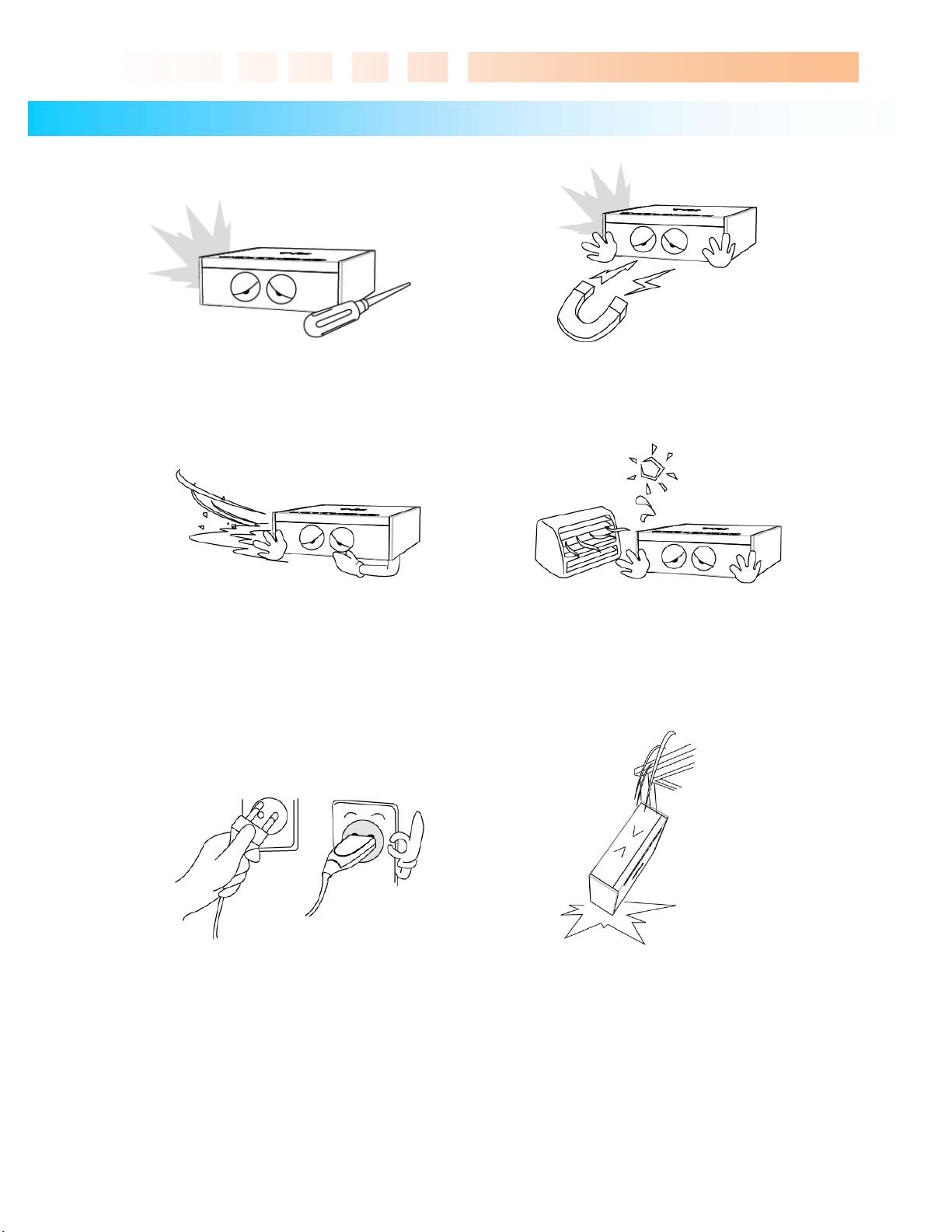

Do not try to disassemble or remodel
the TVX-HD unit. Doing so may cause
malfunction or fire.
Keep your TVX-HD away from heated
areas, such as direct sunlight exposure,
heaters and etc. Place it in a well ventilated
location. Ensure that a free airflow is
maintained around the appliance.
Place all magnetized devices, such as
speakers, away from the TVX-HD .It may erase
or cause damage to the data stored in the hard
disk.
Do not place the TVX-HD in places that
are exposed to oil, water, dust, humidity,
rain or wind.
Do not touch the power plug with wet hands or
use defective power cables & electric outlets. It
may cause electric shocks or fire.
Do not drop the TVX-HD from heights.
Doing so may cause critical damage to the
hard drive.

Ultimate Player with HD Digital Jukebox
3
Usage Precautions
Thank you for choosing this TVX-HD product.
Please read the following usage precautions before using your TVX-HD.
Connect the A/V cable
Make sure the power is off when you connect the A/V cable between the TVX-HD and TV.
Cleaning the TVX-HD
When cleaning the TVX-HD unit, disconnect the power cord, and then wipe the TVX-HD case with a soft
piece of dry cloth.
Connecting USB cable
When connected to a computer through an USB cable, TVX-HD acts as an external USB storage device (In
this state, there is no video/audio output, and the VFD will indicate USB ON). For normal TVX-HD play mode,
disconnect the USB cable connected to the computer, and turn on the TVX-HD.
Detaching the Hard Disk
When you want to detach the HDD, let it cool down first before you start handling it.
Supplied cables
Supplied cables and accessories are recommended for customized best performance of the TVX-HD.
Using other cables or accessories may not provide the best performance.
Unplugging the device from PC USB port
If you want to unplug the device, press the Stop button in 'Unplug or Eject Hardware'.
FAT32 Partition
If you choose FAT32 file format on Windows 2000/XP, the drive’s maximum size will be limited to 32GB.
If you want to have a FAT32 single drive letter of 32GB or more, you have to format it on Windows 98SE/ME.
Wireless Network
To use a wireless network connection, please refer to the TVX-HD homepage for a list of compatible wireless
devices.
Certification sticker
The certification sticker mark is on the bottom of the device.
DViCO has no warranty or responsibility for broken hard disks. We recommend periodic backups to
prevent data loss.
** Some functions will require you first to update it to the latest firmware.

Ultimate Player with HD Digital Jukebox
4
Table of Contents
Safety Notice ........................................................................................................................................... 2
Usage Precautions .................................................................................................................................. 3
1Introduction.................................................................................................. 5
1.1 Multimedia Player Function ...................................................................................................... 5
1.2 Audio Player Function .............................................................................................................. 6
1.3 External Storage Function ........................................................................................................ 6
1.4 Specifications ........................................................................................................................... 8
2Name of Each Part....................................................................................... 9
2.1 Unit Control button ................................................................................................................... 9
2.2 Cable Connection..................................................................................................................... 9
2.3 Package Contents.................................................................................................................. 10
2.4 HDD Installation/Exchange .....................................................................................................11
3Installation and Connection ..................................................................... 13
3.1 Connecting the Video ............................................................................................................. 13
3.2 Connecting the Audio ............................................................................................................. 14
3.3 Connecting the USB HOST.................................................................................................... 15
3.4 Using the remote control ........................................................................................................ 16
3.5 Initial Setting .......................................................................................................................... 17
4TVX-HD Setup Menu.................................................................................. 18
4.1 SYSTEM Setting .................................................................................................................... 18
4.2 Audio/Video Setting................................................................................................................ 20
4.3 HDTV Setting ......................................................................................................................... 22
4.4 NETWORK Setting................................................................................................................. 23
4.5 MISC Setting.......................................................................................................................... 25
5Initial Usage of TVX-HD ............................................................................ 26
5.1 Making an HDD Folder........................................................................................................... 26
5.2 Movie Playback ...................................................................................................................... 27
5.3 Music Playback ...................................................................................................................... 28
5.4 Photo Playback ...................................................................................................................... 29
6Using the remote control.......................................................................... 30
6.1 Descriptions of Each Button................................................................................................... 30
6.2 Extra Features........................................................................................................................ 36
7Using Network ........................................................................................... 42
7.1 Using UPnP ........................................................................................................................... 42
7.2 Using NetShare...................................................................................................................... 49
7.3 SAMBA Client and SAMBA Server ......................................................................................... 54
8Firmware Upgrade ..................................................................................... 62
9Using USB Connection with a PC............................................................ 64
9.1 Making a Partition and Formatting the HDDs ......................................................................... 64
9.2 Unplug or Eject Hardware ...................................................................................................... 68
10 Troubleshooting ........................................................................................ 69
11 Appendix - Technical Terms ..................................................................... 70
12 GNU General Public License.................................................................... 73

Ultimate Player with HD Digital Jukebox
5
1 Introduction
1.1 Multimedia Player Function
The TVX-HD is a standalone, multimedia hard disk player that
plays digital videos, digital music, digital still images and DVD files
on TV screens and home entertainment systems. You can enjoy
digital contents in your living room without having to burn discs or to
play it back on a DVD or CD player anymore.
TVX-HD plays back DVD movies with the full functionality of DVD navigation. You can
create your own virtual DVD library by storing your personal collection of DVDs in .ISO
or .IFO format, and watch them exactly as if they were running from the original DVDs (all
the original features are included: Menu, Chapter, Audio Stream, Subtitle, Fast Forward,
Rewind, Pause, Repeat, Search etc.).
TVX-HD can play high-definition videos (up to 1920x1080P) and still images. Pre-recorded
HDTV programs from a digital TV set-top box or personal digital video contents recorded
by a camcorder can be played back with the TVX-HD on a high-definition screen. The
TVX-HD features an HDMI connector, which will match the high resolution of HD-level
video contents.
TVX-HD supports the latest multimedia formats such as MKV, MPEG-4 AVC(H.264), VC-
1( MP@HL, AP@L3), WMV9 & WMV HD as well as MPEG4 3.11,4.0 , 5.0. and H.264,
which is a brand-new and superb compression technology. It can now play more stunning
HD movies with lower storage requirements.
HDMI provides unparalleled qualities to digital videos and audios, while DVI only serves
digital videos. With HDMI you don’t have to deal with multiple AV cables. It lets you make a
connection to digital videos as well as audios, and enjoy them with just one cable. It can
deliver uncompressed digital video up to 1080P as well as digital audio.
TVX-HD has a DTS hardware decoder to mix DTS sound into 2 channels for a more
dynamic stereo sound quality.
The TVX-HD can be networked with a PC system using either a wired network or its
optional wireless network adapter. You can navigate to a PC file through TVX-HD’s
wired/wireless network and play the file from its original location without having to copy it
into the TVX-HD first. Also, TVX-HD’s FTP server and Samba server allow you to transfer
files from your PC . It also allows you to connect to network easily with uPnP support, and
it does not require an IP address. You can immediately playback uPnP connected files.
With two USB2.0 host ports, you can attach additional external USB hard drives to further
extend the storage capacity. You can also play back files from a digital cameras, USB flash
drives, USB flash card reader or an MP3 player.
M
anu
f
acture
d
un
d
er
li
cense
f
rom
D
o
lb
y
L
a
b
orator
i
es.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Ultimate Player with HD Digital Jukebox
6
1.2 Audio Player Function
TVX-HD can play a variety of audio files such as FLAC, MP3, Ipod, AAC, Ogg Vorbis and WMA (Windows
Media Audio) through TV speakers and many other audio systems. You can listen to your favorite music files
without hesitation, by organizing a custom winamp playlist. Now you can enjoy music all day long without
having to keep changing CDs.
TVX-HD supports playlist function that is based on *.pls or *.m3u.
You can watch picture slideshows with the option of background music (supports Simultaneous playback
of Audio and picture images).
1.3 External Storage Function
TVX-HD can be used as an external storage device by connecting it to a PC, and you can then save
videos audios image files, data, program backups and etc.
USB 2.0 enables TVX-HD to support speeds up to 480Mbit/s.
If you connect to a USB 1.1 port, the TVX-HD will work at USB 1.1 speed, so we strongly recommend that
you use USB 2.0.
It supports Plug & Play, Windows will automatically recognize TVX-HD the instant it is connected to the
system
If you connect a USB Cable between a PC and TVX-HD during a playback, the VFD will display “USB
ON.” Even when you disconnect the USB, you do not have to reboot the TVX-HD to continue using it.
If you are a Windows98SE user, you should download a USB storage driver from our website before you
connect your TVX-HD to your system. You do not have to install a driver in Windows ME/2000/XP.
You can download the latest NetShare Software from our website to configure an NFS network server on
your PC. If you select the NFS mode, you can play high bit-rate transport stream or DVD image files without
any stutters.

Ultimate Player with HD Digital Jukebox
7

Ultimate Player with HD Digital Jukebox
8
1.4 Specifications
MODEL TViX Slim S1
Main Chipset RTD1283DD+ 400Mhz processor
VFD Display 7 Alpha-Numeric Character, 5 Digit Numeric Display
Video
Format: .MKV, .mpg, .avi, .wmv, .divx, .vob, .tp, .ts, .trp, .dat, .iso, .ifo, .m2t, .m2ts, .mov, .flv
Codec: MPEG 1/2/4, AVI, XVID,WMV9(MP@HL),H.264( MP@HL4.1),VC-1( AP@L3), RealVideo
8/9/10
Resolutions up to 1920*1080P
Audio
FLAC, DTS-Wav, MP3, WMA, WMA Pro, AAC, Ogg, Dolby Digital, WAV
DTS Pass Through and Down Mixing
Photo JPG, JPEG, BMP, PNG, GIF, TIF
Connectivity
USB 2.0 Host 2 Ports ( USB1/USB2 : 5V , 500 mA max), USB 2.0 Target 1 Port
Wired LAN
Network : Samba client, NFS, Netshare, Samba server
e-SATA HOST
Video out HDMI 1.3, Component, Composite
Audio out Digital : Coaxial, Optical , Analog: Stereo
Hard Disk NTFS, FAT32 (3.5” S-ATA HDD, supports S- ATA 1,2)
Subtitle smi, smil, sub, sub/idx, srt, .ssa, .ass
Cooling FAN 40mm Brushless FAN, Temperature Sensing, Variable Speed
Memory 256M byte
Power DC 12V adaptor
Language English, Traditional Chinese, Japanese, Spanish, French, Germany, Italian, Korean, Dutch,
Russian, Rumanian, Bulgarian, Hebrew, Czech, Arabic, Vietnamese, Swedish, Greek,
Turkish, Polish, Portuguese
Size 215 x 160 x 55 (mm)

Ultimate Player with HD Digital Jukebox
9
2 Name of Each Part
2.1 Unit Control button
TVX-HD can be controlled by the buttons on the product as well as by the remote control.
The current state of the product can be checked on the VFD on the front.
The image of the VFD below could be different from the actual one.
2.2 Cable Connection
You can connect the TVX-HD to an analog TV display or audio amplifier using the A/V cable.

Ultimate Player with HD Digital Jukebox
10
2.3 Package Contents
Thank you for choosing this TVX-HD product.

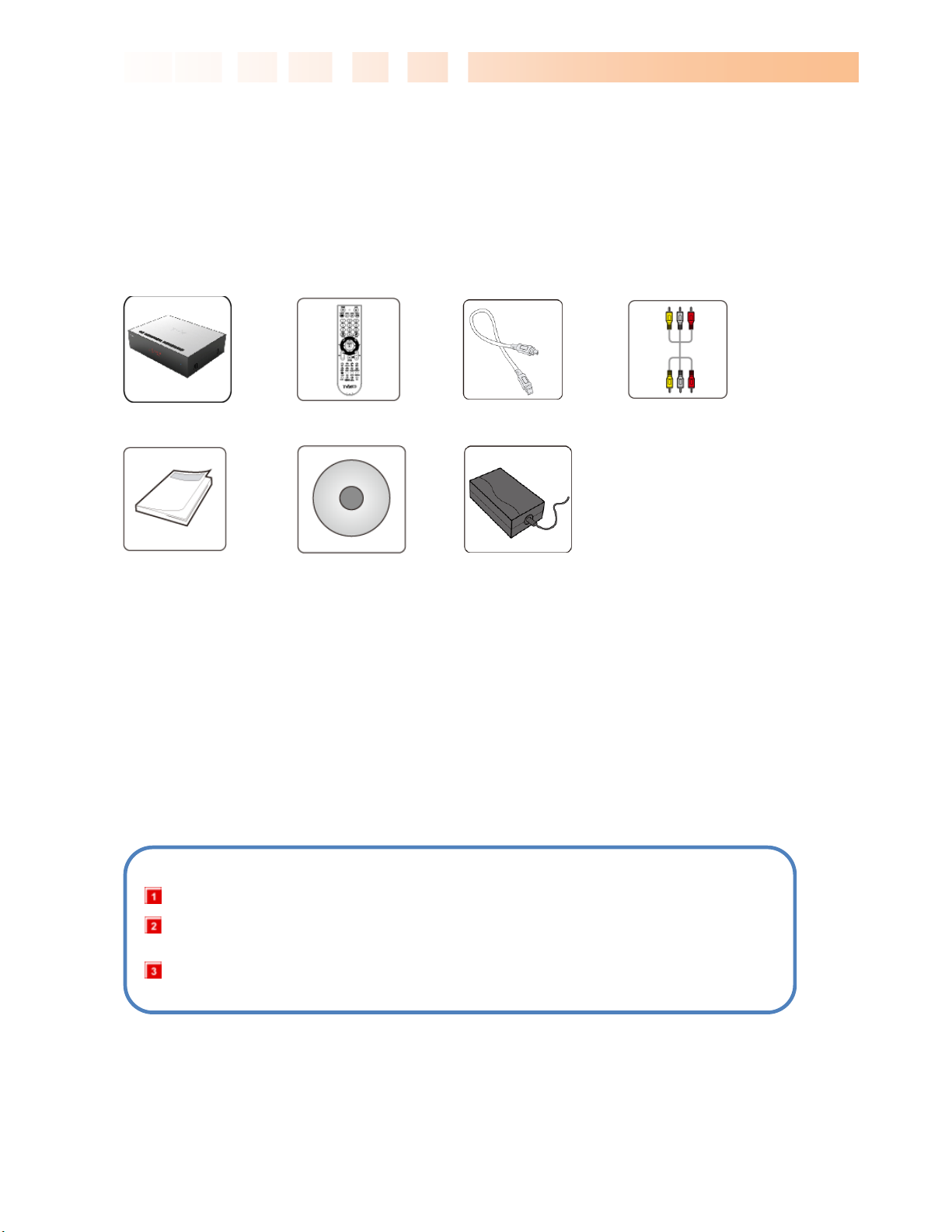

The TVX-HD package contains the following items. The items described below may differ from the
* TVX-HD automatically formats when you install an unformatted new hard disk. Do not shut down the power
when formatting the hard disk.
** Connect the included power cable on the back of the TVX-HD. Then plug the other end of the power
adapter into an available wall socket. Make sure that your TV is switched to the AV input to which the TVX-
HD is connected (on the back of the TV).
TVX-HD unit Remote Control USB PC Cable RCA Cable
Quick Guide Manual CD Power Adaptor
<< Before Connecting the Cable >>
Please refer to TV manual for the connection of A/V cable.
Make sure the power is off when you are connecting the A/V cable between the TVX-HD and
the TV.
Connect the red and white RCA cable for stereo audio.
