INSTALLATION INSTRUCTIONS
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
SAVE FOR FUTURE USE
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
M965704 Rev. 1.1 (2/17)
Lavatory
Model D3510210C
Vessel
Model D3510215C
Model D3510216C
Randall®
Single Lever Lavatory
and Vessel Faucets

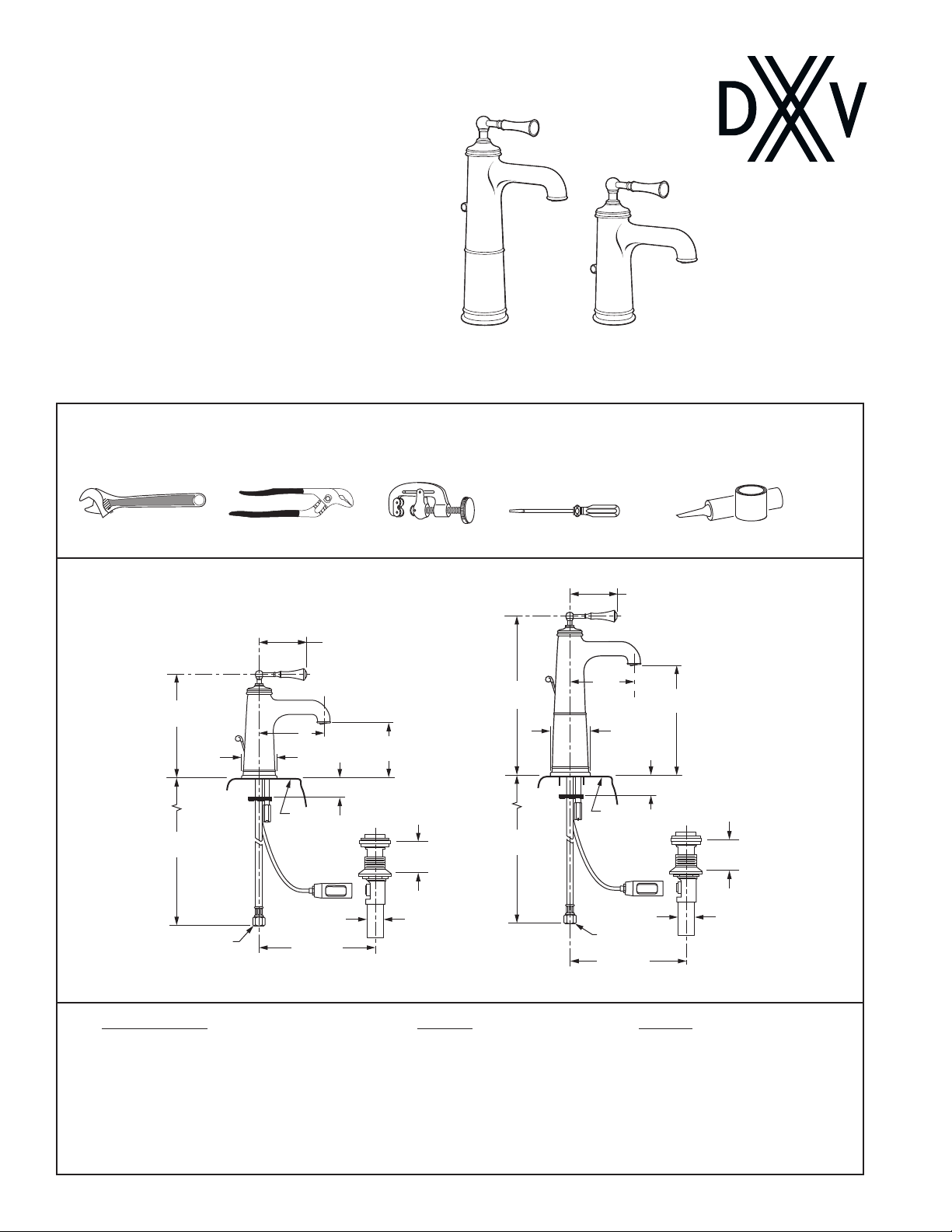

ROUGHING-IN DIMENSIONS:
• For reference
•NOTE: MOUNTING HOLES ARE 1-3/8" D.
4-3-16"
(106 mm)
4-1/4"
(108 mm)
8-1/2"
(216 mm)
MTG.
SURFACE
24"
(610 mm)
6"
(152 mm)
1-3/4" (45 mm)
2-3/4" DIA.
(70 mm)
3/8" (10 mm)
SUPPLIES 12" MAX.
(305 mm)
MAX 2"
(51mm)
1-1/4" O.D.
(32 mm)
NOTE: MOUNTING HOLE
1-3/8" DIA. (35 mm)
12-5/16"
(316 mm)
4-1/8"
(105 mm)
8-1/8"
(206 mm)
3-1/16" DIA.
(77 mm)
6"
(152 mm)
MTG.
SURFACE
24"
(610 mm)
2-1/16" MAX. (53 mm)
12" MAX.
(305 mm)
MAX 2"
(51 mm)
1-1/4" O.D.
(32 mm)
3/8" (32 mm)
SUPPLIES
Flat Blade Screwdriver Plumber’s Putty or CaulkingAdjustable Wrench Tubing CutterChannel Locks
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.DXV.com
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: [phone]
www.DXV.ca
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.

- 2 - M965704 Rev. 1.1 (2/17)
1

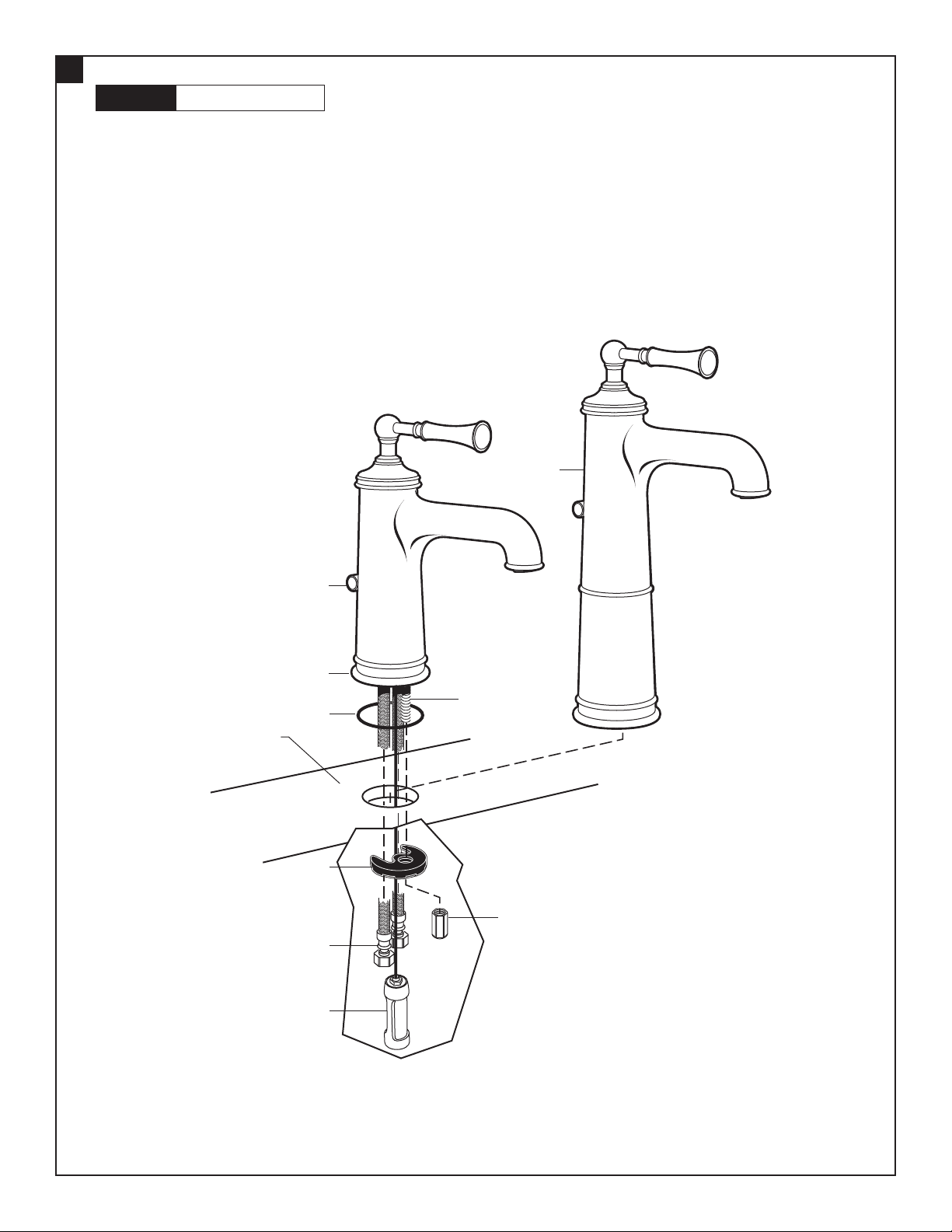

• Install O-RING (1) into O-ring groove of FAUCET BASE (2).
• Feed FAUCET SUPPLY TUBES (5) and SHANK (3) and DRAIN CABLE ASSEMBLY (9) through
mounting hole of lavatory or mounting surface.
• From below, Install RUBBER SEAL with RETAINING WASHER (4) and LOCKNUT (6) onto faucet
SHANK (3). Before nal tightening, faucet should be seated ush on mounting surface. Adjust
faucet so that it is centered and covers mounting hole. Tighten LOCKNUT (6) using a 15mm or
adjustable wrench. Do not over tighten.
• Installation is the same for VESSEL FAUCET (8).
INSTALL FAUCET (LAVATORY AND VESSEL FAUCETS)
CAUTION Turn off hot and cold water
supplies before beginning.
MOUNTING
SURFACE
1
8
3
2
7
4
5
9
6

- 3 - M965704 Rev. 1.1 (2/17)
2
3
4
6
5
POP-UP DRAIN
REMOVE FLANGE
INSTALL DRAIN FROM
BELOW FIXTURE
FLANGE GASKET AND POP-UP KNOB
TIGHTEN LOCKNUT
• Remove CLEAR PLASTIC COVER (1). Fig. A.
• Remove CARDBOARD SPACER (2) from
under DRAIN POP-UP (3). Fig. A.
• Tighten TAILPIECE (4) on DRAIN BODY
before installing DRAIN BODY. Fig. B.
• Thread FLANGE (1) counter-clockwise and
remove FLANGE (1) and FOAM GASKET (2)
from drain body. Fig. A.
• Thread LOCKNUT (3) clock-wise to bottom of
drain body. Push GASKET (4) down against
LOCKNUT (3). Fig. B.
• From under side of SINK
install DRAIN BODY (1) up
through drain outlet.
Note: No plumber’s putty
or caulk is required. The
CABLE ATTACHMENT
POINT (2) must face towards
the rear of the SINK.
• Install FOAM GASKET (3)
and FLANGE (4) onto drain
body from above SINK and
tighten FLANGE (4) rmly.
• Check DRAIN FLANGE in SINK to ensure that
WHITE FOAM GASKET (3) is fully compressed
and not visible. Fig. A.
• POP-UP KNOB (1) must be fully down. Fig. B.
2
3
1
DRAIN
BODY
4
Fig. A. Fig. B.
2
3
1
4
Fig. B.Fig. A.
WHITE FOAM
GASKET
NOT VISIBLE DRAIN
FLANGE
Fig. A. DOWN
UP
1
Fig. B.Fig. A.
2
DRAIN
OUTLET
1
3
4
REAR OF SINK
1
• Tighten LOCKNUT (1) rmly with
Adjustable Wrench or Channel Locks.

- 4 - M965704 Rev. 1.1 (2/17)
7
8
9
ATTACH CABLE CONNECTOR
CHECK OPERATION OF POP-UP
MAKE WATER SUPPLY AND WASTE CONNECTIONS
• Thread CABLE CONNECTOR (1) clockwise
onto DRAIN BODY CONNECTION (2) and
hand tighten. Fig. A.
• Your new POP-UP DRAIN installation is
now complete. Fig. B.
Note: Tailpeice on pop-up drain is
1-1/4" (32 mm) O.D. Fig. B.
• Operate LIFT KNOB (1) to verify that STOPPER (2) opens and closes.
Note: If STOPPER (2) does not open and close properly then refer to the
“troubleshooting section” of these instructions.
• Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies.
Connection on tting supplies are 3/8" (10 mm) compression. Connect
left SUPPLY (1) to Hot (Marked with a Red Band) and right supply
to COLD (2) wall supply.
• Faucet supplies are 24"(610 mm) long from faucet base.
Note: If additional supply length is required, installer must
purchase additional parts separately.
Important: If SUPPLY HOSES (1, 2) are to long, loop as
illustrated to avoid kinking.
• Connect 1-1/4" O.D. (32 mm) tailpiece on POP-UP DRAIN to
waste outlet.
2
1
1-1/4” O.D.
Fig. A. Fig. B.
2
1
24"
(610mm)
1
2
COLD
HOT
3/8" (9.5mm)
COMPRESSION
RED
BAND
BLUE
BAND

- 5 - M965704 Rev. 1.1 (2/17)
11 CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
10

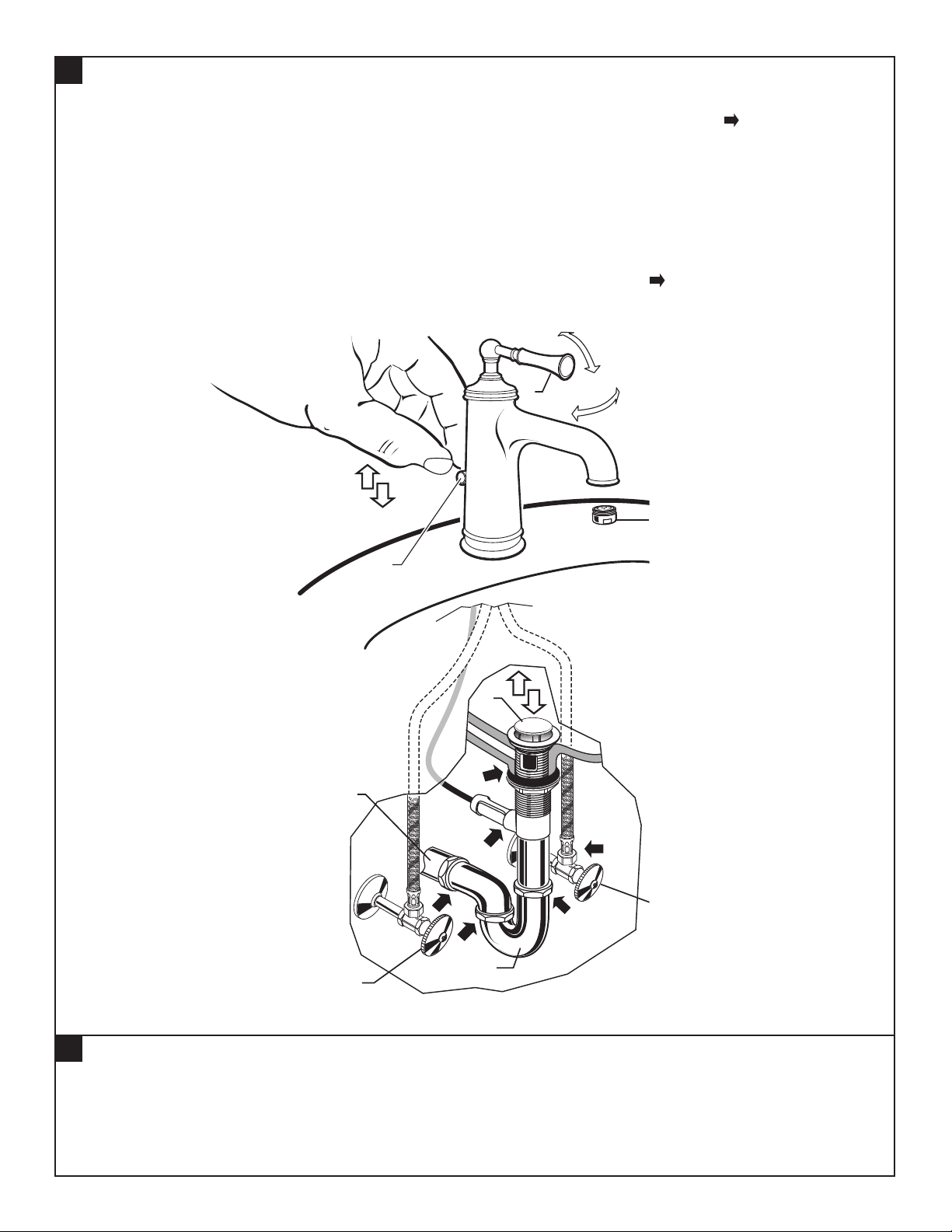

• With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks.
• Remove AERATOR (3).
• Operate HANDLE (1) to ush water lines thoroughly.
• Replace AERATOR (3).
CHECK DRAIN CONNECTIONS
• Operate POP-UP KNOB (4) and ll lavatory with water. Check that DRAIN STOPPER (5) makes a good seal and retains
water in sink. If DRAIN STOPPER (5) does not seal properly, please refer to Troubleshooting section in these instructions.
• Release POP-UP KNOB (4) down and check all drain connections and “P” trap for leaks. Tighten if necessary.
TEST INSTALLED FITTING
1
HOT
5
“P” TRAP
WASTE
OUTLET
2
2
OFF
ON
COLD
4
3

- 6 - M965704 Rev. 1.1 (2/17)

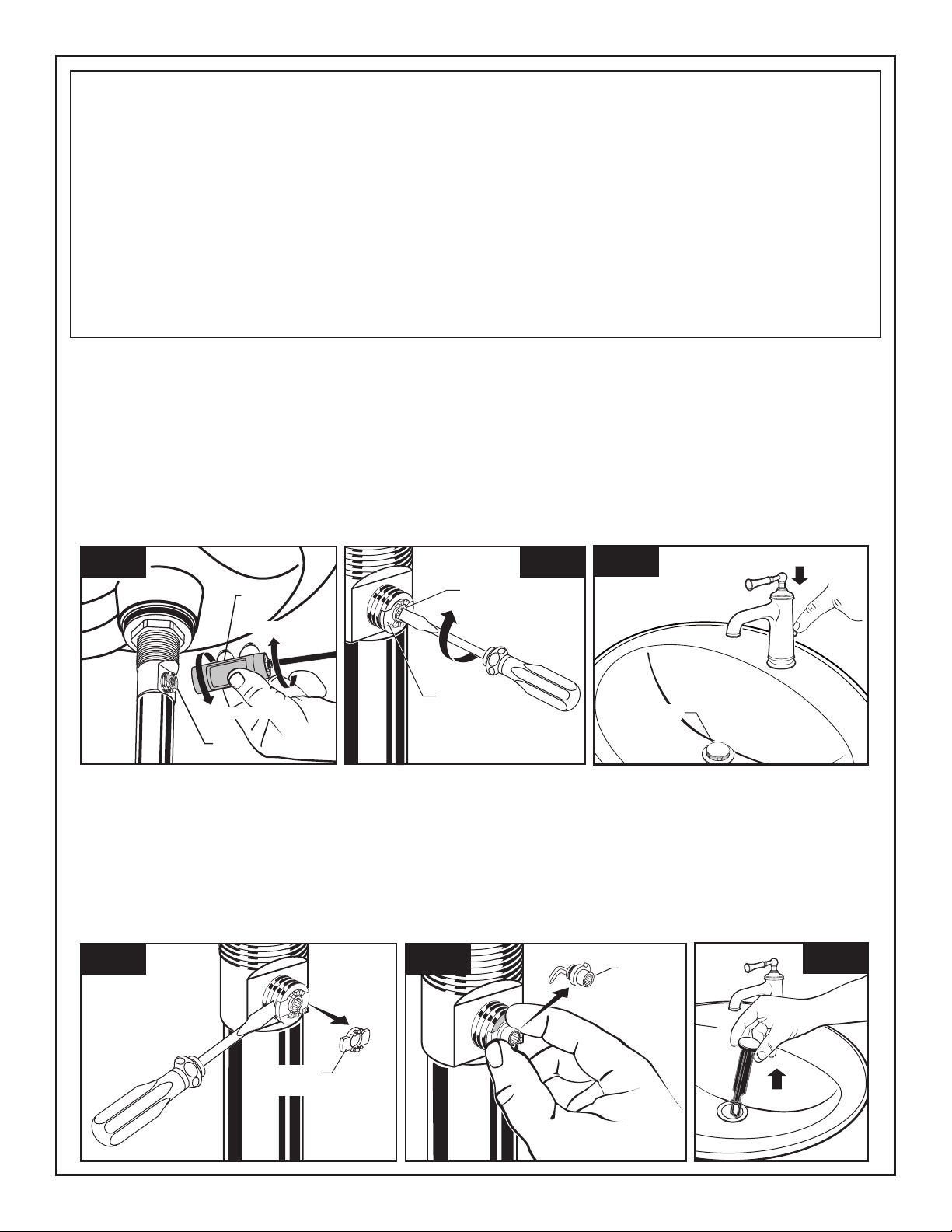

• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled as
“Cam” in the illustration. Fig. B.
• Use a small screwdriver to rotate the Cam in the clockwise direction as far as it will go. At this point the
Stopper should be in the UP position. Fig. B, C.
• Push DOWN on the Lift-Knob to make sure it is fully down. Fig. C.
• Re-attach the Cable to the Drain Body Connection (2) by threading the Cable Connector (1) clockwise onto the
Drain Body Connection (2) and hand-tighten. Fig. A.
• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled
as “Cam” and “Cam Cap” in the illustration. Fig. B.
• Use ngers or small screwdriver under either side of the Cam Cap to pry it out from the Drain. Fig. D.
• Remove the Cam by pulling it straight out while wiggling gently to loosen the Rubber Seal. Fig. E.
• The Stopper can now be removed by lifting it out of the Drain. Fig. F.
If sink does not hold water even though Stopper is in the “down” position:
• Follow CABLE ADJUSTMENT PROCEDURE.
If Stopper does not raise up fully or sink drains too slowly:
• Follow CABLE ADJUSTMENT PROCEDURE.
If you need to remove the Stopper:
• Follow STOPPER REMOVAL PROCEDURE.
If you would like the ability to remove your Stopper simply by lifting it out of the drain:
• Follow STOPPER INSTALLATION PROCEDURE for “Unlocked” mode.
CABLE ADJUSTMENT PROCEDURE
STOPPER REMOVAL PROCEDURE
Speed Connect®Drain
Troubleshooting Guide
REMOVE
CAM
Fig. E. Fig. F. Fig. D.
REMOVE
CAM CAP
CAM
CAM CAP
Fig. B.Fig. A.
2
1
RE-ATTACH
DISCONNECT
Fig. C. DOWN
STOPPER
REMOVE
CAM
Fig. E. Fig. F. Fig. D.
REMOVE
CAM CAP
CAM
CAM CAP
Fig. B.Fig. A.
2
1
RE-ATTACH
DISCONNECT
Fig. C. DOWN
STOPPER

- 7 -
Fig. J. Fig. K.
INSTALL
CAM CAP
CAM
INSTALL CAM
Unlocked Mode
LOOP TOWARD
FRONT OF SINK
180˚
DRAIN
Fig. H.
Locked Mode
(Vandal Proof)
DRAIN
Fig. G.
LOOP TOWARD
REAR OF SINK
M965704 Rev. 1.1 (2/17)

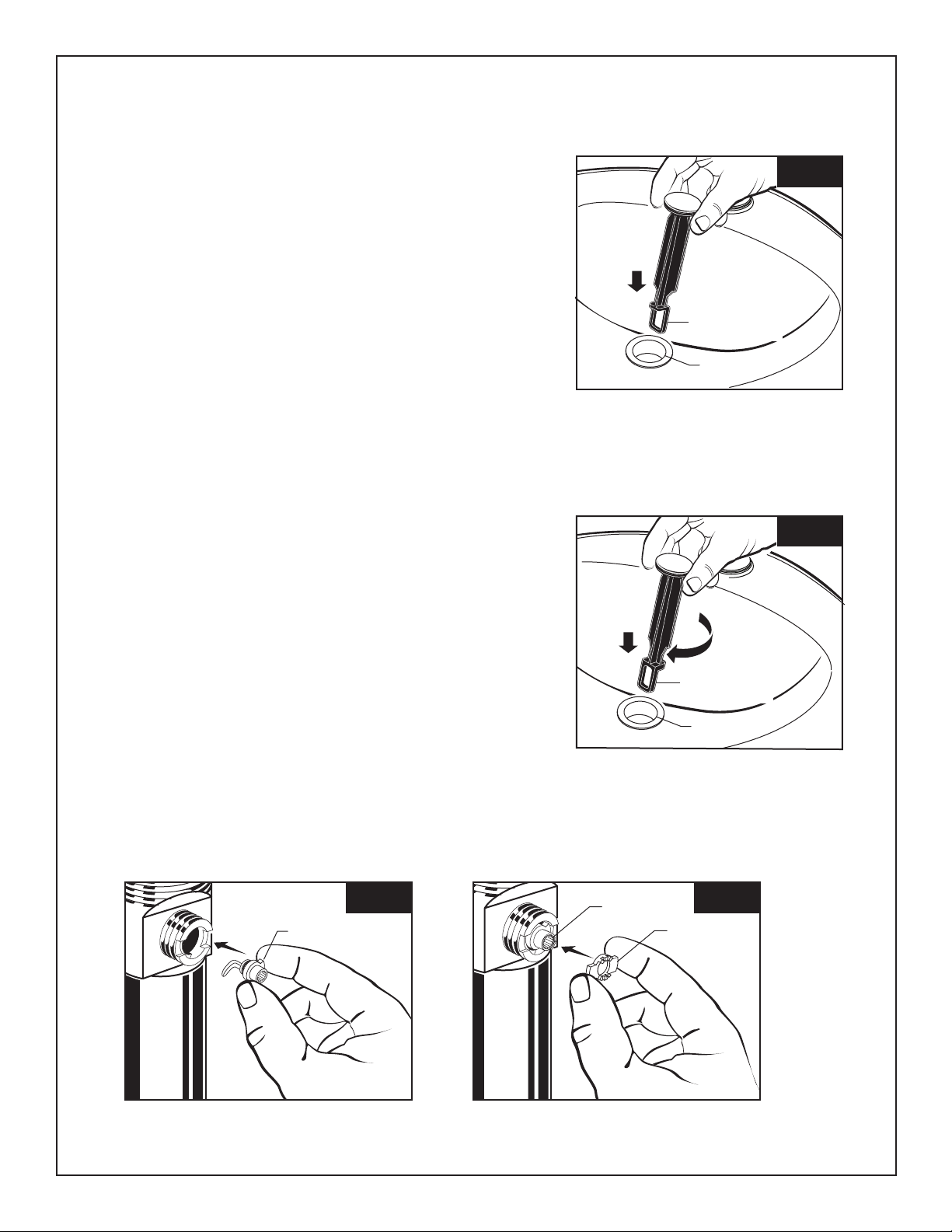

LOCKED MODE:
• Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. G.
• To install the stopper in “Locked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the rear of the
Sink. Rotate Stopper slightly if necessary so that the Stopper slides
all the way down. Fig. G.
• Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
Troubling Shooting Guide to complete installation. Stopper will be
in “Locked” mode and not be removable.
UNLOCKED MODE:
• Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. H.
• To install the stopper in “Unlocked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the front of the
Sink. Rotate Stopper slightly if necessary so that the Stopper slides
all the way down. Fig. H.
• Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
“Troublingshooting Guide” to complete installation. Stopper will be
in “Unlocked” mode and removable.
STOPPER INSTALLATION PROCEDURE
The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed)
or “Unlock” Mode (Stopper is removable).

- 8 - M965704 Rev. 1.1 (2/17)

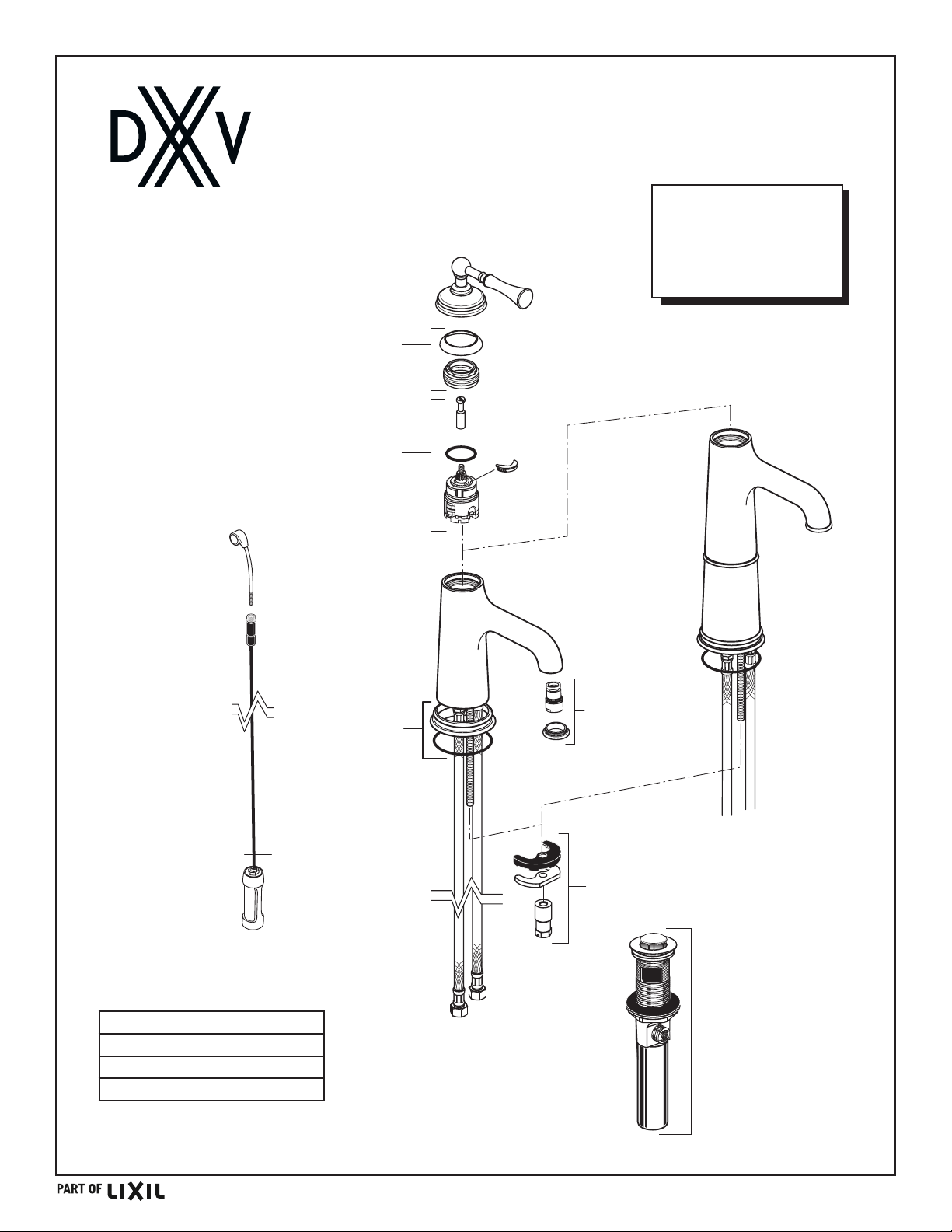

MODEL NUMBERS
Lavatory
D3510210C
Vessel
D3510215C
D3510216C
Randall®
Single Lever Lavatory
and Vessel Faucets
M952425.XXX
DRAIN ASSEMBLY
A860811.XXX
HANDLE ASSEMBLY
M964732-YYY0A
LIFT KNOB & ROD
M952430-0070A
SPPED CONNECT®
ASSEMBLY
Vessel
Faucet
M964733-YYY0A
CAP AND NUT
M964507-0070A
MOUNTING KIT
M964737-YYY0A
AERATOR
ASSEMBLY
M964736-YYY0A
ROSETTE
A860621.191
CARTRIDGE
ASSEMBLY
Lavatory
Faucet
Replace the “YYY” with
appropriate finish code
POLISHED CHROME 100
BRUSHED NICKEL 144
PLATINUM NICKEL 150
SATIN BRASS 427
