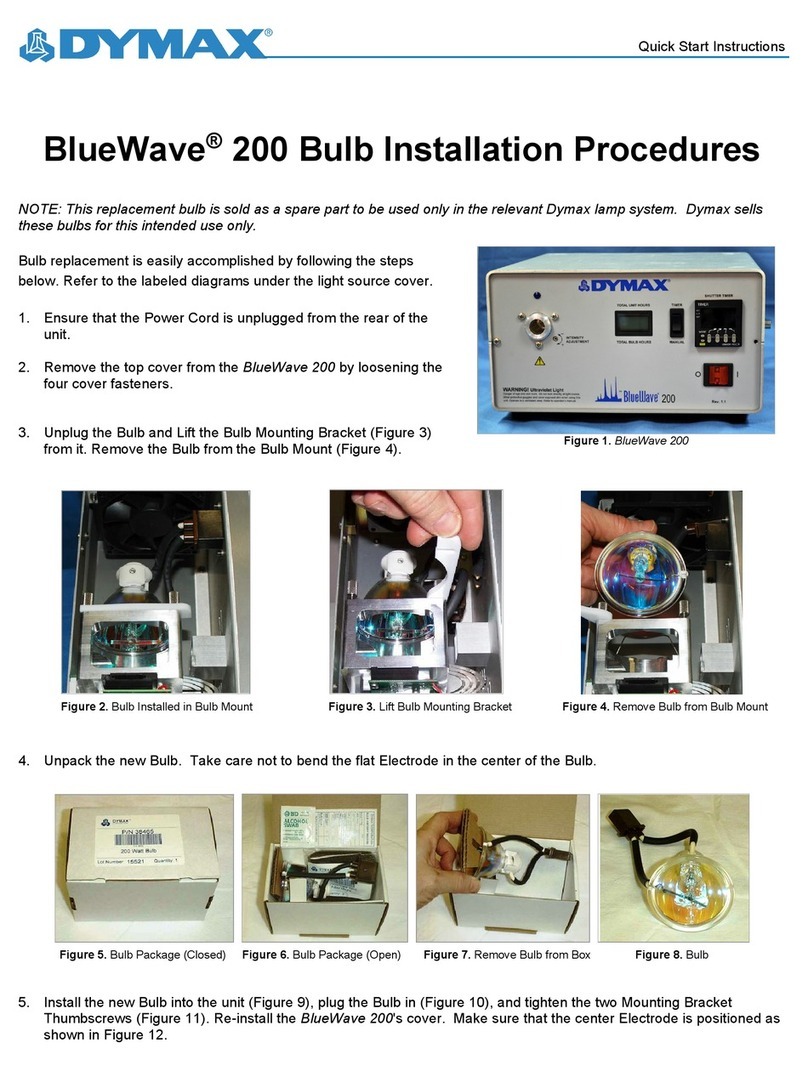

BlueWave®200 Version 3.1
Quick Start Instructions
1. Remove the protective cover from the Lightguide Mount.
2. Insert the large end of the Lightguide into the Lightguide Mount until it snaps into place (Figure 1). Fasten the Lightguide into place by lightly
tightening the Setscrew located on the Lightguide Mount (Figure 2). A Hex Wrench is provided with the system for this purpose. The Setscrew
should be tightened gently to prevent damage to the Lightguide.
NOTE: Multi-Leg Lightguides should be balanced by rotating the Lightguide to obtain the desired UV intensity of each leg before lightly tightening
the Setscrew.
Figure 1. Insert Lightguide into Lightguide Mount
Figure 2. Gently Tighten Setscrew on Lightguide
Mount with Hex Wrench
3. Connect the Power Cord to the Power Receptacle on the rear of the BlueWave 200. Plug the Power Cord into a grounded wall outlet.
4. If you will be using a Foot Pedal, connect the Foot Pedal to the Foot Pedal Connection (Figure 3) on the rear of the unit. A ground stud is also
provided on the back of the BlueWave 200 if additional grounding is desired.
5. Turn the Power Switch on (located on the rear of the unit) and press the “Bulb On” button (Figure 4). Allow the Bulb to warm up for 5 minutes.
6. The unit is ready for operation. The Shutter is opened and closed by means of the Foot Pedal.
Figure 3. Rear Connections
Figure 4. Front Panel Controls

www.dymax.com
© 2022 Dymax Corporation. All rights reserved. All trademarks in this guide, except where noted, are the property of, or used under license by Dymax Corporation,
U.S.A.
The data contained in this bulletin is of a general nature and is based on laboratory test conditions. Dymax does not warrant the data contained in this bulletin. Any warranty
applicable to the product, its application and use is strictly limited to that contained in Dymax’s standard Conditions of Sale. Dymax does not assume responsibility for test or
performance results obtained by users. It is the user’s responsibility to determine the suitability for the product application and purposes and the suitability for use in the user’s
intended manufacturing apparatus and methods. The user should adopt such precautions and use guidelines as may be reasonably advisable or necessary for the protection
of property and persons. Nothing in this bulletin shall act as a representation that the product use or application will not infringe a patent owned by someone other than Dymax
or act as a grant of license under any Dymax Corporation Patent. Dymax recommends that each user adequately test its proposed use and application before actual repetitive
use, using the data contained in this bulletin as a general guide. QS103 2/2/2022
Please Refer to MAN123 - BlueWave 200 V3.1 User Guide
for Detailed Operating Instructions
