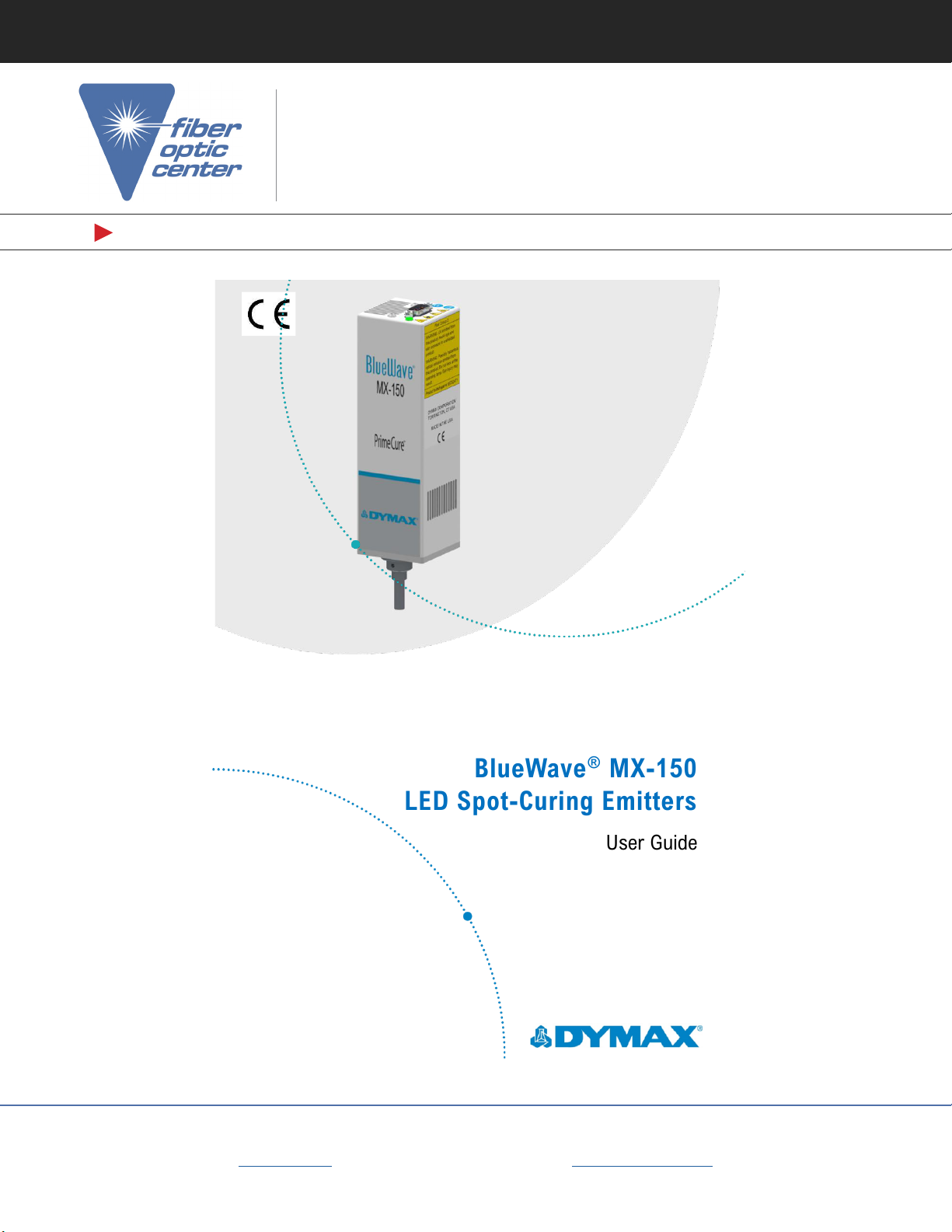

BlueWave® MX-150
LED Spot-Curing Emitters
User Guide
Product data subject to change
without notice.
USER GUIDE
Manufacturer:
Dymax®
Product Name:
Dymax BlueWave® MX-150 LED Emitter - 405nm
Manufacturer Part Number:
42338
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
4USER GUIDE |BLUEWAVE MX-150 EMITTERS

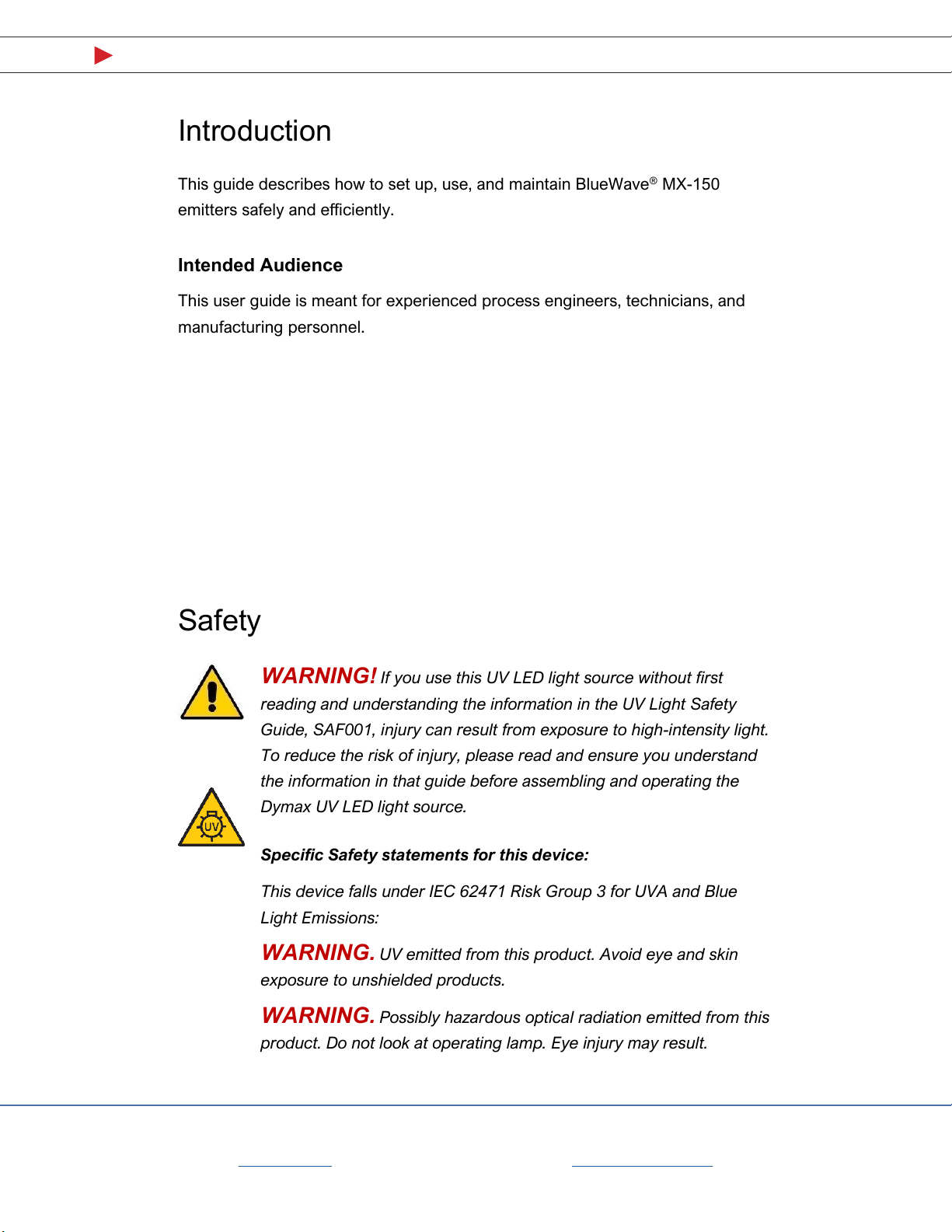

Introduction
This guide describes how to set up, use, and maintain BlueWave®MX-150
emitters safely and efficiently.
Intended Audience
This user guide is meant for experienced process engineers, technicians, and
manufacturing personnel. If you are new to high-intensity LED light sources and
do not understand the instructions, contact Dymax Application Engineering for
answers to your questions before using the equipment.
Where to Get Help
Dymax Customer Support and Application Engineering teams are available by
phone in the United States, Monday through Friday, from 8:00 a.m. to 5:30 p.m.
Eastern Standard Time. You can also email Dymax at [e-mail]. Contact
information for additional Dymax locations can be found on the back cover of this
user guide. For more information about this product, visit dymax.com.
Safety
WARNING! If you use this UV LED light source without first
reading and understanding the information in the UV Light Safety
Guide, SAF001, injury can result from exposure to high-intensity light.
To reduce the risk of injury, please read and ensure you understand
the information in that guide before assembling and operating the
Dymax UV LED light source.
Specific Safety statements for this device:
This device falls under IEC 62471 Risk Group 3 for UVA and Blue
Light Emissions:
WARNING. UV emitted from this product. Avoid eye and skin
exposure to unshielded products.
WARNING. Possibly hazardous optical radiation emitted from this
product. Do not look at operating lamp. Eye injury may result.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
USER GUIDE |BLUEWAVE MX-150 EMITTERS 5

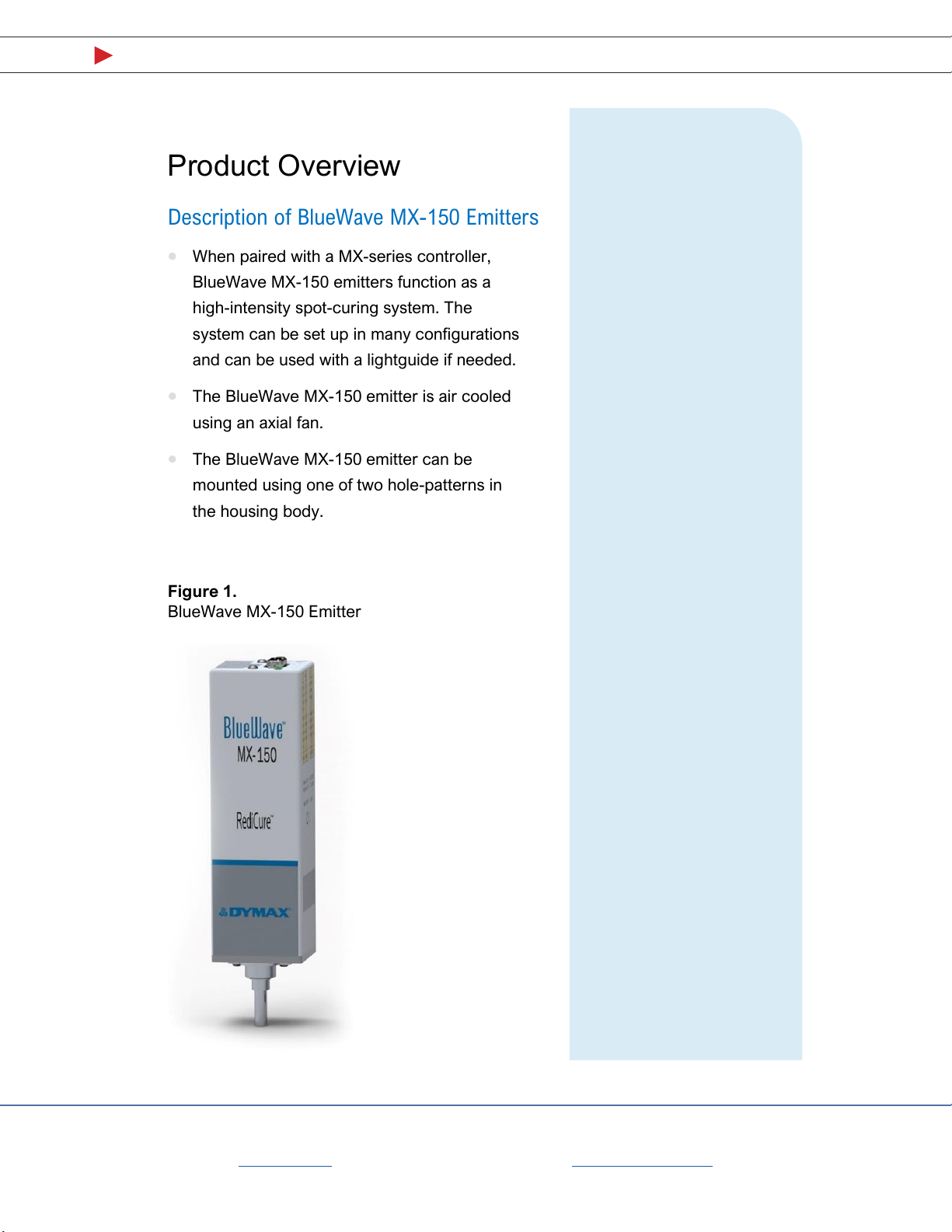

Product Overview
Description of BlueWave MX-150 Emitters
•When paired with a MX-series controller,
BlueWave MX-150 emitters function as a
high-intensity spot-curing system. The
system can be set up in many configurations
and can be used with a lightguide if needed.
•The BlueWave MX-150 emitter is air cooled
using an axial fan.
•The BlueWave MX-150 emitter can be
mounted using one of two hole-patterns in
the housing body.
Figure 1.
BlueWave MX-150 Emitter

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
6USER GUIDE |BLUEWAVE MX-150 EMITTERS

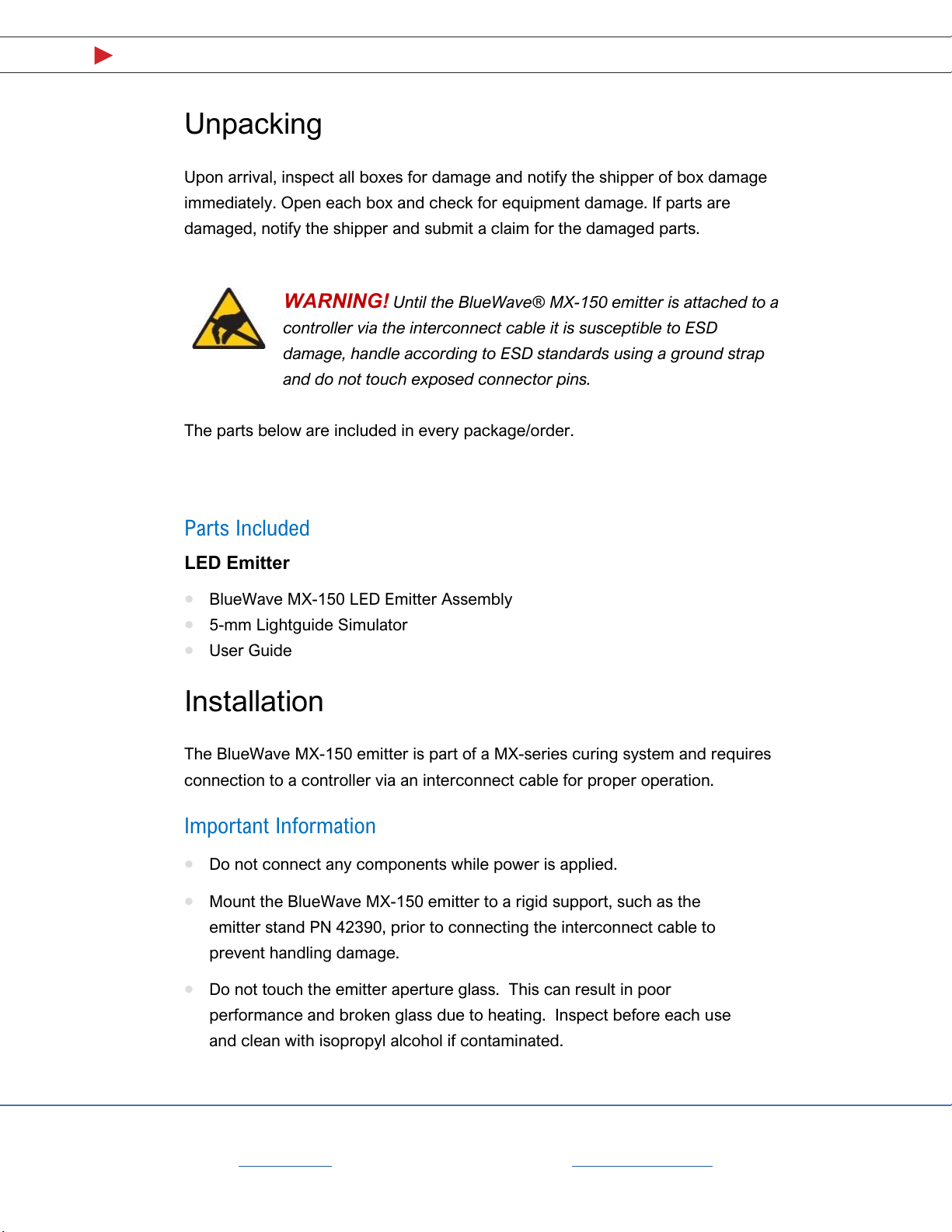

Unpacking
Upon arrival, inspect all boxes for damage and notify the shipper of box damage
immediately. Open each box and check for equipment damage. If parts are
damaged, notify the shipper and submit a claim for the damaged parts. Contact
Dymax so that new parts can be shipped to you immediately.
WARNING! Until the BlueWave® MX-150 emitter is attached to a
controller via the interconnect cable it is susceptible to ESD
damage, handle according to ESD standards using a ground strap
and do not touch exposed connector pins.
The parts below are included in every package/order. If parts are missing from
your order, contact your local Dymax representative or Dymax Customer Support
to resolve the problem.
Parts Included
LED Emitter
•
BlueWave MX-150 LED Emitter Assembly
•
5-mm Lightguide Simulator
•
User Guide
Installation
The BlueWave MX-150 emitter is part of a MX-series curing system and requires
connection to a controller via an interconnect cable for proper operation.
Important Information
•Do not connect any components while power is applied.
•Mount the BlueWave MX-150 emitter to a rigid support, such as the
emitter stand PN 42390, prior to connecting the interconnect cable to
prevent handling damage.
•Do not touch the emitter aperture glass. This can result in poor
performance and broken glass due to heating. Inspect before each use
and clean with isopropyl alcohol if contaminated.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
USER GUIDE |BLUEWAVE MX-150 EMITTERS 7
•If emitter aperture glass is permanently contaminated it must be replaced
for safe operation.
Mounting/Connections
•Each emitter has two sets of M3 x 0.5 mm holes (Figure 1) that align with
Dymax stands and holders.
•When connecting the emitter to the controller, ensure proper strain relief
to prevent pinching or kinking of the interconnect cable.
•The cooling air intake on top of unit must be free flowing, do not cover.
•Exhausting air on sides must be given at least 1 mm (0.04”) of clear
space to obstructions for safe use.

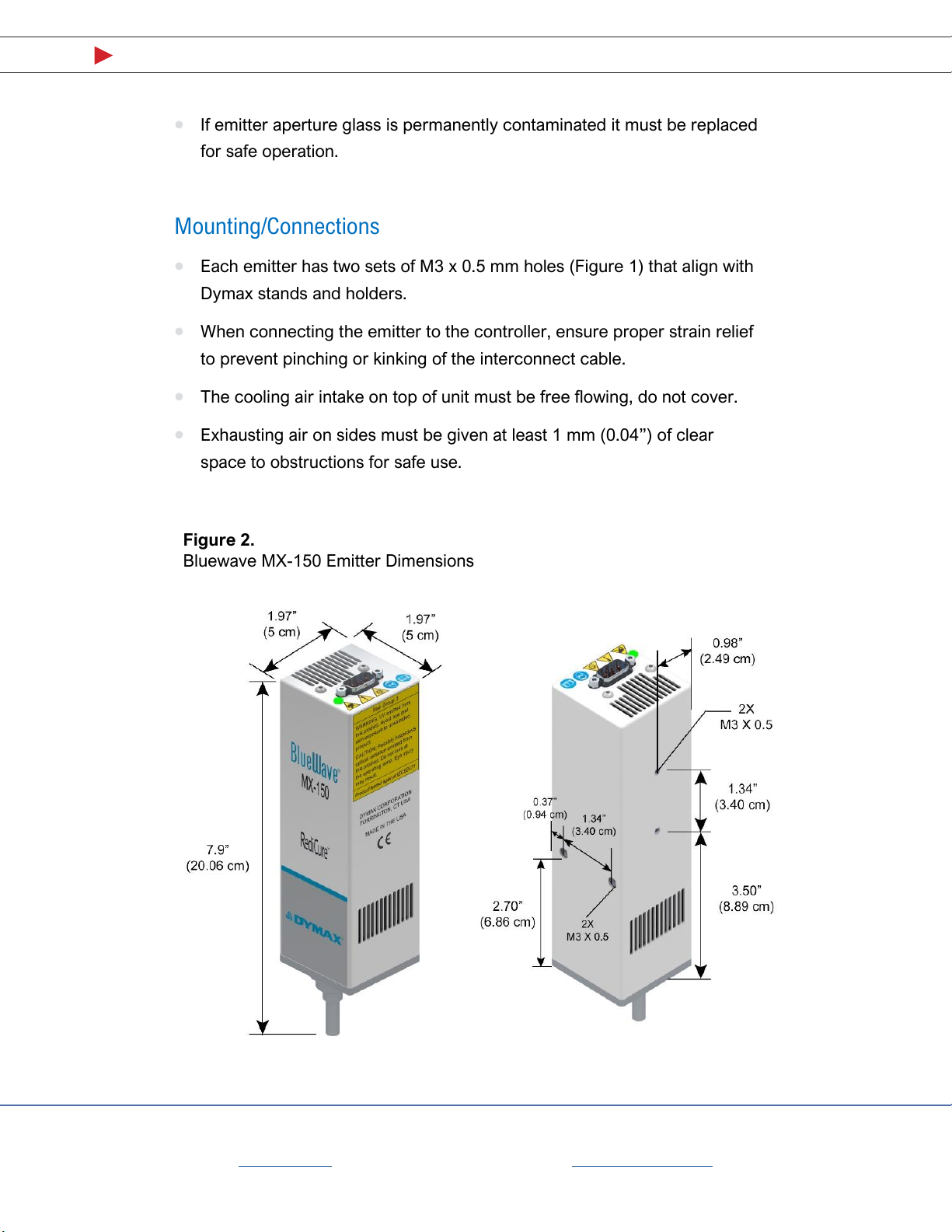

Figure 2.
Bluewave MX-150 Emitter Dimensions

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
8USER GUIDE |BLUEWAVE MX-150 EMITTERS

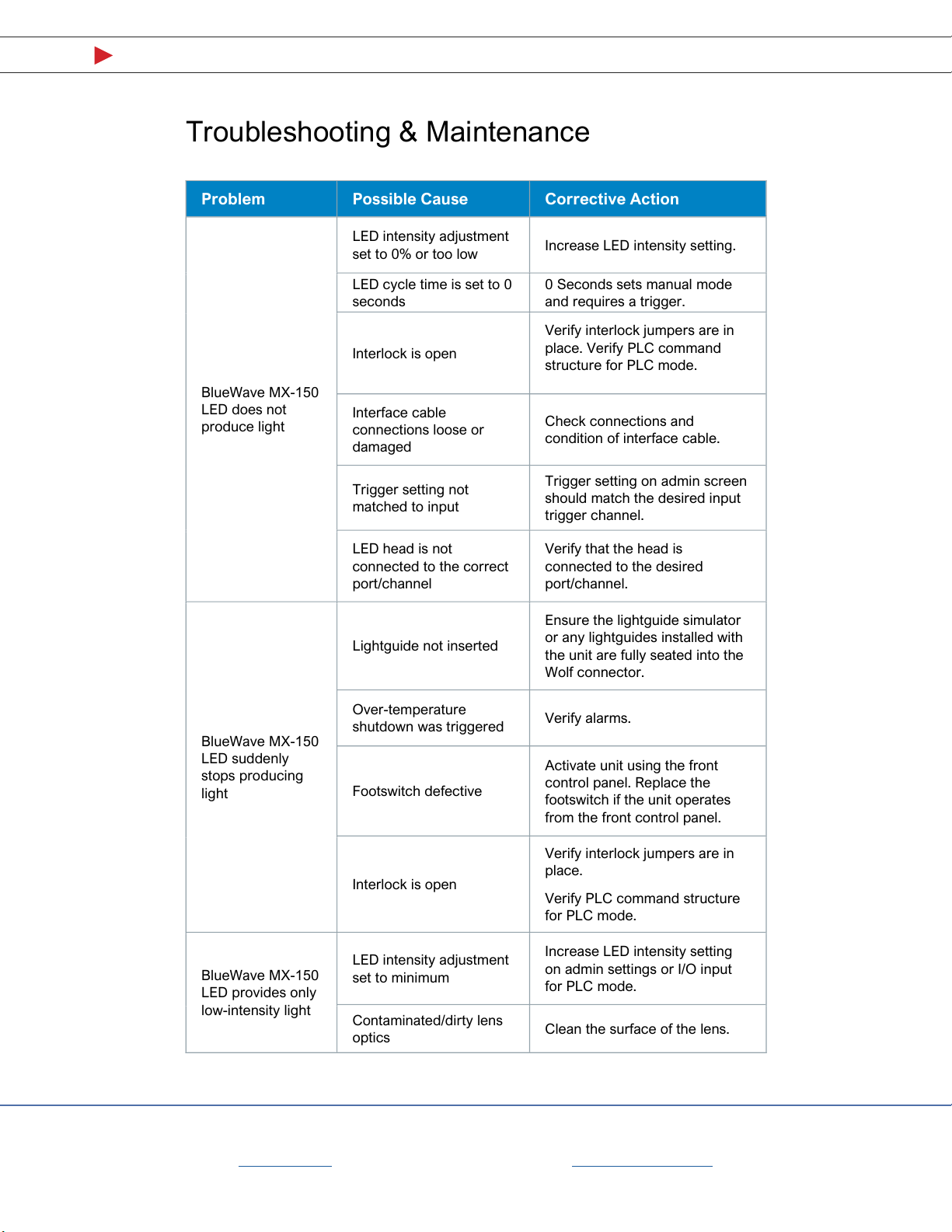

Troubleshooting & Maintenance
Problem Possible Cause Corrective Action
BlueWave MX-150
LED does not
produce light
LED intensity adjustment
set to 0% or too low Increase LED intensity setting.
LED cycle time is set to 0
seconds
0 Seconds sets manual mode
and requires a trigger.
Interlock is open
Verify interlock jumpers are in
place. Verify PLC command
structure for PLC mode.
Interface cable
connections loose or
damaged
Check connections and
condition of interface cable.
Trigger setting not
matched to input
Trigger setting on admin screen
should match the desired input
trigger channel.
LED head is not
connected to the correct
port/channel
Verify that the head is
connected to the desired
port/channel.
BlueWave MX-150
LED suddenly
stops producing
light
Lightguide not inserted
Ensure the lightguide simulator
or any lightguides installed with
the unit are fully seated into the
Wolf connector.
Over-temperature
shutdown was triggered Verify alarms.
Footswitch defective
Activate unit using the front
control panel. Replace the
footswitch if the unit operates
from the front control panel.
Interlock is open
Verify interlock jumpers are in
place.
Verify PLC command structure
for PLC mode.
BlueWave MX-150
LED provides only
low-intensity light
LED intensity adjustment
set to minimum
Increase LED intensity setting
on admin settings or I/O input
for PLC mode.
Contaminated/dirty lens
optics Clean the surface of the lens.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
USER GUIDE |BLUEWAVE MX-150 EMITTERS 9

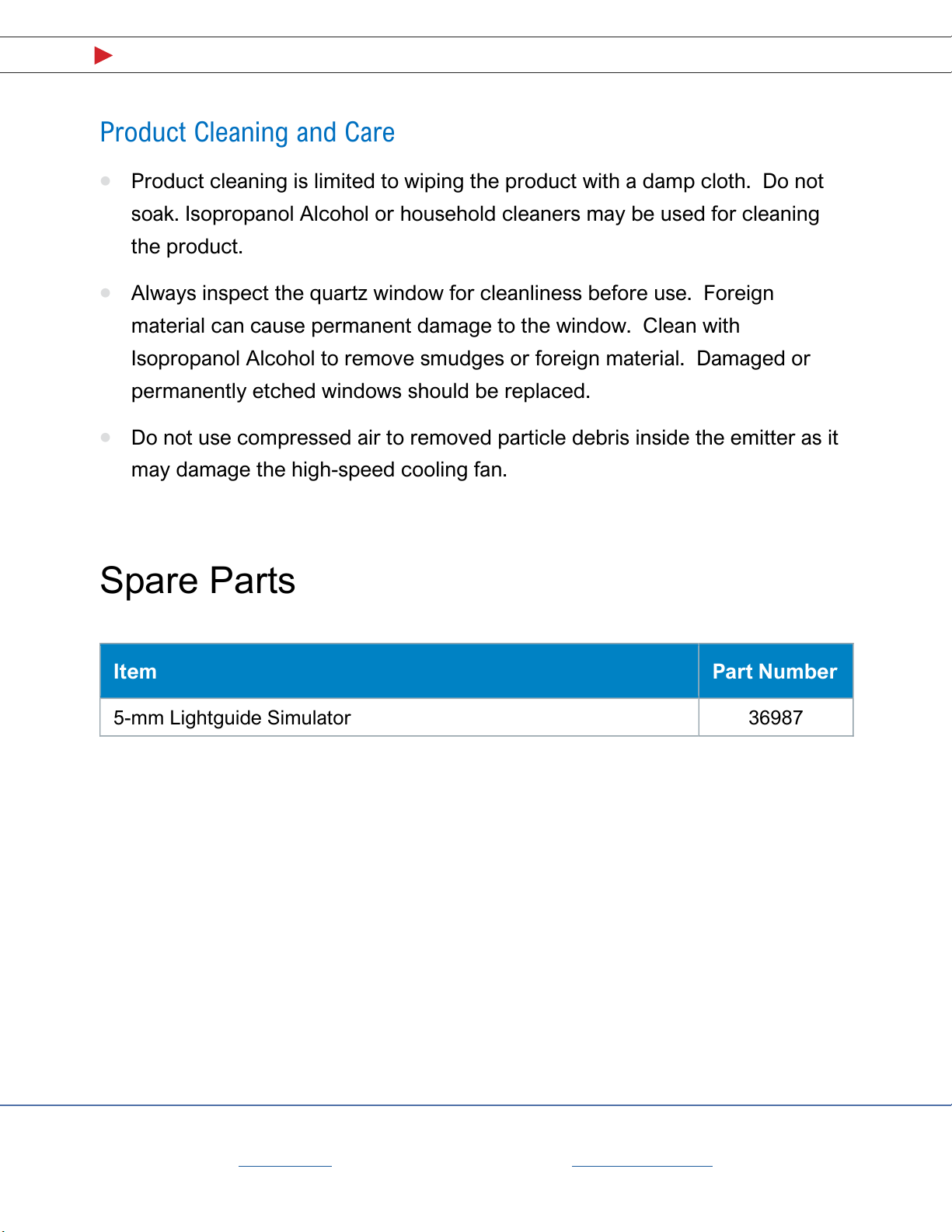

Product Cleaning and Care
•Product cleaning is limited to wiping the product with a damp cloth. Do not
soak. Isopropanol Alcohol or household cleaners may be used for cleaning
the product.
•Always inspect the quartz window for cleanliness before use. Foreign
material can cause permanent damage to the window. Clean with
Isopropanol Alcohol to remove smudges or foreign material. Damaged or
permanently etched windows should be replaced.
•Do not use compressed air to removed particle debris inside the emitter as it
may damage the high-speed cooling fan.
Spare Parts
Item Part Number
5-mm Lightguide Simulator 36987

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
10 USER GUIDE |BLUEWAVE MX-150 EMITTERS

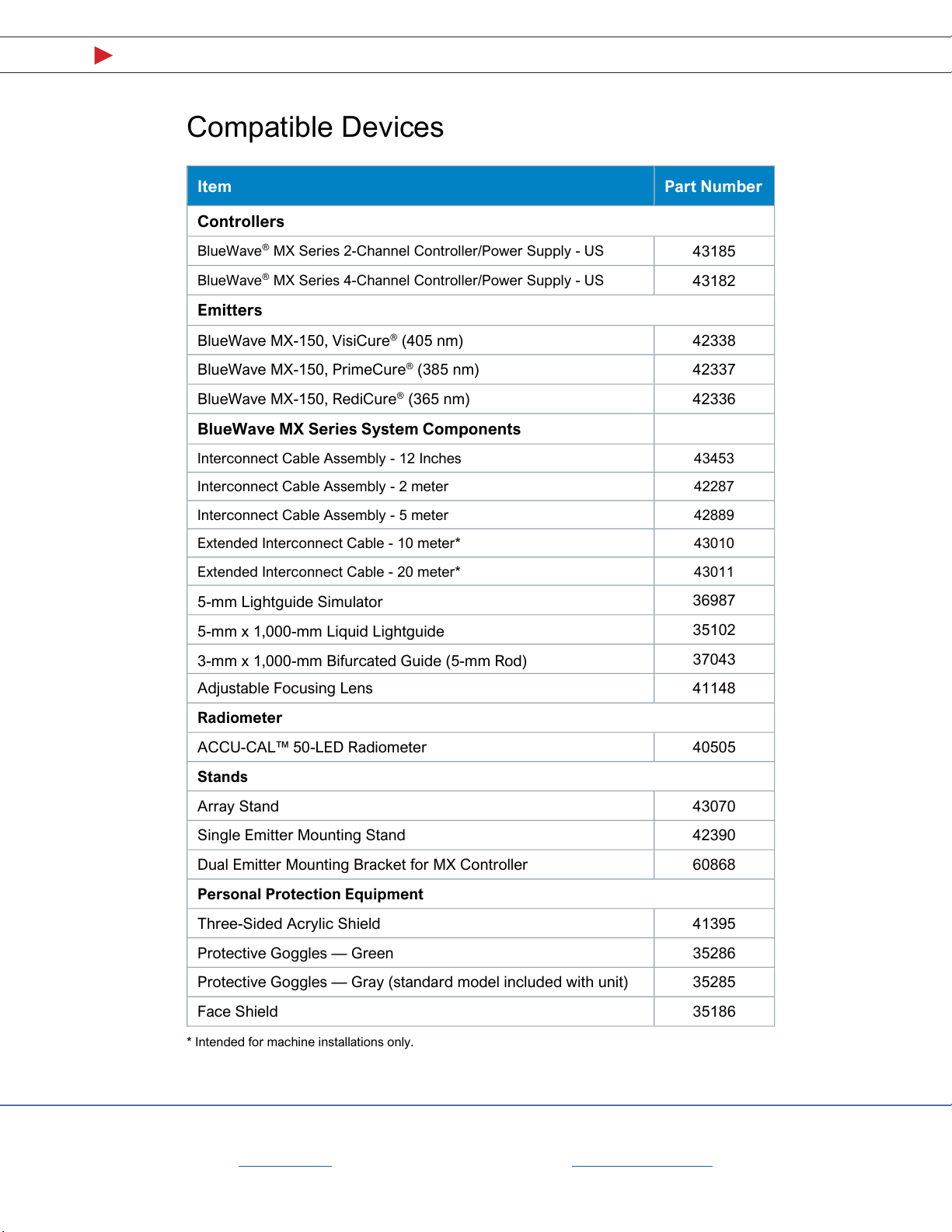

Compatible Devices
Item Part Number
Controllers
BlueWave®MX Series 2-Channel Controller/Power Supply - US 43185
BlueWave®MX Series 4-Channel Controller/Power Supply - US 43182
Emitters
BlueWave MX-150, VisiCure®(405 nm) 42338
BlueWave MX-150, PrimeCure®(385 nm) 42337
BlueWave MX-150, RediCure®(365 nm) 42336
BlueWave MX Series System Components
Interconnect Cable Assembly - 12 Inches 43453
Interconnect Cable Assembly - 2 meter 42287
Interconnect Cable Assembly - 5 meter 42889
Extended Interconnect Cable - 10 meter* 43010
Extended Interconnect Cable - 20 meter* 43011
5-mm Lightguide Simulator 36987
5-mm x 1,000-mm Liquid Lightguide 35102
3-mm x 1,000-mm Bifurcated Guide (5-mm Rod) 37043
Adjustable Focusing Lens 41148
Radiometer
ACCU-CAL™50-LED Radiometer 40505
Stands
Array Stand 43070
Single Emitter Mounting Stand 42390
Dual Emitter Mounting Bracket for MX Controller 60868
Personal Protection Equipment
Three-Sided Acrylic Shield 41395
Protective Goggles —Green 35286
Protective Goggles —Gray (standard model included with unit) 35285
Face Shield 35186
* Intended for machine installations only.

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
USER GUIDE |BLUEWAVE MX-150 EMITTERS 11

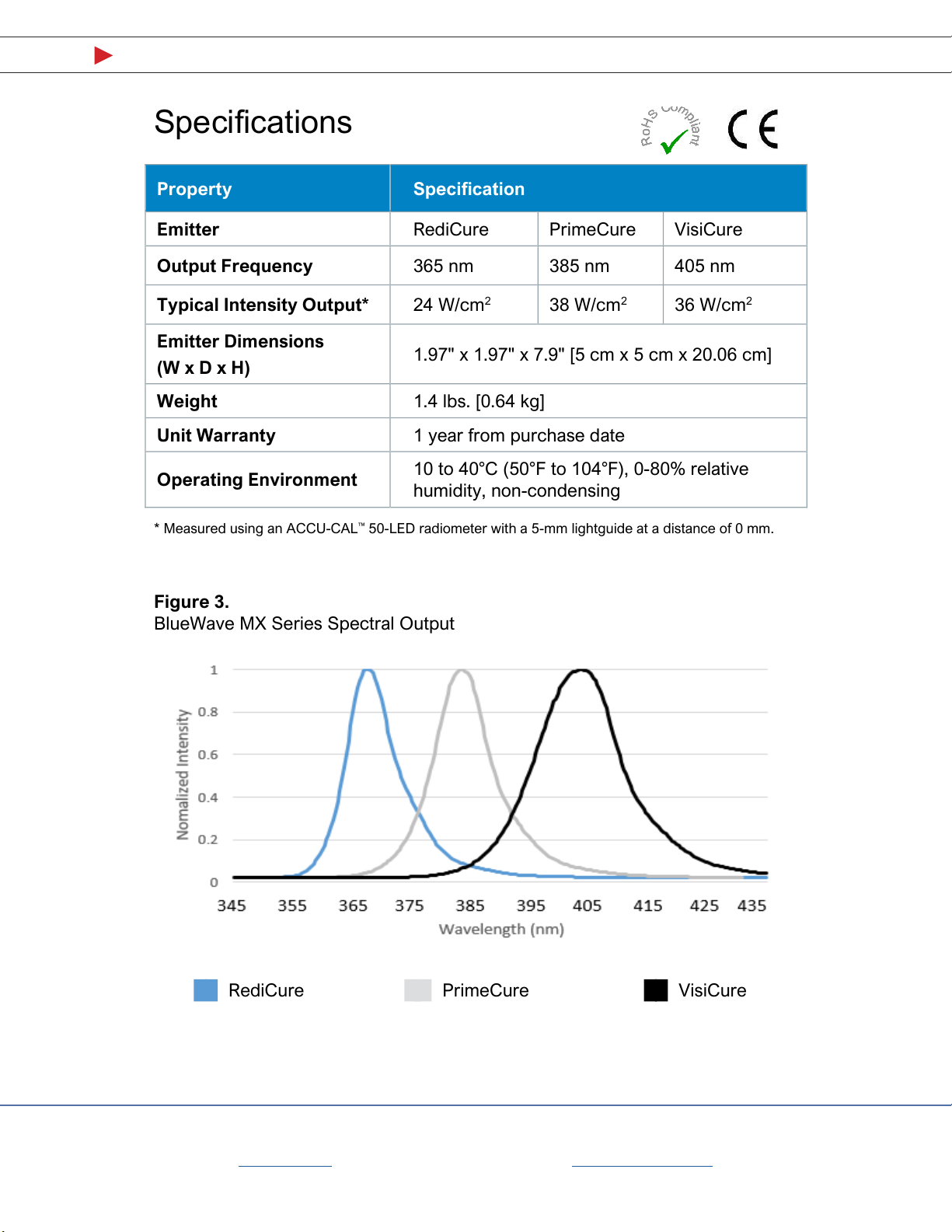

Specifications
Property Specification
Emitter RediCure PrimeCure VisiCure
Output Frequency 365 nm 385 nm 405 nm
Typical Intensity Output* 24 W/cm238 W/cm236 W/cm2
Emitter Dimensions
(W x D x H) 1.97" x 1.97" x 7.9" [5 cm x 5 cm x 20.06 cm]
Weight 1.4 lbs. [0.64 kg]
Unit Warranty 1 year from purchase date
Operating Environment 10 to 40°C (50°F to 104°F), 0-80% relative
humidity, non-condensing
* Measured using an ACCU-CAL™50-LED radiometer with a 5-mm lightguide at a distance of 0 mm.
Figure 3.
BlueWave MX Series Spectral Output
RediCure PrimeCure VisiCure

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
12 USER GUIDE |BLUEWAVE MX-150 EMITTERS

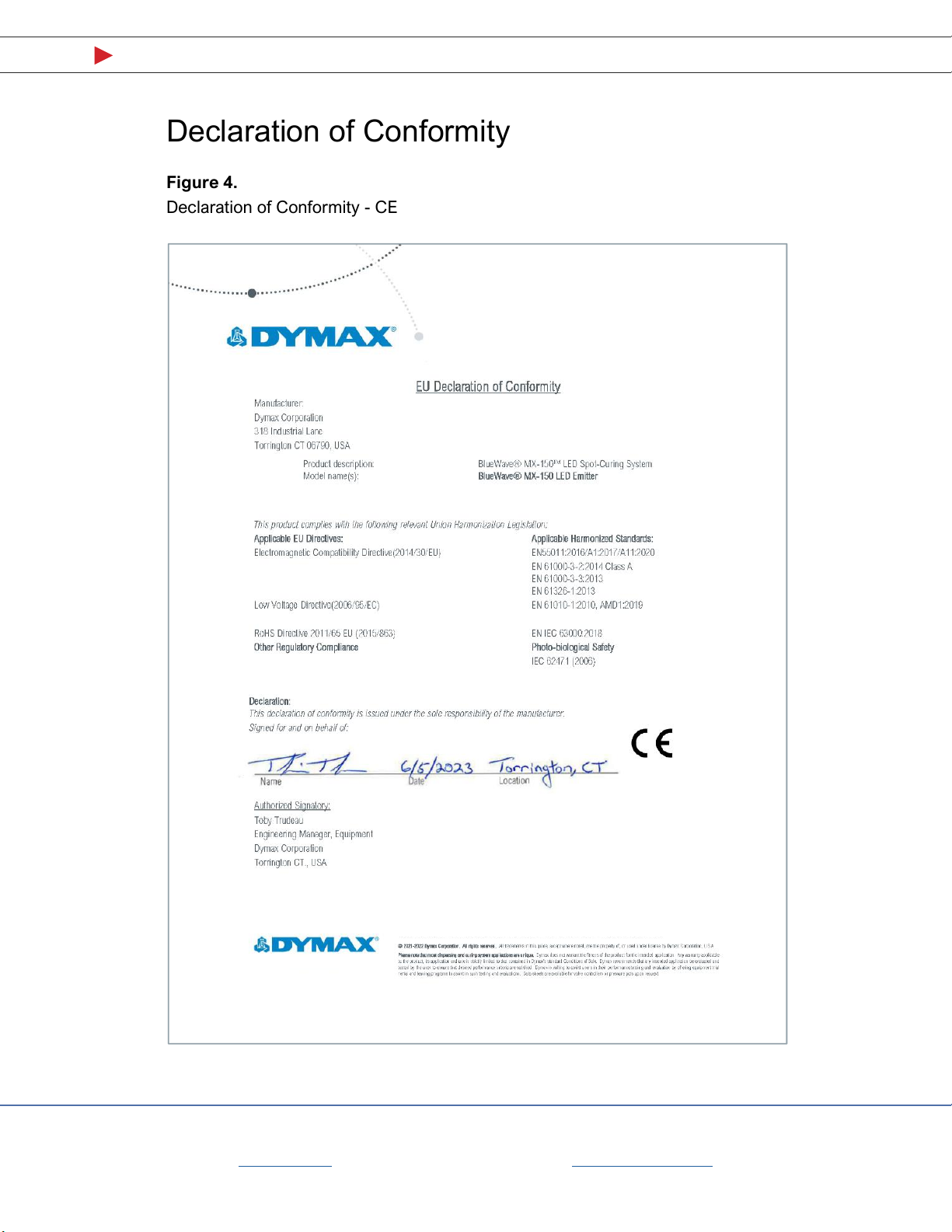

Declaration of Conformity
Figure 4.
Declaration of Conformity - CE

Contact the professionals at Fiber Optic Center for a quote or to get more details.
focenter.com • 508-992-6464 | [phone] • [e-mail]
23 Centre Street • New Bedford, MA 02740 USA Product data subject to change
without notice.
Click here for more details on the Dymax BlueWave® MX-150 LED Emitter - 405nm
USER GUIDE |BLUEWAVE MX-150 EMITTERS 13

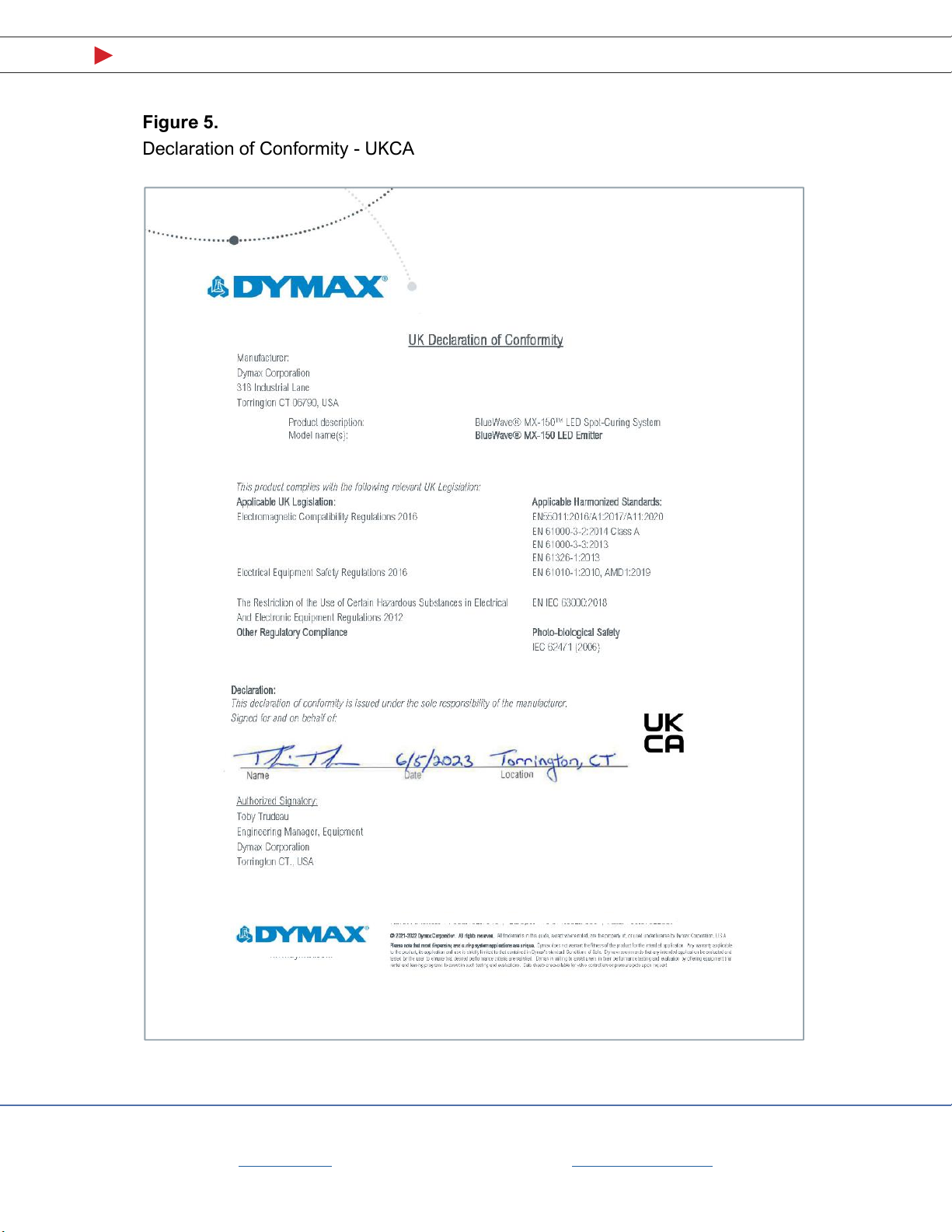

Figure 5.
Declaration of Conformity - UKCA
