Eachine TURBINE QX70 User manual

c,encuirsiE
TURBINE
%•(-/Z7

Brand Name: Eachine
Wheelbase: 73mm
Fly Weight: 54g (with battery)
Size: 98.98.75mm
Flight controller: SP RACING F3_EVO_Brushed
Firmware version: Cleanflight 1.13.0
Coreless motor: 8520CW/CCW
Propeller: 40mm 4-Blade CW/CCW
Receiver option:
Versionl: Frsky compatible SBUS receiver
Version2: Flysky compatible PPM receiver
Version3: DSM2/DSMX Compatible Satellite receiver
Camera: 520TVL HD CMOS 1/4 inch Camera
AV Wireless Transmitter: 5.8g 25mw 48th
Battery: 3.7V 600mah Li-po
Video format : PAL/NTSC
Q)( -7z/ -, 7 Tiny FPV Quadeopter
Specification
Components
QTY
FRSKY FLYSKY DSM2/DSMX Part NO.
QX70 Aircraft frame
1
Include Include Include
QX701
8520 coreless Motor
4 Include Include Include
QX95CW/CCW
F3_EVO_BRUSHED Built-in Frsky receiver
1
Include
QX702
F3_EVO_BRUSHED Built-in Flysky receiver
1
Include
QX702
F3_EVO_BRUSHED Built-in DSM2/DSMX receiver 1
Include
QX702
5.8G 48CH 25MW VTX with 520TVL Camera
1
Include Include Include
QX7OV
Camera mount
1
Include Include Include
QX703
Propellers(2pcs cw-r2pcs ccw)
2
Include Include Include
FB9OP
3.7V 600mah Lipo battery 1
Include Include Include
QX912
USB Charger
1
Include Include Include
QX95C
Propeller Disassembly tool
1
Include Include Include
FB907
USB cable
1
Include Include Include
QX70C
LED Rear light
1
Include Include Include
QX95L
www.eachine.com

CH
, F . R .„
FR
GA GB GC GD GE GF
CH
CH1 5740MHz 5705MHz 5865MHz 5658MHz 5733MHz
5362MHz
CH2 5760MHz 5685MHz 5845MHz 5695MHz 5752MHz 5399MHz
CH3 5780MHz 5665MHz 5825MHz 5732MHz 5771MHz 5436MHz
CH4 5800MHz 5645MHz 5805MHz 5769MHz 5790MHz 5473MHz
CH5 5820MHz 5885MHz 5785MHz 5806MHz 5809MHz
5510MHz
CH6 5840MHz 5905MHz 5765MHz 5843MHz 5828MHz 5547MHz
CH7 5860MHz 5925MHz 5745MHz 5880MHz 5847MHz 5584MHz
CH8 5880MHz 5945MHz 5725MHz 5917MHz 5866MHz 5621MHz
NTSC/PAL Switch
still touch up 20;
Short touch switch
to reverse video
display
Frequency
group A—F
selected still
touch up to 2S;
Channel chl—ch8
selected with
short touch.
CDC  - 7 Z 767 Tiny FPV Quadeopter
ix
CAUTION: Read and follow all instructions and warnings in the manual prior to setup or use. Failure to operate the product correctly can result
LU in damage to the product, personal property and/or injury. This is a sophisticated hobby product. It must be operated with caution and
common- sense and requires some basic mechanical ability.
1.General Product Safety Precautions
• As the user of this product, you are responsible for operating it safely, not endangering yourself and others,or damaging the product or the
property of others.
• Operate your product in open spaces away from people and property.
• Never operate your product with damaged electrical components.
• Keep the transmitter powered on while model is powered on.
• Let parts cool after use before touching, motors will get hot in use.
•
Remove batteries after use, as applicable.
• Keep all batteries, chemicals, small parts and anything electrical out of the reach of children.
•
Avoid water exposure to this product. Keep parts dry.
• Keep moving parts clean.

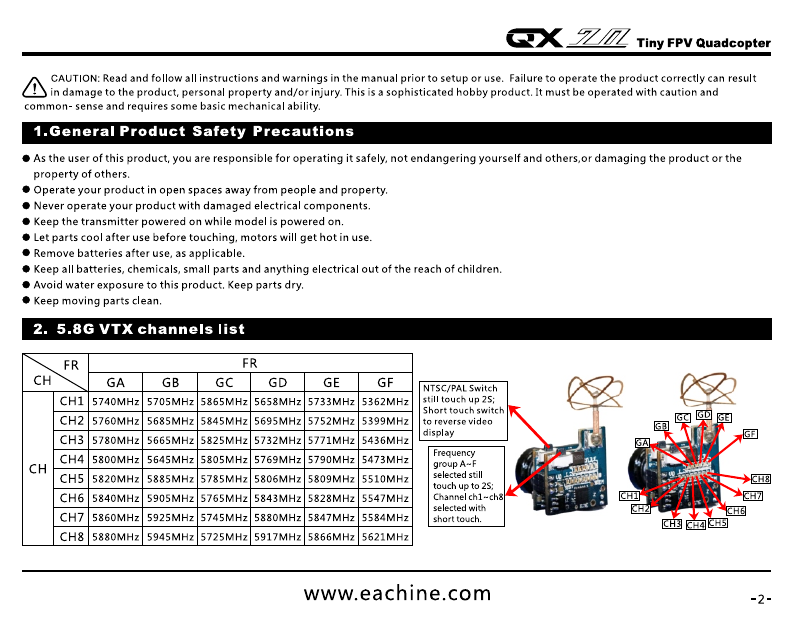

2. 5.8G VTX channels list
www.eachine.com

-2-

4.Flight controller connection diagram
Binding Button(`Dal2,1( Verson without Eintlin g Button}
Power on while holding the button to ENT into bind mode
LED_STRIP
Power input
1S3. v LIPO
Green LED
Armed---Solid
Disarmed---Off
Blue LED
Receiver status
l'DSM2IX version s Oran g e LED}
Buzzer
Q)( -7z/ -, 7 Tiny FPV Quadeopter
3.Charge the Flight Battery
NOTICE: Inspect the battery to make sure it is not damaged e.g., swollen, bent, broken or
punctured. Charge only batteries that are cool to the touch and are not damaged.
Charging with USB LI-Po Charger
Connect the battery to the USB Li-Po Charger,
then plug into the USB port of your computer
LED STATUS:
Solid Red LED --Charging
Solid Blue LED --Charge Complete
-3-

www.eachine.com

GM  - 7 ZZ ,7 Tiny FPV Quadcopter
5.(Frsky version)Binding Procedure
1.Turn on the transmitter, select D8 mode for the Receiver.
2.Connect the battery to the Turbine QX70 while holding the binding button, the Blue LED will get be solid, this indicates the receiver get into
the binding mode.
www.eachine.com

-4-

.11T6tAlltei
Funcs
r'nal RF
nnel Range
1c.er
nal RF
Blue LED turns off
indicate binding successfully
Q)( -7z/ -, 7 Tiny FPV Quadeopter
3.Move to the Receiver [Bind] option in the transmitter and ENT to Bind with the receiver, The transmitter beeps.
4. The Blue LED on the board will turning off, this indicates that the bind process was successful. Reconnect the battery for the flight controller,
and the Blue LED on the receiver is solid again. It means connection is established with your transmitter
www.eachine.com

crx  _7zz,7 Tiny FPV Quadcopter
5.We have configured the Frsky receiver before shipping. If you flashed the firmware ,Please setup as the following steps: Enable Seria_RX for
UART2 and Set Receiver mode RX_SERIAL ,Select SBUS in Cleanflight or Betaflight Configurator.
•
 -ii ■ t.. ■ •111% ■
•
•
a i )ac •
la
can
ViSKC •
•
Receiver Mode
Rd_PRM

PPM RX Input
• RX_SERIAL

Serial.besed receiver ISPEKSAT, S005, SUMO]
Rd_PARALLELPWM

PWM RX input one wire per channel)
RX_MSP

MSP RX inpur (contra! vie MSP parr)
Serial Receiver Provider
Not.:
Remember M Configure a Serial Port (via Ports lab) and Moore a Serial Receiver Provider when using
RX_SERIAL feature.
SFEKTRUM1024
SPEKTRUM204B
S 
SUMD
SUMS
xeLiS _m00E_B
XBUS_MODE_B_RJOi
IBUS
www.eachine.com

-6-

D/DITAL TELEMETRY RAD/0 SYSTEM
MENU
PAGE
EXIT
CH1
CH2
CH3
CH4
C5
CH6
CH?
5/64
100
EIThr
I I
EIRil
100 ElEle
100 EIRuci
WO RSA
-1170.611111111111

6
0
ENT1
ACLS-7 '°H
TARANIS -A/5
CEK  - 77 - 767 Tiny FPV Quadeopter

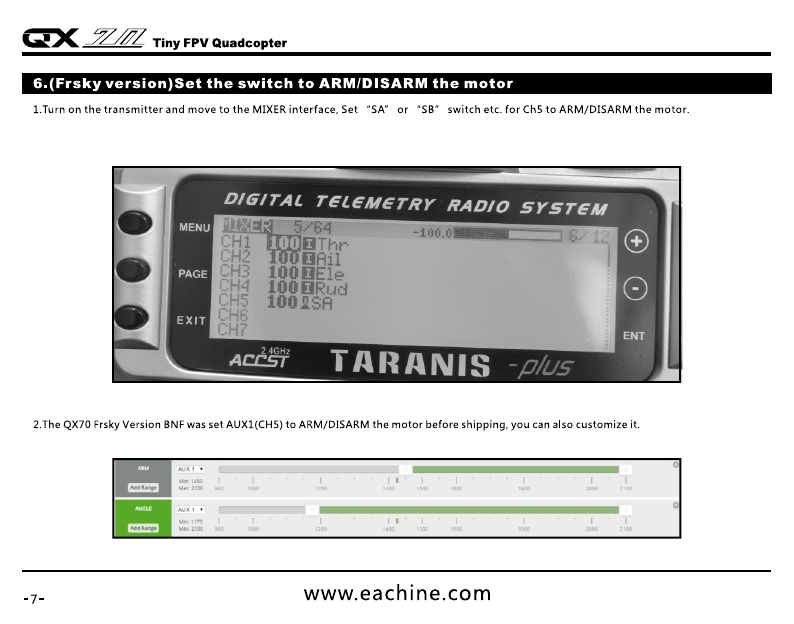

6.(Frsky version)Set the switch to ARM/DISARM the motor
1.Turn on the transmitter and move to the MIXER interface, Set "SA" or "SB" switch etc. for Ch5 to ARM/DISARM the motor.
2.The QX70 Frsky Version BNF was set AUX1(CH5) to ARM/DISARM the motor before shipping, you can also customize it.
-7-

www.eachine.com

Binding Button
Power on while holding the button.to ENT into bind mode
Released after bindin successfully
Green•LED
Armed—Solid
Disarmed---Offal
B lue LED
Fl eceiver status
Solid- Works normal or Binding mode
BlingkirtiLost signal
Off -!Binding successfully
crx  _7zz,7 Tiny FPV Quadcopter
3.The default receiver channel map for frsky version is TAER1234, please ensure your transmitter is matched with it, otherwise it can't be armed.
1 1 ■ 21221:1 ■
- 4.ER "_ -

•
D
is
abled
4.Toggle the Switch and the green LED on the flight controller will get be solid, this indicate the motor was armed ,enjoy yourself now !
www.eachine.com

-8-

GM  -7z/ -, 7 Tiny FPV Quadeopter
7.(Flysky Version)Binding procedure
1.Turn on your radio and Set receiver mode to AFHDS, then get your radio into binding mode(Take FLYSKY16 as an example)
1.Select RX setup to AFHDS Mode
2.Turn on the transmitter while
holding the bind button
-9-

www.eachine.com

Blue LED
Receiver status
'Blinking fast- Works normal
Off- Lost signal
Green LED
Armed---Solid
Disarmed---Off
Binding Button
Power on while holding the button to ENT Into bind mode
Released after binding successfully
CDC  — 7 Z 767 Tiny FPV Quadeopter
2.Connect the battery to the QX70 while holding the Binding button on the board the Blue LED will getting to be solid first and turn off for a
second ,then it will getting to be solid again , this indicates binding successfully.
3.Re-power for the QX70, the Blue LED will blinking fast, this indicate the connection was established between the receiver and the transmitter,
it works normal.
www.eachine.com

-10-

••••••,•••••••••••••••
L••3• •MII• •  ....11M - 4w Mt •
••••••  IW_NS• •42•11. •  ..21•11.10•• 11001 • 
r stia
_$1•110•••••• •••••10 •
-._,M••••• •
-
•MI• •

_Mr1.1•1• ■ • 1 - 15.1 •
Receiver Mode
RX_PPM  PPM RX input
RX_SERIAL  Serial-based receiver (SPEKSAT, SBUS, SUMD)
RX_PARALLEL_PWM  PWM RX input lone wire per channel)
U
RX_MSI)  MSP RX input (control via MSP port)
Serial Receiver Provider
Note: Remember to configure a Serial Port (via P0113 tab) and choose a Serial Receiver Provider when using
RX_SERIAL feature.
SPEKTRUM204B
SBUS
SUMD
SUMH
XBUS_MODE_B
XBUS_MODE_B_RJ01
'BUS
Q)( -7z/ -, 7 Tiny FPV Quadeopter
4.We have configured the Flysky receiver before shipping. If you flashed the firmware ,Please set receiver mode to be RX_PPM in Cleanflight or
Betaflight Configurator
www.eachine.com

,A411 
tiCr:
N  (:-
HI  A.
= rim.X . Chavt n
IOW

Cha
wile b

1111. ,
4 Source Swill
C F 
1
IN
1)e 6
Source SwC
M1111011110' 
...111011111•01.,
CEK  - 7 Z 767 Tiny FPV Quadeopter
8.(Flysky Version)Set the switch to ARM/DISARM the motor
1.Turn on the transmitter and move to the AUX. Channels interface, Set "SWA" or "SWB" switch etc. for CH5 to ARM/DISARM the motor,
Take FLYSKYI6 as an example.
www.eachine.com

-12-

Channel Map 5551 Channel
• Disabled AETR1234
•
Green LED is solid
This Indicate the motor is armed
Q)( -7z/ -, 7 Tiny FPV Quadeopter

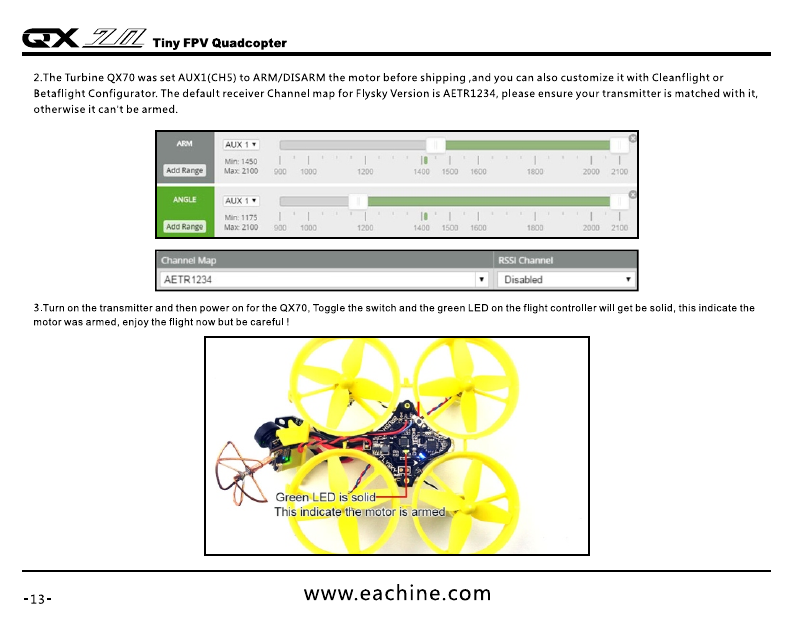

2.The Turbine QX70 was set AUX1(CH5) to ARM/DISARM the motor before shipping And you can also customize it with Cleanflight or
Betaflight Configurator. The default receiver Channel map for Flysky Version is AETR1234, please ensure your transmitter is matched with it,
otherwise it can't be armed.
3.Turn on the transmitter and then power on for the QX70, Toggle the switch and the green LED on the flight controller will get be solid, this indicate the
motor was armed, enjoy the flight now but be careful I
-13-

www.eachine.com

Orange LED
Receiver status
Blinking fast- In binding mode
Sad- Works normal t' r
Off- Lost signal
Green LED
Disarmed- 1 0ff
Entering CLI Mode, type exit '
# Set sp ektrum_s att. ind=0
spektrum_sst_Idnd set to 0
# save
Entering CLI Mod 'exit to return . . or 'help'
# Set spektrum_sat_tdnd=9
spektrum_sat_bind set to 9
# save
Entering CLI Mode , type ' exit' to return,
# Set spektrum_sat_tdnd=5
spektrum_sat_tand set to 5
# save
crx  _7zz,7 Tiny FPV Quadcopter

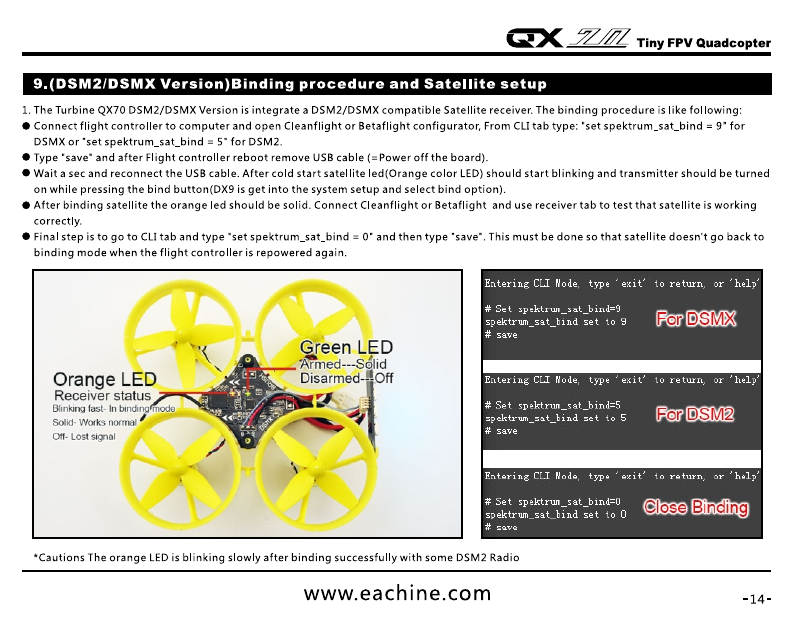

9.(DSM2/DSMX Version)Binding procedure and Satellite setup
1. The Turbine QX70 DSM2/DSMX Version is integrate a DSM2/DSMX compatible Satellite receiver. The binding procedure is like following:
• Connect flight controller to computer and open Cleanflight or Betaflight configurator, From CLI tab type: 'set spektrum_sat_bind = 9' for
DSMX or 'set spektrum_sat_bind = 5' for DSM2.
• Type "save' and after Flight controller reboot remove USB cable (=Power off the board).
• Wait a sec and reconnect the USB cable. After cold start satellite led(Orange color LED) should start blinking and transmitter should be turned
on while pressing the bind button(DX9 is get into the system setup and select bind option).
• After binding satellite the orange led should be solid. Connect Cleanflight or Betaflight and use receiver tab to test that satellite is working
correctly.
• Final step is to go to CLI tab and typeset spektrum_sat_bind = 0' and then type 'save'. This must be done so that satellite doesn't go back to
binding mode when the flight controller is repowered again.
Cautions The orange LED is blinking slowly after binding successfully with some DSM2 Radio
www.eachine.com

-14-

0
AUX 1 •  i 
Min, 1450  I 
1 
.  I  IS 
/ 
1  I  I 
I
Max: 2100 
900  100G  ■
200  .00  15
. 7.0  1607 
1 aao
 20DO 2100
I MI, 1175 
/
Max. 2100 
400  IND 2020 202
:400
RS51 Charnel Channel Map
TAER1234 • Disabled
AUX I •
ARM
ANGLE
CEK  - 77 - 767 Tiny FPV Quadeopter
2.The Turbine QX70 was set AUX1(CH5) to ARM/DISARM the motor before shipping And you can also customize it with Cleanflight or
Betaflight Configurator. The default receiver Channel map for DSM2/DSMX Version is TAER1234, please ensure your transmitter is matched
with it, otherwise it can' t be armed.
3.Turn on the transmitter and set a switch for CH5 to ARM/DISARM the motor, some transmitter like SPECKTRUM DX6/DX6I, the default CH5 is
GEAR Switch.
4.Turn on the transmitter and then power on for the QX70, Toggle the switch and the green LED on the flight controller will get be solid, this
indicate the motor was armed, enjoy the flight now but be careful 1
-15-

www.eachine.com

PEKTRUM1024
SPEXTRUM2048
SBUS
SUMD
SUMH
XBUS_MODE_B
XBUS_MODE_B_RJ 01
IBUS
r  " 52 ' •
■ AS , 11,..11 •
,
Receiver Mode
ILX_PPM  PPM RX input
• RX_SERIAL  Serial-based receiver (SPEKSAT SIMS, SUMD)
RX_PARALLEL_PWS1  PWM RX input lone wire per channel)
11X_MSP  MSP RX input (control via MSP port)
Serial Receiver Provider
Note: Remember to configure a Serial Port Iva Ports tab) and choose a Serial Receiver Provider when using
RX_SERIAL feature.
crx  _7zz,7 Tiny FPV Quadcopter
5.We have configured the satellite receiver before shipping. If you flashed the firmware ,Please setup as the following steps: Enable Seria_RX
for UART3 and Set Receiver mode RX SERIAL ,Select SPEKTRUM1024 for DSM2 Radio and Select SPEKTRUM2048 for DSMX Radio in Cleanflight
or Betaflight Configurator.
www.eachine.com

-16-

CEK  - 77 - 767 Tiny FPV Quadeopter
,n,If you flashed the firmware or erase chip, please first do the bellowing procedure , don't connect the battery otherwise the motor will auto-spin
1.Cleanflight: Go to the CLI tab, type "Set motor_pwm_rate=1000" ,then enter save
Entering CLI Mode, typ e exit' to return, or help'
fl- set mut ui _pwm_r at e=1000
!Do t or _pWITi_r at e set to 1000
# it s
2.Betaflight: Go to Configure Tab and set ESC/Motor protocol to BRUSHED
ESC/Motor Features
BRUSHED  T ESC/Motor protocol
Motor PWM speed Separated from IND speed
MOTOR STOP  Don't spin the motors when armed
Disarm motors regardless of throttle value (When arming via AUX channel)
*This step is in order to avoid motor auto-spinning when connect the battery
-17-

www.eachine.com

LED Strip
111.11107 conrroner can contr.:trews arc chess of invasonai LEDs on a sing
Sc -
"pie _SD; c , ire  7:55EtE,  - s etc,
trier
Rtt,._Et cE Nv et,ten attvamgn gr..] pentti075.
Clear selectee Clear au  28
LSO Functic,
War7.^ns
Modes 6
Otiernetion
Indleatet  Ann State
Mottle 
Ring
09

O 
Color  GPI
RIM 
Blink
Onenteson anv
" 
111
VV  E 
5 MI
AI
CDC  — 7 Z 767 Tiny FPV Quadeopter
10.LED Strip function
The flight controller of QX70 can control colors an effects of individual
LEDS on a strip. The default setup is like this, you can also customize by
yourself effects.
11.LED Strip status
....-
Disarm
,...
0000
Armed
---0
...-- ---...
0 0 0 10
Brake
4 LEDS Blinking Fast
44
..--
Throttle
10:410
7-
* # • *
'.....
Roll left
2 LEDS
I
BlinkingEast
".. ----
0 0
Roll right
2 LEDS Blinking Fast
www.eachine.com

-18-

;)E941411sIE
www.eachine.com
*User manual is subject to change without prior notice.
