Eaton NRX NF Instruction manual

Technical Data TD013014EN Effective May 2021
Supersedes January 2016
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
Field-installable kits and renewal parts lists
Secondary contact wiring kits ...............2
Cassette shutter field option kits .............3
Power Defense ICCB breaker control replacement
parts and kits.............................3
Shunt trip field option kits .................3
Motor operator field option kits (for charging
closing spring) ..........................3
Spring release device field option kits .......3
Latch check switch (LCS) field option kits .....3
Auxiliary switch field option kits ............3
Undervoltage release field option kits ........3
Trip indicator and bell alarm/overcurrent
trip switch field option kits ................3
Operations counter field option kits..........3
Padlockable pushbutton cover field option kits
and clarification ...........................4
Breaker key lock provision field option kits ......4
Communication modules and accessories ......5
Available front connect cable terminals ........5
Available rear connectors for fixed breakers
or cassettes (N-frame) ......................5
Available rear connectors for fixed breakers
or cassettes (R-frame) ......................6
Adapter and barrier kits ....................6
Door, levering in, and cassette parts and kits ...6
Mechanical interlock parts and kits ...........7
PRX trip unit replacement kits and parts .......7
Miscellaneous accessories ..................8
Appendix A: Series NRX with Digitrip
Secondary terminal replacement parts, blocks,
and kits .................................8
Series NRX breaker control replacement parts
and kits .................................9
Replacement rating plugs for digitrip .........10
Digitrip replacement kits & accessories .......10
Appendix B: Power defense ICCB with PXR
Publications ............................11
Contents
Description Page Description Page

2
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Field-installable kits and renewal parts list
Table 1. Secondary contact wiring kits
Field-installation kits for use in wiring fixed breaker or drawout breaker cassette secondary contacts or adding option kits in field.
Catalog number
Description Kit contents N-frame R-frame
Drawout – PXR 2 blocks IZMX-SEC-TB2-W-1 IZMX-SEC-TB2-W-1
Drawout secondary terminal block kit - PXR 12 blocks IZMX-SEC-TB12-W-1 IZMX-SEC-TB12-W-1
Fixed secondary terminal block kit - PXR 2 blocks IZMX-SEC-TB2-F-1 IZMX-SEC-TB2-F-1
Fixed secondary terminal block kit - PXR 12 blocks IZMX-SEC-TB12-F-1 IZMX-SEC-TB12-F-1
NRX Digitrip to PXR Cassette Secondary Conversion Kit IZMX-SEC-KIT-W16-1 IZMX-SEC-KIT-W40-1
a Drawout breakers do not require mechanical mounting for terminal blocks.
 4 point modular configuration.
ote:N Digitrip secondaries are not compatible with PXR secondary. Refer to Appendix A.
Drawout Fixed

3
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Table 2. Cassette shutter field option kits
Field-installable option kit for drawout cassette for installation by customer.
Number
of poles Frame Shutter kit catalog number
Three-pole N-frame SHTR3P
Four-pole N-frame SHTR4P
Three-pole R-frame RFSHTR3P
Four-pole R-frame RFSHTR4P
Table 3. Power Defense ICCB breaker control replacement parts and kits
These parts are not compatible with the NRX with digitrip breakers. See Appendix A.
Catalog number
Description Control voltage N-frame R-frame
Shunt trip field option kits a110-127 Vac/Vdc IZMX-ST110AD-1 IZMX-ST110AD-1
208-250 Vac/Vdc IZMX-ST230AD-1 IZMX-ST230AD-1
24 Vdc IZMX-ST24DC-1 IZMX-ST24DC-1
48 Vdc IZMX-ST48DC-1 IZMX-ST48DC-1
60 Vdc IZMX-ST60DC-1 IZMX-ST60DC-1
Motor operator field option kits 110-127 Vac/Vdc IZMX-M16-110AD-1 IZMX-M40-110AD-1
208-250 Vac/Vdc IZMX-M16-230AD-1 IZMX-M40-230AD-1
24 Vdc IZMX-M16-24DC-1 IZMX-M40-24DC-1
48 Vdc IZMX-M16-48DC-1 IZMX-M40-48DC-1
60 Vdc IZMX-M16-60DC-1 IZMX-M40-60DC-1
Spring release device field option kits 110-127 Vac/Vdc IZMX-SR110AD-1 IZMX-SR110AD-1
208-250 Vac/Vdc IZMX-SR230AD-1 IZMX-SR230AD-1
24 Vdc IZMX-SR24DC-1 IZMX-SR24DC-1
48 Vdc IZMX-SR48DC-1 IZMX-SR48DC-1
60 Vdc IZMX-SR60DC-1 IZMX-SR60DC-1
Undervoltage release field option kits 110-127 Vac/Vdc IZMX-UVR110AD-1 IZMX-UVR110AD-1
208-250 Vac/Vdc IZMX-UVR220AD-1 IZMX-UVR220AD-1
24 Vdc IZMX-UVR24DC-1 IZMX-UVR24DC-1
48 Vdc IZMX-UVR48DC-1 IZMX-UVR48DC-1
60 Vdc IZMX-UVR60DC-1 IZMX-UVR60DC-1
Latch check switch for wiring internally to spring release —IZMX-LCS-SR-1 IZMX-LCS-SR-1
Latch check with 1 Form C contact for remote indication —IZMX-LCS-1 IZMX-LCS-1
Mechanical pop-out trip indicator option kit (no contacts) —MTKIT RFMTKIT
Bell alarm/OTS contact field option kit (2 Form C contacts) —IZMX-OTS16-1 IZMX-OTS40-1
Auxiliary switch, 2 form C contacts, short leads (5.5 ins) —IZMX-AS22-16-1 IZMX-AS22-16-1
Auxiliary switch, 2 form C contacts, long leads (9.5 ins) ——IZMX-AS22-4O-1
Mechanical counter —NCOUNTERKIT RCOUNTERKIT
Cell switch (left for NF, left or right for RF) —IZMX-CS16-1 IZMX-CS40-1
a Shunt trips are rated for continuous duty
 For use with breakers that have mechanical pop-out indicator option already installed.
ote:N All accessories include the required number of terminal blocks to install. See appendix B for a list of installation instruction document numbers that are
available on eaton.com.

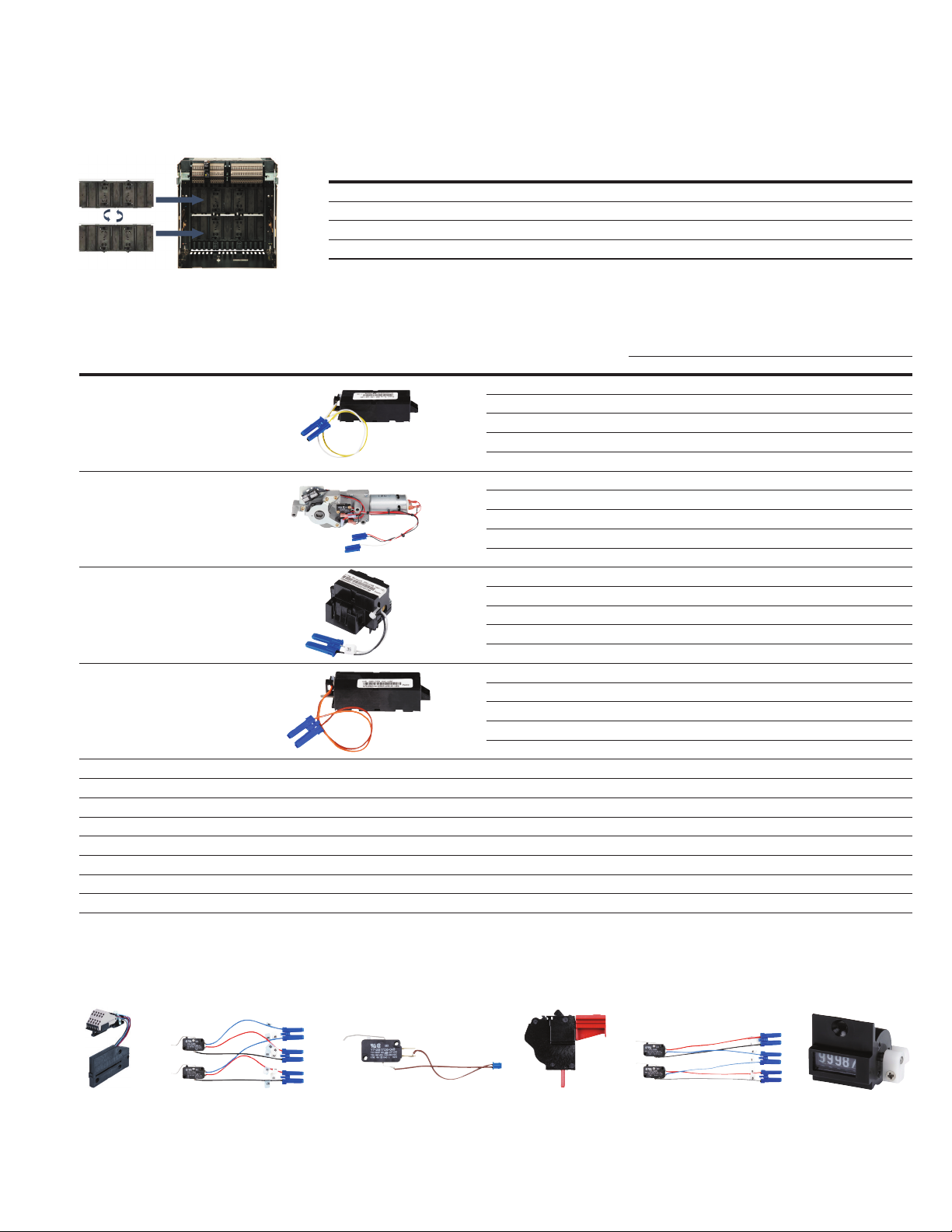

Cassette
cell switch
Auxiliary switch Latch check switch Mechanical trip
indicator
Latch check switch Operations counter

4
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Table 4. Padlockable pushbutton cover field option kits and clarification
Catalog number
Frame Cover Safe off feature Emergency
access feature
Breaker catalog
number digit 18
(factory installed) N-frame R-frame
None None None None A or N — —
Plastic Plastic No No B or J NPLPBCP RPLPBCP
Plastic Plastic No Yes —NPLPBCE —
Plastic Metal No No —NPLPBCM RPLPBCM
Metal Metal No No K or L NPLPBCF RPLPBCF
Metal Plastic No No — NPLPBCH RPLPBCH
Metal Plastic No Yes —NPLPBCX —
Metal Metal Yes No 1 or 2 NPLPBMOFF RPLPBMOFF
Metal Metal Ye Yes —NPLPBCMOFF —
Table 5. Breaker key lock provision field option kits
Field-installable option kit for fixed and drawout breakers.
Catalog number
Description Lock required aN-frame R-Frame
Castell - breaker mounted kit Cylinder CL1019 (SPECIFY “Modified to 90 deg”);
key FKW6-NI
NCASTELLKIT NCASTELLKIT
CES - breaker mounted kit Cylinder 5256-LAG (CAM cylinder 5256, Direction
A); key 90134
NCESKIT NCESKIT
HF Securite (Ronis) - breaker mounted kit 1351-10B NRONISKIT NRONISKIT
Kirk - breaker mounted kit KC40---10 NKIRKKIT NKIRKKIT
Castell - lev-in interlock kit Cylinder CL1019 (SPECIFY “Modified to 90 deg”);
key FKV4-NI
—RFCKLPCASTELL
CES - lev-in interlock kit Cylinder 5256-LAG; key 90134 —RFCKLPCES
HF Securite (Ronis) - lev-in interlock kit 1351-10B — RFCKLPRONIS
Kirk - lev-in interlock kit KC40 — RFCKLPKIRK
Kirk - fixed breaker side mounted kit Series Type F key lock (2 or 3 cylinder) —REXTKIRKF
Kirk - drawout breaker side mounted kit Series Type F key lock (2 or 3 cylinder) —REXTKIRKD
Door interlock - right —IZMX-DI16ON-RW-1 IZMX-DI40ON-RW-1
Door interlock - left —IZMX-DI16ON-LW-1 IZMX-DI40ON-LW-1
Cassette to door interlock — — RFDDINT
a Eaton does not supply lock or key, only the provision.
CES
Castell
Kirk
HF Securite (Ronis)

5
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com

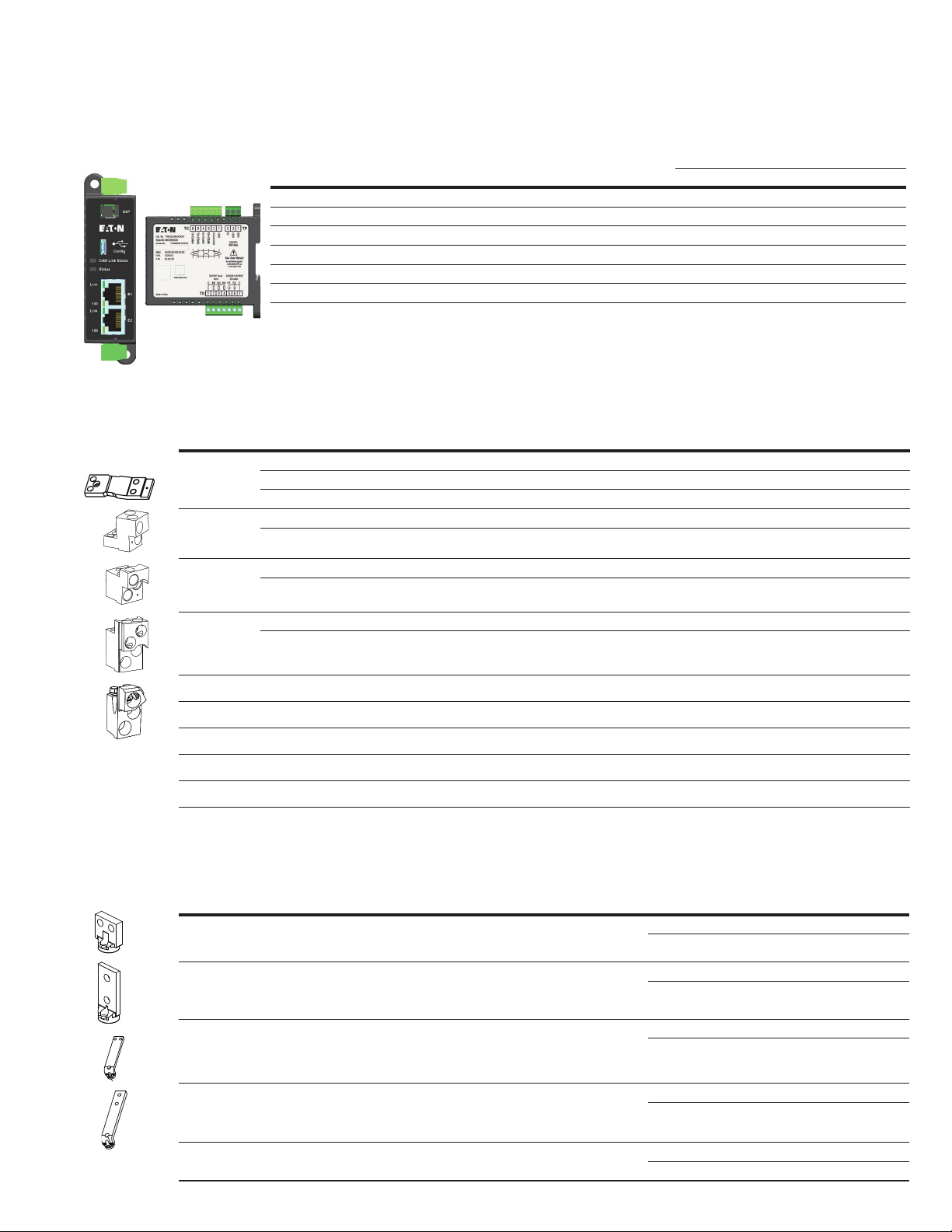

Table 6. Communication modules and accessories
Field-installable option kit for fixed or drawout breakers.
Catalog number
Description N-frame R-frame
Eaton INCOMTM communication adapter module ICAM aICAM a
Modbus® RTU communication adapter module MCAM aMCAM a
PROFIBUS® communication adapter module PXR-PCAM PXR-PCAM 
Modbus®TCP/IP communication adapter module PXR-ECAM-MTCP PXR-ECAM-MTCP 
Wire harness to remotely mount ICAM, MCAM, PCAM, ECAM when used with digitrip NRXCAMREMT NRXCAMREMT 
Wire harness required with ICAM, MCAM, PCAM, ECAM when used with PXR IZMX-CAM-CAB-1 IZMX-CAM-CAB-1 
a Wire harness may be required.
 For use with the PXR trip unit only. Ethernet and Profibus for use with the digitrip are ECAM and PCAM, respectively
(Modbus TCP/IP is not available with digitrip).
 Wire harness is 1 yard in length.
Table 7. Available front connect cable terminals
List number Connector Ratings (kA) To breaker? Catalog number (three-pole)
1Bus conductor extension (42 kA and below) 42 — NRXBUSEXT
Bus conductor extension (50 kA and below) 50 — NRXBUSEXT503
Bus conductor extension (65 kA and below) 65 — NRXBUSEXT653
2Cable terminals (two holes) 65 Yes TA700NB1M
With control wire provisions 65 Yes TA700NB1MCWT
3Cable terminals (three holes) 65 Yes TA1000NB1M
With control wire provisions 65 Yes TA1000NB1MCWT
4Cable terminals (four holes) 65 Load side only aTA1200NB1M
With control wire provisions 65 Load side only aTA1200NB1MCWT
5Cable terminals (three holes for 750 kcmil) 65 Load side only aTA1201NB1M
6Extension kit (TA1201NB1M) 65 Line side only 65A2713G02
7Extension kit (TA1200NB1M) 65 Line side only 65A2713G03
8Extension kit (TA1000NB1M) 65 Line side only 65A2713G04
9Extension kit (TA700NB1M) 65 Line side only 65A2713G05
a For use on line side, user must use catalog number NRXBUSEXT for 42 kA, NRXBUSEXT503 for 50 kA, or NRXBUSEXT653 for 65 kA.
Table 8. Available rear connectors for fixed breakers or cassettes (N-frame)
List number Connector Number of poles Catalog number
1Universal bus adapter—short 3SADP316
4SADP416
2Universal bus adapter—long 3LADP316
4LADP416
3Rear connect adapter extension—short (horizontal holes) 3SBADPI316
4SBADPI416
4Rear connect adapter extension —long (horizontal holes) 3LBADPU316
4LBADPU416
5Front connect 3CASADP316
4CASADP416
ote:N Refer to IL01301016E for installation instructions.

6
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Table 9. Available rear connectors for fixed breakers or cassettes (R-frame)
List number Connector Number of poles Catalog number
1Horizontal/vertical kit 3RFADP3PU32
4RFADP4PU32
2Vertical kit 3RFADP3PV40
4RFADP4PV40
3Horizontal/vertical 4000A kit 3RFADP3PH40
4RFADP4PH40
ote:N Refer to IL01301053E for installation instructions.

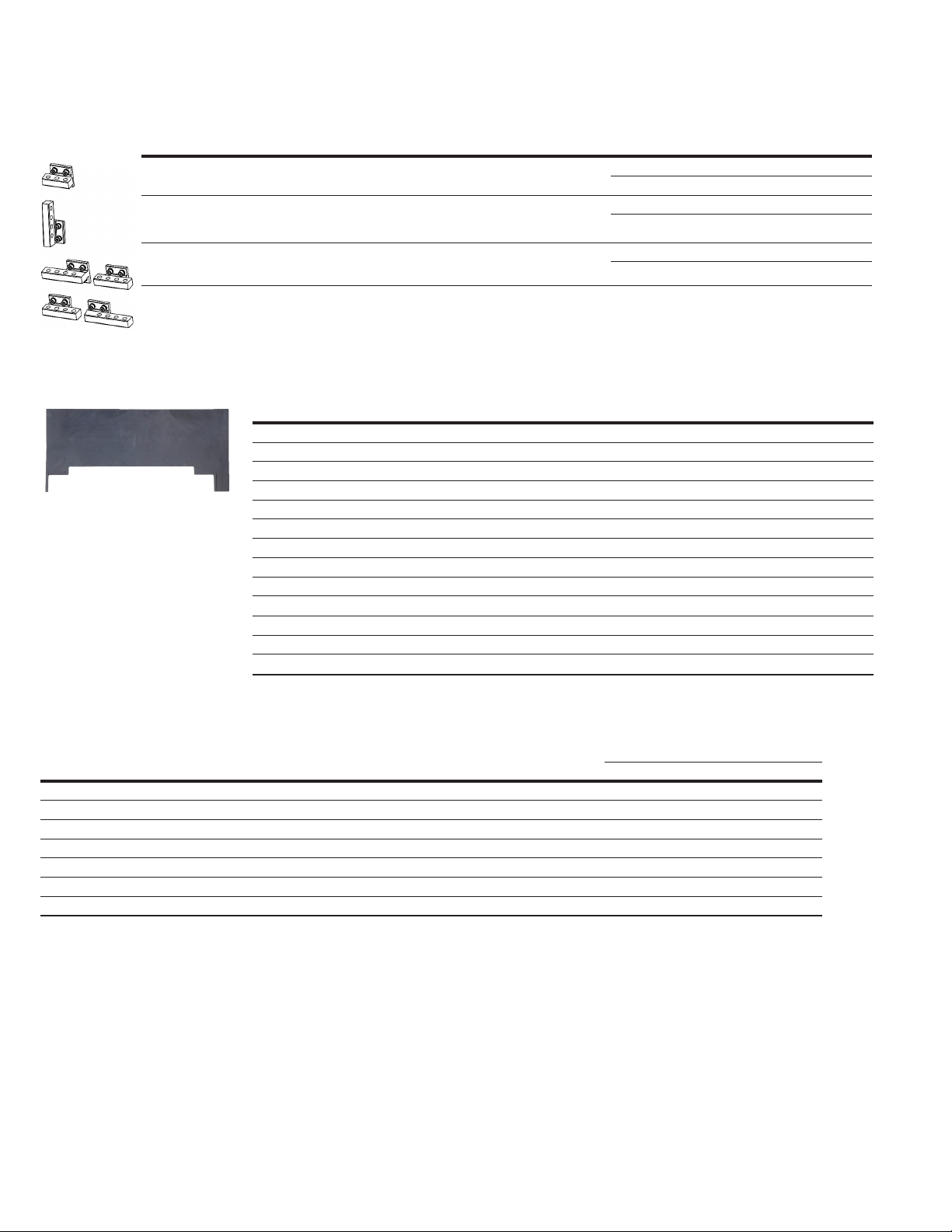

Table 10. Adapter and barrier kits
Description Number of poles Frame Catalog number
Cassette phase barriers 3 NF 3DBAR
Cassette phase barriers 4 NF 4DBAR
Rear connect phase barriers 3 NF 3RBAR
Rear connect phase barriers 4 NF 4RBAR
Front connect phase barriers 3 NF 3FBAR
Front connect phase barriers 4 NF 4FBAR
Cassette interphase barrier kit 3 RF IZMX-IB403-W-1
Cassette interphase barrier kit 4 RF IZMX-IB404-W-1
Horizontal phase barrier kit 3 RF IZMX-IB403H-F-1
Vertical phase barrier kit 3 RF IZMX-IB403-F-1
Horizontal centered phase barrier kit 4 RF IZMX-IB404HC-F-1
Vertical phase barrier kit 4 RF IZMX-IB404-F-1
Horizontal offset phase barrier kit 4 RF IZMX-IB404HO-F-1
Table 11. Door, levering in, and cassette parts and kits
Catalog number
Description N-frame R-frame
Cassette rejection kit CREJBRKIT CREJBRKIT
Drawout door escutcheon and gasket kit DEGK RDEGK
Fixed door escutcheon and gasket kit FEGK RFEGK
Levering in device tool foldable LVIN RFINTRK
Three-pole levering in device NRXLEVIN3 —
Four-pole levering in device NRXLEVIN4 —
Cassette extension rails NRXRAILS —

7
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Table 12. Mechanical interlock parts and kits
Catalog number
Description N-Frame R-Frame
Mechanical interlock kit, 2-way, drawout NFMI2D RFMI2D
Mechanical interlock kit, 3-way, type 31, drawout NFMI31D RFMI31D
Mechanical interlock kit, 3-way, type 32, drawout NFMI32D RFMI32D
Mechanical interlock kit, 3-way, type 33, drawout NFMI33D RFMI33D
Mechanical interlock kit, 2-way, fixed NFMI2F RFMI2F
Mechanical interlock kit, 3-way, type 31, fixed NFMI31F RFMI31F
Mechanical interlock kit, 3-way, type 32, fixed NFMI32F RFMI32F
Mechanical interlock kit, 3-way, type 33, fixed NFMI33F RFMI33F
Mechanical interlock cable 5 feet NRXMIC5 NRXMIC5
Mechanical interlock cable 6 feet NRXMIC6 NRXMIC6
Mechanical interlock cable 8 feet NRXMIC8 NRXMIC8
Mechanical interlock cable 10 feet NRXMIC10 NRKMIC10
ote:N Cable kit must be ordered separately.
Table 13. PXR trip unit replacement kits and parts
Description Catalog number
PXR25 LSIG/LSIA with ARMS and Modbus PXR25V000LGAMK
PXR25 LSI with ARMS and Modbus PXR25V00L0AMK
PXR20 LSIG/LSIA with ARMSs and Modbus PXR20V000LGAMK
PXR20 LSIG/LSIA PXR20V000LG0CK
PXR20 LSI PXR20V000L00CK
PXR20 LSI with ARMS and Modbus PXR20V000L0AMK
External PT module (required for PXR25 voltage metering) NRXDTPTM
PXPM change current kit (license and labels) PXPM-SW-PXRIN-KIT-1
a Each In Programming Tool can be linked to only one breaker. Once linked, it has the capability of changing that one breaker’s continuous current rating, to
any eligible rating, an unlimited number of times.
ote:N For more information, visit www.Eaton.com/PXPM.
Catalog number references
Symbol Function/protection
LLong time trip (overload)
SShort time trip
IInstantaneous trip
GGround (Earth) fault trip
AGround (Earth) Alarm only

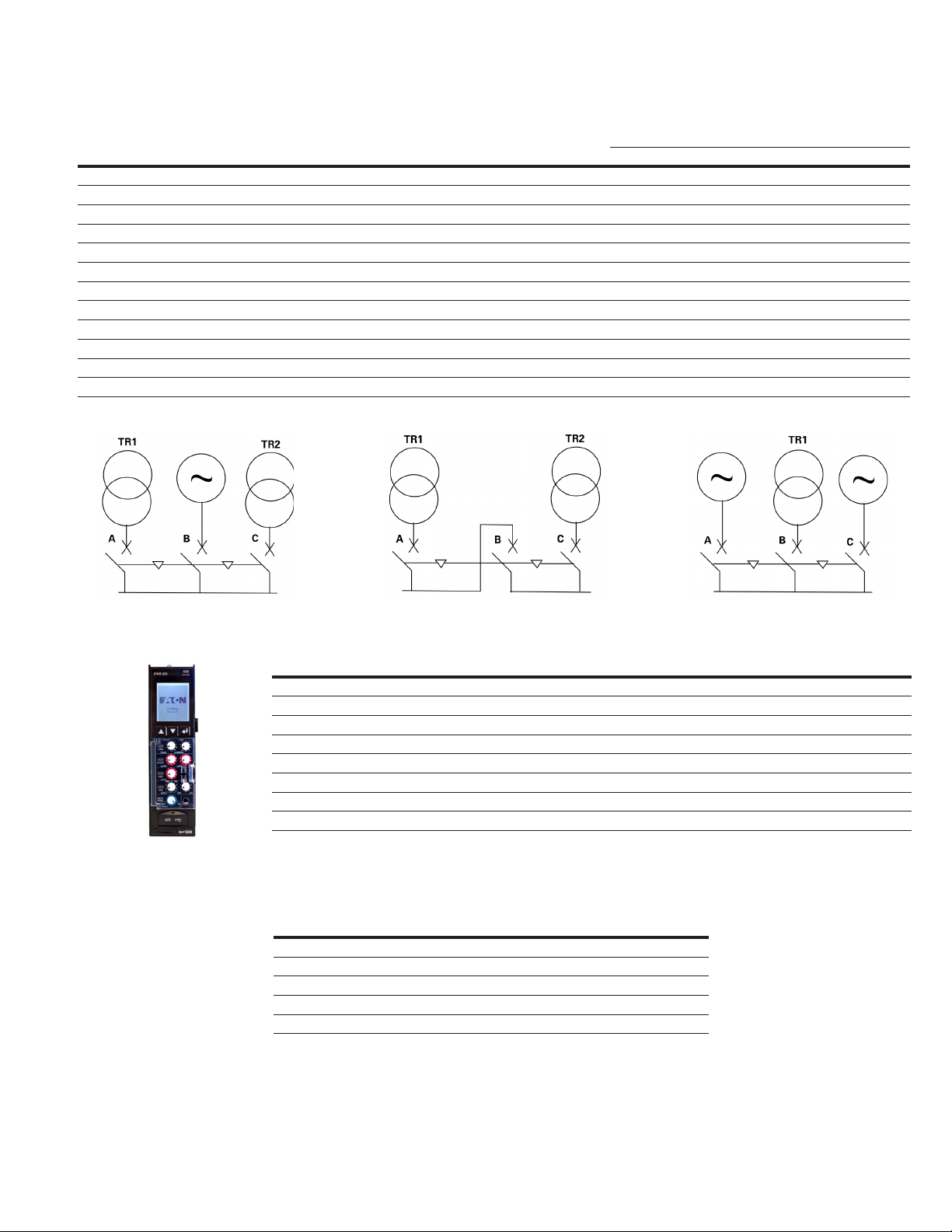

Type 32 Mechanical interlock configuration Type 33 Mechanical interlock configurationType 31 Mechanical interlock configuration

8
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Table 14. Miscellaneous accessories
Catalog number
Description N-Frame R-Frame
N-frame replacement charging handle 65A3059G01 —
Terminal shield kit accessory NRXNFTSI —
Fixed breaker mounting feet kit NRXMTGFEET —
Surface mount hardware kit – Hardware to surface mount NF breaker to panel NFSMHKIT —
Accessory tray –To replace damaged or broken accessory tray LT TRAY —
Ground fault/zero sequence sensor kit –External sensor to detect source ground/zero sequence faults aNFGFSKIT NFGFSKIT
Residual neutral ground sensor kit –External sensor to detect residual ground faults NFNCTKIT RFCSTKIT
Auxiliary switch tray –To replace damaged or broken auxiliary switch tray RT TRAY —
CT to Rowgowski converter assembly PDNFCT2ROG PDRFCT2ROG
a These are sensing CTs with a 400:0.1 (400A:100mA) ratio.
Appendix A: Series NRX with Digitrip
Table 15. Secondary terminal replacement parts, blocks, and kits
Catalog number
Description Kit contents N-frame R-frame
Drawout secondary terminal block kit – digitrip 8 blocks DSBK08 DSBK08
Drawout secondary terminal block kit – digitrip 20 blocks DSBK20 DSBK20
Drawout secondary terminal block kit – digitrip 30 blocks DSBK30 DSBK30
Fixed secondary terminal block kit – digitrip 8 blocks FSBK08 FSBK08
Fixed secondary terminal block kit – digitrip 20 blocks FSBK20 FSBK20
Fixed secondary terminal block kit – digitrip 30 blocks FSBK30 FSBK30
Table 16. Digitrip wiring kits
Catalog number
Description Kit contents N-frame R-frame
Aux power / GF source wire harness 66B2832G27 —
Communication wire harness 66B2832G29 —
GF source enable wiere harness 66B2832G28 —
Wire harness – aux power / GFs 66B3090G01 —
Wire harness – PT module 66B2832G35 —
Wire harness kit 66B3150G11 —
Relay alarm wire harness 66B2832G25 —
Zone interlock jumper wire harness 66B2832G30 —
Zone interlock wire harness 66B2832G26 —
Weidmuller cassette secondary terminal block comb 65A2675G01 65A2675G01

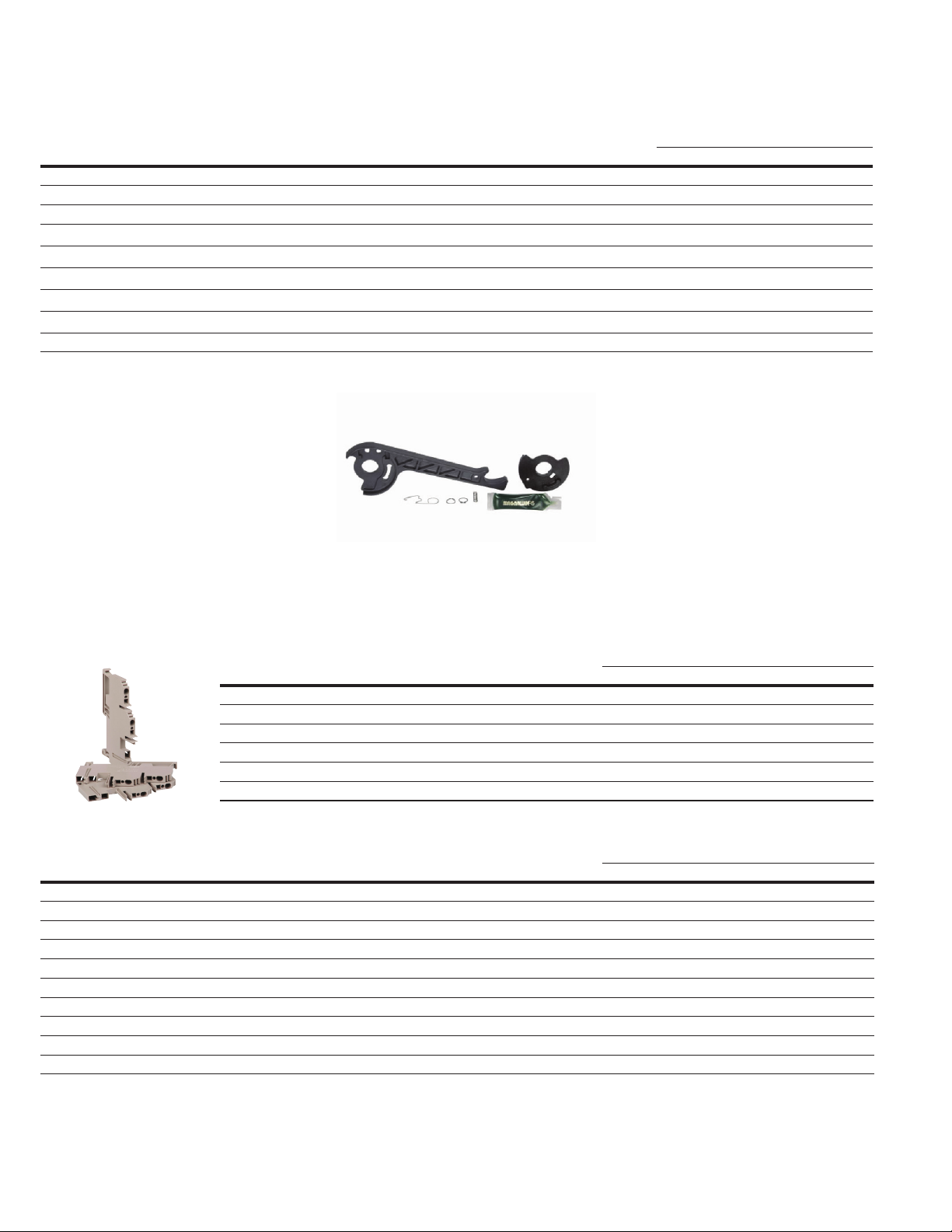

Replacement charging handle –NF

9
Technical Data TD013014EN
Effective May 2021
EATON www.eaton.com
Catalog number
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
Description Control voltage N-frame R-frame
Shunt trip field option kits 110-127 Vac/Vdc STA STA
208-250 Vac/Vdc STR STR
24 Vdc STL STL
48 Vdc STH STH
60 Vdc STS STS
Motor operator field option kits 110-127 Vac/Vdc MOTBW RFMO110AD
208-250 Vac/Vdc MOTPT RFMO230AD
24 Vdc MOTL RFMO24DC
48 Vdc MOTH RFMO48DC
60 Vdc MOTX RFMO60DC
Spring release device field opiton kits 110-127 Vac/Vdc SRA SRA
208-250 Vac/Vdc SRR SRR
24 Vdc SRM SRM
48 Vdc SRH SRH
60 Vdc SRS SRS
Undervoltage release field option kits 110-127 Vac/Vdc UVRA UVRA
208-250 Vac/Vdc UVRB UVRB
24 Vdc UVRL UVRL
48 Vdc UVRH UVRH
60 Vdc UVRS UVRS
Latch check switch for wiring internally to spring release —LCS1 LCS1
Latch check with 1 Form C contact for remote indication —LCS2 LCS2
Mechanical pop-out trip indicator option kit (no contacts) —MTKIT RFMTKIT
Interlock mechanical pop-out trip indicator kit (no contacts) —IMTKIT RFIMTKIT
Bell alarm/OTS kit with mechanical trip indicator (2 Form C contacts) —BAOTSMT BAOTSMT
Bell alarm/OTS contact field option kit (2 Form C contacts) —BAOTS RFBAOTS
Auxiliary switch, 2 contacts, short leads —NRXAUXKT1 NRXAUXKT1
Auxiliary switch, 2 contacts, long leads —NRXAUXKT2 NRXAUXKT2
Cell switch, 1 Form C contact per disconnect, test, and connection position —NRXCSKT NRXCSKT
Mechanical counter —NCOUNTERKIT NCOUNTERKIT
Cassette
cell switch
Auxiliary switch Latch check switch Mechanical trip
indicator
Latch check switch Operations counter
Table 17. Series NRX breaker control replacement parts and kits
Electrical accessories are not compatible with Power Defense breakers, refer back up to Power Defense table for part numbers.

10
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Table 18. Replacement rating plugs for digitrip
Field-installed option kit for fixed and drawout breakers.
Ampere rating
Frame size in (maximum)
630–800 A 1000–1250 A 1600 A a
Group A rating plugs Group B rating plugs Group C rating plugs
Catalog number Catalog number Catalog number
Inof rating plug ———
200 NA200T — —
250 NA250T — —
300 NA300T — —
400 NA400T NB400T —
500 NA500T NB500T —
600 NA600T NB600T —
630 NA630T aNB630T a—
800 NA800T NB800T NC800T
1000 — NB1000T NC1000T
1200 — NB1200T NC1200T
1250 — NB1250T aNC1250T a
1600 — — NC1600T a
a IEC only (not UL listed).
 Not available with the 1150 trip unit.
ote:N Rating plug must be selected based on breaker frame rating.
Table 19. Digitrip replacement kits and accessories
Description Catalog number
Series NRX 1150 LSIG digitrip kit 66B3150G01
Series NRX 1150 LSI digitrip kit 66B3150G02
Series NRX 1150 LSIA digitrip kit 66B3150G03
Auxiliary power cord - US outlet PRTBAPMDV
External PT module NRXDTPTM
120 Vac, 240 Vac hand-held test kit for digitrip 520, 520M, and 1150 series trip unit MTST230V
Harness to upgrade from 520 to 1150 trip units (NF only) 66B3150G11
NRX communication module fixed breaker connector NRXCAMREMT
Catalog number references
Symbol Function/protection
LLong time trip (overload)
SShort time trip
IInstantaneous trip
GGround (Earth) fault trip
AGround (Earth) Alarm only

11
Technical Data TD013014EN
Effective May 2021
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
EATON www.eaton.com
Appendix B: Power defense ICCB with PXR
Table 20. Publications
Description Publication number Frame number
NF frames
Power Defense ICCB—Installation Instructions for Operation Counter IL01301011E NF
Power Defense ICCB—Installation Instructions for Drawout Cassette IP20 Safety Shutters IL01301013E NF
Power Defense ICCB—Installation Instructions for Fixed Breaker Arc Hood IL01301014E NF
Power Defense ICCB—Installation Instructions for Drawout Breaker Primary Adapters IL01301016E NF
Power Defense ICCB—Installation Instructions for Breaker and Cassette Interphase Barriers IL01301021E NF
Power Defense ICCB—Installation Instructions for Pushbutton Cover Kit IL01301041E NF
Power Defense ICCB—Installation Instructions for Drawout Circuit Breaker 2-Way Cable Interlock Kit IL01301069E NF
Power Defense ICCB—Installation Instructions for Drawout Circuit Breaker 3-Way Cable Interlock Kit IL01301070E NF
Power Defense ICCB—Installation Instructions for Fixed Circuit Breaker 2-Way Cable Interlock Kit IL01301071E NF
Power Defense ICCB—Installation Instructions for Fixed Circuit Breaker 3-Way Cable Interlock Kit IL01301072E NF
Power Defense ICCB—Installation Instructions for Cassette Door Interlock IL01301073E NF
Power Defense ICCB with PXR—Instructions for Neutral Current Sensor—Type NF IL0131090EN NF
Power Defense ICCB with PXR—Instructions for Cassette Cell Switch—Type NF IL0131097EN NF
Power Defense ICCB—Fixed Breaker Rear Connect and Front Connect Configurations IL0131123EN NF
Power Defense ICCB with PXR, Type NF low-voltage power (air) circuit breakers instruction manual MN013001EN NF
Power Defense ICCB—Installation Instructions for Pop-Out Mechanical Trip Indicator IL01301019E NF
RF Frames
Power Defense ICCB—Installation Instructions for Drawout Cassette IP20 Safety Shutters IL01301044E RF
Power Defense ICCB—Installation Instructions for Breaker and Cassette Interphase Barrier IL01301048E RF
Power Defense ICCB—Installation Instructions for Rear Primary Adapters IL01301053E RF
Power Defense ICCB—Installation Instructions for Operation Counter IL01301055E RF
Power Defense ICCB—Installation Instructions for Front Connect Adapters IL01301056E RF
Power Defense ICCB—Installation Instructions for Pop-Out Mechanical Trip Indicator IL01301058E RF
Power Defense ICCB—Installation Instructions for Drawout Circuit Breaker 2-Way Cable Interlock Kit IL01301059E RF
Power Defense ICCB—Installation Instructions for Drawout Circuit Breaker 3-Way Cable Interlock Kit IL01301060E RF
Power Defense ICCB—Installation Instructions for Fixed Circuit Breaker 2-Way Cable Interlock Kit IL01301061E RF
Power Defense ICCB—Installation Instructions for Fixed Circuit Breaker 3-Way Cable Interlock Kit IL01301062E RF
Power Defense ICCB—Installation Instructions for Lev-in Key Interlocks IL01301063E RF
Power Defense ICCB—Installation Instructions for Pushbutton Cover Kit IL01301065E RF
Power Defense ICCB—Installation Instructions for Cassette Door Interlock IL01301066E RF
Power Defense ICCB with PXR—Instructions for Neutral Current Sensor—Type RF IL0131094EN RF
Power Defense ICCB with PXR—Instructions for Cassette Cell Switch—Type RF IL0131095EN RF
Power Defense ICCB with PXR, Type RF low-voltage power (air) circuit breakers instruction manual MN013002EN RF

Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2021 Eaton
All Rights Reserved
Printed in USA
Publication No. TD013014EN / VCG
June 2021
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
Power Defense Insulated Case Circuit
Breaker NRX NF and RF Renewal Parts
Technical Data TD013014EN
Effective May 2021
Description Publication number Frame number
NF and RF frames
Power Defense ICCB NF & RF Circuit Breakers with PXR 20/25 Trip Units—Time Current Curves AD013001EN NF and RF
Power Defense ICCB Drawout Circuit Breaker and Cassette Rejection Interlocks IL01301006E NF and RF
Power Defense ICCB—Installation Instructions for Fixed and Drawout Breaker Door Escutcheon IL01301012E NF and RF
Power Defense ICCB—Installation Instructions for IP55 Dust and Water-Resistant Cover IL01301038E NF and RF
Power Defense ICCB—Installation Instructions for Kirk Key Interlock Kit IL01301039E NF and RF
Power Defense ICCB—Installation Instructions for Ronis Key Lock Kit IL01301040E NF and RF
Power Defense ICCB—Installation Instructions for CES Key Lock Kit IL01301049E NF and RF
Power Defense ICCB—Installation Instructions for Castell Key Lock Kit IL01301050E NF and RF
Power Defense ICCB with PXR—Instructions for PT Module IL01301074E NF and RF
Power Defense ICCB with PXR—Instructions for Undervoltage Release, Shunt Trip, and Overcurrent Trip Switch IL0131087EN NF and RF
Power Defense ICCB with PXR—Instructions for Spring Release, Latch Check Switch, and Motor Operator IL0131088EN NF and RF
Power Defense ICCB with PXR—Instructions for Source Ground and Zero Sequence Ground Sensor IL0131089EN NF and RF
Power Defense ICCB with PXR—Instructions for Modbus Communications Adapter Module (MCAM) IL0131091EN NF and RF
Power Defense ICCB with PXR—Instructions for PROFIBUS DP Communications Adaptor Module (PCAM) IL0131092EN NF and RF
Power Defense ICCB with PXR—Instructions for Secondary Terminal Blocks IL0131093EN NF and RF
Power Defense ICCB with PXR—Instructions for Auxiliary Switch IL0131096EN NF and RF
Power Defense ICCB with PXR—Instructions for INCOM Communications Adapter Module IL0131124EN NF and RF
Power Defense ICCB with PXR—Installation Instructions for Ethernet Communications Adapter Module IL0131125EN NF and RF
PXR 20/25 Trip Unit for Power Defense ICCB Screen Navigation Guide IL0131128EN NF and RF
Time Delay Undervoltage Module for use with Undervoltage Release in Eaton Circuit Breakers IL5721B33 NF and RF
PXR 20/25 Trip Unit for Power Defense ICCB User Manual MN013003EN NF and RF
Power Defense ICCB with PXR Circuit Breaker Wiring Diagrams TD013001EN NF and RF
Table 20. Publications (continued)
