Eaton WaveLinx Operating instructions

User and Programming Manual WaveLinx
This document is intended for installers, set-up technicians and
IT professionals of the WaveLinx Wireless Connected Lighting System
Engage appropriate network security professionals to ensure all lighting control system hardware and servers
are secure for access.
Ensure IT professionals review the WaveLinx network architecture document found at the end of this manual.
Network security is an important issue. Typically, the IT organization must approve configurations that expose
networks to the Internet. Be sure to fully read and understand customer IT Compliance documentation.
DISCLAIMER OF LIABILITY: Eaton assumes no liability for damages or losses of any kind that may arise from the
improper, careless, or negligent installation, handling or use of the products.
IMPORTANT: This manual provides information on the installation and operation of WaveLinx Wireless Connected
Lighting System. For proper operation it is important to follow the installation instructions for each product/component.
ATTENTION
Network
Security

2
WaveLinx User Manual
www.eaton.com/wavelinx
WaveLinx User Manual - Table of contents
Becoming Familiar with WaveLinx System Components....................................................................................................................5
Bringing the System Online ................................................................................................................................................................9
Step 1: Confirming Device Installation.....................................................................................................................................9
Step 2: Completing the Initial Construction Grouping .............................................................................................................11
Using the Mobile Application to Pair Devices ............................................................................................................16
Operation of Devices within the Construction Grouping ...........................................................................................17
Step 3: Connecting to the Mobile Application as the Administrator User...............................................................................18
Mobile Application Basic Familiarity...........................................................................................................................21
Step 4: Organizing Devices into Controlled Areas and Zones .................................................................................................27
Automatic Code Commissioning Operation.............................................................................................................................34
Using the WaveLinx Mobile Application for Personal Control .............................................................................................................35
Connecting with the Mobile Application as the Default Personal Control User ......................................................................35
Assign a Favorite Area for Personal Control Users ..................................................................................................................36
Control the Lighting as a Personal Control User......................................................................................................................37
Customizing the Automatic Code Commissioning Programming .......................................................................................................38
Modifying Names of Areas, Zones and Devices......................................................................................................................38
Modifying Scene Response .....................................................................................................................................................40
Modifying Zone Response .......................................................................................................................................................43
Modifying Minimum and Maximum Levels (High and Low End Trims)......................................................................43
Modifying Zone Operational Mode ............................................................................................................................45
Modifying Wallstation Button Response ..................................................................................................................................48
Standard Wallstation Default Button Response .........................................................................................................48
Battery Powered Wallstation Default Button Response.............................................................................................49
Changing Default Button Response...........................................................................................................................50
Copying Wallstation Programming to Other Wallstations ..........................................................................................53
Additional Wallstation Information..............................................................................................................................56
Modifying Occupancy Sensor Response .................................................................................................................................57
Adjusting Occupancy Set Response and Controlled Zones.......................................................................................57
Viewing and Adjusting Individual Sensor Settings .....................................................................................................61
Defining Additional Occupancy Sets ..........................................................................................................................62
Associating Occupancy Sets for Overlapping or Cascading Control..........................................................................66
Deleting Occupancy Sets...........................................................................................................................................70
Modifying Light Levels for Daylight Sensors ...........................................................................................................................71
Modifying Closed Loop Daylighting Control...............................................................................................................72
Configuring Open Loop Daylighting Control...............................................................................................................81

3
WaveLinx User Manual
www.eaton.com/wavelinx
Adding Schedule Events to the Control Strategy.....................................................................................................................91
Basic Schedule Event Screen Information .................................................................................................................95
Modifying and Testing Demand Response Behavior................................................................................................................95
Modifying Demand Response Behavior.....................................................................................................................96
Testing Demand Response ........................................................................................................................................97
Performing Administrator Tasks ...........................................................................................................................................................99
Logging into the Wireless Area Controller Webpages .............................................................................................................100
Setting the System Location, Time, Date and Time Zone ........................................................................................................102
Managing User Accounts and Passwords................................................................................................................................105
Modifying Existing User Accounts and Passwords....................................................................................................105
Adding a New User Account......................................................................................................................................106
Deleting a User Account ............................................................................................................................................107
Using the Backup and Restore User Accounts Option ..............................................................................................108
Restoring User Accounts from a Backup ...................................................................................................................110
Using the Mobile Application to Change Passwords .................................................................................................111
Renaming the Wireless Area Controller...................................................................................................................................112
Performing a System Backup ...................................................................................................................................................112
Performing a System Restore ..................................................................................................................................................114
Viewing Disclaimers and End User License Agreements........................................................................................................116
Viewing and Updating Firmware of the Wireless Area Controller and WaveLinx Devices ......................................................116
Viewing Firmware of the Wireless Area Controller....................................................................................................116
Updating the Firmware/Software of the Wireless Area Controller ............................................................................117
Updating the Firmware of WaveLinx Devices............................................................................................................118
Advanced Network Administration...........................................................................................................................................121
Changing Wi-Fi Access Point Settings........................................................................................................................121
Changing Wi-Fi Settings .............................................................................................................................................122
Changing Ethernet Settings .......................................................................................................................................123
Changing DNS Settings..............................................................................................................................................123
Custom Certificates ...................................................................................................................................................123
Rebooting the Wireless Area Controller...................................................................................................................................124
Viewing the Mobile Application Version ...................................................................................................................................124
Updating the Mobile Application..............................................................................................................................................125
Replacing and Syncing Devices using the Mobile Application.................................................................................................125
Using the Wireless Area Controller PAIR Button Advanced Functionality................................................................................130
Common Questions ............................................................................................................................................................................131

4
WaveLinx User Manual
www.eaton.com/wavelinx
Welcome and Introduction
The WaveLinx Wireless Connected Lighting System offers wireless, code-compliant control in a simple, easy to install and manage format.
Designed with ease of use in mind, the WaveLinx wireless system installs and configures quickly to capture immediate energy and
cost savings.
architectural
LED lighting
fixture with
occupancy and
daylighting
sensor
occupancy
sensor
scene
wallstation
building
LAN
insight
manager pro
BACnet
Public API (REST)
additional
wireless
area controller
(WAC)
wireless
area controller
(WAC)
recessed
LED lighting
fixtures WaveLinx
mobile
app
dimming
relay
J-box and
conduit
controlled
receptacle battery
wallstation
tile
mount
sensor
ambient LED
lighting
fixtures with
occupancy and
daylighting
sensor
outdoor
area/site/flood
LED lighting
fixtures
Lighting Xpert Insight
software Outdoor
Indoor
Use this user manual to:
• Quickly bring the system online with default functionality and automatic code commissioning that meets or exceeds code requirements.
• Operate lighting from the WaveLinx Mobile Application’s personal control option.
• Modify operation of automatic code commissioning to meet different operation requirements through adjustment of scenes, occupancy
sensors, daylight sensors, schedule behavior, and demand response operation.
• Perform administrator tasks to set the system time, date and location, change usernames and passwords, backup and restore databases,
update software and firmware, and perform advanced network connection functions.

5
WaveLinx User Manual
www.eaton.com/wavelinx
Becoming Familiar with WaveLinx System Components
The following devices may be used in a WaveLinx Wireless Connected Lighting System.
Insight Manager Pro Lighting Xpert Insight
The Insight Manager and Lighting Xpert Insight software are optional for sites that want to have enterprise-level functionality.
This functionality includes data centralization from networked WaveLinx Wireless Area Controllers, alarms and events management,
exposing the data from the Wireless Area Controllers to third party system via BACnet and Public API (REST), user management and
system backup. The Insight Manager and Lighting Xpert Insight software will not be discussed in this user guide. Refer to the specific
materials for these products for further information.
Wireless Area Controller
The Wireless Area Controller (WAC) is the central communications
coordinator for the WaveLinx system. A Wireless Area Controller
can coordinate communication to up to 200 (100 best practice)
devices within its wireless range. The Wireless Area Controller
can operate as a standalone coordinator, or may be connected to
a building network with other Wireless Area Controllers to meet
larger building requirements. Installed as a standalone system, the
Wireless Area Controller uses its internal wireless Wi-Fi access point
to communicate to the WaveLinx Mobile Application installed on a
user provided iOS or Android smart phone or tablet. Installed in an
Ethernet connected system or connected to the building network
by Wi-Fi, each Wireless Area Controller operates independently
for its paired devices, using the connected building network to
communicate to the WaveLinx Mobile Application.
WaveLinx Mobile Application
Use the WaveLinx Mobile Application to commission the WaveLinx
Wireless Connected Lighting System. Once the system is
operational, use the WaveLinx Mobile Application to personally
control specific areas and zones in the facility, or to change the
automatic code commissioning programmed behavior. The WaveLinx
Mobile Application is available from the App Store or Google Play
and is compatible with devices running on an iOS 11+ or Android 7+
operating system.
Insight Manager Enterprise and Virtual

6
WaveLinx User Manual
www.eaton.com/wavelinx
WaveLinx Dimming Switchpack with 0-10V
Use the WaveLinx Dimming Switchpack with 0-10V to wirelessly
control a zone of switched loads or 0-10V lighting loads. Each
switchpack operates as a WaveLinx wireless router and endpoint.
The switchpack is rated for control of LED or other electronic ballast
loads of up to 16 amps and general purpose or receptacle loads of
up to 20 amps. The WSP-MV-010 0-10V output sinks up to 120mA
for support of approximately 60 ballasts/drivers (2mA each).
The WSP-CA-010 0-10V output sinks up to 30mA for support of
approximately 30 ballasts/drivers. The WaveLinx relay switchpack
includes power measurement capability for display within the
WaveLinx Mobile Application.
WSP-MV-010
WSP-CA-010
WaveLinx Integrated Sensor
Eaton offers many options for luminaires pre-configured with
a WaveLinx Integrated Sensor. The in-fixture sensor operates
as a WaveLinx wireless communications router as well as an
occupancy/vacancy sensor, closed loop daylight sensor, and power
measurement point. The standard ambient integrated sensor is also
available in a model equipped with Bluetooth®technology to allow
for future options.
WaveLinx Industrial Integrated Sensor
The WaveLinx Industrial Integrated Sensor installs as an option into
many Eaton industrial light fixtures. The fixture mounted sensor
operates as a WaveLinx wireless communications router as well
as an occupancy/vacancy sensor, closed loop daylight sensor, and
power measurement point. Different models allow for low bay
mounting heights of 7-15 feet (2.1 – 4.5m) or high bay mounting
heights of 15-40 feet (4.5 – 12.2m).

7
WaveLinx User Manual
www.eaton.com/wavelinx
WaveLinx Outdoor Integrated Sensor
The WaveLinx Outdoor Integrated Sensor installs as an option into
many Eaton outdoor light fixtures. The fixture mounted sensor
operates as a WaveLinx wireless communications router as well
as an occupancy sensor, closed loop daylight sensor, and power
measurement point. Different models allow for low mounting
heights of 7-15 feet (2.1 – 4.5m) or high mounting heights of
15-40 feet (4.5 – 12.2m).
WaveLinx Tilemount Daylight Sensor
The WaveLinx Tilemount Daylight Sensor paired with a control
module offers wireless daylighting functionality to connected
0-10V lighting loads. Like the integrated sensor, the tilemounted
sensor operates as a WaveLinx wireless communications router
and functions as a closed loop daylight sensor within the WaveLinx
Mobile Application.
WaveLinx Ceiling Sensor
Use the WaveLinx Ceiling Sensor to add additional occupancy/
vacancy sensor functionality or to add open loop daylighting
capability to the WaveLinx system. Each ceiling sensor operates as a
WaveLinx wireless endpoint. The ceiling sensor uses passive infrared
technology for occupancy/vacancy sensing. The ceiling sensor also
contains a daylight sensor capable of controlling multiple lighting
zones in an open loop daylighting application. The WaveLinx Ceiling
Sensor is battery powered, mounting easily where needed.
WaveLinx Wireless Outdoor Lighting Control Module
The WaveLinx Wireless Outdoor Lighting Control Module (WOLC)
offers control of outdoor luminaires from the WaveLinx system
or to add basic open loop daylighting to OFF capability to outdoor
applications. Fixtures equipped with the wireless outdoor lighting
control module and connection receptacle allow for ON/OFF
and/or 0-10V dimming control from the onboard open loop daylight
sensor as well as schedules and other WaveLinx system devices.
The wireless outdoor lighting control module can report power
measurement data for its connected load for display within the
WaveLinx Mobile Application.

8
WaveLinx User Manual
www.eaton.com/wavelinx

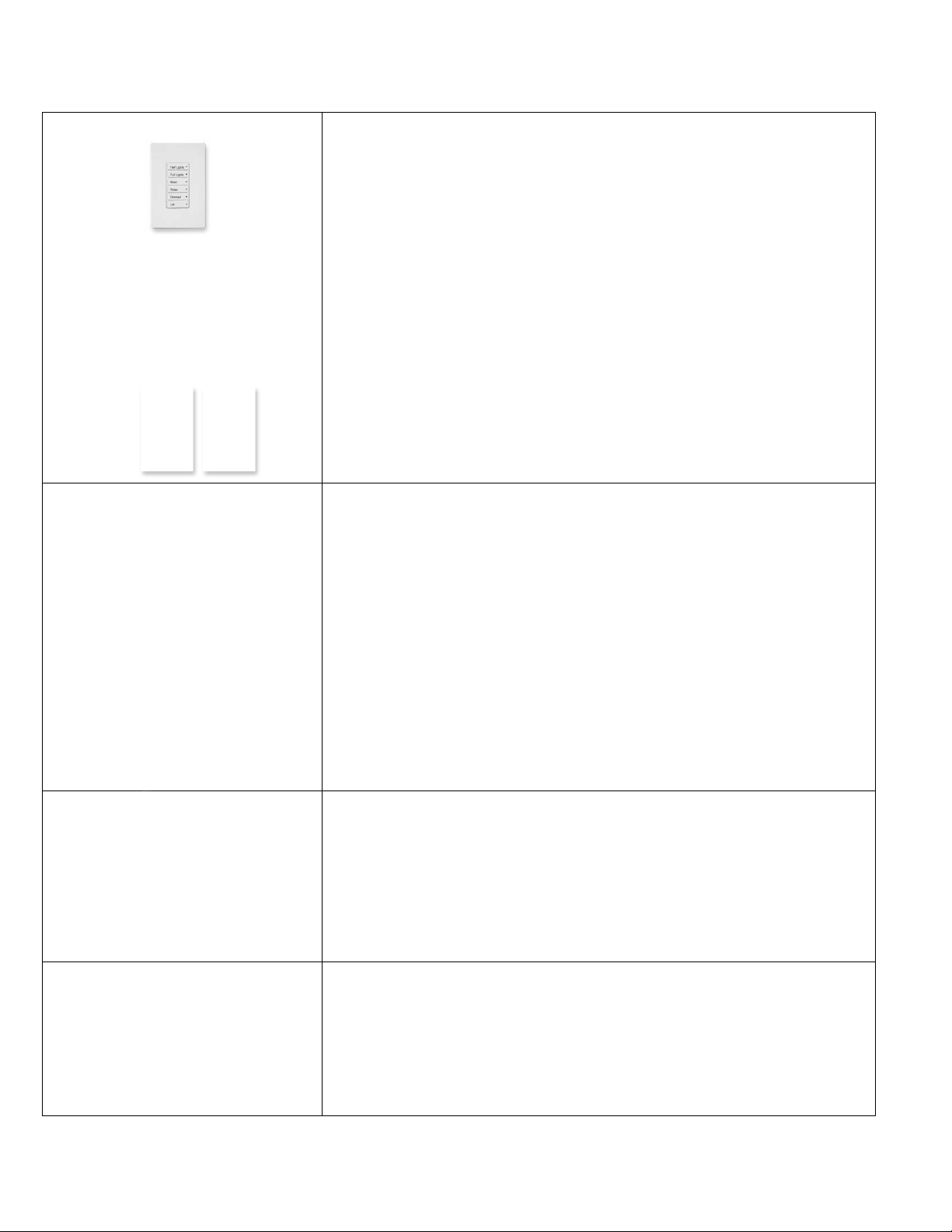

WaveLinx Wallstation (standard line voltage powered) WaveLinx Battery Powered Wallstation
Use the WaveLinx Wallstations to manually operate wirelessly connected loads. Models include standard WaveLinx Wallstations that
connected to line voltage power and WaveLinx Battery Powered Stations that simplify retrofit installations. Operation includes button
configuration support for scene selection, scene raise/lower, zone level, zone raise/lower, and scene and zone toggle capability.
Other supported functions for special applications include hold/release occupied and save scene capability.
WaveLinx Receptacle
Use the WaveLinx Receptacle to simplify plug load control
requirements. Each receptacle operates as a WaveLinx wireless
communication router. The duplex receptacle provides a constantly
powered bottom outlet and a wirelessly controlled top outlet that
operates with other WaveLinx controls. The WaveLinx Receptacle
includes power measurement capability for display within the
WaveLinx Mobile Application.
WR-15 WR-20

9
WaveLinx User Manual
www.eaton.com/wavelinx
Bringing the System Online
The WaveLinx Wireless Connected Lighting System configures quickly to allow immediate energy savings. Use the steps in this section to:
• Step 1: Confirm that installed devices are ready for configuration
• Step 2: Complete initial construction grouping to prepare for mobile application use
• Step 3: Initiate communications with the WaveLinx Mobile Application
• Step 4: Organize devices into controlled areas and zones for automatic code commissioning operation
Step 1: Confirming Device Installation
Before configuring devices, ensure that they are ready by verifying installed operation.
Device Default LED Functionality Operational Functionality Out-of-the-Box
Wireless Area Controller
WAN LED
LAN LED
Wi-Fi LED
not used
802.15.4 LED
Eaton LED
After a 1 minute power up period:
•EATON logo LED: Blue LED should illuminate the
Eaton logo and remain ON.
•802.15.4 LED: Blue LED should illuminate and
remain ON.
Note: The green LAN LED may also be illuminated if
the controller is connected to a building LAN with a
DHCP server. Other LEDs should be OFF.
Not Applicable for this device.
WaveLinx Wireless Dimming Switchpack
(WSP-MV-010: 120-277VAC model)
The white LED on this wireless Dimming Switchpack
model illuminates to indicate the load is ON. If the
onboard commissioning push button is pressed for less
than 4 seconds, the LED and attached load will toggle
state.
•Connected loads will turn ON and 0-10V dimmable
loads will go to 75% once power is applied.
•Load remains ON at 75% unless commissioning
push button is used for manual override.
WaveLinx Wireless Dimming Switchpack
(WSP-CA-010: 120-347VAC model)
Not applicable. This wireless Dimming Switchpack
model has no onboard LED indicators.
Connected loads will turn ON and remain ON with
dimmable loads at a 100% level.
WaveLinx Integrated Sensor
(including standard and Bluetooth enabled models)
LED in sensor window should blink green with motion
detection. The green LED color indicates that the
integrated sensor has not yet been paired with a
Wireless Area Controller.
(If the LED blinks white, this indicates that the sensor
has been previously paired with a Wireless Area
Controller. See page 135 for information on resetting
the pairing.)
Fixture operates via the onboard occupancy sensor.
•Occupancy turns fixture ON to 75%.
•Fixture will turn OFF within 20 minutes
when space is vacant.
Note: Daylighting is disabled until the fixture is
assigned to an area using the WaveLinx Mobile
Application.
WaveLinx Industrial Integrated Sensor LED in sensor window should blink green with motion
detection. The green LED color indicates that the
integrated sensor has not yet been paired with a
Wireless Area Controller.
(If the LED blinks white, this indicates that the sensor
has been previously paired with a Wireless Area
Controller. See page 135 for information on resetting
the pairing.)
Fixture operates via the onboard occupancy sensor.
•Occupancy turns fixture ON to 100%
•Fixture will dim to 10% within 20
Note: Daylighting is disabled until the fixture is
assigned to an area using the WaveLinx Mobile
Application.

10
WaveLinx User Manual
www.eaton.com/wavelinx
WaveLinx Outdoor Integrated Sensor LED in sensor window should blink green with motion
detection. The green LED color indicates that the
integrated sensor has not yet been paired with a
Wireless Area Controller.
(If the LED blinks white, this indicates that the sensor
has been previously paired with a Wireless Area
Controller. See page 135 for information on resetting
the pairing.)
Fixture operates via the onboard daylight and
occupancy sensors.
•ON at dusk / OFF at dawn
•If fixture is ON at dusk, the occupancy sensor
determines the light level.
•If occupied, the fixture will go to 100%.
•The fixture will dim to 50% within 15 minutes
when the space is unoccupied.
WaveLinx Tilemount Sensor LED in sensor window should blink green with motion
detection. The green LED color indicates that the
integrated sensor has not yet been paired with a
Wireless Area Controller.
(If the LED blinks white, this indicates that the sensor
has been previously paired with a Wireless Area
Controller. See page 135 for information on resetting
the pairing.)
Fixture operates via the onboard occupancy sensor
which can later be disabled during configuration.
•Occupancy turns connected 0-10V dimmable
fixture ON to 75%.
•Fixture will turn OFF within 20 minutes when
space is vacant.
Note: Daylighting is disabled until the fixture is
assigned to an area using the WaveLinx Mobile
Application.
WaveLinx Ceiling Sensor LED may flash red once approximately every 10
seconds indicating that the unit is powered.
This device does not have out-of-the-box functionality
and will not operate until it is successfully paired
with a Wireless Area Controller.
WaveLinx Wireless Outdoor Lighting Control Module Not applicable. The WaveLinx Wireless Outdoor
Lighting Control Module has no onboard LED
indicators.
Fixture turns ON to 100% upon power up and then
after a short evaluation period begins operation
from the onboard daylight sensor. The fixture will
then switch ON at dusk or OFF at dawn based on the
daylight sensor and availability of daylight until the
device is paired with the Wireless Area Controller.
WaveLinx Wallstation If a button is pressed, the LED on that button will flash
slowly for approximately 10 seconds and then stop.
This device does not have out-of-the-box functionality
until it is successfully paired with a Wireless Area
Controller.

11
WaveLinx User Manual
www.eaton.com/wavelinx
WaveLinx Wallstation Battery Powered All LEDs will be off as the station is automatically in
“sleep” mode to conserve battery life.
A red LED below the bottom button may flash if a
finger is within 5 cm of the buttons or a button is
pressed, triggering the proximity sensor to “wake”
the station and request an updated LED status.
The button LEDs should remain off until the station
is paired with the WAC.
This device does not have out-of-the-box functionality
and will not operate until it is successfully paired with
a Wireless Area Controller.
WaveLinx Receptacle Green LED on controlled outlet illuminates indicating
that the controlled outlet is powered. If the onboard
manual push button is pressed, the LED and
controlled outlet will toggle state.
The controlled and uncontrolled outlets will turn ON
once power is applied.
Manual push button operation toggles controlled
outlet between ON and OFF state.
Quick Links for Common Questions
• One or more of my devices does not display the correct out-of-the-box functionality. What should I do? See the answer on page 108.
Step 2: Completing the Initial Construction Grouping
Once the device installation and electrical connections are confirmed, use the following steps to complete the initial construction grouping.
The construction grouping process pairs devices with the Wireless Area Controller, forms one large default control group for basic operation
during construction, and prepares devices for configuration from the WaveLinx Mobile Application.
1: On the site floorplan, locate the WaveLinx Wireless Area Controller and identify the WaveLinx devices that should be paired to it. Sites
designed to use multiple Wireless Area Controllers should identify the devices that belong to each controller so that they can be correctly
paired with the appropriate Wireless Area Controller according to the design plan.

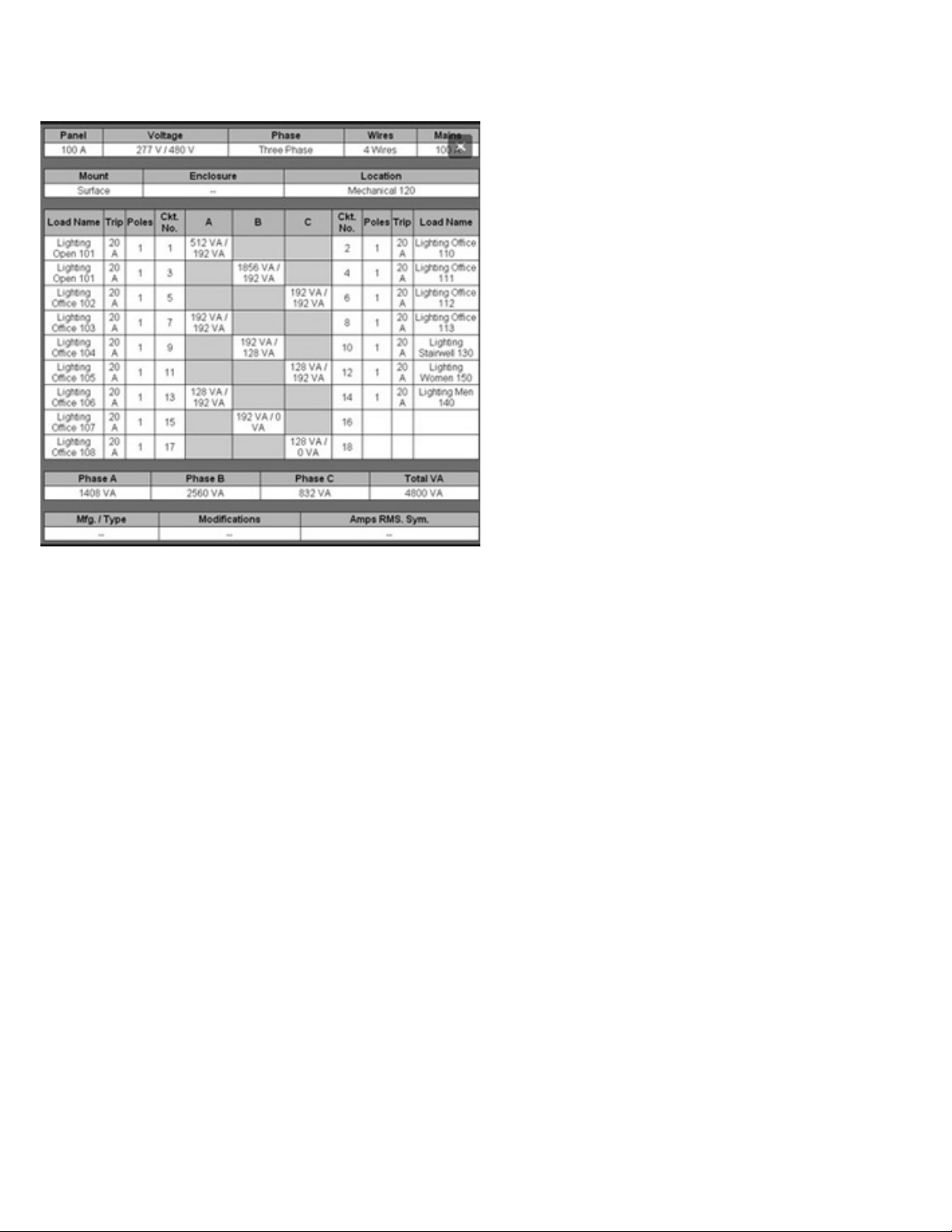

2: Identify the circuit breakers supplying power to each of the WaveLinx devices that will be paired with the first Wireless Area Controller.
This includes circuits that power fixtures with WaveLinx Integrated Sensors, fixtures connected to WaveLinx Tilemount Sensors, fixtures with
Wireless Outdoor Lighting Control Modules, lighting connected to WaveLinx wireless Dimming Switchpacks as well as circuits connected to
WaveLinx Receptacles and Wallstations.

12
WaveLinx User Manual
www.eaton.com/wavelinx
3: Press and release (1 second press) the PAIR button located on the rear panel of the Wireless Area Controller. The blue 802.15.4 LED
on the Wireless Area Controller will blink at a rate of one blink per second to indicate the Wireless Area Controller is in pairing mode.
The Wireless Area Controller pairing mode automatically times-out after 60 minutes or can be manually exited by pressing and releasing
(1 second press) the PAIR button again.

13
WaveLinx User Manual
www.eaton.com/wavelinx
4: Place devices into pairing mode. See the below chart for information on how to place specific devices in pairing mode:
Device Type How to place pairing mode
WaveLinx Wireless Dimming Switchpack
(WSP-MV-010: 120-277VAC model)
Cycle the power (switch OFF and then ON) of each identified circuit using the circuit breakers. This places the
devices into pairing mode and starts their search for a Wireless Area Controller. Pairing mode automatically
times-out after 60 minutes if a device does not successfully pair with a Wireless Area Controller. Only unpaired
devices will enter pairing mode on the power cycle.
Note: Standard WaveLinx Wallstations (line voltage powered) will also respond to this pairing technique.
WaveLinx Integrated Sensor
WaveLinx Tilemount Sensor
WaveLinx Industrial Integrated Sensor
WaveLinx Outdoor Integrated Sensor

14
WaveLinx User Manual
www.eaton.com/wavelinx
WaveLinx Wallstation Press any button on the Wallstation to initiate a PAIR request from any unpaired wallstation.
•On the standard WaveLinx Wallstation (line voltage powered), the LED on the button pressed should flash
slowly for approximately 10 seconds.
•On the WaveLinx Battery Powered Wallstation, the red LED below the buttons may flash briefly when the
proximity sensor detects someone near and may flash intermittently during the pairing process. No other
feedback from button LEDs will occur.
WaveLinx Wallstation Battery Powered
WaveLinx Wireless Outdoor Lighting Control Module If in an unpaired state, these devices will automatically pair when they receive the Wireless Area Controller
PAIR mode signal. The search command re-initiates every 20 minutes until a pair forms. A power cycle to these
devices will cause the search to start again approximately 20 seconds after the initial power up.
WaveLinx Wireless Dimming Switchpack
(WSP-CA-010: 120-347VAC model)
WaveLinx Ceiling Sensor Within the 60 minute pairing period, use one of the following methods to place each of the Occupancy Sensors
into PAIR mode:
•(Preferred method) Press the wireless PAIR button onboard the sensor to initiate the pair process.
•Shine a bright flashlight into the lens of each battery powered ceiling sensor to place the sensor into
PAIR mode.
•Motion activity may also trigger the sensor into PAIR mode although this method is less reliable.
The LED in the sensor window will flash ON and OFF for 10 seconds to indicate it is in pairing mode before
going back to its normal blink pattern.
WaveLinx Receptacle Within the 60 minute pairing period, at each receptacle location, press and hold down the manual push button
for 5 seconds and then release the push button when the LED starts flashing red.
(Note: The LED may flash red or cycle between green and amber during the pairing process).
ote:N During the 60 minute pairing period, devices may exhibit paired behavior. It is possible to confirm successful WaveLinx device pairing by verifying that
each device’s exhibits this behavior. It is also possible to confirm pairing after the pairing process is complete. Refer to the chart below to see a device’s
expected behavior during initial pairing.

15
WaveLinx User Manual
www.eaton.com/wavelinx
Device Successfully Paired Behavior (during initial pairing)
WaveLinx Wireless Dimming Switchpack
(WSP-MV-010: 120-277VAC model)
Connected 0-10V dimmable fixtures dim to 10%.
WaveLinx Wireless Dimming Switchpack
(WSP-CA-010: 120-347VAC model)
Fixture dims briefly when paired then turns ON to a brighter light level and remains ON.
It may be difficult to review paired behavior during the initial pairing cycle. Pairing can be verified after PAIR
mode exits (see chart that follows this section).
WaveLinx Integrated Sensor Fixture dims to 10%.
LED in sensor window should blink WHITE with motion detection.
WaveLinx Industrial Integrated Sensor Fixture dims to 10%.
LED in sensor window should blink WHITE with motion detection.
WaveLinx Outdoor Integrated Sensor Fixture dims to 10%.
LED in sensor window should blink WHITE with motion detection.
WaveLinx Tilemounted Sensor Connected 0-10V dimmable fixtures dim to 10%.
LED in sensor window should blink WHITE with motion detection.
WaveLinx Ceiling Sensor There is no immediate feedback that pairing was successful. Pairing will be verified through the mobile
application in a later step.
WaveLinx Wireless Outdoor Lighting Control Module Fixture dims briefly when paired then turns ON to a brighter light level and remains ON.
It may be difficult to review paired behavior during the initial pairing cycle. Pairing can be verified after PAIR
mode exits (see chart that follows this section.)
WaveLinx Wallstation
standard line voltage powered
Once successfully paired, all button LEDs will flash in a top to bottom the bottom to top pattern until pairing
mode is exited.
WaveLinx Battery Powered Wallstation There is no immediate feedback that pairing was successful. Pairing will be verified through the mobile
application in a later step.
WaveLinx Receptacle During pairing, the outlet LED may flash red or may flash green to amber. The outlet may turn OFF for a period
of time and then turn back ON. The duration of the OFF period may vary but should not last longer than 5
minutes.
It may be difficult to review paired behavior during the initial pairing cycle. Pairing can be verified after PAIR
mode exits (see chart that follows this section).
5: Either allow the pairing mode’s 60 minute automatic time-out period to expire, or if all devices appear to have paired successfully,
manually cancel pairing mode. To manually cancel pairing mode, if the Wireless Area Controller’s blue 802.15.4 LED is still flashing, press and
release the PAIR button (1 second press) to exit pairing mode. (If PAIR mode has already exited automatically, the blue 802.15.4 LED will be
ON continuously.)
6: If not confirmed during the initial pairing process, verify devices paired with the Wireless Area Controller successfully. The chart below
describes how to verify that items have paired after exiting the initial pairing mode. All devices in the default construction area should exhibit
the behavior shown below.
Device Method 1: Press the PAIR mode button on the
Wireless Area Controller to place the controller
in PAIR mode again.
Method 2: Verify by method described below
WaveLinx Wireless Dimming Switchpack
(WSP-MV-010: 120-277VAC model)
Paired device behavior:
Connected 0-10V dimmable fixtures dim to 10%.
WaveLinx Wireless Dimming Switchpack
(WSP-CA-010: 120-347VAC model)
Paired device behavior:
Connected 0-10V dimmable fixtures dim to 10%.
WaveLinx Integrated Sensor Paired device behavior:
Fixture dims to 10%.
LED in sensor window should blink WHITE with motion
detection.
WaveLinx Industrial Integrated Sensor Paired device behavior:
Fixture dims to 10%.
LED in sensor window should blink WHITE with motion
detection.
WaveLinx Outdoor Integrated Sensor Paired device behavior:
Fixture dims to 10%.
LED in sensor window should blink WHITE with motion
detection.

16
WaveLinx User Manual
www.eaton.com/wavelinx
WaveLinx Tilemounted Sensor Paired device behavior:
Connected 0-10V dimmable fixtures dim to 10%.
LED in sensor window should blink WHITE with motion
detection.
WaveLinx Ceiling Sensor Not applicable for this device. Not applicable for this device.
WaveLinx Wireless Outdoor Lighting Control Module Paired device behavior:
Fixture dims to 10%.
WaveLinx Wallstation standard line voltage powered Paired device behavior:
All button LEDs will flash in a top to bottom the
bottom to top pattern until pairing mode is exited.
WaveLinx Battery Powered Wallstation Paired device behavior:
There is no immediate feedback that pairing was
successful. Refer to method 2.
Ensure that the Wireless Area Controller is not
in pairing mode. Then, press any button on the
wallstation. All lighting and receptacles paired with
the Wireless Area Controller and still in the default
construction area will respond to the command.
WaveLinx Receptacle Paired device behavior:
All paired receptacles still in the default construction
area will turn OFF for 5 minutes. After 5 minutes, the
receptacles will turn back ON. If there are too many
receptacles to review in the 5 minute period, see
alternate method 2.
Ensure that the Wireless Area Controller is not in
pairing mode. Then, press the manual push button on
the receptacle (1 second press) to toggle the controlled
outlet. A successfully paired receptacle still in the
default construction area will flash its LED either
between red/OFF, or green/amber for a period of
approximately 15 seconds.
7: Repeat the procedures in this section for each Wireless Area Controller in the facility.
Using the Mobile Application to Pair Devices
The WaveLinx Mobile Application may be used in the pairing process as an alternative to pressing the PAIR button on the Wireless Area
Controller. Log in as the administrator user and open the menu to select the option to discover new devices, acknowledging the message
that appears. A pairing icon will appear at the top of the screen to indicate that they system is in pairing mode. Once pairing is complete,
access the menu and select the option to stop discovering devices to end pairing mode or allow it to time out automatically.
Acknowledge
Pairing Active icon
Enable pairing
Acknowledge
Cancel pairing

17
WaveLinx User Manual
www.eaton.com/wavelinx
During the pairing process, as devices join, a message may be briefly displayed on the screen. The mobile application will also display a
device count of how many devices are paired with the Wireless Area Controller.
Pairing Device count
Device joined message
Tap on the device count to open a link that shows a paired device list organized by device type.
Scroll down to view more items within this window.
Tap to open Paired Device list
Operation of Devices within the Construction Grouping
• Once construction group pairing is complete, all paired devices will operate as one large area or room.
• Any wallstation in the group will operate all the paired lighting (standard ambient, industrial and outdoor integrated sensors,
tilemount sensors, wireless Dimming Switchpacks, and wireless outdoor lighting control modules) and receptacles per the default
scenes and programming.
• All occupancy sensors work together. Any occupancy sensor sensing motion will turn the entire group ON (default level) and will
keep loads ON until no occupancy is detected throughout the entire area. Once occupancy ceases, after 20 minutes, controlled loads
will turn OFF.
• Daylight dimming is disabled for all devices in the construction group. This includes interior and exterior devices.

18
WaveLinx User Manual
www.eaton.com/wavelinx
Quick Links for Common Questions
• Pairing mode timed out before I was done adding my battery powered ceiling sensors or before I confirmed my devices paired properly.
What should I do? See the answer on page 133.
• One or more of my devices did not pair. What should I do? See the answer on page 133.
• I have more than one Wireless Area Controller in my facility. A device or multiple devices paired with the wrong controller.
How do I resolve this? See the answer on page 133.
• My device is showing paired behavior but it is not paired with the correct controller. I am unable to find what controller it has paired with.
How do I remove its pairing to start over? See the answer on page 134.
• I installed a new device after I completed the initial construction pairing. How do I pair the new device into the existing group?
See the answer on page 137.
• A device was not powered during the pairing process and did not successfully pair with the Wireless Area Controller.
How do I get it to join the construction group? See the answer on page 137.
• What will my devices do if they lose communication with the Wireless Area Controller? See the answer on page 140.
Step 3: Connecting to the Mobile Application as the Administrator User
Once construction grouping is complete, the WaveLinx Mobile Application will be used to administer the system. This section describes how
an administrator user connects to the Wireless Area Controller from the WaveLinx Mobile Application.
The procedures in this section assume that the Wireless Area Controller is powered up, is still in its factory default state for network settings
and is not connected to the facility’s network. Refer to the site’s network administrator for access details if the default settings or network
configuration have been modified.
ote:N For security purposes, after the initial configuration is complete, change the default password. Users should set a complex password when changing
passwords. See “Modifying Existing User Accounts and Passwords” on page 105 for this procedure.
1: Download the latest version of the WaveLinx Mobile Application from Google Play™ or the App Store® and install it on a smartphone or
tablet. The WaveLinx Mobile Application is compatible with devices running iOS 11+ or Android™ 7+ operating systems.
2: If there is more than one Wireless Area Controller in the facility, go to the first Wireless Area Controller location. On the front plate of the
controller below the blue Eaton LED, locate the label with the MAC ID. Make note of the MAC ID shown.

19
WaveLinx User Manual
www.eaton.com/wavelinx
3: Ensure that Wi-Fi has been turned ON in the smartphone or tablet, and then navigate to the list of available Wi-Fi networks. Locate
the Wi-Fi network with the name Eaton-XXXXXXXXXXXX (where X is a string of letters and numbers). If there are multiple Wireless
Area Controllers at the facility, more than one wireless network with this naming criteria may appear. Select the Wi-Fi network Eaton-
XXXXXXXXXXXXXX where the X characters match the MAC ID noted in the previous step. The last number will be one digit higher than the
original MAC ID noted. When prompted, enter the password wclAdmin (case sensitive) and join the network.
Turn on Wi-Fi
Locate correct network that
matches the Wireless Area
Controller's MAC ID
Type in the password
wclAdmin and select join
4: Open the WaveLinx Mobile Application. The application may initially open in demo mode. Select the menu icon at the top-left corner of the
screen, and then tap the demo mode button to switch to “real-time” (live) mode. After a few seconds, the Wireless Area Controller with the
ID from the previous steps should appear on the screen. Select the desired Wireless Area Controller to continue.
Tap the menu icon
Tap to switch to live mode
Select the Wireless Area Controller

20
WaveLinx User Manual
www.eaton.com/wavelinx
5: In the log in screen, enter the username and password for the administrator user (these are case sensitive).
• Default Username: WclAdmin
• Default Password: wclAdmin
Select the option to save credentials to remember the login credentials automatically on this device for future connections and then select
the log in button. After a brief refresh period, the areas list will be displayed indicating a successful connection.
Enter the
Username: WclAdmin
Password: wclAdmin
If desired, select the option
to save the credentials for
future login
Select the log in button
After a successful login, the
areas list will be displayed
Quick Links for Common Questions
• I previously logged in on my mobile device as a personal control user and saved my credentials. Now I need to log in as the administrator
user. How do I switch users? See the answer on page 137.
• How do I change the default password for the user? See the answer on page 105.
• How do I create additional users? See the answer on page 105.
• When I open the mobile application, I get an error message. What should I do? See the answer on page 137.
