Echo LC-56V4A User manual

99922205810
© 11/2021 ECHO Incorporated
Operator’s
Manual
LC-56V4A
CHARGER
This product contains chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Note: This product complies with CAN ICES-003(B) / NMB-003(B)
Read and understand all provided literature before use.
Failure to do so could result in serious injury.

LC-56V4A
999222058102
© 11/2021 ECHO Incorporated
Introduction...................................................................................................................3
Servicing Information...................................................................................................3
Parts / Serial Number............................................................................................3
Service..................................................................................................................4
ECHO Consumer Product Support...................................................................... 4
Product Registration..............................................................................................4
Additional Literature..............................................................................................4
Packing List...................................................................................................................4
Safety............................................................................................................................5
Manual Safety Symbols and Important Information..............................................5
International Symbols...........................................................................................6
Important Safety Warnings...................................................................................6
Recommended Ambient Temperature Range................................................7
FCC Statement......................................................................................................8
Description....................................................................................................................9
Operation.....................................................................................................................11
Charging Procedure.............................................................................................11
Examine the Charger..........................................................................................12
Mount the Charger...............................................................................................13
Maintenance................................................................................................................14
Clean the Charger ...............................................................................................14
Troubleshooting..........................................................................................................14
Storage........................................................................................................................14
Storage After Use................................................................................................14
Specications..............................................................................................................15
Product Registration...................................................................................................16
Warranty......................................................................................................................18
TABLE OF CONTENTS
TABLE OF CONTENTS

LC-56V4A
3
99922205810
© 11/2021 ECHO Incorporated
INTRODUCTION
SERVICING INFORMATION
INTRODUCTION
Specications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
For additional literature, including safety manuals where applicable, or
questions regarding terms used in this manual, visit:
https://www.echo-usa.com/manuals
Genuine ECHO Parts and
Assemblies for your ECHO products
are available only from an
Authorized ECHO Dealer. When
you do need to buy parts always
have the Model Number and Serial
Number of the unit with you. For
future reference write them in the
space provided below.
Model No. _______________ Serial No. _______________
Parts / Serial Number
Read and understand all provided literature.
Literature contains specications and
information for safety, operation,
maintenance, storage, and assembly
specic to this product. Scan QR codes for
more information.

LC-56V4A
999222058104
© 11/2021 ECHO Incorporated
PACKING LIST
Service of this product during the warranty period must be performed by an
Authorized ECHO Service Dealer. For the name and address of the
Authorized ECHO Service Dealer nearest you, ask your retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site www.echo-usa.com. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-432-ECHO (3246) from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Register your ECHO equipment online at www.echo-usa.com or by lling
out the product registration sheet included in this manual. Registering your
product conrms warranty coverage and provides a direct link to ECHO if
we nd it necessary to contact you.
In addition to nding information online, information is available from your
Authorized ECHO Service Dealer, or by contacting ECHO Incorporated,
400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or ECHO Dealer of damaged or missing parts. Use the contents list to check
for missing parts.
1 Charger
1 Operator's Manual
Service
ECHO Consumer Product Support
Product Registration
Additional Literature
PACKING LIST

LC-56V4A
5
99922205810
© 11/2021 ECHO Incorporated
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will nd safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which might lead to minor
or moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specic action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.
SAFETY
SAFETY

LC-56V4A
999222058106
© 11/2021 ECHO Incorporated
SAFETY
Important Safety Warnings
1. SAVE THESE INSTRUCTIONS - DANGER: TO REDUCE RISK OF FIRE
OR ELECTRICAL SHOCK CAREFULLY OBEY THESE INSTRUCTIONS.
2. Conrm the voltage available at each country location before using the
charger. Connect the charger only to the voltage and frequency of 120V
AC and 60Hz.
- If the above specications are not available, a voltage converter must
be used. Refer to your local country requirements before purchasing a
voltage converter.
- Any damage caused by charging with other than 120V AC and 60Hz will
void the warranty.
- Even when using the correct specied current noted above, this charger
is equipped with an A-type plug. If a different type plug is required for
connection to an electrical outlet, it is the owner’s responsibility to select
the appropriate plug adapter; otherwise the warranty may be voided.
3. Do not operate charger in explosive atmospheres, such as in the presence
of ammable liquids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
4. Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of electric shock.
5. Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of electric
shock.
6. Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
International Symbols
Some of the following symbols may be used on this product. Please study
them and learn their meaning. Proper interpretation of these symbols will allow
you to operate the product better and safer.
Symbol Description Symbol Description
Class II Before charging, read
the instructions
For indoor use only Fuse

LC-56V4A
7
99922205810
© 11/2021 ECHO Incorporated
SAFETY
Unmodied plugs and matching outlets will reduce risk of electric shock.
7. Do not connect the charger to a portable generator. Portable generators
can have spikes in voltage which can result in re or explosion of the
charger and/or the battery.
8. DO NOT probe the charger with conductive materials.
9. DO NOT allow liquid inside the charger.
10. DO NOT try to use the charger for any other purpose than what is
presented in this manual.
11. Unplug the charger before cleaning and when there is no battery in the
charger.
12. Do not try to connect two chargers together.
13. Do not use the charger in the circumstances that the output polarity does
not match the load polarity.
14. For indoor use only.
15. Keep away from children.
16. The cover may under no circumstances be opened. If the cover is
damaged, then the charger may no longer be used.
17. Do not recharge non-rechargeable batteries.
18. Before using battery charger, read all instructions and cautionary markings
on battery charger, battery, and product using battery.
19. CAUTION – To reduce risk of injury, charge only with ECHO eFORCE™
56V battery series. Other types of batteries may burst causing personal
injury and damage.
Recommended Ambient Temperature Range:
Item Temperature
Battery Charging
Temperature Range 32˚F (0 ˚C) ~ 113 ˚F (45 ˚C)
Charger operation
temperature 14 ˚F (-10 ˚C) ~ 113 ˚F (45 ˚C)
Charger storage
temperature range -4 ˚F (-20 ˚C) ~ 185 ˚F (85 ˚C)
Battery storage
Temperature range
less than 1 month -4 ˚F (-20 ˚C) ~ 140 ˚F (60 ˚C)
less than 3 month -4 ˚F (-20 ˚C) ~ 113 ˚F (45 ˚C)
more than 3 month -4 ˚F (-20 ˚C) ~ 77 ˚F (25 ˚C)
Battery Discharging
temperature Range -4 ˚F (-20 ˚C) ~ 140 ˚F (60 ˚C)

LC-56V4A
999222058108
© 11/2021 ECHO Incorporated
SAFETY
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception. The reception
can be determined by turning the equipment off and on. The user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.

LC-56V4A
9
99922205810
© 11/2021 ECHO Incorporated
DESCRIPTION
Locate the safety label(s) on your unit. Make sure the label(s) is legible and
that you understand and follow the instructions on it. If a label cannot be read,
a new one can be ordered from your ECHO dealer. Safety label is for example
only. Your label my appear slightly different.
DESCRIPTION
5
1
4
2
3

LC-56V4A
9992220581010
© 11/2021 ECHO Incorporated

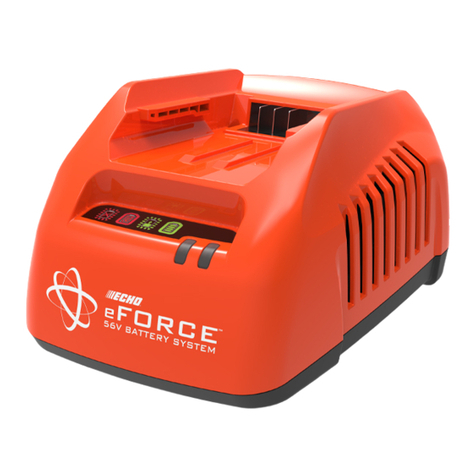

1. Battery Terminal Grooves
2. Ventilation Grills
3. Charging Indication Panel
4. Electrical Cord
5. Charger mounting hole
CHARGER TERMS
• BATTERY TERMINALS GROOVES - Electrical connection
between battery and charger.
• VENTILATION GRILLS - Cool down the charger.
• CHARGE INDICATION PANEL - Charging status.
DESCRIPTION
