Ecoflam MAIOR P 300.1 AB User manual

OIL BURNER
420010374602
26.11.2012
MAIOR P 300.1 AB
MAIOR P 400.1 AB
DRYER
HYDRAULIC SYSTEM
Three stage

pag.2
420010374602 Maior P 300.1/400.1 AB
mbar
1500 2000 2500 3000 3500 4000
10
12
14
16
1000
-2
0
2
4
6
8
500
MAIOR P 300.1
MAIOR P 400.1
40 80 120 160 200 240 280 320
kW
kg/h

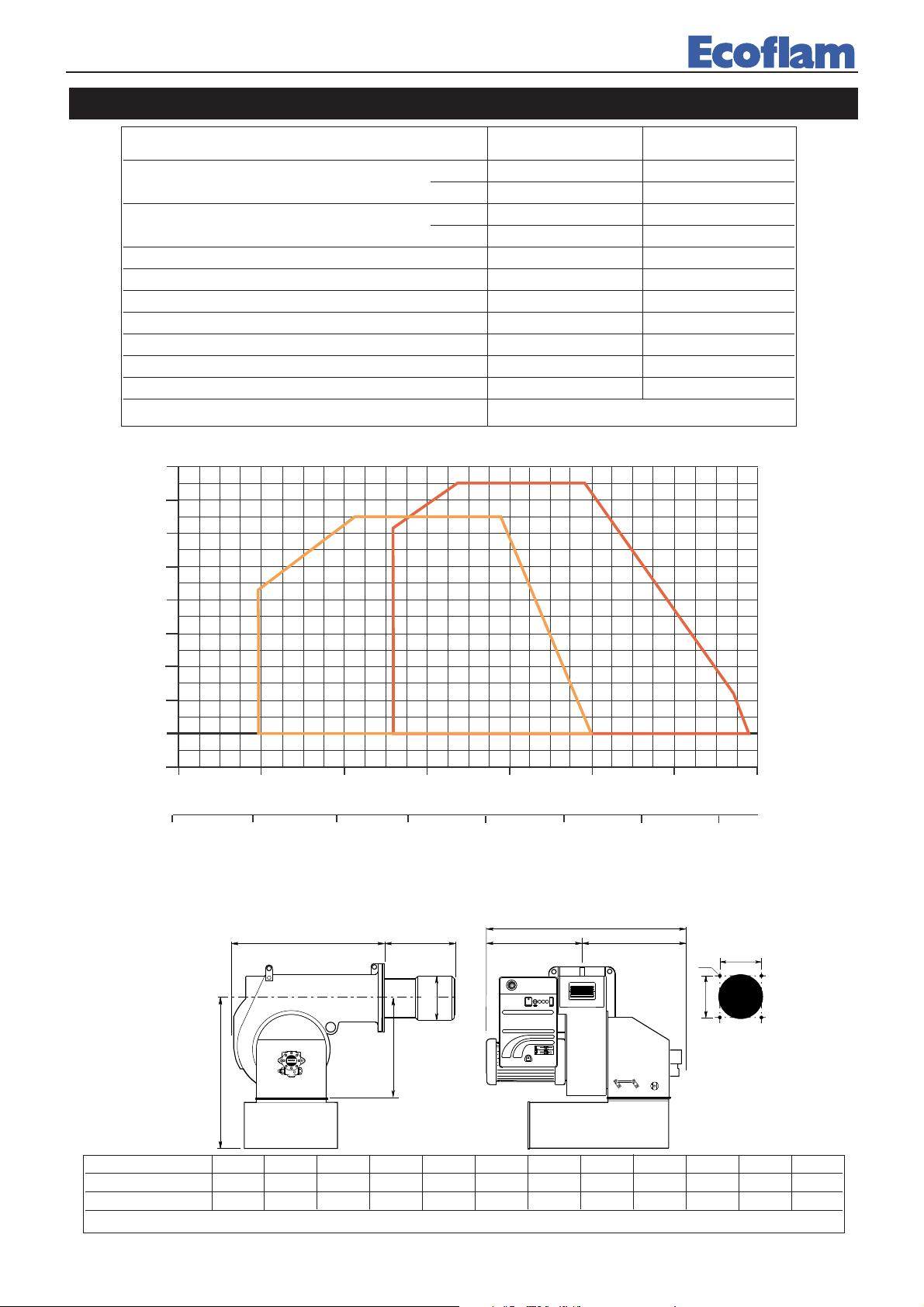

TECHNICAL DATA
MODELS MAIOR P 300.1 AB MAIOR P 400.1 AB
Thermal power max. kcal/h 2.586.000 3.362.000
kW 3.000 3.900
Thermal power min. kcal/h 867.300 1.127.500
kW 1.000 1.300
Max. flow rate light oil kg/h 250 350
Min. flow rate light oil kg/h 85 110
Feeding power 50 Hz V 230/400 230/400
Motor kW 7,5 9
Rpm Nº 2.800 2.800
Ignition transformer kV/mA 13/35 13/35
Control box LANDIS LMO 44 LMO 44
Fuel : light oil kcal/kg 10.200 max. visc 1,5°E a 20°C
WORKING FIELDS
PRESSURE IN THE COMBUSTION CHAMBER
OUTPUT
OVERALL DIMENSIONS
I
M
L
ED - D1
F
G
C
B
A
SUNTEC
H1
MODELS ABCDD1EFGH1I LM
Maior P 300.1 AB 1055 502 553 330 530 810 290 471 746 315 315 M16
Maior P 400.1 AB 1100 547 553 345 545 810 320 471 746 315 315 M16
D = short head D1 = long head

pag.3
420010374602 Maior P 300.1/400.1 AB
2
1345
6
7

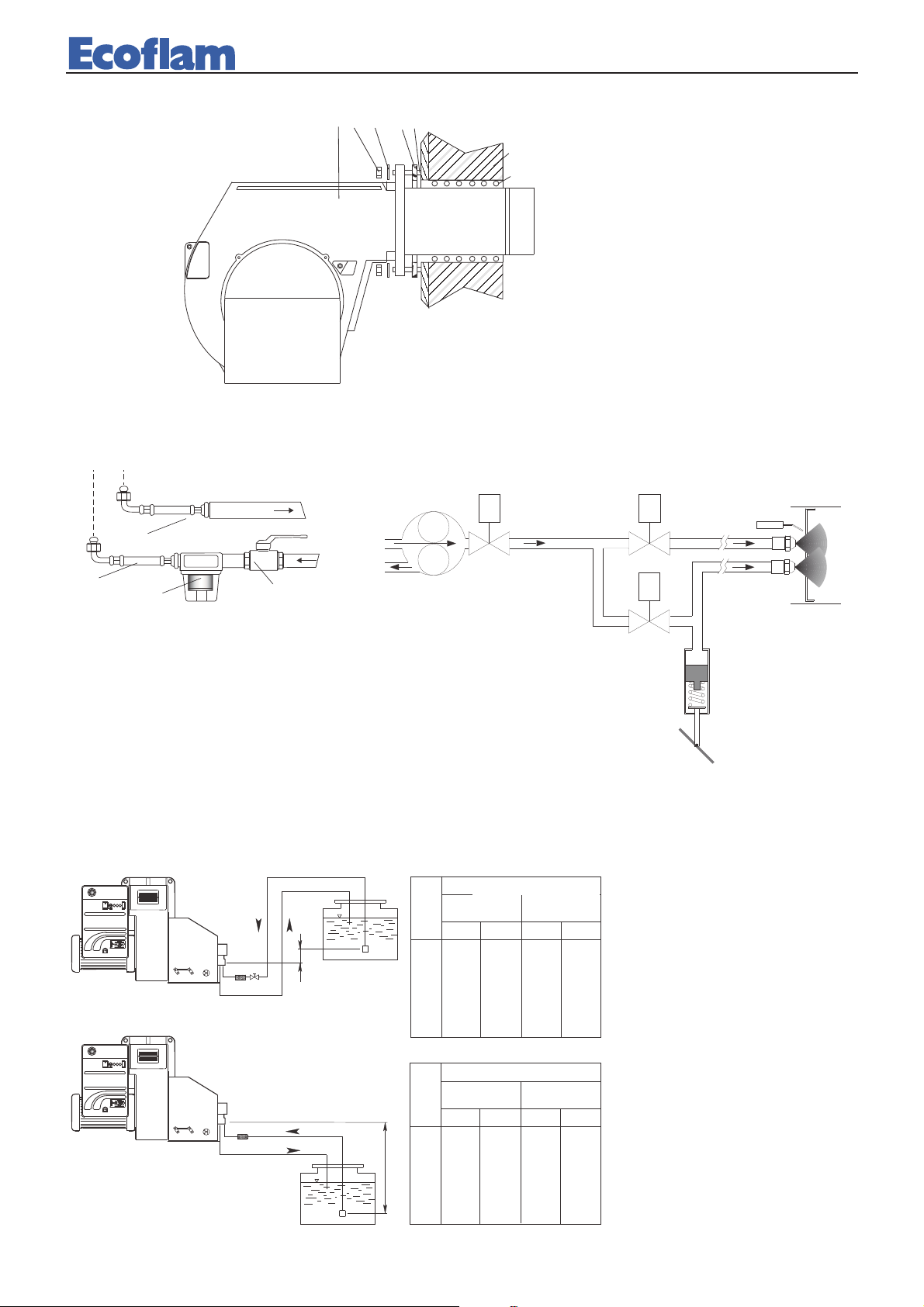

BURNER INSTALLATION
1 - BURNER
2-NUT
3 - WASHER
4 - GASKET
5-BOLT
6 - BOILER
7 - GASKET
HYDRAULIC CIRCUIT
1 - HOSE
2 - OIL FILTER
3 - OIL COCK
4 - SUCTION
5 - RETURN
SUCTION
RETURN
VS
V2
V1
MAXIMUM LENGTH OF SUCTION LINES FOR TWO-PIPE SYSTEM
H
H
H
(m)
ø 14 mm ø 16 mm
0
0,5
1
2
3
3,5
16
18
20
25
29
31
29
33
37
44
52
55
J 7
(m)
H
(m)
ø 14 mm ø 16 mm
0
0,5
1
2
3
3,5
16
14
12
7
3
1
29
26
22
14
7
4
J 7
(m)
TA2C
(m)
TA2C
(m)
Two-pipe siphon feed system
Two-pipe lift system
Pipe length
Pipe length
To correct length of pipes is
calculated by summing up the
length of all vertical and hori-
zontal right sections and bends.
The static suction head will be
the distance between the non-
return valve and the burner’s
pump axle. The depression
must not be greater than 0.45
bar; should it be higher, some
damages could occur to the
pump, with consequent increa-
se in mechanical noises and
,eventually, a failure.
1
1
23

pag.4
420010374602 Maior P 300.1/400.1 AB
Use only the suitable box wrench provided for this operation to remove the nozzle, taking care to not damage
the electrodes. Fit the new nozzle with the same care.
Note: Always check the position of electrodes after having replaced the nozzle (see illustration). A wrong posi-
tion could cause ignition troubles.
NOZZLE CLEANING AND REPLACEMENT
5÷6 mm
3÷4 mm
NOZZLE PUMP PRESSURE (bar)
GPH 10 11 12 13 14 15 16
2,50 9,50 9,97 10,41 10,83 11,24 11,64 12,02
3,00 11,40 11,96 12,49 13,00 13,49 13,96 14,42
3,50 13,30 13,95 14,57 15,17 15,74 16,29 16,83
4,00 15,20 15,94 16,65 17,33 17,99 18,62 19,23
4,50 17,10 17,94 18,73 19,50 20,24 20,95 21,63
5,00 19,00 19,93 20,82 21,67 22,48 23,27 24,04
5,50 20,90 21,92 22,90 23,83 24,73 25,60 26,44
6,00 22,80 23,92 24,98 26,00 26,98 27,93 28,84
6,50 23,70 25,91 27,06 28,17 29,23 30,26 31,25
7,00 26,60 27,90 29,14 30,33 31,48 32,58 33,65
7,50 28,50 29,90 31,22 32,50 33,73 34,91 36,05
8,30 31,54 33,08 34,55 35,97 37,32 38,63 39,90
9,50 36,10 37,87 39,55 41,17 42,72 44,22 45,67
10,50 40,06 41,73 43,74 45,41 47,20 48,90 50,50
12,00 45,60 47,80 50,00 52,00 54,00 55,90 57,70
13,80 52,40 55,00 57,50 59,80 62,10 64,20 66,30
15,30 58,10 61,00 63,70 66,30 68,80 71,10 73,60
17,50 66,50 69,80 72,90 75,80 78,70 81,50 84,10
19,50 74,10 77,70 81,20 84,50 87,70 90,80 93,70
21,50 81,70 85,70 89,50 93,20 96,70 100,10 103,40
24,00 91,20 95,70 99,90 104,00 107,90 111,70 115,40
28,00 106,40 111,60 116,60 121,30 125,90 130,30 134,60
30,00 114,00 119,60 124,90 130,00 134,90 139,60 144,20
GPH OUTPUT kg/h
NOZZLE FLOW RATE
DELAVAN B - MONARCH PLP

pag.5
420010374602 Maior P 300.1/400.1 AB
SUNTEC J 7 C 1000
6
5
3
2
SUNTEC
SUNTEC
SUNTEC
14
SUNTEC TA2C4
PRIMING AND ADJUSTMENT OF OIL PUMP
1 - INLET
2 - RETURN
3 - BLEED AND PRESSURE
GAUGE PORT
4 - VACUUM GAUGE PORT
5 - PRESSURE ADJUSTMENT
6 - TO NOZZLE
VERIFY:
- That piping system is perfectly sealed;
- That the use of hoses is avoided whenever is possible (use copper pipes preferably);
- That depression is not greater than 0,45 bar, to avoid pump’s cavitation;
- That check valve is suitably designed for the duty;
The pump pressure is set at a value of 12 bar (13 bar Maior P 300.1) during the testing of burners. Before
starting the burner, bleed the air in the pump through the gauge port. Fill the piping with light-oil to facilita-
te the pump priming. Start the burner and check the pump feeding pressure. In case the pump priming does
not take place during the first prepurging, with a consequent, subsequent lock-out of the burner, rearm the
burner’s lock-out to restart, by pushing the button on the control box. If, after a successful pump priming,
the burner locks-out after the prepurging, due to a fuel pressure drop in the pump, rearm the burner’s lock-
out to restart the burner. Do never allow the pump working without oil for more than three minutes. Note:
before starting the burner, check that the return pipe is open. An eventual obstruction could damage the
pump sealing device.
1
2
5
6
34
Once having installed the burner, check the following items:
- The burner power feeding and the main line protection fuses
- The correct length of pipes and that the same are sealed.
- The type of fuel, which must be suitable for burner.
- The connection of boiler’s thermostats and all the safeties.
- The motor rotation direction.
- The correct calibration of the motor’s thermal protection.
When all the above mentioned conditions are checked and accomplished, it is possible to go on with burner’s
tests. Power the burner. The control box feeds the ignition transformer and the burner’s motor at the same
time, which will run a prepurging of the combustion chamber for about 20 sec.
At the end of prepurging, the control box opens the fuel pump and the 1st stage (Low flame) solenoid valves,
the ignition transformer produces a spark and the burner ignites. After a safety interval of 5 seconds and a
correct ignition, the control box turns off the ignition transformer and, 10 seconds later, sets the motorised
air damper to its maximum opening and opens the 2nd stage solenoid valve and 3rd stage solenoid valve
(High flame). In case of faulty ignition, the control box switches the burner into safety condition. In such a
case, the manual rearming of the burner shall not take place before 30 seconds have elapsed from the burner’s
safety shutdown. In order to obtain an optimal combustion, it is necessary adjust the LOW - HIGH flame air
flow, according to the instruction given further on. During such a phase, it will be possible to manually swit-
ch between HIGH ( II ) and LOW ( I ) flame and viceversa, through the High/Low flame switch. At the end
of the adjusting phase, leave the switch in position II (HIGH flame).
The fuel pump feeding pressure, must remain around 12 bar.
START-UP AND ADJUSTMENT

pag.6
420010374602 Maior P 300.1/400.1 AB
-
+
1234567
FIRING HEAD SETTING
LANDIS LMO 44 CONTROL INFORMATION SYSTEM
In case of burner lockout, it is possible to read which cause originated it. Proceed as follows: with the burner in lockout
mode (red LED switched on) keep pressed the lockout button for more than 3 sec. then release it. The red LED will blink
according to the following error code list:
Error Code Possible cause
2 blinks No establishment of flame at the end of «TSA»
- Faulty or soiled fuel valves - Faulty or soiled flame detector - Poor adjustment of burner,
no fuel - Faulty ignition
3 blinks Free
4 blinks Extraneous light on burner start-up
5 blinks Free
6 blinks Free
7 blinks Too many losses of flame during operation (limitation of the number of repetitions)
- Faulty or soiled fuel valves - Faulty or soiled flame detector - Poor adjustment of burner
8 blinks Time supervision oil pre-heater
9 blinks Free
10 blinks Wiring error or internal error, output contacts

pag.7
420010374602 Maior P 300.1/400.1 AB
COMBUSTION AIR FLOW ADJUSTMENT (HIGH-LOW FLAME)
Air flow adjustment in Low Flame (1st Stage):
1 – Open thermostats TAB1 and TAB2 (see wiring diagram).
2 – Start the burner (while checking that air damper is partially open).
3 – Loosen locking screw D.
4 – Manually turn the air dampers until to obtain a correct combustion.
5 – Tighten locking screw D.
Air flow adjustment in High Flame (2nd Stage):
WARNING: When the burner is working in High Flame, the presence of oil under pressure in the hydraulic jack could make difficult the tur-
ning of the adjusting screw 1. As a consequence, the adjustment of fuel flow rate shall be made through said screw with the burner in
Low Flame, whilst the combustion control shall be carried out once switched to High Flame.
1 – Open thermostats TAB1 and TAB2 (see wiring diagram).
2 – Loosen locking ring nut 2.
3 – Increase or decrease fuel flow rate through the adjusting screw 1 (turn clockwise to increase and counterclockwise to decrease).
4 – Tighten ring nut 2.
5 – Manually switch to High Flame by closing thermostat TAB1 and check combustion values.
Air flow adjustment in 3rd Flame (3rd Stage):
WARNING: When the burner is working in 3rd Flame, the presence of oil under pressure in the hydraulic jack could make difficult the tur-
ning of the adjusting screw 3. As a consequence, the adjustment of fuel flow rate shall be made through said screw with the burner in
Low Flame, whilst the combustion control shall be carried out once switched to 3rd Flame.
1 – Open thermostats TAB1 and TAB2 (see wiring diagram).
2 – Loosen locking ring nut 4.
3 – Increase or decrease fuel flow rate through the adjusting screw 4 (turn clockwise to increase and counterclockwise to decrease).
4 – Tighten ring nut 4.
5 – Manually switch to 3rd Flame by closing thermostats TAB1 and TAB2 and check combustion values.
C
A
4
3
2
1
D
D
+
–
+
–
2nd stage
3rd stage
C1

pag.8
420010374602 Maior P 300.1/400.1 AB
All burners are factory tested at 400V - 50Hz 3-phase for motors, and 230V - 50Hz single phase with neutral
for auxiliary equipments. Should it be necessary to power the burner with 230V - 50Hz, modify the connec-
tions on motor and the terminal board as shown in the picture. Protect the burner supply line with suitable
fuses and/or other safety devices as required by the local regulations on the matter.
ELECTRICAL CONNECTIONS
TROUBLESHOOTING
The burner does not start.
- Main switch in “0”.
- Fuses are blown.
- Boiler thermostats are in open position.
- Control box is defective.
The burner runs the prepurging but does not ignite and then switches into safety condition.
- Control box is defective.
- Ignition transformer is defective.
- Electrodes are dirty.
- Electrodes are defective.
- Electrodes are in wrong position.
- Nozzles are clogged.
- Nozzles are too worn.
- Filters are clogged.
- Oil pressure too low.
- Combustion air flow rate excessively high related to nozzle’s flow rate.
The burner ignites but then switches into safety condition.
- Control box is defective.
- Nozzles are clogged.
- Nozzles are too worn.
- The photocell does not detect the flame.
- Filters are clogged.
- Oil pressure too low.
- Combustion air flow rate excessively high related to nozzle’s flow rate.
The burner does not switch to High flame.
- 1st(Low flame) and 2nd (High flame) stage manual switch on control board is in wrong position.
- Control box is defective.
- 2nd (3rd) stage solenoid valve coil is defective.
- Oil pressure too low.
- Filters are clogged.
- 2nd (3rd) stage nozzle is too worn.
- 2nd (3rd) stage nozzle is clogged.
- Air damper’s hydraulic jack not properly adjusted or defective.

pag.9
420010374602 Maior P 300.1/400.1 AB
3
M
B FOTORESISTENZA MV MOTORE VENTILATORE TV TRASFORMATORE KMV CONTATTORE MOTORE VENTILATORE YVg1 ELETTROVALVOLA GASOLIO DI PRIMA FIAMMA YVg2 ELETTROVALVOLA GASOLIO DI SECONDA FIAMMA YVgS ELETTROVALVOLA GASOLIO DI SICUREZZA
SECOND STAGE OIL SOLENOID VALVE ELECTROVANNE MAZOUT GRANDE ALLURE ELECTROVALVULA DE GASOLEO 2^ LLAMA FIRST STAGE OIL SOLENOID VALVE ELECTROVANNE MAZOUT PETITE ALLURE ELECTROVALVULA DE GASOLEO 1^ LLAMA REMOTE CONTROL SWITCH (FAN MOTOR) CONTACTEUR MOTEUR VENTILATEUR TELERRUPTOR MOTOR VENTILATOR PHOTO-RESISTOR PHOTORESISTANCE FOTORESISTENCIA IGNITION TRANSFORMER TRANSFORMATEUR D'ALLUMAGE TRANSFORMADOR MOTOR FAN MUTEUR VENTILATEUR MOTOR VENTILADOR EXTRA SAFETY OIL SOLENOID VALVE ELECTROVANNE MAZOUT DE SECURITE ELECTROVALVULA DE GASOLEO DE SEGURIDAD INTERRUTTORE DI LINEAQ WORKING SWITCH INTERRUPTEUR DE LIGNE INTERRUPTOR DE LINEA
B TV
YVg2
YVg1
NEUTRAL
BRUNER PANEL
TO CONTROL BOX IN DRYER PANEL
ELETTROVALVOLA GASOLIO DI TERZA FIAMMAYVg3 THIRD STAGE OIL SOLENOID VALVE ELECTROVANNE MAZOUT 3me ALLURE ELETTROVALVOLA DE GASOLEO 3a FIAMMA
YVg3
00 01 02 03 04 05 06 07 08 09
A
00 01 02 03 04 05 06 07 08 09
B C D E
A B C D E
S.p.A.
SOST.DA
IND.MOD.
SOST.IL
PROPRIETA' RISERVATA DELLA DITTA ECOFLAM S.p.A.
DESCRIZIONE MODIFICA
DISEGNATO CONTROLLATO
DATA-FIRMA
DATA
FIRMA
DATA
FIRMA
COMUNICARE A TERZI IL CONTENUTO DEL PRESENTE.A TERMINE DI LEGGE E' VIETATO RIPRODURRE O
CONTROLLO DI TENUTAAPPARECCHIATURA
UFF.TECNICO-SETTORE ELETTRICO
DENOMINAZIONE
SIST. RIVELAZ. CODICE IND.MODIFICA
MOTORIDUTTORE
BEM25145
MAIOR P 45.1-60.1-80.1-120.1-150.1-200.1-300.1-400.1 AB THREE STAGES DRYER
B
27-04-2004
BEG25078
27-04-2004
MV
UVW
400V
230V
9312 64 5 7 8 10 11 12
6
3 2
1
4
5
9
8 7
12
11
10
B
TV
YVgSYVg1
YVg2
Q
50 Hz 400V
S
PE
T R
YVg3

pag.10
420010374602 Maior P 300.1/400.1 AB
MAIOR P 300.1 AB MAIOR P 400.1 AB
10
26 27
2
46
43
45
44
1
6 5
40
29
4
3
38
39
47
28
13
21
9 8
7
35
36
34
32
31
20
19
41 42
30
17
14
12
11
33
37
1
33
MAIOR P 300.1 AB
MAIOR P 300.1 AB

pag.11
420010374602 Maior P 300.1/400.1 AB
TC = SHORT HEAD TL = LONG HEAD
MAIOR P 300.1 AB MAIOR P 400.1 AB
N° DESCRIPTION code code
1 OIL PUMP SUNTEC J 7CC 1000 65322951 -
SUNTEC TA2C40105 - 65322991
2 COIL SIRAI L159C3 65323770 65323770
3 OIL VALVE SIRAI L159C3 65323739 65323739
4NIPPLE TN 18X1200 65323183 65323183
5HOSES TN 18X1500 65323182 65323182
6FILTER 70501/03 65324103 65324103
7COVER 65320678 65320678
8GLASS 65320487 65320487
9 VIEWING WINDOW 65320488 65320488
10 MOTOR 7,5 kW 65322822 -
9 kW - 65322855
11 CONTROL BOX BASE LANDIS 65320092 65320092
12 CONTROL BOX LANDIS LMO 44 65320024 65320024
13 PHOTORESISTOR LANDIS 65320076 65320076
14 WIRING TERMINAL BOX 65322060 65322060
15 MOTOR THERMAL RELAY - -
16 REMOTE CONTROL SWITCH - -
17 ANTIJAMMING FILTER 65323170 65323170
18 TIMER - -
19 CABLE TC 65320945 65320945
TL 65320946 65320948
20 ELECTRODES 65325222 65325222
21 IGNITION TRANSFORMER Brahma T8 13000/35 65323242 65323242
22 HIGH-LOW FLAME SWITCH - -
23 MAIN SWITCH - -
24 FUSE SUPPORT - -
25 LAMP - -
26 FAN 320 x 150 65321800 65321800
27 FAN SCOOP - 65320627
28 AIR CONVEYOR 65320645 65320645
29 COVER AIR INLET 65320560 65320560
30 HYDRAULIC SYSTEM 65322333 65322333
31 ROD TC 65324900 65324807
TL 65320246
32 NOZZLE HOLDER 65320715 65320715
33 NOZZLE HOLDER SUPPORT 65324515 65325053
34 DIFFUSER 65320785 65320784
35 BLAST TUBE TC 65324808 65325041
TL 65320455 65320456
36 INNER ASSEMBLY TC
TL
37 GASKET 65321125 65321125
38 COIL SIRAI L120V02 65323742 65323742
39 OIL VALVE SIRAI L120V02 65323741 65323741
40 ROD 65321463 65321463
41 COUPLING (FAN) 65321789 65321789
42 UNION 65321791 65321791
43 COUPLING (ROD) 65321790 65321790
44 COUPLING (PUMP) 65324165 65324165
45 UNION 65321786 65321786
46 COUPLING 65321782 65321782
47 SILENCER 65324107 65324107

Ecoflam (UK) Limited
12 Goodwood Road , Keytec 7 Business Park, Wyre Road, Pershore, Worcestershire, WR10 2JL England
Tel: [phone] - Fax: [phone]
Ecoflam Bruciatori S.p.A.
via Roma, 64 - 31023 RESANA (TV) - Italy
tel. [phone] - fax [phone]
http://www.ecoflam-burners.com - e-mail: [email protected]
"società soggetta alla direzione e al coordinamento della Ariston Thermo S.p.A., via A. Merloni, 45 - 60044 Fabriano (An) CF 01026940427"
ECOFLAM BRUCIATORI S.p.A. reserves the right to make any adjustments, without prior notice, which it considers
necessary or useful to its products, without affecting their main features.
