1
Introducing the Motherboard
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the A880GM-M7 motherboard. This motherboard is a high
performance, enhanced function motherboard that supports socket for AMD
PhenomTM II processor (socket AM3) for high-end business or personal desktop
markets.
There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and
keyboard connectors, COM, one VGA port, one DVI port, four USB ports, one LAN
port and audio jacks for microphone, line-in and line-out.
*Due to the DRAM maximum size (2 GB per dimm) at present, the memory
maximum size we have tested is 4 GB.
The motherboard incorporates the AMD 880G Northbridge (NB) and SB710
Southbridge (SB) chipsets. The Northbridge supports the HyperTransportTM 3.0 in-
terface. The memory controller supports DDR3 memory DIMM frequencies of
1600 (OC)/1333/1066. It supports two DDR3 slots with maximum memory size of
16 GB*. One PCI Express x16 slot, intended for Graphics Interface, are fully compli-
ant to the PCI Express Gen2 (version 2.0). In addition, one PCI Express x1 slot is
supported.
The SB710 Southbridge supports two PCI slots which are PCI v2.3 compliant. It
integrates USB 2.0 interface, supporting up to ten functional ports (four USB ports
and three USB 2.0 headers support additional six USB ports). One onboard IDE
connector supports two IDE devices in Ultra ATA 133/100/66/33 modes. The
Southbridge integrates a Serial ATA host controller, supporting six SATA ports with
maximum transfer rate up to 3.0 Gb/s each. It provides AMD SATA RAID configura-
tion with RAID 0, 1 and 10 modes supported.

2
Introducing the Motherboard
Feature
Processor
HyperTransportTM Technology is a point-to-point link between two devices, it
enables integrated circuits to exchange information at much higher speeds than
currently available interconnect technologies.
• Accommodates AMD PhenomTM II (socket AM3) processor
• Supports HyperTransportTM (HT) 3.0 interface speeds
This motherboard uses a socket AM3 that carries the following features:
The AMD 880G Northbridge (NB) and SB710 Southbridge (SB) chipsets are based
on an innovative and scalable architecture with proven reliability and perfor-
mance.
Chipset
The onboard Audio provides either of the following features:
Memory
• SupportsDDR31600(OC)/1333/1066DDR3SDRAMwithdual-channel
architecture
• Accommodates two unbuffered DIMMs
• Up to 8 GB per DIMM with maximum memory size up to 16 GB
• Compliant with PCI 2.3 specification at 33 MHz
• Supports six Serial ATA devices which speeds up to
3.0 Gb/s
• Integrated USB 2.0 Host Controller supporting up to ten
USB 2.0 ports
• Integrated IDE controller supports Ultra ATA 133/100/
66/33 modes
• Supports integrated RAID0, RAID1, and RAID 10 (re-
quires use of 4 or more SATA ports) functionalities
across all 6 ports
AMD 880G
(NB)
SB710
(SB)
• 5.1 Channel High DefinitionAudio Codec
• Exceeds Microsoft Windows Logo Program (WLP) Requirements
• ADCs support 44.1K/48K/88.2K/96K/192KHz sample rate
• Power Support: Digital: 3.3V; Analog: 5.0V
Audio
This board supports CPU up to 95W TDP only, you can refer to AMD
website to check your CPU.
• One x4 A-Link Express III interface for connection to
anAMDSouthbridge.TheA-LinkExpressIIIisapropri-
etary interface developed by AMD basing on the PCI
Express technology, with additional Northbridge-
Southbridge messaging functionalities. It supports the
PCIe Gen 2 transfer rate of 5 GT/s, and is backward
compatible with the A-Link Express II interface.
• Supports one PCI-Express x16 Gen2 graphics link
• Supports one PCI-Express x1 slot
• Fully supports ACPI states S1, S3, S4 and S5
• SupportsATI Radeon HD4250 Graphics*.
• Supports 16-bit up/down HyperTransport (HT) 3.0 in-
terface up to 4.4 GT/s.

3
Introducing the Motherboard
The onboard LAN controller provides either of the following features:
This motherboard supports Ultra DMA bus mastering with transfer rates of 133/
100/66/33 MB/s.
Expansion Options
The motherboard comes with the following expansion options:
• One PCI Express x16 for Graphics Interface
• One PCI Express x1 slot
• Two 32-bit PCI v2.3 compliant slots
• One IDE connector supporting up to two IDE devices
• Six 7-pin SATA connectors
Integrated I/O
The motherboard has a full set of I/O ports and connectors:
• Two PS/2 ports for mouse and keyboard
• One serial port
• One VGA port
• One DVI port
• Four USB ports
• One LAN port
• Audio jacks for microphone, line-in and line-out
Onboard LAN
• PCI Express base 1.1 compliant
• Compliant with IEEE 802.3u specification for 1000 Mbps Ethernet
(optional 10/100 Ethernet only available)
• IEEE 802.3x compliant flow control support
• IEEE 802.3abAuto-Negotiation support
BIOS Firmware
• Power management
• Wake-up alarms
• CPUparameters
• CPUandmemorytiming
The firmware can also be used to set parameters for different processor clock
speeds.
The motherboard uses AMI BIOS that enables users to configure many system
features including the following:
1. Some hardware specifications and software items are subject to change
without prior notice.
2. Due to chipset limitation, we recommend that motherboard be oper-
ated in the ambiance between 0 and 50 °C.

4
Introducing the Motherboard
• AMD 880G &AMD SB710
• Socket for PhenomTM II (socket AM3) processor
• Supports “Hyper-Threading” technology CPU
• Dual-channel DDR3 1333 memory architecture
• 2 x 240-pin DDR3 DIMM sockets support up to 16 GB
• Supports DDR3 1600 (OC)/1333/1066 DDR3 SDRAM
• 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot
• 2 x PCI slots
• Supported by AMD SB710 Express Chipset
• 6 x Serial ATA 3.0 Gb/s Host Controllers
• Supports RAID 0, 1, and 10
• 2 x Ultra DMA133/100/66 devices
• VIA VT1705 6-ch High Definition audio CODEC
• Atheros AR8131M Giga LAN Fast Ethernet Controller or
AR8132M 10/100 LAN Fast Ethernet Controller
• 1 x PS/2 keyboard & PS/2 mouse connector
• 6 x USB ports
• 1 x DVI port
• 1 x VGA port
• 1 x RJ45 LAN connector
• 1 x Audio port (Line in, microphone in and line out)
• 24-pin ATX Power Supply connector, 4-pin 12V connector
• 1xCPU_FAN
• 1 x SYS_FAN
• 6 x SATA 3Gb/s connectors
• 3 x USB 2.0 headers support additional 6 USB ports
• 1 x Front panel header
• 1 x Chassis Intrusion Detect header
• 1 x SPDIF out header
• 1 x Front panel audio header
• 1 x Speaker header
• 1 x CD in header
Chipset
Memory
Expansion
Slots
Storage
Audio
LAN
RearPanelI/O
InternalI/O
Connectors &
Headers
• AMIBIOSwith8MbSPIROM
• Supports Plug and Play 1.0A,APM 1.2, Multi Boot, DMI
• Supports ACPI revision 3.0 specification
SystemBIOS
Form Factor • MicroATX Size, 244mm x 210mm
CPU
Specifications

5
Introducing the Motherboard
MotherboardComponents

6
Introducing the Motherboard
Table of Motherboard Components
This concludes Chapter 1. The next chapter explains how to install the motherboard.
LABEL COMPONENTS
1. CPU Socket Socket for AMD PhenomTM II (socket AM3) processor
2. CPU_FAN CPU cooling fan connector
3. DDR3_1~2 240-pin DDR3 SDRAM slots
4. ATX_POWER Standard24-pin ATX power connector
5. IDE Primary IDE connector
6. SATA1~6 Serial ATA connectors
7. F_PANEL Front panel switch/LED header
8. SPK Speaker header
9. SYS_FAN System cooling fan connector
10. CLR_CMOS Clear CMOS jumper
11. F_USB1~3 Front panel USB headers
12. SPDIFO SPDIF out header
13. CD_IN Analogaudio input connector
14. F_AUDIO Front panel audio header
15. PCI1~2 32-bit add-on card slots
16. CASEOPEN Chassis detect header
17. PCIE1 PCI Express x1 slot
18. PCIEX16 PCI Express x16 graphics cardslot
19. ATX12V 4-pin +12Vpower connector

7
Installing the Motherboard
Chapter 2
Installing the Motherboard
SafetyPrecautions
• Follow these safety precautions when installing the motherboard
• Wear a grounding strap attached to a grounded device to avoid dam-
age from static electricity
• Discharge static electricity by touching the metal case of a safely
grounded object before working on the motherboard
• Leave components in the static-proof bags they came in
• Hold all circuit boards by the edges. Do not bend circuit boards
Choosinga ComputerCase
There are many types of computer cases on the market. The motherboard complies
with the specifications for the Micro ATX system case. Firstly, some features on the
motherboard are implemented by cabling connectors on the motherboard to indica-
tors and switches on the system case. Make sure that your case supports all the
features required. Secondly, this motherboard supports two enhanced IDE drives.
Make sure that your case has sufficient power and space for all drives that you intend
to install.
Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O
template in the case matches the I/O ports installed on the rear edge of the
motherboard.
This motherboard carries a Micro ATX form factor of 244 X 210 mm. Choose a case
that accommodates this form factor.
Installingthe Motherboard in aCase

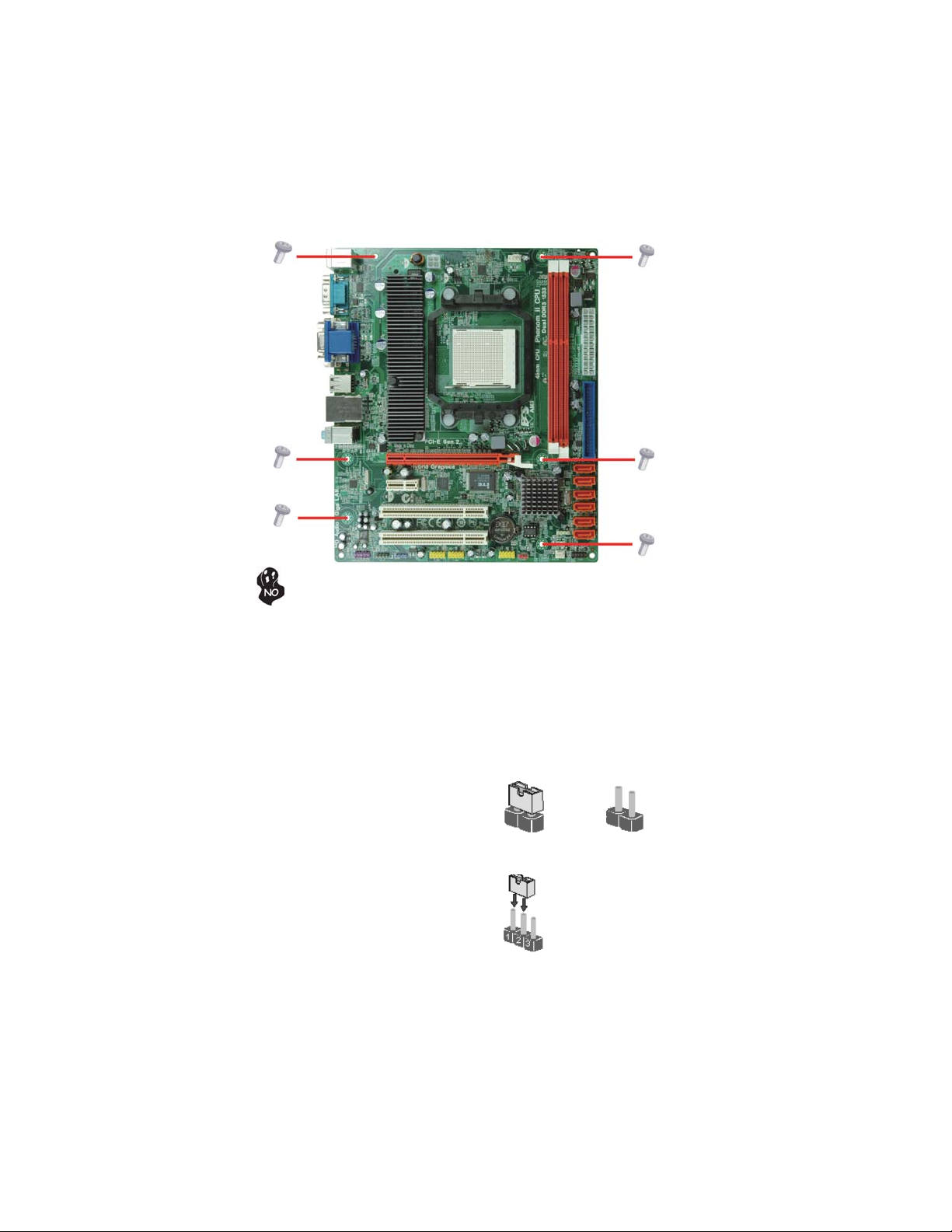

Refer to the following illustration and instructions for installing the motherboard in
a case.
Most system cases have mounting brackets installed in the case, which correspond
the holes in the motherboard. Place the motherboard over the mounting brackets
and secure the motherboard onto the mounting brackets with screws.
Ensure that your case has an I/O template that supports the I/O ports and expansion
slots on your motherboard.

8
Installing the Motherboard
Do not over-tighten the screws as this can stress the motherboard.
CheckingJumperSettings
This section explains how to set jumpers for correct configuration of the motherboard.
SettingJumpers
Use the motherboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the jumper
caps are placed on the correct pins.
The illustrations show a 2-pin jumper. When
the jumper cap is placed on both pins, the
jumper is SHORT. If you remove the jumper
cap, or place the jumper cap on just one pin,
the jumper is OPEN.
This illustration shows a 3-pin jumper. Pins
1 and 2 are SHORT.
SHORT OPEN

9
Installing the Motherboard
Checking Jumper Settings

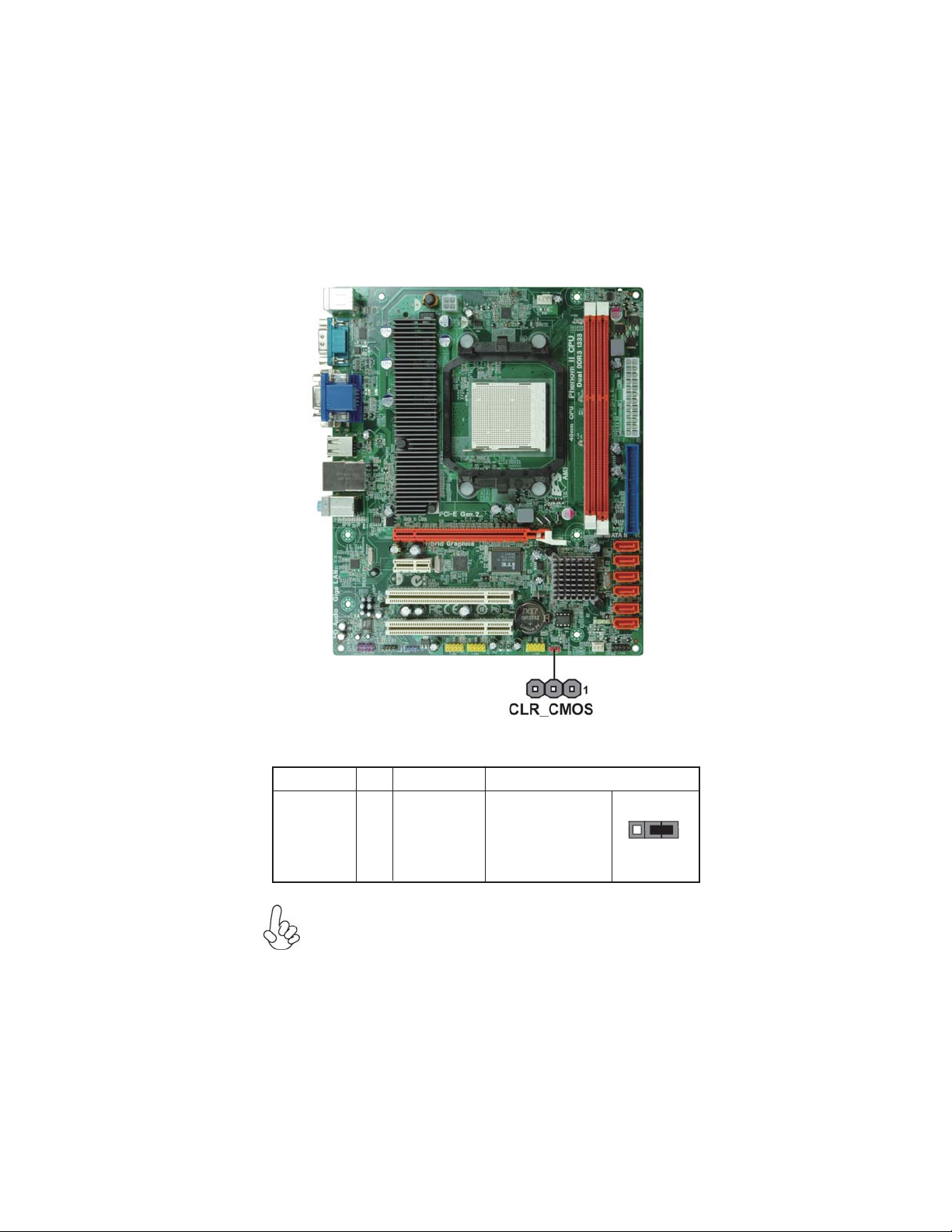

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
JumperSettings
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then
“Save & Exit Setup”.
Jumper Type Description Setting (default)
CLR_CMOS 3-pin CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off. CLR_CMOS
1

10
Installing the Motherboard
InstallingHardware
Installing the Processor
Caution: When installing a CPU heatsink and cooling fan make sure
that you DO NOT scratch the motherboard or any of the surface-
mount resistors with the clip of the cooling fan. If the clip of the
cooling fan scrapes across the motherboard, you may cause serious
damage to the motherboard or its components.
This motherboard has a socket AM3 processor socket. When choosing a processor,
consider the performance requirements of the system. Performance is based on the
processor design, the clock speed and system bus frequency of the processor, and the
quantity of internal cache memory and external cache memory.
Before installing the Processor
This motherboard automatically determines the CPU clock frequency and system
bus frequency for the processor. You may be able to change these settings by making
changes to jumpers on the motherboard, or changing the settings in the system Setup
Utility. We strongly recommend that you do not over-clock processors or other
components to run faster than their rated speed.
On most motherboards, there are small surface-mount resistors near
the processor socket, which may be damaged if the cooling fan is
carelessly installed.
Avoid using cooling fans with sharp edges on the fan casing and the
clips. Also, install the cooling fan in a well-lit work area so that you
can clearly see the motherboard and processor socket.
Warning:
1. Over-clocking components can adversely affect the reliability of the
system and introduce errors into your system. Over-clocking can per-
manently damage the motherboard by generating excess heat in com-
ponents that are run beyond the rated limits.
2. Always remove the AC power by unplugging the power cord from
the power outlet before installing or removing the motherboard or
other hardware components.

11
Installing the Motherboard
CPU Installation Procedure
The following illustration shows CPU installation components.
To achieve better airflow rates and heat dissipation, we suggest that you use
a high quality fan with 4800 rpm at least. CPU fan and heatsink installation
procedures may vary with the type of CPU fan/heatsink supplied. The form
and size of fan/heatsink may also vary.
1 Unhookthelocking lever of the CPU socket. Pull the
locking lever away from the socket and raising it to
the upright position.
2 Match the pin1 corner marked as the beveled edge
on the CPU with the pin1 corner on the socket.
Insert the CPU into the socket. Do not use force.
3 Push the locking lever down and hook it under the
latch on the edge of socket.
4 Apply thermal grease to the top of the CPU.
5 Install the cooling fan/heatsink unit onto the CPU,
and secure them all onto the socket base.
6 Plug the CPU fan power cable into the CPU fan
connector (CPU_FAN) on the motherboard.

12
Installing the Motherboard
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM only.
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 InstallanyremainingDIMMmodules.
Installing Memory Modules
This motherboard accommodates two memory modules. It can support two 240-pin
DDR3 1600 (OC)/1333/1066. The total memory capacity is 16 GB.
DDR3 SDRAM memory module table
Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always
wear a grounding strap when you handle the modules.
You must install at least one module in any of the two slots. Total memory capacity
is 16 GB.
Memory module Memory Bus
DDR3 1066 533 MHz
DDR3 1333 667 MHz
DDR3 1600 800 MHz

13
Installing the Motherboard
Table: DDR3 (memory module) QVL (Qualified Vendor List)
The following DDR3 1333/1066 memory modules have been tested and qualified for
use with this motherboard.
DDR3 800
NO. Vendor Module part number IC Br and IC Chip Number SS/DS Size
1Qimonda IMSH51U03A1F1C-08E

Qimonda IDSH51-03A1F1C-OBE

SS 512MB
NO. Vendor Module part number IC Br and IC Chip Number SS/DS Size
1Elixir M2Y2G64CB8HC9N-BE DS 2GB
2Elixir M2Y2G64CB8HC5N-BE elixir N2CB1G80CN-BE DS 2GB
3Elpida PC3-8500U-7-00-AP Elpida J53088ASE-AC-E SS 512MB
4Elpida EBJ10UE8BDF0-AE-F Elpida J1108BDSE-DJ-F SS 1GB
5Elpida EBJ21UE8BDF0-AE-F Elpida J1108BDSE-DJ-F DS 2GB
6 Hynix HYMT112U64ZNF8-G8 AA Hynix HY5TQ1G831ZNFP-G8 SS 1GB
7Hynix HMT112U6AFP8C-G7N0 AA Hynix H5TQ1G83AFP G7C SS 1GB
8 Hynix HYMT125U64ZNF8-G8 AA Hynix HY5TQ1G831ZN FP-G8 DS 2GB
9Hynix HMT125U6AFP8C-G7N0 AA Hynix H5TQ1G83AFP G7C DS 2GB
10 Hynix HYMT112U64ZNF8-G8 AA

Hynix HY5TQ1G831ZN FP-G8

SS 1GB
11 Kingston KVR1066D3N7 Elpida J5308BASE-AE-E 07500W220 SS 1GB
12 Kingston KVR1066D3N7/512

Elpida

J5308BASE-AE-E 07340W065

SS 512MB
13 Micron MT8JTF12864AY-1G1D1 Micron 7UD22D9JNL SS 1GB
14 Micron MT8JTF12864AY-1G1D1 Micron 8TD22 D9JNL SS 1GB
15 Micron MT16JTF25664AY-1G1D1 Micron 7UD22D9JNL DS 2GB
16 Micron MT16JTF25664AY-1G1D1 Micron 8WD22 D9JNL DS 2GB
17 Micron MT16JTF25664AZ-1G1F1 Micron 9EF22 D9KPV DS 2GB
18 Micron MT8JTF12864AZ-1G1F1 Micron 9NF22 D9KPT SS 1GB
19 Ramaxel RMR1810NA48E7F-1066-LF NANYA NT5CB128H8AN-DE SS 1GB
20 Samsung M378B2873DZ1-CF8 0818 SEC HCF8 K4B1G0846D SS 1GB
21 Samsung M378B2873EH1-CF8 SEC HCF8K4B1G0846E SS 1GB
22 Samsung M378B5673DZ1-CF8 0842 SEC K4B1G0846D HCF8 DS 2GB
23 Samsung M378B5673DZ1-CF8 0842 SEC K4B1G0846D HCF8 DS 2GB
24 Qimonda IMSH1GU03A1F1C-10F Qimonda IDSH1G-03A1F1C-10F FSS15085 SS 1GB
25 Qimonda IMSH1GU03A1F1C-10G Qimonda IDSH1G-03A1F1C-10G FSS14526 SS 1GB
26 Qimonda IMSH2GU13A1F1C-10F Qimonda IDSH1G-03A1F1C-10F FSS15085 DS 2GB
27 Qimonda IMSH2GU13A1F1C-10G Qimonda IDSH1G-03A1F1C-10G FSS13467 DS 2GB
28 Aeneon AEH760UD00-10FA98
X
Aeneon AEH93R10F 0737 SS 1GB
29 Corsair CM3X1024-1066C7 SS 1GB
30 Nanya M2Y2G64TU8HD5B-BD elixir N2CB1G80AN-CG DS 2GB
31 Winchip 64A0TPHM8G17E

Elpida J5308BASE-AC-E

SS 1GB
NO. Vendor Module part number IC Br and IC Chip Number SS/DS Size
1A-DATA AD3U1333B1G9-B Hynix H5TQ1G83BFR SS 1GB
2A-DATA AD3U1333B2G9-B Hynix H5TQ1G83BFR DS 2GB
3A-DATA Game A-DATA 8-8-8-24 DS 2GB
4Apacer 78.A1GC6.9L1 Apacer AM5D5808ADWSBG DS 2GB
5Elixir M2F2G64CB8HA4N-CG Elixir N2CB1G80AN-CG 0903 DS 2GB
6Elixir M2Y2G64CB8HC9N-CG DS 2GB
7Elixir M2Y1G64CB88A5N-CG

Elixir N2CB1G80AN-CG

SS 1GB
8Elixir M2Y2G64CB8HA5N-CG

Elixir N2CB1G80AN-CG

DS 2GB
9Hynix HMT112U6AFP8C-H9N0 AA Hynix H5TQ1G83AFP H9C SS 1GB
10 Hynix HMT125U6AFP8C-H9N0 AA Hynix H5TQ1G83AFP H9C DS 2GB
11 G.SKILL F3-10666CL9D-4GBRL DS 2GB
12 G.SKILL F3-10666CL8D-4GBECO DS 2GB
13 G.SKILL F3-10666CL9D-4GBNQ DS 2GB
14 Kingston KVR1333D3N9 Elpida J1108BASE-DJ-E SS 1GB
15 Kingston KVR1333D3N9 Elpida J1108BABG-DJ-E DS 2GB
16 Kingston KVR1333D3N9 Hynix Hynix/H5TQ2G83AFR DS 4GB
17 Kingston KVR1333D3N9 Micron 8CD22 D9JNM SS 1GB
18 Kingston KVR1333D3N9 Kingston 128X8DDR3 SL0931 DS 2GB
19 Kingston KVR1333D3N9K2/2G Elpida J1108BASE-DJ-E DS 2GB
20 Kingston KVR1333D3N9/2G Qimonda IDSH1G-03A1F1C-13H

DS 2GB
21 KingMax FLFD45F-B8KG9 NAES KingMax KFB8FNGXF-ANX-15A SS 1GB
22 KingMax FLFE85F-B8KG9 NEES KingMax KFB8FNGXF-ANX-15A DS 2GB
23 KingM ax FLFD45F-B8KG9 NAUS

Kings Max KFB8FNG XF-ANX-15U

SS 1GB
24 KingMax FLFE85F-B8KG9 NEUS

Kings Max KFB8FNG XF-ANX-15U

DS 2GB
25 Nanya NT2GC64B8HAONF-CG Elixir N2CB1G80AN-CG DS 2GB
DDR3 1066
DDR3 1333

14
Installing the Motherboard
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
26 Nanya NT1GC64B88A0NF-CG

Nanya NT5CB128M8AN-CG

SS 1GB
27 Micron MT8JTF12864AY-1G4D1 Micron 8UD22 D9JNM SS 1GB
28 Micron MT16JTF25664AY-1G4D1 Micron 8WD22 D9JNM DS 2GB
29 Micron MT8JTF12864AZ-1G4F1 Micron 9MF22 D9KPT SS 1GB
30 PSC AL7F8G73D-DG1 PSC A3P1GF3DGF SS 1GB
31 PSC AL8F8G73D-DG1 PSC A3P1GF3DGF DS 2GB
32 Ramaxel RMR1810KD48E7F-1333 SEC K4B1G0846D SS 1GB
33 Ramaxel RMR186EA48D8F-1333 ELPLDA J1108BASE-DJ-E DS 2GB
34 Ramaxel RMR1810E7F-1333 Elpida J1108BDBG-DJ-F SS 1GB
35 Samsung M378B2873DZ1-CH9 SEC K4B1G0846D SS 1GB
36 Samsung M378B2873EH1-CH9 SEC K4B1G0846E HCH9 SS 1GB
37 Samsung M378B5673EH1-CH9 SEC K4B1G0846E HCH9 DS 2GB
38 Samsung M378B2873FHS-CH9 SEC K4B1G0846F SS 1GB
39 Samsung M378B5673FH0-CH9 SEC K4B1G0846F DS 2GB
40 Samsung M378B5273CH0-CH9 SEC K4B2G0846C DS 4GB
41 Silicon Powe
r
SP001GBLTU133S01 Nanya NT5CB128M8AN-CG SS 1GB
42 Silicon Powe
r
SP002GBLTU133S01 Nanya NT5CB128M8AN-CG DS 2GB
43 Aeneon AXH760UD00-13GA98X

SS 1GB
44 Corsai
r
CM3X1024-1333C9DHX SS 1GB
45 Qimonda IMSH1GU13A1F1C-13H Qimonda 0734 IDSH51-03A1F1D SS 1GB
46 Qimonda IMSH2GU13A1F1C-13H Qimonda IDSH1G-03A1F1C-13H FSS08244 DS 2GB
47 Unifosa

GU502203EP0201

Elpida J1108BDBG-DJ-F

SS 1GB
48 Unifosa

GU512303EP0202

Elpida J1108BDBG-DJ-F

DS 2GB
49 Elpida EBJ10UE8BDF0-DJ-F Elpida J1108BDSE-DJ-F SS 1GB
50 Elpida EBJ21UE8BDF0-DJ-F Elpida J1108BDSE-DJ-F DS 2GB
51 Winchip GDF2GB18L150C8

Winchip

AFE128AYE-15

DS 2GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 A-DATA Super speed flying dragon DS 2GB
2 A-DATA AX3U1600GB2G9-AG

DS 2GB
3Elixi
r
M2Y2G64CB8HA9N-DG DS 2GB
4 G.SKILL F3-12800CL9D-4GBNQ DS 2GB
5 G.SKILL F3-12800CL9D-4GECO DS 2GB
6 G.SKILL F3-12800CL7D-4GBECO DS 2GB
7 G.SKILL F3-12800CL9D-4GBRL DS 2GB
8 KingsMax FLGD45F-B8KG9 NEES

KingsM ax KFB8FNGXF-ANX-12A

SS 1GB
9 KingsMax FLGE85F-B8KG9 NEES

KingsM ax KFB8FNGXF-ANX-12A

DS 2GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 Kingston KHX1800C9D3K3/3GX SS 1GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 Apacer 78.AAGD5.9KD DS 2GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 Kingston KHX2133C9D3T 1K2/4G
X
DS 2GB
NO. Vendor Module part number IC Brand IC Chip Number SS/DS Size
1 KingsMax FLKE85F-B8KJA FEIH DS 2GB
2 G.SKILL F3-17600CL7D-4GBPIS DS 2GB
DDR3 1333
DDR3 2200
DDR3 2133
DDR3 2000
DDR3 1800
DDR3 1600
Due to the Phenom CPU and memory module limitation, the DRAM may
need to adjust the voltage for supporting DDR3 1066. The memory mod-
ules which can be used stably are listed in the above QVL table for reference.

15
InstallingtheMotherboard
Expansion Slots
Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can in-
crease the motherboard’s capabilities by adding hardware that performs tasks that are
not part of the basic system.
PCIEX16 Slot
PCI1~2 Slots This motherboard is equipped with two standard PCI slots. PCI
stands for Peripheral Component Interconnect and is a bus stan-
dard for expansion cards, which for the most part, is a supple-
ment of the older ISA bus standard. The PCI slots on this board
are PCI v2.3 compliant.
The PCI Express x1 slot is fully compliant to the PCI Express®
Generation 2.0.
PCIE1 Slot
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may have
to manually configure the card before installation.
The PCI Express x16 slot is used to install an external PCI
Express graphics card that is fully compliant to the PCI Express®
Generation 2.0.

16
Installing the Motherboard
Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the
slot you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
For some add-on cards, for example graphics adapters and network
adapters, you have to install drivers and software before you can
begin using the add-on card.
