Atlas Gazebo Fitting Instructions 2.4M
Please read these instructions
carefully and plan your build
We recommend a minimum of two
people to assemble this structure
Always check the diagrams as a
reference before each step
Featheredge Roofing 2400mm
2x2 Roof Framing 2260mm
2x2 Roof Framing 1115mm
4x1 Roof Fascia 1195mm
4x1 Roof Fascia 1195mm
Roof Centre Support Wedge
Diamond Centre Piece
Roof Capping Rail 2400mm
Roof Support Front 980mm
Roof Support Centre 570mm
Roof Braces 660mm
2x2 Vertical Framing 1810mm
Hand / Baserail 2170mm
Handrail Spindle 900mm
2x2 Horizontal Framing 2170mm
2x2 Support Braces 380mm
2x2 Vertical Framing 1810mm
Hand / Baserail 2170mm
Handrail Spindle 900mm
2x2 Horizontal Framing 2170mm
2x2 Support Braces 815mm
2x1 Decorative Framing 100mm
2x1 Decorative Framing 240mm
2x1 Decorative Framing 380mm
2x1 Decorative Framing 520mm
2x1 Decorative Framing 640mm
Support Posts 2070mm or 2400mm
40mm 1 1/2g x 8g x260
50mm Deck Screws x10
75mm Deck Screws x120
A1
A2
A3
A4a
A4b
A5
A6
A7
A8
A9
A10
B1
B2
B3
B4
B5
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
x26
x4
x10
x2
x2
x5
x1
x1
x1
x1
x2
x4
x6
x28
x2
x4
x2
x3
x14
x1
x2
x2
x2
x2
x2
x2
x4
Apex Roof
Assembly will require
at least 2 people
Side Panels
Rear Panel
Wood Screws*
*Please note that you may receive additional screws in your kit.

A5
Attach the wedges using 4 screws from
the underside of the wedge, use 50mm
on the outside of the wedge and 75mm
on the inside of the wedge
Page 2 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M
Start by evenly spacing five 2x2 Roof Framing 1115 (A3) and
boxing them in with two 2x2 Roof Framing 2260mm (A2) to
create a frame, repeat this for the opposing side.
Use 75mm screws as indicated in the diagram below 20 screws
will be rquired in total (10 for each frame)
Attach the Featheredge Roofing 2400mm
(A1) to the roof starting from the bottom to the
top of the apex using 40mm screws into the roof
framing below, remember to leave a minimum of
15mm overlap on each board.
Now, to create the apex, join the two frames together using the
Roof Centre Support Wedges (A5) attach the front and
back wedges first and then the centres.
To complete the apex on the roof use the
two remaining featheredge boards and
fix them to the roof top as shown and cap
off with 5 x 40mm screws into the Roof
Capping Rail 2400mm (A7)
A7
A1
A1
Remember to leave minimum
of 15mm overlap on each board
and to screw through the thick part
of the featheredge board using
40mm screws into the roof framing
below
Start at the bottom and work up
Step1 - Assembling the Apex Roof
50mm
75mm Screw
75mm Screw
50mm
75mm
75mm
A3 A2
10 x 75mm & 10 x 50mm Screws to secure frame to wedges
A total of 130 x 40mm Screws will be needed for the roofing

Start by evenly spacing 14 Handrail Spindles (B3) and fixing on
to two of the Hand / Baserail 2170mm (B2) screwing through
the top and bottom into each spindle using 40mm screws.
B3
B2
B2
2 x 40mm screws per spindle
1 at the top & 1 at the bottom
B1
B3
B2
B2
B1
75mm Screw 75mm Screw
75mm Screw
75mm Screw
B2
Page 3 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M
Attach the remaining Hand / Baserail 2170mm (B2) to the
top of the handrail system by screwing from the underside of
the already fitted Hand / Baserail 2170mm (B2)
Now take two of the 2x2 Vertical Framing 1810mm (B1)
and screw them to each side of handrail previously built with
75mm screws as indicated in the diagram below.
Step 2 - Assembling the Side Panels
Screw into the handrail from the underside of the handrail (B2)
using 40mm screws, as indicated in the diagram above
B1
B3
B2
B2

B4 75mm Screw
75mm Screw
Page 4 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M
Fix one 2x2 Horizontal Framing 2170mm
(B4) in between the top of the vertical framing
making a flush finish. Use 2 x 75mm screws at
each end.
Using two of the 2x2 Braces
380mm (B5) screw these
using 75mm screws from the
outside of the frame to each
top corner of the panel.
Repeat the above for the
second side panel.
Step 2 Cont’d - Assembling the Side Panels
B5
B5
B5
B5
B4
B1
B2
B2
B3
B2
B4
75mm Screw
75mm Screw

Page 5 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M

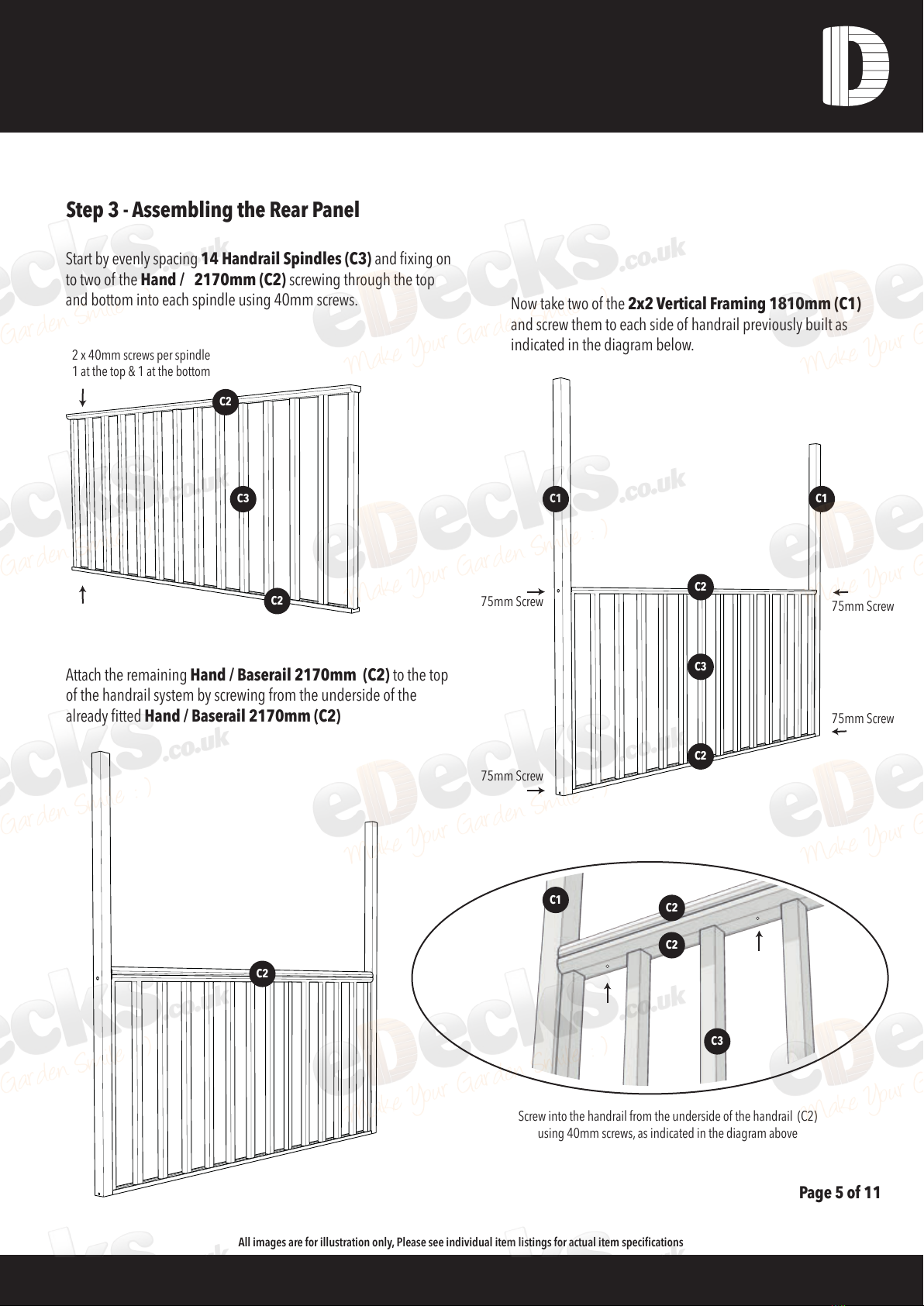

Step 3 - Assembling the Rear Panel
Attach the remaining Hand / Baserail 2170mm (C2) to the top
of the handrail system by screwing from the underside of the
already fitted Hand / Baserail 2170mm (C2)
Now take two of the 2x2 Vertical Framing 1810mm (C1)
and screw them to each side of handrail previously built as
indicated in the diagram below.
Screw into the handrail from the underside of the handrail (C2)
using 40mm screws, as indicated in the diagram above
C1
C3
C2
C2
C1
C3
C2
C2
C1
75mm Screw 75mm Screw
75mm Screw
75mm Screw
Start by evenly spacing 14 Handrail Spindles (C3) and fixing on
to two of the Hand / 2170mm (C2) screwing through the top
and bottom into each spindle using 40mm screws.
C3
C2
C2
2 x 40mm screws per spindle
1 at the top & 1 at the bottom
C2

C4 75mm Screw
75mm Screw
C10 C9 C8 C7 C6
C5
Panel from outside Page 6 of 10
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M
Step 3 Cont’d - Assembling the Rear Panel
Using the two 2x2 Braces 815mm (C5) screw these to each top corner of the panel using 75mm screws as shown below
for each brace. Finally, add the 2x1 Decorative Framing (C6 - C10) starting with the longest length on the outside ending
with the shortest length on the inside, using 40mm screws at the top and bottom to secure to the frame.
Fix one 2x2 Horizontal Framing 2170mm
(C4) in between the top of the vertical framing
making a flush finish.
75mm Screw
40mm Screws
top & bottom
75mm Screw

Inside of Gazebo
Page 7 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M

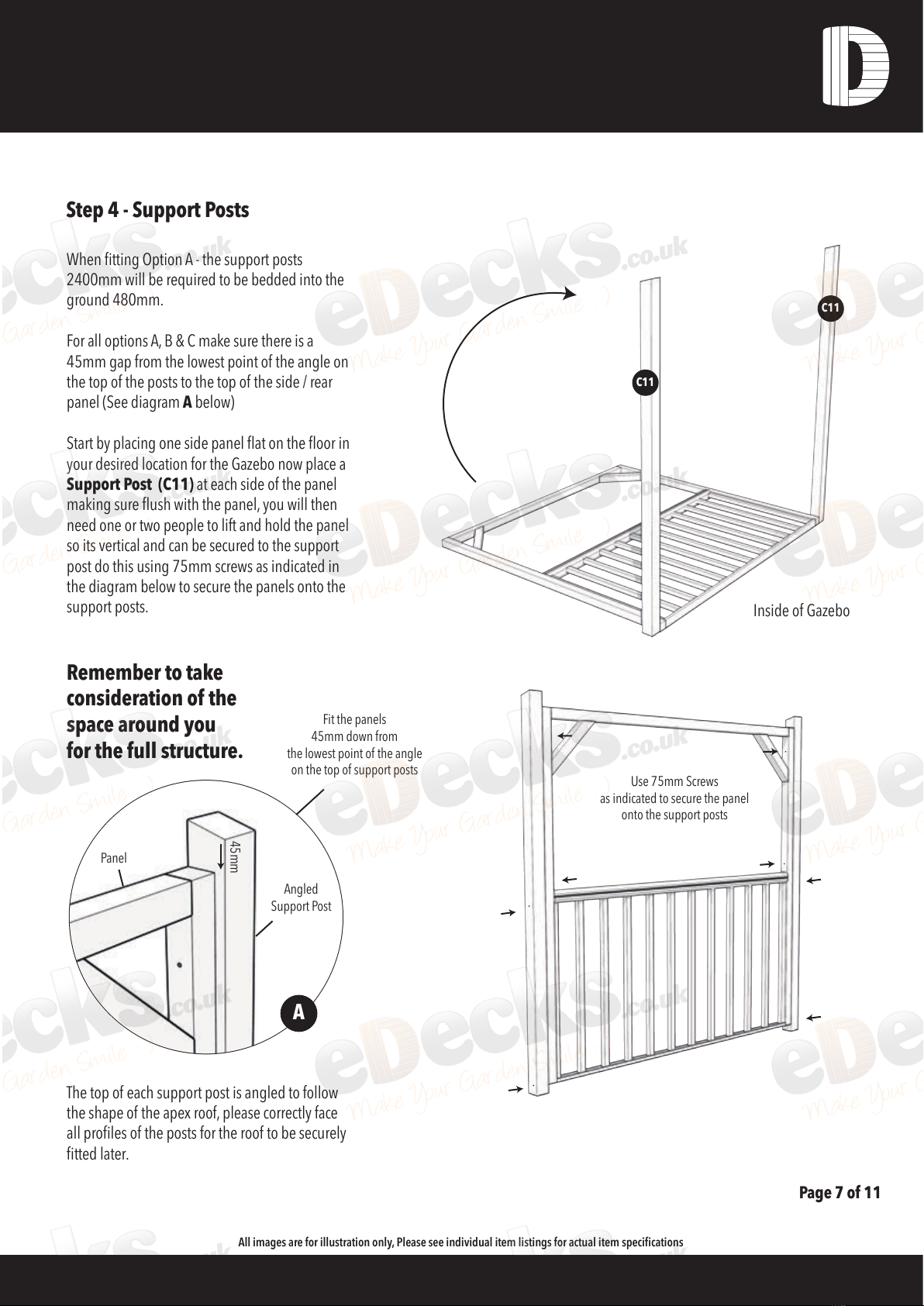

Step 4 - Support Posts
When fitting Option A - the support posts
2400mm will be required to be bedded into the
ground 480mm.
For all options A, B & C make sure there is a
45mm gap from the lowest point of the angle on
the top of the posts to the top of the side / rear
panel (See diagram A below)
Start by placing one side panel flat on the floor in
your desired location for the Gazebo now place a
Support Post (C11) at each side of the panel
making sure flush with the panel, you will then
need one or two people to lift and hold the panel
so its vertical and can be secured to the support
post do this using 75mm screws as indicated in
the diagram below to secure the panels onto the
support posts.
Remember to take
consideration of the
space around you
for the full structure.
The top of each support post is angled to follow
the shape of the apex roof, please correctly face
all profiles of the posts for the roof to be securely
fitted later.
C11
C11
Use 75mm Screws
as indicated to secure the panel
onto the support posts
Fit the panels
45mm down from
the lowest point of the angle
on the top of support posts
Angled
Support Post
Panel
45mm
A

Repeat the process
for the rear panel and
the remaining side panel.
Back of Gazebo
Front of Gazebo
24 x 75mm Screws required for this step Page 8 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M
Step 4 Cont’d - Support Posts

Page 9 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M

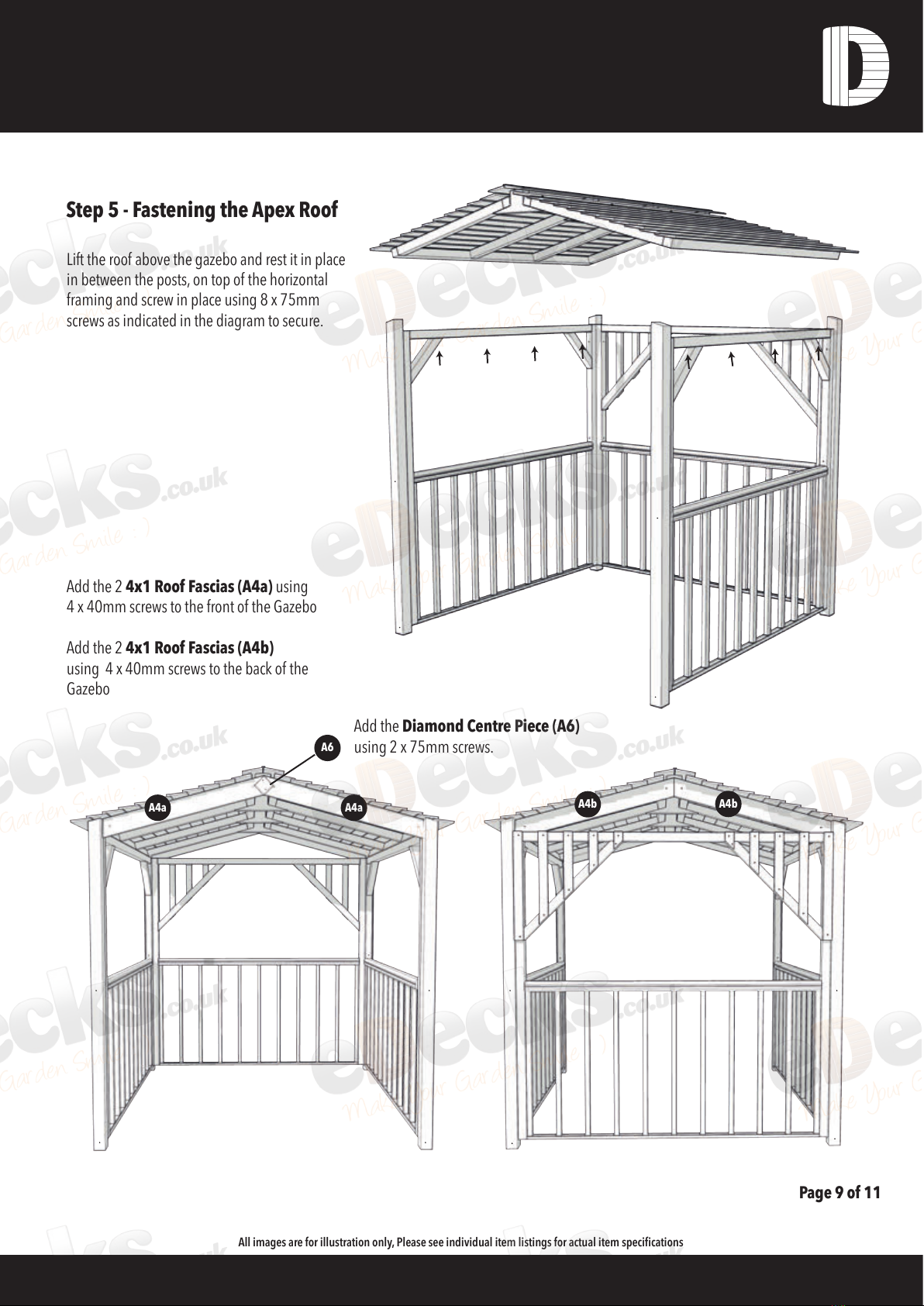

Step 5 - Fastening the Apex Roof
Lift the roof above the gazebo and rest it in place
in between the posts, on top of the horizontal
framing and screw in place using 8 x 75mm
screws as indicated in the diagram to secure.
Add the 2 4x1 Roof Fascias (A4a) using
4 x 40mm screws to the front of the Gazebo
Add the 2 4x1 Roof Fascias (A4b)
using 4 x 40mm screws to the back of the
Gazebo
A4b
A4a A4a
A6
A4b
Add the Diamond Centre Piece (A6)
using 2 x 75mm screws.

Fix into position the front and centre roof
supports - A8 using 2 x 75mm screws at each end
of the support from the inside of the Gazebo &
A9 using 2 x 75mm screws at each end from
under the support
Finally add the 2 front roof braces A10 again
using 2 x 75mm screws at either end of the brace
into the Gazebo framing.
Page 10 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M
Step 6 - Adding roof supports & front roof braces.
A8
A9
A10
A10

Page 11 of 11
www.eDecks.co.uk
All images are for illustration only, Please see individual item listings for actual item specifications
Atlas Gazebo Fitting Instructions 2.4M
Finish
