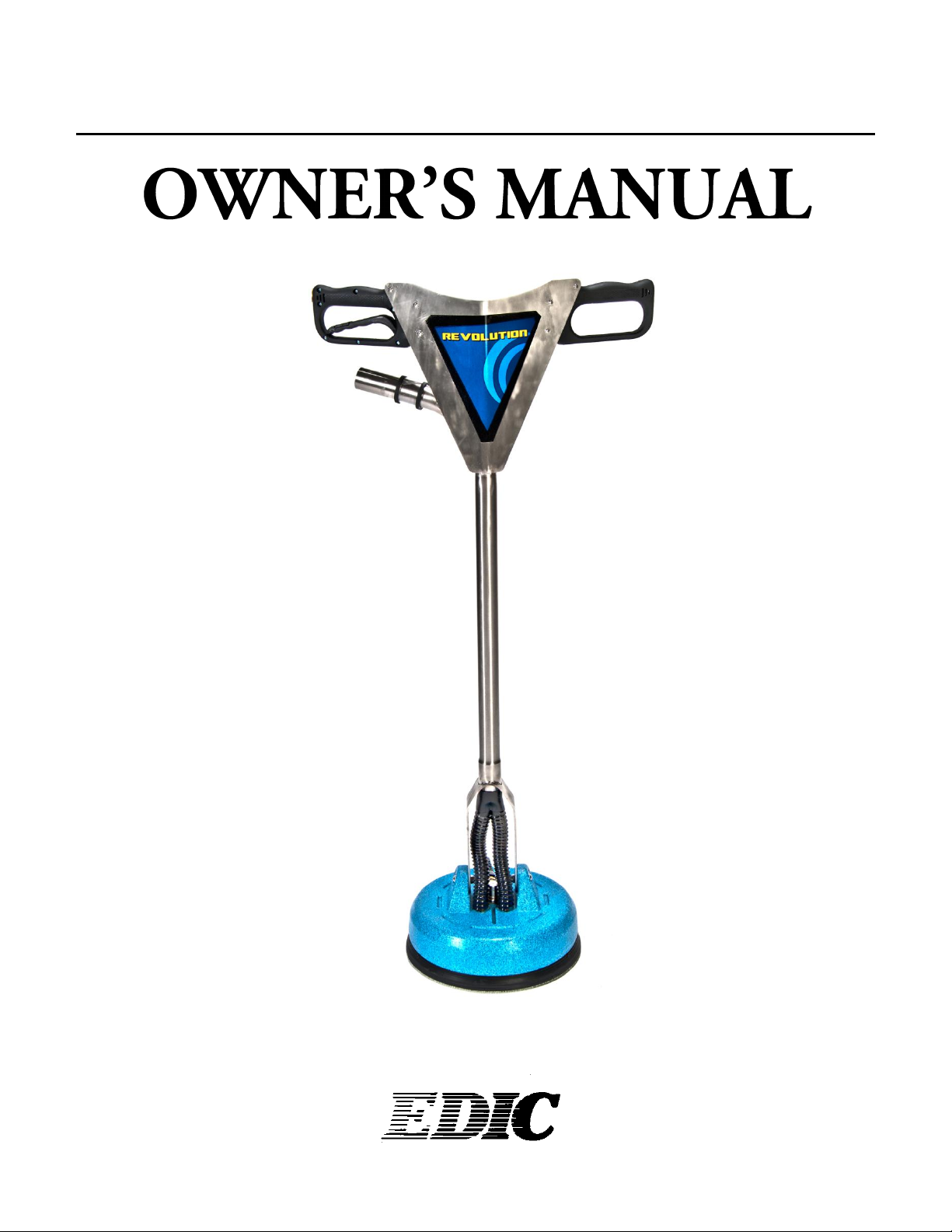

Edic REVOLUTION User manual

REVOLUTION

WH EN T H E PACK AGE I S DELI VERED
Check th e carton carefu lly for signs or r ou gh han dling. Remove t he tool fr om the carton. If the
tool is damaged, notify the carrier IMMEDIATELY an d requ est an inspect ion. Be su re to keep
t he car ton , pack in g in serts, pack in g list s an d car rier’s r eceipt u n til t he in spector h as verified
you r claim.
EDIC’s liability ceases wh en t he car rier pick s u p th e shipment bu t ou r cu stomer service staff
will be glad to fu rnish any informat ion needed in connection with the claim and will expedite
repair of the mach ine.
BEFORE OPERATI NG T H E REVOLUTI ON
Read th e man u al car efu lly an d com pletely before at tem pt in g to oper at e th e u nit. Th is m an u al
has im port ant in formation for the u se and safe operation of t he tool. Keep this manu al han dy
at all t imes. This tool will assu re years of sat isfactory service if oper at ed an d main t ain ed
accor din g to recommendat ion in t his manu al. If additional information is needed, please
contact you r local distribu t or or wr ite to:
EDIC
1753 Blak e Ave
Los An geles, CA 90031-1006
E-mail:in fo@edic-u sa.com
All informat ion an d specifications pr inted in the manu al an d parts list ar e cu rren t at the time
of printing; however, becau se of EDIC’s policy of con t in u al produ ct developmen t , we reserve
the right to mak e chan ges at an y time with ou t notice.
WARNI NG
Th is tool is n ot designed to h an dle or u se combu stible/ volat ile su bstances su ch as gasoline
or k erosene, in , on, or near the tool. Th e use of su ch materials will cau se ext reme
hazar dou s con dit ion s.
Do not leave the tool exposed t o h arsh weather element s. Temperatu res below fr eezing may
damage componen ts an d void warran t y.
Do not allow to be u sed as a t oy. Ensu re children do not h ave access to the equ ipmen t. Do
not allow children to play with or near the u nit.
Keep h air , loose cloth ing, fingers an d all parts of the body away fr om all moving part s.
The Revolu tion was designed for u se on h ard su rfaces only su ch as grou ted tile, stone, or
concrete as per the instru ction s an d recommendation s written in this m anu al. Any
deviation from its proper u se or pu rpose and the consequ ential damage that m ay occu r is
the sole responsibilit y of the end-u ser.
Repairs are only allowed by a qu alified service center. Do not attempt to disassemble or
repair the u nit if you are not qu alified to do so.
Do not drop or throw the un it. Treat ment of this type can cau se dam age to the components
an d creat e h azardou s con dition
FAI LURE T O COM PLY WI T H T HE ABOVE WARNI NG I NSTRUCTI ONS WI LL VOI D T HE
WARRANTY.

PREPARATI ON
Remove fu r nitu re fr om cleanin g area, an d sweep or vacu u m .
Protect from all types of overspr ay, any cabinet s, pain ted su rfaces, walls, carpets, an d
other delicate m aterials by mask ing, using painter’s tape, dr op cloth s, plastic, or spray
sh ields.
Iden t ify the type of floor you are going to clean to insu re that you are u sing the proper
ch emicals, bru shes and equ ipment an d will not damage th e floor.
After iden tifyin g the flooring, apply the appropr iate pre-spray to the floor . To avoid longer
dry t ime before sealing, u se only 5 minu te dwell time or less an d do not over wet the
su r face.
OPERATI ON
(Pressure range of 700-1500 psi and temperature up to 200°F)
Connect t he Revolu tion to t h e vacu u m and solu tion hose fr om t he extractor.
Tu rn on the extract or t o engage th e vacu u m.
Mak e su re the bot tom of t he Revolu tion is flush wit h the su rface to be cleaned to insu re
pr oper su ct ion .
Squ eeze the trigger to release the solu tion and move the Revolu tion at a m oderate r ate
overlappin g ju st enou gh to in su re complete coverage. Movin g too fast m ay create a spiral
pattern in the grou t or tile.
AFT ER USE
Discon n ect hoses and in spect them for an y damage.
Wipe the mach in e with a clean, soft damp cloth.
Store indoors, in a clean, dry place.
Do not st ore sitting on t he bru sh.
Do n ot st ore in freezing tem perat u res.
DAI LY M AI NT ENANCE
Clean and in spect h oses.
Check for loose h ardware.
Clean machine with a clean, soft, damp cloth .
WEEKLY M AI NT ENANCE
In spect an d clean if n ecessary the stain less steel mesh filter after the qu ick disconnect.
Inspect spray jets. Do not adju st t h e angle of the tips.

T ROUBLESH OOT I NG
Problem Cause
- Inspect the jets to make sure they are not clogged
- Inspect the stainless steel mesh filter after the quick
disconnect clean if necessary.
- Remove the Revolution from the solution hose and
check the extractor for a normal flow of solution.
- Try to spin the arm by hand. If it doesn’t move take
the revolution to a qualified service center to
replace or rebuild.
- Inspect the brush and manifold to make sure they
are balanced and flat.
- Adjust the vacuum suction adjustment.
Problem
Revolution doesn’t spin.
Revolution doesmove easily or
smoothly.
