Streamline DRAGONFLY4-001 User manual

DRAGONFLY
®
INSTRUCTION MANUAL
INSTR-DRAG4
English
DRAGONFLY4-001
DRAGONFLY4-002
DRAGONFLY4-OV8
Codes:

2W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
Contents
7. Why STREAMLINE®?
8. Warranty Information
1. Responsibilities
2. Technical Specifications
3. Safety Regulations
4. Operating the DRAGONFLY® system
5. Malfunctions and Troubleshooting
6. Declaration of Conformity
General Responsibilities
Manufacture Responsibilities
Personnel Responsibilities
Personal Safety
System Safety
Electrical Specifications and Safety
Technical Data
Parts and Accessories
Unpacking your system
About your system
Charging your battery
How to assemble your system
How to operate your system
How to turn your system OFF
19
20
3
3
3
4
4
5
6
7
8
9
10 - 11
12 - 14
14 - 15
16
17
18
1Responsibilities
Responsibilities
General Responsibilities
Manufactures Responsibilities
Personnel Responsibilities
These operating instructions allows you to use the DRAGONFLY®4 internal window cleaning system
safely and eciently. The instructional booklet must be read before setting up, starting or using
your STREAMLINE® equipment. It is an integral part of the product itself
Please read the warning and instructions contained in this booklet carefully.
They provide important information on the safe use and maintenance of the
equipment. Pay particular attention to general safety instructions.
Please keep this booklet in a safe place near your DRAGONFLY®4 system for future consultation.
Your DRAGONFLY®4 internal window cleaning system is constructed according to current safety
standard and regulations. The latest and current edition is illustrated in this manual.
The contents of this booklet should be bought to the attention of all users.
VARITECH SYSTEMS Ltd, the manufacture of STREAMLINE®, holds 12-months warranty on all
machines and equipment from the date of purchased (see Warranty section 2)
VARITECH SYSTEMS Ltd, the manufacture of STREAMLINE®, is in no case responsible for failures
or errors caused by modifications to the unit by customer or other persons.
The DRAGONFLY®4 internal window cleaning system is designed and manufactured to be operated
in industrial applications. It is important that the operator(s) of the DRAGONFLY®4 internal window
cleaning system have read through these operating instructions thoroughly, and understand all
safety instructions and regulations.
The DRAGONFLY®4 internal window cleaning system is not intended for use by children,
adolescents, persons under the influence of alcohol / drugs or simply lacking experience
and knowledge.
These operating instructions are designed to educate the user, informing the operator how to carry
out the task at hand successfully, whilst avoiding potential dangers that might occur.
Important
If needed, training videos can be found on the manufacture website: www.streamline.systems
DRAGONFLY
®

4W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]

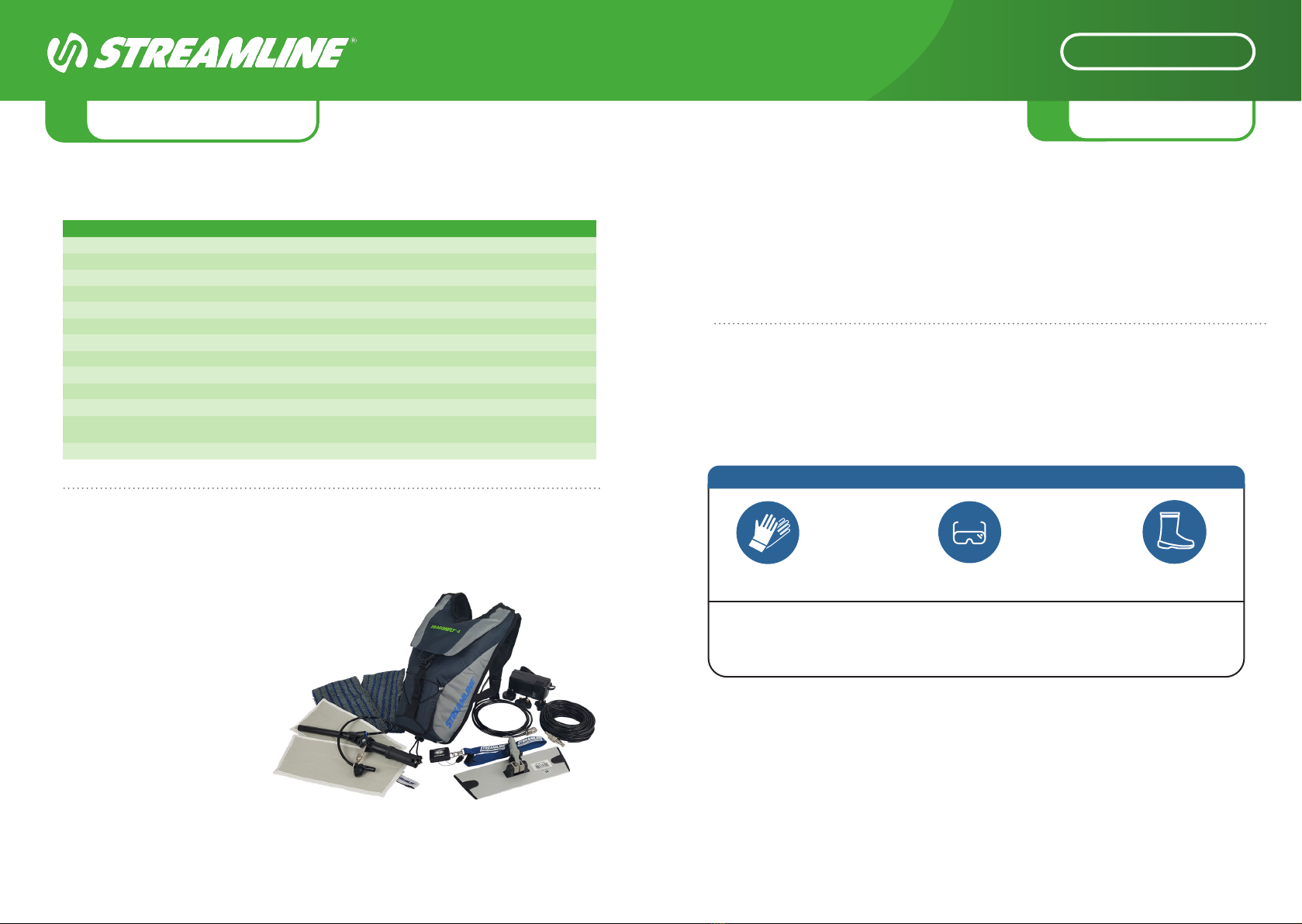

2Technical Specifications
PRODUCT CODE DRAGONFLY4-001 DRAGONFLY4-002
Country of Origin United Kingdom United Kingdom
Maximum Height mm mm
Maximum Length mm mm
Maximum Width mm mm
Dry Weight kg kg
Wet Weight kg kg
Optimum Operating Pressure 2.8bar 40psi 2.8bar psi
Pure Water Outlet Connection Female Q21 stop connector Female Q21 stop connector
Electrical Power Supply 12V Battery / 230V mains charger 230V mains / 230V mains charger
Power Consumption kW kW
Optimum Water Quality 000ppm 000ppm
Pure Water Flow (optimum
output) 3.8Lpm 3.8Lpm
Operating Time 8 Hours Battery Life 8 Hours Battery Life
Specification Data
Parts and Accessories
The DRAGONFLY®4 system will include the following parts:
- 1x STREAMLINE® DRAGONFLY®4
backpack, containing 1.5Ltr
water reservoir
- 1x DRAGONFLY®4 pump box,
containing a 12V battery, pump
and remote control switch
- 230V mains battery charger
- 25cm Aluminium Mop Plate
- 2x Glass Microfibre Scrub Mops
- 2x Glass Microfibre
Polishing Mops
- Pole attachment complete with
Spray jet
- 15mtr of pole tubing
3Safety Regulations
The DRAGONFLY® Internal Window Cleaning Kit is designed to clean internal glass quickly and ef-
fectively and with your feet on the ground. It eliminates the need for ladders and expensive access
equipment. Glass which has not been cleaned for some time may require an initial clean, using
conventional methods, but the DRAGONFLY® will make short work of the maintenance thereafter.
You may want to use your own telescopic pole, therefore please ensure you use the length of
internal tubing supplied with the DRAGONFLY®.
Personal Safety
Stay alert, watch what you are doing and use common sense when operating the DRAGONFLY®
filtration system. Do not use the filtration system while you are tires or under the influence of
alcohol, drugs or medication. A moment of inattention while operating the filtration trolley may
result in serious personal injury.
Additional protective equipment such as a dust mask, non-skid safety shoes, hard hat
or hearing protection may be required depending on the safety regulations in the
operator surroundings.
Use personal protective equipment to avoid personal injury:
Saftey Goggles Protective Footware Protective Gloves
Safety Regualtions
Technical Specifications
DRAGONFLY
®

6W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
• If the pump overheats on the DRAGONFLY®4 system, an activation
switch is triggered and the system will automatically switch o.
• Do not use the DRAGONFLY® in the vicinity of power lines, junction
boxes, power sockets
• If the DRAGONFLY® is used to clean illuminated signs, remember to
switch o the power supply first
• Never direct the jet towards people, animals or electrical equipment
• Before each use, undertake a visual check on all electrical cables for
damage. Never use the DRAGONFLY®4 system with a damaged cable.
•
• When using the DRAGONFLY® do not place it on the ground or use it as
a support element.
Over Heating
Electrical Hazards
Mechanical Hazards
The DRAGONFLY®4 filtration trolley is manufactured with the safety of the operator in mind,
including some key features such as; result in serious personal injury.
This applies to all DRAGONFLY®4 systems.
Electrical connections must be carried out in respect of current legislation (in compliance with the
provisions of the IEC 60364-1 standard) and in accordance with the manufacturer’s instructions.
VARITECH SYSTEMS Ltd, the manufactures of STREAMLINE®, declines all liability for damage
caused by faulty earthing of the appliance.
- VARITECH SYSTEMS Ltd, the manufacture of STREAMLINE® declines all liability for dam
age to persons, animals or things caused by faulty or incorrect connection.
- Before connecting the equipment, check that the specification given on the rating plate
corresponds to that of the mains electrical supply.
- If the equipment is connected via an extension, use cables with an adequate cross section,
never less than 1,5 mmq. The plug and socket must be watertight.
- The electrical safety of the equipment is guaranteed only when correctly and eciently
earthed as specified in current electrical safety legislation (in compliance with the
provisions of the IEC 60364-1 standard). This fundamental safety requisite should be
verified. If in doubt, ask a professionally qualified electrician to check the system
thoroughly. It is recommended that the electric supply to this machine should include a
residual current device that will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30ms or a device that will prove the earth circuit.
- The equipment can be disconnected from the mains only by unplugging the plug
from the mains socket.
- When using any electrical appliance, certain fundamental rules should be respected:
• Do not touch the appliance with wet hands or feet;
• Do not touch the appliance with bare feet or unsuitable clothing;
• Do not pull the power cable or appliance itself to unplug the plug
from the mains.
Use only original accessories that come with the DRAGONFLY®4 system, oering maximum quality
and security. Failure to use original accessories absolves VARITECH SYSTEMS Ltd, the manufacturer
from all liability.
• If the water pressure in the DRAGONFLY®4 system is above the
standard 2.8bar / 40Psi pressure, the pressure switch is activated to
stop the pump over pressurizing
• It is important to never open the DRAGONFLY®4 pump during
operation or whilst under pressure.
•
Over Pressure
System Safety Electrical Specifications and Safety
DRAGONFLY
®

8W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
When purchasing the product, make sure it has
an identification plate. If this is missing, notify the
distributor / manufacturer where you purchased
the unit from.
Use of an appliance without an identification plate
absolves the manufacturer from all liability.
Products without an identification plate should
be considered as anonymous and
potentially dangerous
Your DRAGONFLY®4 system has been carefully manufactured, checked through QC and packaged
as a kit.
Carefully unpack your new DRAGONFLY®4 and carry out a thorough visual check on all parts. If in
doubt, do not use the system. Contact your dealer and/or manufacturer.
Packaging (bags, boxes, nails, tape etc.) should be kept out of reach of children as they may
represent a potential hazard. Packaging can be recycled according to your local legislation.
4
Operating the DRAGONFLY®4 System
Unpacking of the DRAGONFLY®4 system
About your system
Important:
The unit must be protected from freezing.
Pump box
12V battery (Inside)
Pump (Inside)
To operate the DRAGONFLY®4 system, you will need access to pure water and a telescopic pole
(if not already included in your package)...
Backpack Holdall
Operating fob
15mtr of
pole tubing
2x Glass Microfibre
Scrub Mops
2x Glass Microfibre
Scrub Mops
Pole attachment
complete with
Spray jet
25cm Aluminium
Mop Plate
Operating the DRAGONFLY®4 System
1.5Ltr water
reservoir
DRAGONFLY
®

10 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]

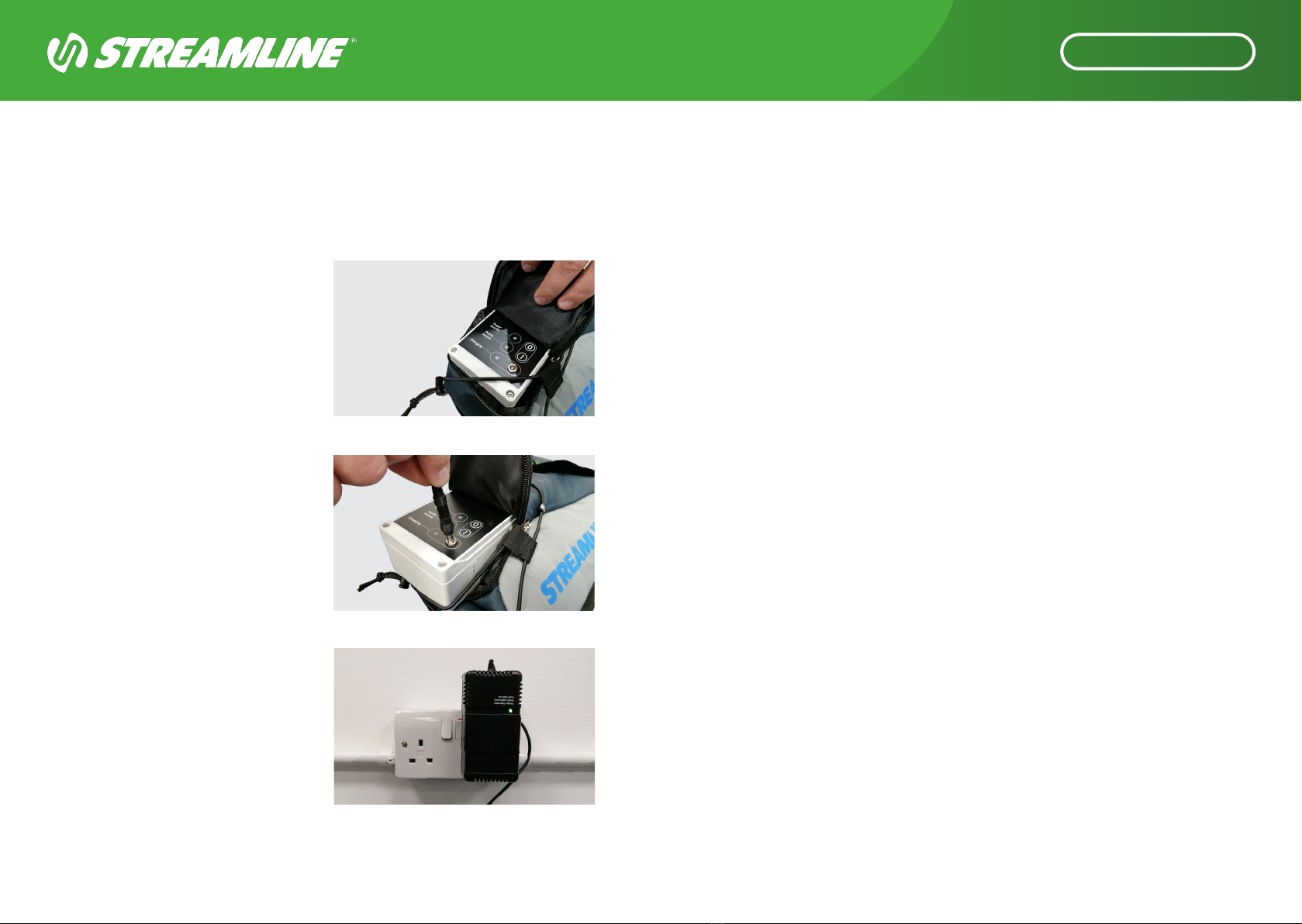

Charing your Battery
i. Unzip the back-pack to expose the
pump enclosure and partially slide it out.
ii. Insert the battery charging plug unto
the socket on the pump enclosure.
iii. Plug the charger into a 230v mains
power supply and switch it on. The blue
charging light on the pump enclosure
will illuminate.
Before using the Dragonfly, ensure that the battery is full charged.
The RED LED ‘Charge’ light will illuminate on the charger and indicates the charging process.
During the testing cycle the GREEN LED ‘Ready’ flashes also but goes out after about 1 minute
when the test phase is over. After termination of the fast charge, the charger switches automatically
to trickle charge. The RED LED ‘Charge’ is o and the GREEN LED ‘ready’ is on for approximately 2
minutes. After about 2 minutes the indicator changes to GREEN flashing. The battery is now fully
charged and ready for use.
After discharging, which can in some cases last for several hours, the charger automatically
switches over to fast charging.
The intelligent charger will not allow the battery to overcharge.
If the GREEN LED ‘Ready’ flashes immediately after connecting the charger to the pump enclosure,
and the RED LED ‘Charge’ lights up sporadically, this means that the polarity (+/-) at the charg-
ing cable is not set correctly. Please reverse the polarity, by removing the plug tip and turning it
through 90 degrees before reinserting in into the connector. If both LED’s are still flashing after
changing the polarity and the steady light ‘Ready’ does not light up permanently, the battery is
defective and cannot be recharged at all. In this case, the battery has to be replaced.
The optional discharging procedure can be started by pressing the button for discharging for about
2 seconds.
The YELLOW LED ‘Discharge’ lights and indicates the discharging procedure.
During the first minute, the GREEN LED ‘ready’ flashes but should turn o after the test phase
DRAGONFLY
®

12 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]

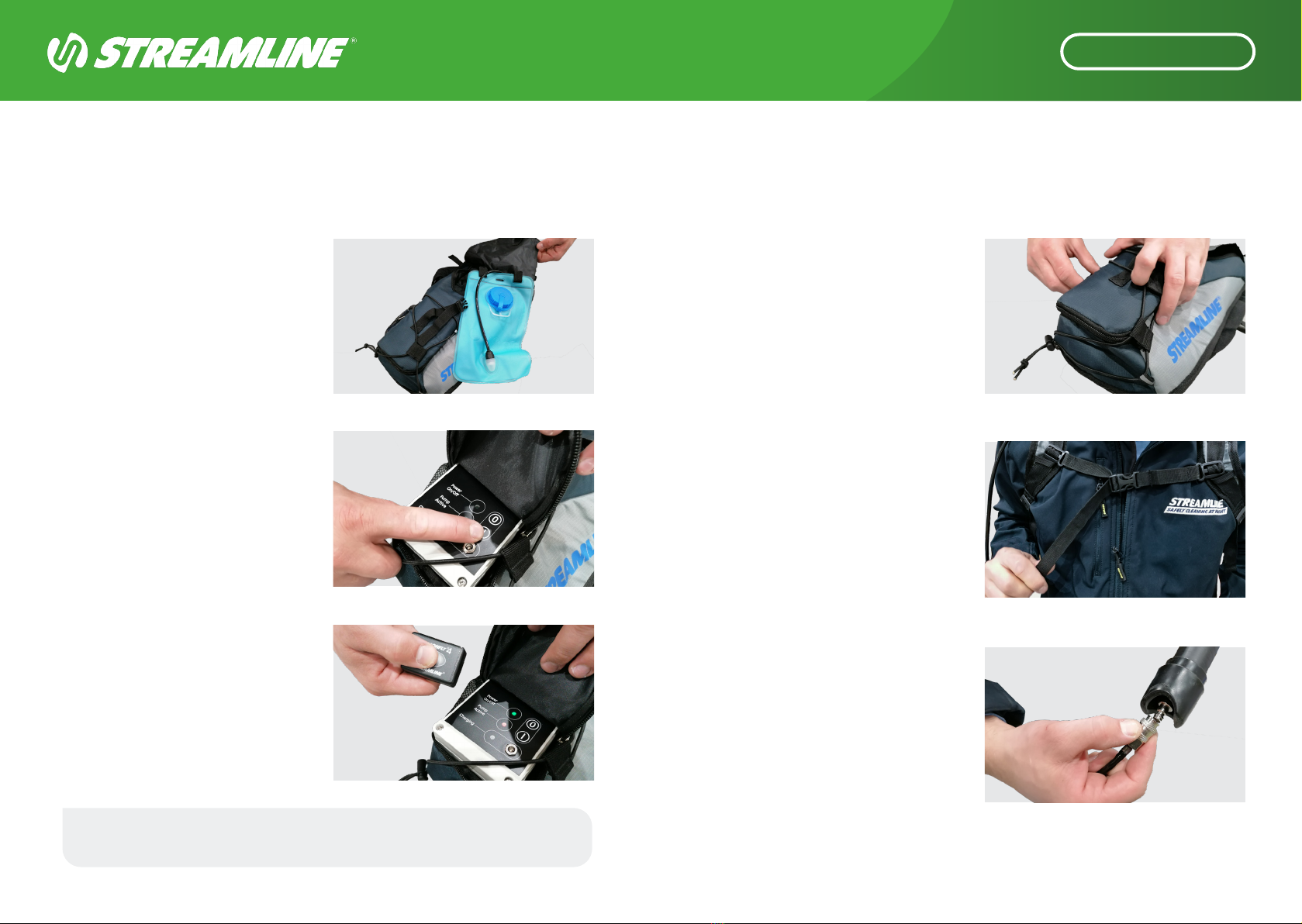

Assembling the System
All main parts and safety devices are assembled by the manufacture. Some other secondary parts
may be supplied separately i.e. telescopic pole.
i. Open the top flap of the back-pack to
expose the water reservoir. Fill the
reservoir with deionised water and
screw the cap on securely.
iv. Slide the pump enclosure into the back
pack and zip the compartment closed.
ii. Unzip the back-pack to expose the
pump enclosure and partially slide it
out. Press the power ‘ON’ button
switch, which will illuminate green
when in the ‘ON’ position.
v. Fit the back-pack on your back and
adjust the webbing straps until it
feels comfortable.
iii. Activate the press button fob to
confirm that the pump is working. The
RED light on the pump enclosure will
illuminate and the sound of the pump
will be heard.
vi. Connect the hose from the back-pack
to the connection on the bottom end of
the pole.
Warning:
As with all technical appliances, your equipment should always be used according to
the instructions.
DRAGONFLY
®

14 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
All main parts and safety devices are assembled by the manufacture. Some other secondary parts
may be supplied separately i.e. telescopic pole.
The spray tip has a very small spray orifice and will easily block if dirt is allowed to enter the
reservoir. Make sure that only clean water is used, and that the reservoir is not used for other
purposes which may cause contamination.

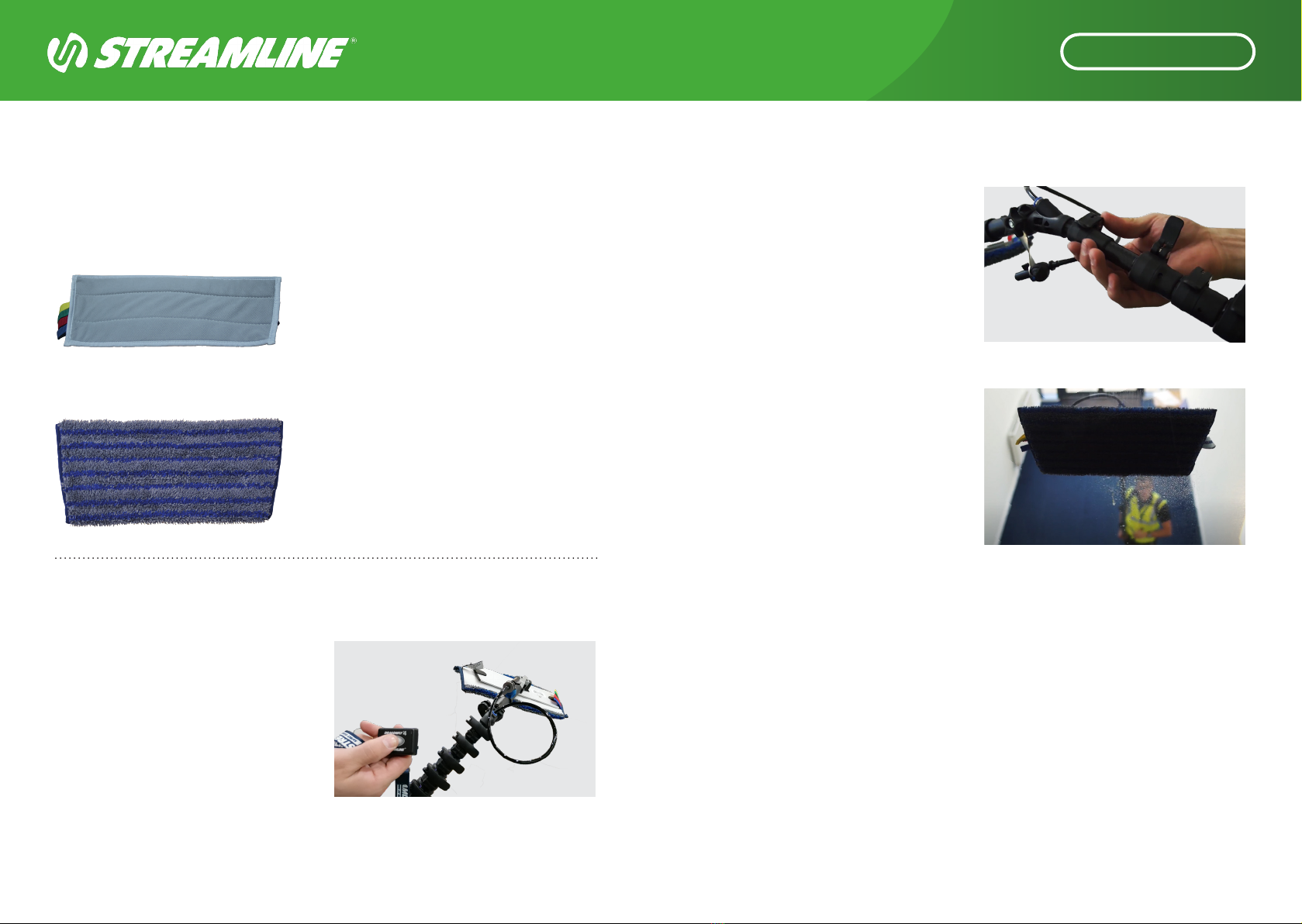

Every DRAGONFLY® kit comes complete with two of each microfibre mop:
• V549120 - GLASS MOP (Light Grey) For
well-maintained areas of glass, mirrors, stainless
steel etc.
• V549121 - SCRUB MOP (Dark Blue) for heavily
soiled hard surfaces
including pressed steel ceiling tiles, ceramic tiles,
oily surfaces etc.
Operating your DRAGONFLY® Filtration System
i. Press the button on the fob until
water sprays out of the spray tip.
iii. Extend the pole to the required height
and dampen the glass with a short
spray of water. Do not over-wet
the glass.
iv. Bu the glass with the microfiber mop,
wetting the glass if necessary.
v. The spray tip may drip after releasing
the fob button. Take precautionary
measures if working above water
sensitive areas.
ii. Familiarise yourself with the quantity of
water which the spray tip allows.
DRAGONFLY
®

16 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]

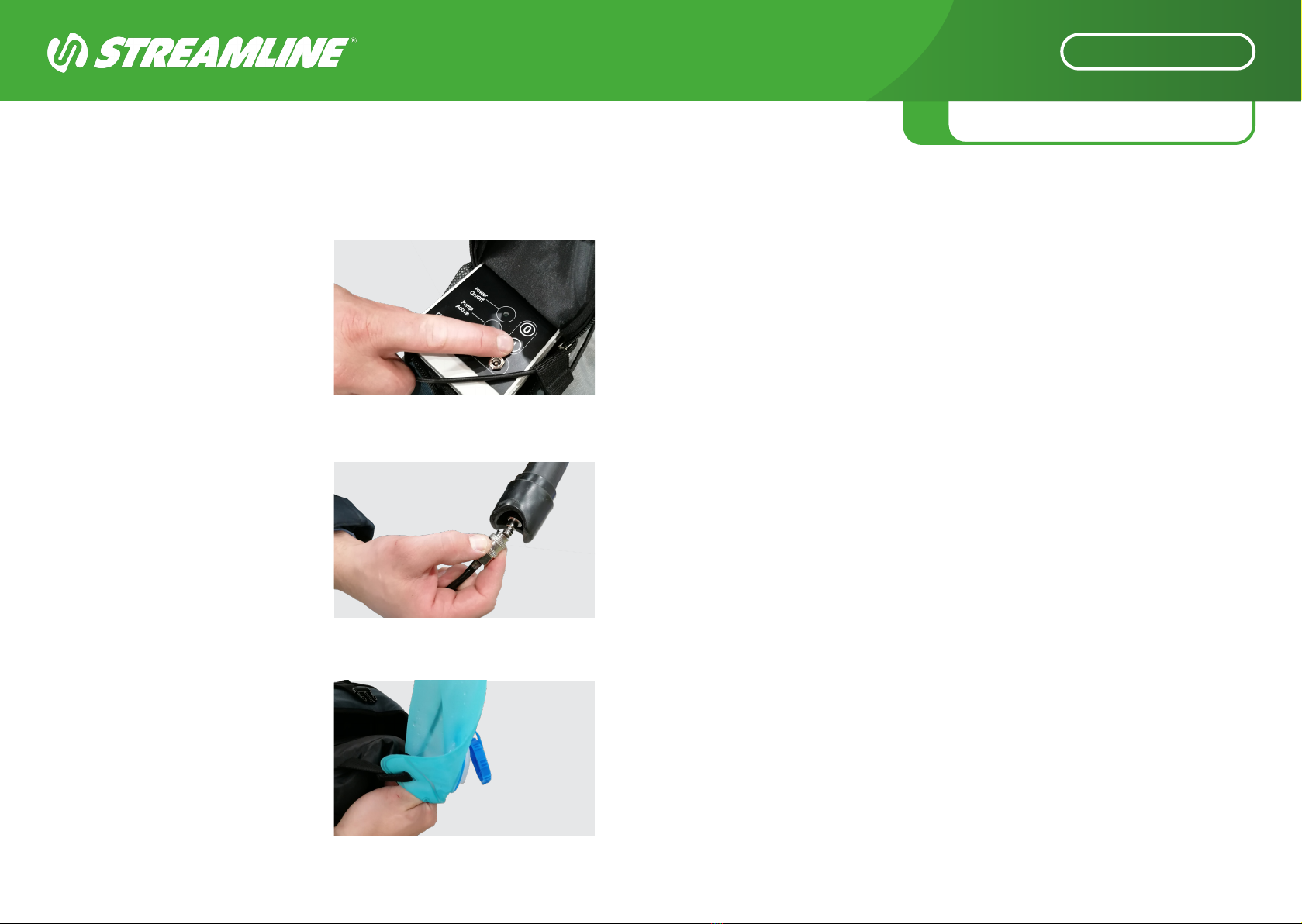

Turning your DRAGONFLY®4 system OFF
To switch o the DRAGONFLY®4 system o after completing the cleaning task, simply:
During the usage of the DRAGONFLY® filtration system, there may be some small
troubleshooting to undertake:
i. Press and hold the ‘POWER’ button on
the pump control box
ii. Disconnect the pole from the
backpack unit
iii. Empty the reservoir after each use.
Store the battery charger separately in
a dry place. Wash the microfiber pads
after each use and allow them to dry
5
Malfunctions and Troubleshooting
During the usage of the DRAGONFLY® filtration system, there may be some small
troubleshooting to undertake:
i. The pump is active but there is no water coming out?
ii. The pump light is not active when switching on the powerpack?
iii. The powerpack is not turning on with the power ‘ON’ button?
a. Check the water reservoir has pure water inside
b. Check all hose connections are secure and there are no blockages
a. Ensure you have the correct operating fob with the DRAGONFLY®4 backpack
b. Contact STREAMLINE® service team
a. Ensure you full charge the battery before each use – see section 6.
Charging Battery
b. Contact STREAMLINE® service team
10
DRAGONFLY
®

18 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
10
Declaration of conformity
EC Declaration of Conformity according to the, RoHS Directive 2011/65/EC. The DRAGONFLY® has
been designed and produced by STREAMLINE® in accordance with the above mentioned EC
Directives. The technical documents are complete. The complete EC Declaration of Conformity with
all standards applied can be requested on the STREAMLINE® Website or directly
from STREAMLINE®.
5
Dean Scott
Development Director
6Why STREAMLINE?
DRAGONFLY
™
• STREAMLINE® systems can be built according to customers’ exact requirements
• For non-standard systems, the user’s needs or specifications are listened to and turned
into reality.
• Whilst price is important, quality is remembered long after price is forgotten
• We insist on sourcing brand name products from around the world, only of a reputable
quality, and bring them together under the STREAMLINE® name
• All STREAMLINE® products carry a full one year’s warranty, according to the manufacturers’
standard terms and conditions of sale.
• We have an in-house technical helpline able to answer most of your questions relating to the
capabilities and functionalities of all STREAMLINE® products
• If we get it wrong, we will put it right. If you are sent a wrong item, we will immediately
attend to sending you the correct item and arrange a collection of the wrong item without
any quibbles
• STREAMLINE® is backed by a comprehensive range with massive stocks providing you with a
‘one stop shop’ for all your requirements.
Flexibility
Quality
Service
Why STREAMLINE®?
MANUFACTURED
IN THE
UNITED KINGDOM
CHECKED AND
TESTED BY
QUALITY CONTROL
DRAGONFLY
®

20 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
Notes
7Warranty Information
STREAMLINE® Warranty
The warranty on all Machines and Equipment is
for 1 year (12-months) from RECORDED DATE
OF PURCHASE.
THIS WARRANTY EXCLUDES NORMAL
MAINTENANCE ITEMS, including but not limited
to HOSES, FILTERS, O-RINGS,
DIAPHRAGMS, VALVES, GASKETS,
CARBON BRUSHES and damage to motors
and other components as a result of failure to
replace normal maintenance items. THIS LIST
IS NOT EXHAUSTIVE.
If STREAMLINE® receives notice of such defects
during the warranty period, STREAMLINE®
will either, at its opinion, repair or replace
components which prove to be defective.
Replacement parts will only be supplied under
warranty, upon the inspection and approval of
the defective parts by STREAMLINE®.
Should it be necessary to supply replacement
parts before the opportunity to inspect, these
will be charged at current prices and credit will
only be issued upon subsequent inspection and
warranty approval by STREAMLINE®.
The customer is responsible for the cost of
return of the defective part. If warranty is
approved, STREAMLINE® will pay for the cost
of the repaired or replacement part.
This warranty excludes the following conditions
and circumstances which are at the discretion
of STREAMLINE®:
Wear and tear, misuse, abuse improper
maintenance, frost damage, the use of chemicals
other than those supplied or approved by
STREAMLINE®, improper installation or repair,
unauthorised modification, incidental or
consequential costs, loss or damage, service,
labour or third party charges, the cost of
returning defective parts to STREAMLINE®.
This warranty constitutes the exclusive remedy
of any purchaser of a STREAMLINE® unit and
is in lieu of all other warranties, express or
implied, including without limitation any implied
warranty of merchantability or fitness for use, to
the fullest extent permitted by law. In no event
shall any implied warranty of merchantability or
fitness for use exceed the term of the applicable
warranty stated above and STREAMLINE® shall
have no other obligation or liability.
Important
Unfortunately these rights cannot be
transferred to a third party.
DRAGONFLY
®

22 W: www.streamline.systems E: [e-mail] T: [phone] W: www.streamline.systems E: [e-mail] T: [phone]
Notes
DRAGONFLY
®

Hamilton House, 8 Fairfax Road,
Heathfield Industrial Estate,
Newton Abbot
Devon, TQ12 6UD
United Kingdom
Telephone: [phone]
Email: [e-mail]
Visit www.streamline.systems INSTR-DRAG4
