1. Product Information
Thank you for purchasing this Network IP camera! This IP camera is an ideal
product for all kinds of video-surveillance purposes, like home/office safety,
kid/pet monitoring, and remote video acquire etc. Unlink conventional
close-circuit vide camera, you’re not limited to the length of cable! Once this
IP camera is connected to Internet, you can receive video from anywhere in
the world where Internet access is available.
If you have problem installing a new cable from the place the camera is
installed to your monitoring computer, don’t worry! This IP camera also
supports wireless network, that is, you can link to this camera wirelessly! You
only have to provide this IP camera with 12V power by the power adapter
that comes with the product package, and you don’t have to set a new
network cable between the IP camera and monitoring computer.
Worry about the content will be intercepted by unauthorized person when the
video is transmitted over the air? That’s also not a problem! Unlink
conventional analog wireless camera, which video will be intercepted by
anyone who got a compatible video receiver, this IP camera supports data
encryption (WEP & WPA / WPA2 / WPANone), which will provide ultimate
data security level. All video transmitted over the air is encrypted; therefore
no one will be able to get the video captured by the IP camera, expect
yourself.
You can discover more useful functions in next section!

5
Key features
No pre-loaded software required - all you need is a browser like Internet
Explorer 6 with SP2 (and above, with plug-in installed).
Supports VGA (640 x 480), QVGA (320 x 240), and QQVGA (160 x 120)
video resolution.
Supports 2-way audio transmission, with speaker output and built-in
microphone.
Anti-flicker function (eliminates flash caused by fluorescent lights, 50 /
60Hz selectable).
Supports two video compression format (MJPEG and MPEG4).
Wired and wireless network (802.11b / 802.11g) support, supports up to
100Mbps for wired network and 54Mbps for wireless network.
Wireless data encryption (WEP / WPA / WPA2 / WPANone)
Supports DHCP and PPPoE protocol, you can also assign a fixed IP
address to the camera also.
Supports Dynamic DNS (used to allocate the IP camera’s Internet
address, when the ISP you’re using does not assign you with a fixed
Internet address).
Supports UPnP, Windows XP (and above) will discover this IP camera in
network neighbor automatically.
Send captured picture by Email or FTP when motion is detected.
Configurable motion detection sensitivity
Upgradeable firmware - enjoy new functions without buying a new
camera!
Supports up to 4 users, and you can set different password to different
user.
Usage and event logging.

6
2. Check your package contents
One Internet Camera
One Power Adapter
One Camera Stand
One 100M Category 5 Ethernet Cable
One Quick Installation Guide
One CD ((Including Manual/Utility/multi-languages QIG)
One Antenna(IC-3010Wg only)
If any of the above items are missing, please contact your supplier.
3. System Requirement
System requirement for PC, MAC or Notebook PC to access the Internet
Camera as following:
Computer Operating System: Windows 98, ME, 2000, XP + SP2, Server
2003
CPU: Intel Pentium III 750MHz above or Intel Celeron 1GHz above
Memory Size: 128MB (256MB recommended)
VGA Card Resolution: 800 x 600 or above

7
4. Hardware Installation

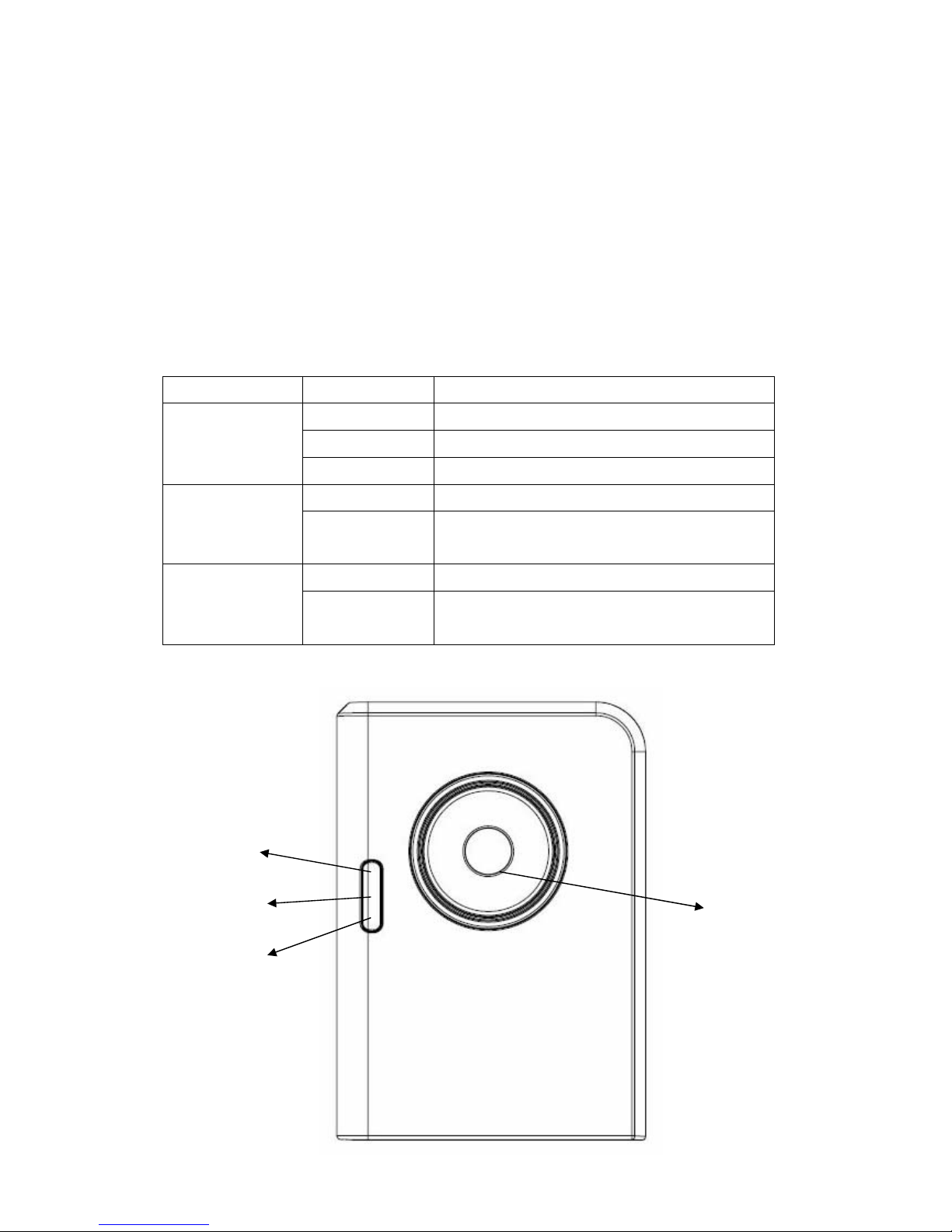

4.1. LED and Focusing
The Camera head and its focus ring allow you to modify the aim and focus of
the Camera. To adjust the Camera’s focus, rotate the dark focus ring.
There are three LEDs indicating the camera status and networking status.
LED name Status Description
LAN
Off Network cable is disconnected
On Network cable is connected
Flash Transferring data via LAN port
WLAN
(IC-3010Wg
only)
Off No wireless LAN activity
On Transferring data via wireless LAN
Power
Off Camera is not powered (camera off)
On Camera is correctly powered
(camera on)
LAN LED
WLAN LED
Power LED
Camera Focus Ring

8
Camera Ports
The Camera features two ports and a Reset button.
yAntenna
It has one standard reverse SMA connector where any antennas with
reverse SMA connector can connect to the Internet Camera.
yPower
The Power port is where you can connect the power adapter.
yLAN
The LAN port is where you can connect the Ethernet network cable.
yWPS/Reset
Reset the camera to factory default settings (clear all settings) or start
WPS function. Press this button and hold for 20 seconds to clear all
settings, and press this button for less than 5 seconds to start WPS
function.
Reset Button
Power Jack
LAN Jack
Speaker Out
Microphone

9
4.2. Installation Procedure
1. Unpack the Internet Camera package and verify that all the items listed in
the Chapter 1 are provided.
2. Connect the Internet Camera to your network by attached the network
cable from the switch/router to the LAN port of the Internet Camera.
3. Connect the power adapter to the Internet Camera and plug the power
adapter to power outlet. The Internet Camera will be powered on. When
the Internet Camera is ready, the Ready LED will light.
Note: It is highly recommended to use the power adapter shipped with the
Internet Camera, do NOT use any other power adapter from any sources.
4.3. Locate the IP Address
Default IP address of this IP camera is 192.168.2.3. If you wish to assign
another IP address to this IP camera, you have to log onto the web
configuration interface of the camera first.
If the left three fields of the IP address of your computer is not
192.168.2.XXX , you’ll have to change the IP address of your computer first:

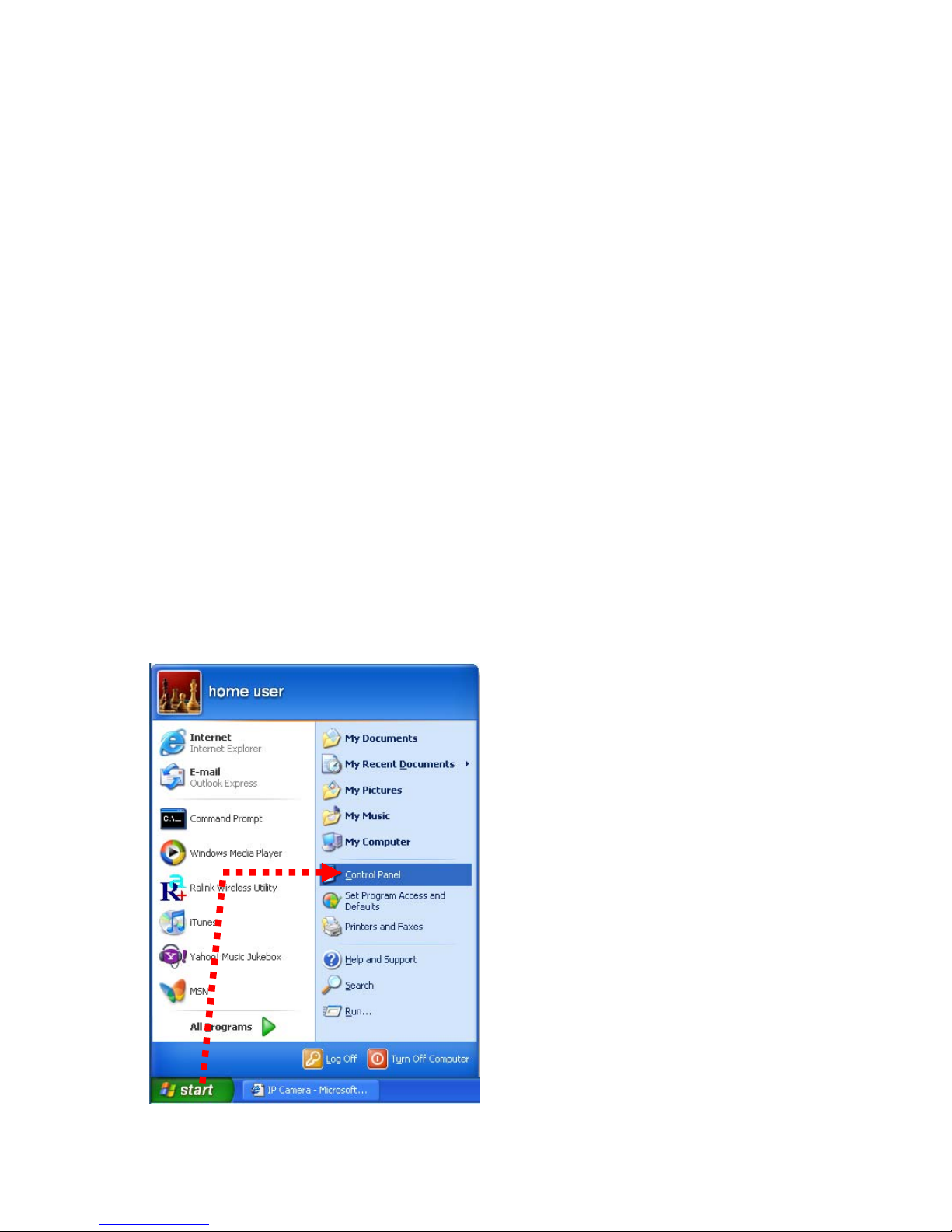

1. Click ‘Start’ -> ‘Control Panel’

10
2. Double-click ‘Network Connections’ icon.
3. Right-click ‘Local Area Connection’, and click ‘Properties’.

11
4. Select ‘Internet Protocol (TCP/IP)’, then click ‘Properties’.
5. In ‘IP address’ field, please fill in any IP address begins with ‘192.168.2’,
and ends with a value greater than 2 and less than 254 (You can use the
example in the picture ‘192.168.2.239’). In Subnet mask field, please fill
‘255.255.255.0’. Please keep all other fields empty, and click ‘OK’.

12
If you changed the IP address of this IP camera and you forget it, there’re 2
methods to recover it:
a. Press and hold the ‘Reset’ button located at the bottom of this IP
camera, to clear all settings of the IP camera and reset the IP address
back to 192.168.2.3. You’ll lose all settings in the IP camera.
b. Ask network administrator to check the DHCP release table, if the
camera was set to obtain the IP address by DHCP, a new record will
be added to DHCP release table on DHCP server when the IP camera
is connected to the local area network

13
5. Web Management Interface
Make sure the IP camera is correctly powered (Power LED is on), and then
launch Internet Explorer and type the IP address of the IP camera in address
bar of Internet Explorer. You should be prompted to input the user name and
password:
Default user name is ‘admin’ (in lower case) and password is ‘1234’. Click
‘OK’ to continue after user name and password has entered.
If you’re rejected, maybe the password has been modified previously. This
should not happen if this is a newly-purchased camera, however, if you get
the camera from someone else, the password would be changed. Please try
to obtain the correct user name / password, or you’ll have to reset the
camera.
After logged on, you should see the following messages at the top of Internet
Explorer:

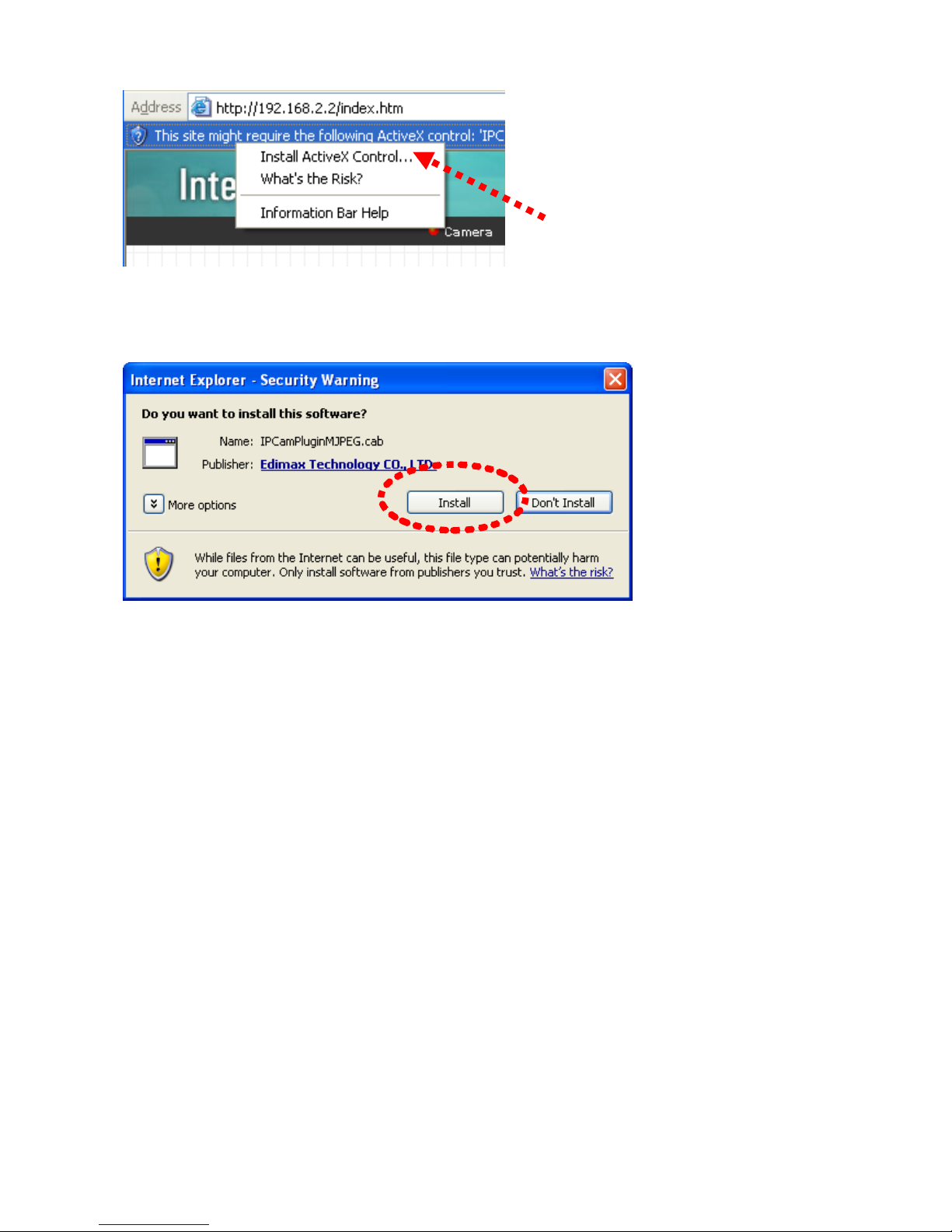

This IP camera requires a special ActiveX control (A.K.A. ‘Plugin’) to work.
Please click on the message, and select ‘Install ActiveX Control…’:

14
When you’re prompted, click ‘Install’ to continue.

15

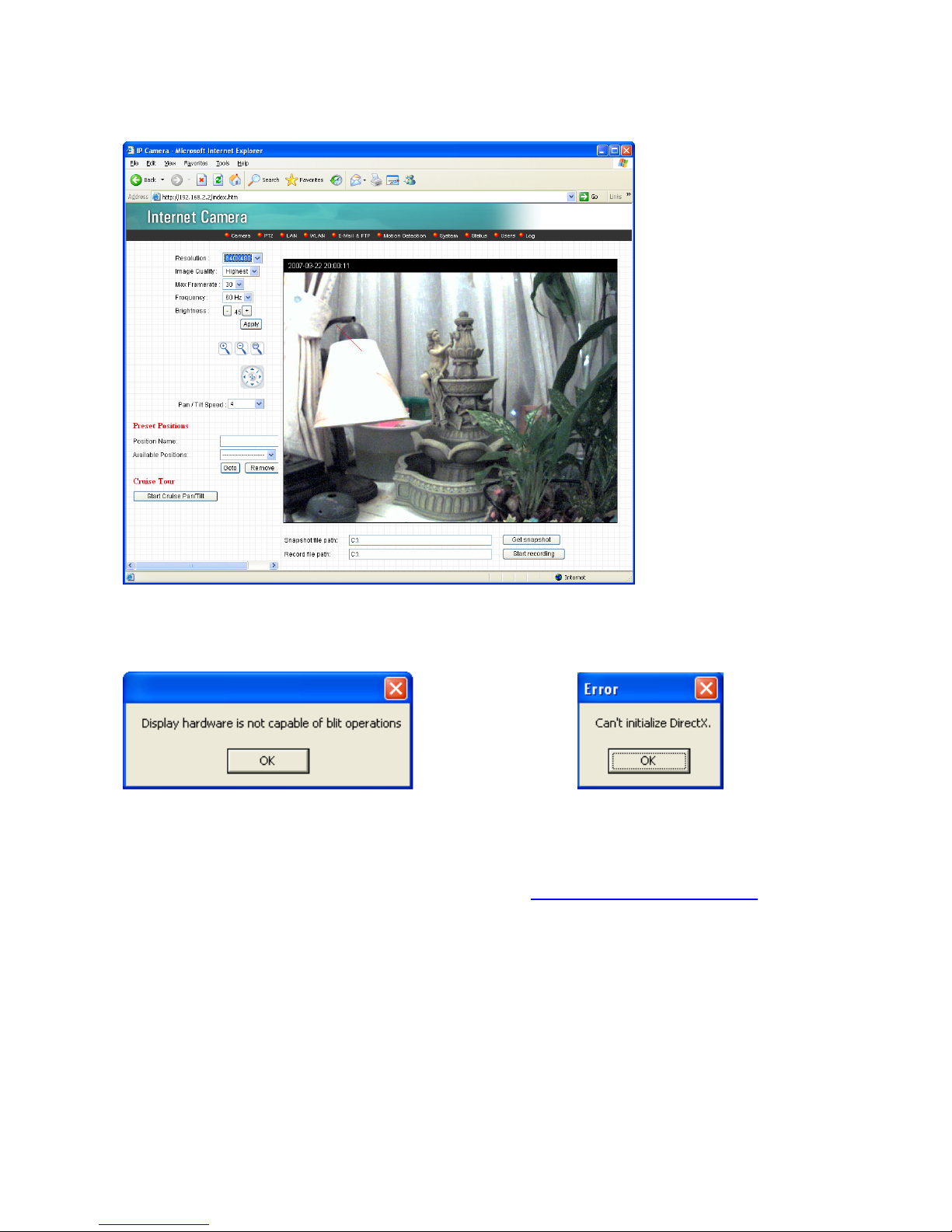

You should be able to see the image from camera now:
Note: If you see one of these messages (or both):
Your computer may not have the display capability that this IP camera
requires, or you don’t have Microsoft DirectX® installed. Please download
Microsoft DirectX® from Microsoft’s website (http://www.microsoft.com), and
try again.
In some cases, your computer is able to display the image from IP camera
correctly, but you’ll still see these messages. If this happens, just ignore
them.
OR

16
6. Software Installation
Follow the simple steps below to run the Install Wizard to guide you quickly
through the Installation process. The following installation is implemented in
Windows XP. The installation procedures in Windows 2000/XP/Server 2003
are similar.
1. Insert the CD shipped along with the Internet Camera into your CD-ROM
drive. The “Autorun.exe” program should be executed automatically. If not,
run “Autorun.exe” manually from “Autorun” folder in the CD.
2. The Install Wizard will show four selections, select the program you want
to install or click “Exit” to install the program later. The following
installation steps are the demonstration of “Install Administrator Utility &
Camera Viewer”.

17

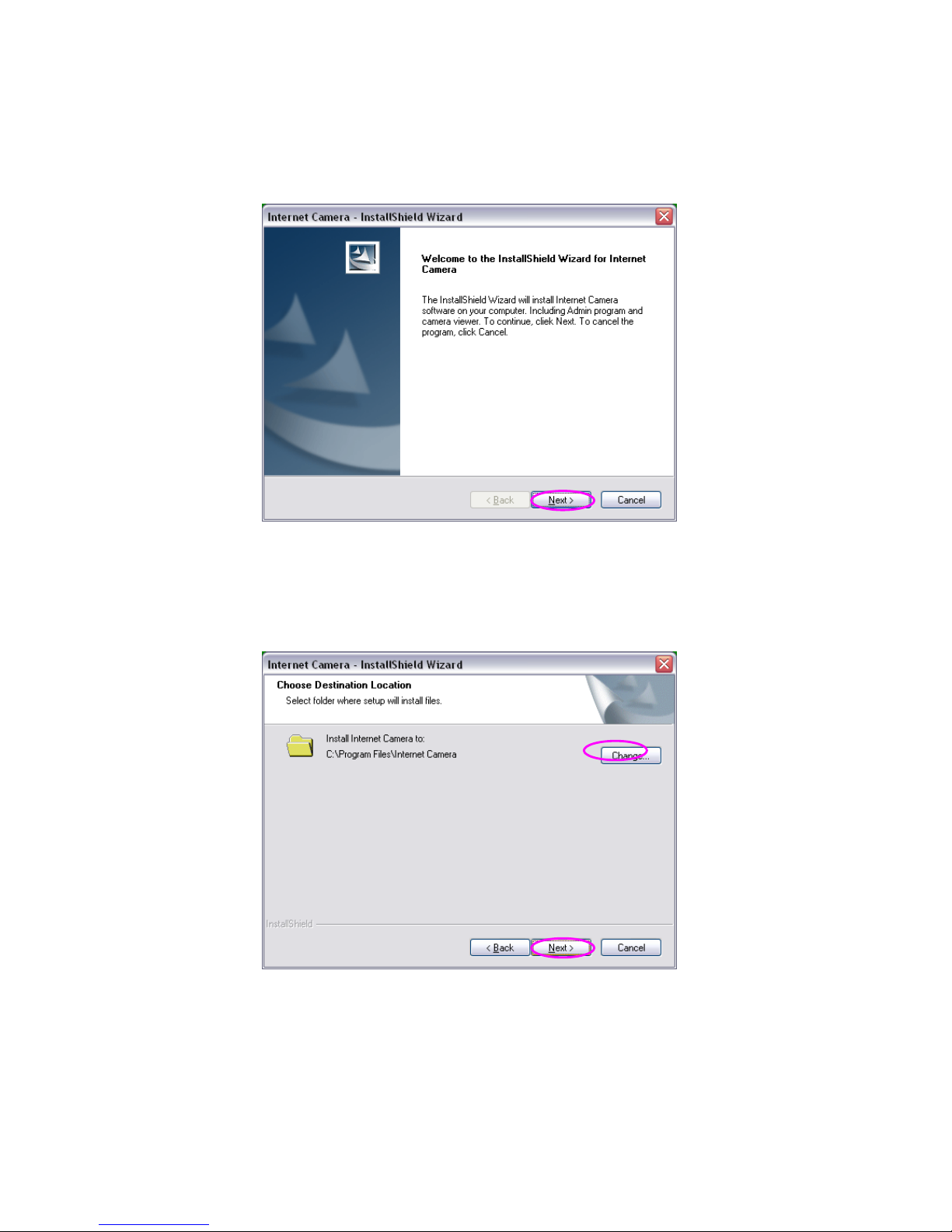

3. The system will start the installation procedures. Click “Next” to continue
installation.
4. If you wish to install the software program in an alternate location, click
“Change”; otherwise click “Next” to move on to the next step.

18
5. Click “Install” to start installing the program.
6. The system will install the program automatically.

19

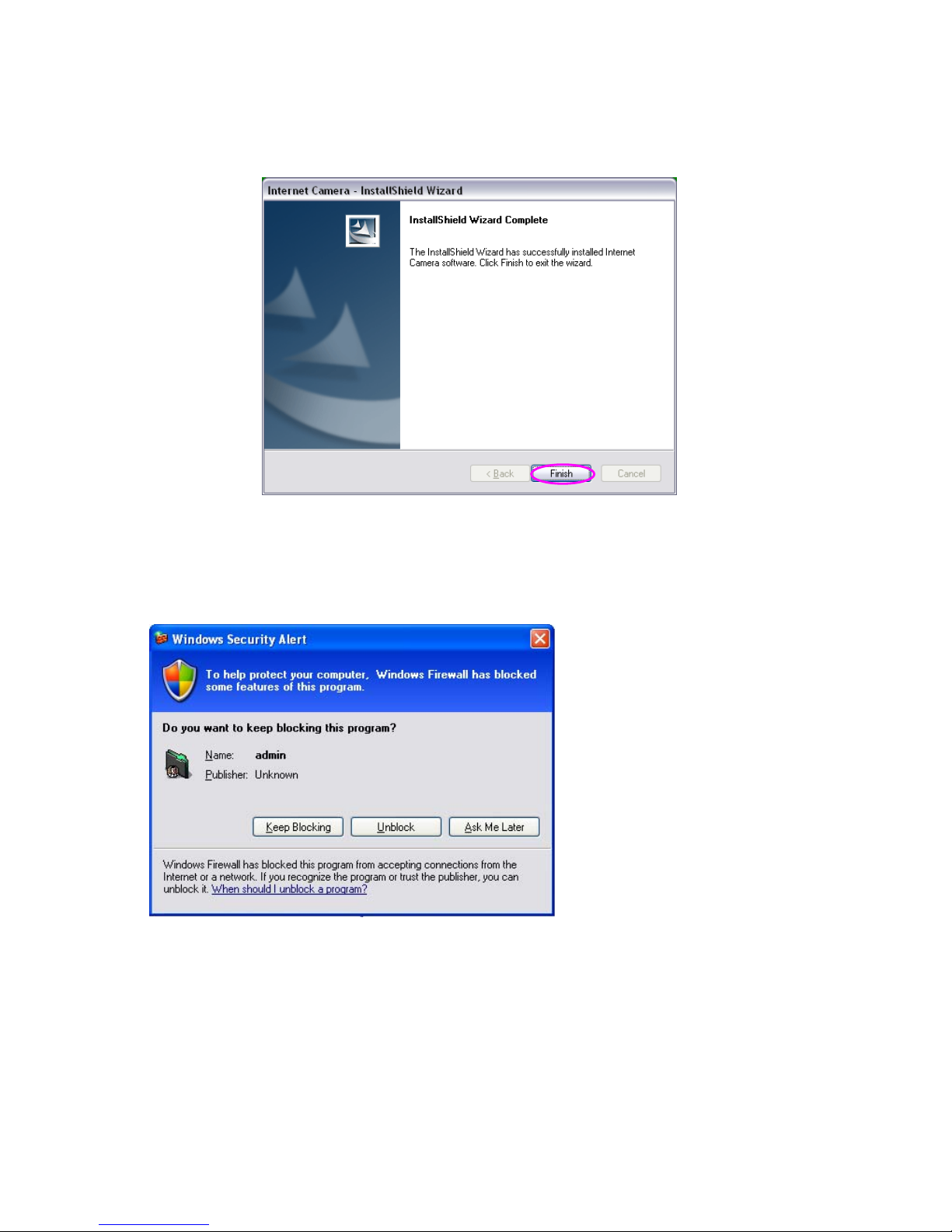

7. Click “Finish” to complete the software installation.
8. If you have Windows Defender (Windows XP) or other 3rd party firewall
software, you may see the following (or similar) message:
Please click ‘Unblock’ (or similar option) to let IP camera Utility pass the
firewall, or the IP camera utility may not be able to function properly
