Edwards FL20K User manual

A133-99-880
Issue E Original
Instruction Manual
FL20K Foreline Trap
Description Item Number
FL20K A133-05-000

This page has been intentionally left blank.

© Edwards Limited 2013. All rights reserved. Page i
Edwards and the Edwards logo are trademarks of Edwards Limited.
Contents
A133-99-880 Issue E
Contents
Section Page
1 Introduction .......................................................................................1
1.1 Scope and definitions ................................................................................................... 1
1.2 General Description ..................................................................................................... 1
2 Technical Data ....................................................................................3
2.1 Operating conditions .................................................................................................... 3
2.2 Performance .............................................................................................................. 3
2.3 Mechanical data .......................................................................................................... 3
3 Installation .........................................................................................4
3.1 Unpack and inspect ...................................................................................................... 4
3.2 Install the FL20K ......................................................................................................... 4
3.3 Fill the FL20K with sorbent ............................................................................................. 4
4 Operation ..........................................................................................6
5 Maintenance .......................................................................................7
5.1 Replace the sorbent charge ............................................................................................ 7
6 Storage and disposal .............................................................................8
6.1 Storage .................................................................................................................... 8
6.2 Disposal ....................................................................................................................8
7 Spare and accessories ............................................................................9
7.1 Introduction .............................................................................................................. 9
7.2 Spares ......................................................................................................................9
7.3 Accessories ................................................................................................................ 9
For return of equipment, complete the HS Forms at the end of this manual.
Illustrations
Figure Page
1 Component parts of the FL20K ........................................................................................ 2
2 Dimensions (mm) ........................................................................................................ 3
3 Component parts of the basket assembly ............................................................................ 5
cg/7590/02/13

A133-99-880 Issue E
Page ii © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Contents
Tables
Table Page
1 Checklist of items ........................................................................................................ 4
Associated publications
Publication title Publication number
Vacuum pump and vacuum system safety P400-40-100

© Edwards Limited 2013. All rights reserved. Page 1
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction
A133-99-880 Issue E
1Introduction
1.1 Scope and definitions
This manual provides installation, operation and maintenance instructions for the Edwards FL20K Foreline Trap. You
must use the FL20K as specified in this manual.
Read this manual before you install and operate the FL20K. Important safety information is highlighted as WARNING
and CAUTION instructions; you must obey these instructions. The use of WARNINGS and CAUTIONS is defined below.
CAUTION
Cautions are given where failure to observe the instruction could result in damage to the equipment, associated
equipment and process
The units used throughout this manual conform to the SI international system of units of measurement.
1.2 General Description
The FL20K has been developed for use in clean pumping systems to prevent the back-migration of rotary pump oil
vapour into the systems; we particularly recommend that you use an FL20K with two-stage rotary pumps.
The component parts of the FL20K are illustrated in Figure 1. The FL20K consists of a metal basket (4) located within
a cast aluminium body (3), the metal basket is secured in place by a knurled nut (1), lid (6) and spring (5).
A sorbent is contained in the metal basket to absorb any oil which back-migrates from the pump. The sorbent
material used is activated alumina which has exceptional trapping properties for oil vapour. It has a long life (up to
six months) before it becomes saturated and has to be renewed.
WARNING
Warnings are given where failure to observe the instruction could result in injury or death to
people.

A133-99-880 Issue E
Page 2 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction

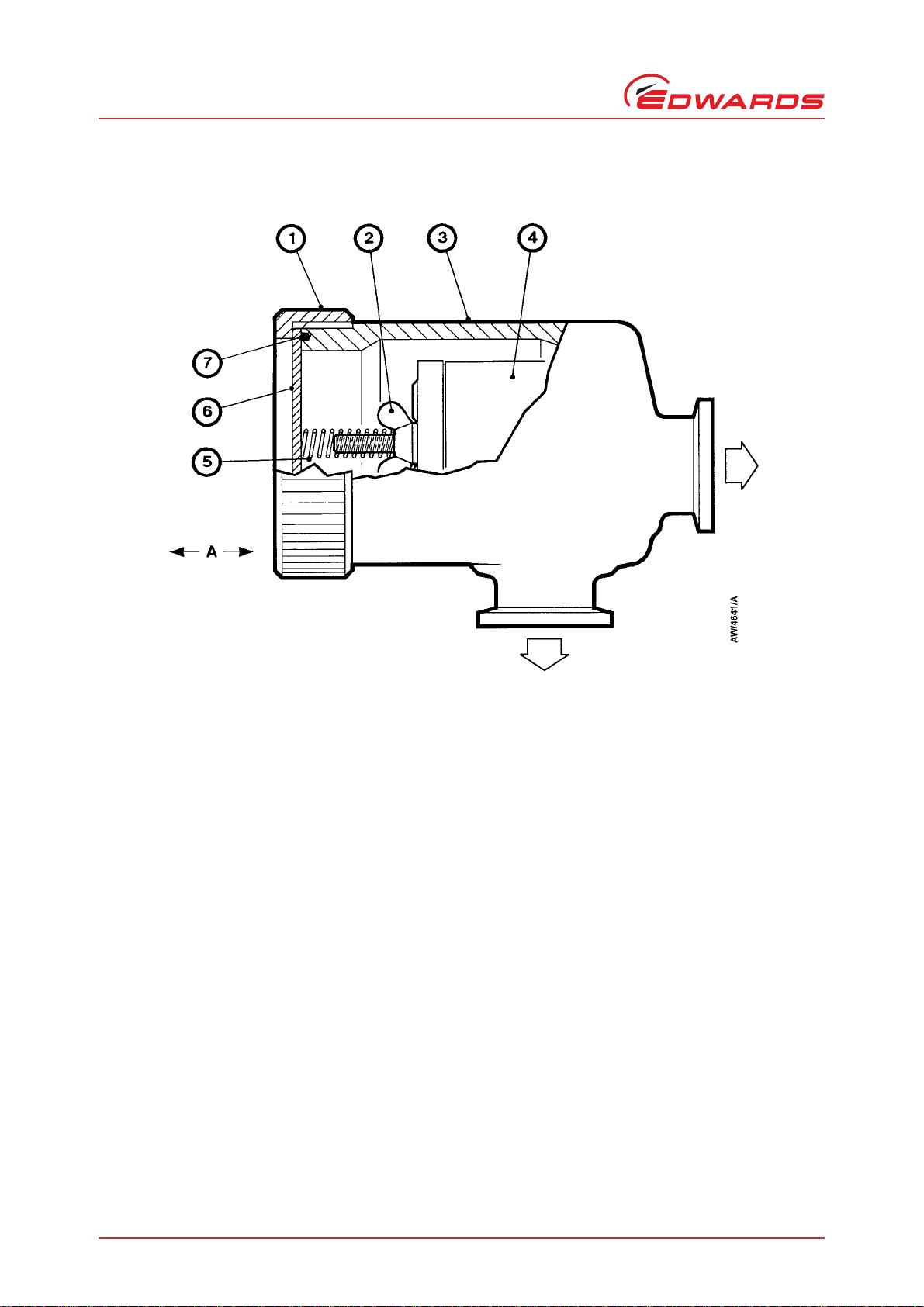

Figure 1 - Component parts of the FL20K
1. Nut
2. Wing nut
3. Body
4. Basket
5. Compression spring
6. Lid
7. O-ring
A. Clearance required for removal of basket (4)

© Edwards Limited 2013. All rights reserved. Page 3
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical Data
A133-99-880 Issue E
2TechnicalData
2.1 Operating conditions
2.2 Performance
2.3 Mechanical data

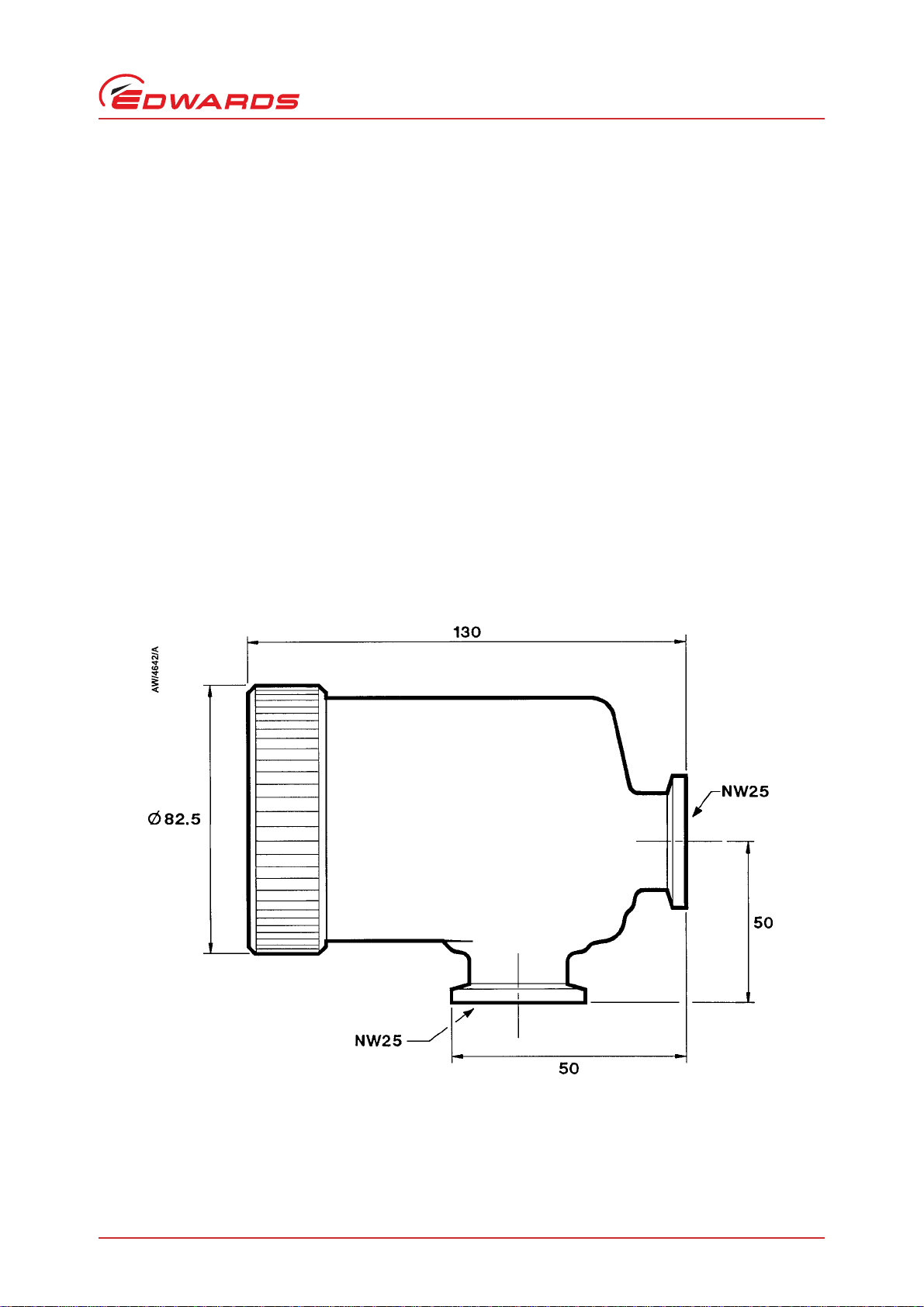

Figure 2 - Dimensions (mm)
Ambient operating temperature range 0 to 50 °C
Leak tightness (1 bar (1 x 105Pa) differential) 1 x 10-6 mbar ls-1, 1 x 10-4 Pa ls-1
Maximum internal pressure 1 bar absolute, 1 x 105Pa
Dimensions See Figure 2
Mass 1 kg
Sorbent charge 0.07 kg

A133-99-880 Issue E
Page 4 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
3 Installation
3.1 Unpack and inspect
Remove all packing materials and check the FL20K. If the FL20K is damaged, notify your supplier and carrier in writing
within three days; state the item number of the FL20K together with your order number and your supplier’s invoice
number. Retain all packaging materials for inspection. Do not use the FL20K if it is damaged.
Check that your package containsthe items shown in Table 1. If any one of these items is missing, notify your supplier
in writing within three days.
If the FL20K is not to be used immediately, return it to it’s protective packaging.
3.2 Install the FL20K
We recommend that you mount the FL20K horizontally, as shown in Figure 1. If necessary, however, you can mount
the FL20K in any orientation, as the sorbent is securely retained in the basket. The mass of the FL20K will be
adequately supported by the pipeline connections and you can connect either port to the rotary vacuum pump.
However, we recommend that you mount the FL20K as close to the vacuum system and as far from the rotary pump
as possible, to maximise the useful life of the sorbent. When you mount the FL20K, ensure that you leave adequate
clearance to enable the sorbent basket to be removed.
Use the standard KF coupling components (that is, NW clamping rings, centring rings and O-rings) to connect the
FL20K to the pump and the vacuum system.
3.3 Fill the FL20K with sorbent
CAUTION
Do not overfill the basket with sorbent, If you do, crushed sorbent could be sucked into the rotary pump and
damage the pump.
1. Refer to Figure 1; unscrew and remove the nut (1) and the lid (6).
2. Remove the basket (4) and spring (5) from the trap body (3).
3. Refer to Figure 3. Remove the wing nut (9) and end cap (1) from the basket (3). Remove the washer (10),
compression spring (8) and perforated disk(7).
4. Fill the basket with sorbant; when full, the end disk (7) should align with the marker (6) on the spindle:
Table 1 - Checklist of items
Qty Description Check ()
1FL20KValve 
1 Tin of activated alumina 
WARNING
Activated alumina is a desiccant and will absorb materials from your process system. You must take
suitable precautions to protect people from the harmful effects of any noxious materials released
if you bake the spent alumina to reactivate it. Avoid inhalation of its dust, eye contact and
unnecessary skin contact.

© Edwards Limited 2013. All rights reserved. Page 5
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
A133-99-880 Issue E
Fill the basket with alumina balls so that the top of the sorbent charge is approximately level with the
marker (6).
Tap the basket gently to settle the sorbent, then add more alumina balls if necessary.
5. Place the perforated end disk (7) on top of the alumina balls and slide the spring (8) over the spindle (4) so that
it rests on the end disk (7). Ensure that both end disks (5 and 7) have their smooth side in contact with the balls.
6. Refit the washer (10) and end cap (1) over the spindle.
7. Refit the second washer (10) and wing nut (9) over the spindle (4) and tighten the wing nut (9). To ease
tightening of the wing nut, push the lid down gently
8. Position the charged basket in the trap, ensuring that it is fully located on the bottom O-ring seal.
9. Refer to Figure 1 and replace the spring (5), lid (6) and nut (1).

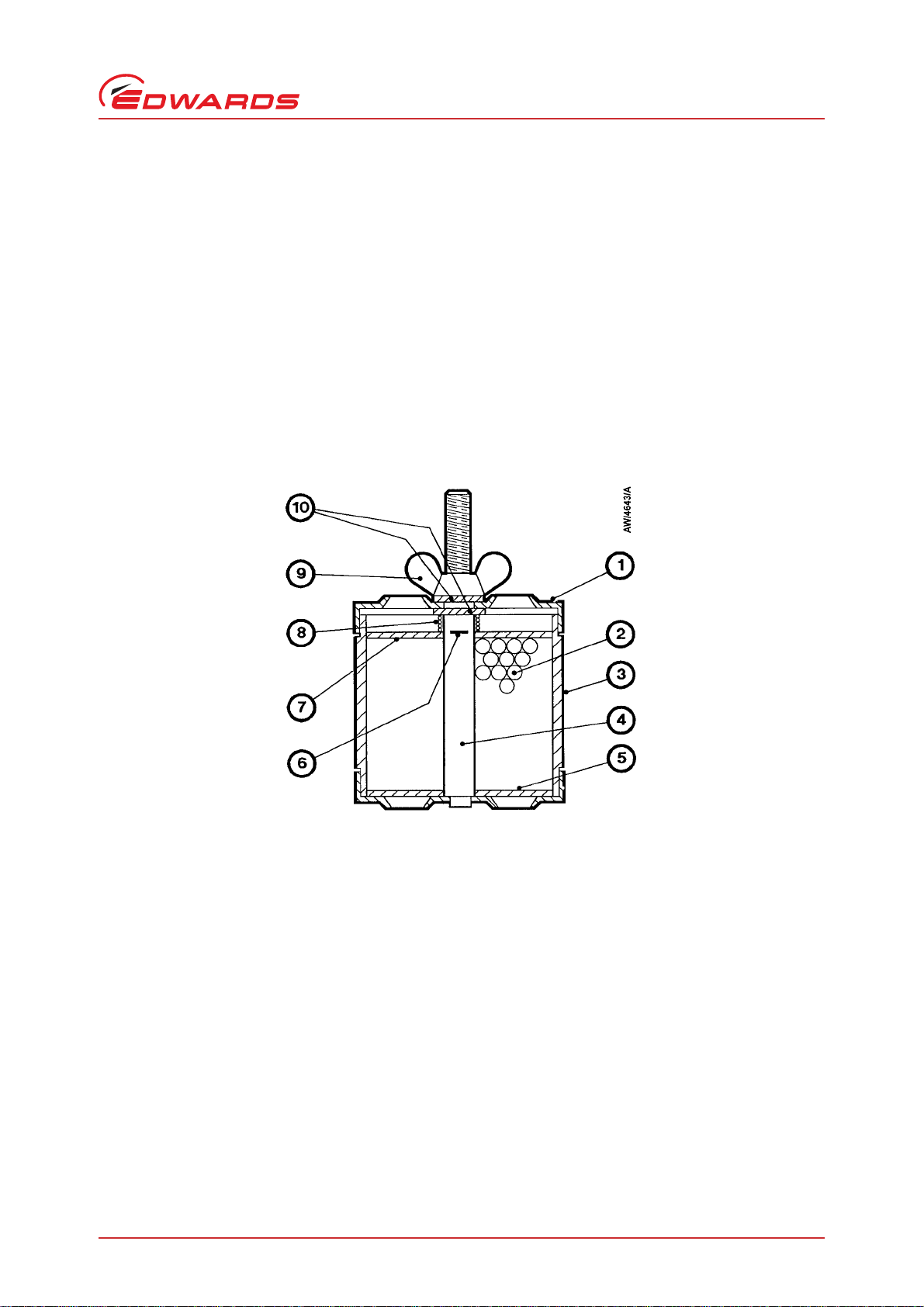

Figure 3 - Component parts of the basket assembly
1. End cap
2. Activated alumina
3. Basket
4. Spindle
5. End disk
6. Alignment marker
7. End disk
8. Compression spring
9. Wing nut
10.Washer (M6)

A133-99-880 Issue E
Page 6 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Operation
4 Operation
Take note of the following information:
In common with other types of sorbent, activated alumina absorbs moisture. This will not affect its oil
vapour trapping properties but may tend to prolong rough pumping on successive pumping cycles. Regular
regeneration by baking the trap or renewal of the sorbent will be necessary for rapid pump-down.
If the FL20K has been open to atmosphere for a long period of time, it may be necessary to carry out
prolonged pumping with a gas-ballasted rotary pump to remove the absorbed moisture. Alternatively,
remove the basket from the FL20K and bake it at 250°C to 300°C for two hours.
Use a valved by-pass line to minimise vapour absorption during pump-down.
WARNING
Activated alumina is a desiccant and will absorb materials from your process system. You must take
suitable precautions to protect people from the harmful effects of any noxious materials released
if you bake the spent alumina to reactivate it. Avoid inhalation of its dust, eye contact and
unnecessary skin contact.

© Edwards Limited 2013. All rights reserved. Page 7
Edwards and the Edwards logo are trademarks of Edwards Limited.
Maintenance
A133-99-880 Issue E
5Maintenance
5.1 Replace the sorbent charge
During normal use, the sorbent material nearest to the port connected to the rotary pump will become brown in
colour. When the discolouration reaches the sorbent layer furthest from the port, you must change the sorbent
charge. The time taken for this to occur depends on the frequency of use and the location of the trap in relation to
the rotary pump. A typical charge life is six months, although Edwards recommends that you change the charge every
three months as a routine maintenance procedure.
1. Refer to Figure 1. Unscrew and remove the nut (1) and the lid (6).
2. Remove the basket (4) and spring (5) from the trap body (3).
3. Refer to Figure 3. Remove the wing nut (9) and end cap (1) from the basket (3). Remove the washer (10),
compression spring (8) and perforated end disk (7).
4. If the trap body interior appears oily or dirty, wash it out with isopropyl or ethyl alcohol and then dry it
thoroughly.
5. Fill the basket (3) with sorbent: refer to steps 4 to 9 of Section 3.3.
WARNING
Activated alumina is a desiccant and will absorb materials from your process system. You must take
suitable precautions to protect people from the harmful effects of any noxious materials released
if you bake the spent alumina to reactivate it. Avoid inhalation of its dust, eye contact and
unnecessary skin contact.

A133-99-880 Issue E
Page 8 © Edwards Limited 2013. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Storage and disposal
6 Storage and disposal
6.1 Storage
1. Return the FL20K to its protective packaging.
2. Store the FL20K in clean dry conditions, away from direct sources of heat and sunlight.
6.2 Disposal
Dispose of the FL20K safely and in accordance with all local and national safety and environmental requirements.

© Edwards Limited 2013. All rights reserved. Page 9
Edwards and the Edwards logo are trademarks of Edwards Limited.
Spare and accessories
A133-99-880 Issue E
7 Spare and accessories
7.1 Introduction
Edwards products, spares and accessories are available from Edwards companies around the world. The majority of
these centres employ people who have undergone comprehensive Edwards training courses.
Order spare parts and accessories from your nearest Edwards company or distributor. When you order, please state
for each part required:
Model and Item Number of your equipment
Serial Number (if any)
Item Number and description of part
7.2 Spares
7.3 Accessories
Description Item Number
0.45 kg activated alumina H026-00-050
Description Item Number
Stainless steel clamping ring - NW20/25 C105-14-401
Polymer clamp - NW20/25 C105-14-403
Centring ring and O-ring - NW25 (polymer with nitrile O-ring) C105-14-393
Centring ring and O-ring - NW25 (stainless steel with nitrile O-ring) C105-14-396
Centring ring and O-ring - NW25 (polymer with fluoroelastomer O-ring) C105-14-394
Centring ring and O-ring - NW25 (stainless steel with fluoroelastomer O-ring) C105-14-395
