REPAIR GUIDELINE
BACKPACK HARNESS_BH1000
Version: 1
Issue Date: 2017/09/11

1. Remove the battery from the backpack harness.
2. Remove the strap and hook from harness (refer to the operator’s manual).
Description
Part Number
QTY.
Backpack subassembly
2825497001
1
Hook
3129102001
1
1
BH1000 Backpack Harness
Backpack subassembly
Hook
Strap

3. Loosen and remove the 10 screws to disassemble the rear housing.
Description
Part Number
QTY.
Rear housing
3322283001
1
Tapping screw
5610294001
10
Rear housing
2
Tapping screw
BH1000 Backpack Harness

4. Loosen screw 1&2 to remove cord anchor, disconnect connectors 1&2 and remove the
power cord ASSY. If power cord ASSY is broken, replace it with a new one.
3
Description
Part Number
QTY.
Power cord ASSY
4810227001
1
Cord anchor
3700285001
1
Tapping screw
5610294001
2
Tapping screw
Power cord ASSY
1
Connector 1
Connector 2
Note : Align the wires in the
groove after replacing as
shown in the picture below.
Cord anchor
BH1000 Backpack Harness

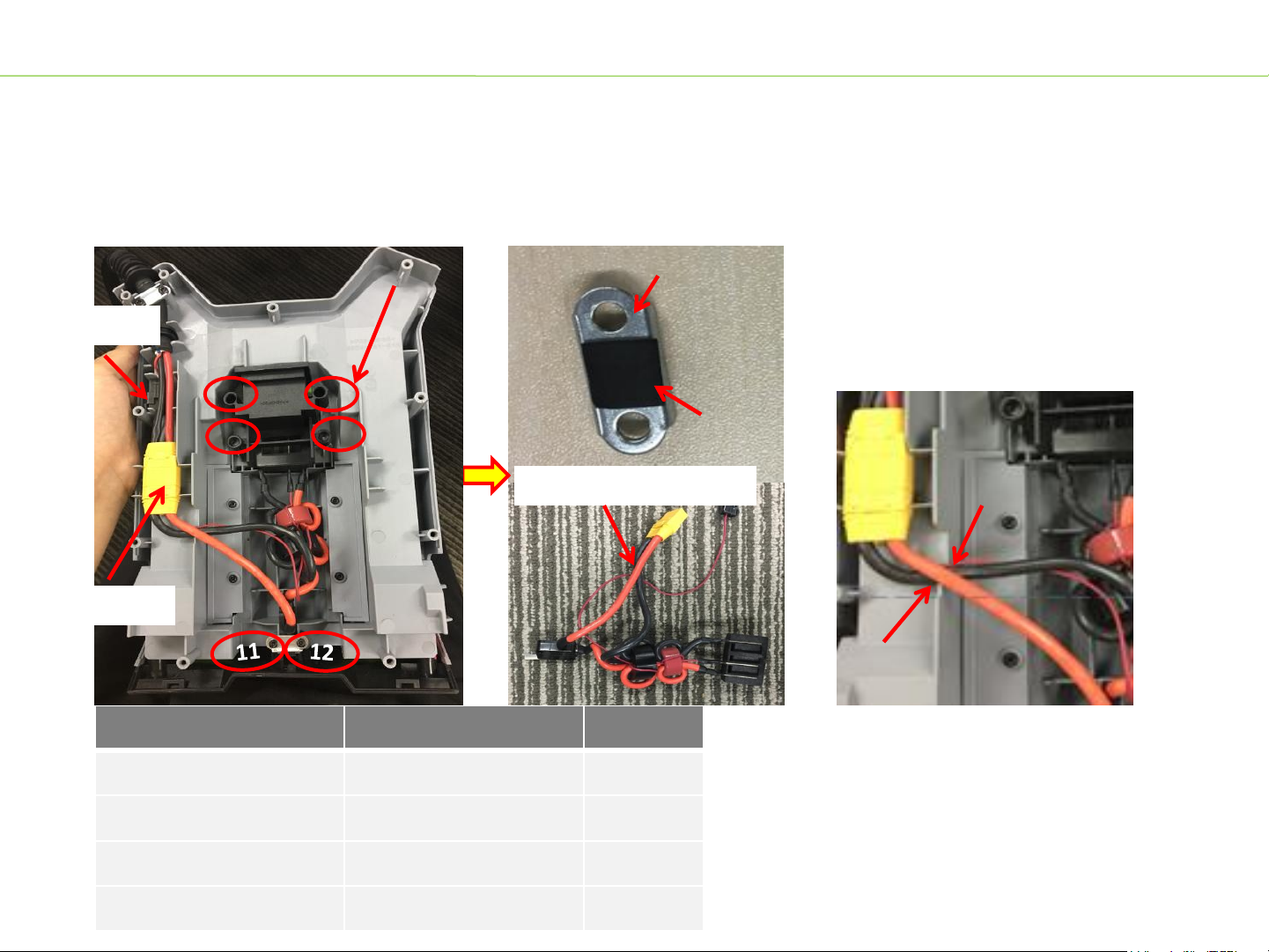

5. Loosen screws 3,4,5,6,11&12 then remove the cord anchor, which is attached with a
sponge pad. Disconnect connectors 1&2 to totally separate the electric assembly from
the front housing.
4
Description
Part Number
QTY.
Self tapping screw
5610274001
10
Sponge pad
3706436001
1
Cord anchor
3700285001
1
Electric assembly
2830264001
1
BH1000 Backpack Harness
Electric assembly
6
3
5
4
Connector 1
Connector 2
Note: Align the wires in the
groove after replacing as
show below.
Sponge pad
Cord anchor
Self tapping screw

Description
Part Number
QTY.
Description
Part Number
QTY.
Support
3128359001
1
Power pack button #2
3127498001
1
Spring
3660013003
1
Front housing
3129073001
1
Power pack button #1
3127497001
1
Dust cover
3128361001
2
BH1000 Backpack Harness
6. Loosen 7,8,9&10 to remove the dust cover. Replace the broken one in the below table.
7
10 9
8
Support
Power pack button #2
Front housing
Dust Cover
Power pack button #1
5
Spring

BH1000 Backpack Harness
NOTICE: When assembling the power pack button #1 and power pack button #2 into the
front housing, pre-assemble the spring onto the power pack button #1 and and then
follow the steps below to locate the buttons into the groove of the housing.
6
Power pack button #1 Power pack button #2

7. Loosen the 4 screws to remove the bottom support.
Description
Part Number
QTY.
Bottom support
3129071001
1
Tapping screw
5610294001
4
Bottom support
7
BH1000 Backpack Harness

8. Remove the white lever and torsion spring. Remove 8 screws and cord anchor to
disassemble the ejection mechanism . If any part is broken, replace it accordingly.
8
Description
Part Number
QTY.
Description
Part Number
QTY.
Ejection mechanism
3126773001
2
White lever
3126773001
1
Tapping screw
5610294001
8
Torsion spring
3660682001
1
Cord anchor
3122798001
4
Spring
3660306002
2
White lever
Ejection
mechanism
Torsion spring
Cord anchor
BH1000 Backpack Harness

9. Assemble all parts in reverse order.
9
Upon continuous product improvement, please using the latest SBOM & Parts list to order spare parts if necessary.
THE END
BH1000 Backpack Harness
Note: There is no specific order for assembling the bottom support and the rear housing. Finally,
assemble back the strap and the hook(refer to the operator’s manual).
Bottom support
Rear housing
