Elation Design LED 12 Brick II User manual

Design LED 12 Brick
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
The Design LED 12 Brick (DLED 12 Brick) by Elation Professional is a high output LED color changer panel
equipped with 12 x 1 watt Luxeon LEDs (4 red, 4 green and 4 blue) featuring seamless RGB color mixing and
infinite color possibilities. Effects for this unit include macros, 0-100% dimming, strobe effect of 1-18flashes
per second and a standard beam angle of 44° with 76 LUX, 7 FC at 3 meters. The design of the DLED 12 Brick
is optimized featuring silent operation with convection cooling (no fans), a compact case design and long life
LED technology providing up to 100,000 hours estimated L.E.D. life. The DLED 12 Brick is rated IP 20 and ideal
for all indoor applications. This unit is also equipped with a built-in power supply and DMX-512 control and
operates at 90-250V AC, 50/60hz. The DLED 12 Brick is power data linkable and display is via 12 position binary
dip switches. Control data input is via 3-pin or 5-pin XLR connections and DMX control is via 6, 12 or 15 DMX
channel operation modes. The DLED 12 Brick offers 8 built-in programs with speed control, master/slave auto
programs and music trigger, flicker free operation and each LED may be controlled independently. Rigging for
this unit includes installed mounting bracket and safety eye hook (DLEDKIT: optional bracket kit available for
multiple units, not included). Safety cable and 3-pin data cable included.
FEATURES
• High output LED color changer
• LED panel with 12 LEDs
• 12 x 1W Luxeon LED’s - (4 Ea. R, G, B)
• Seamless RGB color mixing
• Innite Color possibilities
• 44º beam angle, 25° beam angle without frost lter
• 480 lumens @ 1m per unit
• 1340 lumens @ 1m per kit of 4 units
• Rated IP 20
• Compact case design, available in black
• Convection cooled
• IEC Power in/out
• On/Off Power switch
• Built-in Power Supply and DMX 512 Control
• 12 position binary dip switches
• Power data linkable
• Master/ Slave auto program and music trigger
• 8 built-in programs with Speed control
• Control each L.E.D. independently
• Flicker free operation
TECHNICAL SPECIFICATIONS
• DMX Channels: 6, 12 OR 15 channel operation modes
• Control: USITT DMX-512, 3-pin and 5-Pin XLR serial
input/output, 12 Position Binary dip switches, IEC Power in/out
• Dimmer: 0-100% Dimming
• Strobe: Strobe effect (1-18 ashed per second)
• IP Rating: IP20
• Power Supply: 90-250V AC, 50/60Hz,
On/Off Power switch
• Power Consumption: 30W
• Cable/plug type: PPG 120v US
• Approvals: CE/ETL pending
• Lamp: 12 x 1W Luxeon LED’s - (4 Ea. R, G, B)
• Lux at 3m: 76 Lux / 7 FC
• Lamp life: Long Life L.E.D. (rated at 50,000 Hours)
• Dimensions: (LxWxH): 13” x 3” x 4.5” /
330 x 76 x 114 mm
• Weight: 4.5 lbs. / 2 kgs.
• Rigging: Mounting bracket and safety eye-hook
installed. (DLEDKIT: optional bracket kit available for
multiple units, not included)

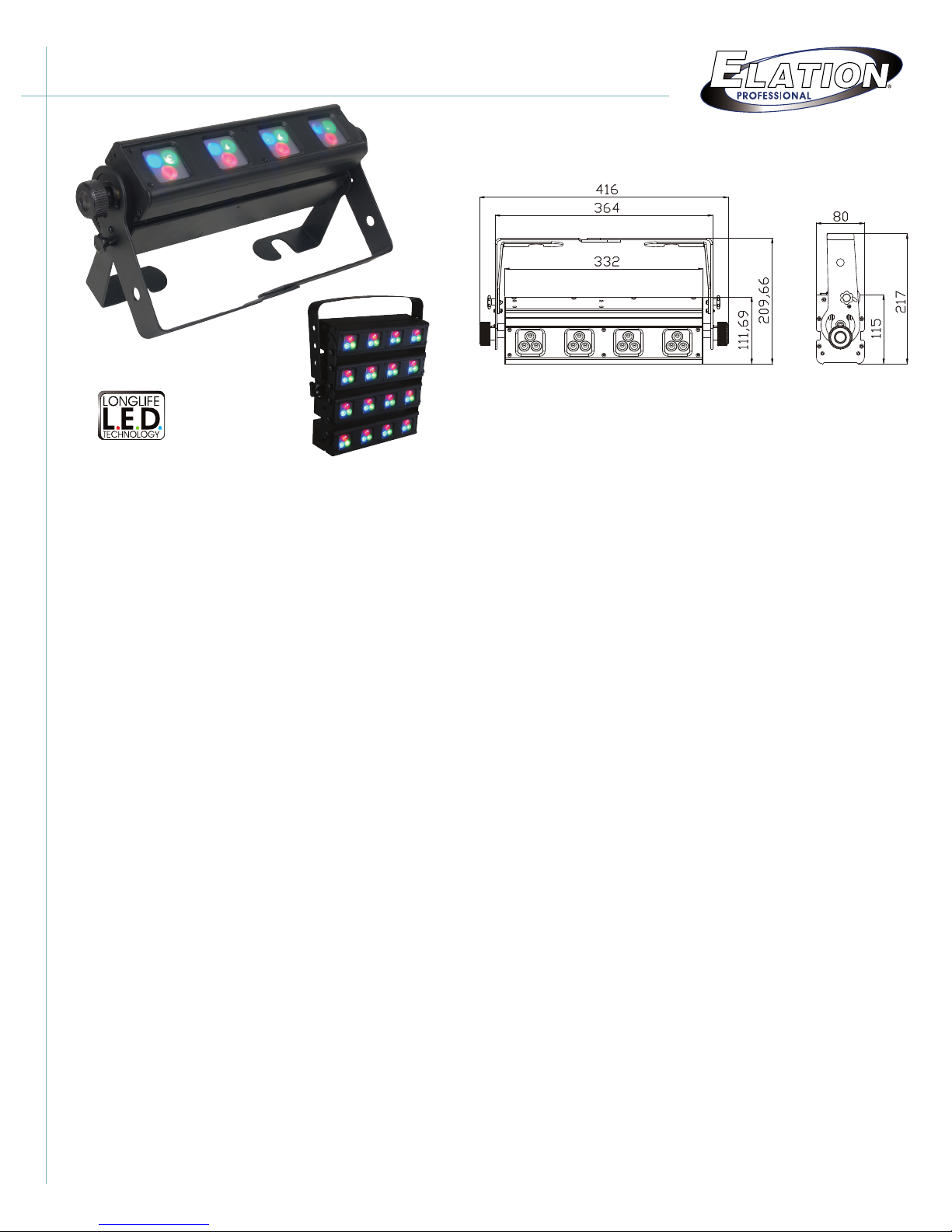

Design LED 12 Brick Dimensions

Design LED 12 Brick
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
COLORS
• LED panel with 12 LEDs
• 12 x 1W Luxeon LED’s - (4 Ea. R, G, B)
• Seamless RGB color mixing
• Innite Color possibilities
PHOTOMETRICS
Design LED 12 Brick
Photometric Beam Angle Data
Beam Angle 44°
LUX x0.0929 = FC
44°
Beam Angle
45 FC
480 LUX
13 FC
144 LUX
7 FC
76 LUX
0 m
0 ft
1 m
3.28 ft
3 m
9.8 ft
2 m
6.6 ft
Ø 0.8 m
Ø 2.6 ft
Ø 1.6 m
Ø 5.2 ft
Ø 2.4 m
Ø 7.9 ft
Beam Diameter
Ø 0.8m / Ø 2.6ft
Ø 1.6m / Ø 5.2ft
Ø 2.4m / Ø 7.9ft

Design LED 12 Brick
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
DMX TRAITS
6 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 221 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Internal programs
5 0 - 255 Strobe
6 0 - 255 General dimming, program speed control
12 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 221 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Red (
0 - black, 255 - 100% red
)
5 0 - 255 Green (
0 - black, 255 - 100% green
)
6 221 - 255 Blue (0 - black, 255 - 100% blue )
7 0 - 255 Red ( 0 - black, 255 - 100% red
)
8 0 - 255 Green ( 0 - black, 255 - 100% green
)
9 221 - 255 Blue (0 - black, 255 - 100% blue )
10 0 - 255 Red ( 0 - black, 255 - 100% red
)
11 0 - 255 Green ( 0 - black, 255 - 100% green
)
12 221 - 255 Blue (0 - black, 255 - 100% blue )
15 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 221 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Red (
0 - black, 255 - 100% red
)
5 0 - 255 Green (
0 - black, 255 - 100% green
)
6 221 - 255 Blue (0 - black, 255 - 100% blue )
7 0 - 255 Red ( 0 - black, 255 - 100% red
)
8 0 - 255 Green ( 0 - black, 255 - 100% green
)
9 221 - 255 Blue (0 - black, 255 - 100% blue )
10 0 - 255 Red ( 0 - black, 255 - 100% red
)
11 0 - 255 Green ( 0 - black, 255 - 100% green
)
12 221 - 255 Blue (0 - black, 255 - 100% blue )
13 0 - 255 Internal programs
14 0 - 255 Strobe
15 0 - 255 General dimming, program speed control
