Elation Uni-Pack II User manual

4295 Charter Street
Los Angeles CA. 90058
www.elationlighting.com
Elation Professional R
Uni-Pack II
User's Manual

Contents
Features..................................1
General Instructions..............2
1. Overview.............................3
2. Operation Guide.................5
Technical Specifications.......10
2.1 DMX Address Mode ..................5
2.2 Switch Pack Mode .....................6
2.3 Dimmer Pack Mode ...................7
Improvement and changes to
this manual, specifications
and design, may be made at
any time without prior notice.
ALL RIGHTS RESERVED.
Features
Thank you for purchasing this product by Elation Professional.
Included features are as follows:
Every effort has been made to design dependability, reliability and
comfort into each unit. New products are being designed constantly
to meet the needs of both entertainment and the lighting industry.
We welcome your comments about our product and services.
It is both a privilege and a pleasure serving you.
3-pin standard DMX IN/OUT ports providing dimmer information
Serves as a Switch Pack or Dimmer Pack, depending upon
the current operating mode.
Allows DMX Addressing, Dimmer Preset and Dimmer Limit.
Power failure memory.
4 digits Segment Display shows current activity
and function state.
1

Contents
Features..................................1
General Instructions..............2
1. Overview.............................3
2. Operation Guide.................5
Technical Specifications.......10
2.1 DMX Address Mode ..................5
2.2 Switch Pack Mode .....................6
2.3 Dimmer Pack Mode ...................7
Improvement and changes to
this manual, specifications
and design, may be made at
any time without prior notice.
ALL RIGHTS RESERVED.
Features
Thank you for purchasing this product by Elation Professional.
Included features are as follows:
Every effort has been made to design dependability, reliability and
comfort into each unit. New products are being designed constantly
to meet the needs of both entertainment and the lighting industry.
We welcome your comments about our product and services.
It is both a privilege and a pleasure serving you.
3-pin standard DMX IN/OUT ports providing dimmer information
Serves as a Switch Pack or Dimmer Pack, depending upon
the current operating mode.
Allows DMX Addressing, Dimmer Preset and Dimmer Limit.
Power failure memory.
4 digits Segment Display shows current activity
and function state.
1

General Instructions
Warning !!!
Cautions
To prevent fire or shock hazard, do not expose this product to
rain or moisture.
In the event of a malfunction(burning smell, etc.), immediately
stop operation, disconnect the power supply plug, and consult
authorized service personnel.
No user serviceable parts inside, always consult authorized
personnel for repairs.
Take care not to damage the power cord.
Do not make any inflammable liquids, water or metal objects
enter the unit.
This product must be earthed.
Do not dismantle or modify the unit.
Place this unit in a stable location.
Do not use the unit in places subject to excessive humidity,
vibration or bumps.
Unplug the power plug from the sockets when not using the
unit for extended period.
Provide occasional ventilation during use.
This product is intended for indoor use only.
To optimize the performance of this product , please read this instruction manual
carefully to familiarize yourself with the basic operations of this unit. This manual
contains important information for user, please keep it well for future reference.
2
MENU
DMX
DMX IN DMX OUT
OUTPUT: 10A MAX.
POWER INPUT :
AC 120V~60HZ
10A MAX.
1=Ground
2=Data -
3=Data +
1
2
3
FUSE :
F10A 250V
5X20MM.
Uni-Pack II
FUSE
F
U
S
E
3
3
3
2
2
2
1
1
1
PUSH
PUSH
PUSH
1
1
1
2
2
2
3
3
3
1. Overview
3
1. Power Input port: AC 120V~60Hz, 10A Max.
2. Output: 10A max.
3. Segment Display: Shows current activity or function state.
4.
5. Menu button: Use this button to select desired function mode.
6. Up button: Each tap will increase the current value once. Pressing and
holding down this button will increase the value quickly.
9.
Fuse: F10A 250V 5x20mm
7. Down button: Each tap will decrease the current value once. Pressing and
holding down this button will decrease the value quickly.
8. DMX In 3-pin XLR male socket, used to receive DMX data.
DMX Out 3-pin XLR female socket, used to send DMX data.
123
4567 8 9

General Instructions
Warning !!!
Cautions
To prevent fire or shock hazard, do not expose this product to
rain or moisture.
In the event of a malfunction(burning smell, etc.), immediately
stop operation, disconnect the power supply plug, and consult
authorized service personnel.
No user serviceable parts inside, always consult authorized
personnel for repairs.
Take care not to damage the power cord.
Do not make any inflammable liquids, water or metal objects
enter the unit.
This product must be earthed.
Do not dismantle or modify the unit.
Place this unit in a stable location.
Do not use the unit in places subject to excessive humidity,
vibration or bumps.
Unplug the power plug from the sockets when not using the
unit for extended period.
Provide occasional ventilation during use.
This product is intended for indoor use only.
To optimize the performance of this product , please read this instruction manual
carefully to familiarize yourself with the basic operations of this unit. This manual
contains important information for user, please keep it well for future reference.
2
MENU
DMX
DMX IN DMX OUT
OUTPUT: 10A MAX.
POWER INPUT :
AC 120V~60HZ
10A MAX.
1=Ground
2=Data -
3=Data +
1
2
3
FUSE :
F10A 250V
5X20MM.
Uni-Pack II
FUSE
F
U
S
E
3
3
3
2
2
2
1
1
1
PUSH
PUSH
PUSH
1
1
1
2
2
2
3
3
3
1. Overview
3
1. Power Input port: AC 120V~60Hz, 10A Max.
2. Output: 10A max.
3. Segment Display: Shows current activity or function state.
4.
5. Menu button: Use this button to select desired function mode.
6. Up button: Each tap will increase the current value once. Pressing and
holding down this button will increase the value quickly.
9.
Fuse: F10A 250V 5x20mm
7. Down button: Each tap will decrease the current value once. Pressing and
holding down this button will decrease the value quickly.
8. DMX In 3-pin XLR male socket, used to receive DMX data.
DMX Out 3-pin XLR female socket, used to send DMX data.
123
4567 8 9

2. Operation Guide
2.1 DMX Address Mode
1. The Segment Display shows the DMX address
of last change when powered this unit.
If you've selected DMX address 123 for the last
time, then the Segment Display will read 123.
2. Each tap of the Up or Down button will change
the DMX address once. Pressing and holding
down will change the DMX address quickly.
Once the DMX address is selected, it will be
stored into memory automatically.
4
MENU
MENU
General
Plug in the appropriate power outlet, this unit recovers to the function state of
last time automatically by reasons of power failure memory, and the Segment
Display shows the DMX address of last change.
If the frequency of power is not stable, the Segment Display will show "AC-0",
wait until the power is stable.
The product serves as a dimmer pack or a switch pack, depending on operating
mode you've selected.
During DMX addressing, output is disabled.
NOTE:
NOTE: A=DMX Address, D=Dim, S=Switch, P=Dim Preset, L=Dim Limit
2. Operation Guide
2.2 Switch Pack Mode
1. When DMX address is complete, Press Menu
button to enter next level.
2. Tap the Up or Down button causing the Segment
Display shows "s---".
3. Press Menu button to enter Switch Pack mode.
Switch Pack mode consists of Switch On(S-on)
and Switch Off(S-of).
In the Switch On mode, output is turned on and
the fixture lights regardless of DMX signal.
In the Switch Off mode, output is turned off and
the fixture is controlled by DMX signal. When
DMX level is less than 40%, the fixture goes out;
when DMX level exceeds 40%, the fixture lights.
5
MENU
MENU
MENU
s ---
---

2. Operation Guide
2.1 DMX Address Mode
1. The Segment Display shows the DMX address
of last change when powered this unit.
If you've selected DMX address 123 for the last
time, then the Segment Display will read 123.
2. Each tap of the Up or Down button will change
the DMX address once. Pressing and holding
down will change the DMX address quickly.
Once the DMX address is selected, it will be
stored into memory automatically.
4
MENU
MENU
General
Plug in the appropriate power outlet, this unit recovers to the function state of
last time automatically by reasons of power failure memory, and the Segment
Display shows the DMX address of last change.
If the frequency of power is not stable, the Segment Display will show "AC-0",
wait until the power is stable.
The product serves as a dimmer pack or a switch pack, depending on operating
mode you've selected.
During DMX addressing, output is disabled.
NOTE:
NOTE: A=DMX Address, D=Dim, S=Switch, P=Dim Preset, L=Dim Limit
2. Operation Guide
2.2 Switch Pack Mode
1. When DMX address is complete, Press Menu
button to enter next level.
2. Tap the Up or Down button causing the Segment
Display shows "s---".
3. Press Menu button to enter Switch Pack mode.
Switch Pack mode consists of Switch On(S-on)
and Switch Off(S-of).
In the Switch On mode, output is turned on and
the fixture lights regardless of DMX signal.
In the Switch Off mode, output is turned off and
the fixture is controlled by DMX signal. When
DMX level is less than 40%, the fixture goes out;
when DMX level exceeds 40%, the fixture lights.
5
MENU
MENU
MENU
s ---
---

2. Operation Guide
6
2.2 Switch Pack Mode
2.3 Dimmer Pack Mode
4. Tap the Up or Down button to change between
"Switch On" and "Switch Off".
If there is no timely operation on any of the fun-
ction button, the unit will automatically return to
the DMX Address function mode.)
5. Once the Switch Pack is selected, press Menu
button to return to DMX Address mode.
1. Press Menu button to enter next item.
MENU
MENU
MENU
MENU
7
2. Operation Guide
2.3 Dimmer Pack
2. Tap the Up or Down button causing the Segment
Display shows "d---".
3. Then press Menu button to enter Dimmer Limit
mode.

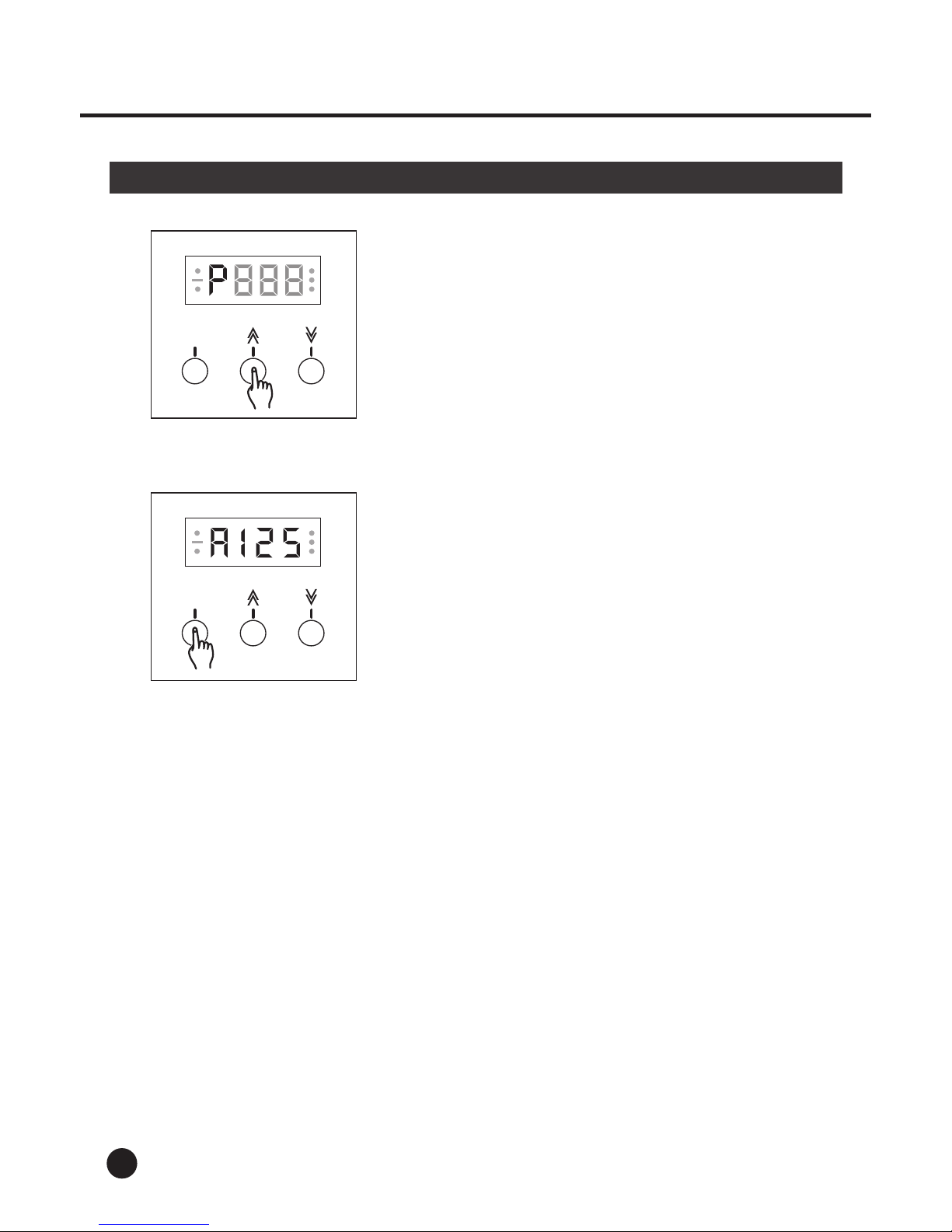

5. Press Menu button to enter Dimmer Preset mode.
4. Tap the Up or Down button to change the value
within the range of 10-100. Each tap will change
the value once, pressing and holding down will
change the value quickly. The Dimmer Limit level
will be stored into memory automatically.
MENU
---
MENU
MENU
( If there is no timely operation on the button for
more than 20 seconds, the unit will return to DMX
Address function mode again.)

2. Operation Guide
6
2.2 Switch Pack Mode
2.3 Dimmer Pack Mode
4. Tap the Up or Down button to change between
"Switch On" and "Switch Off".
If there is no timely operation on any of the fun-
ction button, the unit will automatically return to
the DMX Address function mode.)
5. Once the Switch Pack is selected, press Menu
button to return to DMX Address mode.
1. Press Menu button to enter next item.
MENU
MENU
MENU
MENU
7
2. Operation Guide
2.3 Dimmer Pack
2. Tap the Up or Down button causing the Segment
Display shows "d---".
3. Then press Menu button to enter Dimmer Limit
mode.
5. Press Menu button to enter Dimmer Preset mode.
4. Tap the Up or Down button to change the value
within the range of 10-100. Each tap will change
the value once, pressing and holding down will
change the value quickly. The Dimmer Limit level
will be stored into memory automatically.
MENU
---
MENU
MENU
( If there is no timely operation on the button for
more than 20 seconds, the unit will return to DMX
Address function mode again.)

2. Operation Guide
2.3 Dimmer Pack Mode
MENU
MENU
4. Tap the Up or Down button to change the value
within the range of 00-100. Each tap will change
the value once, pressing and holding down will
change the value quickly.
Once the Dimmer Preset is selected, it will be
stored automatically.
5. Press Menu button to return to DMX Address mode.
8
Technical Specifications
Power Input ........................................................... .AC 120V~60Hz, 10 A max.
Channel Output ..................................................................................10 A max.
DMX OUT ................................................................ .3-pin XLR female socket
DMX IN ....................................................................... .3-pin XLR male socket
Fuse ...................................................................................F10A 250V 5x20mm
Dimensions ............................................................................. 235x106x64mm
Weight ................................................................................................... 1.6 Kg
9

2. Operation Guide
2.3 Dimmer Pack Mode
MENU
MENU
4. Tap the Up or Down button to change the value
within the range of 00-100. Each tap will change
the value once, pressing and holding down will
change the value quickly.
Once the Dimmer Preset is selected, it will be
stored automatically.
5. Press Menu button to return to DMX Address mode.
8
Technical Specifications
Power Input ........................................................... .AC 120V~60Hz, 10 A max.
Channel Output ..................................................................................10 A max.
DMX OUT ................................................................ .3-pin XLR female socket
DMX IN ....................................................................... .3-pin XLR male socket
Fuse ...................................................................................F10A 250V 5x20mm
Dimensions ............................................................................. 235x106x64mm
Weight ................................................................................................... 1.6 Kg
9

A Division of the American DJ Group of Companies
4295 Charter Street Los Angeles, CA 90058 USA
Tel: [phone] Fax: [phone]
Web: www.elationlighting.com
E-mail: [email protected]
Elation Professional R
24-004-1299
Version 1.0 July, 2004
