Elation ELAR PAR 72 UV User manual

Rev. 12/08/2010 – visage Version 1.0
ELAR PAR 72 UV
Elation Professional™
6122 S. Eastern Ave.
Los Angeles, Ca 90040
www.elationlighting.com

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 1 www.ElationLighting.com

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 2 www.ElationLighting.com
TABLE OF CONTENS
1. General Information………………………………………………………………………3
a. Introduction……………………………………………………………………….3
b. Unpacking………………………………………………………..…………..… 3
c. Customer Support…………………………………………….………………… 3
d. Warranty Registration……………………………………………………..…… 4
2. Safety Instructions………………………………………………………........…………. 5
3. Features……………………………………………………………………………………7
4. General Guidelines……………………………………………………………………….8
5. Fixture Overview…………………………………………………………………………. 9
6. Mounting and Installation………………………………………………………….……. 12
7. Understanding DMX……………………………………………………………………...15
a. DMX Cables……..………………………………………………………………. 15

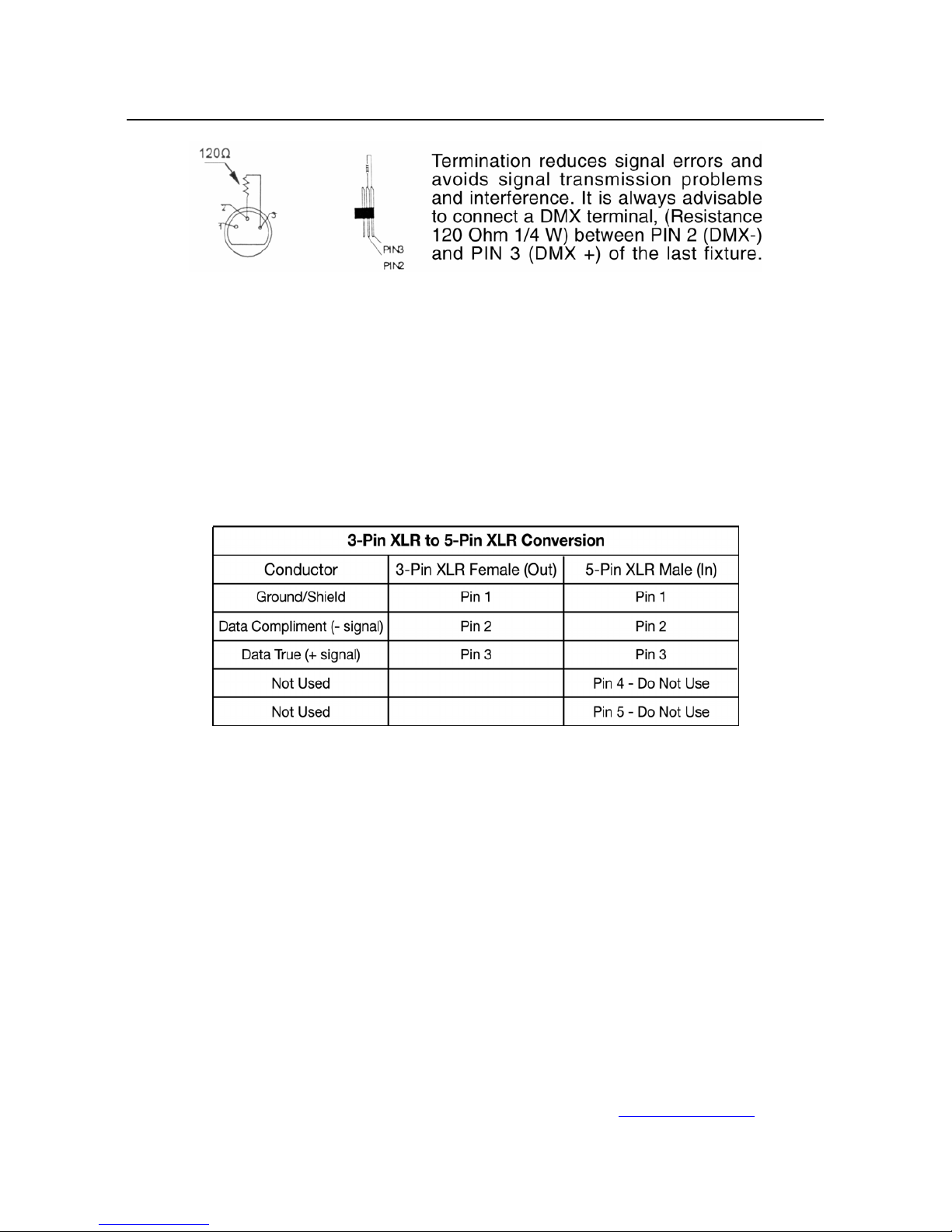

b. DMX Terminator…………………………………………………………………. 16
c. 3-Pin to 5-Pin Conversion……………………………………………………….17
d. Fixture DMX Addressing.………………………..………………………………17
8. Display Indicators….……………………………………………………..……………… 19
9. Display Menu….……………………………………………………..……………………20
10. DMX Addressing…………………………………………………….…………………… 27
a. Remote DMX Addressing (RDMX)……………………………………………. 27
11. DMX Traits…………………………………………………………………………………29
12. Working with Built-In programs………………………………………………………….31
13. Lens Replacement………………………………………………………………….…….34
14. Cleaning and Maintenance………………………………………………………………35
15. Warranty…………………………………………………………………………………...36
16. Photometric Data………………………………………………………………………… 38
17. Dimensional Drawings………………………………………………….……………….. 39
18. Circuit Schematic………...……………………………………………………………….40
19. Technical Specifications…………………………………………...………….………… 41

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 3 www.ElationLighting.com
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and
reliable LED fixtures on the market today! The ELAR PAR 72 UV™ has been designed to
perform reliably for years when the guidelines in this booklet are followed. Please read and
understand the instructions in this manual carefully and thoroughly before attempting to
operate this unit. These instructions contain important information regarding safety during
use and maintenance.
UNPACKING: Thank you for purchasing the ELAR PAR 72 UV™ by Elation Professional®.
Every ELAR PAR 72 UV™ has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully inspect your fixture for
damage and be sure all accessories necessary to operate the fixture have arrived intact. In
the event damage has been found or parts are missing, please contact our customer support
team for further instructions. Inside the box you should find: the fixture, a DMX XLR cable, a
safety cable, and this manual. Please do not return this unit to your dealer without first
contacting customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Forum: www.ElationLighting.com/forum
Warning! To prevent the risk of fire and reduce the risk electrical shock, do not attempt to
operate this fixture with the lens cover removed.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 4 www.ElationLighting.com
yourself. Doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The ELAR PAR 72 UV™ carries a two-year (730 days)
limited warranty. Please fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support at [phone].

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 5 www.ElationLighting.com
2. SAFETY INSTRUCTIONS
To guarantee proper and consistent operation, it is important to
follow the guidelines in this manual. Elation Professional will not
accept responsibility for damages resulting from the misuse of
this fixture due to the disregard of the information printed in this
manual.
1. Always be sure that the fan and the air inlets remain clean and are never
blocked. Allow about 6” (15cm) between this fixture and other devices or a wall
to allow for proper cooling. See page 12.
2. Never touch the fixture during normal operation.
3. Never look directly into the light source. You risk injury to your retina, which may
induce blindness.
4. For safe operation, follow the Installation guide described in chapter six of this
manual. Operating the ELAR PAR 72 UV™ without suited safety aids such as
safety cables or clamps can increase the risk of damage and/or personal injury.
5. Qualified and certified personnel should only perform installation.
6. When mounting this fixture, use only the original rigging points included with this
fixture. Any structural modification will void the original manufactures warranty
and may increase the risk of damage and/or personal injury.
7. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
8. Never open this fixture while in use.
9. This device falls under protection-class I. Therefore it is essential that the device
be grounded properly.
10.Qualified personnel should perform all electrical connections.
11.Be sure the available voltage matches the voltage requirements of the unit. Be
sure the power cord is never crimped or damaged. If the power cord is damaged,
replace it immediately with a new one of similar power rating.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 6 www.ElationLighting.com
12.Always disconnect from main power before performing any type of service or
any cleaning procedure.
13.Only handle the power cord by the plug. Never pull out the plug by tugging the
wire portion of the cord.
14.Please safe keeping the waterproof socket packed in the attached bag.
Cover the power cable and signal cable by the socket when the cable leave
unused.
15.Please be aware that damages caused by modifications to the device are
not subject to warranty.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 7 www.ElationLighting.com
3. FEATURES
• IP65 Rated Fixture
• Low power consumption
• Minimal heat emission
• Maintenance free operation
• Equipped with 36 2-Watt UV led
• Silent Operation, convection cooled, no fans
• 100,000 hours rated LED life
• 20˚Beam Angle/60˚Field Angle (45˚Lens)
• USITT DMX-512 Complaint
• Preprogrammed colored macros
• Strobe-effect with a maximum flash rate of 18fps
• DMX-controlled operation or stand-alone operation with Master/Slave-function
• Sound-controlled via built-in microphone
• DMX Modes: 2 DMX channels
• DMX-control via standard DMX-controller
• Upgradable firmware via Elation “E-Loader” Data Pack
• Electronic Switching Power Supply 100v~240v
• Flicker-free operation for television and film
• Compact design: fits in 12” box truss
• 0%~100% Dimming

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 8 www.ElationLighting.com
4. GENERAL GUIDELINES
This fixture is a professional lighting effect designed for use on stage, in nightclubs, in
theatres, and other types of architectural installations. Do not attempt operation or
installation without a proper knowledge on how to do so.
Consistent operational breaks will ensure that the fixture will function properly for many
years to come.
Do not shake the fixture around.Avoid brute force when installing or operating the fixture.
While choosing an installation location, please be sure that the fixture will not be exposed to
extreme heat, moisture, or dust. The minimum distance between the fixture and a wall or flat
surface should be at least 0.5 meter (about 1.5ft). See page 12.
Always install the fixture with an appropriately rated safety cable. When installing the fixture
in a suspended environment always be sure to use mounting hardware no less than M10 x
25 mm, also be sure the hardware is only inserted in the yoke’s mounting holes.
Do not attempt to operate this fixture until you have familiarized yourself with all of its
functions.
Do not permit operation by persons not qualified for operating this type of architectural
fixture. Most damages are the result of improper operation.
Please use the original packaging to transport the fixture in for service.
For your own safety, please read this user manual carefully before installing the device.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 9 www.ElationLighting.com
5. FIXTURE OVERVIEW

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 10 www.ElationLighting.com
1. LED Lens Assembly – The lens assembly may be user replaced in the event repair
is needed or a different beam angle is required.
2. LED Display – 4-segment menu display. Used to display the DMX address as well
as all other menu functions.
3. Power Output Lead – This lead is used to jump power to another ELAR PAR 72
UV™. Please do not daisy chain power for more than 16 fixtures. To maintain the
integrity of the IP rating, only use proper Elation IP rated power cables.
4. DMX Out Lead – This lead is used to send an incoming DMX signal to the next
fixture in the DMX chain. To maintain the integrity of the IP rating, only use proper
Elation IP rated DMX cables.
5. MENU Button – This button is used to access the fixtures menu functions.
6. Up Button – The up button is used to toggle forward through the menu functions and
settings.
7. Down Button – The down button is used to toggle backwards through the menu
functions and settings.
8. Enter Button – The enter button is used to enter in to a certain menu function or to
lock a menu setting in to memory.
9. Yoke Assembly – This yoke is designed to perform two functions; 1) When split it
can be used as a floor stand bracket. 2) Used to secure a mounting clamp for truss
mounting.
10. Main Power Input Lead – This lead is the main power input lead. When the unit is
the first in a chain or the only fixture to be used, be sure to use the power starter

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 11 www.ElationLighting.com
cable that converts a standard Edison 3-prong to the IP rated twist lock connector.
When jumping from fixture to fixture be sure to only use Elation IP rated power
connectors to maintain the IP rating.
11. DMX In Lead – This lead is the main DMX input lead. When the unit is the first in a
chain or the only fixture to be used with a DMX controller, be sure to use the DMX
starter cable that converts a standard 3-pin XLR DMX connector to the IP rated twist
lock connector that is used on the fixture. When jumping from fixture to fixture be
sure to only use Elation IP rated DMX cables to maintain the IP rating.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 12 www.ElationLighting.com
6. MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking paths, seating areas, and
away from areas were unauthorized personnel might reach the fixture.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
To avoid injury, never stand directly below the device when mounting, removing, or servicing
the fixture.
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217
for proper installation in Europe To ensure proper installation, only
qualified staff should attempt installation.
Mounting points
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, a fine knowledge of the installation material being used, and periodic
safety inspection of all installation material and the fixture. If you lack these qualifications, do
not attempt the installation yourself. Improper installation can result in bodily injury.
CAUTION!
Be sure a qualified electrician performs all electrical
connections.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 13 www.ElationLighting.com
Mounting
The ELAR PAR 72 UV™ is fully operational in any mounting position, hanging upside-down,
side mounted, or set on a flat level surface, etc. Be sure this fixture is kept at least 0.5m (1.5
feet) away from any flammable materials (decoration etc.). When clamp mounting; always
use and install the supplied safety cable as an added safety measure to prevent accidental
damage in the event of a clamp failure. See the image below.
Clamp Mounting
The ELAR PAR 72 UV™ provides a unique mounting bracket assembly that allows the unit
to stand on a flat surface or to be hung on truss via a clamp in any safe position (see the
illustration above). Regardless of the mounting option you choose please be sure to refer to
the safety guidelines in this manual to avoid damage to the unit and/or personal injury.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 14 www.ElationLighting.com
When mounting this fixture to truss be sure to secure an appropriately rated clamp to the
hanging yoke using a M10 screw fitted through the center hole of the hanging yoke. As an
added safety measure be sure to attach at least one properly rated safety cable to the fixture.
See illustrations below.
Securing the ELAR PAR 72 UV™
Always be sure to secure your fixture with a safety cable when
suspending the unit from truss or other means. The fixture
provides a built-in rigging point for a safety cable as illustrated
above. Be sure to only use the designated rigging point for the
safety cable and never secure a safety cable to the hanging
bracket.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 15 www.ElationLighting.com
7. UNDERSTANDING DMX
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most
lighting and controller manufactures as a form of communication between intelligent fixtures
and controllers. DMX allows all makes and models of different manufactures to be linked
together and operate from a single controller. This is possible as long as all the fixtures and
the controller are DMX compliant. A DMX controller sends the DMX data instructions to a
fixture allowing the user to control the different aspects of an intelligent light. DMX data is
sent out as serial data that travels from fixture to fixture via data “IN” and “OUT” leads
located on the fixtures (most controllers will only have output jacks).
DMX Linking: To ensure proper DMX data transmission, always use proper DMX cables
and a terminator. When using several DMX fixtures try to use the shortest cable path
possible. Never split a DMX line with a “Y” style connector. The order in which the fixtures
are connected in a DMX line does not influence the DMX addressing. For example; a fixture
assigned a DMX address of 1 may be placed anywhere in the DMX chain, at the beginning,
at the end, or anywhere in the middle. The DMX controller knows to send data assigned to
address 1 to that fixture no matter where it is located in the DMX chain. The ELAR PAR 72
UV™ can be controlled via DMX-512 protocol. The ELAR PAR 72 UV™ is a fixture that
operates with two DMX channels (see pages 29 & 30 for the DMX traits). The DMX address
is set electronically using the controls on the LED menu.
Cable Requirements: This fixture is designed with special cables for both DMX and power.
These cables are specifically designed to maintain the integrity of the IP rating. When using
this fixture outdoors be sure to ONLY use the Elation cables that have been manufactured to
meet the IP rating.
“First” DMX Cables - Special DMX “First” cables may be purchased from Elation to provide
a means of data communication with standard DMX fixtures for indoor use. These cables will
come with the IP rated twist lock connector on one end and either a 3-pin XLR male or
female connector on the other depending on model. Be sure to only use these cables for
intergrading this fixture in a standard DMX chain.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 16 www.ElationLighting.com
“First” Power Cable – A special power “First” cable is included with every fixture. This
cables is used to provide power to your fixture. This cable comes with the IP rated twist lock
connector on one end and a standard Edison 3-prong, grounded prong on the other end. Be
sure to only use this cable for power distribution and never attempt to connect this cable to
the DMX lines.
DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head (Please refer to the diagram
below.). You can chain multiple moving heads together through serial linking. The cable that
should be used is two conductor, shielded DMX cable with XLR input and output connectors.
Always be sure daisy chain your in and out data connections, never split or “Y” your DMX
connections unless you are using an approved DMX splitter such as the Elation Opto Branch
4™ or DMX Branch/4™.
DMX-512 connection with DMX terminator
A DMX terminator should be used in all DMX lines especially in longer runs. The use of a
terminator may avoid erratic behavior in your DMX line. A terminator is a 120 ohm 1/4 watt
resistor that is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA
-). This fixture is inserted in the female XLR connector of the last fixture in your daisy chain
to terminate the line. Using a line terminator (Elation part: DMX T PACK) will decrease the
possibilities of erratic behavior.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 17 www.ElationLighting.com
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA
transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX
line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must
be used, these adaptors are readily available at most electric stores. The following chart
details a proper cable conversion.
Fixture DMX addressing;
All fixtures should be given a DMX starting address when using a DMX controller, so the
correct fixture responds to the correct control signal. This digital starting address is the
channel number from which the fixture starts to “listen” to the digital control information sent
out from the DMX controller. The allocation of this starting DMX address is achieved by
setting the correct DMX address on the digital display located on the back of the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different
address for each individual fixture. Be advised that setting all you fixtures to the same DMX
address will subsequently control all fixtures in the same fashion, in other words, changing
the settings of one channel will affect all the fixtures simultaneously.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 18 www.ElationLighting.com
If you set each fixture to a different DMX address, each unit will start to “listen” to the channel
number you have set, based on the quantity of control channels (DMX channels) of each
fixture. That means changing the settings of one channel will only affect the selected fixture.
In the case of the ELAR PAR 72 UV™, which is up to a two channel fixture, you should set
the starting DMX address of the first unit to 1, the second unit to 3 (2 + 1), the third unit to 5
(2 + 3), and so on.
Note: During start-up the ELAR PAR 72 UV™ will automatically detect whether a DMX data
signal is being received or not. If a DMX data signal is being received, the display will show
"A.XXX" (XXX representing the actual DMX address). If the fixture is not receiving a DMX
signal the display will flash "A.XXX" (XXX representing the actual DMX address).
If your fixture is connected to a DMX controller and the display is flashing (not receiving a
DMX signal), please check the following:
- The 3-pin or 5-pin XLR plug (cable with DMX signal from controller) may not be
connected or is not inserted completely into the DMX input jack.
- The DMX controller is switched off or defective.
- The DMX cable from the controller merging with included IP Rated Cable adapter is
not connected securely
- The DMX cable or connector is defective.
- A DMX terminator has been inserted into the last fixture in your DMX chain.

ELAR PAR 72 UV™
©Elation Professional, Los Angeles Ca. 19 www.ElationLighting.com
8. DISPLAY LED INDICATOR.
The ELAR PAR 72 UV ™ has a LED indicator on the display. This indicator is designed to
give a quick visual indication of the fixtures’ DMX status. The illustration below details the
functionality of the LED indicators.
The LED indicator represents DMX signal:
• If the indicators is on, a clean DMX signal is present
• If the indicator is off, there is no DMX signal present
