Elba VETRO EDDH-C9046STSS User manual

Down draft Hood
Instructions

IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ALL INSTRUCTION BEFORE USING
SAFETY PRECAUTIONS
WARNING! To reduce the risk of fire, electric shock or injury to persons, observe the following:
A. Use this unit only in the manner intended by the manufacturer. If you have questions, please
contact the manufacturer.
B. Disconnect the electrical plug prior to any maintenance and cleaning.
C. Do not use this unit with any solid-state speed control device
D. This unit must be grounded.
Caution —This hood is for general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
To reduce the risk of injury to persons in the event of a range top grease fire, observe the
following:
A. Smother flames with a close-fitting lid, cookie sheet or metal tray, and then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
B. If the flame do not go out immediately ,EVACUATE AND CALL THE FIRE DEPARTMENT
C. NEVER PICK UP A FLAMING PAN---you may be burned
D. DO NOT USE WATER including wet dishcloths or towels –a violent steam explosion will result.
E. Use an extinguisher ONLY if:
1. You know you have a class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where is started
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
Based on “Kitchen Fire Safety Tips” published by NFPA
WARNING---To reduce the risk of a range top grease fire:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite.
B. Turn hood ON always when cooking at high heat or when cooking flaming foods
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter
D．Use proper fan size. Always use cookware appropriate for the size of the surface element
E. Constantly check food frying to avoid that the overheated oil may become a fire hazard.
F. Disconnect the electrical plug prior to any maintenance.
G. This appliance is not intended for use by young children or infirm persons without
supervision.
H. Young children should be supervised to ensure they do not play with the appliance.
I. There shall be adequate ventilation of the room when the rangehood is used at the same time
as appliances burning gas or other fuels.
J. There is a risk of fire if cleaning is not carried out in accordance with the instructions
K. under the hood allow the use of up to 6 stoves.

L. range hood should not be routed to the exhaust gas for exhaust gas or other fuels used in hot
flue smoke.
M. directly against the fire roasting hood.
N. If the power cord is damaged, can only use the company's dedicated power line replacement.
O. non-professional non-disassembly of the machine.

Installation Instructions
BEFORE YOU BEGIN
Read these instructions completely and carefully.
●IMPORTANT –Save these instructions for local inspector’s usage.
●Note to installer –Be sure to leave these instructions with the Consumer.
●Note to Consumer –Keep these instructions for future reference.
●Skill Level –Installation of this vent hood requires basic mechanical and electrical skills.
●Completion time –1 to 3 hours.。
●Proper installation is the responsibility of the installer.
CAUTION:
Due to the weight and size of these vent hoods and to reduce the risk of personal injury or damage
to the product, TWO PEOPLE ARE REQUIRED FOR PROPER INSTALLATION.
WARNING:
To reduce the risk of the fire or electrical shock, do not use this range hood with any external
solid-state speed control device. Any such alteration from original factory wiring could result in
damage to the unit and/or create an electrical safety hazard.
AVERTISSEMENT TO REDUCE THE RISK OF THE FIRE, USE ONLY METAL DUCTWORK.
Installation instructions
The Installation guide
One hood installation methods:

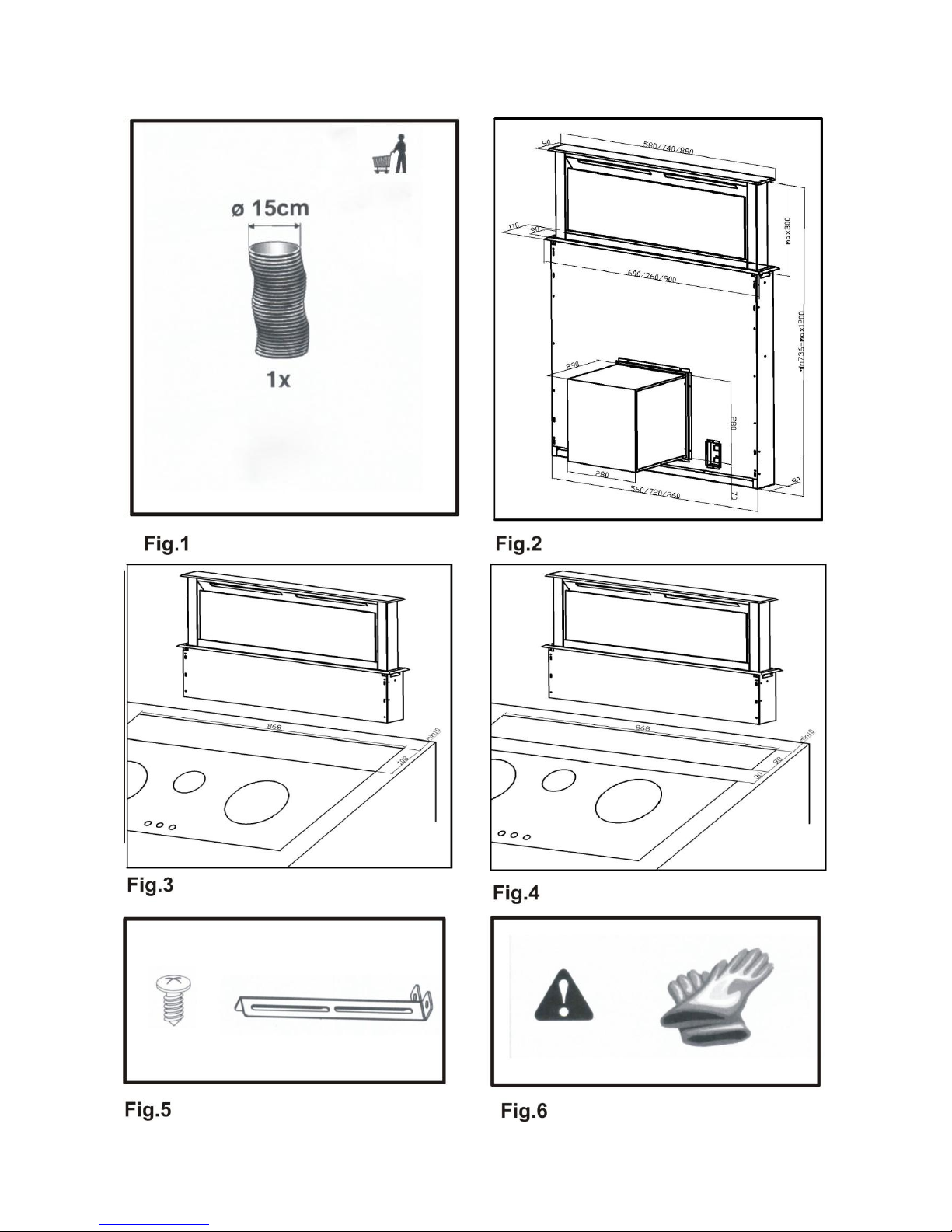

(1) Refer to Figure Fig.2 open mounting holes on the stove:
a) If you want to install the hood decorative panels flush with cooker, Fig.3 diagram to open the
mounting holes.
b) If you want to smoke decorative plates and cooker separate Fig.4 diagram to open the
mounting holes.

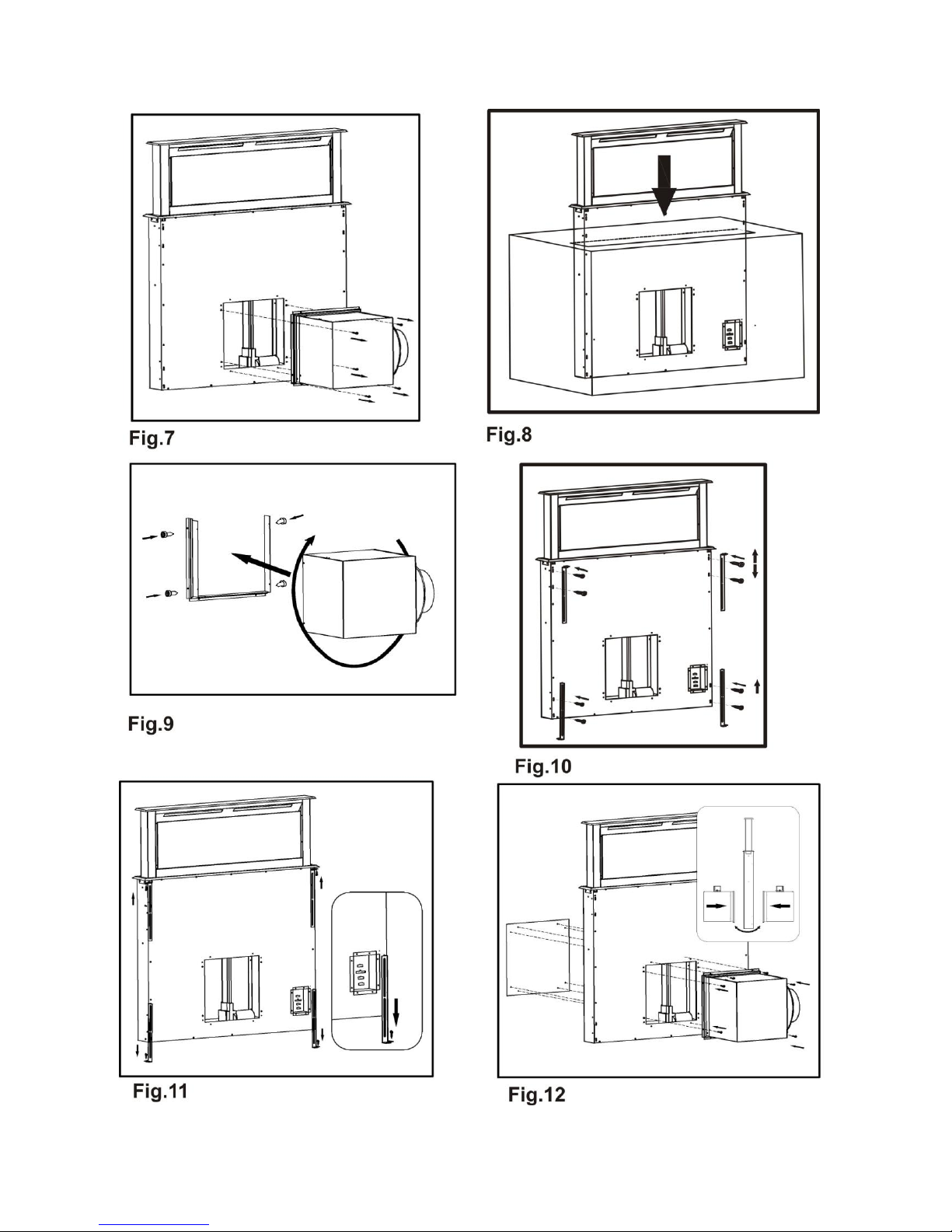

Remove the 2 cabinet screws on the hood, will be separate with the hood (Fig.7).
The hood into the stove openings, pay attention to Handle with care to avoid the decorative plate
deformation. Such as (Fig.8)
The hood decoration board and stove flush with the mounting foot fixed, tile stove, the top two
mounting foot can not install. Figure (Fig.10, Fig.11)
The cabinet installation back on the hood as shown in Figure (See Fig.12.), Remove the power box
in the small cardboard box, the corresponding plug the plug on the connection plug and the body
of the above. Figure (Fig.13)
(If you want to rotate in the direction of the outlet box connecting plate above the screw removed,

you turn the box according to your requirements in a certain direction can (Fig.9))
6 out of the wind pipe connected using the supplied screws (screw package) 3 2.2 * 6.5 a fixed cast
in the wind the other end into the vent or outdoor Figure (Fig.14).
External motor installation method:
(1) Refer to Figure Fig.2 open mounting holes on the stove:
a) If you want to install the hood decorative panels flush with cooker, Fig.3 diagram to open the
mounting holes.
b) If you want to smoke decorative plates and cooker separate Fig.4 diagram to open the mounting
holes.
The box on the hood Remove the screws will be separate from the hood (same as Fig.7).
Hood into the stove openings, pay attention to Handle with care to avoid the decorative plate
deformation. Such as (Fig.8)
The hood decoration board and stove flush with the mounting foot fixed, tile stove, the top two
mounting foot can not install as shown in Figure (Fig.10, Fig.11)
5 box install back on the hood, as shown in (Fig.15). External box fixed outside the cabinet using a
fixed external box comes with screws to the duct, the other end fixed to the hood on.
Remove the power supply box inside the small cardboard box, plug in the connection plug and the
body of the above to the corresponding plug. Figure (Fig.16)
Use and maintenance
Replacement of charcoal filter
Activated carbon cover to loosen four screws with a screwdriver to remove it as shown in Figure
Fig.17
Activated carbon framework pull up out of the box.
Carbon in two snaps down the pressure will be able to activated carbon to come up with.
Installation and can be opened in reverse order.
The activated carbon filter played a role in air purification. After every four months, this filter
would be inappropriate to continue cleaning or use, must be replaced. Cleaning or replacement of

the activated carbon filter, the filter depending on the frequency of use.
Two. Cleaning grease filter
1, the glass will gently pull, release the lock, and then glass raised up.
2 Press and hold the filter button hand and pull it forward, when the filter to leave the filter holes,
and then filter out.
The installation process can be opened in reverse order.
To prevent fire, it is recommended that you guidance every two months cleaning the filter once
according to the following:
- The filter is removed from the hood, soaking and cleaning solution and cleaning agents.
- Rinse thoroughly with warm water to clean and dry.
- The filter can also be clean in the dishwasher.
Aluminum panel may become discolored after repeated washing. Users should not be complaints
or request a replacement filter.
4 and then the glass into the plate hole, the glass again, the lock will be glass fixed to live.

Danger:
1. When the decline of the hood Do not hand on the decorative board to avoid panel will hand
pinch. Figure (Fig.20) below
2. When the smoke rise or drop from time to time to ensure that the hood there is no other
hindered items to avoid crushing the hood, or tear down the other items, other items such as
pot handle, spoon, etc. Figure (Fig.21).
Fig.20
Fig.21
Operation and characteristics

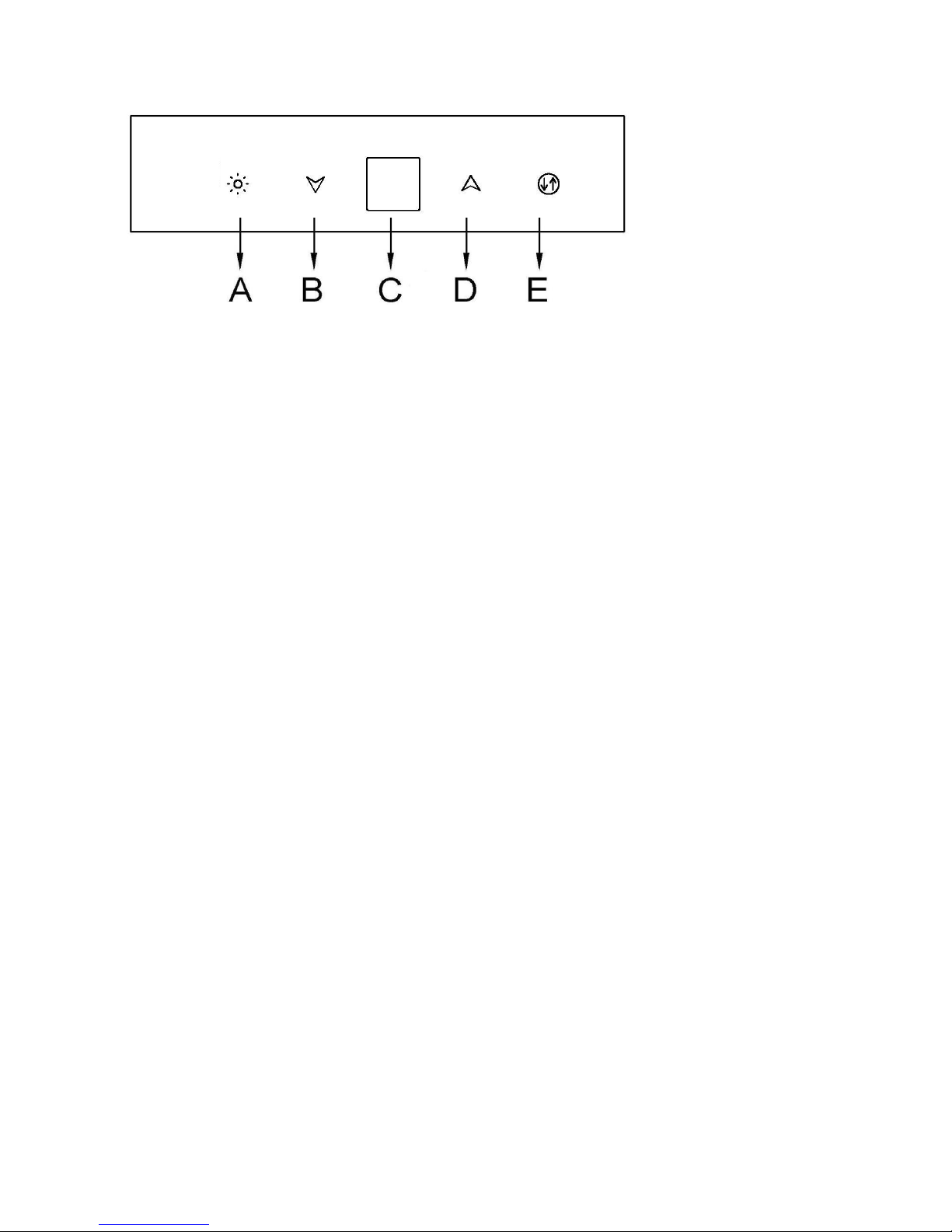

Fig.22
Instruction pattern: Fig.22
A == Lamp
B == Stalls 1 / regulation / off
C == The digital display(Timing and gear display)
D == Stalls 3/ regulation / off
E == Lift button
CAUTION：Only when the E button indicator lights, suction outlet during the ascent to set the
start function (stall, delay, lamps and other functional parts) any other circumstances can not be
set other function keys。
Hold down the button on the E key for 1.5 seconds, the button lights, electric pole rise in order
to promote the rise of suction outlet.
Press the E key and then a short, rising pause, then a short time you press the E key, continue to
rise; (if paused long press the E key for 1.5 seconds, electric pole into decline) rose to the highest
point, the push rod automatically stop working. You can open the hood.
When the hood at the highest point, press the button E 1.5 seconds, the button indicator light
turns off, electric rod decline, while the suction outlet drop, then any other feature to
automatically shut down the process of decline, if press the E key, down to pause and then a long
time you press the E key, continue to decline; (pause, short press the E key, electric pole into rising)
reduced to the lowest point of the moment, the push rod automatically stop Cong push rod to stop
working.
When the button is pressed the A button light will turn on the lights, if you want to turn off the
lights, and just once again press the button。
When you press the button B digital display C 01, will run the first speed, if you want to stop
running, just once again press the button B, the digital display 00。
When you press the button D digital display C 01, will run the first speed, press this key
followed by 1,2,3,4,0 stall cycle。
CAUTION：The first speed 01 second speed display 02, the third speed display 03, the fourth speed
04, B, and D keys stalls regulation。

To connect the duct
1. Install a duct, in accordance with the direction towards the air flow to connect.
2. Connected to pipe with a metal screw security.
3. In order to seal does not leak, duct tape to the pipe connected.
Statement of the manufacturer refused to accept any responsibility for the consequences of any
violation of operating procedures
Troubleshooting
Problem
Possible reason
Solution
Hood doesn’t work
Electric supply
Check whether the plug is connected
Check whether the main switch is turned
on
Poor airflow
Aluminum grease filters
clogged
Clean the filters, assembly back when dry
Charcoal filters clogged
Replace the charcoal filters
Motor running without
air flow
Butterfly valve jammed
Contact technician
After running for a
while, motor stop
working
High temperature safety
device activated
The kitchen is not sufficiently ventilated
The hood is being installed
too near to the cooking
stove
The hood must be least 65cm of distance
from the stove
Strong cooking smell
Charcoal filters do not
install
In re-circulating mode, charcoal filters
must be installed
Oil dripping onto stove
Oil cup missing or not
installed
Replace aluminum filter and replace oil
cup
Aluminum grease filter
saturated
Wash the aluminum grease filters
Whirring sound
Fan blade problem
Contact with technician
THE MANUFACTURORY DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY
BREACHING THE ABOVE WARNINGS.

Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for environmental safe
recycling.
Warranty Information
The manufacturer provides warranty in accordance with the legislation of the customer's own
country of residence, with a minimum of 1 year (Germany: 2 years), starting from the date on
which the appliance is sold to the end user.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an authorized service centre. When making
a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.
The warranty will not apply in cases of:
- Normal wear and tear
- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
- Use of force, damage caused by external influences
- Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains
supply or non-compliance with the installation instructions
- Partially or completely dismantled appliances
