Electrolux BCC-9I User manual

S Electrolux
SPLIT TYPE
COOLING UNIT/CONDENSING UNIT
COOLING UNIT COOLING UNIT
CONDENSING UNIT CONDENSING UNIT
Instruction manual Page 1-18 Manuale di istruzioni Pag 37-54
To obtain the best performance and ensure years Per ottenere le migliori prestazioni e la massima
of trouble free use, please read this instruction affidabilita nel tempo, leggere con cura le seguenti
manual completely. istruzioni.
Mode d’emploi Page 19-36 Manual de instrucciones Pagina 55-72
Des performances optimales et un fonctionnement Para obtener el mejor funcionamiento y asegurar
a long terme serontassures en appliquantles anos de uso libre de problemas, lea cuidadosamente
presentes instructions apres avoir entierement lu ce esto manual de instrucciones.
mode d’emploi.
MODEL
BCC-9I/BCC-9E
BCC-12I/BCC-12E

BCC-9I/BCC-9E
CONDENSING UNIT
CONDENSING UNIT
—-
WIDTH HEIGHT
DEPTH
COOLING UNIT
(BCC-91)
815mm (327ie inch)
298mm (11 3 / 4 inch)
179mm (7Vie inch)
CONDENSING UNIT
(BCC-9E)
820mm (32V 4 inch)
520mm ( 2 OV 2 inch)
220mm ^Vie inch)
[247mm (9 3 / 4 inch)]
COOLING UNIT
(BCC-121)
815mm (32Vie inch)
298mm (11 3 / 4 inch) 179mm (77 1 6 inch)
CONDENSING UNIT
(BCC-12E)
820mm (32V 4 inch)
520mm ( 2 OV 2 inch) 280mm (11 V 32 inch)
1 NOTE|
(1) Installation and the electrical connection of the units shall be performed only by authorized service
personnel.
(2) Only the outside unit part is splash-proofed.

COOLING UNIT CONTROL PANEL
• Press the mark “PUSH” on the left and
right sides of the suction grille to open it.
• After the work is finished, slightly lift the
suction grille and then close it.
Press the mark “PUSH” on the left and
right sides of the suction grille to fix it
securely.
• TEMPORARY SWITCH -
Use this switch to start and stop when the
remote controller does not work. Normally
do not use this button.
• POWER SWITCH-
J
COOLING UNIT INDICATORS
r
V
OPERATION lamp
This lamp lights during operation.
DRY lamp
This lamp lights during dehumidifying operation.
FILTER lamp
When the device is operated for a total of about 100
hours, the FILTER lamp lights to indicate that it is
time to clean the filter. The lamp goes out when the
FILTER button on the remote controller is pressed.
TIMER lamp
This lamp lights when the timer is working.
J
- 3 -
ENGLISH

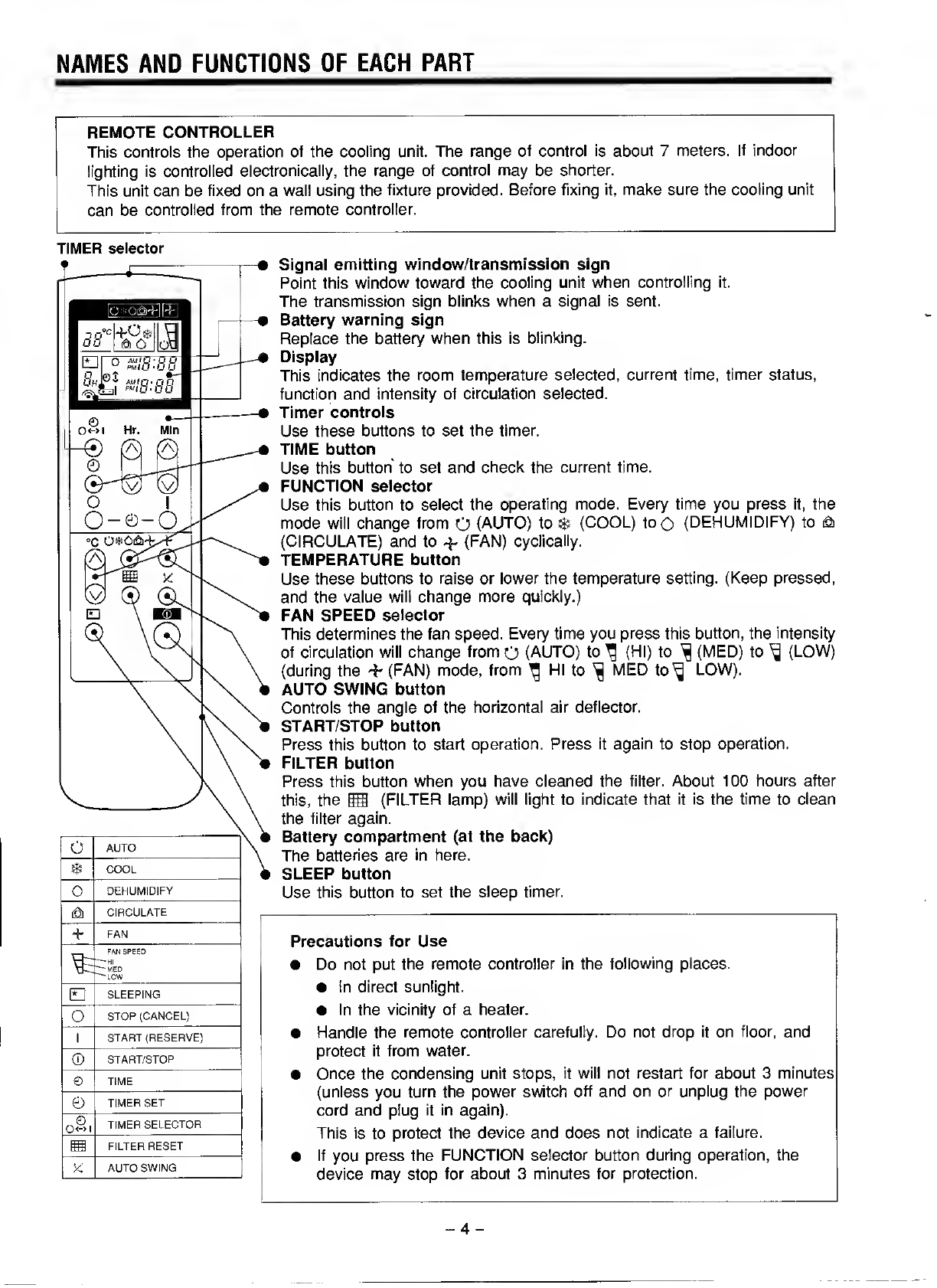

NAMES AND FUNCTIONS OF EACH PART
REMOTE CONTROLLER
This controls the operation of the cooling unit. The range of control is about 7 meters. If indoor
lighting is controlled electronically, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the cooling unit
can be controlled from the remote controller.
TIMER selector
DEHUMIDIFY
CIRCULATE
O STOP (CANCEL)
I START (RESERVE)
© START/STOP
© TIME
0 TIMER SET
0 ®, TIMER SELECTOR
M FILTER RESET
X AUTO SWING
Signal emitting window/transmission sign
Point this window toward the cooling unit when controlling it.
The transmission sign blinks when a signal is sent.
Battery warning sign
Replace the battery when this is blinking.
Display
This indicates the room temperature selected, current time, timer status,
function and intensity of circulation selected.
Timer controls
Use these buttons to set the timer.
TIME button
Use this button to set and check the current time.
FUNCTION selector
Use this button to select the operating mode. Every time you press it, the
mode will change from O (AUTO) to $ (COOL) toO (DEHUMIDIFY) to &
(CIRCULATE) and to 4 . (FAN) cyclically.
TEMPERATURE button
Use these buttons to raise or lower the temperature setting. (Keep pressed,
and the value will change more quickly.)
FAN SPEED selector
This determines the fan speed. Every time you press this button, the intensity
of circulation will change from O (AUTO) to ^ (HI) to ^ (MED) to ^ (LOW)
(during the 4- (FAN) mode, from ^ HI to ^ MED to^ LOW).
AUTO SWING button
Controls the angle of the horizontal air deflector.
START/STOP button
Press this button to start operation. Press it again to stop operation.
FILTER button
Press this button when you have cleaned the filter. About 100 hours after
this, the ffg] (FILTER lamp) will light to indicate that it is the time to clean
the filter again.
Battery compartment (at the back)
The batteries are in here.
SLEEP button
Use this button to set the sleep timer.
Precautions for Use
• Do not put the remote controller in the following places.
• In direct sunlight.
• In the vicinity of a heater.
• Handle the remote controller carefully. Do not drop it on floor, and
protect it from water.
• Once the condensing unit stops, it will not restart for about 3 minutes
(unless you turn the power switch off and on or unplug the power
cord and plug it in again).
This is to protect the device and does not indicate a failure.
• If you press the FUNCTION selector button during operation, the
device may stop for about 3 minutes for protection.

AUTOMATIC OPERATION
The device will automatically determine the operation mode of COOL, or DEHUMIDIFY
depending on the initial room temperature. The selected mode of operation will not change
when the room temperature varies.
Press the FUNCTION selector so that the display indicates the
O (AUTO) mode of operation.
• When AUTO is selected, the device will automatically
determine the mode of operation COOL or DEHUMIDIFY
depending on the current room temperature.
• The FAN SPEED selector does not work at this time: the
FAN SPEED is AUTO during COOL and LOW during
DEHUMIDIFY.
Press the ® (START/STOP) button.
Operation starts with a beep.
Press the button again to stop operation.
As the settings are stored in memory in the remote controller, you
only have to press the ® (START/STOP) button next time.
Press the TEMPERATURE button and the
temperature setting will change by 1 °C each time.
The preset temperature and the actual room temperature may
vary somewhat depending on environmental conditions.
The display does not indicate the preset temperature in the AUTO
mode. If you change the setting, the cooling unit will produce a
beep.
You can raise or lower the temperature setting as necessary by
maximum of 3°C.
°c
■ Condition of Automatic Operation
Initial room temperature
(approx.)
Function
Temperature setting
FAN SPEED
Over 27°C ■
► COOL
27°C
HI at start, MED or LOW
after the preset temperature
is reached
Below 27°C ■
► DEHUMIDIFY
Slightly lower than the
room temperature
LOW
- 5 -
ENGLISH

COOLING OPERATION
The maximum and minimum operating temperatures of the hot and cold sides should be as
below: If humidity is very high (over 80%) at indoor, some dew may form on the air outlet
grille of the cooling unit.
Minimum
Maximum
1 M /J /-» /«*» f
Dry bulb °C
21
32
indoor
Wet bulb
°C
15
23
^^11 ■ V /-J /-s rs **
Dry bulb
°C
21
43
uutooor
Wet bulb
°C 15
26
0<-> i Hr. Mir
O (S) ®
0 ^
o © /2
O-o/ffi
a (£/© ■
© o o
START
STOP ,
Press the FUNCTION selector so that the display indicates
# (COOL).
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
-j!- The range of 25-28°C is recommended as
D Sra’ ' the room temperature for cooling. If the
•• temperature setting is 27, the room tern-
perature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary somewhat depending on environmental conditions.
Set the desired FAN SPEED with the FAN SPEED button
(the display indicates the setting).
O (AUTO):The FAN SPEED is HI at first and varies to
/ MED or LOW automatically when the preset
' temperature is reached.
/(HI) : Maximum operation.
(MED) : Quiet operation.
(LOW) : Quietest operation.
Press the 0 (START/STOP) button. Cooling operation starts
with a beep. Press the button again to stop operation.
The cooling function does not start if the temperature
setting is higher than the current room temperature (even
though the 0 (OPERATION) lamp lights). The cooling
function will start as soon as you set the temperature below
the current room temperature.
As the settings are stored in memory in the remote controller, you
only have to press the © (START/STOP) button next time.
- 6 -

DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
Press the FUNCTION selector so that the display indicates
O (DEHUMIDIFY).
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20-26°C is recommended as
the room temperature for dehumidifying.
- <
Press the (D (START/STOP) button. Dehumidifying opera-
STARTA tion starts with a beep. Press the button again to stop
STOP J operation.
As the settings are stored in memory in the remote controller, you only
have to press the <$ (START/STOP) button next time.
■ Dehumidifying Function
When the room temperature is higher than the setting temperature: The device will dehumidify the
room, reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed
with the room temperature set slightly lower than the current room temperature, whatever the temperature
setting is. The function will stop (the cooling unit will stop emitting air) as soon as the room temperature
becomes lower than the setting temperature.
ENGLISH

CIRCULATING OPERATION
Press the FUNCTION selector so that the display indicates
& (CIRCULATE).
Press the FAN SPEED button and select the desired FAN
SPEED (the display indicates your choice).
Press the temperature control button to set to the desired
temperature.
Press the ® (START/STOP) button. Circulating operation
starts with a beep. Press the button again to stop
operation.
■ As the settings are stored in memory in the remote controller, you only
have to press the ® (START/STOP) button next time.
When the room temperature is higher than the temperature set by the
thermostat, only the fan operates to circulate the upper hotter air
downwards. This makes temperature distribution of the room even at
heating.
This operation is useful in winter when using other heating equipment.
- 8 -

FAN OPERATION
ENGLISH

TIMER
SET
BUTTONS

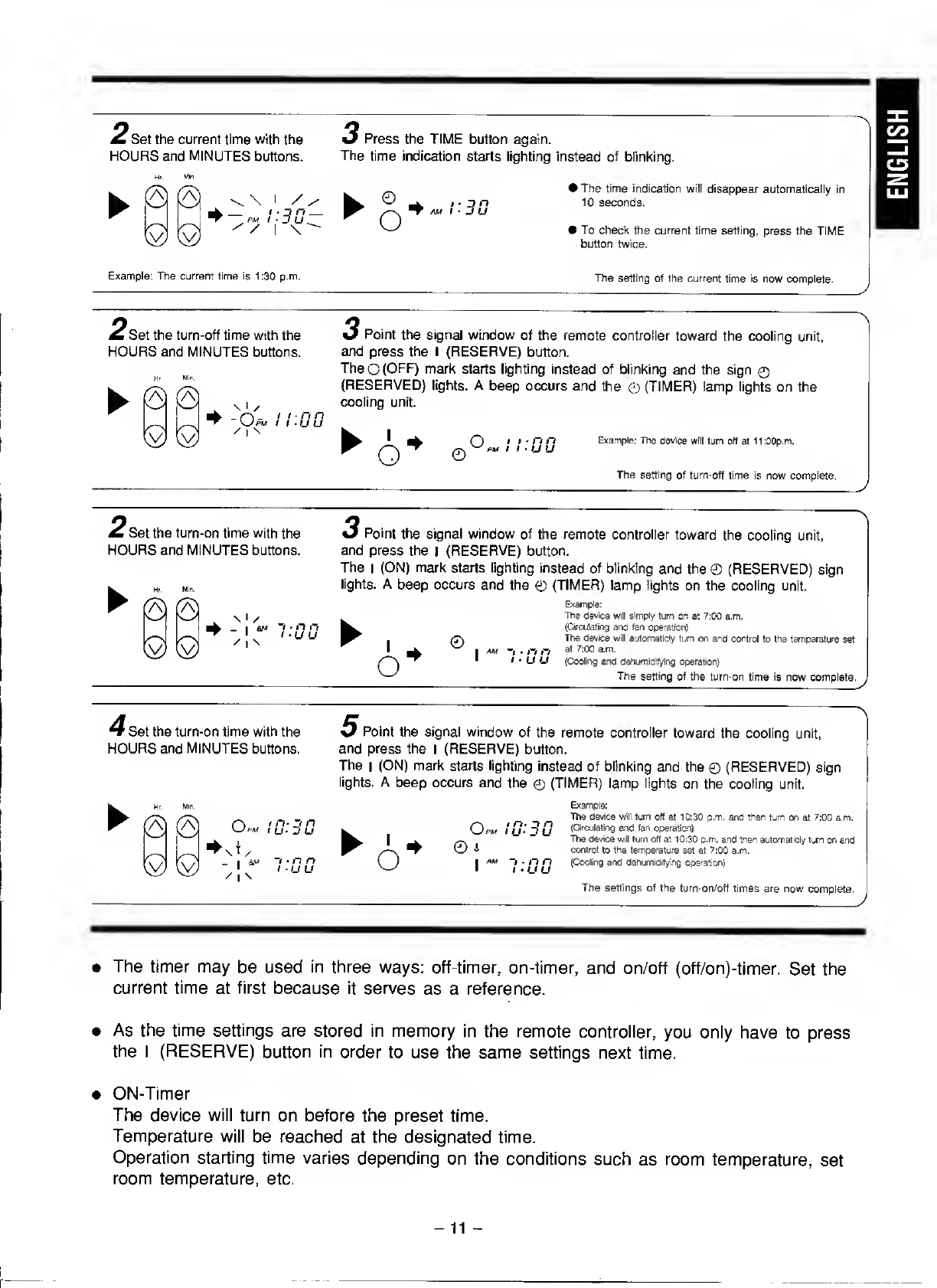

HOW TO SET THE TIMER
Point the signal window of the remote controller toward the cooling unit, and press the
O (CANCEL) button.
The © (RESERVED) sign goes out with a beep and the 0 (TIMER) lamp turns off on the
cooling unit.
You can set only one of the OFF-timer,
ON-timer and ON/OFF-timer.
- 10 -

2 Set the current time with the
HOURS and MINUTES buttons.
3 Press the TIME button again.
The time indication starts lighting instead of blinking.
m isa \ \ i /,
^_ i ■ j n
” PM I - J U
^ AM I ■ 3 0
1 The time indication will disappear automatically in
10 seconds.
To check the current time setting, press the TIME
button twice.
Example: The current time is 1:30 p.m.
The setting of the current time is now complete.
2 Set the turn-off time with the
HOURS and MINUTES buttons.
M fX)
W lv
\ 1 /
^ O _ iinn
~ <JpM I I .1 I U
/ I \
%J Point the signal window of the remote controller toward the cooling unit,
and press the I (RESERVE) button.
The O (OFF) mark starts lighting instead of blinking and the sign 0
(RESERVED) lights. A beep occurs and the 0 (TIMER) lamp lights on the
cooling unit.
► I O > * • n n Example: The device will turn off at 11 : 00 p.m.
Q ^ 0 w > > • u u
The setting of turn-off time is now complete.
2 Set the turn-on time with the
HOURS and MINUTES buttons.
\ 1 / _
_ ■ i ■ n i t
/!n
3 Point the signal window of the remote controller toward the cooling unit,
and press the l (RESERVE) button.
The | (ON) mark starts lighting instead of blinking and the © (RESERVED) sign
lights. A beep occurs and the 0 (TIMER) lamp lights on the cooling unit.
~i ■ n n
I - UU
Example:
The device will simply turn on at 7:00 a.m.
(Circulating and fan operation)
The device will automaticly turn on and control to the temperature set
at 7:00 a.m.
(Cooling and dehumidifying operation)
The setting of the turn-on time is now complete.
4 Set the turn-on time with the
HOURS and MINUTES buttons.
i i n- _i n
'PM I IJ. J u
~i ■ n n
I • u u
5 Point the signal window of the remote controller toward the cooling unit,
and press the l (RESERVE) button.
The i (ON) mark starts lighting instead of blinking and the © (RESERVED) sign
lights. A beep occurs and the © (TIMER) lamp lights on the cooling unit.
O r n- n n
PM I U ■ J U
~i - n n
i • u u
Example:
The device will turn off at 10:30 p.m. and then turn on at 7:00 a.m.
(Circulating and fan operation)
The device will turn off at 10:30 p.m. and then automaticly turn on and
control to the temperature set at 7:00 a.m.
(Cooling and dehumidifying operation)
The settings of the turn-on/off times are now complete.
• The timer may be used in three ways: off-timer, on-timer, and on/off (off/on)-timer. Set the
current time at first because it serves as a reference.
• As the time settings are stored in memory in the remote controller, you only have to press
the I (RESERVE) button in order to use the same settings next time.
• ON-Timer
The device will turn on before the preset time.
Temperature will be reached at the designated time.
Operation starting time varies depending on the conditions such as room temperature, set
room temperature, etc.
- 11 -

HOW TO SET THE SLEEP TIMER
Set the current time at first if it is not set before (see the pages for setting
the current time). Press the Q (SLEEP) button, and the display changes as
shown below.
CANCEL
( Mode
Indication N
Sleep timer
V
r-^1 hour->-2 hours— ► 3 hours - ► 7 hours —i
' -Sleep timer off -* -'
J
Sleep Timer: The device will continue working for the designated
number of hours and then turn off.
Point the signal window of the remote controller toward the cooling
unit, and press the SLEEP button.
The timer information will be displayed on the remote controller. The
TIMER lamp lights with a beep in the cooling unit. When the sleep
timer is set, the display indicates the turn-off time.
3«©
O a m D - J O Example: If you set 3 hours sleep
L • J U time at 11:38 p.m., the turn-off
time is 2:38 a.m.
^Start^
The device will be turned off by the sleep
timer and turned on by on-timer.
1
Set the ON-timer.
Press the EH (SLEEP) button and set the sleep timer.
For example:
El
E‘h &
I • _l U
Q AM l * _ l !_)
I
\ M r • n n
o . ij ij
In this case, the device will turn
off after 2 hours (at 1:38 a.m.)
and starts at 6:00 next morning.
Point the signal window of the remote controller toward the cooling unit, and press theO (CANCEL)
button.
The © (RESERVED) sign goes out with a beep and the© (TIMER) lamp turns off on the cooling unit.
NOTE
If you set the sleep timer after the off-timer or
on/off-timer is set, the sleep timer becomes
effective instead of the off- or on/off-timer.
- 12 -

Explanation of the sleep timer _
The device will control the fan speed and room temperature automatically
so as to be quiet and good for people’s health.
You can set the sleep timer to turn off after 1,2, 3 or 7 hours. The fan speed
and room temperature will be controlled as shown below.
ENGLISH

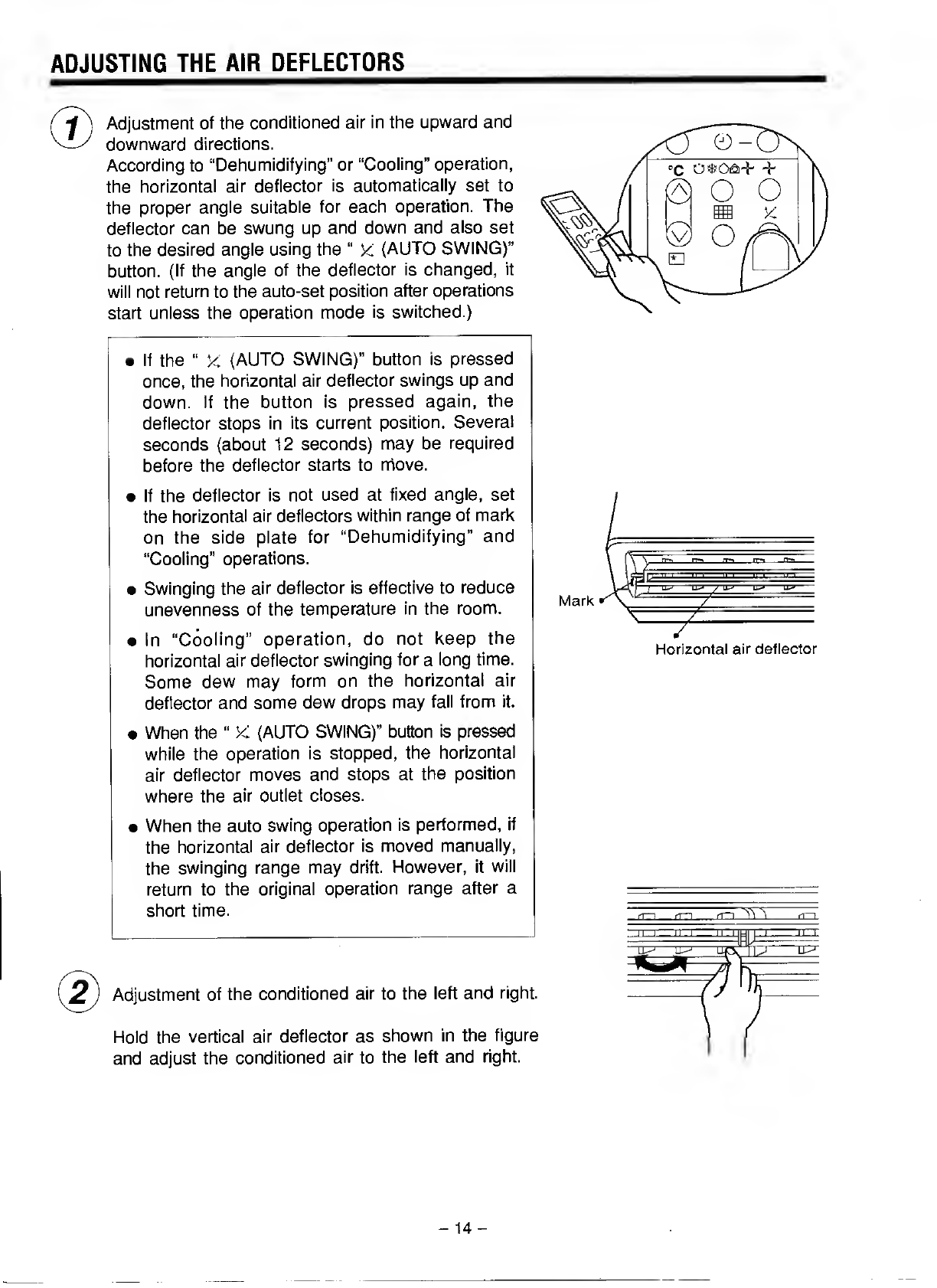

ADJUSTING THE AIR DEFLECTORS
Adjustment of the conditioned air in the upward and
downward directions.
According to “Dehumidifying” or “Cooling” operation,
the horizontal air deflector is automatically set to
the proper angle suitable for each operation. The
deflector can be swung up and down and also set
to the desired angle using the “ ki (AUTO SWING)”
button. (If the angle of the deflector is changed, it
will not return to the auto-set position after operations
start unless the operation mode is switched.)
• If the “ k: (AUTO SWING)” button is pressed
once, the horizontal air deflector swings up and
down. If the button is pressed again, the
deflector stops in its current position. Several
seconds (about 12 seconds) may be required
before the deflector starts to move.
• If the deflector is not used at fixed angle, set
the horizontal air deflectors within range of mark
on the side plate for “Dehumidifying” and
“Cooling” operations.
• Swinging the air deflector is effective to reduce
unevenness of the temperature in the room.
• In “Cooling” operation, do not keep the
horizontal air deflector swinging for a long time.
Some dew may form on the horizontal air
deflector and some dew drops may fall from it.
• When the “ ki (AUTO SWING)” button is pressed
while the operation is stopped, the horizontal
air deflector moves and stops at the position
where the air outlet closes.
• When the auto swing operation is performed, if
the horizontal air deflector is moved manually,
the swinging range may drift. However, it will
return to the original operation range after a
short time.
2 ) Adjustment of the conditioned air to the left and right.
Hold the vertical air deflector as shown in the figure
and adjust the conditioned air to the left and right.
- 14 -

HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
Replace the batteries when the (battery) mark in the indicator of remote controller
lights.
Remove the cover as shown in the figure
and take out the old batteries.
Install the new batteries.
The direction of the batteries should match
the marks in the case.
J
A CAUTION
1. Do not use new and old batteries, or different
kinds of batteries together.
2. Take out the batteries when you do not use
the remote controller for 2 or 3 months.
3. The batteries must be of the LR03 type.
Push and pull to the
direction of arrow.
TEMPORARY SWITCH
Use the temporary switch when operation can not be
done with the remote controller.
1. By pressing the temporary switch, the operation is
done in previously set operation mode.
When the operation is done using the temporary
switch after the power source is turned off and is
turned on again, the operation is done in auto¬
matic mode.
2. When the operation is stopped or when the opera¬
tion is done with the remote controller again, press
the temporary switch once again.
POWER SWITCH
When you do not use the room air conditioner, set
the power switch to “OFF”.
- 15 -
ENGLISH

MAINTENANCE
A CAUTION
Before the cleaning, stop operation and disconnect the power supply.
Air filter m
Clean the air filter, as it removes dust inside the room. It should be washed when
the M (FILTER) lamp lights. In case the air filter is full of dust, the air flow will
decrease and the cooling capacity will be reduced. Further, noise may occur. Be
sure to clean the filter following the procedure below.
Procedure
Remove the filter.
• Press the mark “PUSH” on the left and
right sides of the suction grille.
• Pull the front cover forward (Until the fixed
position).
• Slightly lift the filter and release the claws
(2 locations) at the lower part of the front
cover and remove the filter from the lower
side.
Remove dust from the filter using a vacuum-
cleaner.
If there is too much dust, use neutral
detergent. After using neutral detergent, wash
with clean water and dry in the shade.
Install the filters. (Set them with “FRONT”
mark facing front.)
Slightly lift the suction grille and close as
original state.
(Press the mark “PUSH” at the left and right
sides of the suction grille to fix it securely.)
A CAUTION
• Do not wash with hot water at more than 40°C. The filter may shrink.
• When washing it, shake off moisture completely and dry it in the shade; do not
expose it directly to the sun. The filter may shrink.
• Do not operate the air conditioner with the filter removed. Dust may enter the air
conditioner and cause trouble.
- 16 -

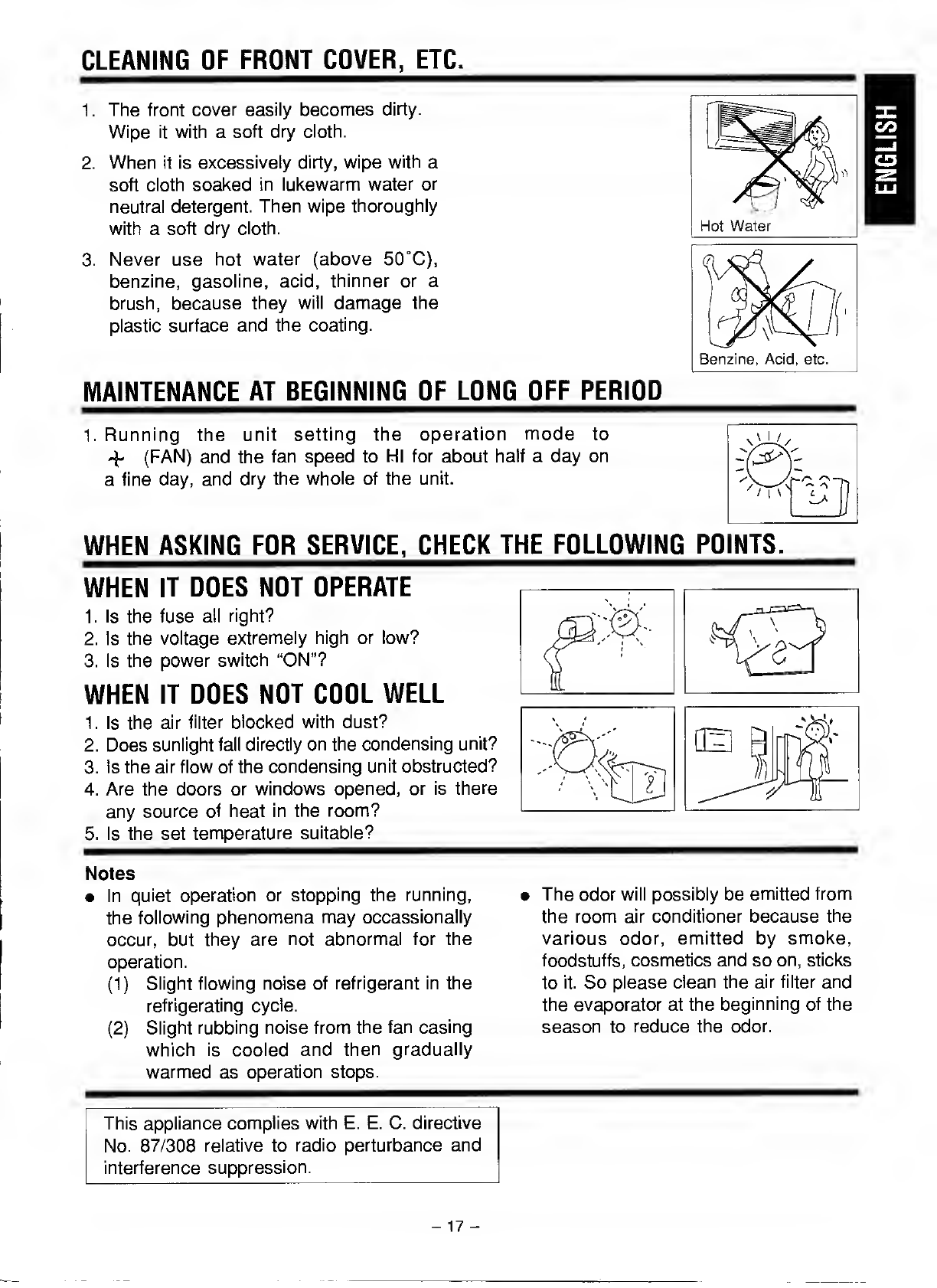

CLEANING OF FRONT COVER, ETC.
1. The front cover easily becomes dirty.
Wipe it with a soft dry cloth.
2. When it is excessively dirty, wipe with a
soft cloth soaked in lukewarm water or
neutral detergent. Then wipe thoroughly
with a soft dry cloth.
3. Never use hot water (above 5CTC),
benzine, gasoline, acid, thinner or a
brush, because they will damage the
plastic surface and the coating.
MAINTENANCE AT BEGINNING OF
OFF PERIOD
1. R u nn i ng the unit setting the operation mode to
4- (FAN) and the fan speed to HI for about half a day on
a fine day, and dry the whole of the unit.
WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS.
WHEN IT DOES NOT OPERATE
1. Is the fuse all right?
2. Is the voltage extremely high or low?
3. Is the power switch “ON”?
WHEN IT DOES NOT COOL WELL
1. Is the air filter blocked with dust?
2. Does sunlight fall directly on the condensing unit?
3. Is the air flow of the condensing unit obstructed?
4. Are the doors or windows opened, or is there
any source of heat in the room?
5. Is the set temperature suitable?
Notes
• In quiet operation or stopping the running,
the following phenomena may occassionally
occur, but they are not abnormal for the
operation.
(1) Slight flowing noise of refrigerant in the
refrigerating cycle.
(2) Slight rubbing noise from the fan casing
which is cooled and then gradually
warmed as operation stops.
• The odor will possibly be emitted from
the room air conditioner because the
various odor, emitted by smoke,
foodstuffs, cosmetics and so on, sticks
to it. So please clean the air filter and
the evaporator at the beginning of the
season to reduce the odor.
This appliance complies with E. E. C. directive
No. 87/308 relative to radio perturbance and
interference suppression.
- 17 -
ENGLISH
