GD Midea Refrigeration Equipment Co. Ltd
MULTI SPLIT TYPE, HEAT PUMP AIR CONDITIONERS
Technical service manual 2005
R407C multi Series
Indoor Models
[ASERIES] [BSERIES]
EL-KFR26G/TN2Y-A EL-KFR26G/TN2Y-B
EL-KFR36G/TN2Y-A EL-KFR36G/TN2Y-B
Outdoor Models
M2OA-18HRN2 M2OA-21HRN2
M3OA-27HRN2 M3OA-30HRN2
Multi SERIES

Page 2 of 33
1. Features
2. Specification
3. Dimensions
4. Refrigeration cycle diagram
5. Operation limits
6. Wiring diagram
7. Troubleshooting
8. Electronic function
9. Exploded view parts
10.Characteristic of temp. sensor

Page 3 of 33
1.Features
1.1Compact design
1.2High efficiency and quiet operation
1.3Unitary outdoor unit design

Page 4 of 33
2 Specification
2.1 Indoor unit
Model EL-KFR26G/TN2Y-A(B) EL-KFR36G/TN2Y-A(B)
Power supply Ph-V-Hz 1, 220-240V~,50Hz 1, 220-240V~,50Hz
Capacity Btu/h 9000 12000
Input W 36.5 51.5
Cooling
Rated current A 0.17 0.24
Capacity Btu/h 10000 13000
Input W 36.5 51.5
Heating
Rated current A 0.17 0.24
Model RPG13H RPG20D
Brand Welling WELLING
Input W 36.5 51.5
Capacitor uF 1.2 1.5
Indoor fan motor
Speed(hi/mi/lo) r/min 1180/1080/1000 1250/1000/800
a.Number of rows 2 2
b.Tube pitch(a)x row pitch(b) mm 21x13.37 21×13.37
c.Fin spacing mm 1.3 1.3
d.Fin type (code) Hydrophilic aluminium Hydr0philiC aluminium
e.Tube outside dia.and type mm φ7 INNEGROOVE TUBE φ7, innergroove tube
f.Coil length x height x width mm 578X252X26.74 635×315×27.34
Indoor coil
g.Number of circuits 2 2
Indoor air flow (Hi/Mi/Lo) m3/h 500/460/410 680/520/420
Indoor noise level (Hi/Mi/Lo) dB(A) 40.5/37.4/34.6 42.0/35.0/30.0
Dimension (W*H*D) mm 750×250×214(210) 815x282x217
Packing (W*H*D) mm 837X340X295 915x360x295
Indoor unit
Net/Gross weight Kg 9/11 10.5kg/12kg
Designpressure(Hi/Lo) MPa 2.8/1.2 2.8/1.2
Liquid side/ Gas side mm Ф6.35/Ф9.53 Ф6.35/Ф12.7
Max. refrigerant pipe length m 10 10
Refrigerant piping
Max. difference in level m 5 5
Connection wiring No No
Plug type 10A 16A
Thermostat type Electronic control Electronic control
Operationtemp ℃17-30 17-30
Ambienttemp ℃18-45 18-45
Application area m2 14-21 18-26

Page 5 of 33
2.2 Outdoor unit
Model M2OA-18HRN2 M2OA-21HRN2 M3OA-27HRN2 M3OA-30HRN2
Power supply Ph-V-Hz 1Ph,220-240V,50Hz 1Ph,220-240V,50Hz 1Ph,220-240V,50Hz 1Ph,220-240V,50Hz
Capacity Btu/h 9000X2 9000+12000 9000x3 9000x2+12000
Input W 1050X2 960+1100 1050X3 1800+1300
Rated
current A 4.6X2 5+6 4.6X3 8.2+5.8
Cooling
EER Btu/w
.h 8.6 8.8 8.5, 8.9, 8.5,
Capacity Btu/h 10600X2 10000+13000 10600x3 13000+20000
Input W 1080X2 960+1140 1080X3 1750+1300
Rated
current A 4.8X2 5+6 4.8X3 8.2+5.8
Heating
COP Btu/w
.h 9.8 9.6
9.6 10.2/ 9.6
Moisture Removal L/h 1.0x2 1.0+1.2 1.0x3 1.0x2 +1.2
Max. input consumption W 1330X2 1500+1900 1330X3 2200+1800
Max.current A 6.0X2 7.0+8.0 10.0 +8.2 10.0 +8.2
Starting current A 19.8 19.8+30 40+30 40+30
Model PG180X1C-4DZ3X2 PG180X1C-4DZ3+P
G225X2C-4FT
PG295X2CS-4KU1;
PG225X2C-4FT
PG295X2CS-4KU1;
PG225X2C-4FT
Type ROTARY Rotary Rotary Rotary
Brand GD TOSHIBA GD TOSHIBA GD Toshiba GD Toshiba
Capacity Btu/h 10800X2 10800+13650 18080; 13650 18080; 13650
Input W 1000X2 1000+1310 1760; 1310 1760; 1310
Rated
current(RLA
)
A 4.4X2 4.4+6.1 8.5; 6.1 8.5; 6.1
Locked rotor
Amp(LRA) A 24X2 24+31 44, 31 44, 31
Thermal
protector
UP3QE0591-T61X2
UP3QE0591-T61+U
P3RE0591-T56 Internal Internal
Capacitor uF 25X2 25+35 35uF/440VAC;
35uF/440VAC
35uF/440VAC;
35uF/440VAC
Compre
ssor
Refrigerant
oil ml 400X2 400+ 480 750; 480 750; 480
Model YDK69-6 YDK69-6 YDK50-4G1 YDK50-4G1
Brand WeiLing WeiLing Welling Welling
Input W 154 154 107Wx2 107Wx2
Capacitor uF 4 4 4uFx2 4uFx2
Outdoor
fan
motor
Speed r/min 900/670 900/670 1150 1150
a.Number of rows 2 2 2 2
Outdoor
coil b.Tube pitch(a)x
row pitch(b)
mm 25.4X22 25.4X22 25.4x22 25.4x22

Page 6 of 33
c.Fin
spacing mm 1.7 1.7 1.5 1.5
d.Fin type
(code)
HYDROPHILIC
ALUMINIUM
HYDROPHILIC
ALUMINIUM
Hydrophilic
aluminium
Hydrophilic
aluminium
e.Tube
outside
dia.and type
mm
Ф9.53
INNERGROOVE
TUBE
Ф9.53
INNERGROOVE
TUBE
Ф9.53, Innergroove
tube
Ф9.53, Innergroove
tube
f.Coil length
x height x
width
mm
810X610X44 810X610X44
813X812X44 813X812X44
g.Number of
circuits
12 12
5(A System);4(B
System)
5(A System);4(B
System)
Outdoor air flow m3/h 1900 2070 1450x2 1450x2
Outdoor noise level dB(A) 58 58 60 62
Dimension(
W*H*D) mm 895X345X655 895X345X655 860X830X330 860X830X330
Packing
(W*H*D) mm 1050X470X720 1050X470X720 983X915X425 983X915X425
Outdoor
unit
Net/Gross
weight Kg 73/77 60/65 90/94 90/94
Refrigerant type g R407C/800X2 R407C/750+1000 R407C/ 1470+820 R407C/ 1470+820
Design pressure(Hi/Lo) MPa 2.8/1.2 2.8/1.2 2.6 2.6
Liquid side/
Gas side
mm(in
ch) Ф6.35/Ф9.53 Ф6.35/Ф9.53; Ф
6.35/Ф12.7
Ф6.35/Ф9.53;Ф
6.35/Ф12.7 Ф6.35/Ф9.53
Max.
refrigerant
pipe length
m 10 10 10 (each unit) 10 (each unit)
Refriger
ant
piping
Max.
difference in
level
m 5 5 5 (each unit) 5 (each unit)
Connection wiring No No No No
Plug type No NO No No
Thermostat type Electronic control Electronic control Electronic control Electronic control
Operationtemp ℃ 17-30 17-30 17~30 17~30
Ambienttemp ℃ 18~45(cooling);
-7~30(heating)
18~45(cooling);
-7~30(heating)
18~45(cooling);
-7~30(heating)
18~45(cooling);
-7~30(heating)
Application area m2 (14-21)x2 14-21; 18-26 (14-21)x3 (14-21)x2,16-24

Page 7 of 33
3.Dimensions
3.1 Indoor unit
A B
C
D B
C
Panel A
Panel B
A B C
EL-KFR26G/TN2Y-A(B) 214 750 250
EL-KFR36G/TN2Y-A(B) 217 815 282

Page 8 of 33
3.2 Outdoor unit
Outdoor unit 18K/21K
Outdoor unit 27K/30K

Page 9 of 33

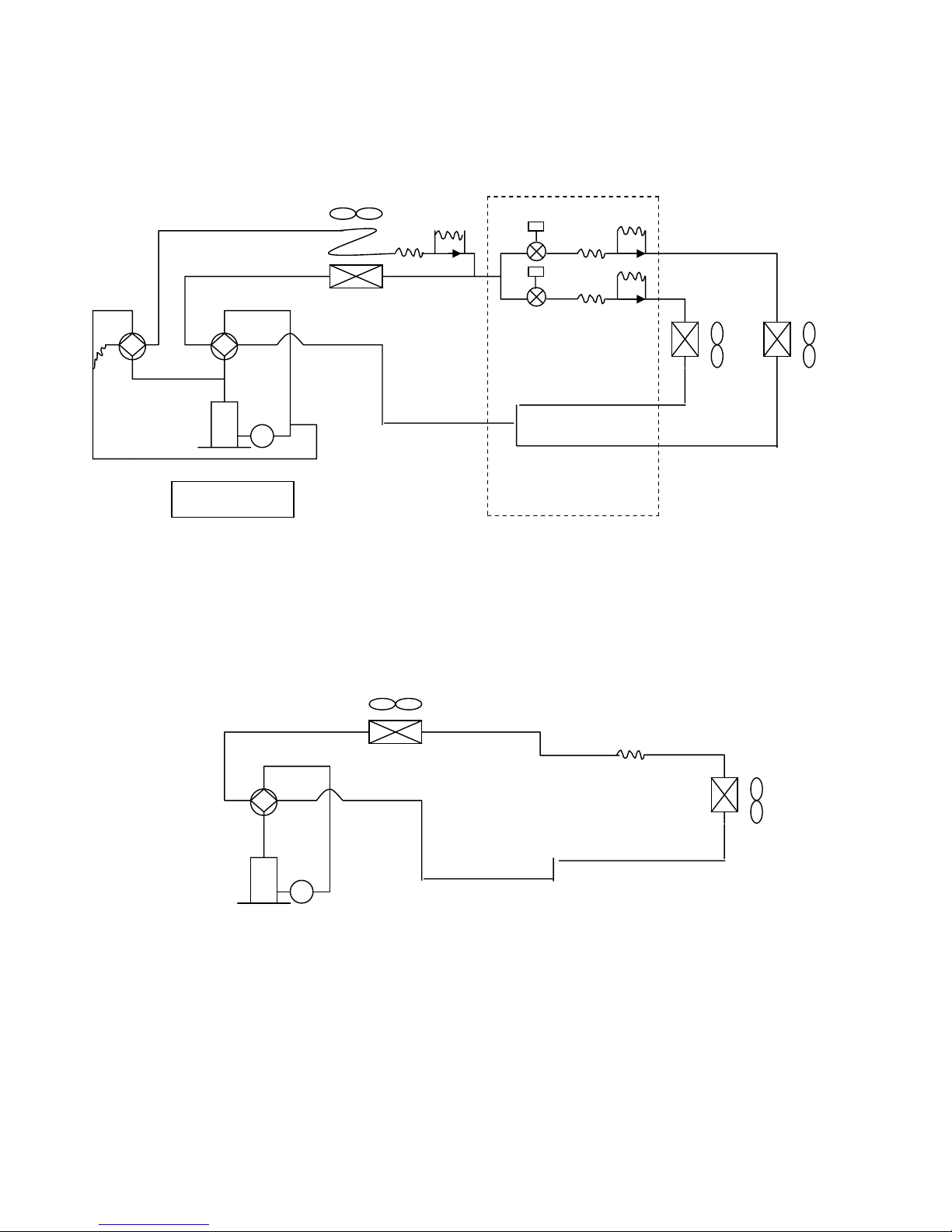

4.Refrigeration cycle diagram
“1 drive 3 system” is made up of one “1 drive 1 system” and one “1 drive 2 system”.
PMV1
1 drive 2 system
SV1：Primary four-way valve SV2：Secondary four-way valve PMV1，PMV2：Electronic expansive valve
T1，T2：Indoor pipe temperature sensor
Condenser
Four-way valve
Evaporator
Compressor
1 drive 1 system
Notice：For 1 drives 2 system, there are two individual refrigerant circuit and two compressors, but for the 1drive 2
system in the 1 drive three system, there is only one refrigerant circuit and only one compressor.
PMV2
SV2
SV1
2＃1＃T2
T1
refrigeration distributor
Compressor

Page 10 of 33
5.Operation limits
5.1Cooling operation
Outdoor unit air temp.℃DB
45
17
-7
0 17 32
Indoor air temp. ℃DB
Note: 1.The chart is the result from the continuous operation under constant air temperature
Condition. However, excludes the initial pull-down stage.
2.The operation range below the dashed is the result added the low ambient kit.
5.2Heating operation
Indoor air temp. ℃DB
30
25
20
15
10
5
-5 5 15 25
Outdoor unit air temp.℃DB
Note : The chart is the result from the continuous operation under constant air
temperature conditions. However, excludes the initial pull-down stage.
COOLING

Page 11 of 33
6.Wiring diagram
Indoor unit
A&B indoor unit

Page 12 of 33

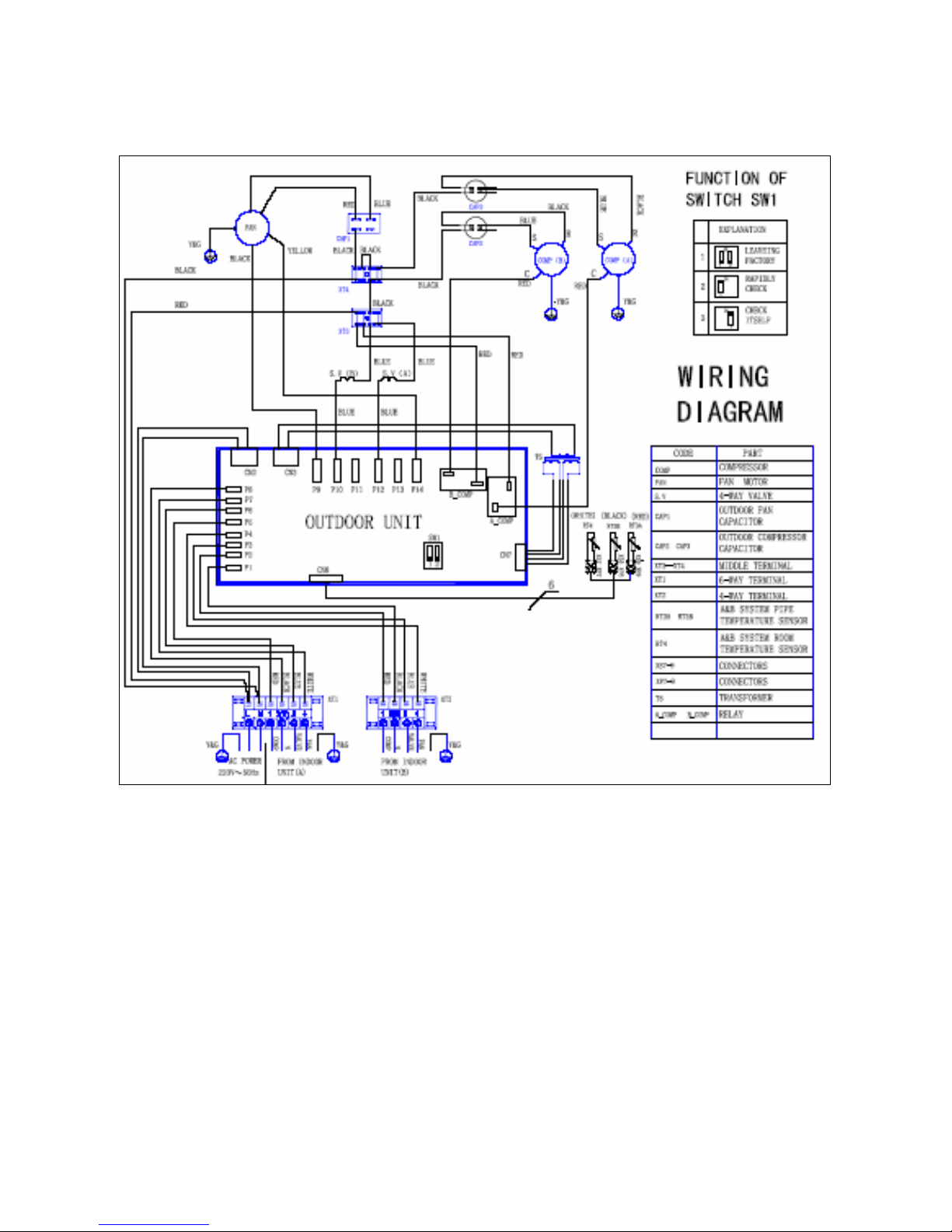

Outdoor unit
For 1 drive 2 outdoor unit

Page 13 of 33
For 1 drive 3 outdoor unit

Page 14 of 33
7.Troubleshooting
7.1 Indoor unit
7.1.1 Troubleshooting for indoor unit
Operation
lamp
Timer
lamp Failure phenomenon
☆X
Indoor fan speed has been out of control for over 1 minute
☆On Indoor room temp. or evaporator sensor is open circuit or short circuit
On ☆EEROM error
☆☆ No over-zero signal
rExtinguish
☆Flash at 5Hz
Failure phenomenon Operation lamp Timer lamp
Indoor fan speed has been out of control for over 1 minute ☆X
Failure phenomenon Operation lamp Timer lamp
Indoor room temp. or evaporator sensor is open circuit or short circuit ☆On
Is connector connection good?
Is voltage being applied to the fan motor?
Fan motor is defective
Repair the connector
Indoor PCB is defective
NoYes
Yes No
Is connection to connector good?
Replace the sensor Repair connector
Yes No

Page 15 of 33
Failure phenomenon Operation lamp Timer lamp
Over current protection of the compressor occurs 4 times X ☆
No Yes
Yes No
Failure phenomenon Operation lamp Timer lamp
EEROM error On ☆
EEROM error, indoor PCB is defective.
Failure phenomenon Operation lamp Timer lamp
No over-zero signal ☆☆
This is alarm signal when the main chip can’t detect over-zero signal. When such failure occurs, the main
control board must have fault.
7.2 Outdoor unit
Failure phenomenon LED1 LED2 LED3
Stand by ☆☆☆
High temp. protect of condenser ☆☆
Temp. sensor in condenser 1 is open circuit or short circuit ☆
Temp. sensor in condenser 2 is open circuit or short circuit ☆
☆ Flash at 2Hz
Operation lamp off and Timer lamp flashes
Indoor PCB is defective
Power supply fault Outdoor unit fault (such as the compressor)
The voltage of power supply is too low (less than 187V)?
After changing the main control board, check if the failure releases.
Yes

Page 16 of 33
8 Electronic functions
8.1 Electric Control working environment
8.1.1 Input voltage: 145~260V
8.1.2 Input power frequency: 50Hz/60Hz
8.1.3 Ambient temperature: -7°C~+43°C
8.1.4 Indoor fan normal working amp is less than 1A,
8.1.5 Outdoors fan. Normal working amp is less than 1A
8.1.6 Four-way valve normal working amp is less than 0.5A.
8.1.7 Swing motor: DC12V.
8.2 Proper symbols and their meanings
TA: Indoor ambient temperature
TE: Indoor evaporator temperature
TS: Setting temperature through the remote controller
TE1: Anti-cold wind, from Fan Off to Breeze temperature
TE2: Anti-cold wind, from Breeze to Setting Fan Speed temperature
TE3: Anti-cold wind, from Setting Fan Speed to Breeze temperature
TE4: Anti-cold wind, from Breeze to Fan Off temperature
TE5: Evaporator low temperature protection entering temperature
TE6: Evaporator low temperature protection restoring temperature
TE7: Evaporator high temperature protection, compressor off temperature
TE8: Evaporator high temperature protection, fan off temperature
TE9: Evaporator high temperature protection, restoring temperature
T3: Outdoor unit pipe sensor
T4: Outdoor temperature sensor
8.3 Systematic functions.
Remote receiving.
Testing and forced run.
Position set for indoor unit wind vane.
LED displaying and alarm.
On or off Timer.
Protection for the compressor.
High temperature protection of indoor heat exchanger in heating mode.
Auto defrosting and heating recovery under heating mode.
Anti cold air under heating mode.
Anti frozen under cooling mode.

Page 17 of 33
8.5 Protection
8.5.1 The compressor functions protection with a delay of three minutes.
8.5.2 High temp. protection of condenser.
8.5.3 Sensor protection at open circuit and breaking disconnection
8.5.4 Temperature Fuse break protection
8.5.5 Fan Speed is out of control. When Indoor Fan Speed is too high(higher than High
Fan+300RPM)or too low(lower than 400RPM), the entire unit stops and LED displays
failure information and can’t returns to normal operation automatically.
8.6 Fan-only mode
Fan speed is high/mid/low/ Auto
8.7 Cooling mode
The 4-way valve is closed under cooling mode.
The action of the compressor and the outdoor fan:
Condition Compressor Outdoor fan
TA> Ts+1 On OnTemp. up
TA<Ts+1 Off Off
TA> Ts On OnTem p . d o wn
TA<Ts Off Off
TA: Indoor ambient temperature
TS: Setting temperature through the remote controller
Auto fan under cooling mode:
Condition
T=Indoor Temp.-Setting Temp.
Indoor fan speed
T<3℃Low
3℃<T<5℃Mid.
Temp. up
T>5℃High
T> 3℃High
1℃<T<3℃Mid.
Temp. d o w n
T<1℃Low
Anti-freezing control to indoor evaporator under cooling mode
Condition
Temp. Time
Compressor Outdoor fan
T> TE6 On OnTemp. up
T< TE6 >5 Minutes Off Off
T> TE5 On OnTemp. d o w n
T< TE5 >5 Minutes Off Off
Condenser high-temperature protection under heating mode
T3 >65℃, turn off compressor.
TE5: Evaporator low temperature protection entering temperature
TE6: Evaporator low temperature protection restoring temperature
8.8 Dehumidifying mode
8.8.1 The 4-way valve is off in dehumidifying mode
8.8.2 Compressor and Indoor Fan actions in dehumidifying mode
Compressor run 5 minutes , and indoor fan run 5 minutes in low speed, then turn off the

Page 18 of 33
compressor, indoor fan run 5 minutes in low speed. And repeat on and off cycle.
8.8.3 Low room temperature protection:
When room temperature decreases to below 10℃, the compressor and the outdoor fan
will stop(indoor fan is Breeze). Dehumidifying operation will be resumed when room
temperature restores to over 13℃.
8.8.4 Under dehumidifying mode, the anti-freezing function of the indoor heat exchanger is the
same as that of cooling mode.
8.9 Heating mode
8.9.1 Generally, the 4-way valve is open in heating mode, but it is closed in defrosting mode.
4-way valve must delay 2 minutes compared with compressor if the compressor changed
into non-heating mode or turned off. 4-way valve doesn't delay in dehumidifying mode.
8.9.2 Generally, the outdoor fan is turned off with the on-off action of compressor in heating
mode, except for the defrosting mode or the end of defrost.
8.9.3 Action conditions of compressor under heating mode: compressor must run for 7
minutes after starting and then judge temperature. Meanwhile other protections are still
valid.
Condition Compressor Outdoor fan
TA> Ts+3 Off OffRoom temp. up
TA<Ts+3 On On
TA< Ts+2 On OnRoom temp. down
TA>Ts+2 Off Off
TA: Indoor ambient temperature
TS: Setting temperature through the remote controller
8.9.4 Indoor Fan actions under heating mode
Indoor Fan can be set at HIGH/MID/LOW/AUTO by using a remote controller, but
Anti-cold wind function has the priority.
Anti-cold wind control function under heating mode
Condition
TE
Indoor fan speed
TE<TE1 Off
TE1<TE<TE2 Breeze
Indoor exchanger temp. up
TE>TE2 Setting fan speed
TE> TE3 Setting fan speed
TE3<TE<TE4 Breeze
Indoor exchanger temp. down
TE<TE4 Off
TE: Indoor evaporator temperature
TE1: Anti-cold wind, from Fan Off to Breeze temperature
TE2: Anti-cold wind, from Breeze to Setting Fan Speed temperature
TE3: Anti-cold wind, from Setting Fan Speed to Breeze temperature
TE4: Anti-cold wind, from Breeze to Fan Off temperature

Page 19 of 33
8.9.5 Auto wind under heating mode
Condition
T=Indoor Temp.-Setting Temp.
Indoor fan speed
T<2℃HighRoom temp. up
T>2℃Mid.
T> 0℃Mid.Room temp. down
T<0℃High
8.9.6 Indoor evaporator high-temperature protection under heating mode
Condition Compressor Outdoor fan
TE<TE8 On On
TE8<TE<TE7 On Off
Indoor exchanger temp. up
TE>TE7 Off Off
TE>TE9 Off OffIndoor exchanger temp. down
TE<TE9 On On
TE: Indoor evaporator temperature
TE7: Evaporator high temperature protection, compressor off temperature
TE8: Evaporator high temperature protection, fan off temperature
TE9: Evaporator high temperature protection, restoring temperature
8.10 Defrosting operation (Available for heating only).
8.10.1 Defrosting condition:
When T3<0℃and compressor runs 40 minutes.
T3: Temp. of condenser.
8.10.2 Ending condition of defrost
If one of following conditions is satisfied, end the defrost and turn into heating:
A.The defrost time has reached to 10 minutes.
B.T3>20. ℃
8.10.3 Time sequence of the whole defrosting procedure is as follows
Compressor
4-wayValve
Outdoor Fan
OFF
OFF
ON
ON
ON

Page 20 of 33
8.11 Automatic operation mode
8.11.1 The air conditioner automatically selects one of the following operation modes: cooling,
heating or ventilation according to the difference between room temp. (TA) and set temp.
(TS).
TA—TS Operation mode
TA—TS>2℃Cooling
-1 ≤TA℃—TS≤+2℃Fan-only
TA—TS<-1℃Heating (Fan-only for cooling only type)
8.11.2 The indoor fan blows automatically in corresponding selected mode.
8.11.3 The motion of indoor fan’s vane should accord with the selected operation mode.
8.11.4 One mode should be carried out for at least 15 minutes once selected. If the compressor
cannot start for 15 minutes, reselect the operation mode according to the room temp.
and set temp.or reselect when the set temp. varies.
8.12 Forced cooling function
8.12.1 Select forced cooling function with the forced cooling button or the switch.
8.12.2 The compressor is unconditionally turned on, after 30 minutes cooling operation whose
fan mode is set as low, the A/C operates under the DRY mode with a set temp. of 24℃.
8.12.3 All protections of remote control cooling are available under forced cooling operation.
8.13 Forced Auto function
Select forced auto function with the forced auto button or the switch in the display
board.
In forced auto status the A/C operates under remote control mode with a set temp. of
24℃.
8.14 Timer Function Requirement
The maximum length of timer is 24 hours and the minimum resolving power is 15
minutes.
8.15 Economic Running
8.15.1 The economic running function is available under cooling, heating or auto mode.
8.15.2 Cooling:
The set temperature rise 1℃per hour. Two hours later, the set temperature will
maintain as a constant and the air circulation is kept at low speed.
8.15.3 Heating:
The set temperature decrease 1℃per hour. Two hours later, the set temperature will
maintain as a constant and the air circulation is kept at low speed (Cold air proof
function takes precedence over all).
8.15.4 Auto:
The economic running function operates in accordance with the selected running mode
by the auto mode.
