Elektro-Automatik EA-PU 10000 6U User manual

© EA Elektro-Automatik in 2023, this information is subject to change without notice
60 kW
01113010_manual_pu_10000_6u_60kw_en_02
EA-PU 10000 6U
Programmable
DC Power Supply
MANUAL

© EA Elektro-Automatik in 2023, this information is subject to change without notice 201113010_manual_pu_10000_6u_60kw_en_02
TABLE OF CONTENTS
1. General
1.1 About this document 4
1.1.1 Retention and use 4
1.1.2 Copyright 4
1.1.3 Validity 4
1.1.4 Symbols and warnings 4
1.2 Warranty 4
1.3 Limitation of liability 4
1.4 Disposal of equipment 5
1.5 Product key 5
1.6 Intended usage 6
1.6.1 Symbols and warnings on the device 6
1.7 Safety 7
1.7.1 Safety notices 7
1.7.2 Responsibility of the operator 8
1.7.3 Requirements to the user 8
1.7.4 Responsibility of the user 8
1.7.5 Alarm signals 9
1.7.6 Functionality test 9
1.8 Technical data 10
1.8.1 Approved operating conditions 10
1.8.2 General technical data 10
1.8.3 Specific technical data 11

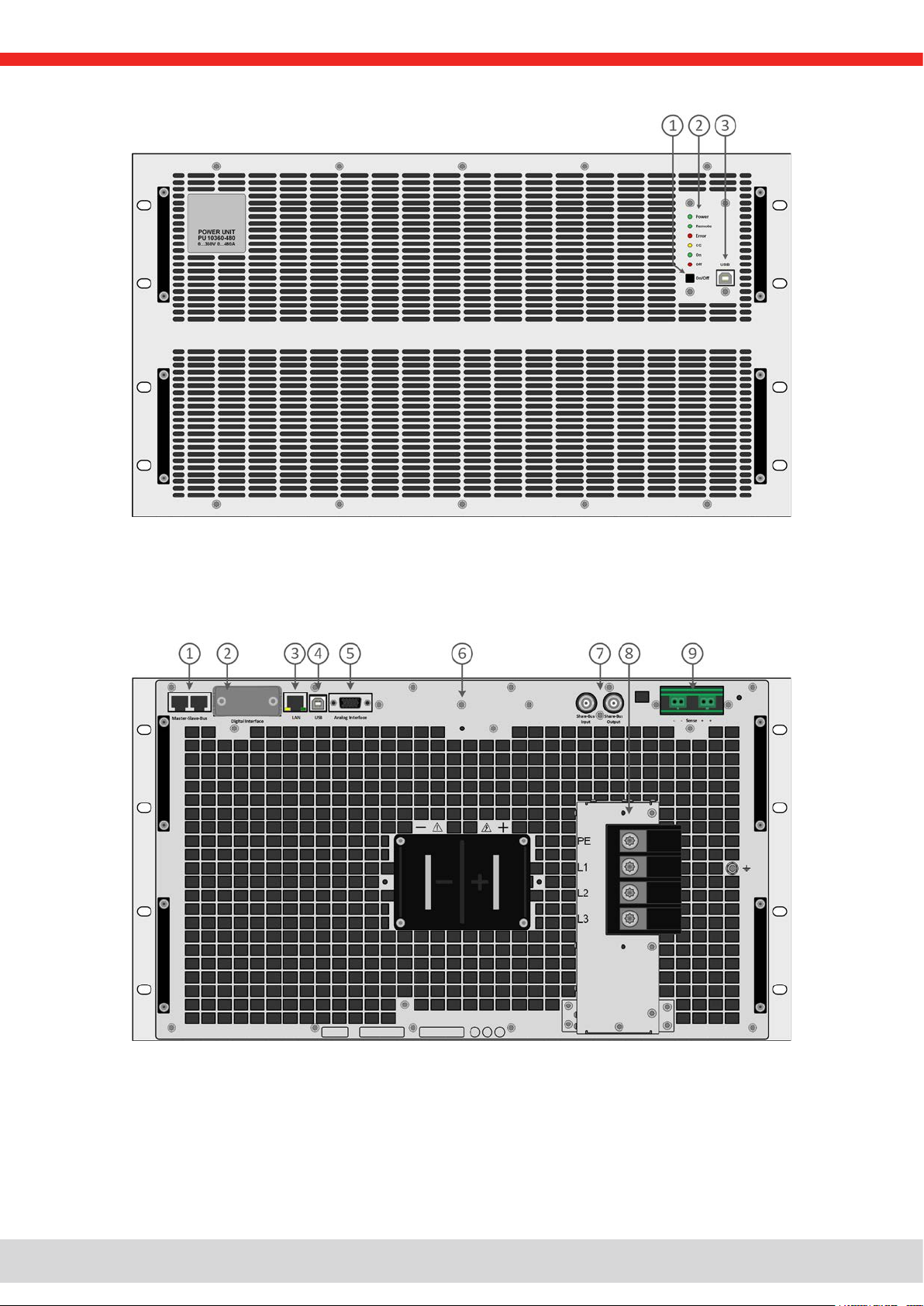

1.8.4 Views 14
1.8.5 Control elements 17
1.9 Construction and function 18
1.9.1 General description 18
1.9.2 Block diagram 18
1.9.3 Scope of delivery 19
1.9.4 Accessories 19
1.9.5 Options 19
1.9.6 The control panel (HMI) 20
1.9.7 USB port (rear side) 21
1.9.8 Interface module slot 21
1.9.9 Analog interface 22
1.9.10 “Share-Bus” connector 22
1.9.11 “Sense” connector (remote sensing) 22
1.9.12 Master-Slave bus 23
1.9.13 Ethernet port 23
1.9.14 Water cooling 23
2. Installation & commissioning
2.1 Transport and storage 24
2.1.1 Transport 24
2.1.2 Packaging 24
2.1.3 Storage 24
2.2 Unpacking and visual check 24
2.3 Installation 24
2.3.1 Safety procedures before installation and use 24
2.3.2 Preparation 24
2.3.3 Installing the device 26
2.3.4 Installing the water cooling 27
2.3.5 Connection to AC supply 29
2.3.6 Connection to DC loads 31
2.3.7 Grounding of the DC output 32
2.3.8 Connection of remote sense 32
2.3.9 Installation of an interface module 33
2.3.10 Connecting the analog interface 34
2.3.11 Connecting the share bus 34
2.3.12 Connecting the USB ports 34
2.3.13 Initial commission 34
2.3.14 Commission after a firmware update or a long
period of non-use 34
3. Operation and application
3.1 Personal safety 35
3.2 Operating modes 35
3.2.1 Voltage regulation / Constant voltage 35
3.2.2 Current regulation / constant current / current
limiting 36
3.2.3 Power regulation / constant power / power
limiting 36
3.2.4 Internal resistance regulation 36
3.3 Alarm conditions 37
3.3.1 Power Fail 37
3.3.2 Overtemperature 37
3.3.3 Overvoltage protection 37
3.3.4 Overcurrent protection 37
3.3.5 Overpower protection 37
3.3.6 Share bus fail 38
3.4 Manual operation 39
3.4.1 Powering the device 39
3.4.2 Switching the device off 39
3.4.3 Switching the DC output on or off 39
3.5 Remote control 40
3.5.1 General 40
3.5.2 Remote control via digital interface 40
3.5.3 Interface monitoring 41
3.5.4 Remote control via the analog interface 42
3.6 Device alarm handling 46
3.7 Other applications 47
3.7.1 Parallel operation in master-slave (MS) 47
3.7.2 Series connection 51

© EA Elektro-Automatik in 2023, this information is subject to change without notice 301113010_manual_pu_10000_6u_60kw_en_02
4. Service and maintenance
4.1 Maintenance / cleaning 52
4.1.1 Battery replacement 52
4.2 Fault finding / diagnosis / repair 52
4.2.1 Firmware updates 52
4.2.2 Trouble-shooting device problems 53
5. Contact and support
5.1 Repairs/Technical support 54
5.2 Contact options 54
Attention! The part of this document that deals with the handling of features on the control panel is only valid
for devices with firmwares “KE: 3.06”, “HMI: 2.05” and “DR: 1.0.2.20” or higher.

© EA Elektro-Automatik in 2023, this information is subject to change without notice 401113010_manual_pu_10000_6u_60kw_en_02
1. General
1.1 About this document
1.1.1 Retention and use
This document is to be kept in the vicinity of the equipment for future reference and explanation of the operation of the device.
This document is to be delivered and kept with the equipment in case of change of location and/or user.
The most recent issue of this document can be found online, on our website.
1.1.2 Copyright
Reprinting, copying, also partially, usage for other purposes as foreseen of this manual are forbidden and breach may lead
to legal consequences.
1.1.3 Validity
This manual is valid for the following equipment including derived variants:
Model Model
EA-PU 10360-480 6U EA-PU 11000-160 6U
EA-PU 10500-360 6U EA-PU 11500-120 6U
EA-PU 10750-240 6U EA-PU 12000-80 6U
EA-PU 10920-250 6U
1.1.4 Symbols and warnings
Warning and safety notices as well as general notices in this document are shown in a box with a symbol as follows:
Symbol for a life threatening danger (electric shock hazard)
Symbol for risk (of damage to the equipment). If placed on the device it requests the user to read the
operating guide prior to start operation.
Symbol for general safety notices (instructions and damage protection bans) or important information
for operation
Symbol for general notices
1.2 Warranty
EA Elektro-Automatik guarantees the functional competence of the applied technology and the stated performance param-
eters. The warranty period begins with the delivery of free from defects equipment.
Terms of guarantee are included in the general terms and conditions of EA Elektro-Automatik.
1.3 Limitation of liability
All statements and instructions in this manual are based on current norms and regulations, up-to-date technology and our
long term knowledge and experience. The manufacturer accepts no liability for losses due to:
• Usage for purposes other than designed
• Use by untrained personnel
• Rebuilding by the customer
• Technical changes
• Use of not authorized spare parts
The actual delivered device(s) may differ from the explanations and diagrams given here due to latest technical changes or
due to customized models with the inclusion of additionally ordered options.

© EA Elektro-Automatik in 2023, this information is subject to change without notice 501113010_manual_pu_10000_6u_60kw_en_02
1.4 Disposal of equipment
A piece of equipment which is intended for disposal must, according to European laws and regulations (ElektroG, WEEE) be
returned to the manufacturer for scrapping, unless the person operating the piece of equipment or another, delegated person
is conducting the disposal. Our equipment falls under these regulations and is accordingly marked with the following symbol:
The device contains a Lithium battery cell. Disposal of that battery follows the above stated rule or
specic local regulations.
1.5 Product key
Decoding of the product description on the label, using an example:
EA-PU 10 360 -480 6U zzz
Field for identication of installed options:
WC = Water cooling installed
Construction (only stated on type label):
6U = 19" frame with 4U
Maximum current of the device in Ampere
Maximum voltage of the device in Volt („10360“ = 360 Volt)
Series: 10 = Series 10000
Type identication:
PU = Power Unit

© EA Elektro-Automatik in 2023, this information is subject to change without notice 601113010_manual_pu_10000_6u_60kw_en_02
1.6 Intended usage
The equipment is intended to be used only as a variable voltage and current source or only as a variable current sink. Fur-
thermore it’s only intended to be used installed and operated in suitable equipment (19” rack or similar), together with a rigid,
non-retractable AC supply connection.
Typical application for a voltage source is DC power supply to any relevant consumer, including when used as battery charger
to test charge various battery types, and for current sinks the replacement of an ohmic resistor by an adjustable electronic
DC load in order to load relevant voltage and current sources of any type.
• Claims of any sort due to damage caused by non-intended usage will not be accepted.
• All damage caused by non-intended usage is solely the responsibility of the operator.
1.6.1 Symbols and warnings on the device
Decal Explanation
DANGER
RISK OF ELECTRIC
SHOCK
Disconnect all sources of
supply prior to servicing.
!This warning is primarily related to the reconguration of the device on the DC termi-
nal which, for safety reasons, requires to also cut the device from AC (external main
switch). The same applies to disconnection and reconnection of the AC terminal.
Capacitors on DC, stor-
ing voltage! Discharge
for 10 sec then ground
before working.
DANGER
!Even after disconnection of the DC terminal from an external source there can still be
dangerous voltage potential present between the DC terminal poles and/or between
DC and the enclosure. For safety reasons the DC terminal must be short-circuited
after the capacitors have been discharged and it must also be grounded, i. e. con-
nected to PE.
WARNING
ELECTRICAL
HAZARDS
Authorized personnel
only.
!There can always be a voltage potential on metallic, openly touchable parts on
electrical devices, though the voltage level may not be hazardous. Caution is still
advisable, as these potential can still cause mild electrical shocks or sparking.
WARNING
Read and understand the operat-
ing guide before using this device.
Non-adherence of the instructions
in the operating guide can result
in serious injury or death.
!This is valid for any use of the device.

© EA Elektro-Automatik in 2023, this information is subject to change without notice 701113010_manual_pu_10000_6u_60kw_en_02
1.7 Safety
1.7.1 Safety notices
Mortal danger - Hazardous voltage
• Electrical equipment operation means that some parts accessible on the outside of the device can be
under high voltage. Therefore all parts under voltage must be covered during operation!
• The DC terminal is isolated from the AC input and not connected to ground internally. Hence there can
be dangerous potential between the DC poles and PE, for instance caused by a connected external
source application. Due to charged capacitors this could even be true if the DC output or the device
are already switched off.
• Do not insert any object, particularly metallic, through the ventilator slots!
• For every reconguration on the AC or DC terminals, specically those which can have a dangerous
voltage potential, the device must be cut completely from the AC supply (main switch on the distant
end of the AC cable); it doesn’t suce to only use the power switch on the front
• Always follow 5 safety rules when working with electric devices:
• Disconnect completely
• Secure against reconnection
• Verify that the system is dead
• Carry out earthing and short-circuiting
• Provide protection from adjacent live parts
• Avoid any use of liquids near the equipment. Protect the device from wet, damp and condensation.
• Do not connect external power sources with reversed polarity to the DC terminal! The equipment will be
damaged, even when completely powered off.
• Never connect external power sources to the DC terminal that can generate a higher voltage than the
rated voltage of the device!
• Never insert a network cable which is connected to Ethernet or its components into the master-slave
sockets on the rear side of the device!
• The equipment must only be used as intended
• The equipment is only approved for use within the connection limits stated on the product label.
• ESD regulations must be applied when plugging interface cards or modules into the relative slot
• Interface cards or modules may only be attached or removed after the device is switched off. It’s not
necessary to open the device.
• Always congure the various protecting features against overcurrent, overvoltage etc. for sensitive loads
to what the target application requires!

© EA Elektro-Automatik in 2023, this information is subject to change without notice 801113010_manual_pu_10000_6u_60kw_en_02
1.7.2 Responsibility of the operator
Operator is any natural or legal person who uses the equipment or delegates the usage to a third party, and is responsible
during its usage for the safety of the user, other personnel or third parties.
The equipment is in industrial operation. Therefore the operators are governed by the legal safety regulations. Alongside the
warning and safety notices in this manual the relevant safety, accident prevention and environmental regulations must also
be applied. In particular the operator has to
• be acquainted with the relevant job safety requirements
• identify other possible dangers arising from the specic usage conditions at the work station via a risk assessment
• introduce the necessary steps in the operating procedures for the local conditions
• regularly control that the operating procedures are current
• update the operating procedures where necessary to reect changes in regulation, standards or operating conditions.
• dene clearly and unambiguously the responsibilities for operation, maintenance and cleaning of the equipment.
• ensure that all employees who use the equipment have read and understood the manual. Furthermore the users are to be
regularly schooled in working with the equipment and the possible dangers.
• provide all personnel who work with the equipment with the designated and recommended safety equipment
Furthermore, the operator is responsible for ensuring that the device is at all times technically t for use.
1.7.3 Requirements to the user
Any activity with equipment of this type may only be performed by persons who are able to work correctly and reliably and
satisfy the requirements of the job.
• Persons whose reaction capability is negatively inuenced by e.g. drugs, alcohol or medication may not operate the equipment.
• Age or job related regulations valid at the operating site must always be applied.
Danger for unqualied users
Improper operation can cause person or object damage. Only persons who have the necessary training,
knowledge and experience may use the equipment.
The group of people allowed to operate the equipment is additionally limited to:
Delegated persons: these are persons who have been properly and demonstrably instructed in their tasks and the attendant
dangers.
Qualied persons: these are persons who are able through training, knowledge and experience as well as knowledge of the
specic details to carry out all the required tasks, identify dangers and avoid personal and other risks.
1.7.4 Responsibility of the user
The equipment is in industrial operation. Therefore the operators are governed by the legal safety regulations. Alongside the
warning and safety notices in this manual the relevant safety, accident prevention and environmental regulations must also
be applied. In particular the users of the equipment:
• must be informed of the relevant job safety requirements
• must work to the dened responsibilities for operation, maintenance and cleaning of the equipment
• before starting work must have read and understood the operating manual
• must use the designated and recommended safety equipment.
Furthermore, anyone working with the equipment is responsible for ensuring that the device is at all times technically t for use.

© EA Elektro-Automatik in 2023, this information is subject to change without notice 901113010_manual_pu_10000_6u_60kw_en_02
1.7.5 Alarm signals
The equipment offers various possibilities for signaling alarm conditions, however, not for danger situations. The signals are
optical (via an LED on the control panel) or electronically (status output of the analog interface) and digitally readable status
bits. All alarms will cause the device to switch off the DC output. For details about the different alarms refer to section «3.3
Alarm conditions» .
The meaning of the signals is as follows:
Signal OT
(OverTemperature)
• Overheating of the device
• DC output will be switched off
• Non-critical
Signal OVP
(OverVoltage)
• Overvoltage shutdown of the DC output due to excess of the preset limit
• Critical! The device and/or the load could be damaged
Signal OCP
(OverCurrent)
• Shutdown of the DC output due to excess of the preset limit
• Non-critical, protects the load from excessive current consumption
Signal OPP
(OverPower)
• Shutdown of the DC output due to excess of the preset limit
• Non-critical, protects the load from excessive power consumption
Signal PF
(Power Fail)
• DC output shutdown due to AC undervoltage or defect in the AC input
• Critical on overvoltage! AC input circuit could be damaged
Signal MSP
(Master-Slave Pro-
tection)
• DC output shutdown due to communication problems on the master-slave bus
• Non-critical
Signal SF
(Share Bus Fail)
• DC output shutdown due to signal distortion on the share bus
• Non-critical
1.7.6 Functionality test
The operator of the device must decide when to check the device for correct functionality, by whom and how often. The “when”
could either be before every use or after it has been relocated or recongured or perhaps in a dened interval.
Should the set values not be adjustable as instructed below it could simply be due to adjustment limits
interfering. When reaching a limit adjusting value can’t be signaled by the device. In remote control an
invalid value would be rejected, together with an error message.
The test procedure would always be like this:
1. Disconnect all cables (DC, Sense, share bus, analog interface, USB), except for AC.
2. Connect a suitable voltage meter to the DC terminal.
3. Switch the device on, adjust a voltage of 10% UNom using remote control via the front or rear USB port while the current
and power set values all should be at maximum. Then switch the DC output on and verify with the multimeter that the
adjusted voltage is available on the DC terminal. Also compare it to the actual voltage value read via remote command
query.
4. Repeat the same thing at 100% UNom.
5. Switch the DC output off and bridge the DC terminal with a cable or copper rails of suitable current capability of at least
INom. If available, put a current measuring device (transducer, current probe).
6. Adjust the current set value to 10% INom, switch the DC output on and measure the current with the external measuring
device, if available, and compare to the actual current measured by the device which can be read via remote query
command or at least compare the read actual current with the set value.
7. Repeat the same thing at 100% INom.
Only if the current and voltage are supplied by the device as adjustable in the range of 0-100% FS, the device can be consid-
ered as fully operational.

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1001113010_manual_pu_10000_6u_60kw_en_02
1.8 Technical data
1.8.1 Approved operating conditions
1. 8 .1.1 Ambiance
The allowed ambient temperature range for operation is 0 °C (32 °F) to 50 °C (122 °F). During storage or transport, the allowed
range extends to -20 °C (-4 °F) to 70 °C (158 °F). In case water condensation occurred due to transport, the device must be
acclimatized prior to operation for at least 2 hours, ideally in a place with good air circulation.
The device is intended to be operation in dry rooms. It must not be exposed or operated to extreme dust, high air humidity,
danger of explosion and aggressive chemicals polluting the air. The operating position isn’t arbitrary (see «2.3.3 Installing
the device» ),but in any case it requires a sucient air circulation. The device is allowed to be operated in altitude up to 2000
m (approx. 6,560 ft) above sea level. Technical specications (here: ratings), when given with tolerance, are valid for a unit
warmed up for at least 30 minutes and for an ambient temperature of 23 °C (73 °F). Specications without tolerance are
typical values from an average device.
1.8.1.2 Cooling
Power dissipated inside the device heats up air circulating through the device. A fan at the end of an air ow channel,in which
a cooling block is placed, pulls the air through the device. Entry is on the front, exhaust at the back. Depending on the internal
temperature, the fan speed is automatically regulated up or down, whereas a certain minimum speed is maintained because
some internal components even heat up when the device is idle.
Dust in the air can obstruct the air ow with time, thus it’s important to keep the air ow unimpeded at least outside of the device
be leaving sucient room behind it. Since it’s usually installed inside cabinets, the cabinet doors are required to be meshed.
At the same time, the ambient temperature should be kept at low levels, perhaps by external means such as an air condition.
Should the device heat up internally and the cooling block temperature exceed 80 °C (160 °F), the device will protect itself from
overheating by automatically switching off the DC output. It could then only continue to operate and switch the DC output on
again after cooling down for some time.
For the water-cooled versions, water is the main cooling agent, owing through the internal cooling blocks. The air inside the
almost hermetically sealed body circulates, engaged by fans, to cool the remaining components not sitting on the cooling
blocks, but which heat up over time.
1.8.2 General technical data
Display: 6 LED with different colors
Controls: 1 pushbutton

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1101113010_manual_pu_10000_6u_60kw_en_02
1.8.3 Specic technical data
General speci cations
AC input
Voltage, Phases 380 V - 480 V ±10%, 3ph AC
Frequency 45 - 65 Hz
Power factor ca. 0.99
Leakage current <10 mA
Phase current ≤110 A @ 400 V AC
Overvoltage category 2
DC output static
Load regulation CV ≤0.05% FS (0 - 100% load, constant AC input voltage and constant temperature)
Line regulation CV
≤0.01% FS
(380 V - 480 V +10% AC input voltage, constant load and constant temperature)
Stability CV ≤0.02% FS (during 8 h of operation, after 30 minutes warm-up, at constant AC input voltage, load and temperature)
Temperature coeffi cient CV ≤30ppm/°C (after 30 minutes of warm-up)
Compensation (remote sense) ≤5% UNominal
Load regulation CC ≤0.1% FS (0 - 100% load, constant AC input voltage and constant temperature)
Line regulation CC ≤0.01% FS (380 V - 480 V +10% AC input voltage, constant load and constant temperature)
Stability CC ≤0.02% FS (during 8 h of operation, after 30 minutes warm-up, at constant AC input voltage, load and temperature)
Temperature coeffi cient CC ≤50ppm/°C (after 30 minutes of warm-up)
Load regulation CP ≤0.3% FS (0 - 100% load, constant AC input voltage and constant temperature)
Load regulation CR ≤0.3% FS + 0.1% FS current (0 - 100% load, constant AC input voltage and constant temperature)
Protective functions
OVP Overvoltage protection, adjustable 0 - 110% UNominal
OCP Overcurrent protection, adjustable 0 - 110% INominal
OPP Overpower protection, adjustable 0 - 110% PNominal
OT Overtemperature protection (DC output shuts down in case of insuffi cient cooling)
DC output dynamic
Rise time 10 - 90% CV ≤10 ms
Fall time 90 - 10% CV ≤10 ms
Rise time 10 - 90% CC ≤2 ms
Fall time 90 - 10% CC ≤2 ms
Insulation
AC input to DC output 3750 Vrms (1 minute, creepage distance >8 mm)
AC input to case (PE) 2500 Vrms
DC output to case (PE) Depending on the model, see model tables
DC output to interfaces 1000 V DC (models up to 360 V output), 1500 V DC (models from 500 V output)
Interfaces digital
Built-in, galvanically isolated USB, Ethernet (100 MBit), USB front panel, all for communication
Optional, galvanically isolated CAN, CANopen, RS232, ModBus TCP, Profi net, Profi bus, EtherCAT, Ethernet
Interfaces analog
Built-in, galvanically isolated 15 pole D-Sub
Signal range 0 - 10 V or 0 - 5 V (switchable)
Inputs U, I, P, R, remote control on/off, DC output on/off, resistance mode on/off
Outputs Monitor U and I, alarms, reference voltage, DC output status, CV/CC regulation mode
Accuracy U / I / P / R 0 - 10 V: ≤0.2%, 0 - 5 V: ≤0.4%
Device con guration
Parallel operation Up to 64 units of any power class in series 10000 starting from 5 kW, with Master-Slave bus and Share-Bus

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1201113010_manual_pu_10000_6u_60kw_en_02
General speci cations
Safety and EMC
Safety
EN 61010-1
IEC 61010-1
UL 61010-1
CSA C22.2 No 61010-1
BS EN 61010-1
EMC
EN 55011, class A
CISPR 11, class A
FCC 47 CFR part 15B, unintentional radiator, class A
EN 61326-1 include tests according to:
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
Safety protection class 1
Ingress Protection IP20
Environmental conditions
Operating temperature 0 - 50 °C (32 - 122 °F)
Storage temperature -20 - 70 °C (-4 - 158 °F)
Humidity ≤80% relative humidity, non-condensing
Altitude ≤2000 m (≤6,600 ft)
Pollution degree 2
Mechanical construction
Cooling Forced air fl ow from front to rear (temperature controlled fans), optional: water cooling
Dimensions (W x H x D) Enclosure: 19“ x 6U x 668 mm (26.3 in)
Weight 76 kg (168 lb)
Weight with water cooling 82 kg (180 lb)

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1301113010_manual_pu_10000_6u_60kw_en_02
Technical speci cations PU 10360-480 PU 10500-360 PU 10750-240 PU 10920-250
DC output
Voltage range 0 - 360 V 0 - 500 V 0 - 750 V 0 - 920 V
Ripple in CV (rms) ≤55 mV (BWL 300 kHz) ≤70 mV (BWL 300 kHz) ≤200 mV (BWL 300 kHz) ≤250 mV (BWL 300 kHz)
Ripple in CV (pp) ≤320 mV (BWL 20 MHz) ≤350 mV (BWL 20 MHz) ≤800 mV (BWL 20 MHz) ≤1200 mV (BWL 20 MHz)
Current range 0 - 480 A 0 - 360 A 0 - 240 A 0 - 250 A
Power range 0 - 60000 W 0 - 60000 W 0 - 60000 W 0 - 60000 W
Resistance range 0.025 Ω - 45 Ω 0.04 Ω - 85 Ω 0.1 Ω - 185 Ω 0.125 Ω - 275 Ω
Output capacitance 3480 μF 1560μF 765 μF 465 μF
Effi ciency sink/source (up to) 95.8% *1 96.5% *1 96.5% *1 96.5% *1
Insulation
Negative DC pole <-> PE ±1000 V DC ±1500 V DC ±1500 V DC ±1500 V DC
Positive DC pole <-> PE +1000 V DC +2000 V DC +2000 V DC +2000 V DC
Article numbers
Standard 01113010 01113011 01113012 01113013
Standard + Water Cooling 01463001 01463002 01463003 01463004
Technical speci cations PU 11000-160 PU 11500-120 PU 12000-80
DC output
Voltage range 0 - 1000 V 0 - 1500 V 0 - 2000 V
Ripple in CV (rms) ≤300 mV (BWL 300 kHz) ≤400 mV (BWL 300 kHz) ≤500 mV (BWL 300 kHz)
Ripple in CV (pp) ≤1600 mV (BWL 20 MHz) ≤2400 mV (BWL 20 MHz) ≤3000 mV (BWL 20 MHz)
Current range 0 - 160 A 0 - 120 A 0 - 80 A
Power range 0 - 60000 W 0 - 60000 W 0 - 60000 W
Resistance range 0.2 Ω - 325 Ω 0.4 Ω - 750 Ω 0.85 Ω - 1350 Ω
Output capacitance 387 μF 173 μF 85 μF
Effi ciency sink/source (up to) 95.8% *1 96.5% *1 96.5% *1
Insulation
Negative DC pole <-> PE ±1500 V DC ±1500 V DC ±1500 V DC
Positive DC pole <-> PE +2000 V DC +2000 V DC +2000 V DC
Article numbers
Standard 01113014 01113015 01113016
Standard + Water Cooling 01463005 01463006 01463007
*1 At 100% power and 100% output voltage
BWLL = band width limit
*1 At 100% power and 100% output voltage
BWLL = band width limit

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1401113010_manual_pu_10000_6u_60kw_en_02
1.8.4 Views
1.8.4.1 Technical drawings PU 10000 6U
Side view of the air-cooled version shown

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1501113010_manual_pu_10000_6u_60kw_en_02
1.8.4.2 Front panel description PU 10000 6U
1.8.4.3 Rear panel description PU 10000 6U
1. DC on/off pushbutton
2. LED status display
3. USB interface
1. Master-Slave bus connectors to set up a system for parallel connection
2. Slot for optional interfaces
3. Ethernet interface
4. USB interface n
5. Connector (DB15 female) for isolated analog programming, monitoring and other functions
6. DC output terminal (copper blades)
7. Share bus connectors to set up a system for parallel connection
8. AC input connector
9. Remote sense connectors

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1601113010_manual_pu_10000_6u_60kw_en_02
1.8.4.4 Front panel description PU 10000 6U WC (water cooling option)
1.8.4.5 Rear panel description PU 10000 6U WC (water cooling option)
1. DC on/off pushbutton
2. LED status display
3. USB interface
1. Master-Slave bus connectors to set up a system for parallel connection
2. Slot for optional interfaces
3. Ethernet interface
4. USB interface n
5. Connector (DB15 female) for isolated analog programming, monitoring and other functions
6. DC output terminal (copper blades)
7. Share bus connectors to set up a system for parallel connection
8. AC input connector
9. Remote sense connectors
10. Water inlet and outlet

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1701113010_manual_pu_10000_6u_60kw_en_02
1.8.5 Control elements
Figure 1 - Control Panel
Overview of the elements on the control panel
For a detailed description see section «1.9.6 The control panel (HMI)».
(1)
On/Off button
Can be used to switch the DC output on or off during manual operation, while LED “Remote” is off
Pin REM-SB on the analog interface, when set to a logical level which would request to turn DC off,
can block switching DC on by this pushbutton.
(2)
USB port
For quick and easy access to the most important DC output related values when the device isn’t in master-slave mode.
This port has reduced functionality compared to the rear port.
(3) Status indicators (LED)
These six color LEDs show the device status.

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1801113010_manual_pu_10000_6u_60kw_en_02
1.9 Construction and function
1. 9 .1 General description
The devices in series PU 10000 6U represent matching models to series PS 10000 4U or PSI 10000 4U. They serve as exten-
sion modules, so called power units, which are intended to build master-slave systems with higher total power. Devices from
series PSI 10000 4U or PS 10000 4U, which both have a color touch display, can serve as master unit, but all PU 10000 6U
can also serve as master for other 10000 series power supplies should the control be solely remote.
For remote control the devices are provided as standard with USB and Ethernet ports on the rear side, as well as a galvani-
cally isolated analog interface. Via optional plug-in interface modules, another digital interface such as for RS232, Probus,
ProNet, ModBus TCP, CAN, CANopen or EtherCAT can be added. These enable the devices to be connected to standard
industrial buses simply by changing or adding a small module.
Alternatively to the standard air-cooled version there are also water-cooled available which are usually congured and offered
in cabinet systems with a complete water cooling distribution inside. For DIY water-cooled systems single units can also be
obtained upon request.
1.9.2 Block diagram
The block diagram illustrates the main components inside the device and their relationships.
There are digital, microprocessor controlled components (KE, DR, HMI), which can be target of rmware updates.
Controller
(DR)
Commu-
nication
(KE)
MSUSB Ana
log
Share &
Sense
Block diagram
=
≈
=
≈
Commu-
nication
(KE)
Power blocks
Any
bus
ETH
PU 10000
DC
AC
HMI
USB

© EA Elektro-Automatik in 2023, this information is subject to change without notice 1901113010_manual_pu_10000_6u_60kw_en_02
1.9.3 Scope of delivery
1 x Power supply device
2 x Remote sensing plugs
1 x 1.8 m (5.9 ft) USB cable
1 x DC terminal cover
1 x Sense terminal cover
1 x USB stick with documentation and software
1 x AC terminal cover
1 x Set for AC cable strain relief (bracket & cable ties)
1.9.4 Accessories
For these devices the following accessories are available:
IF-AB
Digital interface modules
Pluggable and retrottable digital interface modules for RS232, CANopen, Probus, ProNet,
ModBus TCP, EtherCAT or CAN are available. Details about the interface modules and the
programming of the device using those interfaces can be found in separate documentation.
It’s usually available on the USB stick which is included with the device, or as PDF download
on our website.
1.9.5 Options
These options are usually ordered along with the device, as they are permanently built in or precongured during the manu-
facturing process. Post-ordering of cabinet or retrots upon request.
POWER RACKS
19“-rack
Racks in various congurations up to 42U as parallel systems are available, or mixed with elec-
tronic load devices to create test systems. Further information on our website or upon request
WC
Water cooling
Replaces the standard cooling blocks of the internal power blocks by three interconnected,
water cooled blocks with two taps led out for water supply. This option helps to avoid heating
up the environment due to exhausted hot air caused by a certain power dissipation.
As a side effect, this type of cooling also reduces audible noise.

© EA Elektro-Automatik in 2023, this information is subject to change without notice 2001113010_manual_pu_10000_6u_60kw_en_02
1.9.6 The control panel (HMI)
The HMI (Human Machine Interface) consists of six colored LEDs, a pushbutton and a USB port of type B.
1.9.6.1 Status indicators (LED)
The six colored LEDs on the front indicate various statuses of the device:
LED Color Indicates what when lit?
Power orange / green Orange = device is in boot phase or internal error occurred
Green = device is ready for operation
Remote green Remote control by master-slave or any of the control interfaces is active. In this situation, manual
control with button On/Off is locked.
Error red At least one unacknowledged device alarm is active. The LED signalizes all alarms as listed in
«3.6 Device alarm handling».
CC yellow Constant current regulation (CC) is active. It means, if the LED isn’t lit it indicates either CV, CP
or CR mode. Also see «3.2 Operating modes».
On green DC output is switched on
Off red DC output is switched off
1.9.6.2 Front USB port
The front USB port is easier to access than the one on the rear side and intended for quick setup of DC output related values
and settings. Doing so is only necessary and possible in these two situations:
1. The PU 10000 6U isn’t currently controlled by a master.
2. The PU 10000 6U shall, due to the lack of a suitable PSI 10000 4U or PS 10000 4U master device, be the master of other
PU 10000 6U devices.
Both situations are only secondary, as the primary and normal function of a PU 10000 6U is to be a slave in a master-slave
system where it’s assigned all required settings and values from the master.
When running any of the above listed situations following applies for the front USB port:
• Reduced instruction set for master-slave conguration, set values (U, I, P, R) and protections (OVP,
OCP, OPP). For details about the instruction set see «3.5 Remote control».
• Taking over remote control in order to change the conguration is only possible while the unit isn’t
online with the master, which either requires to temporarily deactivate master-slave on the master
or to switch the master off.
• The front USB has no priority over any other remote control interface
1.9.6.3 Pushbutton “On / O”
This button can be used to switch the DC output on or off during manual control, i. e. the device isn’t in remote
control by a master or via any of the USB ports (LED “Remote” = off), but only if the DC output isn’t blocked by pin
REM-SB (analog interface).
Once pushed to switch the DC output on, the device would regulate it to the last values it has stored. Since all the
DC output related values aren’t displayed, operating that button has to be done with caution.
The button can furthermore be used to quickly and without the need of a PC turn the device into slave mode. This is
done by pressing and holding the button for at least 10 seconds. The switchover into mode “Slave” is conrmed by
the LED “Error” lighting up, indicated an MSP alarm (see section «3.6 Device alarm handling» for more information
about this alarm) which is normal for not yet initialized slave.
