In-Ceiling Electric Motorized Front Projection Screen
Evanesce Series
User’s Guide

2
Rev.122411-AS
www.elitescreens.com [email protected]
Make sure to read this user’s guide and follow the procedure below.
Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black
Top Drop in the roller. Please be aware o this as it will void your warranty with Elite Screens. Unapproved
changes or modi ications (except or cutting the power cord or hardwire installations) to this unit are
prohibited and will void your warranty. For more in ormation, please contact our Technical Support
Department at [phone] Ext. 604.
•Please retain this user’s guide for future reference.
•To avoid damaging the unit, do not use with any unauthorized accessories not
recommended by the manufacturer.
•Handle the unit carefully during transportation to avoid any damages.
•To ensure safe and reliable operation, direct connection to a properly grounded power
source is advised.
•The power outlet supplying power to the unit should be close to the unit and easily
accessible.
•Do not install the unit on uneven or inclined surfaces.
•Do not place any heavy objects over the power cord.
•Position the power cord properly to avoid creating a trip obstacle.
•To avoid an electrical shoc or fire, due to a loose contact or short circuit, do not
overload the power cord.
•The internal & external parts of this unit are not end user serviceable. Do not attempt to
disassemble this unit by yourself. No one except authorized technicians can open and
ma e repairs to this unit.
•Ma e sure the power source that this unit is connected to has a continuous power flow.
•If there is need to use an extension cord, ma e sure the cord has an equal rating as the
appliance to avoid over heat.
•Do not handle the power plug when your hands are wet or your feet are in contact with
water.
Do not use this unit under the following circumstances.
•Disconnect the power cord under the conditions of heavy rain, wind thunder or
lightning.
•Avoid direct sun light, rain shower and moisture.
•Keep away from fire sources and high temperature to prevent this device from
overheating.
•Cut off the power supply first before transportation or maintenance.
•To avoid possible injury and/or an electric shoc , do not attempt to use this screen if
there is obvious damage or if there are any evident bro en parts.
•
Important Safety & Warning Precautions

3
Rev.122411-AS
www.elitescreens.com [email protected]
Due to various installation environments, the instructions provided in this user’s guide are for
reference only. Please consult a professional installation company for further installation and
safety advice. The installer must insure that proper mounting hardware is used to provide
adequate strength suitable for the installation. lite Screens is not liable for any faulty
installations. For Limit adjustment instructions, please contact our Technical Support
Department at [phone] xt. 604.
The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top black
drop in the roller. Please be aware of this as it will void the limitation of your warranty.
Individual modifications to this product are prohibited and will void the warranty with the
manufacturer. Please contact Elite Screens Customer Service for any questions.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
owever, there is no guarantee that the interference will not occur on a particular installation. If this
equipment causes harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
Reorient or relocate the receiving antenna of the device which may be casing the interference.
Increase the separation between the screen and the device’s receiver.
onnect the equipment into a different power outlet other than the device.
1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.
3. In order to protect the screen from exposure to stains, keep the screen out of contact with
foreign particles such as dust, sawdust, and/or liquids.
Regardless of the mounting method, the screen should be securely supported so that the vibration or
pulling on the viewing surface will not cause the casing to become loose or fall. The installer must insure
that the fasteners used are of adequate strength and suitable for the installation location.
Installation Warning
Pre-Installation
NOTE

4
Rev.122411-AS
www.elitescreens.com [email protected]
Please make sure all accessories listed below are included before proceeding.
A. B. C. D.
IR Remote RF Remote 3 Way Wall Switch IR Eye Receiver
G.
AAA Batteries
Red+ Green-
E. F. .
12V Trigger In-Wall RJ-45 Module Bubble Level
Accessories for Evanesce Series

5
Rev.122411-AS
www.elitescreens.com [email protected]
UP
Stop
D
o
wn
RJ-45 INPUT FOR 5-12V TRIGGER
5-12 VOLT TRIGGER CABLE
Control System for Evanesce Series
1.
5
-
12V Trigger
: The built
-
in 5
-
12V trigger input
allows your screen to synchronize its drop & rise
with the projector’s power cycle. The screen
deploys when the projector powers up and will
retract when the projector powers down. The 5-
12 volt adaptor connects to your projector’s
trigger output via a separate cable that may or
may not be provided by the manufacturer of the
projector. The trigger feature will not work
without an output cable from the projector, but it
can be tested by connecting the Red (+) and
Green (-) cable to a 9-volt battery.
2. 3
-
Way Wall Switch:
The 3
-
way wall
switch is a wall mount control box with
an up/stop/down button and plugs
directly into the screen’s RJ-45 input.
3. IR “Eye” Receiver:
plugs directly into the
screen’s RJ-45 input to present a low profile
line-of-sight control option for your IR remote
control even in a recessed ceiling installation.
4. IR Remote ontrol:
The Infrared
functions by direct line of sight contact
with a beam range of 30 feet.
5. RF Remote ontrol:
The radio
waves eliminate the need for a direct
line of sight with a range of 150 feet.

6
Rev.122411-AS
www.elitescreens.com [email protected]
6. In-Wall RJ-45 Module: The RJ-45 Module connects to a local wall switch for UP/Down control of your
screen. Please follow the picture diagram below for instructions on how to connect the accessory.
Steps to attach Elite Screens Motorized Screen to your local wall switch
1. Attach Elite Screens ZIW-Module (in-wall switch module) to your local wall switch as
shown in diagram above.
2. Attach an RJ-45 Ethernet cable (not included) to the ZIW-Module and the other end to
the RJ-45 input on your Elite electric screen.
3. After testing the connection, place the in-wall switch module in or on the wall and wire
the Ethernet cable to complete the set up.
NOTE: Please be aware that Ethernet cables have length limitations so please make test before
concealing the cable into the wall.
Elite Screens In-Wall Switch Module ( ZIW-Module )
Ethernet (RJ45) network
cable (not included)
Local Wall Switch
In-Wall P/DOWN Switch Module (ZIW-Module) Elite Electric Motorized Screen

7
Rev.122411-AS
www.elitescreens.com [email protected]
Please make sure all parts listed below are included before proceeding with the installation.
Please consult a professional installer. lite Screens is not liable for faulty installations.
Power
1. The Evanesce Series includes a 3-Prong Power Cord for use in a non-concealed power outlet. If
your installation will be entirely concealed (including power outlet), Elite Screens strongly
recommends a hardwire connection. Please refer to the image below for both 110v & 220v
wiring information.
Hardware Parts List
QTY
A
.
ase Rail
Nut
4
-
6
B
.
Hex
Screw
4
-
6
.
Hanging
Bracket
2
-
3
D
.
Suspension Bar
4
E
.
Washer
8
-
10
F
.
Hex Nut
4
-
6
G. Suspension Bar
J
-
Hook
4
Hardware Parts List for Evanesce Series
G
Installation Instructions

8
Rev.122411-AS
www.elitescreens.com [email protected]
Assembly
2. Insert the ex Screw (B) through the anging Bracket’s (C) screw hole and secure with the Case
Rail Nut (A). Slide the anging Bracket (C) through the railing on top of the case.
3. Place the Suspension Bar (D) on the anging Bracket (C) and align with the hole as shown below.
Secure the Suspension Bar (D) with the ex Screw (B), Washer (E) and the ex Nut (F). Install the
Suspension Bars (D) to your ceiling according to their distance.
D
B
E
E
F

9
Rev.122411-AS
www.elitescreens.com [email protected]
Optional Suspension Bar J-Hook (G)
1. Attach the Suspension Bar J- ook (G) to the bottom of the Suspension Bar (D) and secure with
the ex Screw (B), Washer (E) and ex Nut (F).
2. Attach the Suspension Bar J- ook (G) to the anging Bracket (C) as shown in figure below. Install
the Suspension Bars (D) to your ceiling according to their distance.
B
E
E
F
G
C

10
Rev.122411-AS
www.elitescreens.com [email protected]
Optional Installation (parts & hardware not included)

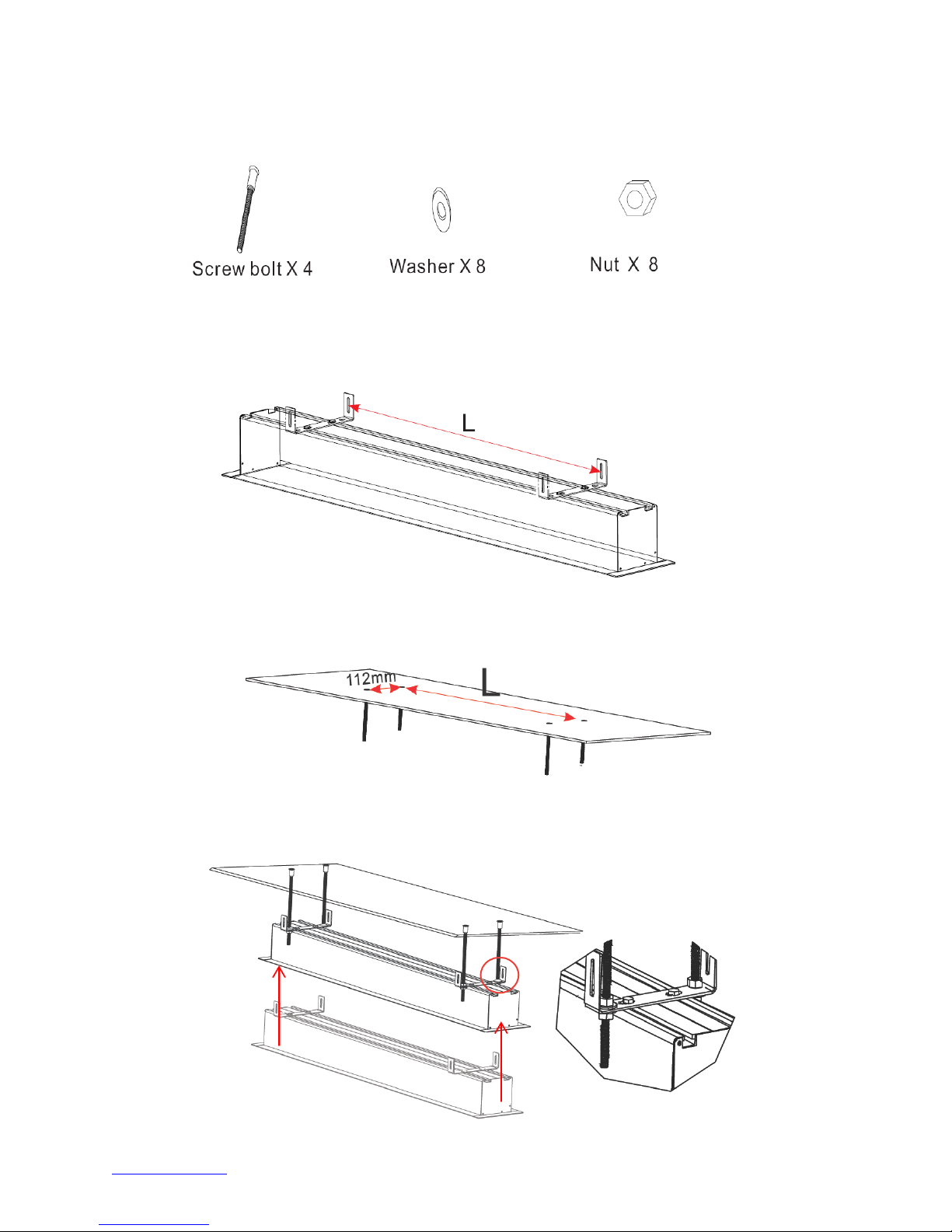

1. Place the anging Bracket (C) in the desired location on the screen’s housing and measure the
distance as shown below. (L = Distance)
2. Mark the location of where the screen will be installed according to the distance (L) and then
secure the bolt to the ceiling.
3. Install the screen to the screw bolt as shown in the figure below.

11
Rev.122411-AS
www.elitescreens.com [email protected]
*Measuremen dimensions are for reference only and subjec o change wi hou no ice. No e: Da a Error may be ±1"
Evanesce Series Dimension Table

12
Rev.122411-AS
www.elitescreens.com [email protected]
•Two (2) Year parts and labor warranty from defects in workmanship from purchase date as
follows (except for refurbished units as specified below).
•Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,
Educational, Military, & Religious) purchases of new product only.
•Refurbished Units carry a 90-DAY parts and labor warranty.
•Each party will be responsible for one way shipping during the warranty period.
•A RMA (Return Merchandise Authorization) number must be issued in order to process a
replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option
replace or repair the defective unit with a replacement *(see exceptions below) after the
defective unit or parts have been received. Once the product is received, Elite Screens will send
out a replacement *unit to the customer by ground service (subject to inventory availability).
•Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned
at your expense. The RMA Number must be included on the outside label of your shipping
box. Our warehouse is not authorized to accept returns without an RMA number on the
shipping label.
•RMA Numbers are valid for 45 days from the date issued.
•Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer
will be responsible for shipping and handling fees. If reported after 30 days of receipt, the
customer will be responsible for cost of parts and shipping & handling fees.
*A New or refurbished replacement will be send out to the customer depending on the type of
purchase (new or refurbished) and based on stock availability.
North America only U.S. and anada
For Warranty and Service requests, please submit an RMA/Service Form at:
www.elitescreens.com/warrantysupportform
Please visit this link for full Warranty information:
www.elitescreens.com/warranty
For Customer Service and Technical questions, please contact Elite Screens at:
Telephone: [phone] [email protected]om
Fax: [phone] [e-mail]
REMEMBER TO REGISTER YOUR PRODUCT AT:
WWW.ELITESCREENS.COM
Warranty Policy

13
Rev.122411-AS
www.elitescreens.com [email protected]
US & Canada Tech Support & Warranty Claim
Please contact us at ser[email protected]om or call [phone] #3 or fax [phone]
Europe Tech Support & Warranty Claim
Please contact us at ser[email protected] or call [phone]
Asia Tech Support & Warranty Claim
Please contact us at ser[email protected]om.cn or call [phone]
Taiwan Tech Support & Warranty Claim
Please contact us at ser[email protected]om.tw or call +866+2+8990-1999
America: Europe:
Elite Screens Inc Elite Screens Europe
16410 Manning Way Lübecker Straße 1
Cerritos, CA 90703 USA 22087 amburg, Germany
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
[email protected] [email protected]
www.elitescreens.com www.elitescreens.eu
Asia: Elite Screens France S.A.S
Elite Screens China Corp. 11, Allée William Penn
Longxi Duimianling Industry Zone 92150 Surenes, rance
Longcheng Longgang District, Tel: [phone]
ShenZhen GuangDong, China ax: [phone]
Tel: [phone] [e-mail]
ax: [phone] www.elitescreens.com/fr
[e-mail]
www.elitescreens.com.cn
Japan:
Taiwan: Elite Screens Japan Corp.
Elite Screens Taiwan Corp. 467-2-606 Tsuruma, Machida-shi,
4 ., No. 42-1 Wuguan Rd. Wugu Township Taipei Tokyo, 194-0004 Japan
County 248, Taiwan (Wugu Industrial Park) Tel: [phone]
Taiwan (R.O.C) ax: + 81(0)42-706-9130
Tel: +886+2+8990-1999 [e-mail]
ax: +886+2+8990+1366 www.elitescreens.jp
[e-mail]
www.elitscreens.com.tw
Latin America ontact:
[email protected]
East Asia ontact:
[email protected]
India ontact:
Inf[email protected]
Contact Information
