Emerson Bettis Q series User manual

Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
Installation Guide Integrated Control Modules
QC44 Intrinsically Safe
APPROVED

2
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
2
1
Control Module Type Label =
QC44..P1.. = Intrinsically Safe
Actuator Type Label =
QS xxxx = Single acting (Spring Return)
QD xxxx = Double acting
Fig. 2.2 Identification
1 Applicable Control modules:
QC44 - I.S. - Intrinsically Safe
Note:
This QC44 control module can be equipped with
one or two pilot valves:
* One pilot valve is default and suitable for normal
operation of double acting or spring return
actuators.
* Two pilot valves are required for Fail in Last
Position function on double acting actuators.
The enclosures of both Weather Proof and Explosion
Proof / Flame proof modules, have a IP66 or NEMA
4X, ingress protected rating.
Fig. 2.1 Check proper mounting before connecting air
supply and electrical wiring.
2 Before starting
* Actuator must be isolated both pneumatically
and electrically before any (dis)assembly is
begun.
* Installation, adjustment, putting into service,
use, assembly, disassembly and maintenance of
the control module must be done by qualified
personnel.
* Be sure that the actuator is correctly mounted
before connecting air supply and electrical
wiring (see Installation & Operation Manual
Bettis Q-Series Valve Actuator, DOC.IOM.Q.E)
* Check the module label for the right execution
(see figure 2.2)
* Check the type of actuator: single or double
acting (see figure 2.2).
* For mechanical installation of the module see
installation instruction leaflet DOC.BQC4.MTI.1,
as shipped with the module.
2.1 Intended use
The Bettis Q-Series actuator is an integrated
concept for the automation of quarter turn valves,
dampers or other quarter turn applications. It
consists of two basic parts (see figure 2.1):
1. Pneumatic actuator
2. Control Module
The control module allows operation of the
actuator and supplies position feedback signals.

3
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
2.2 Mechanical alignment and mounting of
the control module
The control module is equipped with an alignment-
edge on top of the module. This allows easy
alignment and mounting of the control module on
to the actuator housing.
Procedure: (see gure 2.3)
1. First take care that both mating faces from the
actuator and control module are clean and free
of dirt.
2. Check if the module has the required function
3. Remove the transparent film from the control
module.
4. Ensure seals are placed correctly.
5. Level the screws with the surface.
6. Place the alignment-edge (1) of the control
module at the top of the pneumatic interface.
7. Flip the module down taking care that the IPT
Probe (see fig 5; nr.2) on the actuator fits in the
mating hole on the control module and loosely
place the screws.
8. Tighten screws according force in sequence.
Tightening moments
The Control Module should be fastened by using
an Allen key and applying the following tightening
moments:
- Allen Key No 5: 6.1 to 6.6 Nm
(54 - 58.4 In.lbs)
Alignment-edge
Alignment-edge
Fig. 2.3 Alignment and mounting of control
module to actuator
IPT probe

4
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
3 Pneumatic connections
IMPORTANT
1 The actuator/valve combination can move
after connecting the air supply.
2 Ensure that the QC4x control modules are
mounted properly to the actuator to achieve
good functioning and the required ingress
protection, before connecting the air supply.
3 Check that the maximum supply pressure
Pmax = 8bar/116Psi
4 Be sure that the minimum required supply
pressure for the application is available at the
actuator.
5 Take appropriate measures to prevent
condensation or moisture to entering the
actuator or the control module. Condensation
or moisture can damage these components
and can result in failures.
6 The exhaust ports Ra and Rb on the module
(see gure 3.1) are shipped from the factory
with transport protection.
* If ingress protection IP66 or NEMA 4X is
required, appropriate connections must be
used in exhaust ports Ra & Rb.
3.1 Operating media :
* Air or inert gasses.
* Air filtered at 50 micron without condensate.
* Dew point at -20˚C.
* For subzero applications take appropriate
measures.
3.2 Single acting (spring return) or Double
acting actuator :
1 Remove the transport sticker from the air supply
(Ps).
2 Connect air supply to port (Ps).
Fig. 3.1 Pneumatic connections
Single acting
Control
Module cover
Ps
1/4” BSP or
1/4” NPT
Double acting
Ps
1/4” BSP or
1/4” NPT
Ra
Ra
Rb

5
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
4 Electric Connections
The QC44 Intrinsically Safe Control Module contains
a pilot valve for controlling the actuator and
switches for position feedback.
WARNING:
* If the Control Module is used in a manner not
specied by the manufacturer, the protection
provided by the equipment may be impaired.
* If required, mount earth wire (1) between top
(2) and stainless steel washer (3) of earth wire
connection (see gure 4.2).
* Use and mount cable glands as required by
national or local legislation.
* If IP66 or NEMA 4X ingress protection is
required, then the electrical entries must be
tted with devices rated IP66 or NEMA 4X.
Electrical safety requirements:
Use In- and outdoor.
Altitude Operating full power available
up to 2000 meter (6000 feet).
Maximum rela-
tive humidity
80% for temperatures up to 31°C
(87.8°F) decreasing linearly to
50% relative humidity at 40°C
(104°F).
Mains supply
fluctuation up to ±10% of nominal voltage
Over voltage
category II
Pollution degree 2 (3 when the cover remains
closed)
Temperature see table 4.1
Control Module
Type Label
Terminals
Pilot valve
terminals
Switch terminals
Option: Manual
control

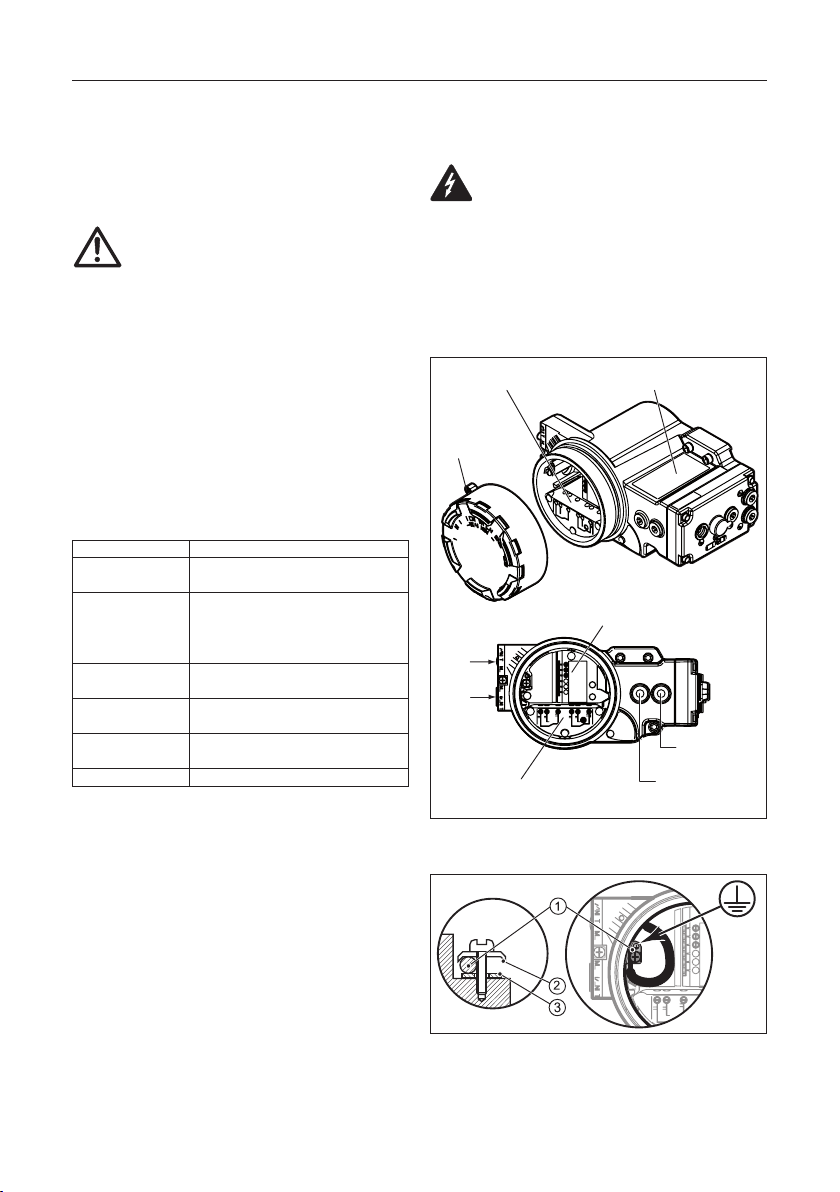

Fig. 4.1 Terminal connections behind cover.
Fig. 4.2 Earth wire connection
Lockable
Module cover
Option: Additional
manual control for
“Fail in Last Position”
Electrical entries:
3/4”NPT
or M20
1/2”NPT
or M20
Caution! :
Risk of electric shock
* Installation, adjustment, putting into service,
use, assembly, disassembly and maintenance
of the control module is strictly reserved to
qualied personnel.
* Do not attempt to install or repair any electric
device without shutting off incoming power.

6
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
0.5W
Fig. 4.3 Default Pilot valve wiring connections
4.1 Connecting Pilot valve(s)
The Control Module can be equipped with one or
two pilot valves:
* One pilot valve is default and suitable for normal
operation of double acting or spring return
actuators
* Two pilot valves are required for Fail in Last
Position for double acting actuators.
IMPORTANT
For hazardous area installations see instructions in
Chapter 11.
1. Before connecting the pilot valve, check the
voltage on the control module label.
2 Remove control module cover (see figure 4.1).
3 Guide the cable(s) through the electrical
entry(ies).
- Use and mount cable glands as required by
national or local legislation.
4 For normal operation, make the electrical
connections as shown in figure 4.3.
For double acting actuators with Fail in
Last Position function, make the electrical
connections as shown in figure 4.4
5 Mount the control module cover to the housing
(see figure 4.1) or continue with chapter 5. Take
care that the cover seal is in place to comply to
dust and water tightness according to IP66 or
NEMA4X.
6 Lock the cover in position by turning the lock
screw in, until it blocks.
4.1.1 Tools
Table 4.1 Tool table
For terminals Screw driver 0.6 x 3.5
Cover lock screw Allen key nr 2
4.1.2 Typical functional ratings Pilot Valve
The pilot valve inside the Control Module sends the
actuator to its open or closed position.
IMPORTANT
The below mentioned typical functional ratings are
applicable for non-hazardous areas.
Cable range:
0.2 - 2.5mm2or
30-12AWG
0.5W
Cable range:
0.2 - 2.5mm2or
30-12AWG
Fig. 4.4 Pilot valve wiring connections for
Fail in Last Position
Table 4.2 Typical functional ratings Pilot Valve
Voltage Turn on V 16.4 ... 28
Turn off V 5.7
Current Turn on mA 25mA±10%
Turn off mA 7
Coil Resistance = 563 (Ta+ 234 + 10)
254

7
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
4.2 Connecting Mechanical Feedback switches
IMPORTANT
The below mentioned typical switch specifications
are applicable for non-hazardous areas.
1. Before connecting the switches, check the
model code on the Control Module label.
QCXX.xxxMxx = Mechanical switches
QCXX.xxxGxx = Mechanical switches
(gold plated)
2 Guide the cable(s) through the electrical
entry(ies).
- Use and mount cable glands as required by
national or local legislation.
3. Make connections as shown in figure 4.6 and
table 4.3/4.4
4. Mount the Control Module cover. Take care that
the cover seal is in place to comply to dust and
water tightness according to IP66 or NEMA4X.
IMPORTANT
For hazardous area installations see instructions in
Chapter 11.
Table 4.3 Mechanical switches
Option code M
Option code G (gold contacts)
Type Mechanical
Voltage M: 277 VAC or 250VDC (maximum)
G: 125 VAC or 30VDC (maximum)
Contacts NO and NC
Temperature See table 4.1
Notes:
1. The mechanical (M-type) switches are rated for
3 A with inductive load.
2 The mechanical (G-type) switches have gold
contacts. For applications where the benefits
of gold contacts are required, the maximum
current is 0.1 A.
Wiring diagram:
- M = Mechanical
- G = Mechanical, gold contacts
Cable range : 0.2 - 2.5mm2or 30-12AWG
1 Wiring diagram shown, is applicable for actuators with
assembly code “CW”. For actuators with assembly code “CC”
(reverse acting) the “Open” and “Closed” switch connections
are also reversed.
2 Wiring diagram is shown in the actuators mid-stroke position.

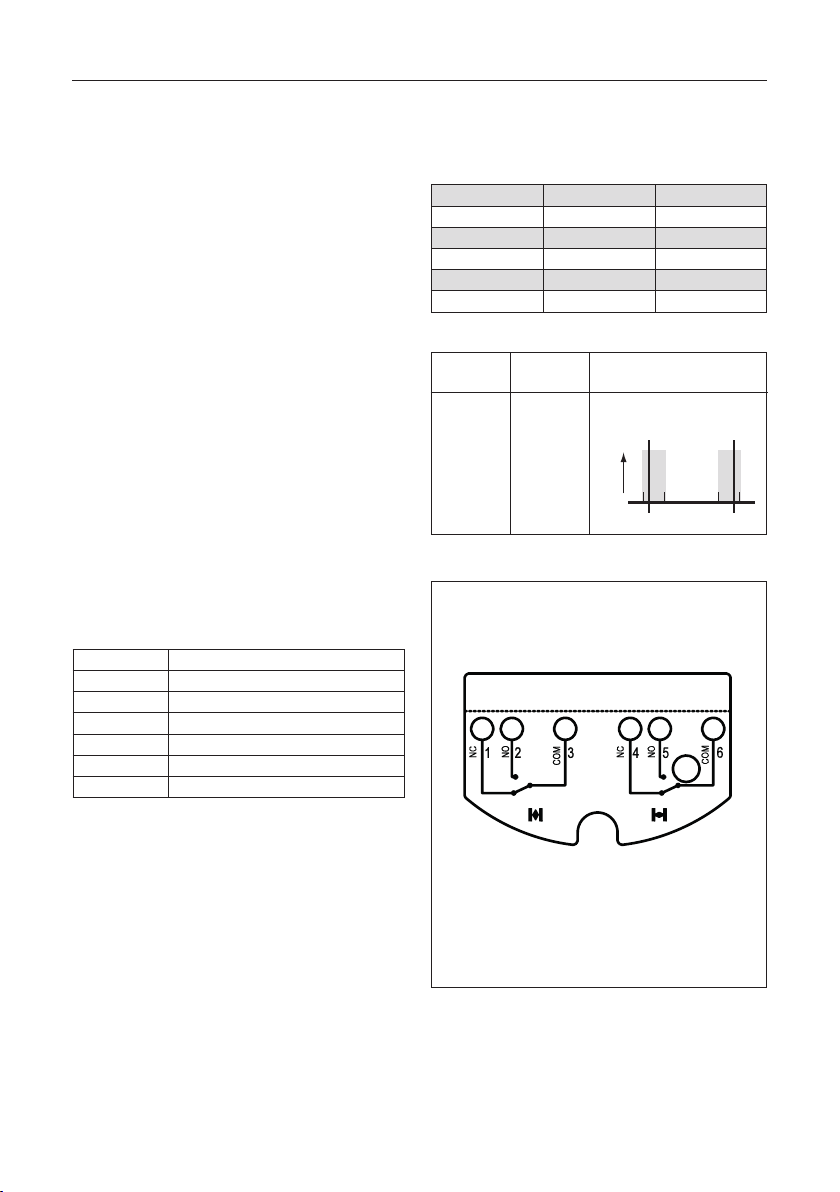

Fig 4.6 Wiring diagram mechanical switches
Fig 4.5 Adjustable switch range and factory settings
-3° 15° 75° 93°
0° 90°
Contact Switch signal and adjustable
switch range
Close
switch
Open
Switch
Rotation
Switched
Unswitched
Switch
operation
Normally
Open
Contacts
Signal
Open Close
Table 4.4 Maximum currents mechanical switches
Switch voltage M type switch G type switch
125 VAC 10 A (3 A1) 0.1 A 2
250 VAC 10 A (3 A1) -
30 VDC 0.5 A 0.1 A 2
125 VDC 0.5 A -
250 VDC 0.25 A -

8
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
4.3 Connecting 2-Wire proximity switches
IMPORTANT
The below mentioned typical switch specifications
are applicable for non-hazardous areas.
1. Before connecting the switches, check the
model code on the Control Module label.
QCXX.xxxNxx = 2-Wire NAMUR proximity
2 Guide the cable(s) through the electrical
entry(ies).
- Use and mount cable glands as required by
national or local legislation.
3. Make connections as shown in figure 4.9 and
table 4.5.
4. Mount the Control Module cover. Take care that
the cover seal is in place to comply to dust and
water tightness according to IP66 or NEMA4X.
-3° 15° 75° 93°
0° 90°
3mA
1mA
-3° 15° 75° 93°
0° 90°
3mA
1mA
≥ 3mA
≤ 1 mA
≥ 3mA
≤ 1 mA
-3° 15° 75° 93°
0° 90°
3mA
1mA
-3° 15° 75° 93°
0° 90°
3mA
1mA
≥ 3mA
≤ 1 mA
≥ 3mA
≤ 1 mA
Switch
operation
Open Switch
Unswitched
Switched
Rotation
Close Switch
Unswitched
Switched
Rotation

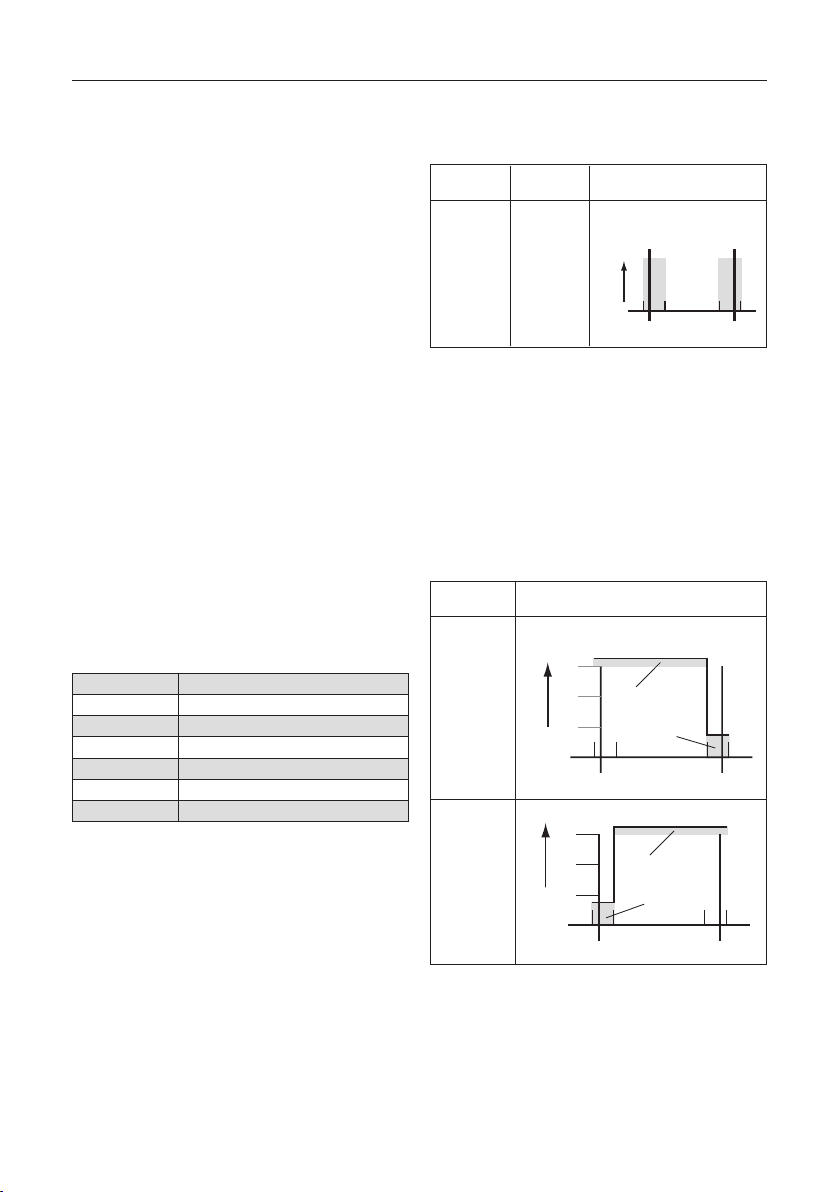

Fig 4.8 Switch characteristics 2-wire NAMUR
proximity switch
Fig 4.7 Switch characteristics 2-wire 230VAC
proximity switch
Switch signal and adjustable switch range
2-wire NAMUR proximity switch
-3° 15° 75° 93°
0° 90°
Switch Switch signal and adjustable
switch range
Close
switch
Open
Switch
Rotation
Switched
Unswitched
Switch
operation
2-Wire 115V
proximity
switch
Signal
IMPORTANT
For hazardous area installations see instructions in
paragraph Chapter 11.
Table 4.5 2-Wire NAMUR proximity switches
Option code N
Type 2-wire inductive, normally closed
Voltage 8 VDC nominal
Output Unswitched: > 3mA
Switched: < 1mA
Temperature See table 4.1
Compliant to DIN EN 60947-5-6 (NAMUR)

9
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
L- L+ 3
2
16
5
4
2
1
2
1
L- L+
Open
Wiring diagram:
- 2-Wire NAMUR proximity switches
Fig 4.9 Wiring diagram 2-Wire proximity switches.
Close
Cable range : 0.2 - 2.5mm2or 30-12AWG
1 Wiring diagram shown, is applicable for actuators with assembly
code “CW”. For actuators with assembly code “CC” (reverse
acting) the “Open” and “Closed” switch connections are also
reversed.

10
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
15° max
15° max
Open
5 Limit switch setting
Fig. 5.1 Adjustable range and factory settings
If required the mechanical stroke and the limit
switch setting can be re-adjusted.
- For mechanical stroke adjustment please see
document DOC.IOM.Q.E, available from
www.emersonprocess.com/bettis
- For re-adjusting the limit switches, see
procedure below.
5.2 Before re-adjusting the limit switches.
IMPORTANT
* Before mounting the actuator on the valve, be
sure that both the actuator and the valve have
the same “open” or “closed” position.
* Set the Mechanical stroke before setting the
limit switches.
5.2.1 Pneumatic and electrical connections
Make pneumatic and electrical connections before
adjusting the limit switch setting. See chapter 3
and 4.
5.1 Factory settings
Mechanical stroke : 90°±0.5° (Actuator setting)
Switch points : ± 15° before each end of
stroke (open and closed
position, see fig 5.1).
Adjustable range : See chapter 4.2 for the
applicable switch type.
5.2.2 Switch point setting and valve rotation
direction.
The QC44 is equipped with non-intrusive switch
adjustment. The adjustment screws are accessible
behind a small shield in the front of the module
(see fig 5.3).
This means that the switch adjustment can be done
without opening the module.
Normally valves are “Closed” after a clock wise
rotation.
- In this case the top adjustment screw (see
fig. 5.3), sets the switch point of the “Closed”
position and bottom adjustment screw sets the
switch point of the “Open” position.
- When you have a valve that is “Open” after a
clock wise rotation, the position feedback will be
reversed.
The table below indicates which re-adjustment
screw and terminals are related to the “Open” or
“Closed” switch point setting (see fig 16).
Table 5.1 Re-adjustment screws
Re-
adjust-
ment
screw :
Terminals
Valve movement
“Close” after
a clock wise
rotation
“Open” after
a clock wise
rotation
Bottom 1, 2, & 3 Open position Close position
Top 4, 5, & 6 Close position Open position
Switch points
Closed
Factory settings

11
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
D
O
N
O
T
O
P
E
N
W
H
E
N
E
N
E
R
G
I
Z
E
D
-
W
A
R
N
I
N
G
!
-
1
2
3
4
9
10
11
12
9
10
5
6
7
8
15
5.2.3 Working principles Switch Operating
Mechanism (see g 5.2)
The Switch Operating Mechanism is intend to
operate the position feedback switches and allows
adjustment of the switch points in the open and
closed end positions. Factory setting is that the
switches are activated 15° before the end of the
open and closed stroke.
Switch Operation
The rotation of the actuators pinion operates the
IPT device (1) which results in a linear movement.
The linear movement of the IPT device operates
lever (3). The lever amplifies the linear movement
of the IPT device and operates the switch operating
rod (5). Dowel pin (6) in the rod operated the levers
of the open and closed switch elements (8 & 9).
The lever is of the “floating” type. When the IPT
device operates the lever, it moves completely
upwards until it meets the upper pivot block (4). At
this point the lever will tip over and pull down the
switch operating rod (5) and operates the
bottom switch (7). When the IPT device moves back
the springs cause the lever to move completely
downwards until it meets the lower pivot block
(2). At this point the lever will tip over and push up
the switch operating rod (5) and operates the top
switch (8).
Fig. 5.2 Working principles Switch Operating Mechanism
Switch point adjustment
The position of the lower pivot block (2) can be
changed by adjustment screw (10) and the position
of the upper pivot block (4) can be changed by
adjustment screw (9).
By adjusting the position of these pivot blocks the
switch points will be changed.
The adjustment screws (9 & 10) can be found
behind the shield (12) in front of the module. To
access the adjustment screws loosen the screw (11)
and rotate the shield (12) as shown.
Caution: Do not force the
adjustment screws when
resistance is felt.
During adjustment there are three situations
that can damage the adjustment screw head and
internal mechanisms when forcing the adjustment
screws.
1. Pivot block (2) will be blocked at bottom if screw
(10) is rotated too much counter clock wise.
2. Pivot block (3) will be blocked at top if screw (9)
is rotated too much clock wise.
3. Pivot blocks (2&3) will interfere with each other,
if the adjustment screws (9&10) are rotated too
much in the direction according to their related
arrows.
Situation 1 and 2 may happen in combination with
situation 3.

12
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
5.3 Re-adjustment of switch points
IMPORTANT
The procedure below assumes:
- That the actuator and control modules are
according the factory settings.
If the switch setting is somehow lost or
forgotten, then consult paragraph 6.3 to
set the switch point setting back to factory
setting.
- That the actuator / valve assembly is closed
after a clock wise rotation (see chapter 5.2).
Below procedure assures that the position feedback
complies more accurately with the valve position
and will set the switch point at approximately
4° before the end of the stroke.
To set and detect the switch point, use a multi
meter, connected to the switch terminals, to
measure
a resistance change as applicable per switch type
(see applicable wiring diagram in chapter 4.2). For
the proximity switches, you can use a proximity
switch tester.

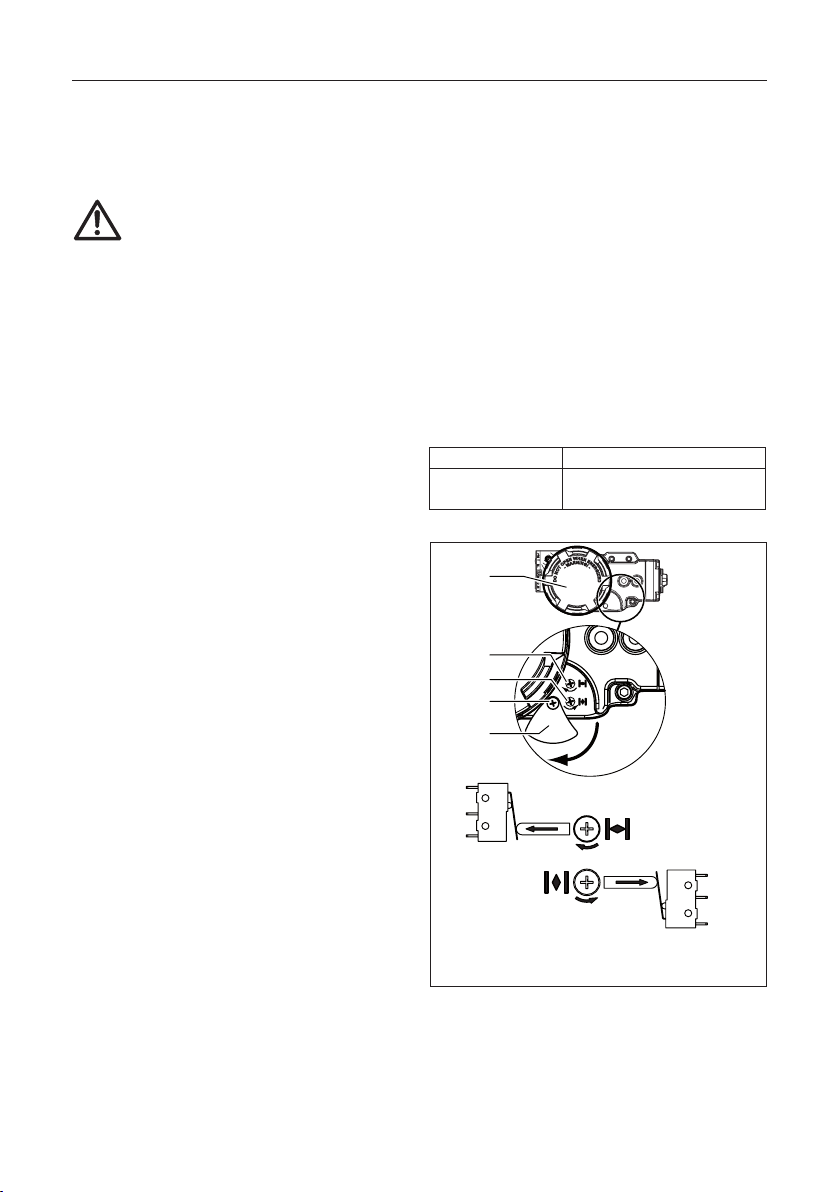

Procedure (see g 5.3):
1. Remove cover (15) and loosen the screw (11) of
the shield (12) and turn the shield down.
Closed Position:
2. Move the actuator/valve assembly to the closed
position by removing the control signal from
pilot valve terminal 8 and 9 (see § 4.1).
3. Turn top screw (10) counter clock wise (do not
force the adjustment screw) until the switch
trips to the “off state” (no signal).
4. Turn top screw (10) clock wise (do not force the
adjustment screw) until the switch trips to the
“on state”. This position represents the actual,
mechanical “closed” position of the valve.
5. Turn the screw minimal a 1/2 turn clock wise.
The “closed” position switch point is now set.
Open Position:
6. Move the actuator to the open position by
applying the applicable voltage to pilot valve
terminal 8 and 9 (see § 4.1).
7. Turn bottom screw (9) clock wise (do not force
the adjustment screw) until the switch trips to
the “off state” (no signal).
8. Turn bottom screw (9) counter clock wise (do
not force the adjustment screw) until the
switch trips to the “on state”. This position rep-
resents the actual “open” position of the valve.
9. Turn the screw minimal a 1/2 turn counter clock
wise. The “open” position switch point is now
set.
10.Turn the shield (12) back over the adjustment
screws and fasten it with the screw (11) and
mount the main round cover back in place.
Table 5.2 Tool table
Shield screw Cross slotted Phillips nr. PH2
Adjustment screws 0.6 x 3.5 or
Cross slotted Phillips nr. PH2
D
O
N
O
T
O
P
E
N
W
H
E
N
E
N
E
R
G
I
Z
E
D
-
W
A
R
N
I
N
G
!
-
11
12
9
10
15
“Closed”
Switch point adjustment
“Open”
Switch point adjustment
Note:
360° rotation of adjustment screw is
±8° adjustment of switch point.
Fig. 5.3 Re-adjustment screws for “Open” and
“Closed” position feedback

13
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
6 Trouble shooting
6.1 The “Open” and “Closed” position
feedback signals are reversed from the
actual valve positions.
1 Check if the actuator is correctly mounted to the
valve.
Before mounting the actuator on the valve, the
actuator and the valve should have the same
“open” or ‘closed” position (see Installation
& Operation Manual Bettis Q-Series Valve
Actuator DOC.IOM.Q.E).
2 Some valves may be operated in such a way that
they are:
- “Open” after a clock wise rotation and
- “Closed” after a clock wise rotation.
3 Please see § 5.2 for setting the “Open” and
“Closed” position feedback signals
6.2 The actuator does not give (good) position
feedback signals.
1 Check if the actuator is correctly mounted to the
valve.
2 Re-adjust the limit switch setting as per chapter
5.3
6.3 Factory setting of the switch points.
IMPORTANT
The procedure below assumes:
- That the actuator / valve assembly is closed
after a clock wise rotation (see also § 5.1).
- The control module is pneumatically and
electrically connected according chapter 3 and 4.
This procedure sets the switch point settings of the
switches, back to the factory settings (±15° before
each end of stroke), assuming a mechanical stroke
of 90°±0.5° of the actuator.
To set and detect the switch point, use a multi me-
ter, connected to the switch terminals, to measure a
resistance change as applicable per switch type (see
applicable wiring diagram in chapter 4.2).
For the proximity switches, you can use a proximity
switch tester.
5.4 Check operation
5.4.1 Default (single) pilot valve
1 Connect pressure according chapter 3 and a
control signal to terminals (7) 8 and 9 according
§ 4.1 figure 4.3.
2 Actuator moves to “Open” position. “Open”
limit switch is activated and “Close” limit switch
is deactivated.
3 Remove voltage from terminals 9 and 8.
4 Actuator moves to “Close” position. “Close”
limit switch is activated and “Open” limit switch
is deactivated.
6 Mount the cover to the Control Module
(see fig. 4.1).
5.4.2 Dual pilot valve (Fail in Last Position)
operation
1. Connect pressure according chapter 3 and a
control signal to terminals (7) 8 and 9 according
§ 4.1 figure 4.4.
2. Actuator moves to “Open” position. “Open”
limit switch is activated and “Close” limit switch
is deactivated.
3. Remove voltage from terminals 9 and 8.
4. Actuator Stays in the “Open” position.
5. Connect pressure according chapter 3 and
a control signal to terminals (10) 11 and 12
according § 4.1 figure 4.4.
6. Actuator moves to “Closed” position. “Close”
limit switch is activated and “Open” limit switch
is deactivated.
7. Remove voltage from terminals 9 and 8.
8. Actuator Stays in the “Closed” position.
9. Mount the cover to the Control Module
(see fig. 4.1).

14
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
45°
Fig. 8.1 Local Manual Control options
Location for 2nd
Manual Control
Procedure (see g 5.3):
1. Remove cover (15) and loosen the screw (11) of
the shield (12) and turn the shield down.
Closed Position:
2. Move the actuator/valve assembly to the closed
position by removing the control signal from
terminal 8 and 9 (see § 4.1).
3. Turn top screw (10) counter clock wise
maximum 20 turns, (do not force the
adjustment screw) until the switch trips to the
“off state” (no signal).
4. Turn top screw (10) clock wise 1 3/4 turn
(do not force the adjustment screw).
The “closed” position switch point is now set to
factory setting.
Open Position:
5. Move the actuator to the open position by ap-
plying the applicable voltage to terminal 8 and 9
(see § 4.1).
6. Turn bottom screw (9) clock wise maximum 20
turns, (do not force the adjustment screw)
until the switch trips to the “on state” (no signal).
7. Turn bottom screw (9) counter clock wise 1 3/4
turn (do not force the adjustment screw)
The “open” position switch point is now set to
factory setting.
8. Turn the shield (12) back over the adjustment
screws and fasten it with the screw (11) and
mount cover (15) back in place.
Important: Do not force the adjustment
screws
During switch point adjustment, do not force the
adjustment screws when you feel an obstruction.
Forcing the adjustment screws can damage the
cross head of the adjustment screw. For commissioning, emergency or maintenance
purposes, the Bettis Q-Series can be supplied with
one or two Manual Control options. These can
operate the pilot valve(s) inside the module and
as such operate the actuator, when there is air
pressure available, but no control signal or power
supply.
8.1.1 Mounting Manual Control
1 To add a Manual Control, remove the plug(s)
in front of the module and turn in the Manual
Control.
- For normal operation the module should be
fitted with one Manual Control.
- For Double Acting with a Fail-in-Last-Position
function, two Manual Control can be fitted.
Default location
of Manual Control
7 Maintenance
The Bettis Q-Series Control Modules are designed
to operate without maintenance. For any further
maintenance to the actuator see Installation &
Operation Manual Bettis Q-Series Valve Actuator,
DOC.IOM.Q.E or contact your local Bettis Q-Series
representative.
Installation, adjustment, putting into service, use,
assembly, disassembly, maintenance and repair
of the Control Module must be done by qualified
personnel.
Note:
This product is only intended for use in large-scale
fixed installations excluded from the scope of
Directive 2011/65/EU on the restriction of the use
of certain hazardous substances in electrical and
electronic equipment (RoHS 2).
8 Optional Controls
8.1Manual Control options
(see figure 8.1)
Lock
Unlock
On
Off

15
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
21
Spring Return:
Top entry only.
Double Acting:
Bottom and/or top
entries.
Fig. 8.2 Speed control operation
the speed of the “Opening” and “Closing” stroke
simultaneously.
8.2.1 Mounting Speed Control throttle(s):
1 Remove the plug(s) at the side of the module
and turn in the throttle (1).
2 Spring Return actuators: Use the top entry only.
3 Double acting actuators: Use both bottom and
top entries.
- For standard actuators, the top entry will
throttle the closing stroke.
- For standard actuators, the bottom entry will
throttle the opening stroke.
- For reverse acting actuators, the opposite
strokes will be throttled.
8.2.2 Adjusting Speed Control throttle(s):
1 Remove the nut cap (2).
2 Clockwise rotation of the adjustment screw
reduces the speed.
3 Counter clockwise rotation of the adjustment
screw increases the speed.
4 Replace the nut cap.
9 Related Information
Other documents containing information related to
the Bettis Q-Series Module include:
- Q1.604.10 Bettis Q-Series Control Module
data sheets
- DOC.IOM.Q.E Installation Operation &
Maintenance Manual.
These documents are available, in multiple
languages, for download from
www.emerson.com/bettis
8.1.2 Manual Control operation
1 The Manual Control has a “Push & Lock”
function:
- To operate the Manual Control, use a screw
driver, push to activate and release to de-
activate the pilot valves.
- If required turn it 45°, to lock it in position
and keep the actuator in its operated state.
2 In case of a Fail in Last Position configuration
with two manual controls:
- The manual control on the right side (default
location) will pressurize the central air
chamber and cause the actuator to rotate
counter clock wise. For reverse acting Bettis
Q-Series actuators (Assembly code CC) the
actuator will rotate clock wise.
- The manual control on the left side (Location
for 2nd Manual Control) will pressurize the
end cap air chambers and cause the actuator
to rotate clock wise.
For reverse acting Bettis Q-Series actuators
(Assembly code CC) the actuator will rotate
counter clock wise.
- In order to operate one of the manual
control, be sure the opposite manual control
is de-activated and unlocked.
3 It is possible to rotate the screw multiple cycles.
The unit will than toggle every 90° between
“locked” (1) and “unlocked” (0).
8.2 Speed control option
(see figure 8.2).
The Bettis Q-Series can be supplied with a Speed
Control option. One throttle is required for Spring
Return actuators and up to two for Double Acting
actuators.
The speed control throttle controls the air flow
in and out of an air chamber and as such limits

16
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
11 Intrinsically Safe Electrical connections
11.1.1 ATEX Intended use
The Control Module QC44.xP1Nxx1 of the Bettis
Q-Series pneumatic actuator is Group II category 1
equipment and intended for use in areas in which
explosive atmospheres caused by mixtures of air
and gases, vapours, mists or by air/dusts are likely
to occur.
The pneumatic actuator part, together with the
pneumatic Module part of the Bettis Q-Series pneu-
matic actuators is a Group II category 2 equipment
and intended for use in areas in which explosive
atmospheres caused by mixtures of air and gases,
vapours, mists or by air/dusts are likely to occur.
Therefore it may be used in (ATEX) classified Zones
1, 2 (Gasses) and/or 21, 22 (Dust).
11.1.2 Special conditions for safe use
• The material for the Control Module housing is
an aluminum alloy. When the unit is used in a
potentionally explosive atmosphere, requiring
ATEX equipment category 1 G, the unit must be
installed in such a way, that even in the event of
rare incidents, an ignition source due to impact
or friction between the enclosure and iron/steel
is prevented.
• Only non-combustible fluids may be used in the
pneumatic circuit.
Note: the surface temperature of the module has
been determined without a dust layer.
• Potential electrostatic charging hazard, clean
only with a damp cloth - danger of propagating
discharge.
• The apparatus shall be installed in such a way
that the risk from electrostatic discharges and
propagating brush discharges caused by rapid
flow of dust is avoided.
• Precaution shall be taken to avoid danger of
ignition due to electrostatic charges on the
marking plate of the enclosure.
Table 11.2 QC44 Intrinsically Safe Entity
Parameters
Circuit Terminal Ui Ii Pi Ci Li
Pilot
valve 8 - 9 28Vdc 300mA 1.6W 0 0
Feedback switches 1 & 2
Type 1 1 – 2, 4 - 5 16Vdc 25mA 34mW 150nF 150uH
Type 2 1 – 2, 4 - 5 16Vdc 25mA 64mW 150nF 150uH
Type 3 1 – 2, 4 - 5 16Vdc 52mA 169mW 150nF 150uH
11.1 Product QC44.xP1Nxx1
This section is about intrinsically safe connections
for the QC44 control module with the N-type
switches.
Control Module
Cover
Terminals
Fig 11.1 Product marking
ATEX Hazardous or Classied Location
0344 Certificate: Pending
II 1 G Ex iaT*
II 1 G Ex tD A20 T80°C IP65
Hazardous or Classied Location
Intrinsically safe, Class I, II, III, Division 1,
Groups ABCDEFG T*, Type 4X
Ex ia IIC, T*, IP65
DIP A20 TA 80°C
Certificate: Pending
Temperature range T*:
Table 11.1 Temperature class
Connection T ambient at T class:
T6 (°C) T5 (°C) T4 – T1 (°C)
Type 1 40 60 60
Type 2 33 53 60
Type 3 12 32 49
Note:
The Connection Type refers to the entity parameters of the IS barriers
used for connection of the switches, See Table 11.2.
For double-acting Fail in Last Position, Only T4 to T1 are applicable with
Maximum Ambient Temperature = 50˚C.
Type Label

17
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
11.1.4 Wiring instructions QCQC44.xP1Nxx1
Intrinsically safe Control Module with the N-type
switches.
Unclassified or Non
Hazardous Location
Hazardous or
Classified Location
Terminal connections
Table 11.3
Notes: CSA ATEX
1Installation must be inaccordance
with:
Canadian Electrical Code,
Part1
The national wiring practices of the country
of use
2 Before operation: The control module in combination with the pneumatic module must be mounted
properly on the actuator.
3Barriers:
Must be CSA approved and installed in an
enclosure that meets the requirements of
CEC part1. Must be certified by an European Notified
body and installed per manufacturer’s
installation instructions.
Control equipment connected to the bar-
rier must not use or generate more than
250Vrms or Vdc.
4 Intrinsically safe equipement Must be CSA Approved Must be ATEX Approved
5Barrier I.S. Entity Parameters must
meet the following conditions:
Uo =< Ui Io =< Ii Po =< Pi
Co >= Ci + C cable Lo >= Li + L cable
6 When multiple barriers are used: * Each I.S. Circuit must use shielded, twisted pairs
* Cable insulation and shielding must extend to within paritioned area of terminals
7
8
9
10
11
12
L- L+ 3
2
16
5
4
2
1
2
1
L- L+
-
+
-
+
-+-+
Hazardous or
Classified Location
Unclassified or Non
Hazardous Location
Solenoid 1
Solenoid 2*
* Solenoid 2 only available with
Fail in Last Position function
IS Approved Barrier
IS Approved Barrier
IS Approved
Barrier
IS Approved
Barrier
Cable range:
Solid / Stranded wire: 0.2-2.5mm2 or 30-12 AWG
Note:
* Use intrinsically safe approved barrier with signal levels according
EN60947-5-6 (NAMUR)
The barrier needs to limit the switch energy to the max. specified
values in table 11.2.
Switch 1 Switch 2
11.1.3 Dielectric strength
Control Module QC44 complies to the dielectric
strength requirement according IEC- 60079-11

18
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
The pneumatic actuator part, together with the
pneumatic Module part of the Bettis Q-Series pneu-
matic actuators is a Group II category 2 equipment
and intended for use in areas in which explosive
atmospheres caused by mixtures of air and gases,
vapours, mists or by air/dusts are likely to occur.
Therefore it may be used in (ATEX) classified Zones
1, 2 (Gasses) and/or 21, 22 (Dust).
11.2.2 Special conditions for safe use
• The material for the Control Module housing is
an aluminum alloy. When the unit is used in a
potentionally explosive atmosphere, requiring
ATEX equipment category 1 G, the unit must be
installed in such a way, that even in the event of
rare incidents, an ignition source due to impact
or friction between the enclosure and iron/steel
is prevented.
• Only non-combustible fluids may be used in the
pneumatic circuit.
Note: the surface temperature of the module has
been determined without a dust layer.
• Potential electrostatic charging hazard, clean
only with a damp cloth - danger of propagating
discharge.
• The apparatus shall be installed in such a way
that the risk from electrostatic discharges and
propagating brush discharges caused by rapid
flow of dust is avoided.
• Precaution shall be taken to avoid danger of
ignition due to electrostatic charges on the
marking plate of the enclosure.
Table 11.4 QC44 Intrinsically Safe Entity
Parameters
Circuit Terminal Ui Ii Pi Ci Li
Pilot
valve 8 - 9 28Vdc 300mA 1.6W 0 0
Feedback switches 1 & 2
M-
type
1 - 2 - 3,
4 - 5 - 6 30Vdc 300mA 1.2W 0 0
G-type 1 - 2 - 3,
4 - 5 - 6
30Vdc 100mA 1.2W 0 0
11.2.3 Dielectric strength
Control Module QC44 complies to the dielectric
strength requirement according IEC- 60079-11.
11.2 Product QC44.xP1*xx1
This section is about intrinsically safe connections
for the QC44 control module with the switch types
M and G where * is M or G

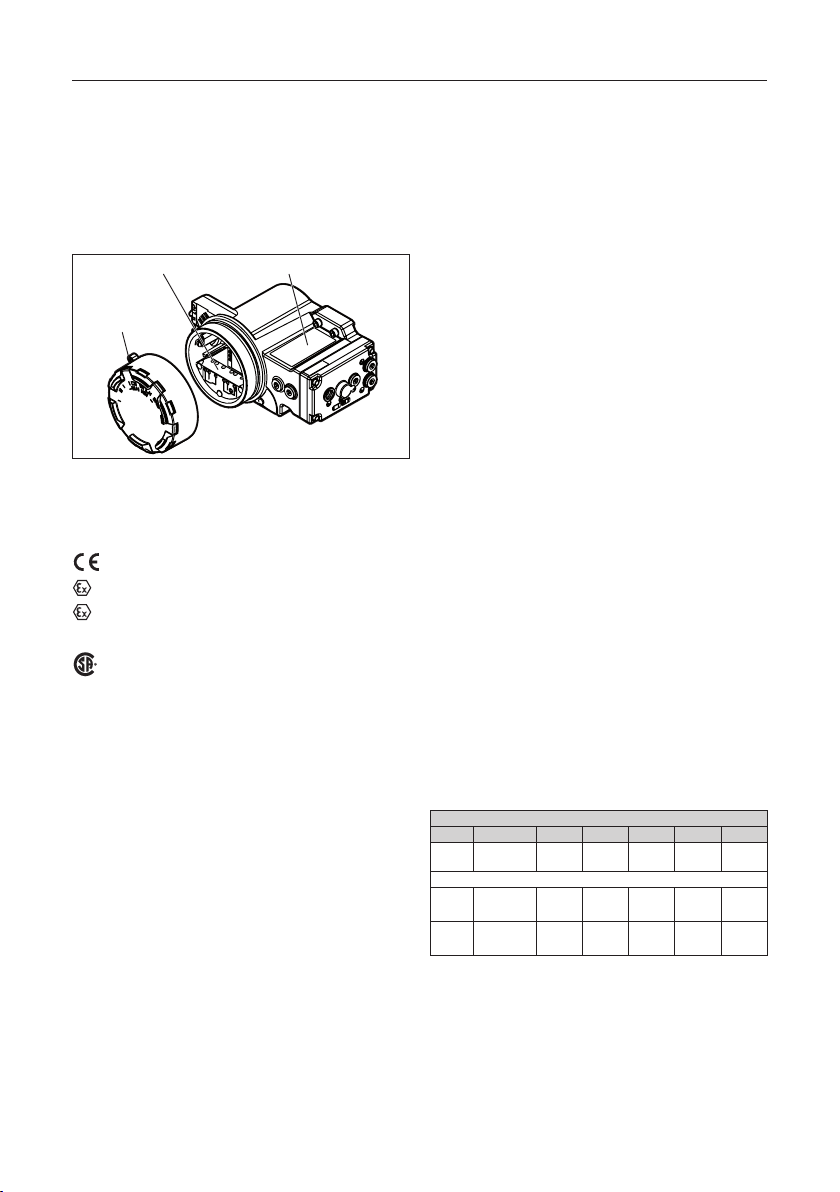

Fig 11.2 Product marking
ATEX Hazardous or Classied Location
0344 Certificate: Pending
II 1 G Ex ia IIC T4...T6
II 1 D Ex tD A20 T80°C
Hazardous or Classied Location
Intrinsically safe, Class I, II, III, Div. 1,
Groups ABCDEFG T4...T6, Type 4X
Ex ia IIC, T6, IP65
DIP A20 TA 80°C
Certificate: Pending
Temperature range :
T4...T6 @ Ta = -20°C...+50°C (-4°F...122°F)
11.2.1 ATEX Intended use
The Control Module QC44.xP1*xx1 of the Bettis
Q-Series pneumatic actuator is Group II category 1
equipment and intended for use in areas in which
explosive atmospheres caused by mixtures of air
and gases, vapours, mists or by air/dusts are likely
to occur.
Control Module
Cover
Terminals Type Label

19
Installation Guide Bettis Q-Series
DOC.IG.BQC44.1 Rev. 1 February 2017
11.2.4 Wiring instructions QC44.xP1Nxx1
Intrinsically safe Control Module with the switch
types M and G where * is M or G
Table 11.5
Notes: CSA ATEX
1Installation must be inaccordance
with:
Canadian Electrical Code,
Part1
The national wiring practices of the
country of use
2 Before operation: The control module in combination with the pneumatic module must be mounted
properly on the actuator.
3Barriers:
Must be CSA approved and installed in an enclo-
sure that meets the requirements of CEC part1. Must be certified by an European Noti-
fied body and installed per manufac-
turer’s installation instructions.
Control equipment connected to the barrier
must not use or generate more than 250Vrms
or Vdc.
4 Intrinsically safe equipement Must be CSA Approved Must be ATEX Approved
5Barrier I.S. Entity Parameters must
meet the following conditions:
Uo =< Ui Io =< Ii Po =< Pi
Co >= Ci + C cable Lo >= Li + L cable
6 When multiple barriers are used: * Each I.S. Circuit must use shielded, twisted pairs
* Cable insulation and shielding must extend to within paritioned area of terminals
7
8
9
10
11
12
3
2
16
5
4
-
+
-
+
-+-+
Unclassified or Non
Hazardous Location
Hazardous or
Classified Location
Hazardous or
Classified Location
Unclassified or Non
Hazardous Location
Terminal connections
Solenoid 1
Solenoid 2*
* Solenoid 2 only available with
Fail in Last Position function
IS Approved Barrier
IS Approved Barrier
IS Approved
Barrier
IS Approved
Barrier
Switch 1 Switch 2
Cable range:
Solid / Stranded wire: 0.2-2.5mm2 or 30-12 AWG

20
Bettis Q-Series Installation Guide
February 2017 DOC.IG.BQC44.1 Rev. 1
ROC nr 8480
Rev. 0
_____________________________
S. Ooi
Vice President, Rack & Pinion SBU
& Global Marcom
Emerson Process Management,
Valve Automation Group
2015-12-08
Houston TX, U.S.A.
Legal representative entity for the European Union:
Emerson Process Management, Valve Automation
Asveldweg 11, 7556 BR Hengelo Netherlands
ECDECLARATIONOFCONFORMITY
Issued in accordance with the
EMC Directive2004/108/EC,Appendix1
ATEX Directive 94/9/EC
above mentioned European Directives.
Before the Control Module is put into operation, the machine into or onto which the Control Module will be
installed, must comply with the stipulations of the machinery directive.
Product description : Bettis Q-Series Control module QC44
Serial number :
Year of Construction :
ATEXDIRECTIVE
Types : QC44...P1*xx1... (x = M, G, or N)
ATEX Certificate No. : Pending
Marking :II 1 G Ex ia IIC T4...T6 resp. II 1 D Ex tD A20 T80°C IP65
II 1 G Ex d+ib IIC T4...T6 resp. II 1 D Ex tD A20 T80°C IP65
Applicable standards : EN 60079-0 : 2006 EN 60079-11 : 2007 EN 60079-26 : 2007
EN 61241-0 : 2004 EN 61241-1 : 2004
Notified body :
Meander 1051, 6825 MJ Arnhem, The Netherlands
EMCDirective
Types : QC44...P1*xx1... (* = M, G, or N)
Applicable standards : IEC61326-1 :1998 NAMUR Recommendations : NE21
Note :
Directive 2006/95/EC
Signed:
Name:
Position:
Date:
Place:NL
10 EC - Declaration of Conformity
