Emerson Daniel 700 Series User manual

User manual
P/N 3-9008-553, Rev AO
November 2020
Daniel™ Model 700 Control Valve
NPS 2 through 16 / Class 150-600

Safety and approval information
This Daniel product complies with all applicable European directives when properly installed in accordance with the instructions in
this manual. Refer to the EU declaration of conformity for directives that apply to this product. The EU declaration of conformity,
with all applicable European directives, and the complete ATEX Installation Drawings and Instructions are available on the internet
at www.emerson.com or through your local Daniel support center.
Information affixed to equipment that complies with the Pressure Equipment Directive, can be found on the internet at http://
www.emerson.com.
For hazardous installations in Europe, refer to standard EN 60079-14 if national standards do not apply.
Other information
Full product specifications can be found in the product data sheet. Troubleshooting information can be found in the user manual.
Product data sheets and manuals are available from the Daniel web site at http://www.emerson.com.
Return policy
Follow Emerson procedures when returning equipment. These procedures ensure legal compliance with government
transportation agencies and help provide a safe working environment for Emerson employees. Emerson will not accept your
returned equipment if you fail to follow Emerson procedures. Return procedures and forms are available on our web support site
at www.emerson.com, or by phoning the Emerson Customer Service department.
Emerson Flow customer service
Email:
•Worldwide: [email protected]
•Asia-Pacific: [email protected]
Telephone:
North and South America Europe and Middle East Asia Pacific
United States 800-522-6277 U.K. 0870 240 1978 Australia 800 158 727
Canada [phone] The Netherlands [phone] New Zealand 099 128 804
Mexico [phone] France 0800 917 901 India 800 440 1468
Argentina [phone] Germany 0800 182 5347 Pakistan 888 550 2682
Brazil [phone] Italy 8008 77334 China [phone]
Central & Eastern [phone] Japan [phone]
Russia/CIS [phone] South Korea [phone]
Egypt 0800 000 0015 Singapore [phone]
Oman 800 70101 Thailand 001 800 441 6426
Qatar 431 0044 Malaysia 800 814 008
Kuwait 663 299 01
South Africa 800 991 390
Saudi Arabia 800 844 9564
UAE 800 0444 0684
2

Contents
Part I Plan
Chapter 1 Introduction.............................................................................................................. 7
1.1 Purpose of this manual................................................................................................................ 7
1.2 Hazard messages.........................................................................................................................7
1.3 Personnel qualifications...............................................................................................................7
1.4 Warranty restrictions................................................................................................................... 9
1.5 Assistance....................................................................................................................................9
1.6 Description of the Model 700 Control Valves............................................................................... 9
1.7 Agency certifications for control valves Model 700.................................................................... 18
Chapter 2 Operating conditions and specifications...................................................................19
2.1 Operating conditions for the control valve.................................................................................19
2.2 Specifications for the control valve............................................................................................ 23
Chapter 3 Control valve handling............................................................................................. 27
3.1 Receive the control valve........................................................................................................... 27
3.2 Store the control valve...............................................................................................................27
Chapter 4 Prepare the control valve for use.............................................................................. 29
4.1 Lifting conditions.......................................................................................................................29
4.2 Lifting requirements for personnel.............................................................................................30
4.3 Configure the control valve........................................................................................................32
Part II Install
Chapter 5 Installation prerequisites......................................................................................... 37
5.1 Pre-start checks......................................................................................................................... 37
Chapter 6 Installation procedure..............................................................................................39
6.1 External components assembly................................................................................................. 39
Chapter 7 Testing the product..................................................................................................41
7.1 Commission the control valve....................................................................................................41
Part III Operate
Chapter 8 Operation parameters..............................................................................................45
8.1 Control valve normal operation................................................................................................. 45
8.2 Operation accessories................................................................................................................45
8.3 Operation overview................................................................................................................... 45
User manual Contents
P/N 3-9008-553 November 2020
User manual 3

Part IV Maintain
Chapter 9 Planned maintenance...............................................................................................49
9.1 Maintenance considerations......................................................................................................49
9.2 Tools required for mechanical components............................................................................... 49
9.3 Disassemble/Assemble the control valve................................................................................... 49
9.4 Mechanical assembly................................................................................................................. 53
9.5 Planned maintenance tasks....................................................................................................... 62
Chapter 10 Corrective maintenance........................................................................................... 63
10.1 Control valve troubleshooting................................................................................................. 63
10.2 Verify the return to operational condition................................................................................64
Chapter 11 Spare parts...............................................................................................................65
11.1 Order spare parts.....................................................................................................................65
Chapter 12 Decommission......................................................................................................... 67
12.1 Shut down the control valve.................................................................................................... 67
12.2 Shipment of the control valve.................................................................................................. 67
Contents User manual
November 2020 P/N 3-9008-553
4 Daniel Series 700 Control Valve

Part I
Plan
User manual Plan
P/N 3-9008-553 November 2020
User manual 5

Plan User manual
November 2020 P/N 3-9008-553
6 Daniel Series 700 Control Valve

1 Introduction
1.1 Purpose of this manual
This manual provides guidance to owners and personnel in the installation, operation and
maintenance of the DanielTM Model 700 Control Valve manual, 3-9008-553. It is imperative
that product owners and operation personnel read and follow the information contained
in this manual to ensure that the control valve is installed correctly and is operating
according to the design certifications and safety considerations.
1.2 Hazard messages
This document uses the following criteria for hazard messages based on ANSI standards
Z535.6-2011 (R2017).
DANGER
Serious injury or death will occur if a hazardous situation is not avoided.
WARNING
Serious injury or death could occur if a hazardous situation is not avoided.
CAUTION
Minor or moderate injury will or could occur if a hazardous situation is not avoided.
NOTICE
Data loss, property damage, hardware damage, or software damage can occur if a
situation is not avoided. There is no credible risk of physical injury.
Physical access
NOTICE
Unauthorized personnel can potentially cause significant damage and/or misconfiguration
of end users' equipment. Protect against all intentional or unintentional unauthorized use.
Physical security is an important part of any security program and fundamental to
protecting your system. Restrict physical access to protect users' assets. This is true for all
systems used within the facility.
1.3 Personnel qualifications
Read and follow all instructions, dangers, warnings, and cautions to avoid personal injury
or property damage during system operation. Emerson is not responsible for damage or
injury resulting from unsafe use of products, lack of maintenance, incorrect installation of
equipment or system operation. If in doubt about any applications and safety precautions
described in this document, contact Emerson.
User manual Introduction
P/N 3-9008-553 November 2020
User manual 7

Inform and train all personnel in the proper installation, operation, and maintenance of
this product. To ensure safe and proper performance, only informed and trained personnel
should install, operate, repair and maintain this product. For further questions about
training requirements, contact your local Emerson representative.
Operations risk assessment must be used and followed in conjunction with this document
when performing all online retrieval operations.
Ensure that all end user and installation specific safety requirements are read, understood
and adhered to.
Ensure that any operator that is conducting work on the equipment, is following end user
guidelines on the use of protective equipment including, but not limited to:
•Safety helmet or hard hat
•Steel-toed shoes
•Safety glasses
•Working gloves (suitable for mechanical operations)
•Chemical resistant latex gloves or the equivalent
•Long-sleeved, fire-retardant shirt and fire-retardant trousers or full-length fire
retardant coveralls
Additional PPE may be required depending on facility requirements and MSDS
requirements, if applicable. Failure to comply may result in personnel injury.
WARNING
RISK TO PERSONNEL AND EQUIPMENT
Failure to follow the installation, operation or maintenance instructions for a Daniel
product could lead to serious injury or death from explosion or exposure to dangerous
substances. To reduce the risk:
•Comply with all information on the product, in this manual, and in any local and
national codes that apply to this product.
•Do not allow untrained personnel to work with this product.
•Use Daniel parts and work procedures specified in this manual.
NOTICE
Observe all precautionary signs posted on the equipment to avoid serious injury.
WARNING
RISK TO PERSONNEL AND EQUIPMENT
Operation of this product on pressurized lines may potentially imply operational risk for
personnel and equipment from the potential escape of hot gas or liquid, which could
result in serious injury.
Observe all precautionary signs on the equipment.
Introduction User manual
November 2020 P/N 3-9008-553
8 Daniel Series 700 Control Valve

WARNING
RISK TO PERSONNEL AND EQUIPMENT
The operation of the Daniel product involves heavy equipment handling. Observe the
following guidelines to avoid potentially serious injury:
•Be aware of your limitations and ask for assistance if needed.
•Do not attempt to lift weight beyond your capacity.
•Lift with your legs, not your back.
Note
Mechanical lifting tools may also be used in some locations to reduce risk.
NOTICE
Attending the training course for this product is not considered sufficient for operating the
tool on pressurized lines. Emerson requires a two-man crew with formal training.
Additionally, at least one of the operators must have a record of extensive field experience
and be certified for this work.
Emerson assumes no responsibility for incidents, or consequences of incidents, occurring
as a result of the use of this product by others than Emerson or its designated personnel,
and have no liability whatsoever for any such work.
Consult Emerson for more details on both training and certification.
1.4 Warranty restrictions
Visually inspect all components for shipping damage. If shipping damage is found, notify
the carrier at once. Shipping damage is not covered by the warranty. The carrier is
responsible for all repair and replacement costs resulting from shipment damage.
1.5 Assistance
The Emerson Global Service Center is organized through a network of service centers
worldwide, and supports all service requirements or technical queries. For the Product
Support Help Desk, go to: http://www.emerson.com or contact your nearest Emerson
service provider.
1.6 Description of the Model 700 Control Valves
1.6.1 General features of the control valve
The Daniel™ Model 700 Control Valve operates on a balanced piston principle, spring
biased (loaded) to the closed position.
The valve can be configured as a check valve to prevent reverse flow. It is possible, in some
applications, to reverse flow through the pilot control loop, but this can be eliminated by
installing a check valve in the X-port.
User manual Introduction
P/N 3-9008-553 November 2020
User manual 9

The Daniel Model 700 Control Valves have the following characteristics:
•Modular construction: All internal parts including seat ring can be removed with the
cylinder assembly without disturbing line connections.
•No diaphragms or stuffing boxes
•45° body design assures high capacity
•Positive shut-off
•Uniform speed-of-response
•Linear control
•O-ring plus metal-to-metal seat
•Pilots and other optional accessories enable the valve to perform a variety of control
functions such as back pressure control, regulating rate-of-flow, pressure relief, surge
control, etc.
1.6.2 Control valve applications
This is the starting point for unlimited control applications. The basic valve needs to
incorporate a pilot control loop, which is mandatory for it to function, see Daniel Liquid
Control Valves Technical Guide (P/N DAN-LIQ-TG-44) for specific applications.
1.6.3 Operation overview of the control valve
The basic valve operates on a balanced piston principle, spring biased (loaded). Refer to
Figure 1-1. The term balanced piston means that the exposed area on the spring side (P3)
of the piston and the bottom side (P1) are equal in area. The spring is the differential force
that closes the piston when (P1) and (P3) pressures are equal.
To open the valve, the pressure against the bottom of the piston (P1) must exceed the
pressure on the spring side of the piston (P3) plus spring force.
Closed position
Figure 1-1 illustrates the closed valve. Y-port (P3) to Z-port (P2) is closed. X-port (P1) and
Y-port (P3) pressures are balanced. The differential force created by the main valve spring,
closes the piston and keeps it seated.
Therefore, total pressure equals 40 psi @ (P1) and 45 psi @ (P3) or (P3 minus P1) - 5 psid.
The needle valve/strainer controls the speed of the closure by controlling the flow through
the X-port.
Introduction User manual
November 2020 P/N 3-9008-553
10 Daniel Series 700 Control Valve

Figure 1-1: Pilot in closed position
A. Needle valve / strainer
B. Manual pilot control
C. Inlet pressure
D. Outlet pressure
Fully open - No control

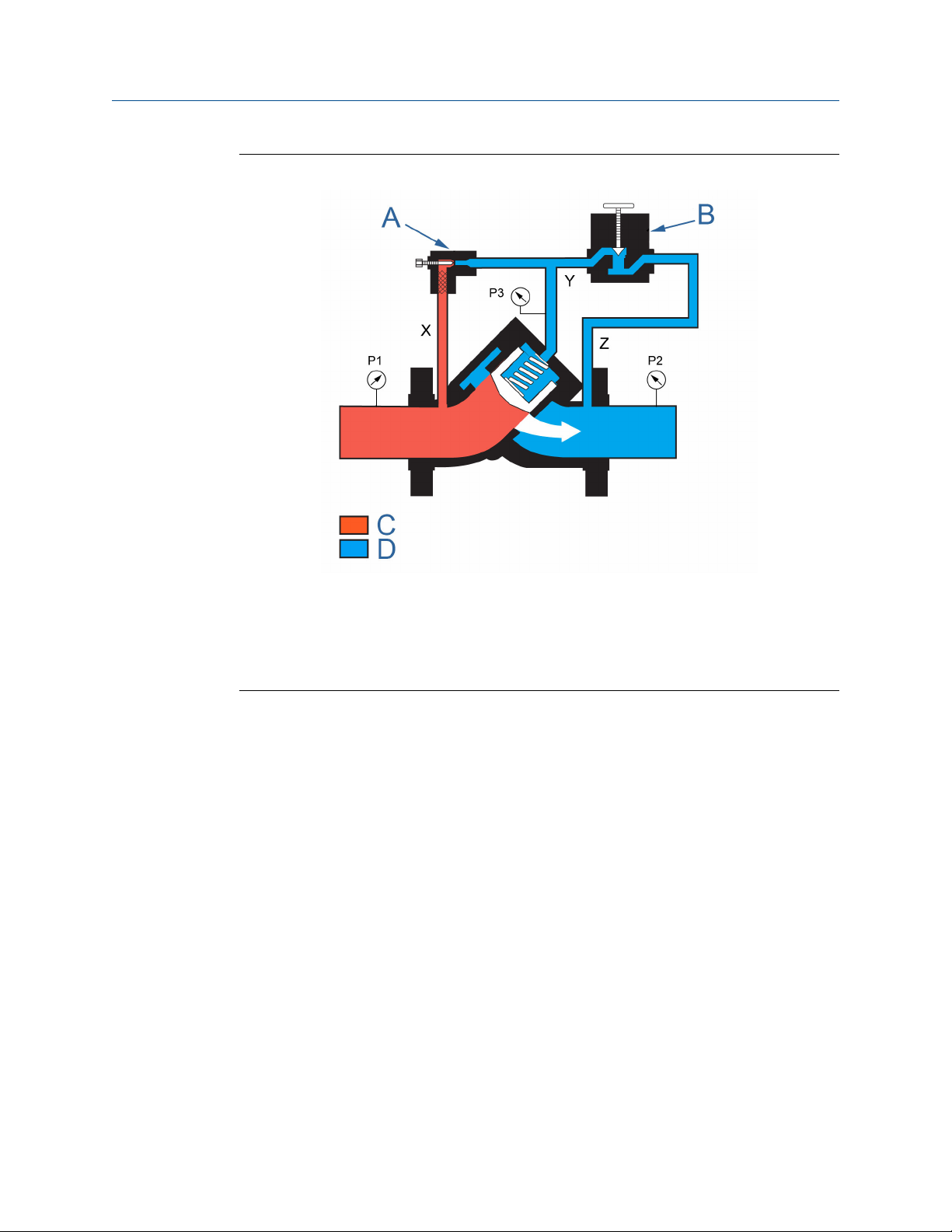

In Figure 1-2 the valve is fully open. Y-port (P3) is open to Z-port (P2). The pressure on the
bottom of the piston (P1) is greater than the pressure at (P3) plus spring force. The valve
will not open unless the pressure drop across the valve (P1 minus P2) is slightly greater
than the force applied by the main valve spring. In a non-control state, the main valve is
opened in a percentage directly proportional to (P1 minus P2).
User manual Introduction
P/N 3-9008-553 November 2020
User manual 11

Figure 1-2: Pilot in fully open position
A. Needle valve / strainer
B. Manual pilot control
C. Inlet pressure
D. Outlet pressure
Open controlled position

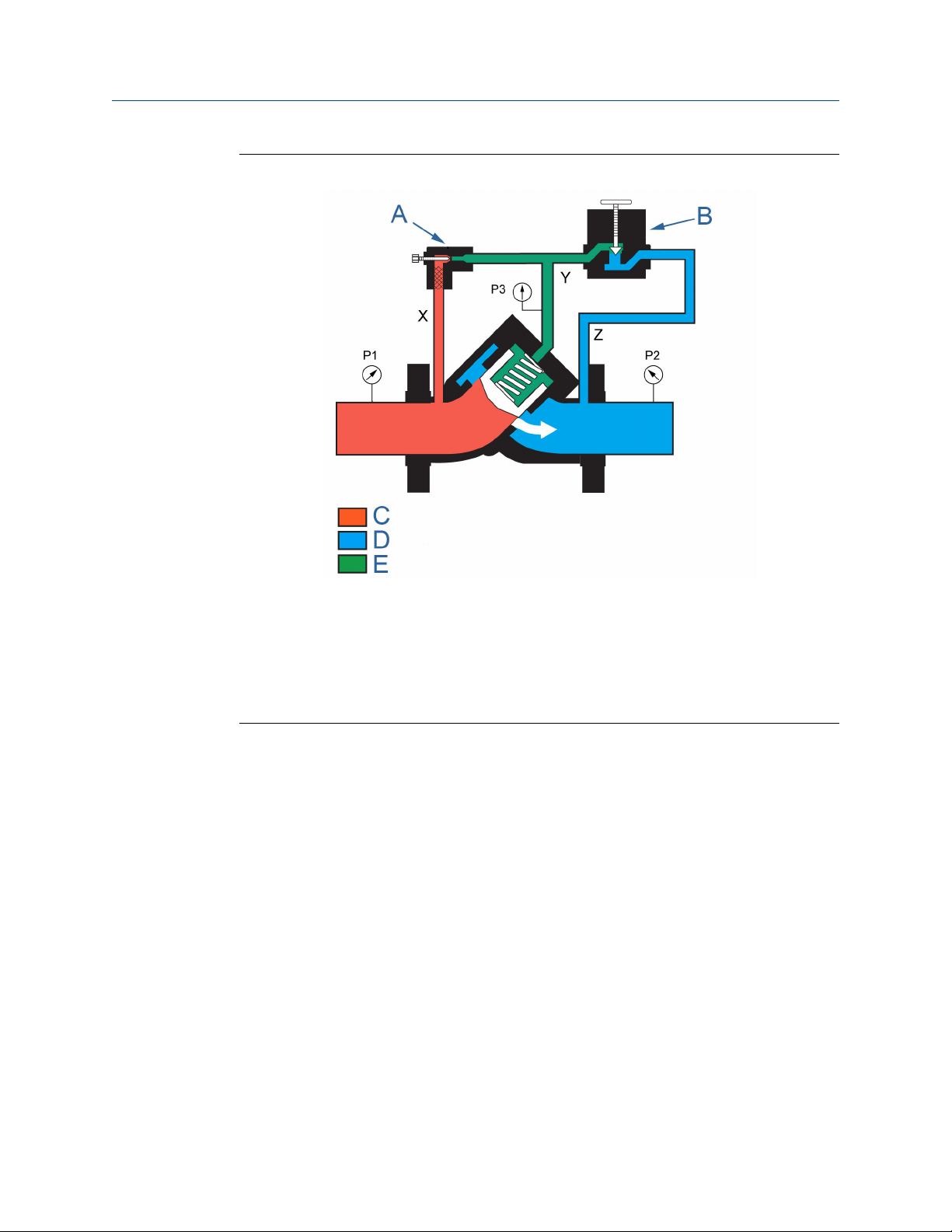

In Figure 1-3 the valve is partially open. Y-port (P3) is open to Z-port (P2) but is being
restricted by the control pilot. The pilot control is a variable orifice that regulates the
pressure at Y-port (P3) by controlling the flow through Z-port. Increasing or decreasing the
Y-port pressure (P3) causes the piston to change positions.
Introduction User manual
November 2020 P/N 3-9008-553
12 Daniel Series 700 Control Valve

Figure 1-3: Pilot in partially open position
A. Needle valve / strainer
B. Manual pilot control
C. Inlet pressure
D. Outlet pressure
E. Controlled pressure
User manual Introduction
P/N 3-9008-553 November 2020
User manual 13

1.6.4 Parts list for the Series 700 Control Valves
Figure 1-4: Part identification for an NPS 2-12 inch Control Valve
NOTICE
Item numbers are not meant to be consecutively numbered.
Table 1-1: Part description for Model 700 Control Valve NPS 2 - 12
Item number Description Quantity
1 Cylinder 1
2 O-ring 1
3 Seat ring 1
4 Piston 1
5 O-ring 1
6 Backup ring 2
7 O-ring 2
8 Retaining ring 1
9 Washer 1
Introduction User manual
November 2020 P/N 3-9008-553
14 Daniel Series 700 Control Valve

Table 1-1: Part description for Model 700 Control Valve NPS 2 - 12 (continued)
Item number Description Quantity
10 Retaining ring 1
11 Spring 1
12 O-ring 1
13 Cylinder head 1
16 Screw 4
17 Jack-out screws 2
18 Indicator stem visual 1
Indicator stem micro-switch
19 Magnet 2
20 Retaining ring 1
21 Indicator adapter 1
22 Cap plug 1
23 Ring magnet 1
24 Indicator housing 1
25 Indicator top 1
26 Screw 1
27 Bal-seal 2
28 Piston seal retainer 2
29 External retaining ring 2
31 Nuts 8
32 Valve body 1
33 Studs 8
34 Pipe plug 2
38 Cap plug 1
39 O-ring 1
40 Seal retainer 1
41 O-ring 1
42 Backup ring 2
43 Upper bearing 1
44 Indicator guard 1
45 Lock washer 2
46 Screws 2
47 Indicator adapter 1
User manual Introduction
P/N 3-9008-553 November 2020
User manual 15

Table 1-1: Part description for Model 700 Control Valve NPS 2 - 12 (continued)
Item number Description Quantity
48 Cap plug 1
50 Set Screw 1
A Cylinder assembly class 150 and
300
Cylinder assembly class 600
Introduction User manual
November 2020 P/N 3-9008-553
16 Daniel Series 700 Control Valve

Figure 1-5: Part identification for an NPS 16 inch Control Valve
Table 1-2: Part description for Model 700 Control Valve NPS 16
Item number Description Quantity
1 Cylinder 1
2 O-ring 1
3 Seat ring 1
4 Piston 1
5 O-ring 1
User manual Introduction
P/N 3-9008-553 November 2020
User manual 17

Table 1-2: Part description for Model 700 Control Valve NPS 16 (continued)
Item number Description Quantity
6 Backup ring 2
7 O-ring 2
11 Spring 2
12 O-ring 1
13 Cylinder head 1
14 O-ring 8
16 Screw 24
17 Jack-out screws 2
18 Indicator stem micro-switch 1
31 Nuts 8
32 Valve body 1
33 Studs 40
34 Pipe plug 2
38 Cap plug 1
39 O-ring 8
43 Upper bearing 1
44 Indicator guard 1
45 Screw 2
46 Washer 2
47 Indicator adapter 1
55 Indicator Ext. guard 1
56 Screw 4
57 Washer 4
58 Piston plug 1
59 Screw 3
1.7 Agency certifications for control valves Model
700
The following product agency certifications are applicable to the Daniel control valves.
Table 1-3: Agency certifications for control valves
Certification type Description
Pressure equipment PED
Introduction User manual
November 2020 P/N 3-9008-553
18 Daniel Series 700 Control Valve

2 Operating conditions and
specifications
2.1 Operating conditions for the control valve
Table 2-1: Operating conditions for the control valve
Condition type Description
Fluid phase Liquid
Process temperature -20° F to 150° F (-29° C to 66° C)
Optional process
temperature
-50° F to 400° F (-46° C to 205° C )
Fluid velocity Operational recommended flow velocity up to 30 ft/sec, beyond this
point will result in a high pressure drop and increased wear.
Fluid(s) controlled •Low/Medium viscosity crude oils and condensates
•Refined products and intermediates (ie: gasoline, diesel, kerosene,
light fuel oils, jet fuel, LPG, butanes, naphtha, alkylate, reformate,
straight run gasoline, cat-cracked gasoline)
•Petrochemicals (ie: benzene, toluene, xylenes, cumene, olefins,
pyrolysis gasoline)
•Natural gas liquids
Viscosity limits on valves
and valves with pilots
•Maximum valve viscosity is 8800 Cst
•Maximum viscosity for valves with pilots is 440 Cst due to
response time of high viscosity pilot
Differential pressure The maximum allowable differential pressure across a control valve is
6894 kPa (1,000 psi). Consult factory for location of first shut down
valve.
Atmospheric pressure Absolute
Sizes (NPS) 2, 3, 4, 6, 8,10,12,16
Pressure class (ANSI) 150, 300, 600
Maximum safe working
temperature range
•15° F to 400° F (-26° C to 204° C)
•Using FKM O-rings
•Temperature range is dependent of O-ring Tmin and Tmax
•Max temperature of valves with solenoid pilots is standard -20° F
to 150° F (-29° C to 66° C) (if applicable), Optional 250° F (121° C)
•Consult the factory for other safe working temperatures
User manual Operating conditions and specifications
P/N 3-9008-553 November 2020
User manual 19

Table 2-1: Operating conditions for the control valve (continued)
Condition type Description
Maximum safe working
pressure
Flange connections/Ratings (DIN) for valve sizes DN50 and DN400:
•DIN PN16 MWP at 120° C: 16 bar
•DIN PN25 MWP at 120° C: 25 bar
•DIN PN40 MWP at 120° C: 40 bar
•DIN PN64 (class 300) MWP at 120° C: 51 bar
•DIN PN64 (class 600) MWP at 120° C: 64 bar
•DIN PN100 MWP at 120° C: 100 bar
Flange connections/Ratings (ANSI) for valve sizes 2-in to 16-in:
•Class 150 MWP at 100° F: 285 psi
•Class 300 MWP at 100° F: 740 psi
•Class 600 MWP at 100° F: 1480 psi
* MWP: Maximum Working Pressure
Materials of construction Main valve body: Steel, ASTM-A352 Gr. LCC
Main valve cylinder:
•NPS 2-4: Stainless steel
•NPS 6 and larger: Nickel coated steel
Main valve piston: Stainless steel (standard)
Seat ring:
•Class 150 and 300:
—NPS 2-6: Stainless steel
—NPS 8-16: Nickel coated steel
•Class 600: Stainless steel
O-Rings:
•Standard: FKM
•Optional: CR, EPR, FKM V1289, NBR, FFKM, FKM GLT
•For other material contact the factory
External hook up:
•Class 150 and 300:
—NPS 2-6: Carbon steel/Stainless steel 10 mm (0.375-in)
—NPS 8-16 Carbon steel/Stainless steel 13 mm (0.5-in)
•Class 600:
—NPS 2-6: Stainless steel 13 mm (0.5-in)
—Can be furnished in metric sizes
Other internal parts: Stainless steel
Operating conditions and specifications User manual
November 2020 P/N 3-9008-553
20 Daniel Series 700 Control Valve
