Emerson Rosemount 2410 User manual

Manual Supplement
00809-0400-2410, Rev AA
March 2016
Rosemount™2410 Tank Hub
Enraf®emulation instruction
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 1
Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Configuration using the FBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Configuration using the EBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Advanced information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page23
1.1 Introduction
The purpose of this document is to provide guidelines on how to change from Enraf to
Rosemount equipment by exchanging gauges. When an Enraf gauge is replaced with a
Rosemount gauge, it is necessary to configure the Rosemount 2410 Tank Hub for emulation.
The Rosemount field devices, for example Rosemount 5900 Radar Level Gauge and Rosemount
2240S Temperature Transmitter, are connected to the tank hub using the intrinsically safe
Tankbus as usual. Emulation is done in the tank hub only. Each tank hub can emulate up to 10
tanks (10 separate Enraf gauges).
Figure 1-1. Rosemount Devices Replacing Old Gauges in an Existing Enraf System
Entis
PLC
CIU
Rosemount
5900S Radar
Level Gauge Rosemount 2410
Tank Hub
Rosemount 3051S
Pressure Transmitter
Rosemount 2240S
Temperature Transmitter
with sensor

2
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.1.1 Enraf system characteristics
A typical Enraf tank gauging system consists of a number or field devices such as level,
temperature and pressure devices. These devices are connected to a host computer via a
Communication Interface Unit (CIU).
Different versions of the CIU:
CIU 858
CIU 880 Prime
CIU 880 Plus
The host computer can either be a PC with Entis monitoring system, or an Enraf Microlect
station.
The Rosemount 2410 Tank Hub supports the Enraf GPU protocol. It can therefore be
connected directly to Entis/CIU systems using the GPU protocol.
Enraf GPU communication parameters
Start bits: 1
Data bits: 7 (ASCII)
Parity: Odd
Stop bits: 1
Baud rate: Selectable 1200 (default)/2400
Enraf gauges for emulation
The Rosemount 2410 can emulate Enraf gauges with Type of Instrument (TOI), B or C.
Table 1-1. Typical Enraf Devices
TOI Devices with GPU protocol
B811, 854, 894, 873, 973
C813 MTG

3
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.1.2 Rosemount 2410 Tank Hub communication
The tank hub has slots for two independent communication boards, primary and secondary
field bus, for TRL2 Modbus®, RS485 Modbus, emulation or wireless communication.
Primary and secondary field bus
A tank hub equipped with both primary (TRL2 Modbus) and secondary (Enraf GPU) field bus,
can be configured for Enraf emulation using the Rosemount 2180 Field Bus Modem (FBM) as
usual. Since the tank hub simultaneously communicates on both ports, the TankMaster™PC
can in addition to configuration also be used to monitor the devices in operation, during
Enraf emulation. Section “Configuration using the FBM” on page 7 describes configuration
of the tank hub with the FBM.
For a tank hub equipped with only a primary field bus, the Rosemount 3180 Enraf Field Bus
Modem (EBM) will be used to configure the tank hub for Enraf emulation. Configuration is
done using the TRL2 Modbus protocol. When configuration is completed, the field bus will
be connected to the CIU for operation and the protocol will be switched to Enraf GPU. See
“Configuration using the EBM” on page 14 for instructions on how to configure the tank
hub using the EBM.
Figure 1-2. Tank Hub Communication Board for Enraf Emulation
Tank hub with one
communication board
Tank hub with two
communication boards
EBM
FBM
CIU CIU
TankMaster
WinSetup PC
TankMaster PC Entis PC Entis PC
Primary bus:
TRL2 Modbus
Primary bus:
TRL2 Modbus
Secondary bus:
Enraf GPU Primary bus:
Enraf GPU

4
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
Wireless communication
The tank hub supports Emerson™’s wireless technology, which is based on WirelessHART®,
the emerging industry standard for wireless field networks. The Emerson Smart Wireless
THUM™Adapter acts as a wireless data link between the tank hub and a Smart Wireless
Gateway.
The tank hub can simultaneously combine wireless and Enraf communication. The primary
field bus communicates via Enraf GPU and the secondary field bus via WirelessHART.
With this tank hub communication configuration, control room redundancy is achieved.
Figure 1-3. Tank Hub with Enraf and Wireless Communication
Tank hub with two
communication boards
CIU
TankMaster PC
Entis PC
Primary bus:
Enraf GPU
Secondary bus:
WirelessHART
Smart Wireless
THUM Adapter
Smart Wireless
Gateway 1410/1420

5
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.2 Electrical installation
1.2.1 Rosemount 2410 Tank Hub connections
Figure 1-4. Terminal Block in the Explosion-Proof/Flameproof Compartment
Table 1-2. Terminal Assignment for Non-Intrinsically Safe Side
Terminal Designation Function
1N / - Power, Neutral / DC -
2L / + Power, Line / DC +
3K1 A Relay 1 output (optional). Hardware configurable NO/NC.
4K1 com Relay 1 common
5K2 A Relay 2 output (optional). Hardware configurable NO/NC.
6K2 com Relay 2 common
7a/7b P Bus B Primary communication bus B
8a/8b P Bus A Primary communication bus A
9S Pwr - Secondary bus power - (optional)
10 S Pwr + Secondary bus power +(optional)
11 S Bus B Secondary communication bus - (optional)
12 S Bus A Secondary communication bus + (optional)
PE PE Power supply protective ground
GND_1 GND_1 Housing chassis/shield Primary bus
GND_2 GND_2 Housing chassis/shield Secondary bus
Secondary field bus
Primary field bus

6
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.2.2 Enraf Field Bus Modem (EBM)
Figure 1-5. Enraf Field Bus Modem Connection
A. Field bus connector
B. Power connector
C. Communication status LED (flashing green)
D. Protocol switch(1):
Left position: Modbus
Right position: Normal (GPU)
E. Baud rate switch(2):
Left position: 2400
Right position: 1200
F. Connector for RS232 communication with the computer
1.2.3 How to connect the EBM
1. Connect the tank hub to the EBM(3).
2. Connect the EBM to the WinSetup computer.
3. Be sure the protocol switch is set to “Normal (GPU)” and the baud rate switch is set
to “1200”, see Figure 1-5 on page 6.
4. Supply the EBM with power.
5. Verify communication with the tank hub through the flashing green LED.
1.2.4 Baud rate
The Rosemount 2410 Tank Hub has a pre-configured baud rate (1200) that cannot be
changed by the software configuration. The baud rate is controlled by hardware switches on
the Enraf communication board. See “Change baud rate” on page 25 for information on
how to change the baud rate.
1. Select right position “Normal (GPU)” for Enraf emulation configuration.
2. Select right position “1200” for Enraf emulation configuration.
3. The cable to be connected to the field bus is delivered with the EBM.
Field Bus
Field Bus: Pin 4,6 Shield: Pin5
EBM 3180
PC-modem
MADE IN SWEDEN
Rosemount Tank Radar AB
Gothenburg, Sweden
External DC
Power Supply
8-12V, 60mA
Pos+ Neg-
Normal (GPU)
Modbus
(4800 baud)
1200 baud
2400 baud
Computer
RS 232
Tank Gauging
F
E
A
D
Back side view
Front side view
C
B

7
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.3 Configuration using the FBM
The Rosemount 2410 Tank Hub is configured by using the Rosemount TankMaster
WinSetup configuration program(1). WinSetup is a user-friendly software package that
includes basic configuration options as well as advanced configuration and service
functions.
A Tank hub with two communication boards is normally configured using an FBM(2). To
configure the tank hub for Enraf emulation, do the following:
1.3.1 Set up Modbus communication protocol
This section describes how to configure the Modbus Master protocol channel for
communication with the FBM. Specify PC communication port and the standard
communication parameters: Baud rate, Parity, and number of Stop Bits.
1. Open the Protocols folder in the Workspace window.
2. Select the Modbus Master icon.
3. Right click the proper MbMaster icon and select Properties to configure the
protocol channel.
4. Select the Communication tab.
1. See the Rosemount Tank Gauging System Configuration Manual (document number 00809-0300-5100) for more information on how
to use the TankMaster WinSetup software to configure the Rosemount 2410 Tank Hub.
2. A tank hub where the secondary field bus communicates via WirelessHART, can be configured by wireless communication with a Smart
Wireless Gateway.

8
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
5. Set the communication parameters:
6. Select the Enable Channel check box to activate the protocol channel.
7. Select OK to store the current configuration and close the configuration window.
1.3.2 Install Rosemount 2410 Tank Hub in WinSetup
The TankMaster WinSetup wizard is the recommended tool for installing the tank hub.
The installation wizard covers basic configuration of the tank hub.
Perform the following steps to start the installation wizard in TankMaster WinSetup:
1. In the Workspace window select the Device folder.
2. Right click and select Install New, or from the Service menu select the
Devices/Install New option. The Select Device window appears.
Port The COM port the FBM will connect to
Baud rate 4800
Stop bits 1
Parity None
Modem FBM 2180
Handshaking None
Reply timeout 1000 ms
Retries 3
Description Text describing the configured channel

9
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub

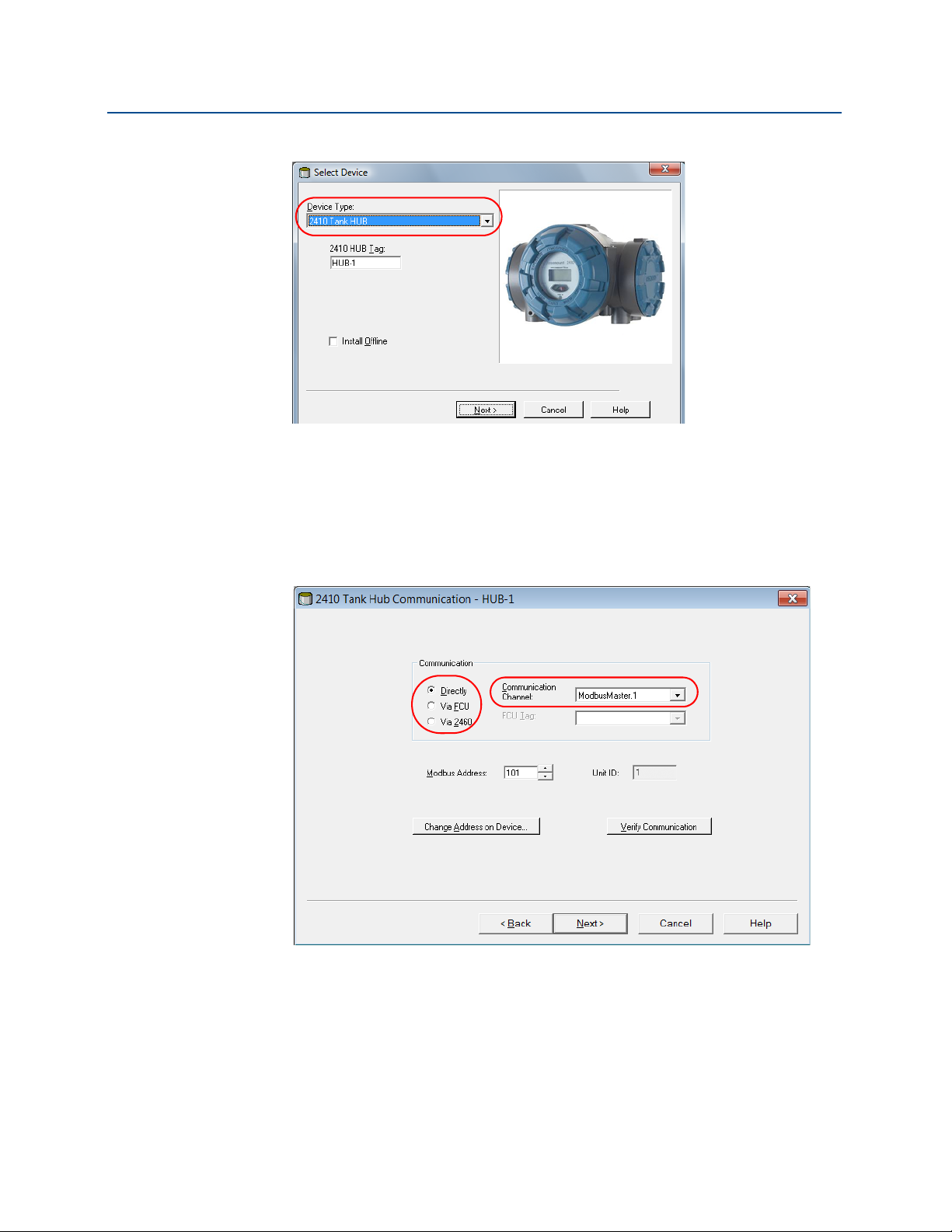

3. From the Device Type drop-down list, select the 2410 Tank Hub option.
4. Type a name in the 2410 HUB Tag field.
The 2410 Hub Tag will be used as an identifier for the tank hub in various windows
and dialogs.
5. Select Next. The 2410 Tank Hub Communication window appears.
6. Make sure TankMaster communicates directly with the tank hub and that the
proper communication channel is chosen.

10
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
7. Default Modbus Address is 247 for the tank hub. It is recommended to change it to
an address 101-199. Do the following:
a. In the 2410 Tank Hub Communication window select Change Address on Device...
to open the Change Address window.
b. Enter the Unit ID and select the new Modbus Address.
When changing the device address, the Unit Id is used as a unique identifier of the
device. The Unit Id can be found on a label mounted on the device.
c. Select OK to confirm the address settings and close the Change Address window.
d. In the 2410 Tank Hub Communication window select Verify Communication to
check that communication is established between the TankMaster work station
and the tank hub. The Unit ID will appear when TankMaster finds the tank hub.
8. In the 2410 Tank Hub Communication window select Next to continue the
installation procedure of the tank hub.
9. Continue configuration as usual for a tank hub installation.
1.3.3 Configure specific variables for Enraf

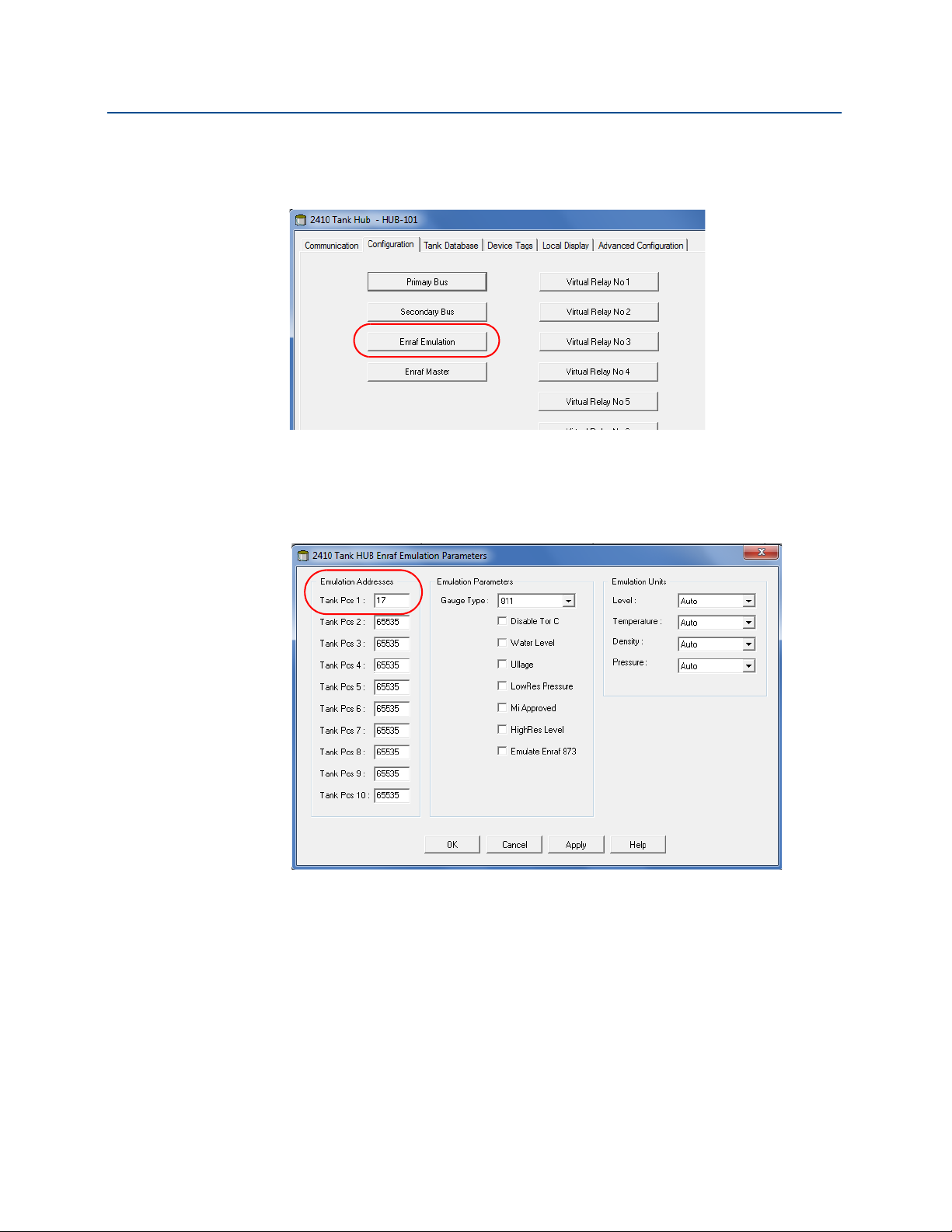

1. In the Configuration tab, select Enraf Emulation.

11
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
When replacing an Enraf gauge with a Rosemount device, the Rosemount device
must have the same Enraf address as the replaced one.
2. Set Emulation address for the Rosemount devices (possible Enraf addresses are
0-99)(1).
Tip!
In the Tank Database tab, set the Modbus address to the same as the chosen Enraf
address for each device.
1. Emulation address is by default set to “65535” for tank positions that are not in use.

12
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
3. In the Gauge Type drop-down list select 811 for gauges such as 811, 854, 894, 873
and 973 (TOI B), or select 813 (TOI C).
There are several emulation configuration parameters that can be enabled for
specific settings.
4. Select the desired check boxes to enable specific parameter settings.
See parameter description below.
Disable Tor C Disable Type of Request (TOR) C response (no response on temperature
request).
Water Level Enable Water interface measurement. The level value in TOR B and D, is
replaced with the Water Level value when a TOR W is received.
Ullage Respond with ullage instead of level.
LowRes Pressure Resolution of the pressure value will be decreased by one decimal digit.
MiApproved The level will be invalid if outside the legal level value range and
temperature will be invalid outside legal temperature value range.
HighRes Level Resolution of the level value will be increased by one decimal digit. (Only
applicable for decimal feet and inches.)
Emulate Enraf 873 Respond with device 873 on identification requests.

13
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
All Enraf unit types are separately configurable (optional).
5. In the drop-down list for Emulation Units, select desired unit types.
6. Select Apply.
1.3.4 Configure field devices
When the tank hub configuration is completed, the Rosemount field devices, for example
Rosemount 5900 Radar Level Gauge and Rosemount 2240S Multi-input Temperature
Transmitter, must be configured as well. The field devices are configured as usual, for further
information see the Rosemount Tank Gauging System Configuration manual
(document number 00809-0300-5100).
1. Configure the field devices by using the Properties window of each device.
2. The tank hub will now send measured data to the Enraf host, acting as the replaced
Enraf gauge.

14
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.4 Configuration using the EBM
The Rosemount 2410 Tank Hub is configured by using the Rosemount TankMaster
WinSetup configuration program(1). WinSetup is a user-friendly software package that
includes basic configuration options as well as advanced configuration and service
functions.
Configuration of a tank hub equipped with one communication board (Enraf GPU) must be
performed using an EBM with the normal Modbus protocol. To configure the tank hub for
Enraf emulation, do the following:
1.4.1 Set up Modbus communication protocol
This section describes how to configure the Modbus Master protocol channel for
communication with the EBM. Specify PC communication port and the standard
communication parameters: Baud rate, Parity, and number of Stop Bits.
1. Open the Protocols folder in the Workspace window.
2. Select the Modbus Master icon.
3. Right click the proper MbMaster icon and select Properties to configure the
protocol channel.
1. See the Rosemount Tank Gauging System Configuration Manual (document number 00809-0300-5100) for more information on how
to use the TankMaster WinSetup software to configure the Rosemount 2410 Tank Hub.

15
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
4. Select the Communication tab.
5. Set the communication parameters:
6. Select the Enable Channel check box to activate the protocol channel.
7. Select OK to store the current configuration and close the configuration window.
Port The COM port the EBM will connect to
Baud rate 1200
Stop bits 1
Parity None
Modem RS-232
Handshaking None
Reply timeout 1000 ms
Retries 3
Description Text describing the configured channel

16
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.4.2 Install Rosemount 2410 Tank Hub in WinSetup
The TankMaster WinSetup wizard is the recommended tool for installing the tank hub.
The installation wizard covers basic configuration of the tank hub.
Perform the following steps to start the installation wizard in TankMaster WinSetup:
1. In the Workspace window select the Device folder.
2. Right click and select Install New, or from the Service menu select the
Devices/Install New option. The Select Device window appears.
3. From the Device Type drop-down list, select the 2410 Tank Hub option.
4. Type a name in the 2410 HUB Tag field.
The 2410 Hub Tag will be used as an identifier for the tank hub in various windows
and dialogs.
5. Select Next. The 2410 Tank Hub Communication window appears.

17
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
6. Make sure TankMaster communicates directly with the tank hub and that the
proper communication channel is chosen.
7. Default Modbus Address is 247 for the tank hub. It is recommended to change it to
an address 101-199. Do the following:
a. In the 2410 Tank Hub Communication window select Change Address on Device...
to open the Change Address window.
b. Enter the Unit ID and select the new Modbus Address.
When changing the device address, the Unit Id is used as a unique identifier of the
device. The Unit Id can be found on a label mounted on the device.
c. Select OK to confirm the address settings and close the Change Address window.

18
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
d. The tank hub will not immediately switch from Enraf to Modbus protocol.
See “Automatic protocol switch mechanism” on page 28 for more information.
Select OK to retry. It takes a number of attempts.
Tip!
To make the tank hub switch faster from Enraf to Modbus, you can make
TankMaster search for devices on the communication protocol channels.
e. In the 2410 Tank Hub Communication window select Verify Communication to
check that communication is established between the TankMaster work station
and the tank hub. The Unit ID will appear when TankMaster finds the tank hub.
8. In the 2410 Tank Hub Communication window select Next to continue the
installation procedure of the tank hub.
9. Continue configuration as usual for a tank hub installation.
Right click and select
Find Devices.
Type the desired values in
the First and Last address
input fields in order to
restrict the search to a
certain range of addresses
(maximum range is 1-255).
Select Start.
The TRL2 field bus is
scanned for devices within
the specified address
range.

19
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
1.4.3 Configure specific variables for Enraf
1. In the Configuration tab, select Enraf Emulation.
When replacing an Enraf gauge with a Rosemount device, the Rosemount device
must have the same Enraf address as the replaced one.
2. Set Emulation address for the Rosemount devices (possible Enraf addresses are
0-99)(1).
1. Emulation address is by default set to “65535” for tank positions that are not in use.

20
Manual Supplement
00809-0400-2410, Rev AA
Rosemount 2410 Tank Hub
March 2016
Rosemount 2410 Tank Hub
Tip!
In the Tank Database tab, set the Modbus address to the same as the chosen Enraf
address for each device.
3. In the Gauge Type drop-down list select 811 for gauges such as 811, 854, 894, 873
and 973 (TOI B), or select 813 (TOI C).
