Emerson Rosemount 485 Annubar User manual

Quick Start Guide
00825-0700-4809, Rev BA
June 2016

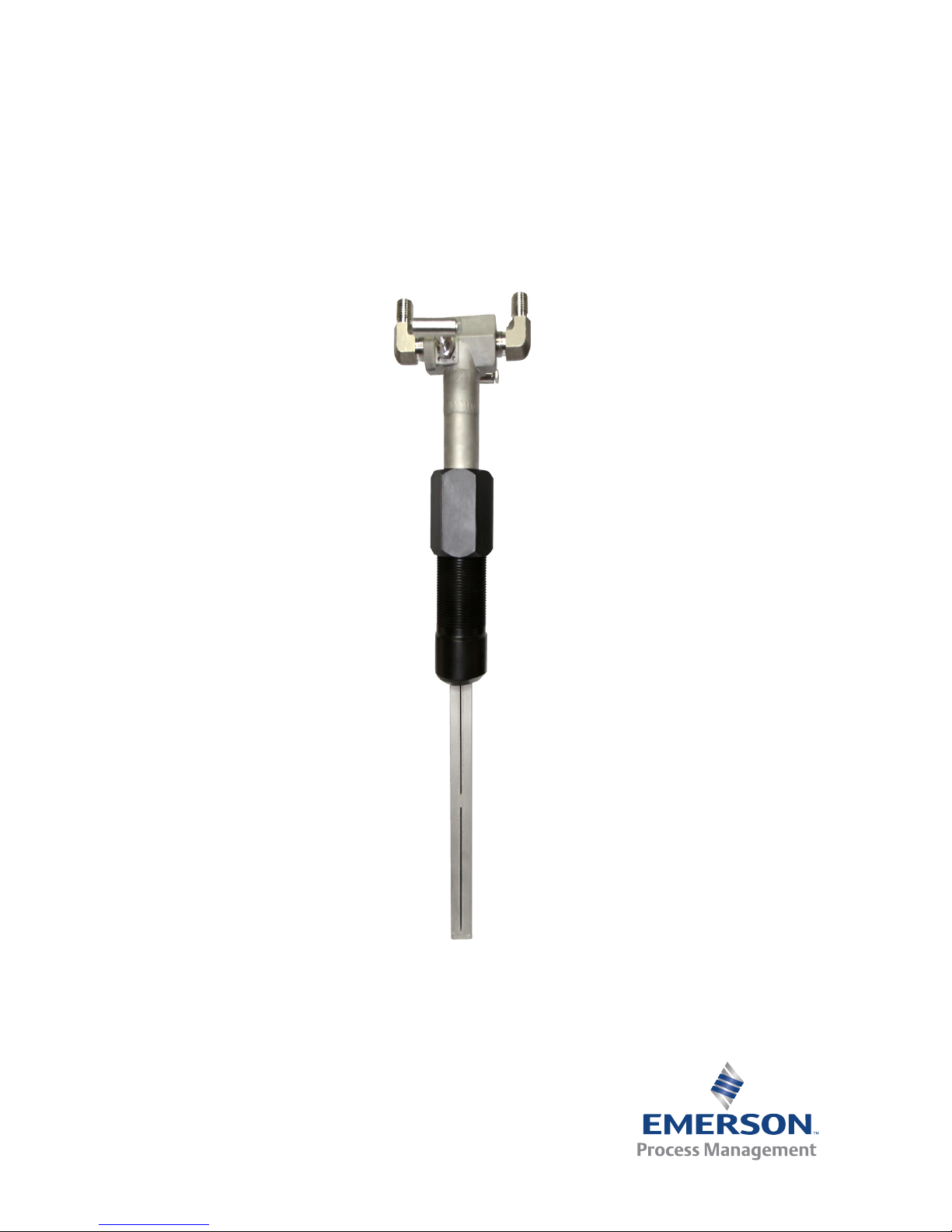

Rosemount™485 Annubar™Threaded
Assembly

June 2016
2
Quick Start Guide
NOTICE
This guide provides basic guidelines for Rosemount 485. It does not provide instructions for configuration,
diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or Intrinsically Safe (I.S.)
installations. Refer to Rosemount 485 Annubar Reference Manual for more instruction. This manual is also
available electronically on EmersonProcess.com/Rosemount.
If the Rosemount 485 was ordered assembled to a Rosemount Pressure Transmitter, see the following Quick
Start Guides for information on configuration and hazardous locations certifications:
Rosemount 3051S Series Pressure Transmitter and Rosemount 3051SF Series Flowmeter Quick Start
Guide.
Rosemount 3051S MultiVariable Transmitter and Rosemount 3051SF Series Flowmeter MultiVariable
Transmitter Quick Start Guide.
Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series Flowmeter Transmitter Quick
Start Guide.
Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeter Transmitter Quick
Start Guide.
Process leaks may cause harm or result in death. To avoid process leaks, only use packings designed to seal
with the recommended torque value to seal process connections. Flowing medium may cause the
Rosemount 485 Annubar Assembly to become hot and could result in burns.
Contents
Location and orientation . . . . . . . . . . . . . . . . . . 5
Drill sensor holes . . . . . . . . . . . . . . . . . . . . . . . . 11
Prepare for welding . . . . . . . . . . . . . . . . . . . . . . 11
Weld the mounting hardware . . . . . . . . . . . . . 12
Insert the Rosemount Annubar Sensor . . . . . 12
Product certifications . . . . . . . . . . . . . . . . . . . . 15

Quick Start Guide
3
June 2016
Figure 1. Rosemount 485 Annubar Threaded Assembly Exploded View
Table 1. Isolation Valves
A. See Figure 2 for detail.
B. Remote mount connection with isolation valves
C. Integrated valve low (VL)
D. Integrated valve high (VH)
E. 2⫻Elbows
F. Threaded weld coupling
G. Remote mount connection
Name Description Position Purpose
VH Integrated Isolation
Valve High(1)
1. High pressure
Letter “H” side of the
Remote Mount Connection Isolates high side or low side pressure
from the process
VL Integrated Isolation
Valve Low(2)
2. Low pressure
Letter “L” side of the Remote
Mount Connection
A
B
E
D
F
C
G
F
A
E

June 2016
4
Quick Start Guide

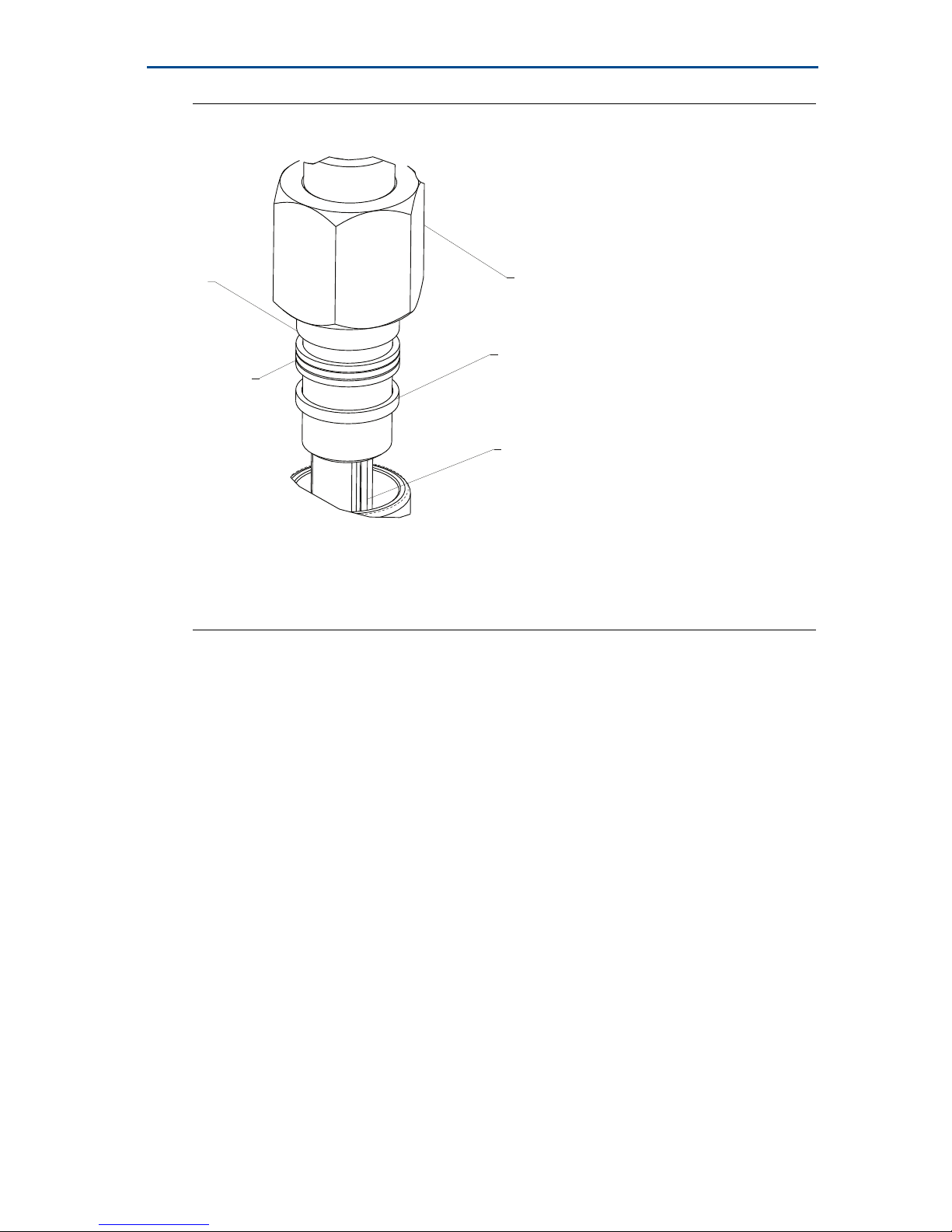

Figure 2. Rosemount 485 Annubar Threaded Packing Assembly Detail
Exploded View(1)
A. 3⫻Packaging rings
B. Follower
C. Nut
D. Retaining ring
E. Rosemount 485 Annubar Sensor
1. Image scale = 3/2.
A
E
D
C
B

Quick Start Guide
5
June 2016
1.0 Location and orientation
Correct orientation and straight run requirements must be met for accurate and
repeatable flow measurements. Refer to Table 2 for minimum pipe diameter
distances from upstream and downstream disturbances.

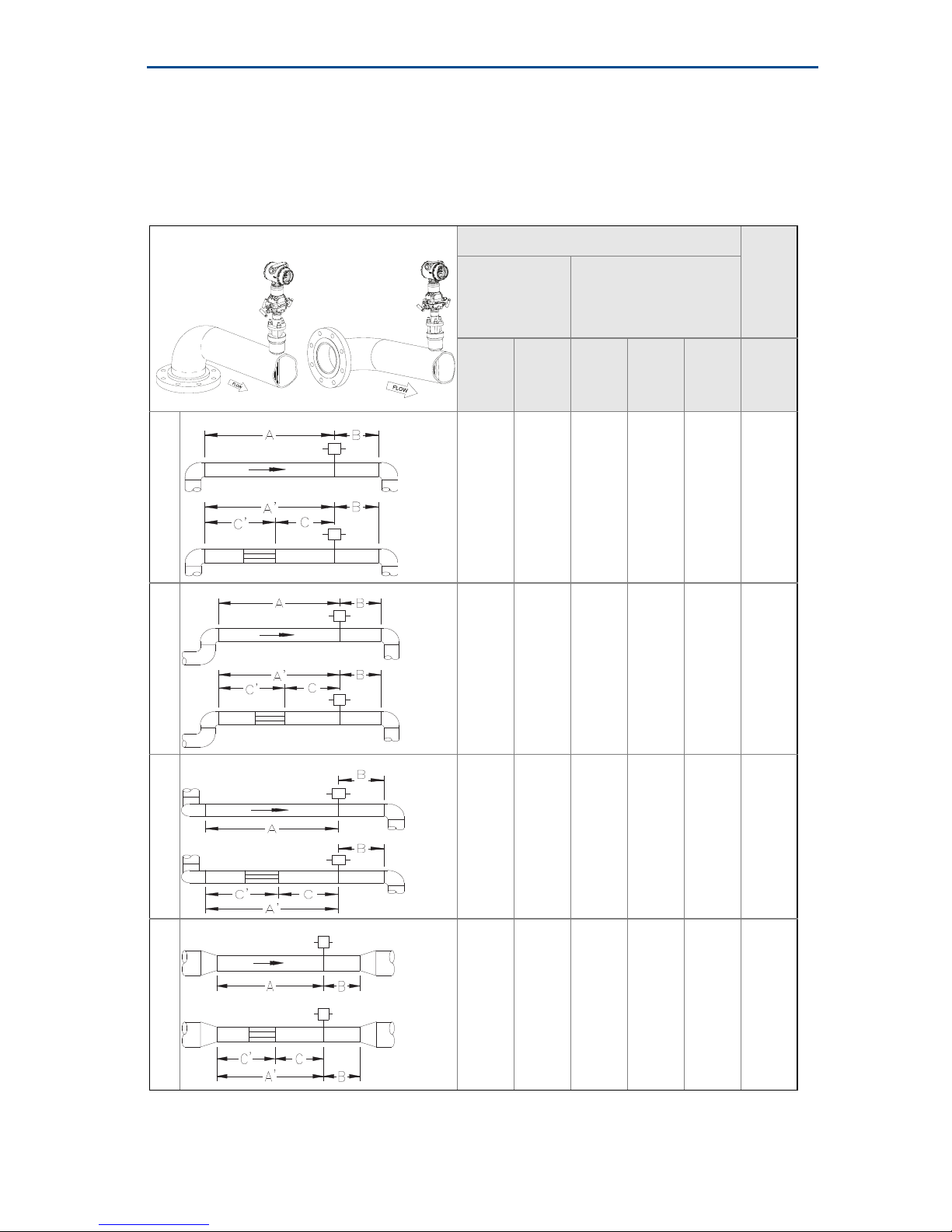

Table 2. Straight Run Requirements
In plane____________Out of plane Upstream pipe diameters
Downstream
pipe diameters
Without
straightening
vanes
With straightening
vanes
In
plane
A
Outof
plane
A
A’ CC’ B
1
8
N/A
10
N/A
N/A
8
N/A
4
N/A
4
4
4
2
11
N/A
16
N/A
N/A
8
N/A
4
N/A
4
4
4
3
23
N/A
28
N/A
N/A
8
N/A
4
N/A
4
4
4
4
12
N/A
12
N/A
N/A
8
N/A
4
N/A
4
4
4

June 2016
6
Quick Start Guide
Note
Consult the factory for instructions regarding use in square or rectangular
ducts.
If proper lengths of straight run are not available, position the mounting such
that 80% of the run is upstream and 20% is downstream. This will result in
degraded accuracy.
Use straightening vanes to reduce the required straight run length.
Row 6 in Table 2 applies to gate, globe, plug, and other throttling valves that
are partially opened, as well as control valves.
1.1 Misalignment
Rosemount 485 installation allows for a maximum misalignment of 3°.
Figure 3. Misalignment
5
18
N/A
18
N/A
N/A
8
N/A
4
N/A
4
4
4
6
30
N/A
30
N/A
N/A
8
N/A
4
N/A
4
4
4
33
3

Quick Start Guide
7
June 2016
1.2 Flowmeter orientation

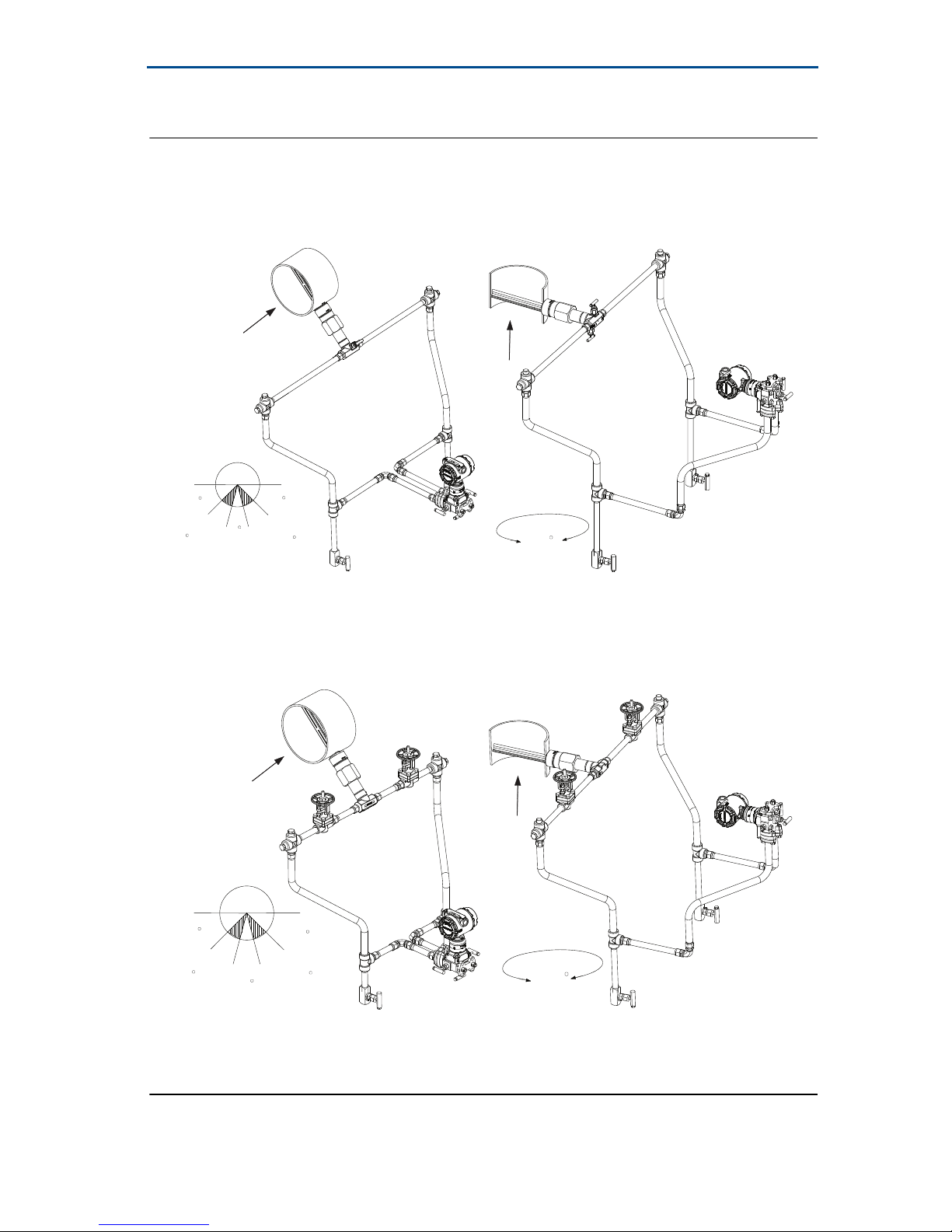

Figure 4. Flowmeter Orientation for Liquid
Remote mount; for low temperature (<450 °F/232 °C)
Horizontal liquid Vertical liquid(1)
1. Downward flow is not recommended.
Remote mount; for high temperature (<600 °F/315 °C)
Horizontal liquid Vertical liquid(1)
45
45
Recommended
Zone 30 30 Recommended
Zone 30
Flow
360
Flow
45
45
Recommended
Zone 30 30
Recommended
Zone 30
Flow
360
Flow

June 2016
8
Quick Start Guide
Figure 5. Flowmeter Orientation for Gas
Remote mount; for low temperature (<450 °F/232 °C)
Horizontal gas Vertical gas
Remote mount; for high temperature (<600 °F/315 °C)
Horizontal gas Vertical gas
45
Recommend Zone 90
45
Flow
360
Flow
45
Recommend Zone 90
45
Flow
360
Flow

Quick Start Guide
9
June 2016
Figure 6. Flowmeter Orientation for Steam
Remote mount; for low temperature (<450 °F/232 °C)
Horizontal steam Vertical steam(1)
1. Downward flow is not recommended.
Remote mount; for high temperature (<600 °F/315 °C)
Horizontal steam Vertical steam(1)
45
45
Recommended
Zone 30 30 Recommended
Zone 30
Flow
360
Flow
45
45
Recommended
Zone 30 30
Recommended
Zone 30
Flow
360
Flow

June 2016
10
Quick Start Guide
1.3 Top mounting the flowmeter for steam
Top mounting for steam applications is an alternate mounting option in some
cases. Consult Rosemount Customer Central for instructions regarding steam on
top mounting. Top mounting in steam is an alternative mounting method for
steam installations that can be used if there are space restrictions or other
concerns. This installation method is intended for applications that run with
limited interruptions or shutdowns. Also, top mounting can reduce or eliminate
the need for heat tracing in outdoor applications that do not experience
shutdowns during cold weather.

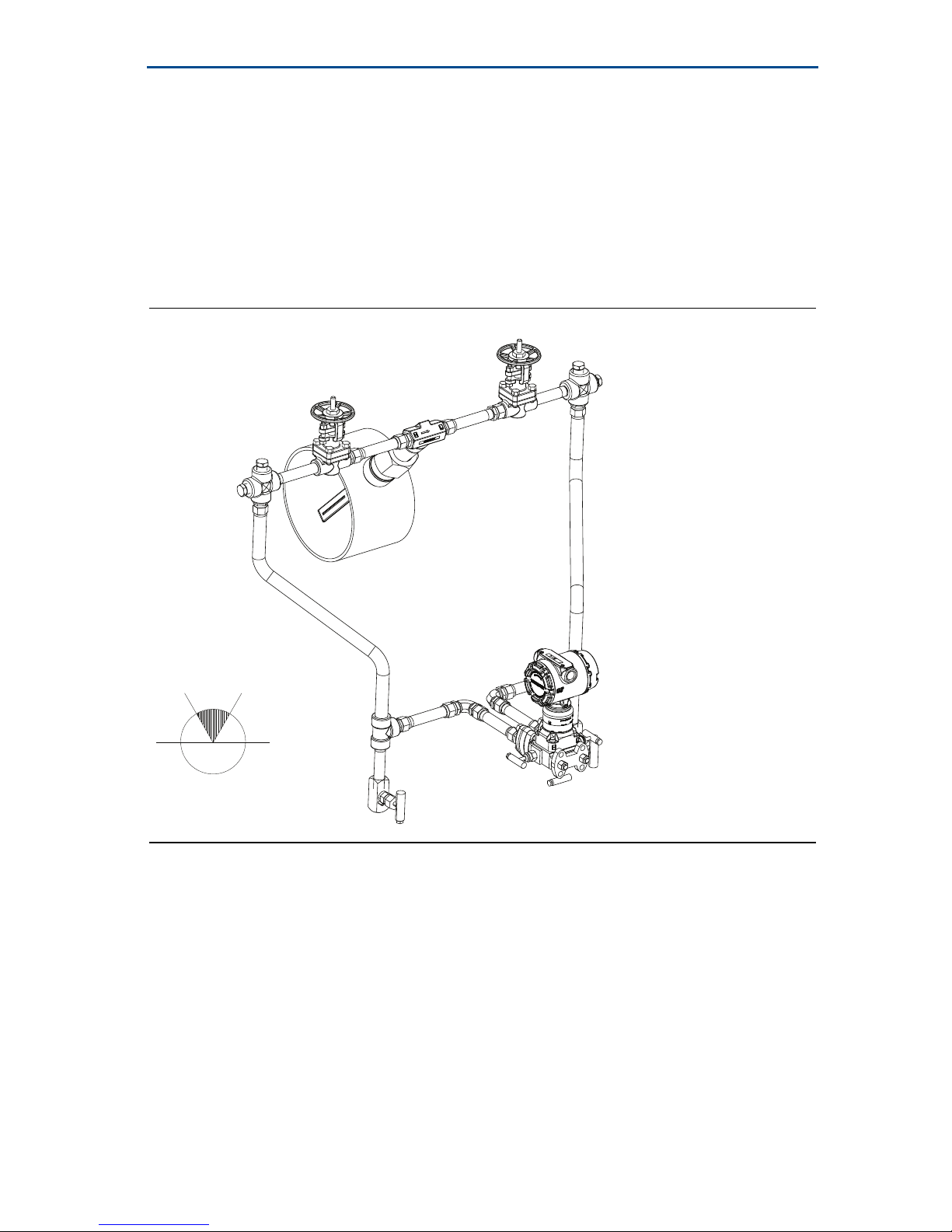

Figure 7. Remote Mount; Horizontal Top Mounting for Steam
This orientation can be used for any steam temperature. The impulse piping
should slope up slightly from the instrument connections on the Rosemount
Annubar to the cross fittings, allowing condensate to drain back into the pipe.
From the cross fittings, the impulse piping should be routed downward to the
transmitter and the drain legs. The transmitter should be located below the
instrument connections of the Rosemount Annubar primary element. Depending
on the environmental conditions, it may be necessary to insulate the mounting
hardware.
60° 60°
Recommended
Zone
60°

Quick Start Guide
11
June 2016
2.0 Drill sensor holes
1. Determine the sensor size based on the probe width (see Table 3).
2. Depressurize and drain the pipe.
3. Select the location to drill the hole.
4. Determine the diameter of the hole to be drilled according to the
specifications in Table 3. Drill the mounting hole into the pipe with a hole saw
or drill. DO NOT TORCH CUT THE HOLE.
3.0 Prepare for welding
1. Clean off the coating on the bottom of the weld coupling to get the best weld
penetration effect.
2. For specific process fluid, the anti-rust oil inside the weld coupling may need to
be rinsed thoroughly before welding. If you are not sure about your process
fluid, contact an Emerson Process Management representative.
Table 3. Sensor Size/Hole Diameter Chart
Sensor
size Sensor width Hole diameter
10.590-in. (14,99 mm) 3/4-in. (19 mm) +1/32-in (0,8 mm) – 0.00
21.060-in. (26,92 mm) 15/16-in. (34 mm) +1/16-in. (1,6 mm) – 0.00
When drilling the mounting hole, Emerson™Process Management recommends the use of a magnetic drill or
pipe clamping fixture to safely drill the hole. Use appropriate personal protective equipment and procedures
when drilling and welding.
P/N: 28-109001-922 Rev. AC
Drill to Hole Size

June 2016
12
Quick Start Guide
4.0 Weld the mounting hardware
1. Center the threaded body over the mounting hole, gap 1/16-in. (1,6 mm), and
place four 1/4-in. (6 mm) tack welds at 90° increments.
2. Check alignment of the threaded body both parallel and perpendicular to the
axis of flow (see Figure 8). If alignment of mounting is within tolerances
defined in Figure 3, finish weld per local codes. If alignment is outside of
specified tolerance, make adjustments prior to finish weld.

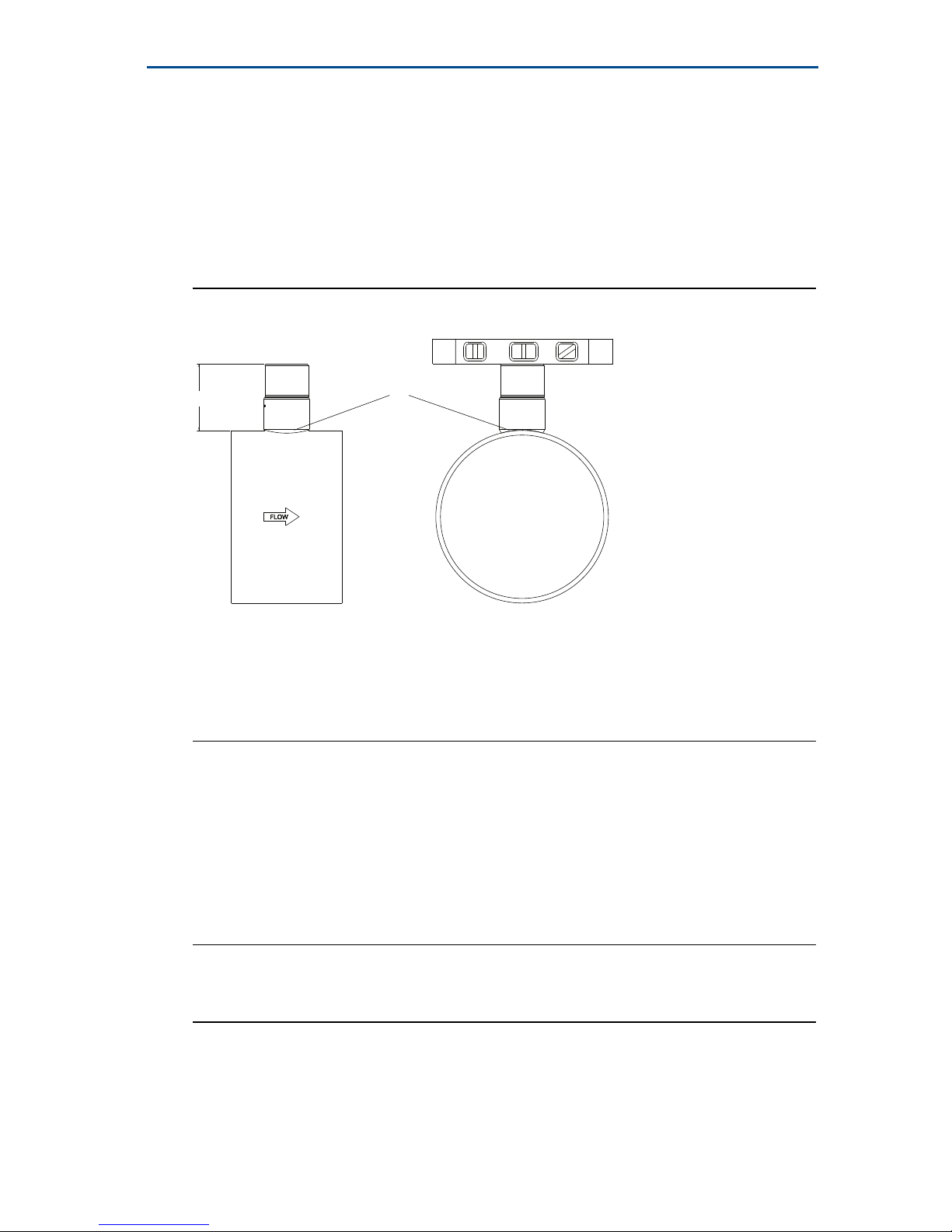

Figure 8. Alignment
3. To avoid serious burns, allow the mounting hardware to cool before
continuing.
4. For flat duct surfaces, the bottom of the weld coupling needs to be ground for
mounting. The welding height remains the same as LMH value for respective
sensor size.
5.0 Insert the Rosemount Annubar Sensor
Note
Refer to “Rosemount 485 Annubar Threaded Assembly Exploded View” on page 3 for
component descriptions.
1. To ensure the primary element contacts the opposite side pipe wall, mark the
tip of the sensor with a marker.
2. Insert the flowmeter into the threaded body until the sensor tip contacts the
pipe wall, twisting the primary element back and forth.
A. Lower Mounting Height LMH(1)
1. LMH values are as follows:
Sensor size 1 — 2.89-in.(73 mm)
Sensor size 2 — 3.92-in.(100 mm)
B. Tack welds
AB

Quick Start Guide
13
June 2016
3. Verify the sensor tip made contact with the opposite side pipe wall by
removing the primary element and ensuring that some of the marker has been
rubbed off. If the tip did not touch the wall, verify the measured pipe ID and
wall match the tagging information and re-insert.
4. Align the flow arrow on the head with the direction of flow. Re-insert the
primary element into the threaded weld coupling and install the first packing
ring on the sensor between the retaining ring and the follower. Take care not
to damage the split packing rings.
5. Install packing rings.
a. Install the first packing ring underneath the follower.
b. Use the follower to compress the first packing ring against the retaining
ring.
c. Install the second packing ring underneath the follower. Alternate packing
ring splits by 120° to each other.
d. Use the follower to compress the second packing ring against the first
packing ring.
A. Retaining ring C. Nut
B. Follower D. 3⫻Packing rings
Serial No. Date
Model
Customer Tag
Pipe I.D. Wall
Max. Allow FlowRate
Max. Insert/Retract Flow
Max. Press. @ Temp
Span (20mA)
00-370000-2X1 Rev. AC
B
D
C
A

June 2016
14
Quick Start Guide
e. Install the third packing ring underneath the follower.
f. Use the follower to compress the third packing ring.
6. Tighten the nut to the specified torque.
Table 4. Torque Requirements
a. Inspect the unit for leakage.
b. If any leaks exist, tighten the nut in 1/4turn increments until there is no
leakage.
Note
Do not exceed the maximum torque listed in Table 4.
Note
The threaded sealing mechanism will generate significant force at the point where the
sensor contacts the opposite pipe wall. Caution needs to be exercised on thin-walled piping
(ANSI Sch 10 and lower) to avoid damage to the pipe.
Sensor size Open spanner
specification C
Recommended
torque Maximum torque
1M50 444.4 in-lb (50 N-m) 531 in-lb (60 N-m)
2M65 708 in-lb (80 N-m) 1416 in-lb (160 N-m)
Figure 9. Torque Wrench(1)
1. See Table 4 for “Open spanner specification C”.

Quick Start Guide
15
June 2016
6.0 Product certifications
6.1 Approved Manufacturing Locations
Rosemount Inc. – Shakopee, Minnesota USA
Rosemount DP Flow Design and Operations – Boulder, Colorado USA
Emerson Process Management GmbH & Co. OHG – Wessling, Germany
Emerson Process Management Asia Pacific Private Limited – Singapore
Emerson Beijing Instrument Co., Ltd – Beijing, China
6.2 European Directive Information
The EC declaration of conformity for all applicable European directives for this
product can be found on the Rosemount website at
EmersonProcess.com/Rosemount. A hard copy may be obtained by contacting
our local sales office.
European Pressure Equipment Directive (PED) (97/23/EC)
Rosemount 485 Annubar — Refer to EC declaration of conformity for conformity
assessment
Pressure Transmitter — See appropriate Pressure Transmitter QSG
6.3 Hazardous Locations Certifications
For information regarding the transmitter product certification, see the
appropriate transmitter QSG:
Rosemount 3051S Series Pressure Transmitter and Rosemount 3051SF Series
Flowmeter Quick Start Guide.
Rosemount 3051S MultiVariable Transmitter and Rosemount 3051SF Series
Flowmeter MultiVariable Transmitter Quick Start Guide.
Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series
Flowmeter Transmitter Quick Start Guide.
Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series
Flowmeter Transmitter Quick Start Guide.

June 2016
16
Quick Start Guide
Figure 10. Rosemount 485 Declaration of Conformity

Quick Start Guide
17
June 2016

June 2016
18
Quick Start Guide

Quick Start Guide
19
June 2016
表表格 1B: 含有 China RoHS 管控物峐超彯㚨⣏㳻⹎旸ῤ的部件型号列表
Rosemount 485
Table 1B: List of Rosemount 485 Parts with China RoHS Concentration above MCVs
部件名称
Part Name
有害物峐ġİġHazardous Substances
摭
Lead
(Pb)
汞
Mercury
(Hg)
擱
Cadmium
(Cd)
六价撔
Hexavalent
Chromium
(Cr +6)
多ⓤ俼劗
Polybrominated
biphenyls
(PBB)
多ⓤ俼劗慂
Polybrominated
diphenyl ethers
多ⓤ俼劗慂
(PBDE)
䬍ࡦ⑙ᓖՐ
ᝏಘཆ༣㓴
Ԧ
Aluminum
RTD
Housing
Assembly
O O O X O O
本表格系依据
SJ/T11364
的奬⭂侴⇞ἄįġ
This table is proposed in accordance with the provision of SJ/T11364
O:
意󰶃宍悐ẞ䘬㇨㚱⛯峐㛸㕁󰵶宍㚱⭛䈑峐䘬⏓慷⛯ỶḶ
GB/T 26572
所奬⭂䘬旸慷天㯪įġ
O: Indicate that said hazardous substance in all of the homogeneous materials for this part is below the limit requirement of
GB/T 26572.
X:
意󰶃⛐宍悐ẞ㇨ἧ䓐䘬㇨㚱⛯峐㛸㕁慴炻军⮹㚱ᶨ䰣⛯峐㛸㕁󰵶宍㚱⭛䈑峐䘬⏓慷檀Ḷ
GB/T 26572
所奬⭂䘬旸慷天㯪įġ
X: Indicate that said hazardous substance contained in at least one of the homogeneous materials used for this part is above
the limit requirement of GB/T 26572.
к䘠⭣᰾ӵ䘲⭘Ҿ䘹ᤙ䬍ࡦཆ༣㓴ԦⲴӗ૱DŽަԆᡰᴹᐞ঻⍱䟿а⅑ݳԦⲴ㓴ԦᡰᴹⲴ China RoHS ㇑᧗⢙䍘⎃
ᓖ൷վҾ GB/T 26572 ᡰ㿴ᇊⲴ䲀䟿㾱≲DŽޣҾᐞ঻⍱䟿䇑䘱ಘ㓴ԦⲴ㇑᧗⢙䍘⎃ᓖⲴ⭣᰾ˈ䈧৲ⴻ䘱ಘⲴᘛ
䙏ᆹ㻵ᤷইDŽ
The disclosure above applies to units supplied with aluminum connection heads. No other components supplied
with DP Flow primary elements contain any restricted substances. Please consult the transmitter Quick Start
Guide (QIG) for disclosure information on transmitter components.

Global Headquarters
Emerson Process Management
6021 Innovation Blvd.
Shakopee, MN 55379, USA
[phone] or [phone]
[phone]
[email protected]
North America Regional Office
Emerson Process Management
8200 Market Blvd.
Chanhassen, MN 55317, USA
[phone] or [phone]
[phone]
[e-mail]
Latin America Regional Office
Emerson Process Management
1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA
[phone]
[phone]
[email protected]
Linkedin.com/company/Emerson-Process-Management
Twitter.com/Rosemount_News
Facebook.com/Rosemount
Youtube.com/user/RosemountMeasurement
Google.com/+RosemountMeasurement
Standard Terms and Conditions of Sale can be found at
www.Emerson.com/en-us/pages/Terms-of-Use.aspx
The Emerson logo is a trademark and service mark of Emerson
Electric Co.
Annubar, Rosemount and Rosemount logotype are trademarks of
Emerson Process Management.
All other marks are the property of their respective owners.
© 2016 Emerson Process Management. All rights reserved.
Europe Regional Office
Emerson Process Management Europe GmbH
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland
[phone]
[phone]
[email protected]
Asia Pacific Regional Office
Emerson Process Management Asia Pacific Pte Ltd
1 Pandan Crescent
Singapore 128461
[phone]
[phone]
[e-mail]
Middle East and Africa Regional Office
Emerson Process Management
Emerson FZE P.O. Box 17033,
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates
[phone]
[phone]
[e-mail]
Quick Start Guide
00825-0700-4809, Rev BA
June 2016
*00825-0700-4809*
