Emerson Rosemount 148 User manual

Quick Start Guide
00825-0100-4148, Rev HB
April 2019
Rosemount™ 148 Temperature
Transmitter

Safety Messages
NOTICE
This guide provides basic guidelines for installing the Rosemount™ 148 Temperature Transmmitter. It
does not provide instructions for detailed configuration, diagnostics, maintenance, service,
troubleshooting, or installations. Refer to the Rosemount 148 Temperature Transmitter Reference
Manual for more instruction. The manual and this guide are also available electronically at
Emerson.com/Rosemount.
WARNING
Explosions
Explosions could result in death or serious injury.
Installation of device in an explosive environment must be in accordance with appropriate local,
national, and international standards, codes, and practices.
Review the Hazardous Locations Certifications for any restricions associated with a safe
installation.
WARNING
Process leaks
Process leaks could result in death or serious injury.
Install and tighten thermowells or sensors before applying pressure.
Do not remove the thermowell while in operation.
WARNING
Electrical shock
Electrical shock could cause death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
WARNING
Conduit/cable entries
Unless marked, the conduit/cable entries in the transmitter housing use a ½-14 NPT thread form.
Entries marked "M20" are M20 X 1.5 thread form. On devices with multiple conduit entries, all
entries have the same thread form.
Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these
entries.
When installing in a hazardous location, use only appropriately listed or Ex certified plugs, glands,
or adapters in cable/conduit entries.
Contents
Quick Start Guide April 2019
2 Rosemount 148

Software installation...................................... 5
Configuration.................................................6
Mount the transmitter................................... 7
Wire the transmitter.................................... 12
Product certifications...................................17
April 2019 Quick Start Guide
Quick Start Guide 3

Quick Start Guide April 2019
4 Rosemount 148

1 Software installation
Procedure
1. Place the Rosemount™ 148 PC Programmer CD_ROM into the drive.
2. Run setup.exe from Windows™ XP, 7, 8, or 10.
3. When first using the software, configure the appropriate COM ports
by selecting Port Settings from the Communicate menu.
4. Install MACTek® Modem drivers completely before beginning bench
configuration on the Rosemount 148 system.
Note
The software defaults to the first available COM port.
April 2019 Quick Start Guide
Quick Start Guide 5

2 Configuration
2.1 Configure the transmitter
You must configure the transmitter for certain basic variables to operate.
Manufacturers pre-configure the transmitters in the factory to order
specifications or factory defaults.
You may need to configure if the transmitter has not been configured or if
the configuration variables need revision. To configure, do one of the
following:
•Order factory-configuration from Emerson Automation Solutions.
•Use the Rosemount 148 PC Programming interface in a bench
configuration setting.
The Rosemount™ 148 PC Programming Kit includes configuration software
and a communication modem.
Prerequisites
The device will need an external power supply of 12–42.4 Vdc.
Procedure
1. Hook up the transmitter and a load resistor (250–1100 ohms) wired
in series with the power supply.
2. Attach the modem in parallel with the load resistor and connect it to
the PC.
2.2 Verify configuration
If the transmitter has a sensor connected (either a test sensor or actual
installation hardware), you can check the configuration with the
Information tab on the Rosemount™ 148 PC Programmer Interface.
Procedure
1. Select Refresh to update the status and confirm that the transmitter
has been configured correctly.
2. If there are any problems, refer to the Rosemount 148 Temperature
Transmitter Reference Manual for troubleshooting suggestions.
Quick Start Guide April 2019
6 Rosemount 148

3 Mount the transmitter
3.1 Head mount transmitter with DIN plate style sensor
This type of installation is typical in Europe and Asia Pacific.
Procedure
1. Attach the thermowell to the pipe or process container wall.
2. Install and tighten thermowells before applying process pressure.
3. Assemble the transmitter to the sensor.
a) Push the transmitter mounting screws through the sensor
mounting plate.
b) Insert the snap rings (optional) into the transmitter mounting
screw groove.
4. Wire the sensor to the transmitter.
5. Insert the transmitter-sensor assembly into the connection head.
a) Thread the transmitter mounting screw into the connection
head mounting holes.
b) Assemble the extension to the connection head.
c) Insert the assembly into the thermowell.
6. Slip the shielded cable though the cable gland.
7. Attach a cable gland into the shielded cable.
8. Insert the shielded cable leads into the connection head through the
cable entry.
9. Connect and tighten the cable gland.
10. Connect the shielded power cable leads to the transmitter power
terminals.
Avoid contact with sensor leads and sensor connections.
11. Install and tighten the connection head cover.
WARNING
Explosions
Make sure enclosure covers are fully engaged to meet explosion-
proof requirements.
April 2019 Quick Start Guide
Quick Start Guide 7

Example
Figure 3-1: Typical European and Asia Pacific Installation
B D F
A
C E
A. Transmitter mounting screws
B. Rosemount™ 148 Transmitter
C. Integral mount sensor with flying leads
D. Connection head
E. Extension
F. Thermowell
3.2 Head mount transmitter with threaded sensor
This type of installation is typical in North and South America.
Procedure
1. Attach the thermowell to the pipe or process container wall.
2. Install and tighten the thermowell before applying process pressure.
3. Attach necessary extension nipples and adapters to the thermowell.
4. Seal the nipple and adapter threads with silicone tape.
5. Screw the sensor into the thermowell.
6. Install drain seals if required for severe environments or to satisfy
code requirements.
7. Pull the sensor wiring leads through the universal head and
transmitter.
8. Mount the transmitter in the universal head by threading the
transmitter mounting screws into the universal head mounting
holes.
9. Mount the transmitter-sensor assembly into the thermowell.
10. Seal adapter threads with silicone tape.
11. Install conduit for field wiring to the conduit entry of the universal
head.
12. Seal conduit threads with silicone tape.
Quick Start Guide April 2019
8 Rosemount 148

13. Pull the field wiring leads through the conduit into the universal
head.
14. Attach the sensor and power leads to the transmitter.
Avoid contact with other terminals.
15. Install and tighten the universal head cover.
WARNING
Explosions
Fully engage enclosure covers to meet explosion-proof
requirements.
Example
Figure 3-2: Typical North and South American Installation
A C D
BE
A. Threaded thermowell
B. Standard extension
C. Threaded style sensor
D. Universal head
E. Conduit entry
3.3 Mount the the transmitter to a DIN rail
Assemble the appropriate rail mounting kit (part number 00148-1601-0001)
to the transmitter as shown.
April 2019 Quick Start Guide
Quick Start Guide 9

Figure 3-3: Mounting to DIN Rail
C
B
A
A. Mounting hardware
B. Transmitter
C. Rail clip
3.4 Rail mount transmitter with remote mount sensor
The least complicated assembly uses:
•Remote mounted transmitter
•Integral mount sensor with terminal block
•Integral style connection head
•Standard extension
•Threaded thermowell
Refer to the Metric Sensor Product Data Sheet for complete sensor and
mounting accessory information.
3.5 Rail mount transmitter with threaded sensor
The least complicated assembly uses:
Quick Start Guide April 2019
10 Rosemount 148

•Threaded sensor with flying heads
•Threaded sensor connection head
•Union and nipple extension assembly
•Threaded thermowell
Refer to Rosemount™ Volume 1 Temperature Sensors and Accessories
Product Data Sheet for complete sensor and mounting accessory
information.
April 2019 Quick Start Guide
Quick Start Guide 11

4 Wire the transmitter
Diagrams and power
•Wiring diagrams are located on the top label of the transmitter.
•An external power supply is required to operate the transmitter.
•The power required across the transmitter power terminals is 12 to 42.4
Vdc; the power terminals are rated to 42.4 Vdc.
CAUTION
Transmitter damage
To prevent damaging the transmitter, do not allow terminal voltage to drop
below 12.0 Vdc when changing the configuration parameters.
4.1 Power the transmitter
Procedure
1. Connect the positive power lead to the “+” terminal.
2. Connect the negative power lead to the “–” terminal.
3. Tighten the terminal screws.
4. Apply power (12–42 Vdc).
Example

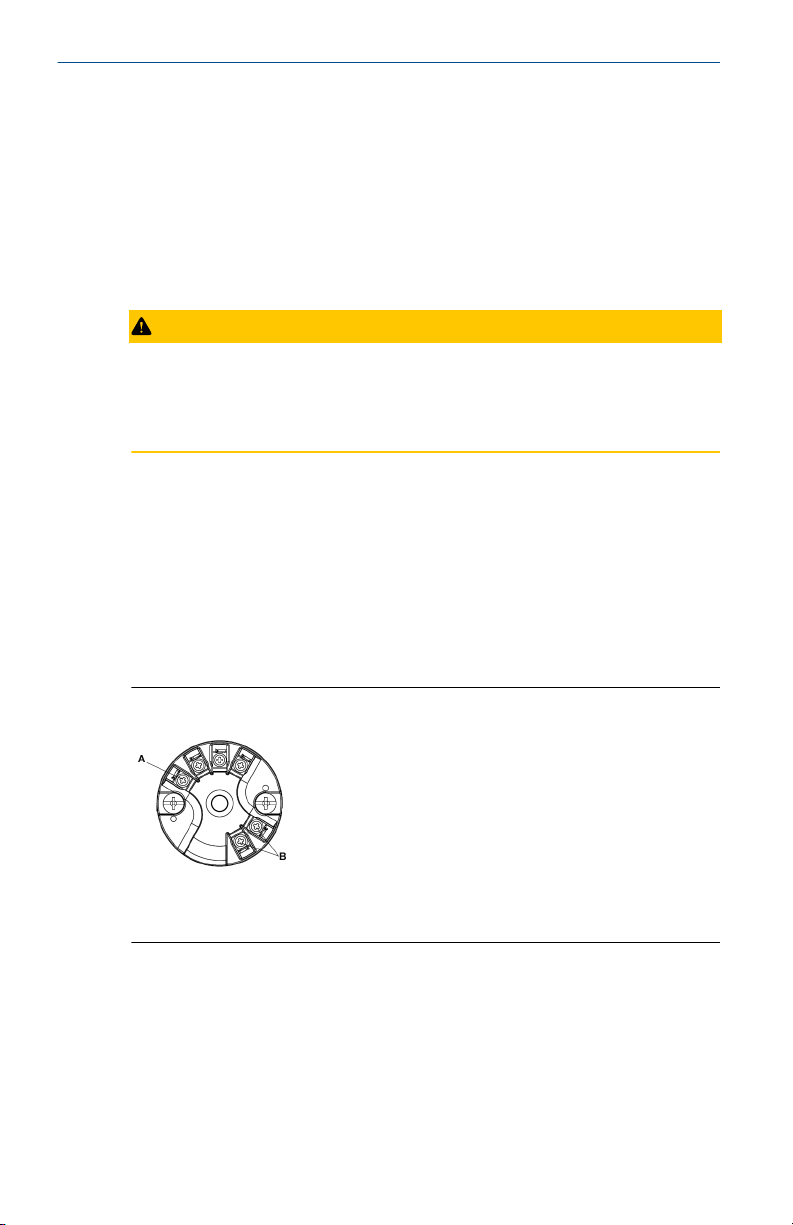

Figure 4-1: Power, Communication, and Sensor Terminals
A. Sensor terminals
B. Power/communication terminals
4.2 Ground the transmitter
Ungrounded thermocouple,mV, and RTD /Ohm inputs
Each process installation has different requirements for grounding. Use the
grounding options recommended by the facility for the specific sensor type,
or begin with grounding Option 1 (the most common).
Quick Start Guide April 2019
12 Rosemount 148

4.2.1 Ground the transmitter: Option 1
Use this method for grounded housing.
Procedure
1. Connect sensor wiring shield to the transmitter housing.
2. Ensure the sensor shield is electrically isolated from surrounding
fixtures that may be grounded.
3. Ground signal wiring shield at the power supply end.

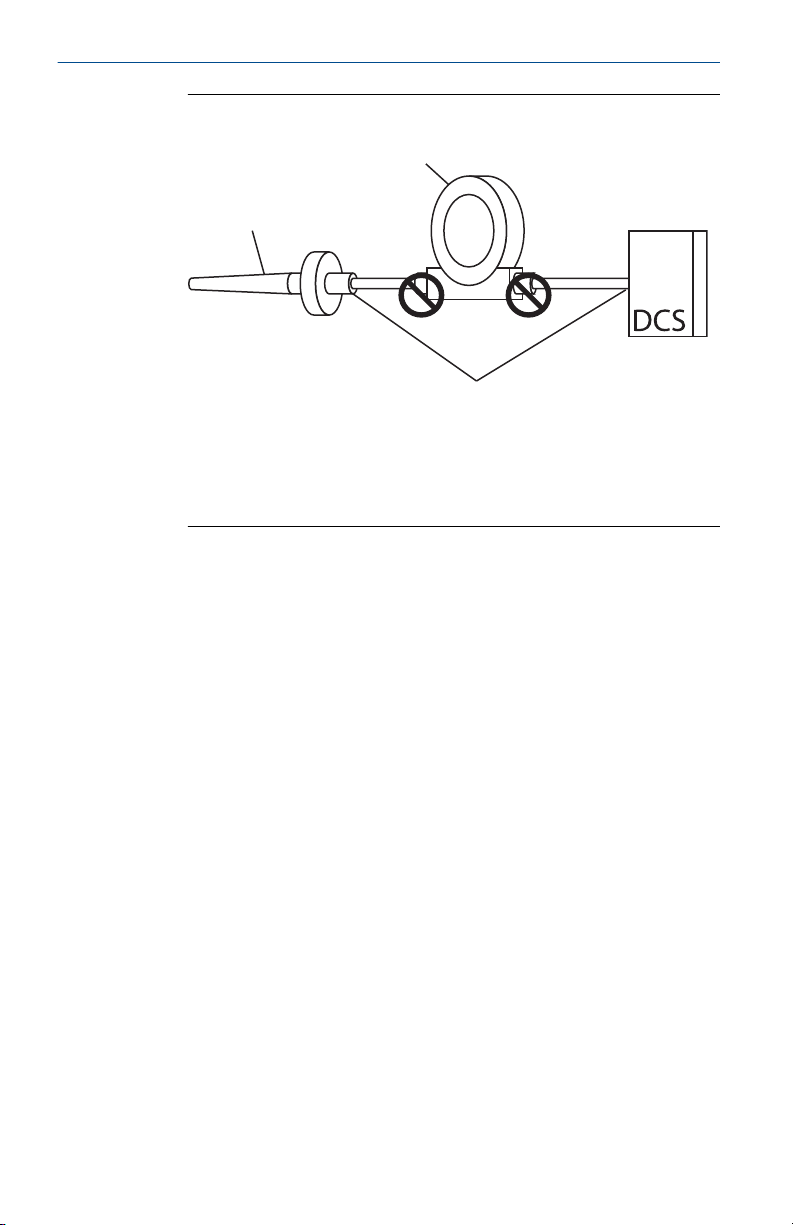

Figure 4-2: Option 1L Grounded Housing
A
B
D
C
A. Sensor wires
B. Transmitters
C. 4-20 mA loop
D. Shield ground point
4.2.2 Ground the transmitter: Option 2
Use this method for grounded housing.
Procedure
1. Connect signal wiring shield to the sensor wiring shield.
2. Ensure the two shields are tied together and electrically isolated from
the transmitter housing.
3. Ground shield at the power supply end only.
4. Ensure the sensor shield is electrically isolated from the surrounding
grounded fixtures.
April 2019 Quick Start Guide
Quick Start Guide 13

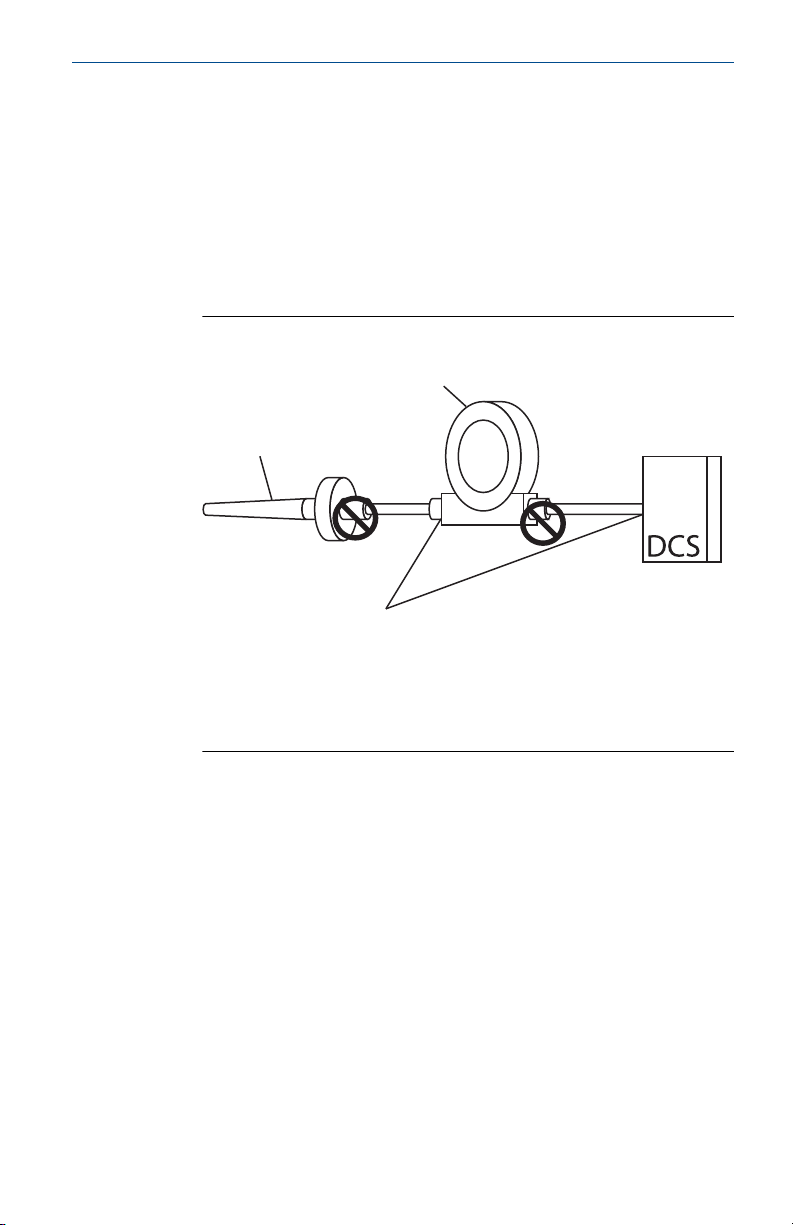

Figure 4-3: Option 2 Grounded Housing
D
B
AC
A. Sensor wires
B. Transmitters
C. 4-20 mA loop
D. Shield ground point
4.2.3 Ground the transmitter: Option 3
Use this method for grounded or ungrounded housing.
Procedure
1. Ground sensor wiring shield at the sensor, if possible.
2. Ensure that the sensor wiring and signal wiring shields are electrically
isolated from the transmitter housing.
Do not connect the signal wiring shield to the sensor wiring shield.
3. Ground signal wiring shield at the power supply end.
Quick Start Guide April 2019
14 Rosemount 148

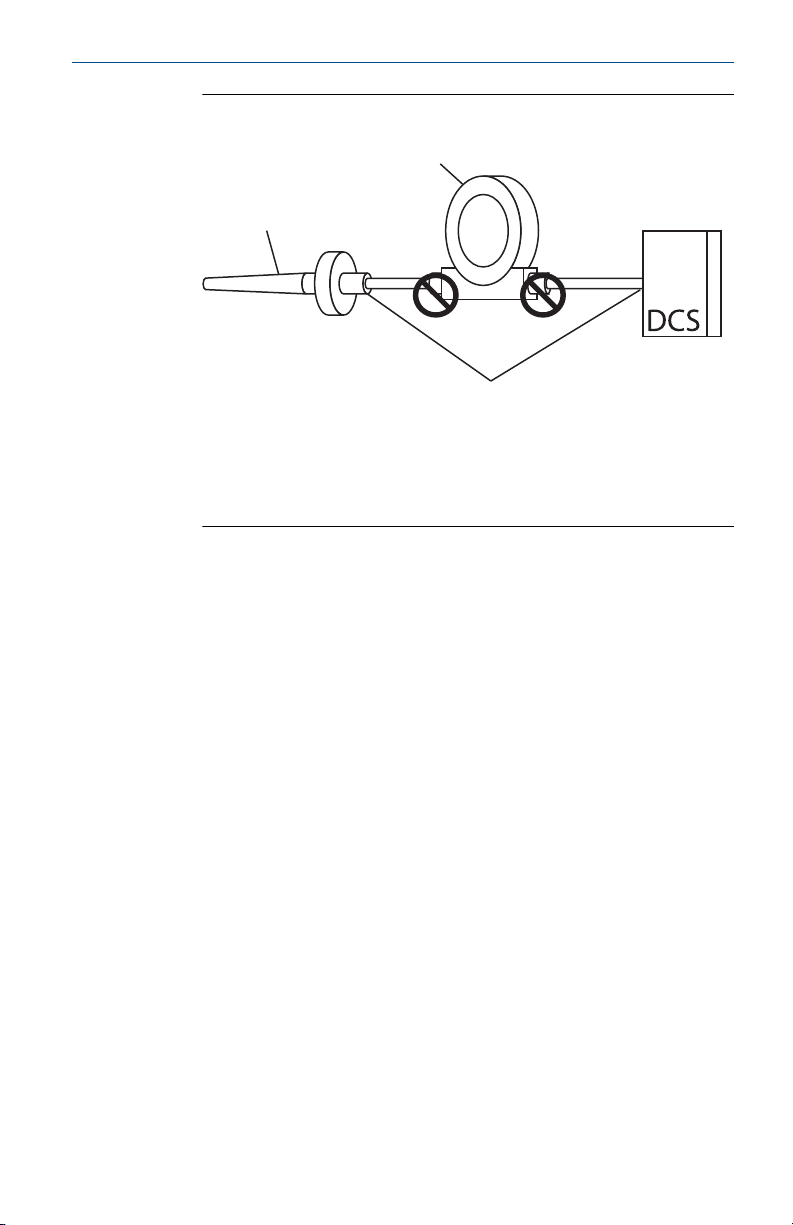

Figure 4-4: Option 3: Grounded or Ungrounded Housing
A
B
D
C
A. Sensor wires
B. Transmitters
C. 4 - 20 mA loop
D. Shield ground point
4.2.4 Ground the transmitter: Option 4
Use this method for grounded thermocouple inputs.
Procedure
1. Ground sensor wiring shield at the sensor.
2. Ensure that the sensor wiring and signal wiring shields are electrically
isolated from the transmitter housing.
Do not connect the signal wiring shield to the sensor wiring shield.
3. Ground signal wiring shield at the power supply end.
April 2019 Quick Start Guide
Quick Start Guide 15

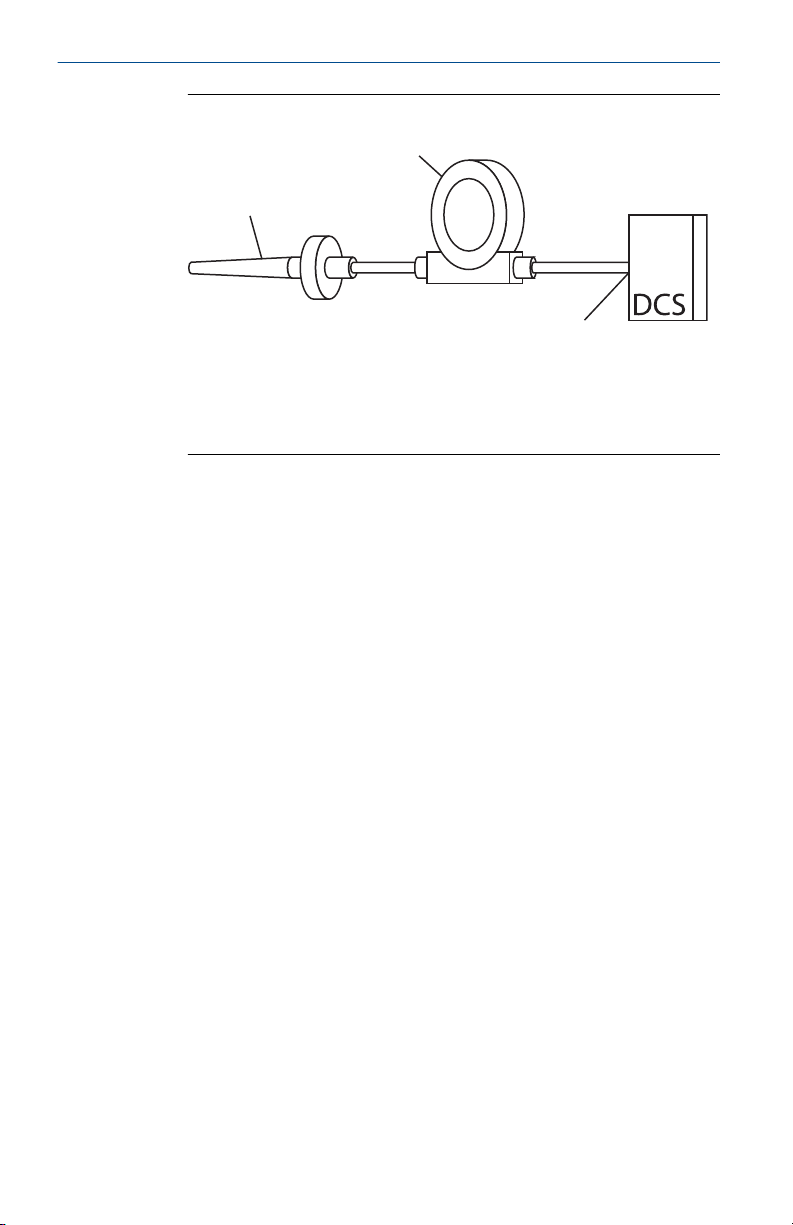

Figure 4-5: Option 4: Grounded Thermocouple Inputs
A
B
D
C
A. Sensor wires
B. Transmitters
C. 4-20 mA loop
D. Shield ground point
Quick Start Guide April 2019
16 Rosemount 148

5 Product certifications
5.1 European Directive Information
A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.
5.2 Ordinary Location Certification
As standard, the transmitter has been examined and tested to determine
that the design meets the basic electrical, mechanical, and fire protection
requirements by a nationally recognized test laboratory (NRTL) as accredited
by the Federal Occupational Safety and Health Administration (OSHA).
5.3 North America
5.3.1 E5 FM Explosionproof, Dust-Ignitionproof, and Nonincendive
Certificate 3032198
Standards
used
FM Class 3600:2011, FM Class 3611:2004, FM Class
3615:2006, FM Class 3810:2005, IEC 60529: 2004, NEMA
– 250: 1991
Markings XP CL I, DIV 1, GP B, C, D; DIP CL II/III, DIV 1, GP E, F, G; NI
CL I, DIV 2, GP A, B, C, D; T5(-50 °C ≤ Ta ≤ +85 °C); when
installed per Rosemount™ drawing 00148-1065; Type 4X;
IP66/68
5.3.2 I5 FM Intrinsic Safety and Nonincendive
Certificate 3032198
Standards
used
FM Class 3600:2011, FM Class 3610:2010, FM Class
3611:2004, FM Class 3810:2005, IEC 60529: 2004, NEMA
– 250: 1991
Markings IS CL I/II/III, DIV 1, GP A, B, C, D, E, F, G; NI CL1, DIV 2, GP A,
B, C, D; T6(-50 °C ≤ Ta ≤ +40 °C) , T5(-50 °C ≤ Ta ≤ +75 °C)
when installed per Rosemount™ drawing 00148-1055;
Type 4X; IP66/68
Special Conditions for Safe Use (X):
1. When no enclosure option is selected, the Model 148 Temperature
Transmitter shall be installed in an enclosure meeting the
requirements of ANSI/ISA S82.01 and S82.03 or other applicable
ordinary location standards.
April 2019 Quick Start Guide
Quick Start Guide 17

2. To maintain a Type 4X rating, do not select N (No enclosure) or B
(Buz Head).
3. Enclosure option must be selected to maintain a Type 4 Rating.
5.3.3 I6 CSA Intrinsic Safety and Division 2
Certificate 1091070
Standards
used
CAN/CSA C22.2 No. 0-M90, CSA Std. C22.2 No. 25-1966,
CAN/CSA C22.2 No. 94-M91, CAN/CSA C22.2 No. 157-92,
CSA C22.2 No. 213-M1987, C22.2 No 60529-05
Markings IS CL I, DIV 1 GP A, B, C, D when installed per Rosemount™
drawing 00248-1056; Suitable for CL I DIV 2 GP A, B, C, D
when installed per Rosemount drawing 00248-1055;
T6(-50 °C ≤ Ta ≤ +40 °C), T5(-50 °C ≤ Ta ≤ +60 °C); Type 4X,
IP66/68 for enclosure options “A”, “G”, “H”, “U”; Seal not
required (See drawing 00248-1066)
5.3.4 K6 CSA Explosionproof, Intrinsic Safety, and Division 2
Certificate 1091070
Standards
used
CAN/CSA C22.2 No. 0-M90, CSA Std. C22.2 No. 25-1966,
CSA Std. C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91,
CSA Std. C22.2 No.142-M1987, CAN/CSA C22.2 No. 157-92,
CSA C22.2 No. 213-M1987, C22.2 No 60529-05
Markings XP CL I/II/III, DIV 1, GP B, C, D, E, F, G when installed per
Rosemount™ drawing 00248-1066; IS CL I, DIV 1 GP A, B, C,
D when installed per Rosemount drawing 00248-1056;
Suitable for CL I DIV 2 GP A, B, C, D when installed per
Rosemount drawing 00248-1055; T6(-50 °C ≤ Ta ≤ +40 °C),
T5(-50° C ≤ Ta ≤ +60 °C); Type 4X, IP66/68 for enclosure
options “A”, “G”, “H”, “U”; Seal not required (See drawing
00248-1066)
5.4 Europe
5.4.1 E1 ATEX Flameproof
Certificate FM12ATEX0065X
Standards
used
EN 60079-0: 2012+A11:2013, EN 60079-1: 2014, EN
60529:1991 +A1:2000 + A2:2013
Markings II 2 G Ex db IIC T6…T1 Gb, T6(-50 °C ≤ Ta ≤ +40 °C),
T5…T1(-50 °C ≤ Ta ≤ +60 °C); see Table 5-1 for process
temperatures.
Quick Start Guide April 2019
18 Rosemount 148

Specific conditions for safe use (X):
1. See certificate for ambient temperature range.
2. The non-metallic label may store an electrostatic charge and become
a source of ignition in Group III environments.
3. Guard the LCD cover against impact energies greater than 4 joules.
4. A suitable certified Ex d or Ex tb enclosure is required to be connected
to temperature probes with Enclosure option "N".
5. Care shall be taken by the end user to ensure that the external
surface temperature on the equipment and the neck of DIN Style
Sensor probe does not exceed 266 °F (130 °C).
6. Non-Standard Paint options may cause risk of electrostatic discharge.
Avoid installations that cause electrostatic build-up on painted
surfaces and only clean the painted surfaces with a damp cloth. If
paint is ordered through a special option code, contact the
manufacturer for more information.
5.4.2 I1 ATEX Intrinsic Safety
Certificate Baseefa08ATEX0030X
Standards
used
EN 60079-0: 2012, EN 60079-11: 2012
Markings II 1 G Ex ia IIC T5/T6 Ga, T5(-60 °C ≤ Ta ≤ +80 °C),
T6(-60 °C ≤ Ta ≤ +60 °C).
See Table 5-2 for entity parameters.
Special conditions for safe use (X):
1. The apparatus must be installed in an enclosure which affords it a
degree of protection of at least IP20. Non-metallic enclosures must
have a surface resistance of less than 1 GΩ; light allow or zirconium
enclosures must be protected from impact and friction when
installed.
5.4.3 N1 ATEX Type n - with enclosure
Certificate BAS00ATEX3145
Standards used EN 60079-0:2012, EN 60079-15:2010
Markings II 3 G Ex nA IIC T5 Gc (-40 °C ≤ Ta ≤ +70 °C)
5.4.4 NC ATEX Type n - without enclosure
Certificate Baseefa13ATEX0092X
April 2019 Quick Start Guide
Quick Start Guide 19

Standards used EN 60079-0:2012, EN 60079-15:2010
Markings II 3 G Ex nA IIC T5/T6 Gc, T5(-60 °C ≤ Ta ≤ +80 °C),
T6(-60 °C ≤ Ta ≤ +60 °C)
Special conditions for safe use (X):
1. The Model 148 Temperature Transmitter must be installed in a
suitably certified enclosure such that it is afforded a degree of
protection of at least IP54 in accordance with IEC 60529 and EN
60079-15.
5.4.5 ND ATEX Dust
Certificate FM12ATEX0065X
Standards used EN 60079-0: 2012+A11:2013, EN 60079-31:2014, EN
60529:1991 +A1:2000 + A2:2013
Markings II 2 D Ex tb IIIC T130 °C Db, (-40 °C ≤ Ta ≤ +70 °C);
IP66
See Table 5-1 for process temperatures.
Specific conditions of use (X):
1. See certificate for ambient temperature range.
2. The non-metallic label may store an electrostatic charge and become
a source of ignition in Group III environments.
3. Guard the LCD cover against impact energies greater than 4 joules.
4. Flameproof joints are not intended for repair.
5. A suitable certified Ex d or Ex tb enclosure is required to be connected
to temperature probes with Enclosure option "N".
6. Care shall be taken by the end user to ensure that the external
surface temperature on the equipment and the neck of DIN Style
Sensor probe does not exceed 266 °F (130 °C).
7. Non-Standard Paint options may cause risk of electrostatic discharge.
Avoid installations that cause electrostatic build-up on painted
surfaces and only clean the painted surfaces with a damp cloth. If
paint is ordered through a special option code, contact the
manufacturer for more information.
5.5 International
5.5.1 E7 IECEx Flameproof and Dust
Certificate IECEx FMG 12.0022X
Quick Start Guide April 2019
20 Rosemount 148
