Emerson Rosemount 3051 Series User manual

Quick Start Guide
00825-0100-4797, Rev FD
February 2019

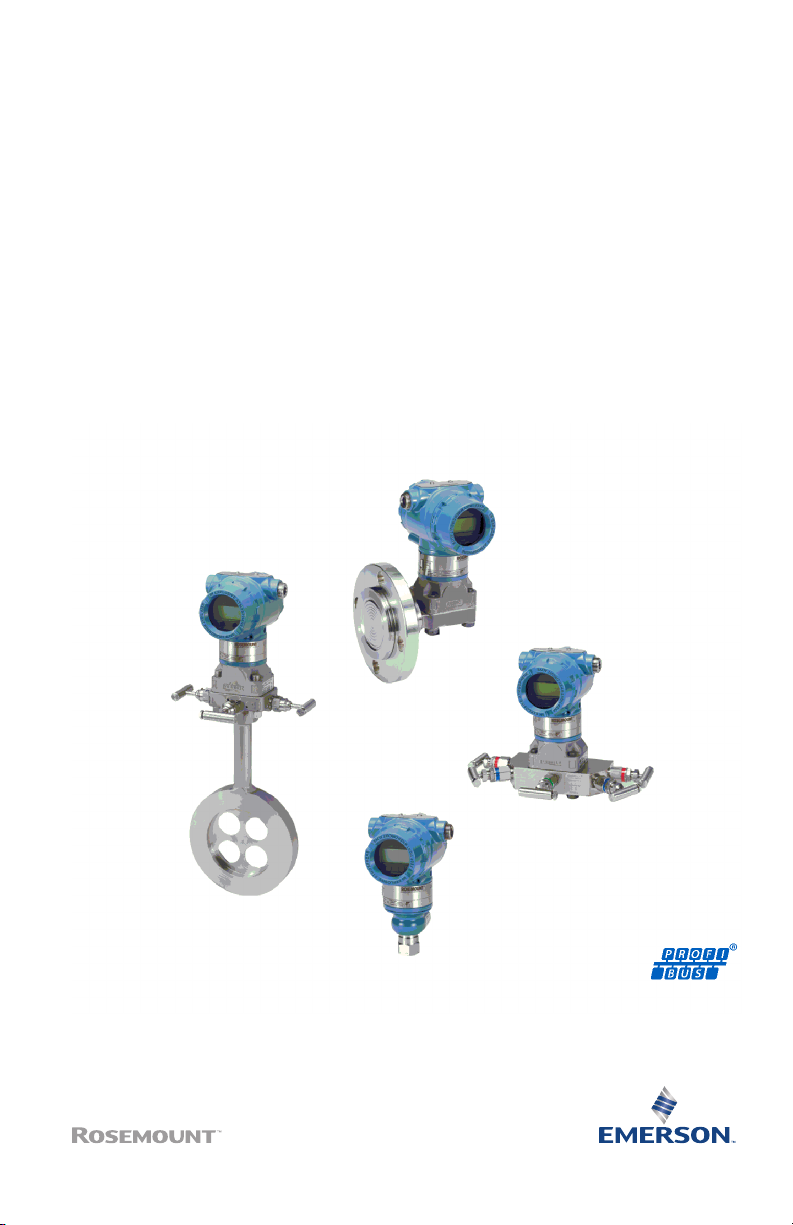

Rosemount™ 3051 Pressure Transmitter
and Rosemount 3051CF Series Flow
Meter
with PROFIBUS® PA Protocol

NOTICE
This installation guide provides basic guidelines for Rosemount 3051 Transmitters. It does not provide
instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-Proof,
Flame-Proof, or intrinsically safe (I.S.) installations. Refer to the Rosemount 3051 Reference Manual for
more instruction. This manual is also available electronically on EmersonProcess.com/Rosemount.
WARNING
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the appropriate
local, national, and international standards, codes, and practices. Review the approvals section of the
Rosemount 3051 Reference Manual for any restrictions associated with a safe installation.
Do not remove the transmitter cover in explosive atmospheres when the circuit is live.
Process leaks could result in death or serious injury.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.
Electrical shock could cause death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
Conduit/cable entries
Unless otherwise marked, the conduit/cable entries in the housing enclosure use a ½–14 NPT form.
Only use plugs, adapters, glands, or conduit with a compatible thread form when closing these entries.
Contents
Mount the transmitter................................... 3
Consider housing rotation............................12
Set jumpers and switches.............................13
Connect wiring and power up...................... 14
Basic configuration...................................... 18
Trim the transmitter.................................... 21
Product Certifications.................................. 22
Quick Start Guide February 2019
2 Emerson.com/Rosemount

1 Mount the transmitter
Figure 1-1: Panel Mount Coplanar Flange
5/16 x 1½ panel bolts are customer supplied.

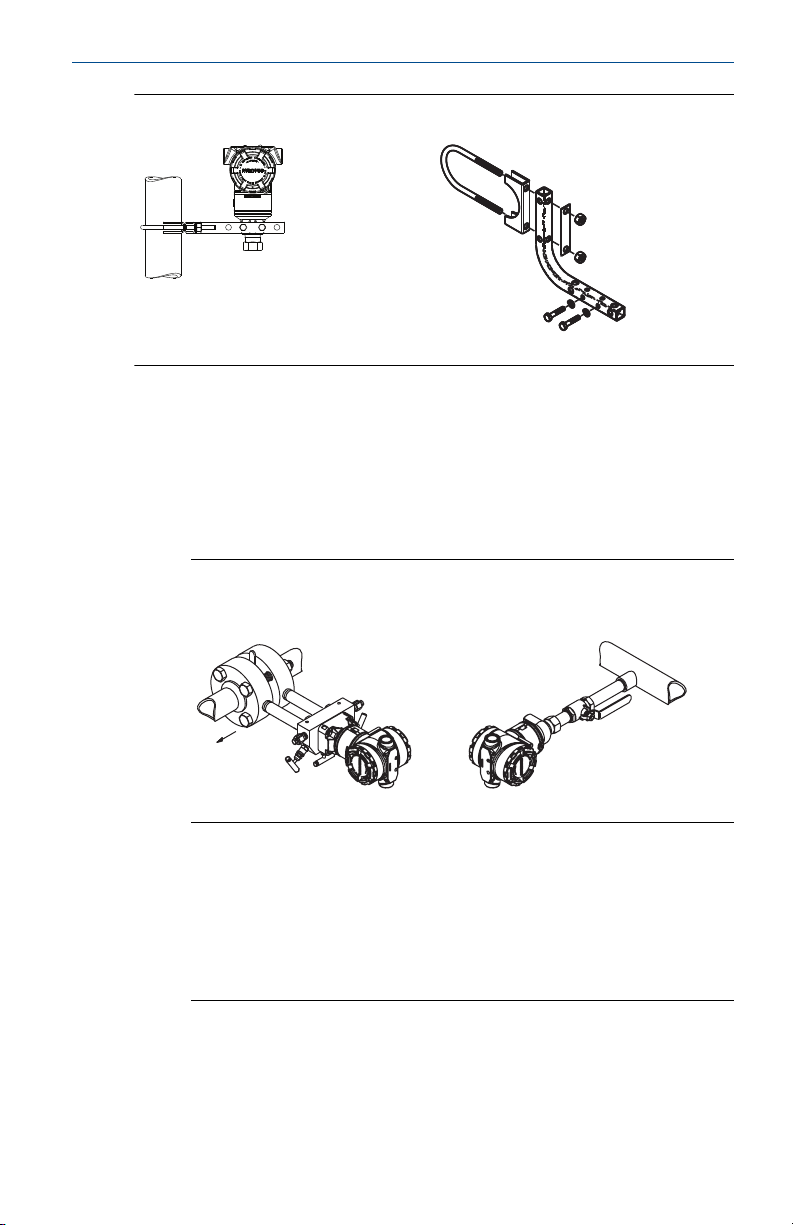

Figure 1-2: Pipe Mount Coplanar Flange
February 2019 Quick Start Guide
Quick Start Guide 3

Figure 1-3: Panel Mount Traditional Flange
Figure 1-4: Pipe Mount Traditional Flange
Figure 1-5: Panel Mount Rosemount™ 3051T
Quick Start Guide February 2019
4 Emerson.com/Rosemount

Figure 1-6: Pipe Mount Rosemount 3051T
1.1 Mount the transmitter in liquid applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so the drain/vent valves are oriented upward.
Figure 1-7: Mounting the Transmitter in Liquid Applications
Coplanar In-line
Flow
1.2 Mount the transmitter in gas applications
Procedure
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
Figure 1-8: Mounting the Transmitter in Gas Applications
Coplanar Inline
February 2019 Quick Start Guide
Quick Start Guide 5

Flow
1.3 Mount the transmitter in steam applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Figure 1-9: Mounting the Transmitter in Steam Applications
Coplanar In-line
Flow
1.4 Mounting options
Coplanar flange
Panel mount(1) Pipe mount
Quick Start Guide February 2019
6 Emerson.com/Rosemount

Traditional flange
Panel mount(2) Pipe mount
Rosemount 3051T
Panel mount(3) Pipe mount
(1) Panel bolts are customer supplied.
(2) Panel bolts are customer supplied.
(3) Panel bolts are customer supplied.
February 2019 Quick Start Guide
Quick Start Guide 7

1.5 Bolting considerations
If the transmitter installation requires assembly of the process flanges,
manifolds, or flange adapters, follow these assembly guidelines to ensure a
tight seal for optimal performance characteristics of the transmitters. Use
only bolts supplied with the transmitter or sold by Emerson as spare parts.
Figure 1-10 illustrates common transmitter assemblies with the bolt length
required for proper transmitter assembly.
Figure 1-10: Common Transmitter Assemblies
B
4 × 2.88-in. (73 mm)
A
4 × 1.75-in. (44 mm)
C
4 ×1.75-in.
(44 mm) 4 ×1.75-in.
(44 mm)
D
4 × 1.75-in. (44 mm)
4 × 2.25-in. (57 mm)

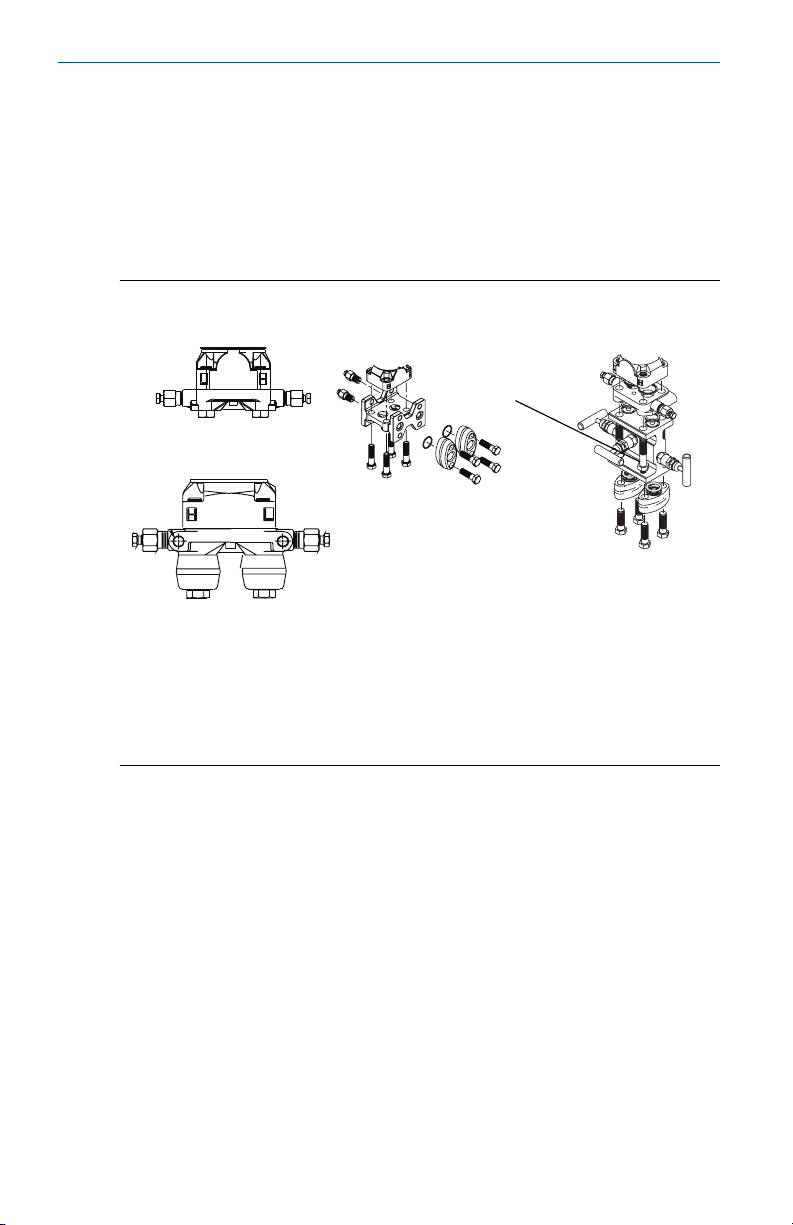

A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adapters
C. Transmitter with traditional flange and optional flange adapters
D. Transmitter with coplanar flange and optional manifold and flange
adapters
Bolts are typically carbon steel (CS) or stainless steel (SST). Confirm the
material by viewing the markings on the head of the bolt and referencing
Table 1-1. If bolt material is not shown in Table 1-1, contact a local Emerson
representative for more information.
Procedure
1. Carbon steel bolts do not require lubrication and the stainless steel
bolts are coated with a lubricant to ease installation. However, no
additional lubricant should be applied when installing either type of
bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern.
See Table 1-1 for initial torque value.
Quick Start Guide February 2019
8 Emerson.com/Rosemount

4. Torque the bolts to the final torque value using the same crossing
pattern. See Table 1-1 for final torque value.
5. Verify the flange bolts are protruding through the isolator plate before
applying pressure.
Example
Table 1-1: Torque Values for the Coplanar Flange and Flange Adapter
Bolts
Bolt material Head markings Initial
torque
Final
torque
CS
B7M
300 in-lb 650 in-lb
SST
316
316
316
SW
316
STM
316
R
B8M
150 in-lb 300 in-lb
February 2019 Quick Start Guide
Quick Start Guide 9

1.6 O-rings with flange adapters
WARNING
Failure to install proper flange adapter O-rings may cause process leaks, which
can result in death or serious injury. The two flange adapters are distinguished
by unique O-ring grooves. Only use the O-ring that is designed for its specific
flange adapter, as shown below.

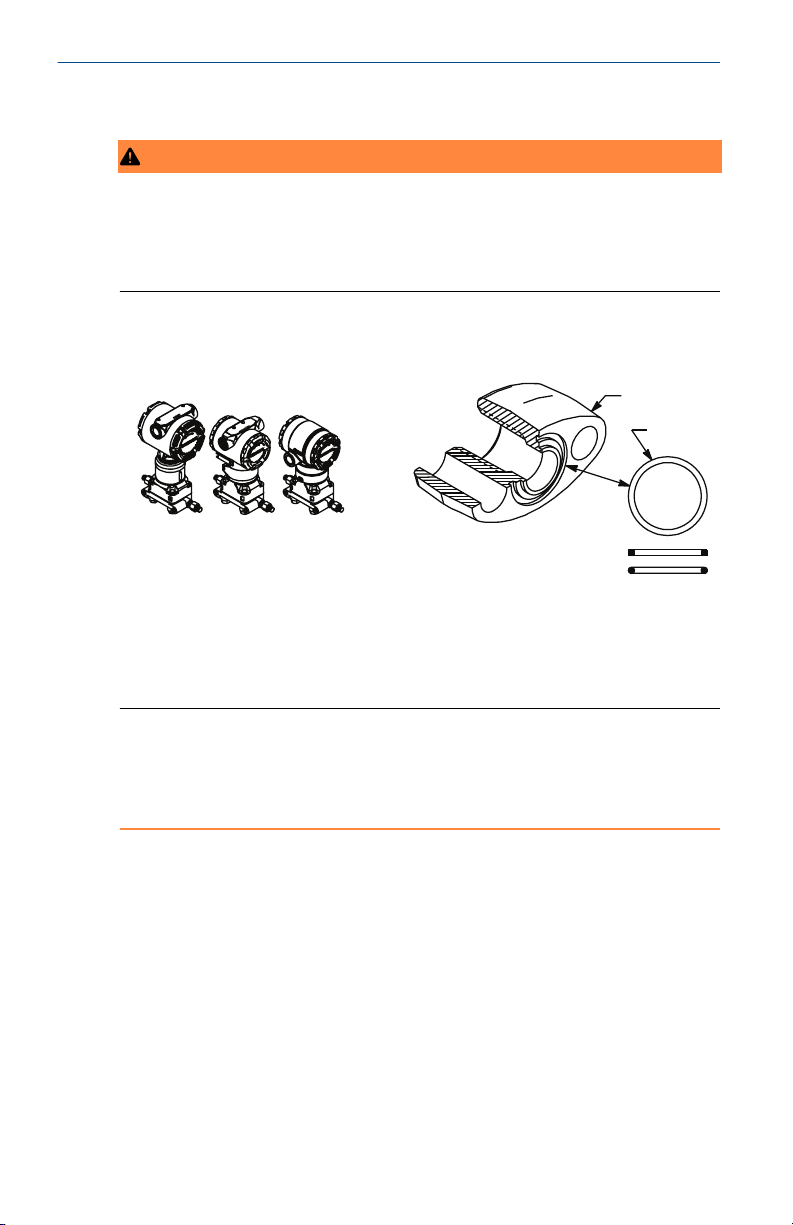

Figure 1-11: O-ring Location
A
B
C
D
Rosemount 3051S/3051/2051
A. Flange adapter
B. O-ring
C. PFTE-based profile (square)
D. Elastomer profile (round)
Whenever the flanges or adapters are removed, visually inspect the O-rings.
Replace them if there are any signs of damage, such as nicks or cuts. If you
replace the O-rings, re-torque the flange bolts and alignment screws after
installation to compensate for seating of the PTFE O-ring.
1.7 Environmental seal for housing
Thread sealing (PFTE) tape or paste on male threads of conduit is required to
provide a water/dust tight conduit seals and meets requirements of NEMA®
Type 4X, IP66, and IP68. Consult factory if other Ingress Protection ratings are
required.
For M20 threads, install conduit plugs to full thread engagement or until
mechanical resistance is met.
1.8 In-line gage transmitter orientation
The low side pressure port (atmospheric reference) on the in-line gage
transmitter is located in the neck of the transmitter, behind the housing. The
Quick Start Guide February 2019
10 Emerson.com/Rosemount

vent path is between the housing and sensor of the transmitter (see Figure
1-12).
Keep the vent path free of any obstruction, including but not limited to paint,
dust, and lubrication by mounting the transmitter so that the process can
drain away.

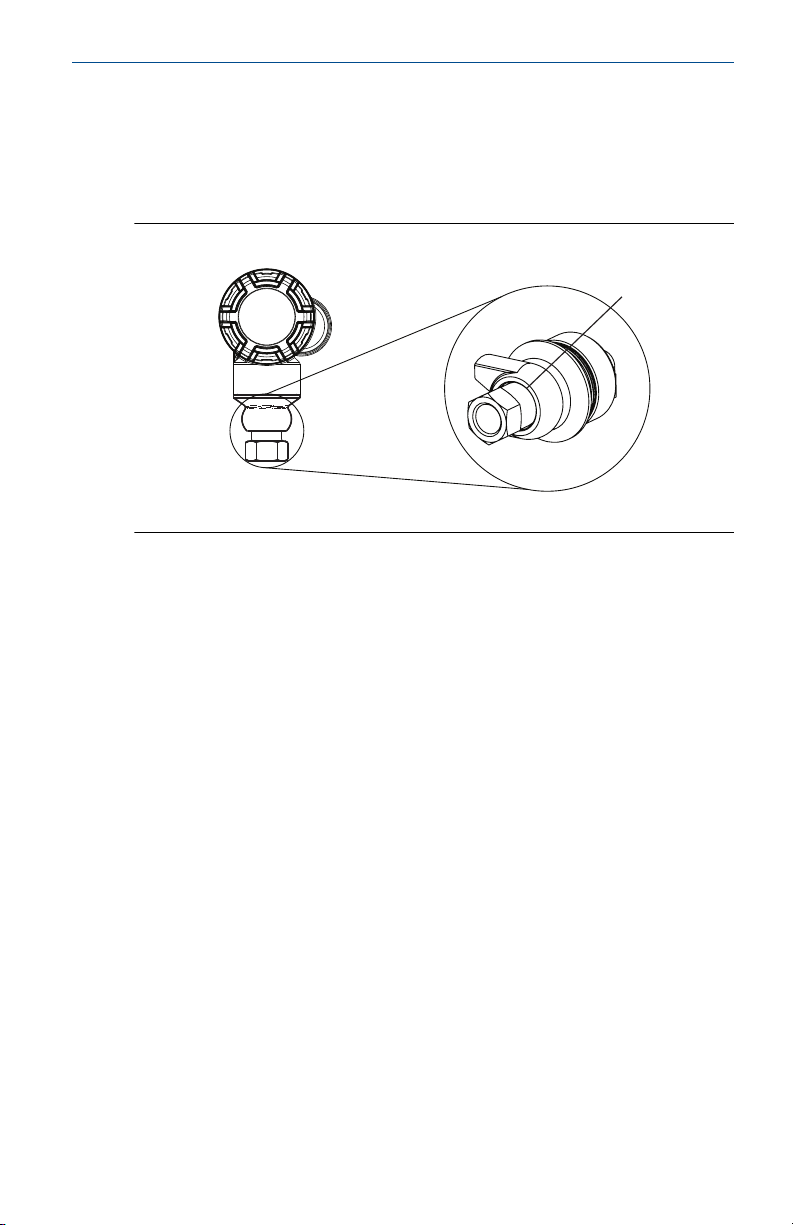

Figure 1-12: In-line Gage Low Side Pressure Port
A
A. Low side pressure port (atmospheric reference)
February 2019 Quick Start Guide
Quick Start Guide 11

2 Consider housing rotation
To improve visibility of optional LCD display:
Procedure
1. Loosen the housing rotation screw.
2. First rotate the housing clockwise to the desired location. If the desired
location cannot be achieved due to thread limit, rotate the housing
counter clockwise to the desired location (up to 360° from thread
limit).
3. Re-tighten the housing rotation screw (see Figure 2-1).
Figure 2-1: Housing Rotation
A
A. Housing rotation screw (5/64-in. hex wrench required)
Quick Start Guide February 2019
12 Emerson.com/Rosemount

3 Set jumpers and switches
3.1 Security
After the transmitter is configured, you may want to protect the configuration
data from unwarranted changes. Each transmitter is equipped with a security
jumper that can be positioned ON to prevent the accidental or deliberate
change of configuration data. The jumper is labeled “Security”. The security
jumper also prevents changes made using the Local Operator Interface.
3.2 Simulate
The simulate jumper is used in conjunction with the analog input (AI) block.
This jumper is used to simulate the pressure measurement and is used as a
lock-out feature for the AI block. to enable the simulate feature, the jumper
must be moved to the “ON” position after power is applied. This feature
prevents the transmitter from being accidentally left in simulate mode.
Figure 3-1: Transmitter Jumper Locations
February 2019 Quick Start Guide
Quick Start Guide 13

4 Connect wiring and power up
Use the following steps to wire the transmitter:
Procedure
1. Remove the housing cover on the field terminals side.
2. Connect the power leads to the terminals indicated on the terminal
block label.
•Power terminals are polarity insensitive - connect positive or
negative to either terminal.
3. Ensure full contact with Terminal Block screw and washer. When using
a direct wiring method, wrap wire clockwise to ensure it is in place
when tightening the terminal block screw.
Note
The use of a pin or a ferrule wire terminal is not recommended as the
connection may be more susceptible to loosening over time or under
vibration.
4. Ensure proper grounding. It is important that the instrument cable
shield:
•Be trimmed close and insulated from touching the transmitter
housing
•Be connected to the next shield if cable is routed through a
junction box
•Be connected to a good earth ground at the power supply end
5. Plug and seal unused conduit connections.
6. If applicable, install wiring with a drip loop. Arrange the drip loop
so the bottom is lower than the conduit connections and the
transmitter housing.
7. Replace the housing cover.
Quick Start Guide February 2019
14 Emerson.com/Rosemount

Example
Figure 4-1: Terminals
AB
A. Power terminals
B. Ground terminal
Note
“NC” is a No Connect terminal (do not use)
February 2019 Quick Start Guide
Quick Start Guide 15

Figure 4-2: Wiring
B
A
C
D E
G
F
II
J
H
A. 6234 ft (1900 m) max (depending upon cable characteristics)
B. Integrated power conditioner and filter
C. Terminators
D. Power supply
E. DP/PA coupler/link
F. Trunk
G. DP network
H. Signal wiring
I. Spur
J. PROFIBUS PA device

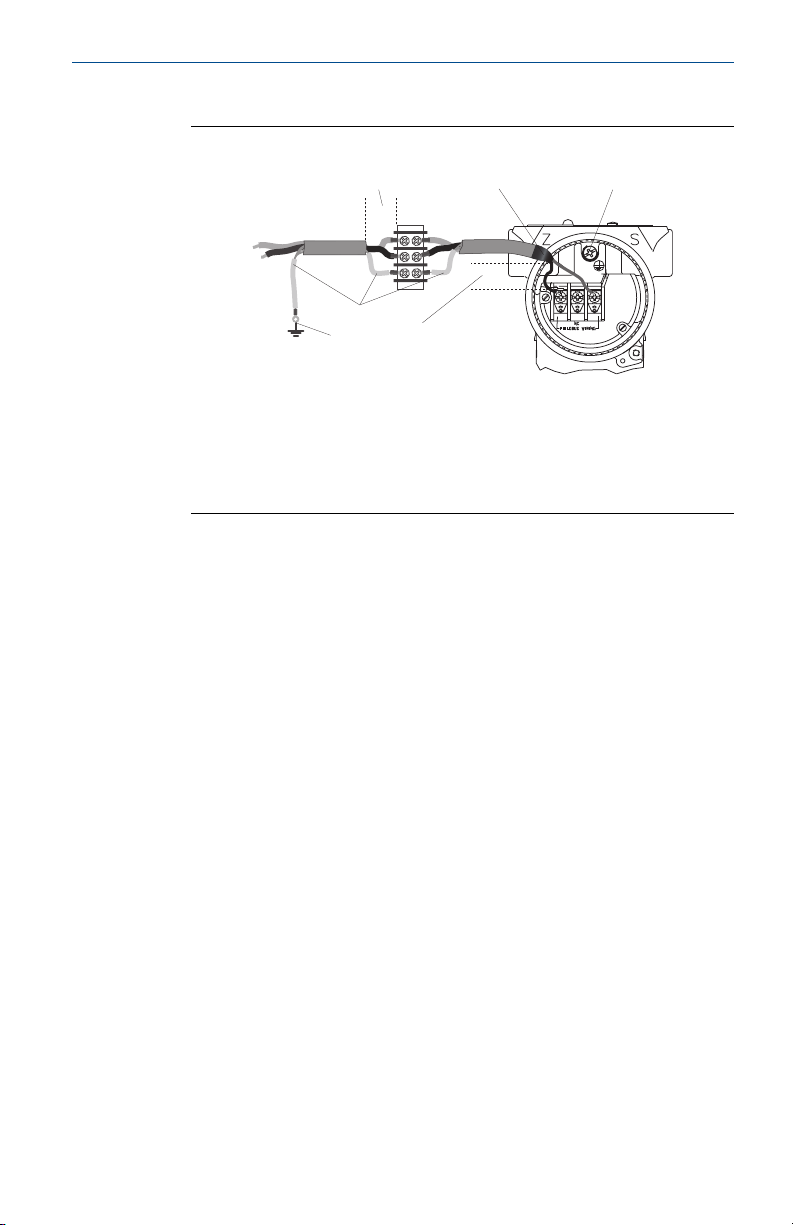

4.1 Signal wiring grounding
Do not run signal wiring in conduit or open trays with power wiring, or near
heavy electrical equipment. Grounding terminations are provided on the
outside of the electronics housing and inside the terminal compartment.
These grounds are used when transient protect terminal blocks are installed
or to fulfill local regulations. See Step 2 below for more information on how
the cable shield should be grounded.
Procedure
1. Remove the Field Terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 4-3. The
cable shield should:
3. Be trimmed close and insulated from touching the transmitter
housing.
4. Continuously connect to the termination point.
Quick Start Guide February 2019
16 Emerson.com/Rosemount

5. Be connected to a good earth ground at the power supply end.
Figure 4-3: Wiring
DP
B
A
D
EA
C
A. Minimize distance
B. Trim shield and insulate
C. Ground for transient protection
D. Connect shield back to the power supply ground
E. Insulate shield
6. Replace the housing cover. It is recommended the cover be tightened
until there is no gap between the cover and the housing.
7. Plug and seal unused conduit connections.
4.1.1 Power supply
The transmitter requires between 9 and 32 Vdc (9 and 30 Vdc for intrinsic
safety and 9 and 17.5 Vdc for FISCO intrinsic safety) to operate and provide
complete functionality.
4.1.2 Power conditioner
A Fieldbus segment requires a power conditioner to isolate the power supply
filter and decouple the segment from other segments attached to the same
power supply.
4.1.3 Grounding
Signal wiring of the Fieldbus segment cannot be grounded. Grounding out
one of the signal wires will shut down the entire Fieldbus segment.
4.1.4 Shield wire ground
To protect the Fieldbus segment from noise, grounding techniques for shield
wire require a single grounding point for shield wire to avoid creating a
ground loop. Connect the cable shields for the entire segment to a single
good earth ground at the power supply.
February 2019 Quick Start Guide
Quick Start Guide 17

5 Basic configuration
5.1 Configuration tasks
The transmitter can be configured via either the local operator interface (LOI)
– option code M4, or via a Class 2 Master (DD or DTM™ based). The two basic
configuration tasks for the PROFIBUS PA Pressure transmitter are:
Procedure
1. Assign address.
2. Configure engineering units (scaling).
Note
Rosemount 3051 Profibus Profile 3.02 devices are set to identification
number adaptation mode when shipped from the factory. This mode
allows the transmitter to communicate with any Profibus control host
with either the generic Profile GSD (9700) or Rosemount 3051 specific
GSD (4444) loaded on the host; therefore, it is not required to change
the transmitter identification number at startup.
5.2 Assign address
The Rosemount 3051 Pressure Transmitter is shipped with a temporary
address of 126. This must be changed to a unique value between 0 and 125 in
order to establish communication with the host. Usually, addresses 0–2 are
reserved for masters or couplers, therefore transmitter addresses between 3
and 125 are recommended.
Address can be set via either:
•LOI – see Table 5-1 and Figure 5-1
•Class 2 Master – see Class 2 Master manual for setting address
5.3 Configure engineering units
Unless otherwise requested, the Rosemount 3051 Pressure Transmitter ships
with the following settings:
•Measurement mode: Pressure
•Engineering units: inches H2O
•Scaling: None
Engineering units should be confirmed or configured before installation. Units
can be configured for Pressure, Flow or Level measurement.
Measurement type, Units, Scaling, and Low Flow Cutoff (when applicable) can
be set via either:
Quick Start Guide February 2019
18 Emerson.com/Rosemount

•LOI – see Table 5-1 and Figure 5-1
•Class 2 master – see Table 5-2 for parameter configuration
5.4 Configuration tools
5.4.1 Local operator interface (LOI)
When ordered, the LOI can be used for commissioning the device. To activate
the LOI, push either configuration button located under the top tag of the
transmitter. See Table 5-1 and Figure 5-1 for operation and menu
information. The security jumper prevents changes made using the LOI.
Note
Buttons must be fully engaged ≈ 0.5 in. (10mm) of travel.

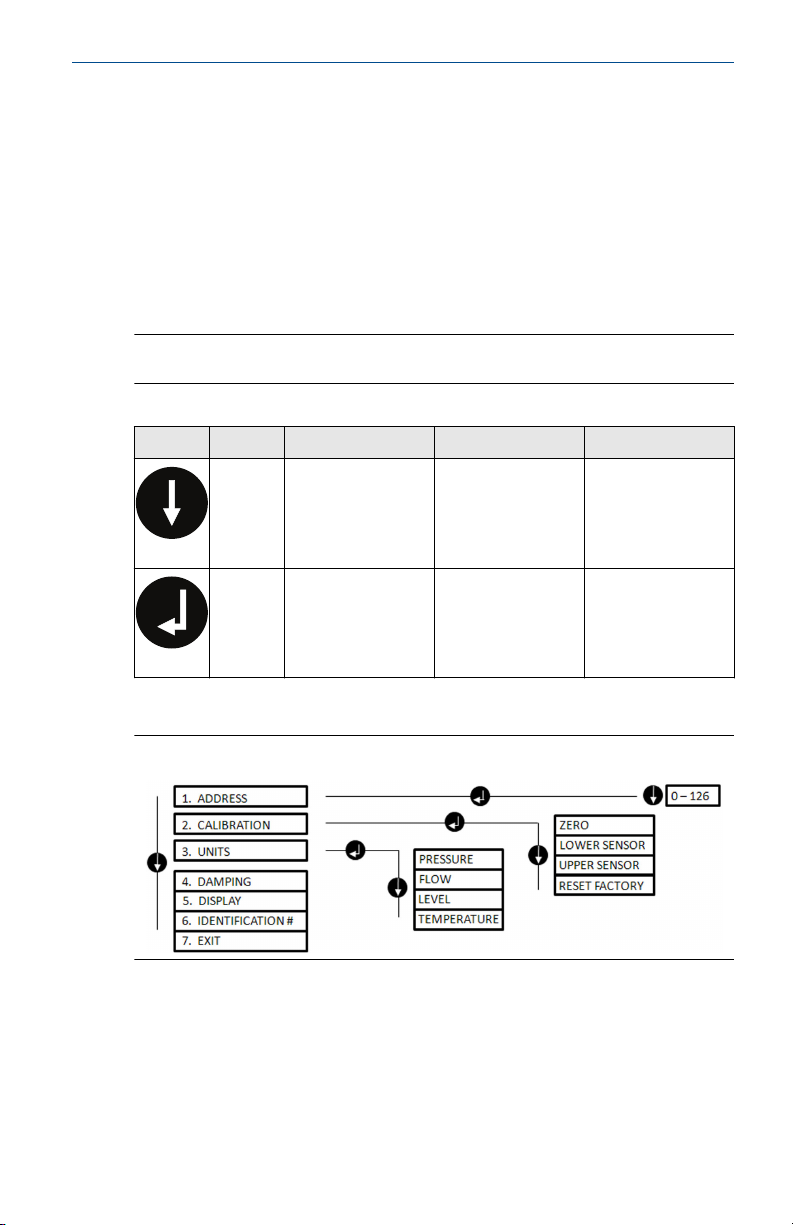

Table 5-1: LOI Button Operation
Button Action Navigation Character Entry Save?
Scroll Moves down menu
categories
Changes character
value(1)
Changes between
Save and Cancel
Enter Selects menu
category
Enters character
and advances
Saves
(1) Characters blink when they can be changed.
Figure 5-1: LOI Menu
5.5 Class 2 Master
The Rosemount 3051 Profibus DD and DTM files are available at
EmersonProcess.com/Rosemount or by contacting your local salesperson.
See Table 5-2 for steps to configure the transmitter for Pressure
February 2019 Quick Start Guide
Quick Start Guide 19

measurement. See the Rosemount 3051 Reference Manual for Flow or Level
configuration instructions.
Table 5-2: Pressure Configuration via Class 2 Master
Steps Actions
Set blocks to Out of Service Put Transducer Block into Out of Service mode
Put Analog Input Block into Out of Service mode
Select Measurement Type Set Primary Value type to Pressure
Select Units Set Engineering Units
- Primary and secondary units must match
Enter Scaling Set Scale In in Transducer Block to 0 - 100
Set Scale Out in Transducer Block to 0 - 100
Set PV Scale in Analog Input Block to 0 - 100
Set Out Scale in Analog Input Block to 0 - 100
Set Linearization in Analog Input Block to No
Linearization
Set blocks to Auto Put Transducer Block into Auto mode
Put Analog Input Block into Auto mode
5.5.1 Host integration
Control host (Class 1)
The Rosemount 3051 device utilizes condensed status as recommended by
the Profile 3.02 specification and NE 107. See manual for condensed status bit
assignment information.
The appropriate GSD file must be loaded on the control host - Rosemount
3051 specific (rmt4444.gsd) or Profile 3.02 Generic (pa139700.gsd). These
files can be found on EmersonProcess.com/Rosemount or Profibus.com.
Configuration host (Class 2)
The appropriate DD or DTM file must be installed in the configuration host.
These files can be found at EmersonProcess.com/Rosemount.
Quick Start Guide February 2019
20 Emerson.com/Rosemount
