Step 1: Mount the Transmitter
Step 2: Wire and Apply Power
Step 3: Verify Tagging
Step 4: Transmitter Configuration
Product Certifications
Rosemount 644H Profibus PA Temperature
Transmitters
4728_Rev AA.fm Page 1 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
2
© 2010 Rosemount Inc. All rights reserved. All marks property of owner. Rosemount and the Rosemount logotype are
registered trademarks of Rosemount Inc.
Emerson Process Management Rosemount Division
8200 Market Boulevard
Chanhassen, MN USA 55317
T (US) [phone]
T (Intnl) [phone]
F [phone]
Emerson Process Management GmbH & Co. OHG
Frankenstrasse 21
63791 Karlstein
Germany
T 49 (6188) 992 0
F 49 (6188) 992 112
Emerson Process Management Asia Pacific Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947/65 6777 0743
IMPORTANT NOTICE
This installation guide provides basic guidelines for the Rosemount 644. It does not
provide instructions for detailed configuration, diagnostics, maintenance, service,
troubleshooting, or installation. Refer to the 644 Reference Manual (document number
00809-0100-4728) for more instruction. The manual and this QIG are also available
electronically on www.rosemount.com.
WARNING
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Please
review the approvals section of this manual for any restrictions associated with a safe
installation.
In an Explosion-proof/Flameproof installation, do not remove the transmitter covers when
power is applied to the unit.
Process leaks may cause harm or result in death
• Install and tighten thermowells or sensors before applying pressure.
• Do not remove the thermowell while in operation.
Electrical shock can result in death or serious injury
• Avoid contact with the leads and terminals. High voltage that may be present on leads
can cause electrical shock.
4728_Rev AA.fm Page 2 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
3
STEP 1: MOUNT THE TRANSMITTER
Mount the transmitter at a high point in the conduit run to prevent moisture from draining into
the transmitter housing.
Typical Connection Head Installation
Head Mount Transmitter with DIN Plate Style Sensor
1. Attach the thermowell to the pipe or process container wall. Install and tighten the
thermowell before applying process pressure.
2. Assemble the transmitter to the sensor. Push the transmitter mounting screws through
the sensor mounting plate and insert the snap rings (optional) into the transmitter
mounting screw groove.
3. Wire the sensor to the transmitter (see Step 4:Connect the Wiring).
4. Insert the transmitter-sensor assembly into the connection head. Thread the transmitter
mounting screw into the connection head mounting holes. Assemble the extension to the
connection head. Insert the assembly into the thermowell.
5. Slip the shielded cable though the cable gland.
6. Attach a cable gland into the shielded cable.
7. Insert the shielded cable leads into the connection head through the cable entry.
Connect and tighten the cable gland.
8. Connect the shielded power cable leads to the transmitter power terminals. Avoid
contact with sensor leads and sensor connections.
9. Install and tighten the connection head cover. Enclosure covers must be fully engaged to
meet explosion-proof requirements.
A = 644H Transmitter D = Transmitter Mounting Screws
B = Connection Head E = Integral Mount Sensor with Flying Leads
C = Thermowell F = Extension
A
D
B
C
EF
4728_Rev AA.fm Page 3 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
4
STEP 1 CONTINUED...
Typical Universal Head Installation
Head Mount Transmitter with Threaded Sensor
1. Attach the thermowell to the pipe or process container wall. Install and tighten
thermowells before applying process pressure.
2. Attach necessary extension nipples and adapters to the thermowell. Seal the nipple and
adapter threads with silicone tape.
3. Screw the sensor into the thermowell. Install drain seals if required for severe
environments or to satisfy code requirements.
4. Pull the sensor wiring leads through the universal head and transmitter. Mount the
transmitter in the universal head by threading the transmitter mounting screws into the
universal head mounting holes.
5. Mount the transmitter-sensor assembly into the thermowell. Seal adapter threads with
silicone tape.
6. Install conduit for field wiring to the conduit entry of the universal head. Seal conduit
threads with PTFE tape.
7. Pull the field wiring leads through the conduit into the universal head. Attach the sensor
and power leads to the transmitter. Avoid contact with other terminals.
8. Install and tighten the universal head cover. Enclosure covers must be fully engaged to
meet explosion-proof requirements.
A = Threaded Thermowell D = Universal Head (transmitter inside)
B = Threaded Style Sensor E = Conduit Entry
C = Standard Extension
AB
C
D
E
4728_Rev AA.fm Page 4 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
5
STEP 2: WIRE AND APPLY POWER
• Wiring diagrams are located inside the terminal block cover and on the transmitter top
label.
• An external power supply is required to power a Profibus segment.
• The power required across the transmitter power terminals is 9 to 32 VDC (the power
terminals are rated to 32 VDC). To prevent damaging the transmitter, do not allow
terminal voltage to drop below 9 VDC when changing the configuration parameters.
Power Filter
A Profibus segment requires a power conditioner to isolate the power supply filter and
decouple the segment from other segments attached to the same power supply.
Power the Transmitter
1. Remove the terminal block cover (if applicable).
2. Connect the power lead to the power terminals (The 644 power terminals are polarity
insensitive for the Profibus protocol.)
3. Tighten the terminal screws. When tightening the sensor and power wires, the max
torque is 6 in.-lbs. (0.7 N-m).
4. Reattach and tighten the cover (if applicable).
5. Apply power (9 – 32 VDC).

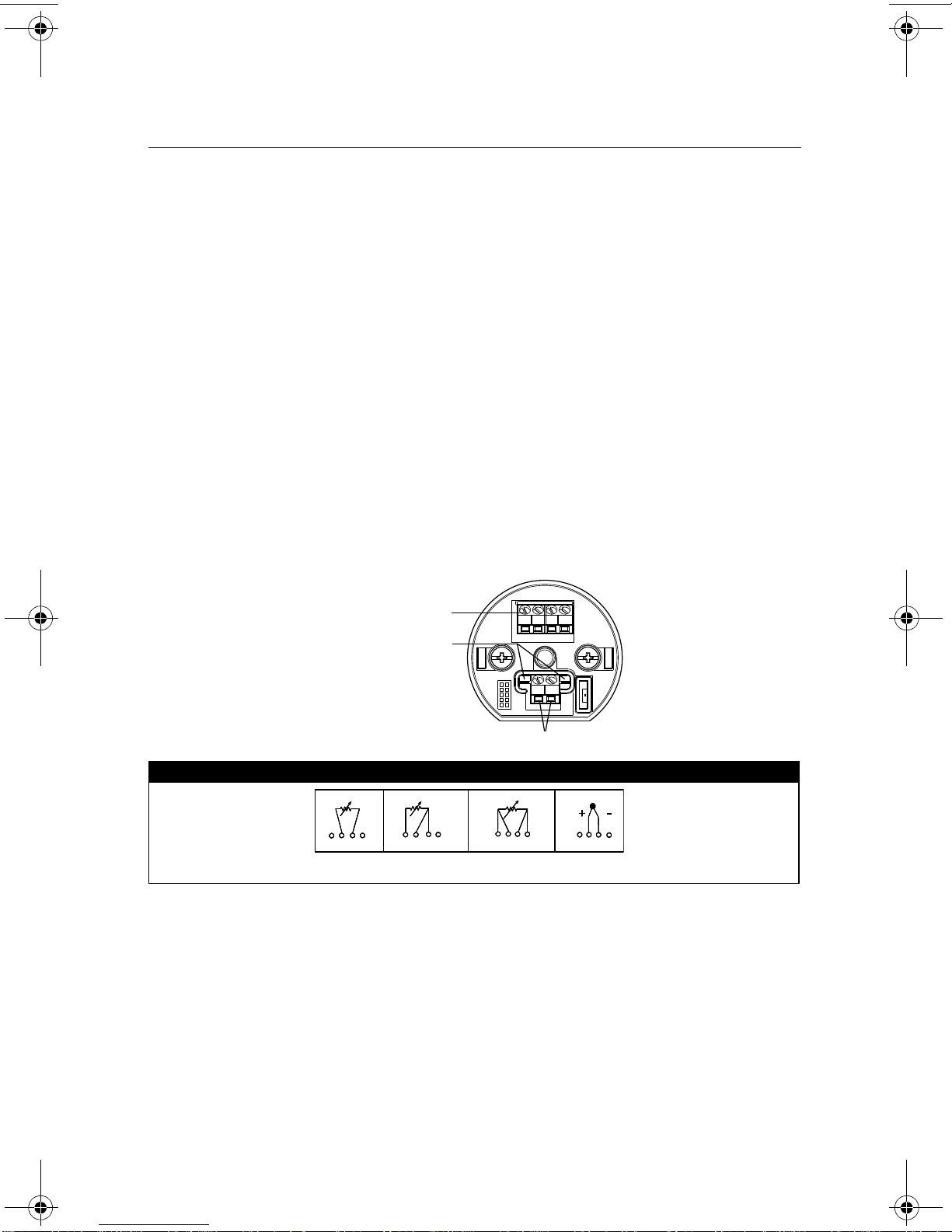

Sensor Connections Diagram
* The transmitters must be configured for at least a 3-wire RTD in order to recognize an RTD with a
compensation loop.
** Emerson Process Management provides 4-wire sensors for all single element RTDs. Use these
RTDs in 3-wire configurations by leaving the unneeded leads disconnected and insulated with electrical
tape.
1 2 3 4
Sensor Terminals
Communication Terminals
Power Terminals
2-wire
RTD and ⍀3-wire RTD
and ⍀4-wire RTD
and ⍀T/C
and mV
** *
1234 1234 1234 1234
4728_Rev AA.fm Page 5 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
6
STEP 2 CONTINUED...

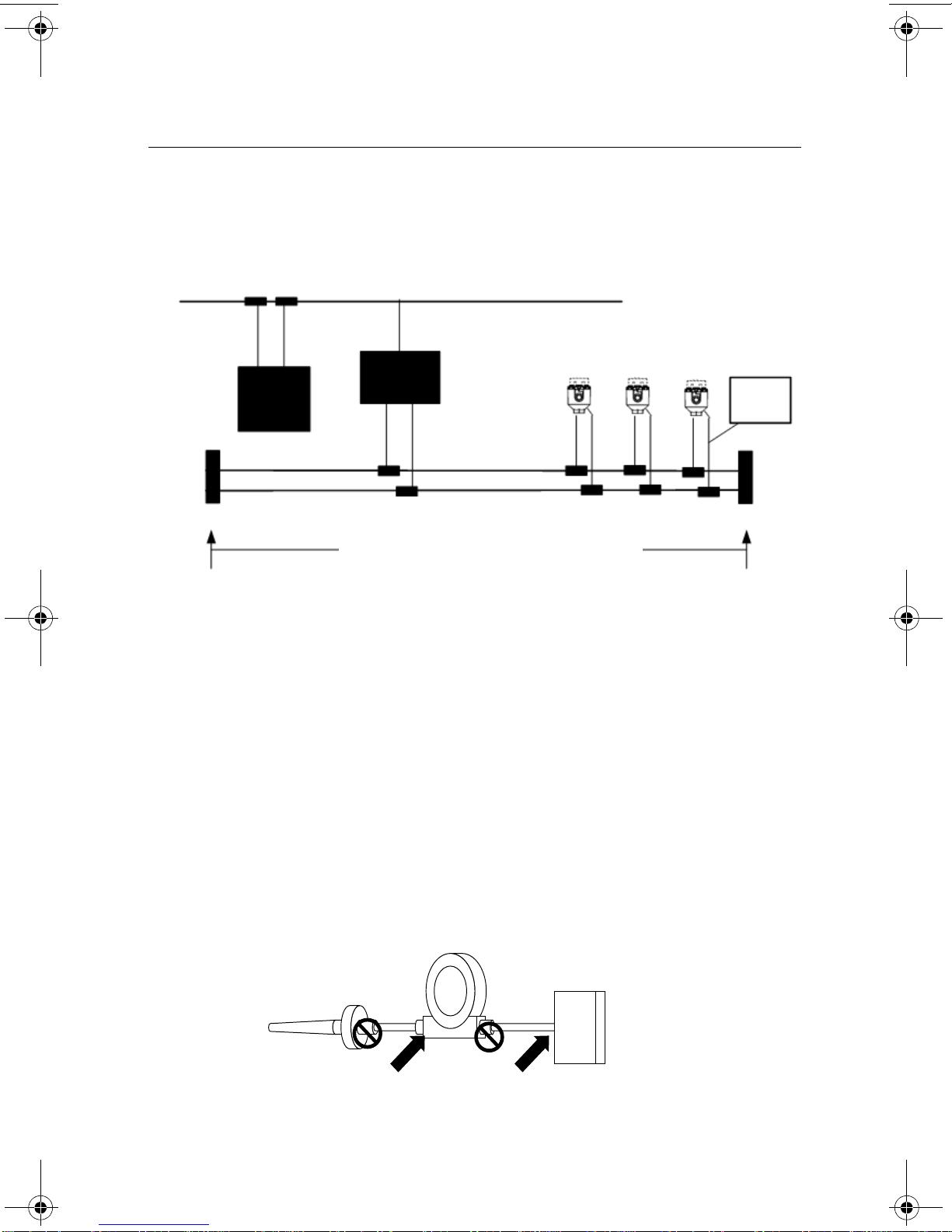

Typical Configuration for Profibus Networking
NOTE
1. Each segment in a Profibus trunk must be terminated at both ends.
2. Some DP/PA couplers contain the power supply, one terminator, and the power
conditioner within the coupling device.
3. The configuration tool is typically located in the control room.
Ground the Transmitter
Ungrounded Thermocouple, mV, and RTD/Ohm Inputs
Each process installation has different requirements for grounding. Use the grounding
options recommended by the facility for the specific sensor type, or begin with grounding
Option 1 (the most common).
Option 1:
1. Connect sensor wiring shield to the transmitter housing.
2. Ensure the sensor shield is electrically isolated from surrounding fixtures that may be
grounded.
3. Ground signal wiring shield at the power supply end.
Profibus DP
RS-485 up to 12 MBd
PROFIBUS
Class 2
Master
(Configuration
Tool)
Terminators
6234 ft. (1900m) max
(Depending on cable characteristics)
Profibus PA
MBP-IS at 31.25KBd
Power/
Signal
Wiring
DP/PA
Coupler
Profibus Transmitter
Profibus Loop
Sensor Wires
Shield ground point
Transmitter
4728_Rev AA.fm Page 6 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
7
STEP 2 CONTINUED...
Option 2:
1. Connect signal wiring shield to the sensor wiring shield.
2. Ensure the two shields are tied together and electrically isolated from the transmitter
housing.
3. Ground shield at the power supply end only.
4. Ensure that the sensor shield is electrically isolated from the surrounding grounded
fixtures.
Option 3:
1. Ground sensor wiring shield at the sensor, if possible.
2. Insure that the sensor wiring and signal wiring shields are electrically isolated from the
transmitter housing.
3. Do not connect the signal wiring shield to the sensor wiring shield.
4. Ground signal wiring shield at the power supply end.
Grounded Thermocouple Inputs
Option 4
1. Ground sensor wiring shield at the sensor.
2. Ensure that the sensor wiring and signal wiring shields are electrically isolated from the
transmitter housing.
3. Do not connect the signal wiring shield to the sensor wiring shield.
4. Ground signal wiring shield at the power supply end.
Sensor Wires Profibus Loop
Shield ground point
Connect shields together, electrically isolated from the transmitter
Transmitter
Profibus LoopSensor Wires
Shield ground point
Transmitter
Profibus Loop
Sensor Wires
Shield ground point
Transmitter
4728_Rev AA.fm Page 7 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
8
STEP 3: VERIFY TAGGING
STEP 4: TRANSMITTER CONFIGURATION
Each Profibus capable host or configuration tool has a different way of displaying and
performing configurations. Some use Device Descriptions (DD) or DD methods for
configuration and to display data consistently across platforms. There is no requirement that
a host or configuration tool support these features. The following is the minimum
configuration requirement for a temperature measurement. This guide is designed for
systems not using DD methods. For a complete list of parameters and configuration
information refer to the Rosemount 644 Head and Rail Mount Temperature Transmitter
reference manual (document number 00809-0100-4728).
The 644 must be configured via a Class 2 master (DD or DTM based). The basic
configuration tasks for the Profibus PA Temperature Transmitter include:
1. Assign Address
2. Set Sensor Type and Connection
3. Configure Engineering Units
Assign Address
The Rosemount 644 Pressure Transmitter is shipped with a temporary address of 126. This
must be changed to a unique value between 0 and 125 in order to establish communication
with the host. Usually, addresses 0-2 are reserved for masters or couplers, therefore
transmitter addresses between 3 and 125 are recommended.
NOTE:
When shipped from the factory Rosemount 644 Profibus Profile 3.02 devices are defaulted
in Identification Number ADAPTATION MODE. This mode allows the transmitter to
communicate with any Profibus control host with either the generic Profile GSD file (9700) or
the Rosemount 644 specific GSD (4153) loaded in the host; therefore, if is not required to
change the transmitter identification number at startup.
Commissioning (Paper) Tag
To identify which device is at a particular location use
the removable tag provided with the transmitter.
Ensure that the physical device tag (PD Tag field) is
properly entered in both places on the removable
commissioning tag and tear off the bottom portion for
each transmitter.
NOTE
The device description loaded in the host system
must be at the same revision as this device. The
device description can be downloaded from
www.rosemount.com.
COMMISSIONING TAG
IDENT_NUMBERS 4153 [9700]
Device Address: ##
Physical Device Tag:
TT- 100
IDENT_NUMBERS 4153 [9700]
Device Address: ##
Mod S/N: 0x########
Physical Device Tag:
TT- 100
Tear Here
4728_Rev AA.fm Page 8 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
9
Transducer Function Block
This block contains temperature measurement data for the sensor and the terminal
temperature. It also includes information about sensor types, engineering units and
diagnostics. At a minimum, verify the parameters in Table 1.
Table 1. Transducer Block Parameters
Analog Input (AI) Function Block
The AI block processes field device measurements and makes the outputs available to other
function blocks. The output value of the AI block is in engineering units and contains a status
indicating the quality of the measurements. Use the Channel number to define the variable
that the AI block processes. At a minimum, verify the parameters of each AI block in Table 2.
Parameter Comments
Typical Configuration
LIN_TYPE example: “Pt 100_A_385 (IEC 751)”
SENSOR_CONNECTION example: “2-wire”, “3-wire”, “4-wire”
PRIMARY_VALUE_UNIT example: “Degrees C”
Sensor Matching Configuration
LIN_TYPE “User Defined, Calvandu”
SENSOR_CONNECTION example: “2-wire”, “3-wire”, “4-wire”
PRIMARY_VALUE_UNIT example: “Degrees C”
SENSOR_CAL_METHOD set to “User Trim Standard”
CAL_VAN_DUSEN_COEFF.A enter sensor specific coefficients
CAL_VAN_DUSEN_COEFF.B enter sensor specific coefficients
CAL_VAN_DUSEN_COEFF.C enter sensor specific coefficients
CAL_VAN_DUSEN_COEFF.R0 enter sensor specific coefficients
Table 2. AI Block Parameters
Parameter Comments
CHANNEL The CHANNEL parameter defines which transducer
block measurement is used by the AI block. In the 644
Transmitter, the channel will always be set to Sensor 1.
There is no other option for this variable.
LIN_TYPE This parameter defines the relationship between the
block input and the block output. Since the 644
Transmitter does not require linearization, this
parameter will always be set to No Linearization. This
means that the AI block will only apply scaling, filtering,
and limit checking to the input value.
PV_SCALE Set desired measurement range and units. Units must
be one of the following:
•mV
•Ohms
•°C
•°F
•°R
•K
OUT_SCALE For “DIRECT”, set OUT_SCALE to match PV_SCALE
HI_HI_LIM
HI_LIM
LO_LIM
LO_LO_LIM
Process alarms.
Must be within the range defined by “OUT_SCALE”
4728_Rev AA.fm Page 9 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
10
Physical Block
The Physical Block encompasses all parameters and functions required to identify the
hardware and software (revision numbers, status values, device address etc.) of the device.
The IDENT_NUMBER_SELECTOR parameter is used to change how the host sees the
device.
Host Integration
Control Host (Class 1)
The Rosemount 644 device utilizes Condensed Status as recommended by the Profile 3.02
specification and NE 107. See manual for Condensed Status bit assignment information.
The appropriate GSD file must be loaded on the control host - Rosemount 644 specific
(rmt4053.gsd) or Profile 3.02 Generic (pa139700.gsd). These files can be found on
www.emersonprocess.com\rosemount or www.profibus.com.
Configuration Host (Class 2)
The appropriate DD or DTM file must be installed in the configuration host. These files can
be found at www.emersonprocess.com/rosemount.
PRODUCT CERTIFICATIONS
Approved Manufacturing Locations
Emerson Process Management Rosemount Division. – Chanhassen, Minnesota, USA
Rosemount Temperature GmbH – Germany
Emerson Process Management Asia Pacific – Singapore
European Union Directive Information
The EC declaration of conformity for all applicable European directives for this product can
be found on the Rosemount website at www.rosemount.com. A hard copy may be obtained
by contacting our local sales representative.
ATEX Directive (94/9/EC)
Rosemount Inc. complies with the ATEX Directive.
CE Electromagnetic Compatibility Compliance Testing
The 644 meets the criteria under IEC 61326:2006
Table 3. Physical Block Parameter
Parameter Comments
IDENT_NUMBER_SELECTOR Can be changed to Profile Specific, Manufacturer
Specific or Adaptation Mode.
Default to Adaptation Mode the Host chooses which
file (GSD) it wants to use; whether to view the device
GSD file in a generic or a manufacturer specific way.
Profile Specific mode shows the generic GSD
associated with the Profibus Profile version (9700) of
the device and Manufacturer Specific Mode displays
the GSD file with parameters specific to the
Rosemount 644.
4728_Rev AA.fm Page 10 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
11
Hazardous Locations Certificates
North American Certifications
Factory Mutual (FM) Approvals
I5 FM Intrinsically Safe
Intrinsically Safe FISCO for use in Class I, II, III, Division 1, Groups A, B, C, D, E, F, and
G; when installed per control drawing 00644-2075.
Temperature Code: T4A (Tamb = – 50 °C to 60 °C).
Nonincendive for use in Class I, Division 2, Groups A, B, C, and D.
Temperature Code: T5 (Tamb = – 50 °C to 85 °C);
T6 (Tamb = – 50 °C to 70°C)
When installed per Rosemount control drawing 00644-2075
E5 FM Explosion Proof
Explosion-proof for Class I, Division 1, Groups B, C, and D.
Nonincendive for use in Class 1, Division 2, Groups A, B, C, and D.
Temperature Code: T5 (Tamb = – 50 °C to 85 °C)
When installed per Rosemount control drawing 00644-1049
Dust Ignition Proof for Class II/III, Division 1, Groups E, F, G.
Temperature Code: T5 (Ta= – 50 °C to 85°C)
When installed per Rosemount drawing 00644-1049.
(J5, J6 and J8 options only.)
Canadian Standards Association (CSA) Approvals
I6 CSA Intrinsically Safe
Intrinsically Safe and FISCO for Class I, Division 1, groups A, B, C, and D when
connected per Rosemount drawing 00644-2076.
Temperature code: T4 (Tamb = – 50 °C to 60 °C);
Suitable for Class I, Division 2, groups A, B, C, and D (must be installed in a suitable
enclosure)
K6 CSA Intrinsically Safe, Explosion-proof
Includes Intrinsically Safe “I6” and Explosion-Proof for Class I, Division 1, groups B, C,
and D.
Dust-Ignition Proof for Class II, Division 1, Groups E, F, and G. Dust-Ignition Proof for
Class III, Division 1
Seal not required.
CSA Enclosure Type 4X
Temperature Code: T4 (Tamb = – 50 °C to 60 °C);
T5 (Tamb = – 50 °C to 85°C)
NOTE:
(For J5 and J6 enclosure options only)
4728_Rev AA.fm Page 11 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
12
European Certifications
E1 ATEX Flame-Proof
Certificate Number: KEMA99ATEX8715X
ATEX Marking: II 2 G
1180
Ex d IIC T6 (–40 °C ≤Tamb ≤65 °C)
U= 55 Vdc
Special Conditions for Safe Use (X):
For information on the dimensions of the flameproof joints the manufacturer shall be
contacted.
I1 ATEX Intrinsic Safety
Certificate Number: Baseefa03ATEX0499X
ATEX Marking: II 1 G
1180
Ex ia IIC T4 (-50 °C ≤Tamb ≤60 °C)
Special Conditions for Safe Use (X):
The apparatus must be installed in an enclosure which affords it a degree of protection
of at least IP20. Non-metallic enclosures must have a surface resistance of less than
1G⍀, light alloy or zirconium enclosures must be protected from impact and friction
when installed.
Table 4. Entity Parameters
I.S. Loop/Power Terminals
Ui= 30 V
Ii= 300 mA
Pi= 1.3 W
Ci= 2.1 nF
Li= 0
FISCO Loop/Power Terminals
Ui= 17.5 V
Ii= 380 mA
Pi= 5.32 W
Ci= 2.1 nF
Li= 0
Sensor Terminals
Uo = 13.9 V
Io = 23 mA
Po = 79 mW
Ci = 7.7 nF
Li= 0
4728_Rev AA.fm Page 12 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
13
N1 ATEX Type n
Certificate Number: BAS00ATEX3145
ATEX Marking: II 3 G
Ex nL IIC T5 (-40 °C ≤Tamb ≤70 °C)
Ui= 45 V
NC ATEX Type n Component
Certificate Number: BAS99ATEX3084U
ATEX Marking: II 3 G
Ex nL IIC T5 (-40 °C ≤ Tamb ≤ 70 °C)
Ui= 45 V
• Note:
The equipment must be installed in an enclosure meeting the requirements of IP54 and
the requirements of the impact tests described in EN50021.
ND ATEX Dust Ignition-Proof
Certificate Number: KEMA99ATEX8715X
ATEX Marking: II 1 D
tD A20 T95°C (-40 °C ≤ Tamb ≤ 85 °C)
1180
IP66
Special Conditions for Safe Use (X):
For information on the dimensions of the flameproof joints the manufacturer shall be
contacted.
IECEx Certifications
E7 IECEx Flameproof and Dust
Certificate Number: IECEx KEM 09.0015X
Ex d IIC T6 (Flameproof)
Ex tD A20 IP 66 T 95 °C (Dust)
Vmax = 32 V
Special Conditions for Safe Use (X):
For information on the dimensions of the flameproof joints the manufacturer shall be
contacted.
I7 IECEx Intrinsic Safety
Certificate Number: IECEx BAS 07.0053X
Ex ia IIC T4/T5/T6
TABLE 5. Electrical Data
Transmitter Sensor
Vmax = 32 Vdc Umax = 5 Vdc
Imax = 12.0 mA Imax = 2.0 mA
TABLE 6. Temperature Classification
Pi (W)
Temperature
Class Tamb
1.3 T4 -50 °C to 60 °C
5.32 (FISCO Group IIC) T4 -60 °C to 80 °C
4728_Rev AA.fm Page 13 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
14
Special Conditions for Safe Use (X):
1. The apparatus must be installed in an enclosure which affords it a degree of
protection of at least IP20.
2. Non-metallic enclosures must have a surface resistance of less than 1 G⍀; light alloy
or zirconium enclosures must be protected from impact and friction when installed.
N7 IECEx Type n
Certificate Number: IECEx BAS 07.0055
Ex nA nL IIC T5 (-40 °C ≤Tamb ≤70 °C)
NG IECEx Type n Component
Certificate Number: IECEx BAS 07.0054U
Ex nA nL IIC T5 (-40 °C ≤Tamb ≤75 °C)
Input Parameter: Ui = 32 Vdc
Schedule of Limitations:
The component must be housed in a suitably certified enclosure that provides a degree
of protection of at least IP54.
Japanese Certifications
Japanese Industrial Standard (JIS) Approvals
I4 JIS Intrinsic Safety
E4 JIS Explosion Proof
TABLE 7. Entity Parameters
Transmitter (I.S.) Transmitter (FISCO) Sensor
Ui= 30 Vdc Ui= 17.5 Vdc Uo= 13.9 Vdc
Ii= 300 mA Ii= 380 mA Io= 23 mA
Pi= 1.3 W Pi= 5.32 W Po= 79 mW
Ci= 2.1 nF Ci= 2.1 nF Ci= 7.7 nF
Li= 0 mH Li= 0 mH Li= 0 mH
TABLE 8. Electrical Data
Transmitter Sensor
RTD Thermocouple
Ui= 32 V Ui= 5 V Ui= 0
Table 9. Certificate and Description
Certificate Description Approval
Group Temp Code
C15744 644H with meter and no sensor Ex d II C T6
C15745 644H without meter and no sensor Ex d II C T6
C15749 644H without meter and with RTD Ex d II B T4
C15750 644H without meter and with thermocouple Ex d II B T4
C15751 644H with meter and thermocouple Ex d II B T4
C15752 644H with meter and RTD Ex d II B T4
C15910 644H without meter and with thermocouple Ex d II B + H2 T4
C15911 644H with meter and thermocouple Ex d II B + H2 T4
C15912 644H without meter and with RTD Ex d II B + H2 T4
C15913 644H with meter and RTD Ex d II B + H2 T4
4728_Rev AA.fm Page 14 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
15
Combination Approvals
K5 Combination of I5 and E5.
Russian GOST Certifications
PPC BA-13006:
0 Ex ia IIC T4/T5/T6
Kazakhstan GOST
Pattern approval Certificate for Measuring Instruments
See Certificate
Ukraine GOST
Pattern Approval for Measuring Instruments
See Certificate
4728_Rev AA.fm Page 15 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
16
File ID: 644 CE Marking Page 1 of 3 J:\A_Temp\certs\644_RMD1016F.doc
EC Declaration of Conformity
No: RMD 1016 Rev. F
We,
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN 55317-6985
USA
declare under our sole responsibility that the product,
Models 644 Smart Temperature Transmitter (Hart & Fieldbus)
manufactured by,
Rosemount Inc.
12001 Technology Drive
Eden Prairie, MN 55344-3695
USA
to which this declaration relates, is in conformity with the provisions of the European
Community Directives as shown in the attached schedule.
Assumption of conformity is based on the application of the harmonized standards and, when
applicable or required, a European Community notified body certification, as shown in the
attached schedule.
Vice President of Global Quality
Timothy J. Layer 24-March-2008
(date of issue)
(function name - printed)
(name - printed)
(signature)
4728_Rev AA.fm Page 16 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010 Rosemount 644
17
File ID: 644 CE Marking Page 2 of 3 J:\A_Temp\certs\644_RMD1016F.doc
Schedule
EC Declaration of Conformity RMD 1016 Rev. F
EMC Directive (2004/108/EC)
Models 644HA Smart Temperature Transmitters (Hart)
EN 61326: 1997 + A1/A2/A3 -- Industrial
Models 644HF Smart Temperature Transmitters (Fieldbus)
EN 61326: 1997 + A1/A2/A3 -- Industrial
Models 644RA Smart Temperature Transmitters (Hart)
EN 61326: 1997 + A1/A2/A3 -- Industrial
ATEX Directive (94/9/EC)
Models 644HA Smart Temperature Transmitters (Hart)
Ex ia IIC: BAS00ATEX1033X -- Intrinsically Safe Certificate
EN 60079-0: 2006, EN 60079-11: 2007
Ex nL IIC: BAS00ATEX3145 -- Type n Certificate
EN 60079-0: 2006, EN 60079-15: 2005
Ex nL IIC: BAS99ATEX3084U -- Type n Component Certificate
EN 60079-0: 2006, EN 60079-15: 2005
EEx d IIC: KEMA 99ATEX8715 -- Flameproof Certificate
EN50014: 1997 + A1, A2, prA3, EN50018: 1994 + prA1…prA3
Models 644HF Smart Temperature Transmitters (Fieldbus)
Ex ia IIC: Baseefa03ATEX0499X -- Intrinsically Safe Certificate
EN 60079-0: 2006, EN 60079-11: 2007
Ex nL IIC: BAS00ATEX3145 -- Type n Certificate
EN 60079-0: 2006, EN 60079-15: 2005
Ex nL IIC: BAS99ATEX3084U -- Type n Component Certificate
EN 60079-0: 2006, EN 60079-15: 2005
4728_Rev AA.fm Page 17 Thursday, July 29, 2010 11:41 AM

Quick Installation Guide
00825-0300-4728, Rev AA
July 2010
Rosemount 644
18
File ID: 644 CE Marking Page 3 of 3 J:\A_Temp\certs\644_RMD1016F.doc
Models 644HF Smart Temperature Transmitters (Fieldbus) - continued
EEx d IIC: KEMA 99ATEX8715 -- Flameproof Certificate
EN50014: 1997 + A1, A2, prA3, EN50018: 1994 + prA1…prA3
Models 644RA Smart Temperature Transmitters (Hart)
Ex ia IIC: BAS00ATEX1033X -- Intrinsically Safe Certificate
EN 60079-0: 2006, EN 60079-11: 2007
Ex nL IIC: BAS00ATEX3145 -- Type n Certificate
EN 60079-0: 2006, EN 60079-15: 2005
Ex nL IIC: BAS99ATEX3084U -- Type n Component Certificate
EN 60079-0: 2006, EN 60079-15: 2005
ATEX Notified Bodies for EC Type Examination Certificate
Baseefa (2001) Ltd [Notified Body Number: 1180]
Health and Safety Laboratory Site
Harpur Hill
Buxton, Derbyshire SK17 9JN
United Kingdom
KEMA (KEMA) [Notified Body Number: 0344]
Utrechtseweg 310, 6812 AR Arnhem
P.O. Box 5185, 6802 ED Arnhem
The Netherlands
Postbank 6794687
ATEX Notified Body for Quality Assurance
Baseefa(2001) Ltd [Notified Body Number: 1180]
Health and Safety Laboratory Site
Harpur Hill
Buxton, Derbyshire SK17 9JN
United Kingdom
4728_Rev AA.fm Page 18 Thursday, July 29, 2010 11:41 AM
