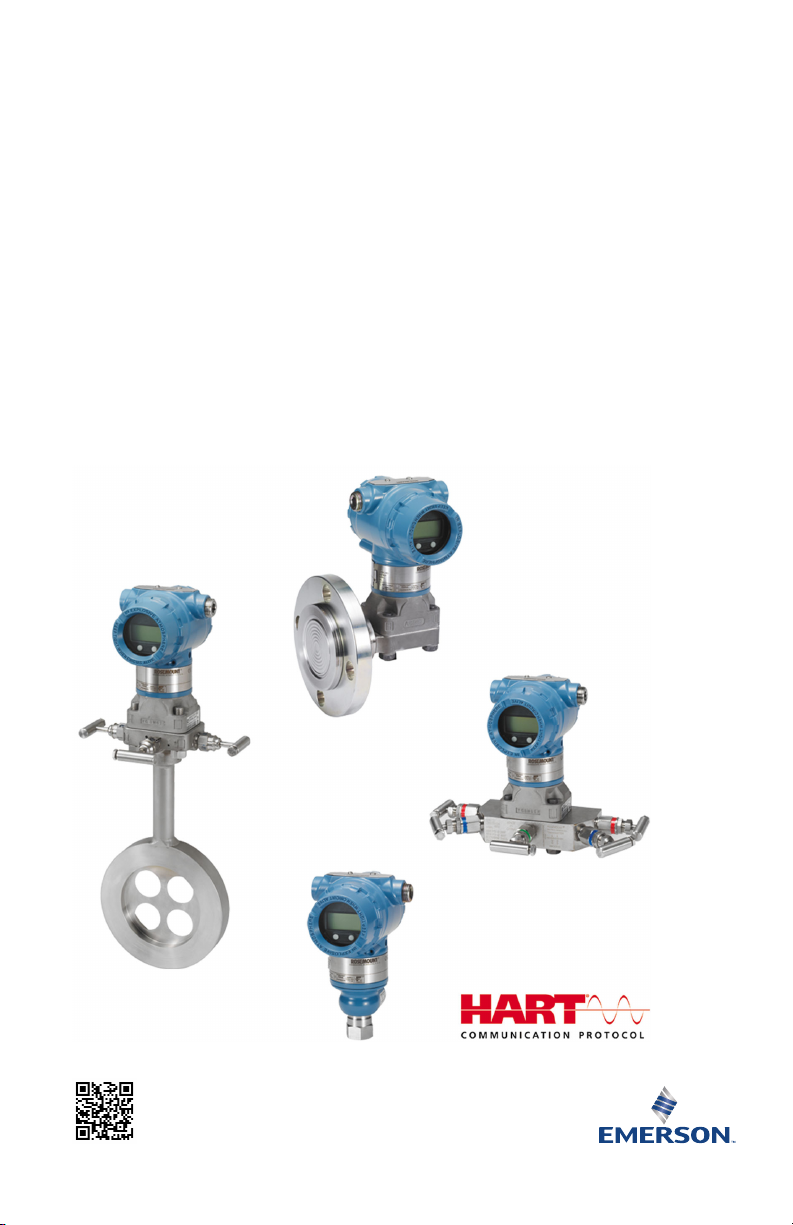

Rosemount™ 3051 Pressure Transmitter
and Rosemount 3051CF Series Flow
Meters
with 4-20 mA HART® Revision 5 and 7
Protocol
Scan here for product documentation
and drawings.

Safety messages
Note
Before installing the transmitter, confirm the correct device driver is loaded on the host systems. See
System readiness.
NOTICE
This guide provides basic guidelines for Rosemount 3051 Transmitters. It does not provide instructions
for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or
intrinsically safe (I.S.) installations. Refer to Rosemount 3051 HART Revision 5 and 7 Reference Manual
for more instructions. This manual is also available electronically at Emerson.com/Rosemount.
WARNING
Explosions
Explosions could result in death or serious injury.
Installation of device in an explosive environment must be in accordance with appropriate local,
national, and international standards, codes, and practices. Review Product certifications for any
restrictions associated with a safe installation.
Before connecting a handheld communicator in an explosive atmosphere, ensure the instruments
are installed in accordance with intrinsically safe or non-incendive field wiring practices.
In an explosion-proof/flameproof installation, do not remove the transmitter covers when power
is applied to the unit.
Process leaks
Process leaks may cause harm or result in death.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.
Electrical shock
Electrical shock can result in death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
Physical access
Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end
users’ equipment. This could be intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and fundamental to protecting your
system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for
all systems used within the facility.
Quick Start Guide January 2020
2 Rosemount 3051

CAUTION
Conduit/cable entries
Unless otherwise marked, the conduit/cable entries in the housing enclosure use a ½–14 NPT
form. Only use plugs, adapters, glands, or conduit with a compatible thread form when closing
these entries.
Entries marked M20 are M20 x 1.5 thread form. On devices with multiple conduit entries, all
entries will have the same thread form.
When installing in a hazardous location, use only appropriately listed or Ex certified plugs, glands,
or adapters in cable/conduit entries.
Contents
System readiness......................................................................................................................... 5
Transmitter installation................................................................................................................ 6
Safety instrumented systems installation................................................................................... 25
Product certifications................................................................................................................. 26
January 2020 Quick Start Guide
Quick Start Guide 3

Quick Start Guide January 2020
4 Rosemount 3051

1 System readiness
1.1 Confirm HART Revision capability
•If using HART based control or asset management systems, confirm the
HART capability of those systems prior to transmitter installation. Not all
systems are capable of communicating with HART Revision 7 protocol.
This transmitter can be configured for either HART Revision 5 or 7.
•For instructions on how to change the HART Revision of your transmitter,
see Switch HART Revision mode.
1.2 Confirm correct device driver
•Verify the latest Device Driver (DD/DTM™) is loaded on your systems to
ensure proper communications.
•Download the latest DD at Emerson.com or FieldCommGroup.org
•In the Browse by Member dropdown menu, select Rosemount business
unit of Emerson™.
•Select desired product.
Table 1-1: Rosemount 3051 Device Revisions and Files
Release
date
Device identification Device driver
identification
Review
instructi
ons
Review
function
ality
NAMUR
software
revision(
1)
HART
hardware
revision(1)
HART
software
revision(
2)
HART
universal
revision
Device
revision(
3)
Manual
docume
nt
number
Change
descripti
on
April
2012
1.0xx 1.0xx 01 7 10 00809-01
00-4007
(4)
5 9
January
1998
N/A N/A 178 5 3 00809-01
00-4001
N/A
(1) NAMUR Revision is located on the hardware tag of the device. Differences in level 3 changes,
signfied above by xx, represent minor product changes as defined per NE53. Compatibility
and functionality are preserved, and you can use the product interchangeably.
(2) You can read the HART software revision with a HART capable configuration tool. Value
shown is minimum revision that could correspond to NAMUR Revisions.
(3) Device Driver file names use Device and DD Revision, e.g., 10_01. HART Protocol is designed
to enable legacy device driver revisions to continue to communicate with new HART devices.
To access new functionality, you must download the new Device Driver. Emerson
recommends downloading new Device Driver files to ensure full functionality.
(4) HART Revision 5 and 7 selectable, power diagnostics, safety certified, LOI, process alerts,
scaled variable, configurable alarms, expanded engineering units.
January 2020 Quick Start Guide
Quick Start Guide 5

2 Transmitter installation
2.1 Mount the transmitter
Figure 2-1: Panel Mount Coplanar Flange
5/16 x 1½ panel bolts are customer supplied.

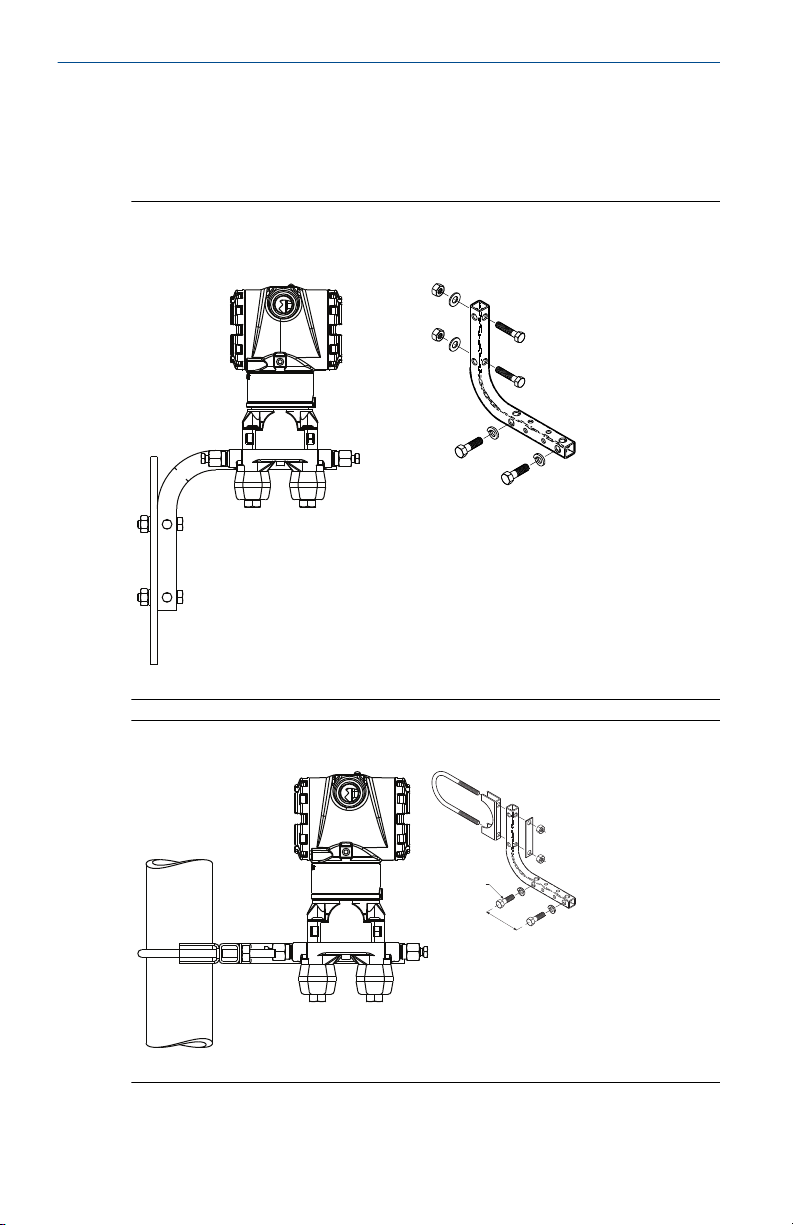

Figure 2-2: Pipe Mount Coplanar Flange
Quick Start Guide January 2020
6 Rosemount 3051

Figure 2-3: Panel Mount Traditional Flange
Figure 2-4: Pipe Mount Traditional Flange
Figure 2-5: Panel Mount Rosemount 3051T
January 2020 Quick Start Guide
Quick Start Guide 7

Figure 2-6: Pipe Mount Rosemount 3051T
Quick Start Guide January 2020
8 Rosemount 3051

2.1.1 Mount the transmitter in liquid applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so the drain/vent valves are oriented upward.
Figure 2-7: Mounting the Transmitter in Liquid Applications
In-line
2.1.2 Mount the transmitter in gas applications
Procedure
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
Figure 2-8: Mounting the Transmitter in Gas Applications
In-line
January 2020 Quick Start Guide
Quick Start Guide 9

2.1.3 Mount the transmitter in steam applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Figure 2-9: Mounting the Transmitter in Steam Applications
In-line
2.1.4 Bolting consideration
If the transmitter installation requires assembly of the process flanges,
manifolds, or flange adapters, follow the assembly guidelines to ensure a
tight seal for optimal performance characteristics of the transmitters.
Use only bolts supplied with the transmitter or sold by Emerson as spare
parts. Figure 2-10 illustrates common transmitter assemblies with the bolt
length required for proper transmitter assembly.
Quick Start Guide January 2020
10 Rosemount 3051

Figure 2-10: Common Transmitter Assemblies
B
4 × 2.88-in. (73 mm)
A
4 × 1.75-in. (44 mm)
C
4 ×1.75-in.
(44 mm) 4 ×1.50-in.
(38 mm)
D
4 × 1.75-in. (44 mm)
4 × 2.25-in. (57 mm)
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adapters
C. Transmitter with traditional flange and optional flange adapters
D. Transmitter with coplanar flange and optional manifold and flange
adapters
Bolts are typically carbon steel or stainless steel. Confirm the material by
viewing the markings on the head of the bolt and referencing Table 2-1. If
bolt material is not shown in Table 2-1, contact a local Emerson
representative for more information.
Carbon steel bolts do not require lubrication, and the stainless steel bolts are
coated with a lubricant to ease installation. However, do not apply additional
lubricant when installing either type of bolt.
Table 2-1: Torque Values for the Flange and Flange Adapter Bolts
Bolt material Head markings Initial
torque
Final
torque
Carbon Steel (CS)
B7M
300 in-lb 650 in-lb
Stainless Steel (SST)
316
316
316
SW
316
STM
316
R
B8M
150 in-lb 300 in-lb
Use the following bolt installation procedure:
January 2020 Quick Start Guide
Quick Start Guide 11

Procedure
1. Use the fingers to tighten the bolts.
2. Torque the bolts to the initial torque value using a crossing pattern.
See Table 2-1 for initial torque value.
3. Torque the bolts to the final torque value using the same crossing
pattern.
See Table 2-1 for final torque value.
4. Verify the flange bolts are protruding through the sensor module
bolt holes before applying pressure.
2.1.5 O-rings with flange adapters
WARNING
Failure to install proper flange adapter O-rings may cause process leaks,
which can result in death or serious injury. The two flange adapters are
distinguished by unique O-ring grooves. Only use the O-ring that is designed
for its specific flange adapter, as shown below.
Figure 2-11: O-ring Location
A
B
C
D
Rosemount 3051S/3051/2051
A. Flange adapter
B. O-ring
C. PFTE-based profile (square)
D. Elastomer profile (round)
Whenever the flanges or adapters are removed, visually inspect the O-rings.
Replace them if there are any signs of damage, such as nicks or cuts. If you
replace the O-rings, re-torque the flange bolts and alignment screws after
installation to compensate for seating of the PTFE O-ring.
Quick Start Guide January 2020
12 Rosemount 3051

2.1.6 Environmental seal for housing
For NEMA® 4X, IP66, and IP68 requirements, use thread sealing (PTFE) tape
or paste on male threads of conduit to provide a water and dust tight seal.
Consult factory if other ingress protection ratings are required.
For M20 threads, install conduit plugs to full thread engagement or until
mechanical resistance is met.
2.1.7 Inline gage transmitter orientation
The low side pressure port (atmospheric reference) on the inline gage
transmitter is located in the neck of the transmitter, behind the housing. The
vent path is 360 degrees around the transmitter between the housing and
sensor (see Figure 2-12).
Keep the vent path free of any obstruction, such as paint, dust, and
lubrication, by mounting the transmitter so that the process can drain away.
Figure 2-12: Inline Gage Low Side Pressure Port
A
A. Low side pressure port (atmospheric reference)
2.1.8 Install high pressure coned and threaded connection
The transmitter comes with an autoclave connection designed for pressure
applications. Follow the steps below to properly connect the transmitter to
your process.
Procedure
1. Apply a process-compatible lubricant to the gland nut threads.
2. Slip the gland nut onto the tube; then thread the collar onto the tube
end.
The collar is reverse threaded.
3. Apply a small amount of process-compatible lubricant to the tube
cone to help prevent galling and facilitate sealing. Insert the tubing
into the connection and use the fingers to tighten the bolts.
4. Tighten the gland nut to a torque of 25 ft-lb.
January 2020 Quick Start Guide
Quick Start Guide 13

Note
A weep hole has been designed into the transmitter for safety and
leak detection. If fluid begins to leak from the weep hole, isolate the
process pressure, disconnect the transmitter, and reseal until the
leak is resolved.
2.2 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
Figure 2-13: Housing Rotation
A
A. Housing rotation set screw (5/64-in.)
Procedure
1. Loosen the housing rotation set screw using a 5/64-in. hex wrench.
2. Rotate the housing clockwise to the desired location.
3. If the desired location cannot be achieved due to thread limit, rotate
the housing counterclockwise to the desired location (up to 360°
from thread limit).
4. Retighten the housing rotation set screw to no more than 7 in-lb
when it reaches the desired location.
2.3 Set the switches
Use the following procedure to change the switch configuration:
Set Simulate and Security switch configuration before installation as shown
in Figure 2-14.
•The Simulate switch enables or disables simulated alerts and simulated
AI Block status and values. The default Simulate switch position is
Enabled.
•The Security switch allows (unlocked symbol) or prevents (locked
symbol) any configuration of the transmitter.
Quick Start Guide January 2020
14 Rosemount 3051

—Default Security is Off (unlocked symbol).
—You can enable or disable the Security switch in the software.
Procedure
1. If the transmitter is installed, secure the loop and remove power.
2. Remove the housing cover opposite the field terminal side. Do not
remove the instrument cover in explosive atmospheres when the
circuit is live.
3. Slide the Security and Simulate switches into the preferred position.
4. Replace the housing cover.
Note
Emerson recommends tightening the cover until there is no gap between
the cover and the housing.
Figure 2-14: Simulate and Security Switches
C
A
B
D
E
F
A. Simulate disabled position
B. Simulate switch
C. Simulate enabled position
D. Security locked position
E. Security switch
F. Security unlocked position
2.4 Connect wiring and power up
Use copper wire of sufficient size to ensure that the voltage across the
transmitter power terminals does not drop below 9 Vdc. Power supply
voltage can be variable, especially under abnormal conditions, such as when
January 2020 Quick Start Guide
Quick Start Guide 15

operating on battery backup. Emerson recommends a minimum of 12 Vdc
under normal operating conditions and shielded twisted pair Type A cable.
Procedure
1. To power the transmitter, connect the power leads to the terminals
indicated on the terminal block label.
Figure 2-15: Wiring Terminals
DP
A
A
D
E
B
C
A. Minimize distance
B. Trim shield and insulate
C. Protective grounding terminal (do not ground cable shield at the
transmitter)
D. Insulate shield
E. Connect shield back to the power supply ground
Note
The Rosemount 3051 power terminals are polarity insensitive, which
means the electrical polarity of the power leads does not matter
when connecting to the power terminals. If polarity sensitive devices
are connected to the segment, follow terminal polarity. When wiring
to the screw terminals, Emerson recommends using crimped legs.
2. Ensure full contact with terminal block screw and washer. When
using a direct wiring method, wrap wire clockwise to ensure it is in
place when tightening the terminal block screw.
Quick Start Guide January 2020
16 Rosemount 3051

Note
Emerson does not recommend using a pin or ferrule wire terminal, as
the connection may be more susceptible to loosening over time or
under vibration.
2.4.1 Ground signal wiring
Do not run signal wiring in conduit or open trays with power wiring or near
heavy electrical equipment. Emerson provides grounding terminations on
the outside of the electronics housing and inside the terminal compartment.
Use these grounds when transient protect terminal blocks are installed or to
fulfill local regulations.
Procedure
1. Remove the field terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 2-15.
a) Trim the cable shield as short as practical and insulate from
touching the transmitter housing.
Note
Do not ground the cable shield at the transmitter; if the cable
shield touches the transmitter housing, it can create ground
loops and interfere with communications.
b) Continuously connect the cable shields to the power supply
ground.
c) Connect the cable shields for the entire segment to a single
good earth ground at the power supply.
Note
Improper grounding is the most frequent cause of poor
segment communications.
3. Replace the housing cover. Emerson recommends tightening the
cover until there is no gap between the cover and the housing.
4. Plug and seal unused conduit connections.
2.4.2 Power supply
The transmitter requires between 9 and 32 Vdc (9 and 30 Vdc for intrinsic
safety and 9 and 17.5 Vdc for FISCO intrinsic safety) to operate and provide
complete functionality.
January 2020 Quick Start Guide
Quick Start Guide 17

2.4.3 Power conditioner
A Fieldbus segment requires a power conditioner to isolate the power supply
filter and decouple the segment from other segments attached to the same
power supply.
2.4.4 Grounding
Signal wiring of the Fieldbus segment cannot be grounded. Grounding out
one of the signal wires will shut down the entire Fieldbus segment.
2.4.5 Shield wire ground
To protect the Fieldbus segment from noise, grounding techniques for
shield wire require a single grounding point for shield wire to avoid creating
a ground loop. Connect the cable shields for the entire segment to a single
good earth ground at the power supply.
2.4.6 Signal termination
For every Fieldbus segment, install a terminator at the beginning and end of
each segment.
2.4.7 Locating devices
Frequently, different personnel install, configure, and commission devices
over time. A Locate Device capability uses the LCD display (when installed)
to assist personnel in finding the desired device.
From the device Overview screen, select the Locate Device button. This
launches a method allowing you to display a Find me message or enter a
custom message to display on the device LCD display.
When you exit the Locate Device method, the device LCD display
automatically returns to normal operation.
Note
Some hosts do not support Locate Device in the DD.
2.5 Verifying configuration
Verify the configuration using any HART capable configuration tool or LOI
option code M4.
This section includes configuration instructions for a Field Communicator
and LOI. See Rosemount 3051 Reference Manual for instruction on
configuring with AMS Device Manager.
Quick Start Guide January 2020
18 Rosemount 3051

2.5.1 Verify configuration with a Field Communicator
You must install a Rosemount 3051 DD on the Field Communicator to verify
configuration.
Table 2-2 shows Fast Key sequences for the latest DD. For Fast Key
sequences using legacy DD's, contact your local Emerson representative.
Note
Emerson recommends installing the latest DD to access the complete
functionality. Visit Emerson.com/Field-Communicator for information on
updating the DD library.
Verify device configuration using the Fast Key sequences in Table 2-2.
Table 2-2: Device Revision 9 and 10 (HART 7), DD Revision 1 Fast Key Sequence
A check (✓) indicates the basic configuration parameters. At minimum, verify these parameters
as part of configuration and startup.
Function Fast Key sequence
HART 7 HART 5
✓Alarm and saturation levels 2, 2, 2, 5, 7 2, 2, 2, 5, 7
✓Damping 2, 2, 1, 1, 5 2, 2, 1, 1, 5
✓Range values 2, 2, 2 2, 2, 2
✓Tag 2, 2, 7, 1, 1 2, 2, 7, 1, 1
✓Transfer function 2, 2, 1, 1, 6 2, 2, 1, 1, 6
✓Units 2, 2, 1, 1, 4 2, 2, 1, 1, 4
Burst mode 2, 2, 5, 3 2, 2, 5, 3
Custom display configuration 2, 2, 4 2, 2, 4
Date 2, 2, 7, 1, 4 2, 2, 7, 1, 3
Descriptor 2, 2, 7, 1, 5 2, 2, 7, 1, 4
Digital to analog trim (4-20 mA output) 3, 4, 2 3, 4, 2
Disable configuration buttons 2, 2, 6, 3 2, 2, 6, 3
Rerange with keypad 2, 2, 2, 1 2, 2, 2, 1
Loop test 3, 5, 1 3, 5, 1
Lower sensor trim 3, 4, 1, 2 3, 4, 1, 2
Message 2, 2, 7, 1, 6 2, 2, 7, 1, 5
Scaled D/A trim (4-20 mA output) 3, 4, 2 3, 4, 2
Sensor temperature/trend (3051S) 3, 3, 3 3, 3, 3
January 2020 Quick Start Guide
Quick Start Guide 19

Table 2-2: Device Revision 9 and 10 (HART 7), DD Revision 1 Fast Key Sequence
(continued)
Function Fast Key sequence
HART 7 HART 5
Upper sensor trim 3, 4, 1, 1 3, 4, 1, 1
Digital zero trim 3, 4, 1, 3 3, 4, 1, 3
Password 2, 2, 6, 5 2, 2, 6, 4
Scaled variable 3, 2, 2 3, 2, 2
HART Revision 5 to HART Revision 7
switch
2, 2, 5, 2, 3 2, 2, 5, 2, 3
Long tag(1) 2, 2, 7, 1, 2 N/A
Find device(1) 3, 4, 5 N/A
Simulate digital signal(1) 3, 4, 5 N/A
(1) Only available in HART Revision 7 mode.
2.5.2 Verify configuration with LOI
You can use the optional LOI to commission the device. The LOI is a two-
button design with internal and external buttons. The internal buttons are
located on the display of the transmitter, while the external buttons are
located underneath the top metal tag.
To activate the LOI, push any button. The bottom corners of the display
show LOI button functionality. See Table 2-3 and Figure 2-16 for button
operation and menu information.

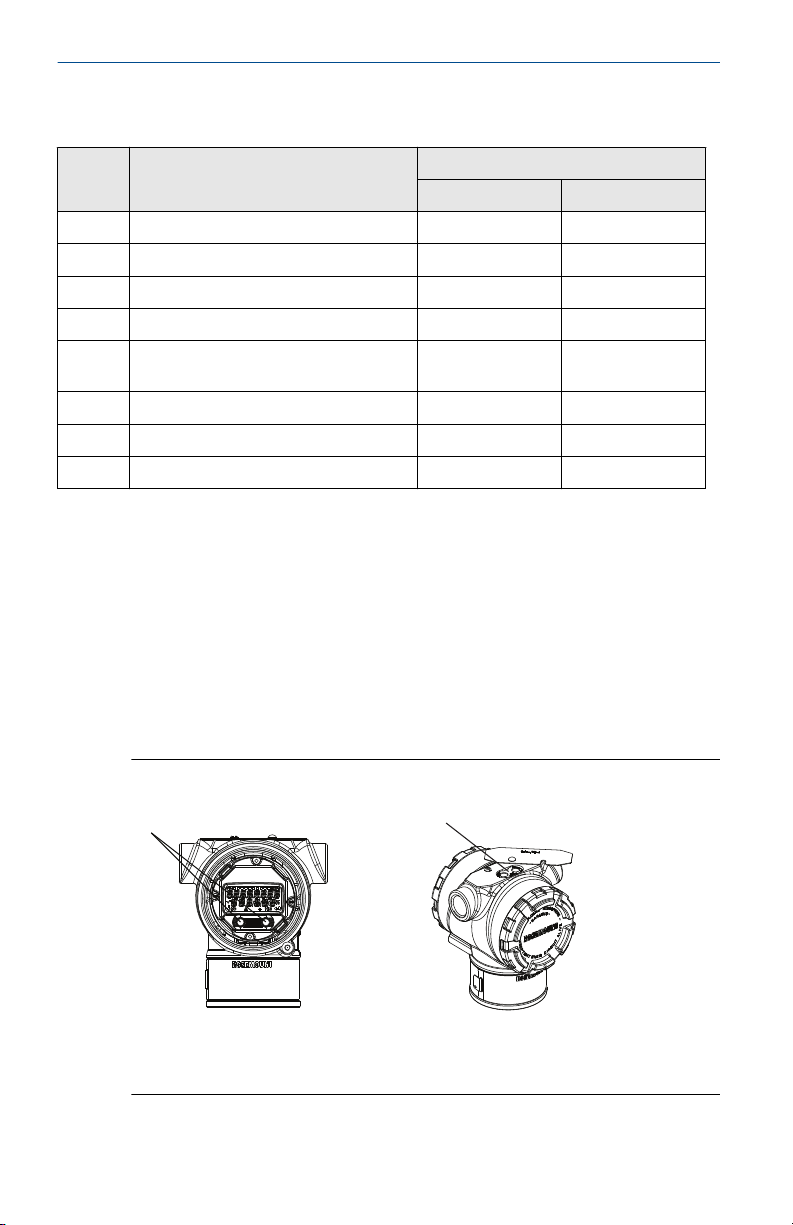

Figure 2-16: Internal and External LOI Buttons
A
B
A. Internal buttons
B. External buttons
Quick Start Guide January 2020
20 Rosemount 3051
