Emerson Rosemount 3051S Series User manual

Quick Start Guide
00825-0100-4805, Rev FD
March 2018

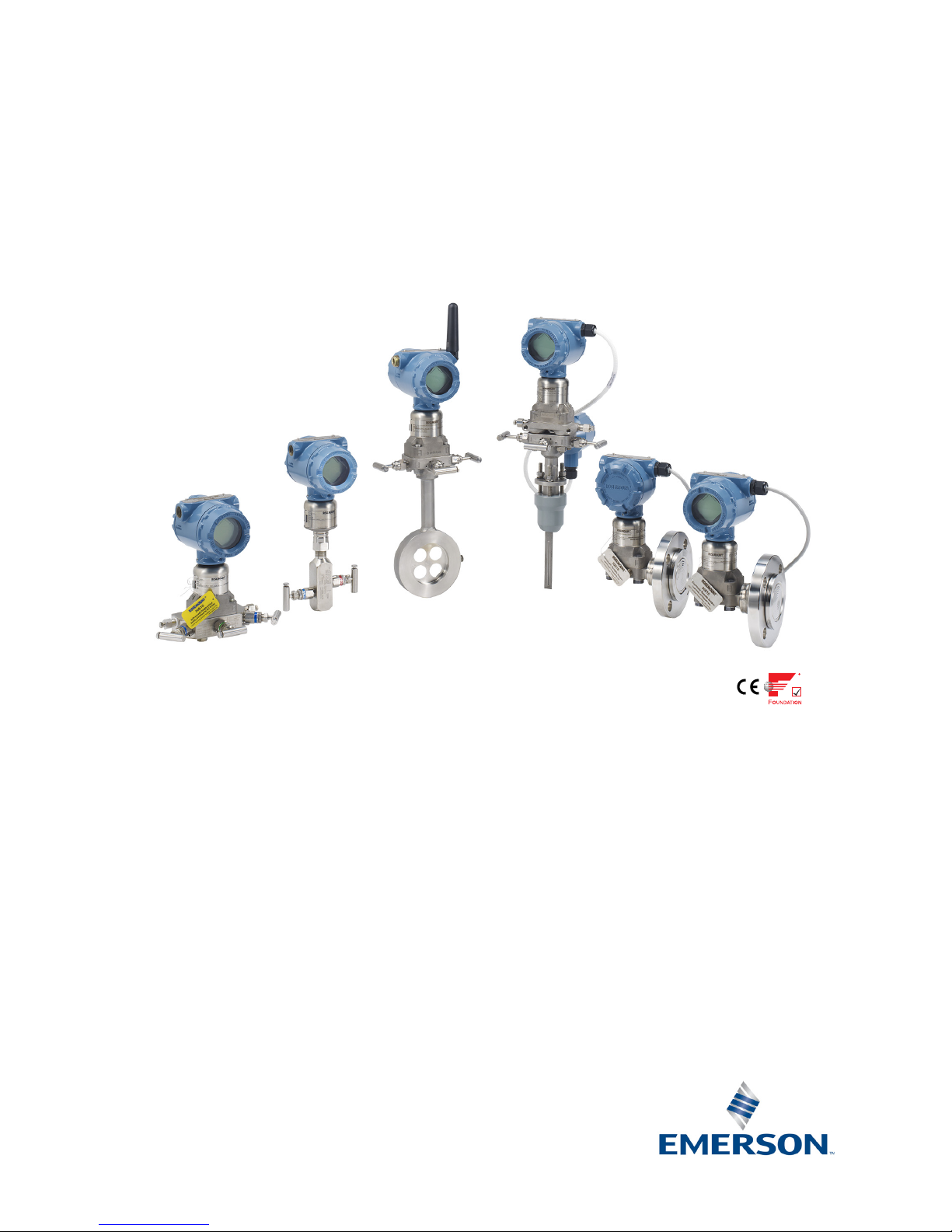

Rosemount™3051S Series Pressure Transmitter
and Rosemount 3051SF Series Flow Meter
with FOUNDATION™Fieldbus Protocol

March 2018
2
Quick Start Guide
NOTICE
This guide provides basic guidelines for Rosemount 3051S Series Pressure Transmitters. It also provides the
basic electronics guidelines for the Rosemount 3051SFA Reference Manual and Rosemount 3051SFC
Reference Manual. It does not provide instructions for configuration, diagnostics, maintenance, service,
troubleshooting. Refer to the Rosemount 3051S FOUNDATION Fieldbus Reference Manual for more
instruction. This document is also available electronically on Emerson.com/Rosemount.
Explosions can result in death or serious injury.
Do not remove the transmitter covers in explosive environments when the circuit is live.
Both transmitter covers must be fully engaged to meet explosion-proof requirements.
Make sure the instrument is installed in accordance with intrinsically safe or nonincendive field wiring
practices.
Process leaks may cause harm or result in death.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adaptor.
Electrical shock can result in death or serious injury.
Avoid contact with the leads and the terminals. High voltage that may be present on leads can cause electrical
shock.
Contents
Mount the transmitter . . . . . . . . . . . . . . . . . . . . 3
Tagging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Consider housing rotation . . . . . . . . . . . . . . . . . 8
Connect wiring and power up . . . . . . . . . . . . . . 8
Verify configuration . . . . . . . . . . . . . . . . . . . . . 10
To display level or flow, use AI block out. . . . . 11
Product Certifications . . . . . . . . . . . . . . . . . . . 13

Quick Start Guide
3
March 2018
1.0 Mount the transmitter
1.1 Liquid flow applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the
drain/vent valves are oriented upward.
1.2 Gas flow applications
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
1.3 Steam flow applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Flow
Flow
Flow
Flow

March 2018
4
Quick Start Guide
Figure 1. Panel and Pipe Mounting
Panel mount Pipe mount
Coplanar flange
Traditional flange
In-line
Housings
Plantweb™Junction box Remote mount display

Quick Start Guide
5
March 2018
1.4 Bolting considerations
If the transmitter installation requires assembly of the process flanges,
manifolds, or flange adaptors, follow these assembly guidelines to ensure a
tight seal for optimal performance characteristics of the transmitters. Use only
bolts supplied with the transmitter or sold by Emerson™as spare parts. Figure 2
illustrates common transmitter assemblies with the bolt length required for
proper transmitter assembly.
Figure 2. Common Transmitter Assemblies
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and optional flange adaptors
C. Transmitter with traditional flange and optional flange adaptors
D. Transmitter with coplanar flange and optional manifold and flange adaptors
Bolts are typically carbon steel or stainless steel. Confirm the material by
viewing the markings on the head of the bolt and referencing Table 1 on page 6.
If bolt material is not shown in Table 1 on page 6, contact the local Emerson
representative for more information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication and the stainless steel bolts are
coated with a lubricant to ease installation. However, no additional lubricant
should be applied when installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern.
See Table 1 on page 6 for initial torque value.
4. Torque the bolts to the final torque value using the same crossing pattern.
See Table 1 on page 6 for final torque value.
5. Verify the flange bolts are protruding through the isolator plate before
applying pressure.
A
4 × 1.75-in.
(44 mm)
D
4 × 1.75-in.
(44 mm)
4 × 2.25-in.
(57 mm)
C
4 ×1.75-in.
(44 mm) 4 ×1.50-in.
(38 mm)
B
4 × 2.88-in.
(73 mm)

March 2018
6
Quick Start Guide

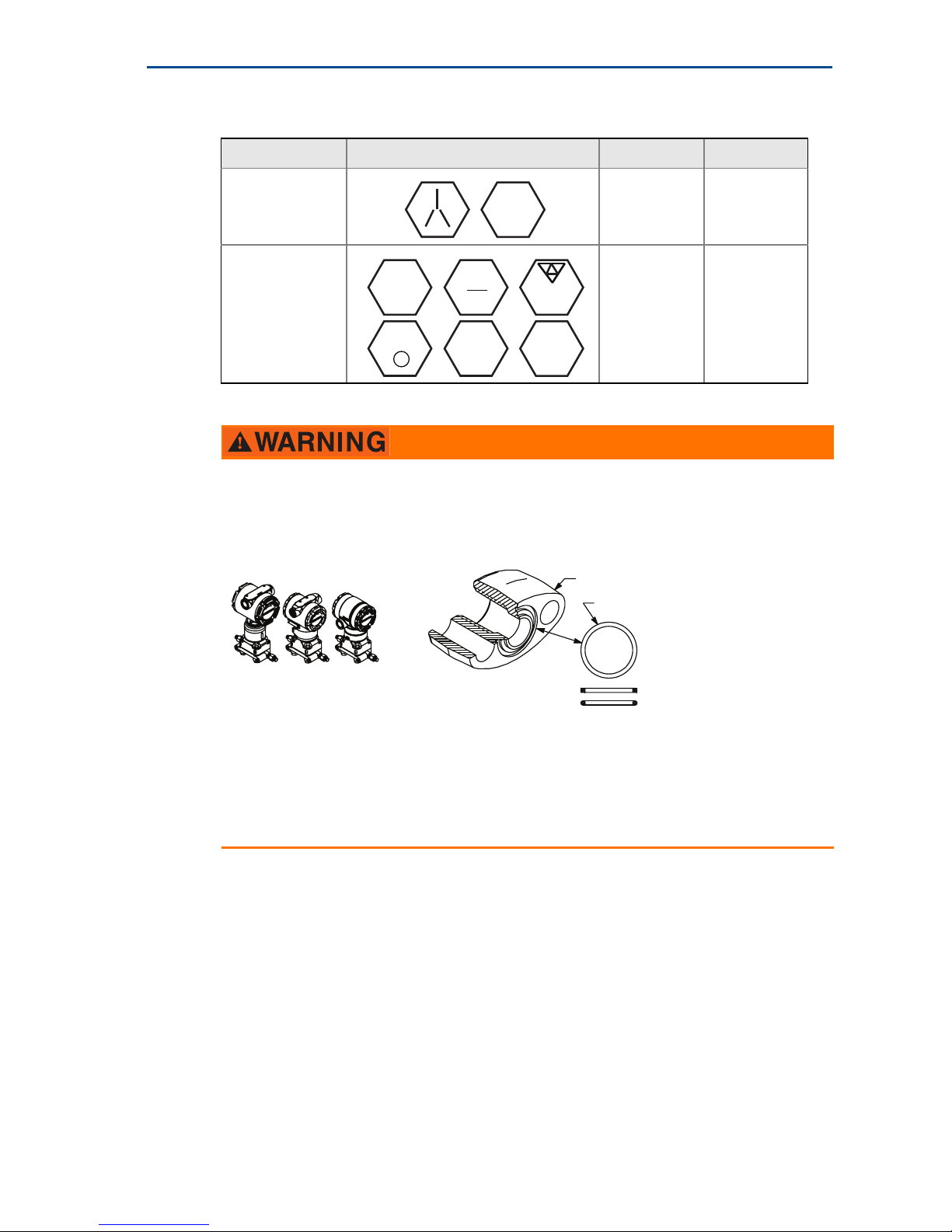

1.5 O-rings with flange adaptors
Table 1. Torque Values for the Flange and Flange Adaptor Bolts
Bolt material Head markings Initial torque Final torque
Carbon Steel (CS) 300 in-lb 650 in-lb
Stainless Steel
(SST) 150 in-lb 300 in-lb
Failure to install proper flange adaptor O-rings may cause process leaks, which can result in death or
serious injury. The two flange adaptors are distinguished by unique O-ring grooves. Only use the
O-ring that is designed for its specific flange adaptor, as shown below:
A. Flange adaptor
B. O-ring
C. PTFE based (profile is square)
D. Elastomer (profile is round)
Whenever the flanges or adaptors are removed, visually inspect the O-rings. Replace them if there
are any signs of damage, such as nicks or cuts. If you replace the O-rings, re-torque the flange bolts
and alignment screws after installation to compensate for seating of the PTFE O-ring.
B7M
316
316
316
SW
316
STM
316
R
B8M
A
B
C
Rosemount 3051S/3051/2051/4088
D

Quick Start Guide
7
March 2018
1.6 In-line gage transmitter orientation
The low side pressure port (atmospheric reference) on the in-line gage
transmitter is located under the sensor module neck label. (See Figure 3.)
Keep the vent path free of any obstruction, including but not limited to paint,
dust, and lubrication by mounting the transmitter so that any contaminants
can drain away.
Figure 3. In-line Gage Transmitter
A. Low side pressure port (under neck label)
2.0 Tagging
2.1 Commissioning (paper) tag
To identify which device is at a particular location, use the removable tag
provided with the transmitter. Ensure the physical device tag (PD Tag field) is
properly entered in both places on the commissioning tag. Tear off the
bottom portion of the tag and write “physical tag” on this portion. This can
now be given to the person who can associate the device ID to the desired
tag.
Figure 4. Commissioning Tag
Foundation Fieldbus revision ITK5
(default option)
Foundation Fieldbus revision ITK6
(option code IT6)
A
Revision: 23
Device Serial Number:
XXXXXXXXXX
Device ID:
0011513051010001440-121698091725
PD Tag:
Tear Here
COMMISSIONING TAG
Device ID:
0011513051010001440-121698091725
PD Tag:
PT- 101
Revision: 23
Support files available at
Emerson.com/Rosemount
PT-101
Support files available at
Emerson.com/Rosemount
Revision: 24
Device Serial Number:
XXXXXXXXXX
Device ID:
001151AA00010001440-121698091725
PD Tag:
Tear Here
COMMISSIONING TAG
Device ID:
001151AA00010001440-121698091725
PD Tag:
PT- 101
Revision: 24
Support files available at
Emerson.com/Rosemount
PT-101
Support files available at
Emerson.com/Rosemount

March 2018
8
Quick Start Guide
Note
The device description loaded in the host system must be at the same revision as this
device. The device description can be downloaded from Emerson.com/Rosemount or
Fieldbus.org.
3.0 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
1. Loosen the housing rotation set screw.
2. First, rotate the housing clockwise to the desired location. If the desired
location cannot be achieved due to thread limit, rotate the housing
counter clockwise to the desired location (up to 360° from thread limit).
3. Retighten the housing rotation set screw.
Figure 5. Transmitter Housing Set Screw
A. Housing rotation set screw (3/32-in.)
4.0 Connect wiring and power up
4.1 Cable connection
The segment cable can enter the transmitter through either conduit
connection on the housing. Cable entering the housing vertically should be
avoided. Drip loops are recommended for installations where moisture can
accumulate and enter the terminal compartment.
4.2 Power supply
The transmitter requires between 9 and 32 Vdc (9 and 17.5 Vdc for FISCO) at
the terminals to operate and provide complete functionality.
4.3 Power conditioner
A Fieldbus segment requires a power conditioner to isolate the power supply
filter and decouple the segment from other segments attached to the same
power supply.
PlantWeb
A

Quick Start Guide
9
March 2018
4.4 Signal termination
Every Fieldbus segment requires terminators at each end of the segment.
Failure to properly terminate segments may cause communication errors with
devices on the segment.
4.5 Transient protection
Transient protection devices require the transmitter be grounded for proper
operation. Refer to Grounding for further information.
4.6 Grounding
Grounding terminations are provided on the sensor module and inside the
terminal compartment. These grounds are used when transient protect
terminal blocks are installed or to fulfill local regulations.
1. Remove the FIELD TERMINALS housing cover.
2. Connect the wiring pair and ground as indicated in Figure 6.
a. The terminals are not polarity sensitive.
b. The cable shield should be:
Trimmed close and insulated from touching the transmitter housing
Continuously connected to the termination point
Connected to a good earth ground at the power supply end
Figure 6. Wiring
3. Replace the housing cover. It is recommended the cover be tightened until
there is no gap between the cover and the housing.
4. Plug and seal unused conduit connections.
A. Connect shield back to power supply ground C. Ground for transient protection
B. Trim shield and insulate D. Insulate shield
NOTICE
The enclosed pipe plug must be installed in unused conduit opening with a minimum of five thread
engagement to comply with explosion-proof requirements. Refer to the Rosemount 3051S
FOUNDATION Fieldbus Reference Manual for more information. This manual is also available
electronically on Emerson.com/Rosemount.
FIELDBUS WIRING
DP
B
D
A
C
Minimize distance

March 2018
10
Quick Start Guide
5.0 Verify configuration
Use the following block examples to do basic configuration to the transmitter.
For more advanced configurations see the Rosemount 3051S FOUNDATION
Fieldbus Reference Manual.
Note
DeltaV™users should use DeltaV Explorer for the resource and transducer blocks and
Control Studio for the function blocks.
5.1 To configure the AI block
AI block configuration parameters
Use the Pressure, DP Flow, and DP Level examples for guides.
Parameters Enter data
Channel 1 = Pressure or 2 = Sensor temp
L_Type Direct, indirect, or square root
XD_Scale Scale and engineering units
Pa bar inH2O @ 68 °F cmH2O @ 4 °C(1) inHg @ 0 °C
kPa mbar mmH2O @ 68 °F ftH2O(1) mmHg @ 0 °C
MPa atm ftH2O @ 68 °F inH2O(1) mmH2O @ 4 °C
hPa(1)
1. Only available with option IT6.
psf(1) inH2O @ 60 °F(1) g/cm2inH2O @ 4 °C
psi °C ftH2O @ 60 °F(1) kg/m2 (1) mHg @ 0 °C(1)
torr °F ftH2O @ 4 °C(1) kg/cm2cmHg @ 0 °C(1)
mH2O @ 4 °C(1)
Out_Scale Scale and engineering units

Quick Start Guide
11
March 2018
Pressure example
DP Flow example
DP Level example
To display pressure on the LCD meter
With option code IT6, select the “Pressure” check box on the display
configuration screen.
Note
To display level or flow, use AI block out.
Parameters Enter data
Channel 1
L_Type Direct
XD_Scale See list of supported engineering units.
Out_Scale Set values outside operating range.
Parameters Enter data
Channel 1
L_Type Square root
XD_Scale 0–100 inH2O @ 68 °F
Out_Scale 0–20 GPM
Parameters Enter data
Channel 1
L_Type Indirect
XD_Scale 0–300 inH2O @ 68 °F
Out_Scale 0–25 ft
Parameters Enter data
Display parameter 1
Block type #1 Sensor transducer block
Block tag Transducer
Param index Primary variable
Units type Auto

March 2018
12
Quick Start Guide
6.0 Trim the transmitter
Note
Transmitters are shipped fully calibrated per request or by the factory default of full
scale (span = upper range limit).
6.1 Zero trim
A zero trim is a single-point adjustment used for compensating mounting
position and line pressure effects. When performing a zero trim, ensure the
equalizing valve is open and all wet legs are filled to the correct level.
The transmitter will only allow three to five percent URL zero error to be
trimmed. For greater zero errors, compensate for the offset by using the
XD_Scaling, Out_Scaling and Indirect L_Type which are part of the AI block.
Using the host system
Perform a zero trim method if the host system supports methods associated
with the Transducer 1100 block. Otherwise, if the host system does not
support methods, see Rosemount 3051S FOUNDATION Fieldbus Reference
Manual.

Quick Start Guide
13
March 2018
7.0 Product Certifications
Rev 1.15
7.1 European Directive Information
A copy of the EU Declaration of Conformity can be found at the end of the Quick
Start Guide. The most recent revision of the EU Declaration of Conformity can
be found at Emerson.com/Rosemount.
7.2 Ordinary Location Certification
As standard, the transmitter has been examined and tested to determine that
the design meets the basic electrical, mechanical, and fire protection
requirements by a nationally recognized test laboratory (NRTL) as accredited by
the Federal Occupational Safety and Health Administration (OSHA).
7.3 Installing Equipment in North America
The US National Electrical Code®(NEC) and the Canadian Electrical Code (CEC)
permit the use of Division marked equipment in Zones and Zone marked
equipment in Divisions. The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined in
the respective codes.
7.4 USA
E5 FM Explosionproof (XP) and Dust-Ignitionproof (DIP)
Certificate: FM16US0090
Standards: FM Class 3600 – 2011, FM Class 3615 – 2006, FM Class 3616 – 2011,
FM Class 3810 – 2005, ANSI/NEMA®250 – 2003
Markings: XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III;
T5(–50 °C ≤Ta≤+85 °C); Factory Sealed; Type 4X
I5 FM Intrinsic Safety (IS) and Nonincendive (NI)
Certificate: FM16US0089X
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005, NEMA 250 – 2003
Markings: IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; Class 1,
Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D;
T4(–50 °C ≤Ta≤+70 °C) [HART]; T4(–50 °C ≤Ta≤+60 °C) [Fieldbus];
when connected per Rosemount drawing 03151-1006; Type 4X
Special Condition for Safe Use:
1. The Rosemount 3051S/3051S-ERS Pressure Transmitter contains aluminum and is
considered to constitute a potential risk of ignition by impact or friction. Care must be
taken into account during installation and use to prevent impact and friction.
Note
Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations using
general Division 2 wiring methods or Nonincendive Field Wiring (NIFW). See Drawing
03151-1006.

March 2018
14
Quick Start Guide
IE FM FISCO
Certificate: FM16US0089X
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005, NEMA 250 – 2003
Markings: IS CL I, DIV 1, GP A, B, C, D; T4(–50 °C ≤Ta≤+60 °C); when connected
per Rosemount drawing 03151-1006; Type 4X
Special Condition for Safe Use:
1. The Rosemount 3051S/3051S-ERS Pressure Transmitter contains aluminum and is
considered to constitute a potential risk of ignition by impact or friction. Care must
be taken into account during installation and use to prevent impact and friction.
7.5 Canada
E6 CSA Explosionproof, Dust-Ignitionproof, and Division 2
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966,
CSA Std C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91,
CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 213-M1987, ANSI/ISA
12.27.01-2003, CSA Std C22.2 No. 60529:05
Markings: Explosionproof Class I, Division 1, Groups B, C, D; Dust-Ignitionproof Class II,
Division 1, Groups E, F, G; Class III; suitable for Class I, Zone 1, Group IIB+H2,
T5; suitable for Class I, Division 2, Groups A, B, C, D; suitable for Class I, Zone
2, Group IIC, T5; when connected per Rosemount drawing 03151-1013;
Type 4X
I6 CSA Intrinsically Safe
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 30-M1986,
CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987,
CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003,
CSA Std C22.2 No. 60529:05
Markings: Intrinsically Safe Class I, Division 1; Groups A, B, C, D; suitable for
Class 1, Zone 0, IIC, T3C; when connected per Rosemount drawing
03151-1016 [3051S] 03151-1313 [ERS]; Type 4X
IF CSA FISCO
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 30-M1986,
CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987,
CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003,
CSA Std C22.2 No. 60529:05
Markings: FISCO Intrinsically Safe Class I, Division 1; Groups A, B, C, D; suitable for Class
1, Zone 0, IIC, T3C; when connected per Rosemount drawing 03151-1016
[3051S] 03151-1313 [ERS]; Type 4X

Quick Start Guide
15
March 2018
7.6 Europe
E1 ATEX Flameproof
Certificate: KEMA 00ATEX2143X
Standards: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-26:2015
Markings: II 1/2 G Ex d IIC T6…T4 Ga/Gb, T6(–60 °C ≤Ta≤+70 °C),
T5/T4(–60 °C ≤Ta≤+80 °C)
Special Conditions for Safe Use (X):
1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a
boundary between EPL Ga (process connection) and EPL Gb (all other parts of the
equipment). The model code and data sheet are to be consulted for details of the
diaphragm material. Installation, maintenance and use shall take into account the
environmental conditions to which the diaphragm will be subjected. The
manufacturer's instructions for installation and maintenance shall be followed in
detail to assure safety during its expected lifetime.
2. Flameproof joints are not intended for repair.
3. Non-standard paint options may cause risk from electrostatic discharge. Avoid
installations that could cause electrostatic build-up on painted surfaces, and only
clean the painted surfaces with a damp cloth. If paint is ordered through a special
option code, contact the manufacturer for more information.
4. Appropriate cable, glands and plugs need to be suitable for a temperature of 5 °C
greater than maximum specified temperature for location where installed.
I1 ATEX Intrinsic Safety
Certificate: BAS01ATEX1303X
Standards: EN 60079-0: 2012+A11:2013, EN 60079-11: 2012
Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500V test as defined in Clause 6.3.13 of EN 60079-11:2012. This
must be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree
of protection of at least IP20 in accordance with IEC/EN 60529.
Temperature class Process temperature
T6 –60 °C to +70 °C
T5 –60 °C to +80 °C
T4 –60 °C to +120 °C
Model UiIiPiCiLi
SuperModule™30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A

March 2018
16
Quick Start Guide
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact
or abrasion if located in a zone 0 area.
IA ATEX FISCO
Certificate: BAS01ATEX1303X
Standards: EN 60079-0: 2012+A11:2013, EN 60079-11: 2012
Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500V test as defined in Clause 6.3.13 of EN 60079-11:2012. This
must be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree
of protection of at least IP20 in accordance with IEC/EN 60529.
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact
or abrasion if located in a zone 0 area.
ND ATEX Dust
Certificate: BAS01ATEX1374X
Standards: EN 60079-0: 2012+A11:2013, EN 60079-31: 2009
Markings: II 1 D Ex ta IIIC T105 °C T500 95 °C Da, (–20 °C ≤Ta≤ +85 °C),
Vmax = 42.4 V
Special Conditions for Safe Use (X):
1. Cable entries must be used which maintain the ingress protection of the enclosure
to at least IP66.
2. Unused cable entries must be filled with suitable blanking plugs which maintain the
ingress protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient temperature
range of the apparatus and capable of withstanding a 7 J impact test.
4. The SuperModule(s) must be securely screwed in place to maintain the ingress
protection of the enclosure(s).
N1 ATEX Type n
Certificate: BAS01ATEX3304X
Standards: EN 60079-0: 2012+A11:2013, EN 60079-15: 2010
Markings: II 3 G Ex nA IIC T5 Gc, (–40 °C ≤Ta≤+85 °C), Vmax = 45 V
Special Condition for Safe Use (X):
1. The equipment is not capable of withstanding the 500 V insulation test required by
clause 6.5 of EN 60079-15:2010. This must be taken into account when installing
the equipment.
Note
RTD Assembly is not included with the Rosemount 3051SFx Type n Approval.
Parameter FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
Capacitance Ci0
Inductance Li0

Quick Start Guide
17
March 2018
7.7 International
E7 IECEx Flameproof and Dust
Certificate: IECEx KEM 08.0010X (Flameproof)
Standards: IEC 60079-0:2011, IEC 60079-1:2014, IEC 60079-26:2014
Markings: Ex db IIC T6…T4 Ga/Gb, T6(–60 °C ≤Ta≤+70 °C), T5/T4(–60 °C ≤Ta≤+80 °C)
Special Conditions for Safe Use (X):
1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a
boundary between EPL Ga (process connection) and EPL Gb (all other parts of the
equipment). The model code and data sheet are to be consulted for details of the
diaphragm material. Installation, maintenance and use shall take into account the
environmental conditions to which the diaphragm will be subjected. The
manufacturer's instructions for installation and maintenance shall be followed in
detail to assure safety during its expected lifetime.
2. Flameproof joints are not intended for repair.
3. Non-standard paint options may cause risk from electrostatic discharge. Avoid
installations that could cause electrostatic build-up on painted surfaces, and only
clean the painted surfaces with a damp cloth. If paint is ordered through a special
option code, contact the manufacturer for more information.
4. Appropriate cable, glands and plugs need to be suitable for a temperature of 5 °C
greater than maximum specified temperature for location where installed.
Certificate: IECEx BAS 09.0014X (Dust)
Standards: IEC 60079-0:2011, IEC 60079-31:2008
Markings: Ex ta IIIC T 105 °C T500 95 °C Da, (–20 °C ≤Ta≤+85 °C), Vmax = 42.4 V
Special Conditions for Safe Use (X):
1. Cable entries must be used which maintain the ingress protection of the enclosure
to at least IP66.
2. Unused cable entries must be filled with suitable blanking plugs which maintain the
ingress protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient temperature
range of the apparatus and capable of withstanding a 7 J impact test.
4. The Rosemount 3051S SuperModule must be securely screwed in place to maintain
the ingress protection of the enclosure.
I7 IECEx Intrinsic Safety
Certificate: IECEx BAS 04.0017X
Standards: IEC 60079-0: 2011, IEC 60079-11:2011
Markings: Ex ia IIC T4 Ga, T4(–60 °C ≤Ta≤+70 °C)
Temperature class Process temperature
T6 –60 °C to +70 °C
T5 –60 °C to +80 °C
T4 –60 °C to +120 °C
Model UiIiPiCiLi
SuperModule 30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 60 μH

March 2018
18
Quick Start Guide
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500V test as defined in Clause 6.3.13 of EN 60079-11:2012. This
must be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree
of protection of at least IP20 in accordance with IEC/EN 60529.
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in a zone 0 area.
I7 IECEx Intrinsic Safety – Group I - Mining (I7 with Special A0259)
Certificate: IECEx TSA 14.0019X
Standards: IEC 60079-0:2011, IEC 60079-11:2011
Markings: Ex ia I Ma (–60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. If the apparatus is fitted with optional 90 V transient suppressor, it is not capable of
withstanding the 500 V insulation test required by Clause 6.3.13 of
IEC60079-11:2011. This must be taken into account when installing the apparatus.
2. It is a condition of safe use that the above input parameters shall be taken into
account during installation.
3. It is a condition of manufacture that only the apparatus fitted with housing, covers
and sensor module housing made out of stainless steel are used in Group I
applications.
IG IECEx FISCO
Certificate: IECEx BAS 04.0017X
Standards: IEC 60079-0:2011, IEC 60079-11:2011
Markings: Ex ia IIC T4 Ga, T4(–60 °C ≤Ta≤+70 °C)
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A
Model UiIiPiCiLi
SuperModule 30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A
Model UiIiPiCiLi

Quick Start Guide
19
March 2018
Special Conditions for Safe Use (X):
1. The Model 3051S Transmitters fitted with transient protection are not capable of
withstanding the 500V test as defined in Clause 6.3.13 of EN 60079-11:2012. This
must be taken into account during installation.
2. The terminal pins of the Model 3051S SuperModule must be provided with a degree of
protection of at least IP20 in accordance with IEC/EN 60529.
3. The Model 3051S enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in a zone 0 area.
IG IECEx Intrinsic Safety – Group I - Mining (IG with Special A0259)
Certificate: IECEx TSA 14.0019X
Standards: IEC 60079-0:2011, IEC 60079-11:2011
Markings: FISCO FIELD DEVICE Ex ia I Ma (–60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. If the apparatus is fitted with optional 90 V transient suppressor, it is not capable of
withstanding the 500 V insulation test required by Clause 6.3.13 of
IEC60079-11:2011. This must be taken into account when installing the apparatus.
2. It is a condition of safe use that the above input parameters shall be taken into account
during installation.
3. It is a condition of manufacture that only the apparatus fitted with housing, covers and
sensor module housing made out of stainless steel are used in Group I applications.
N7 IECEx Type n
Certificate: IECEx BAS 04.0018X
Standards: IEC 60079-0:2011, IEC 60079-15:2010
Markings: Ex nA IIC T5 Gc, (–40 °C ≤Ta≤+85 °C)
Special Condition for Safe Use (X):
1. The equipment is not capable of withstanding the 500 V insulation test required by
clause 6.5 of EN 60079-15:2010. This must be taken into account when installing the
equipment.
Parameter FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
Capacitance Ci0
Inductance Li0
Parameter FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
Capacitance Ci0
Inductance Li0

March 2018
20
Quick Start Guide
7.8 Brazil
E2 INMETRO Flameproof
Certificate: UL-BR15.0393X
Standards: ABNT NBR IEC 60079-0:2008 + Corrigendum 1:2011,
ABNT NBR IEC 60079-1:2009 + Corrigendum 1:2011,
ABNT NBR IEC 60079-26:2008 + Corrigendum 1:2008
Markings: Ex d IIC T* Ga/Gb, T6(–60 °C ≤Ta≤+70 °C), T5/T4(–60 °C ≤Ta≤+80 °C),
IP66
Special Conditions for Safe Use (X):
1. The device contains a thin wall diaphragm. Installation, maintenance and use shall
take into account the environmental conditions to which the diaphragm will be
subjected. The manufacturer's instructions for installation and maintenance shall be
followed in detail to assure safety during its expected lifetime.
2. For information on the dimensions of the flameproof joints, the manufacturer shall
be contacted.
I2/IB INMETRO Intrinsic Safety/FISCO
Certificate: UL-BR 15.0392X
Standards: ABNT NBR IEC 60079-0:2008 + Errata 1:2011, ABNT NBR IEC 60079-11:2009
Markings: Ex ia IIC T4 Ga (–60 °C ≤Ta≤+70 °C), IP66
Special Condition for Safe Use (X):
1. The surface resistivity of the antenna is greater than 1 GÙ. To avoid electrostatic
charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.
2. The Model 701PBKKF Power Module may be replaced in a hazardous area. The
Power Module has a surface resistivity greater than 1 GÙ and must be properly
installed in the wireless device enclosure. Care must be taken during transportation
to and from the point of installation to prevent electrostatic charge build-up.
3. The 3051S enclosure may be made of aluminium alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact
or abrasion if located in areas that requires EPL Ga.
7.9 China
E3 China Flameproof and Dust Ignition-proof
Certificate: 3051S: GYJ16.1249X
3051SFx: GYJ16.1466X
3051S-ERS: GJY15.1406X
Model UiIiPiCiLi
SuperModule 30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S…F…IB; 3051SF…F…IB 17.5V 380 mA 5.32 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A
