EMKO EZM-7735 User manual

EZM-7735 72x72 DIN Programmable Timer
-
-
-
- Programmable Time Bases (Second, Minute, Hour)
6 digits Process (PV) and 6 digits Set (SV) Value Display
- Operation with 1 Set Value
- Reset , Pause and Start Inputs
Operation with Automatic and Manual Reset
NPN/PNP Type Operation
EZM-7735 72 x 72 DIN
Universal Input Programmable Timer
Introduction Manual. ENG EZM-7735 02 V03 01/17

2
a
c
i
Instruction manual of EZM-7735 Programmable Timer consists of two main sections.
Explanation of these sections are below. Also, there are other sections which include order
information and technical specifications of the device. All titles and page numbers in instruction
manual are in “CONTENTS” section. User can reach to any title with section number.
Installation:
In this section, physical dimensions of the device, panel mounting, electrical wiring,
module mounting in the device, physical and electrical installation of the device to the system are
explained.
Operation and Parameters:
In this section, user interface of the device, how to access to the parameters, description
of parameters are explained.
Also in these sections, there are warnings to prevent serious injury while doing the
physical and electrical mounting or using the device.
Explanation of the symbols which are used in these sections are given below.
This symbol is used to determine the dangerous situations as a result of an electric
shock. User must pay attention to these warnings definitely.
This symbol is used for safety warnings. User must pay attention to these
warnings.
This symbol is used to determine the important notes about functions and usage of
the device.
ABOUT INSTRUCTION MANUAL

1.PREFACE..................................................................................................................
1.1 GENERAL SPECIFICATIONS
1.2 ORDERING INFORMATION
1.3 WARRANTY
1.4 MAINTENANCE
2.INSTALLATION.........................................................................................................
2.1 GENERAL DESCRIPTION
2.2 DIMENSIONS
2.3 PANEL CUT-OUT
2.4 ENVIRONMENTAL RATINGS
2.5 PANEL MOUNTING
2.6 INSTALLATION FIXING CLAMP
2.7 REMOVING FROM THE PANEL
3.ELECTRICAL WIRINGS...........................................................................................

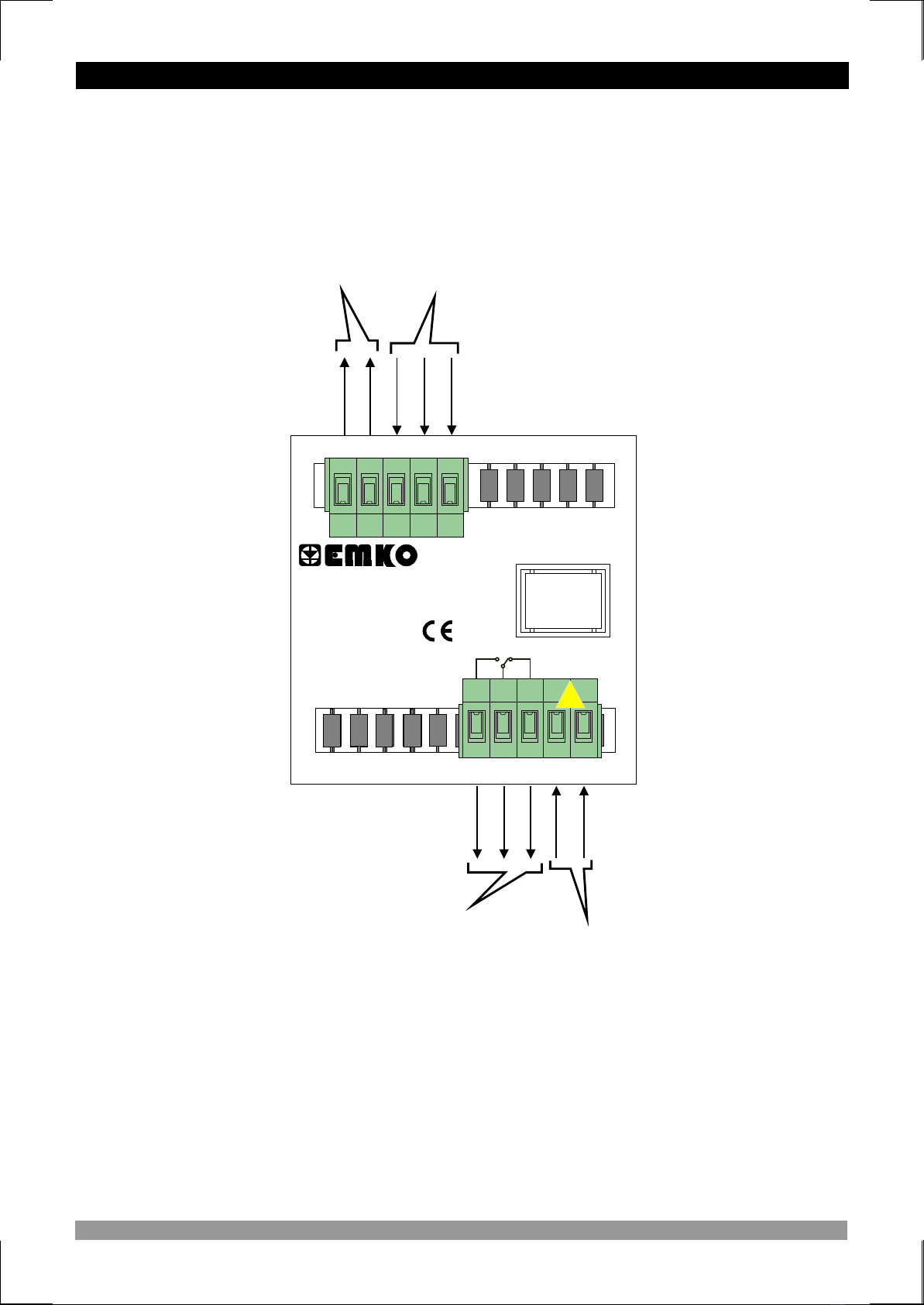

3.1 TERMINAL LAYOUT AND CONNECTION INSTRUCTION

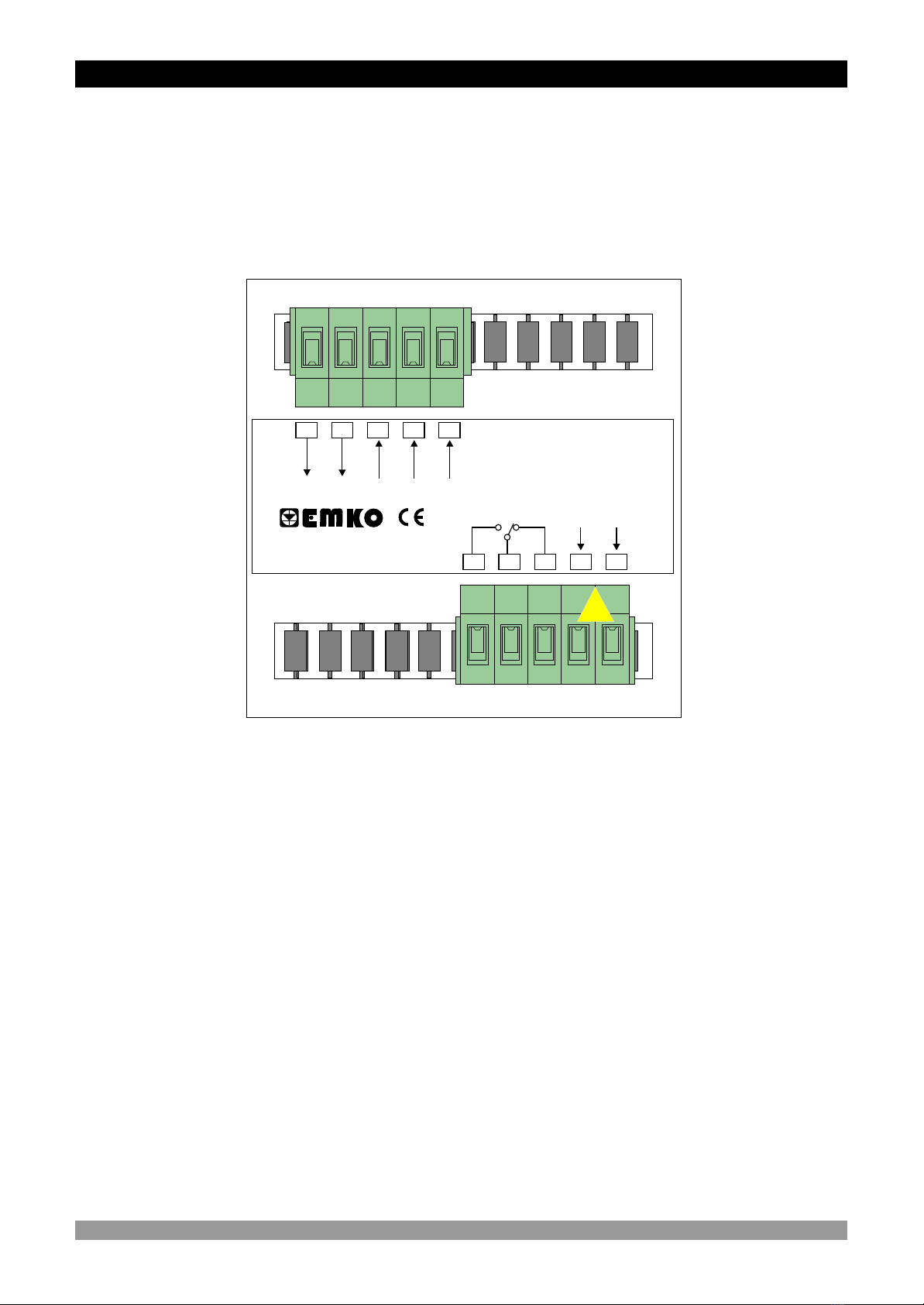

3.2 ELECTRICAL WIRING DIAGRAM
3.3 VIEW OF DEVICE LABEL
3.4 CONNECTION OF DEVICE SUPPLY VOLTAGE INPUT

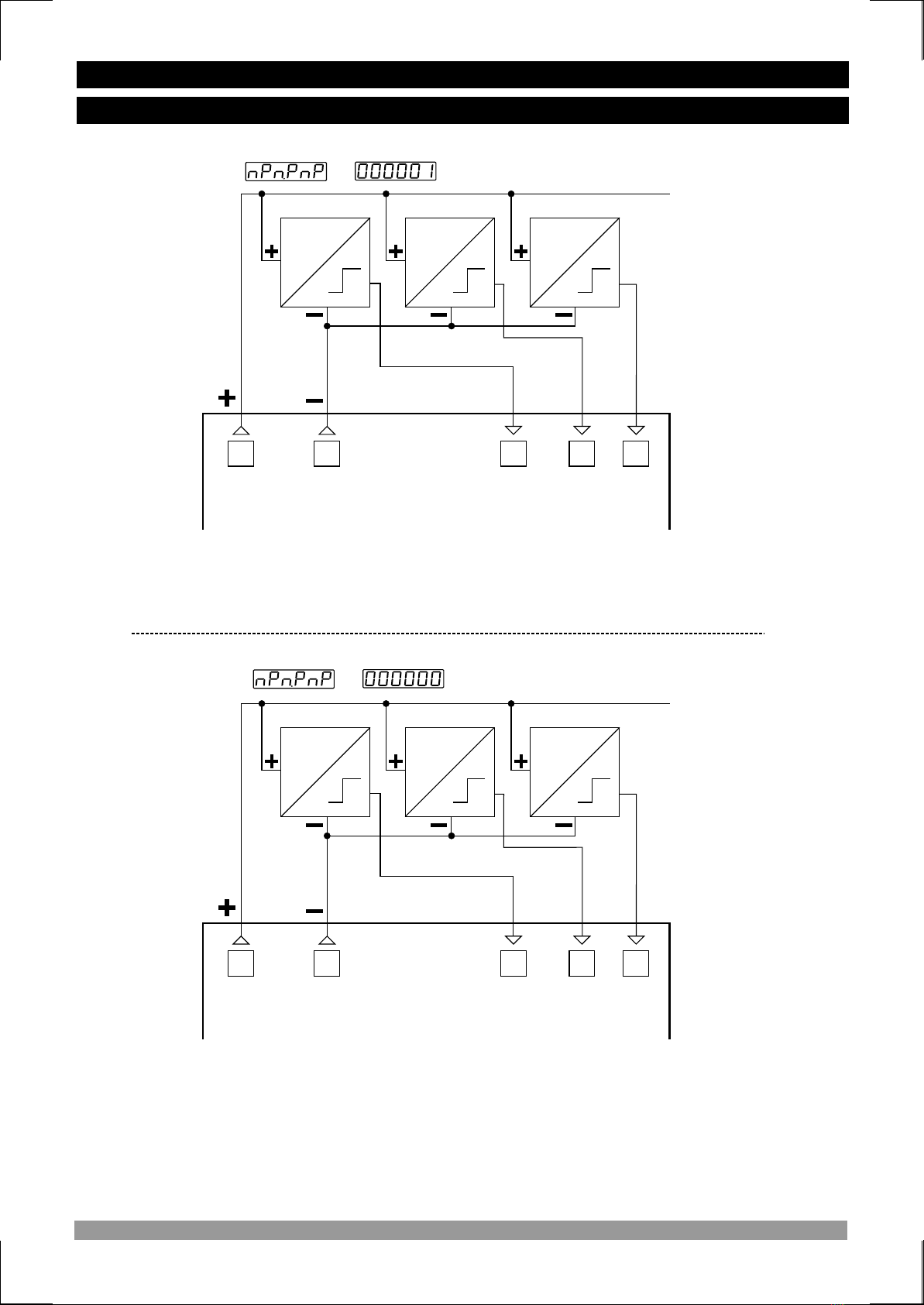

3.5 INPUT CONNECTION
3.5.1 PROXIMITY CONNECTION

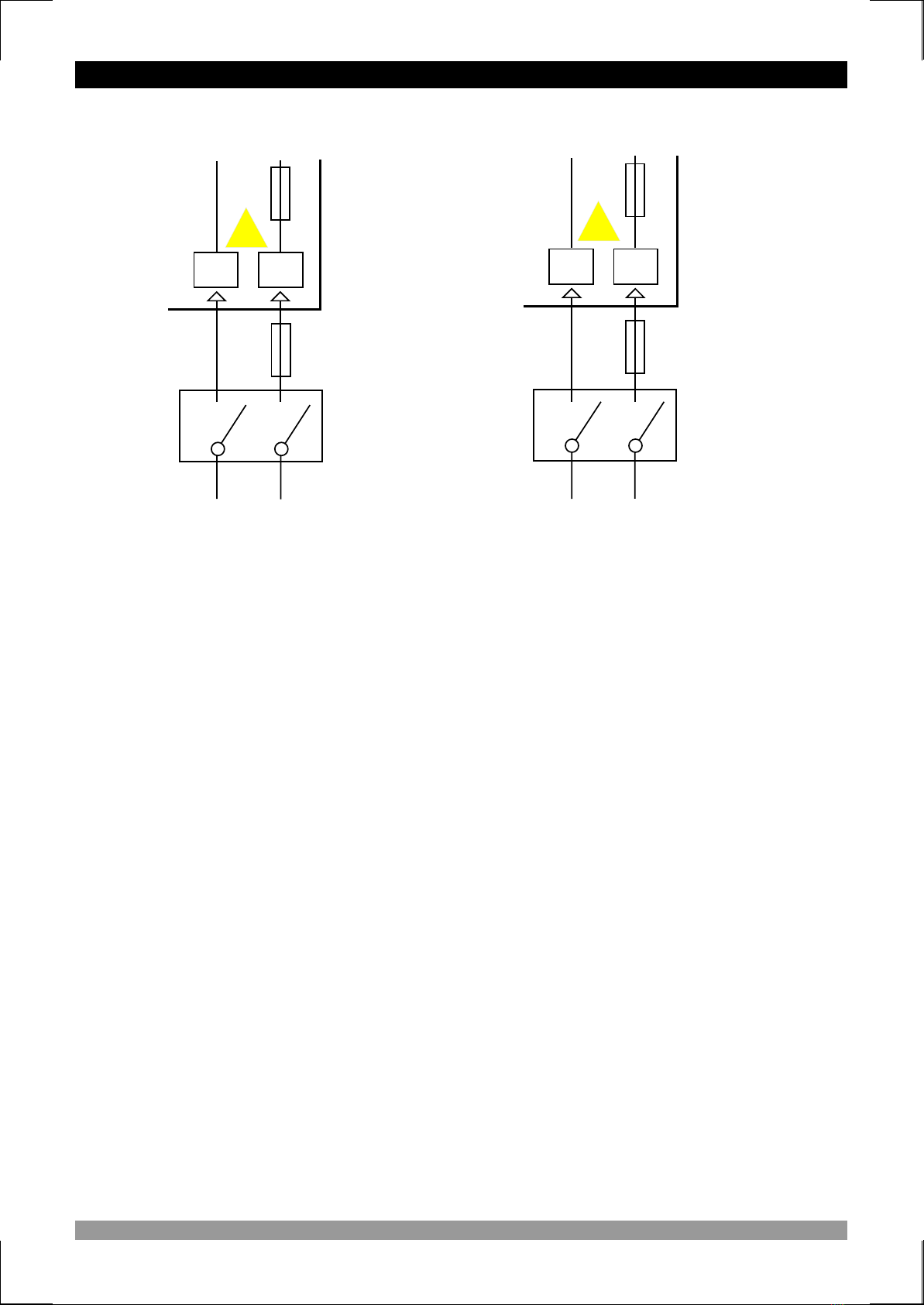

3.5.2 SWITCH CONNECTION
3.6 RELAY OUTPUT WIRING DIAGRAM
3.7 GALVANIC ISOLATION TEST VALUES OF EZM-7735 PROGRAMMABLE
TIMER

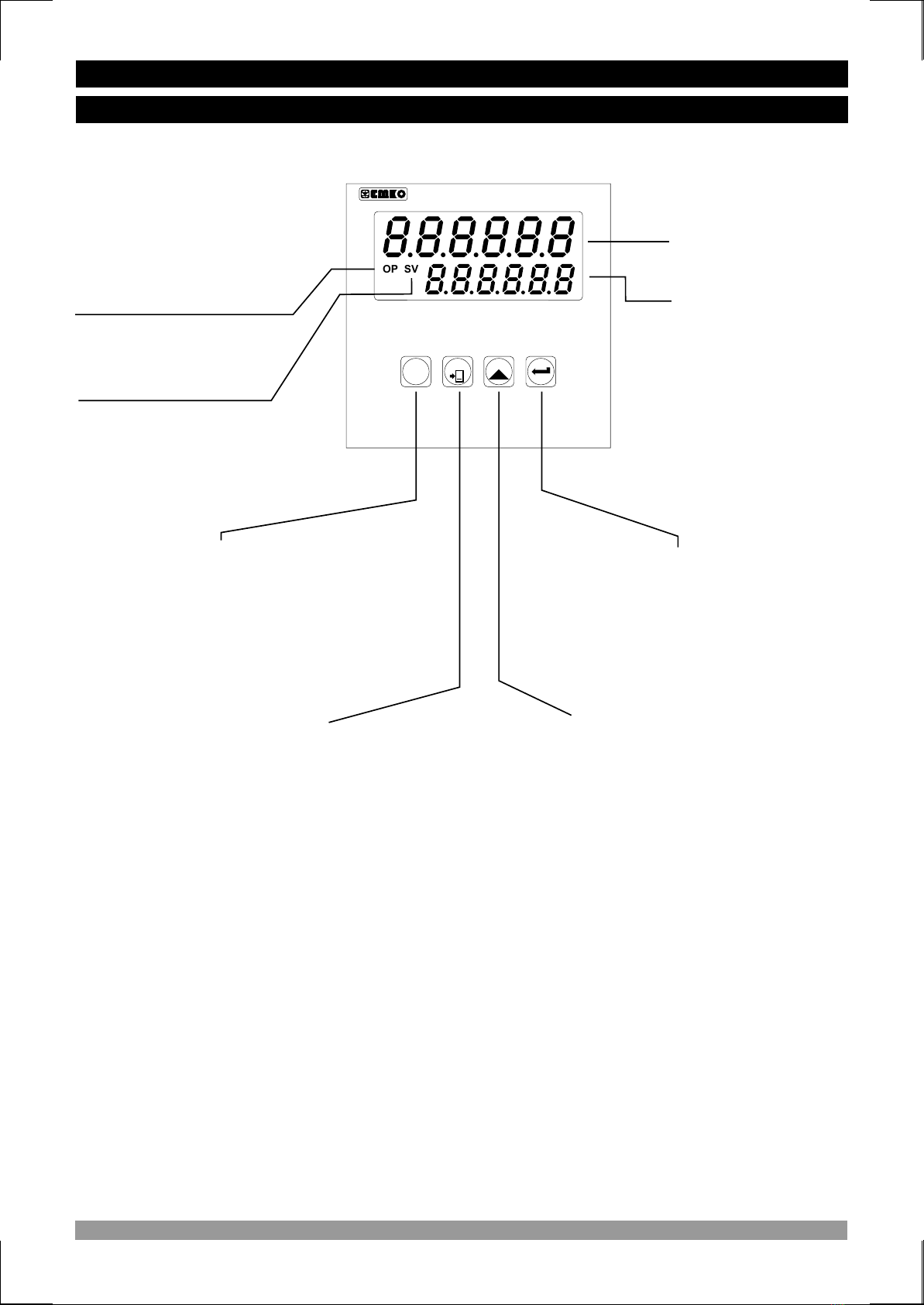

4.DEFINITION OF FRONT PANEL AND ACCESSING TO THE SET
PARAMETERS............................................................................................................
4.1 DEFINITION OF FRONT PANEL
4.2 POWER ON OBSERVATION OF EZM - 7735 PROGRAMMABLE TIMER
AND SOFTWARE REVISION ON THE DISPLAY
RESETTING COUNT VALUE
ACCESSING TO THE PROGRAM PARAMETERS
FAILURE MESSAGES IN EZM-7735 PROGRAMMABLE TIMER ..........................
4.3 ADJUSTMENT OF SET VALUE
4.4
4.5
5.PROGRAM PARAMETERS......................................................................................
6.
7.SPECIFICATIONS ....................................................................................................
8.OTHER INFORMATIONS..........................................................................................
CONTENTS
3
Page 5
Page 7
Page 12
Page 19
Page 27
Page 41
Page 43
Page 43

4
Manufacturer Company Name : Emko Elektronik A.S.
Manufacturer Company Address: DOSAB, Karanfil Sokak, No:6, 16369 Bursa, Turkiye
The manufacturer hereby declares that the product conforms to the following
standards and conditions.
Product Name : Programmable Timer
Model Number : EZM-7735
Type Number : EZM-7735
Product Category : Electrical equipment for measurement, control and
laboratory use
Conforms to the following directives :
2006 / 95 / EC The Low Voltage Directive
2004 / 108 / EC The Electromagnetic Compatibility Directive
has been designed and manufactured to the following specifications:
EN 61000-6-4:2007 EMC Generic Emission Standard for Industrial Environments
EN 61000-6-2:2005 EMC Generic Immunity Standard for Industrial Environments
EN 61010-1:2001 Safety Requirements for electrical equipment for measurement, control
and laboratory use
When and Where Issued Authorized Signature
th
16 October 2009 Name : Serpil YAKIN
Bursa-TURKEY Position : Quality Manager
EU DECLARATION OF CONFORMITY

1.Preface
1.1 General Specifications
5
Application Field
Package machines,
Quality Control rollers,
Filling Systems,
Building Automation.
Production bands
Tool Benchs,
EZM Series Programmable Timer can be used in package machines, production and
quality control rollers, and can be adapted easily to all mechanical construction and automation
system.
Some application fields which they are used are below:
Standart
EZM-7735
Standart
Supply Voltage
Input
230 V V50/60Hz
Optional Supply Input
115V V50/60Hz, 24V V50/60Hz,
24 V Z
Sensor Voltage
Output
Switch
Proximity Sensor
(NPN,PNP)
Optic Sensor
Reset, Pause and
Start Inputs
Switch
Proximity Sensor(NPN,PNP)
Optic Sensor(NPN,PNP)
Output Control Output(Relay)

6
1.2 Ordering Information
EzM-7735 ( 72x72 DIN)
A BC D E FG HI /
/
U V W Z/
/
All order information of EZM-7735
Programmable Timer are given on the table
at left. User may form appropriate device
configuration from information and codes
that at the table and convert it to the ordering
codes.
Supply voltage must be determined
for your system.
Please fill the order code blanks
according to your needs.
Please contact us, if your needs are
out of the standards.
100 0 0
Supply VoltageA
V Symbol means Vac
ZSymbol means Vdc
c
0 0 0
00 00
Output-1E
Relay Output (5A @ 250 V V) Rezistive Load
1
1.3 Warranty
EMKO Elektronik warrants that the equipment delivered is free from defects in material and
workmanship. This warranty is provided for a period of two years. The warranty period starts from
the delivery date. This warranty is in force if duty and responsibilities which are determined in
warranty document and instruction manual performs by the customer completely.
1.4 Maintenance
Repairs should only be performed by trained and specialized personnel. Cut power to the device
before accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of
these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl
alcohol or water to clean the external plastic case.
24 V V(-%15;+%10) 50/60Hz
115 V V(-%15;+%10) 50/60Hz
3
4
Customer (Maximum 240V V(-%15;+%10))50/60Hz
9
230V V(-%15;+%10) 50/60Hz
5
24 V V(-%15;+%10) 50/60Hz 24 VZ(-%15;+%10)
2

7
In package ,
- One piece unit
- Two pieces mounting clamps
- One piece instruction manual
A visual inspection of this product for possible damage occured during shipment is
recommended before installation. It is your responsibility to ensure that qualified
mechanical and electrical technicians install this product.
If there is danger of serious accident resulting from a failure or defect in this unit, power
off the system and separate the electrical connection of the device from the system.
The unit is normally supplied without a power switch or a fuse. Use power switch and fuse
as required.
Be sure to use the rated power supply voltage to protect the unit against damage and to
prevent failure.
Keep the power off until all of the wiring is completed so that electric shock and trouble
with the unit can be prevented.
Never attempt to disassemble, modify or repair this unit. Tampering with the unit may
results in malfunction, electric shock or fire.
Do not use the unit in combustible or explosive gaseous atmospheres.
During the equipment is putted in hole on the metal panel while mechanical installation
some metal burrs can cause injury on hands, you must be careful.
Montage of the product on a system must be done with it’s fixing clamps. Do not do the
montage of the device with inappropriate fixing clamp. Be sure that device will not fall
while doing the montage.
It is your responsibility if this equipment is used in a manner not specified in this
instruction manual.
Before beginning installation of this product, please read the instruction
manual and warnings below carefully.
2.Installation
c

8
2.1 General Description

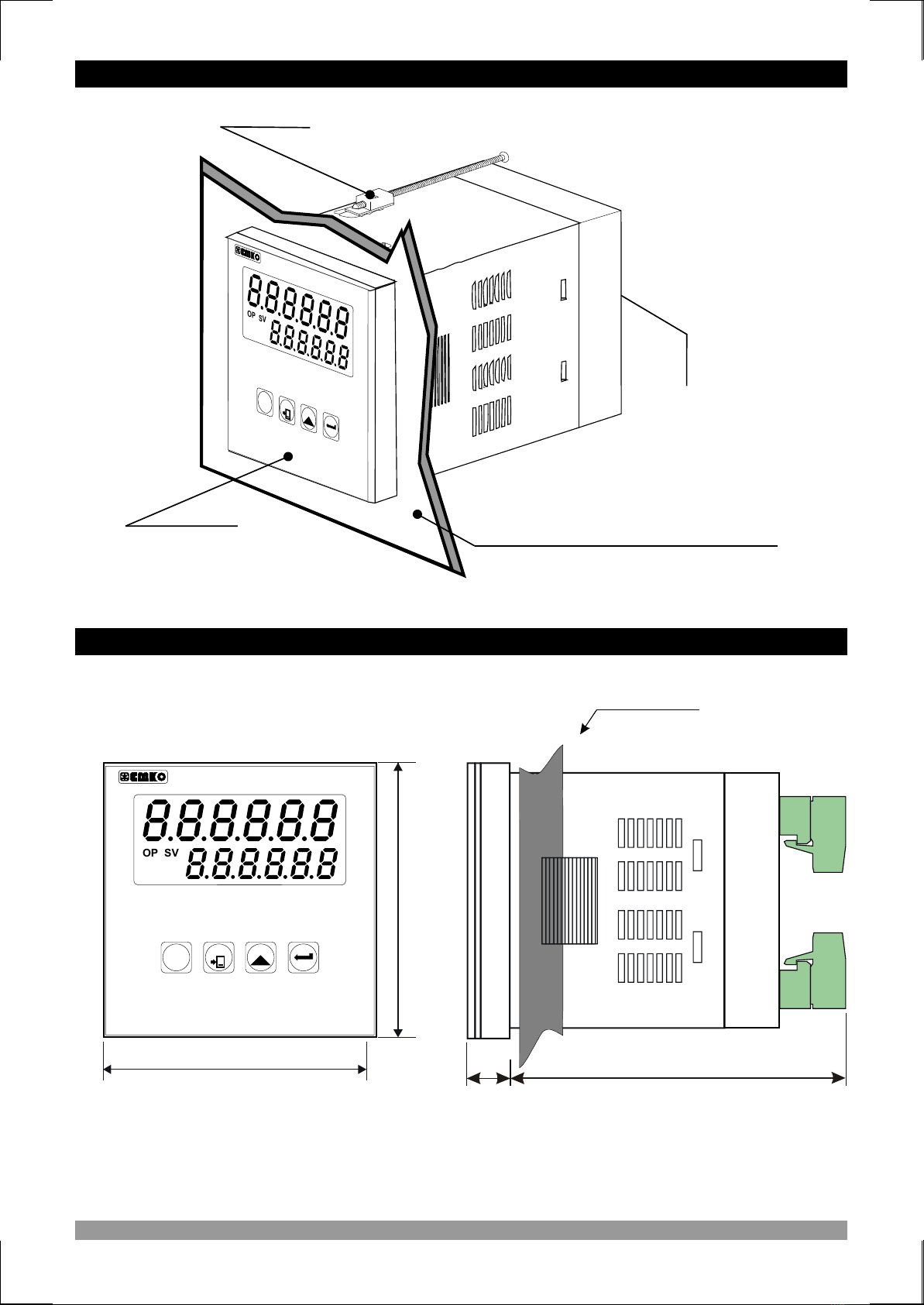

2.2 Dimensions
72 mm / 2.83 inch
72 mm / 2.83 inch
OP SV
O2 S2
Timer
EZM-7735
RESET
PSET
OPVS
2OS2
iTer
m
Z- 735E M 7
EET
RS
PSET
Maximum 15 mm / 0.59 inch
84 mm / 3.31 inch
11.5 ± 1 mm / 0.45 inch
Front Panel
IP65 protection
NEMA 4X
Panel surface
(maximum thickness 15 mm / 0.59 inch)
Mounting Clamp
Device Label

10
2.3 Panel Cut-out
9
97 mm / 3.82 inch (min)
69 mm / 2.72 inch
69 mm / 2.72 inch
97 mm / 3.82 inch (min)

c
10
Operating Temperature : 0 to 50 °C
Max. Operating Humidity : 90% Rh (non-condensing)
Altitude : Up to 2000m.
Operating Conditions
Forbidden Conditions:
Corrosive atmosphere
Explosive atmosphere
Home applications (The unit is only for industrial applications)
2.4 Environmental Ratings

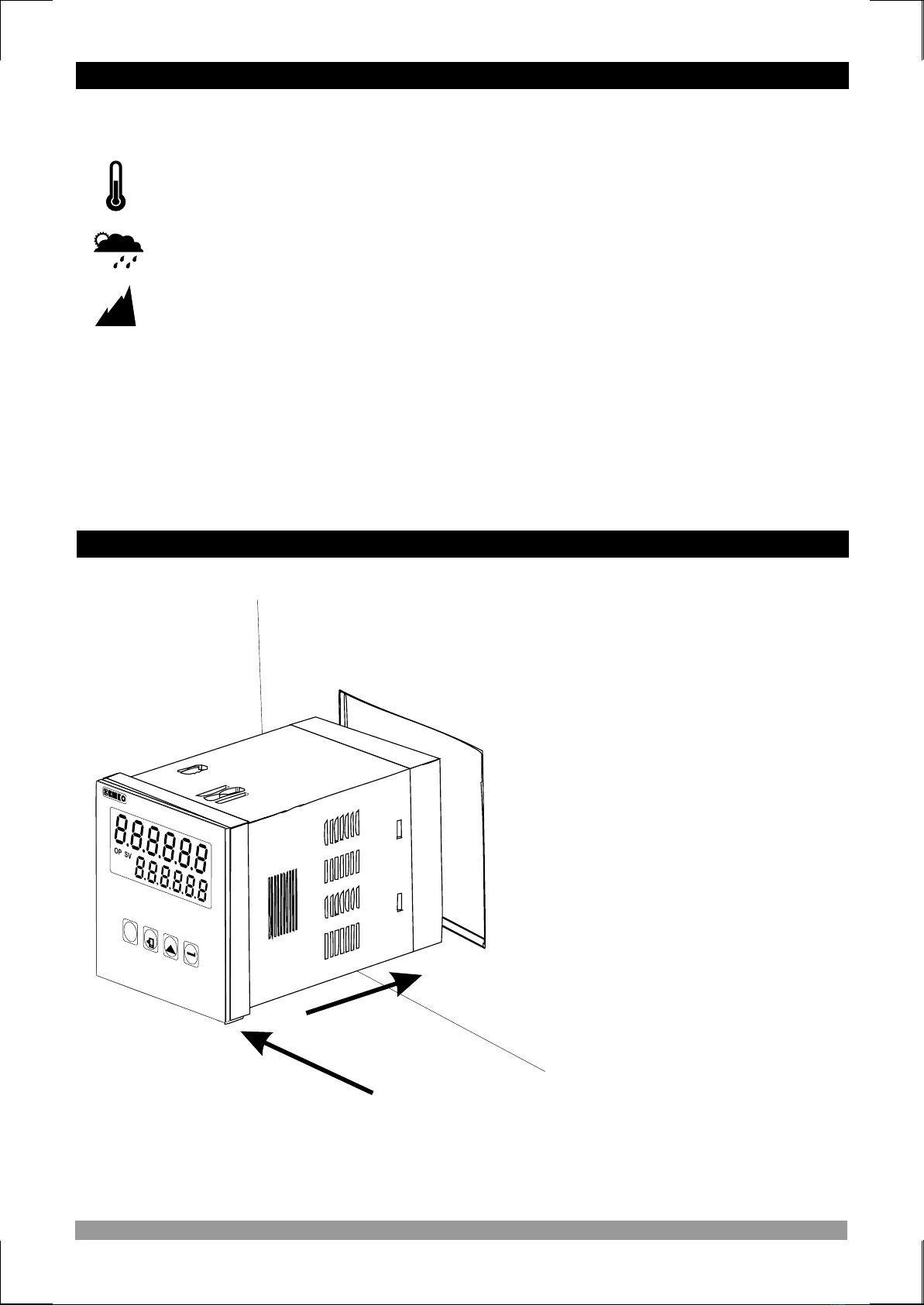

2.5 Panel Mounting
c
1-Before mounting the device in
your panel, make sure that the
cut-out is the right size.
2-Check front panel gasket
position
3-Insert the device through the
cut-out. If the mounting clamps
are on the unit, put out them
before inserting the unit to the
panel.
During installation into a metal panel, care should be taken to avoid injury from
metal burrs which might be present. The equipment can loosen from vibration
and become dislodged if installation parts are not properly tightened. These
precautions for the safety of the person who does the panel mounting.
1
2
3
OP SV
O2S2
imer
T
Z73
5
E-7M
ET
RES
PSET
